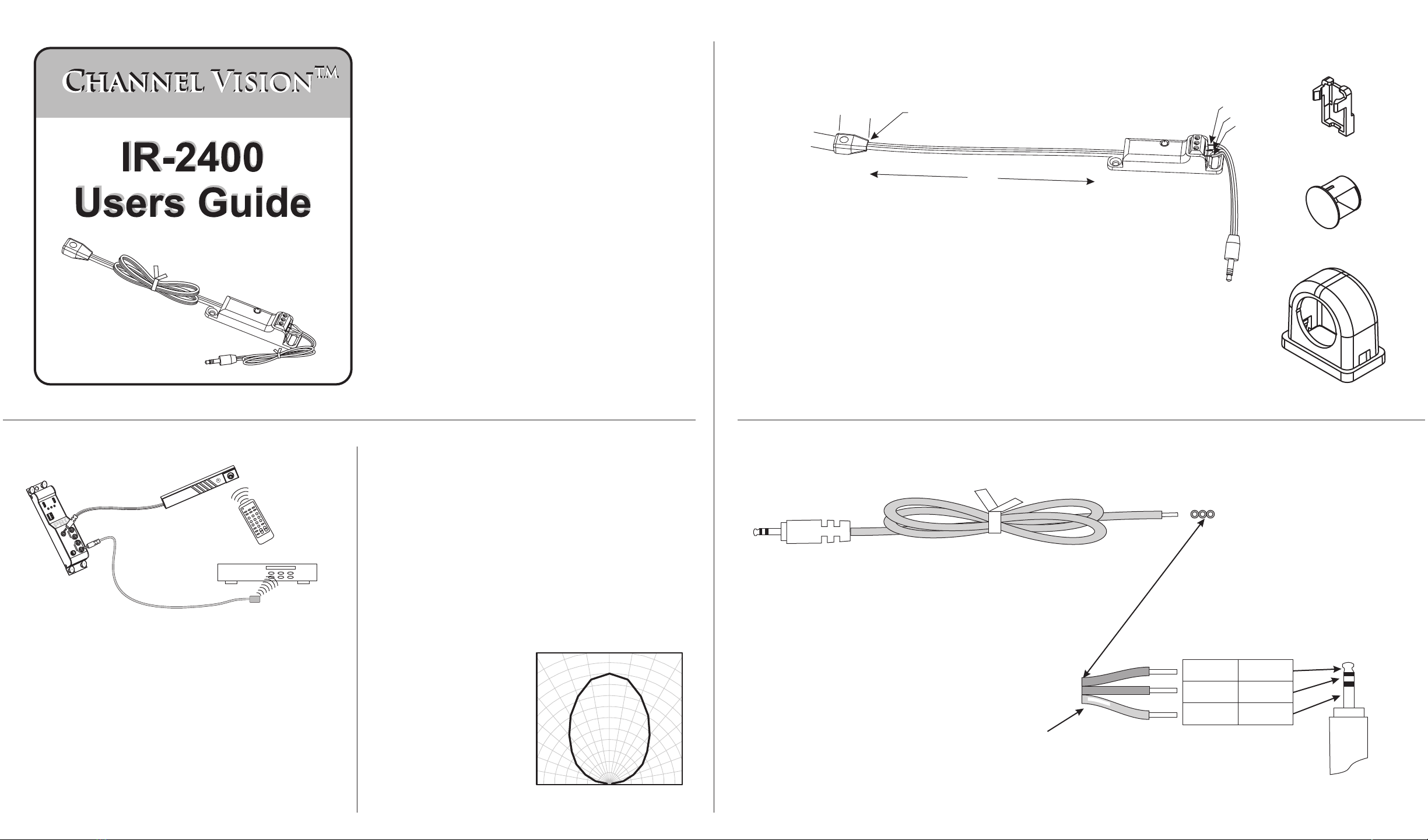

Channel Vision IR-2400 User manual

1 2 3
456
7 8 9
0
Power
Be sure the emitter is attached directly over the component’s IR receiver.
To locate the IR receiver, shine a flashlight into the unit and look for the
sensor.
How IR repeating works
Specifications: (typical)
Voltage Requirements:
IR Freq. range supported:
IR pickup range:
IR receiver head dimensions:
Color:
8 - 12 VDC
30 kHz - 60 kHz
40 ft. @ 38kHz, 25 ft. @ 56kHz
0.65” x 0.35” x 0.25”
Black
Specifications subject to change without notice.
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not
supplied by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only to the
original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-
0288 toll free. A Return Authorization number must be obtained in advance and
can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights
(which vary from state to state). If a problem with this product develops during or
after the warranty period, please contact Channel Vision Technology, your dealer
or any factory-authorized service center.
The IR-2400 includes these items:
500-153 rev C
1 - IR receiver holster
1 - hole mount
1 - tabletop mount
IR receiver head
+V
Gnd.
Sig.
36”
Features:
!
!
!
Plasma Proof IR receiver
Status LEDs for IR signal indication
Versatile mounting accessaries: Install as
Very small receiver
In-cabinet tube type receiver
Unobtrusive desktop type receiver
+V
(white dash or brown wire)
End view
ribbon cable
Ring
Tip
Collar
+V
Gnd
Sig
Typical IR receiver
connections (ref only)
IR receiver wire pinout
Point an
IR remote control
at the IR receiver
The IR receiver is wired to
the IR hub which routes the
signal to IR emitters
CD player
And the emitter
repeats the IR signal
in the other room.
IR Receiver
Model
P-1205
Pwr
Expansion
Global Zone
Zone
Global
Emitters
+12DC
250mA
IR
Receiver
C
V
HA N N E L
ISI O NT M
0.65”
0.35”
+V = brown wire
CAUTION: DO NOT attempt to cut or extend this
wire. Doing so will prevent the unit from working.
0.4 0.2 0 0.2 0.4 0.6 0.6
0.9
1.0
0.8
0.7
drel – Relative Transmission Distance
10º 20º 30º
40º
50º
60º
70º
80º
0º
Under ideal conditions,
ranges of >40 feet are
possible.
Directivity of IR Sensor
The effective receive distance of all IR receivers changes
when the IR remote control is not directly in front of the IR
sensor.
The graph below describes the performance of the IR sensor
device used in this Channel Vision IR receiver. Please note
that the graph below marks the distance as a percentage of
the maximum distance. So at 0º, the distance is 1.0 (or 100%)
and at 30º, the distance is 0.7 (or 70%) and so on.
Actual transmission distances are dependent upon frequency
of remote control (40kHz has max range) and luminosity of
remote control (i.e. Some remotes are brighter than others.)

Drill a 3/4” .hole
Push the IR receiver head
through the hole.
Push the IR receiver head
through the hole in the
tabletop mount.
Mount the IR receiver to the TV or on a surface within line of sight
of your remote control.
Remove the backing from the tape and attach the
IR receiver holster in the desired location.
Snap IR receiver head into the holster
as shown.
Push the IR receiver hole
mount and IR receiver head
back into the hole.
Push the IR receiver hole
mount and IR receiver head
back into the hole in the tabletop
mount.
To secure the mount, remove
the backing from the foam tape
on the bottom of the unit and
attach the mount to any flat surface.
Insert the IR receiver head
into the IR receiver hole mount. Insert the IR receiver head
into the IR receiver hole mount.
Mounting the IR receiver: Option 1 - Using the holster
Mounting the IR receiver: Option 3 - Using the tabletop mountMounting the IR receiver: Option 2 - Using the hole mount
Using the IR-2400 with the P-1205
IR Receiver
Model
P-1205
Pwr
Expansion
Global Zone
Zone
Global
Emitters
+12DC
IR
Receiver
C
V
H A N N E L
IS I O NTM
Sat radio
DVD player
CD player
Receiver
The IR-2400 can be directly connected
to the P-1205 in two different ways:
1) Through the 3.5mm jack
2) Through the screw terminal connector
For larger systems, a parallel connecting
block such as the C-1201(not shown)
can be used to connect several IR
receivers to the IR input of the P-1205.
Note: Match the Signal,
Ground, and +Voltage
terminals on the IR-2400
with the corresponding
terminals on the P-1205
1 2 3
456
7 8 9
0
Power
