Intimidator™ FX 350 QRG EN
2
About T
his
Guide
The Intimidator™ FX 350
Quick Reference Guide (QRG) has basic product
information such as mounting, menu options, and DMX values. Download
the User Manual from www.chauvetlighting.com for more details.
Disclaimer
The information and specifications contained in this QRG
are subject to
change without notice.
Safety Notes These Safety Notes include important information about
installation, use,
and maintenance.
•This product is not intended for permanent installation.
•ONLY connect this product to a grounded and protected circuit.
•Always disconnect from power before cleaning or replacing the fuse.
•DO NOT look at the light source when the product is on.
•Make sure the power cord is not crimped or damaged.
•Never disconnect this product from power by pulling on the cord.
•When mounting this product overhead, use a safety cable.
•DO NOT allow flammable materials close to the unit while operating.
•
DO NOT touch this product when it is operating because it may be hot.
•The voltage of the outlet to which you are connecting this product must
be within the range stated on the decal or rear panel of the product.
•This product is for indoor use only! (IP20) To prevent risk of fire or
shock, do not expose this product to rain or moisture.
•Always mount this product in a location with adequate ventilation, at
least 20 in (50 cm) from adjacent surfaces.
•Be sure that no ventilation slots on the unit’s housing are blocked.
•Never connect this product to a dimmer or rheostat.
•Replace the fuse with another of the same type and rating.
•ONLY use the hanging/mounting bracket or the handles to carry this
product.
•The maximum ambient temperature is 104 °F (40 °C). Do not operate
this product at higher temperatures.
•In the event of a serious operating problem, stop using immediately.
•
DO NOT open this product. It contains no user-serviceable parts.
Contact
Outside the U.S., United Kingdom, Ireland, or Mexico,
contact your
distributor to request support or return a product. Visit
www.chauvetlighting.com for contact information.
All manuals and user guides at all-guides.com

EN Intimidator™ FX 350 QRG
3

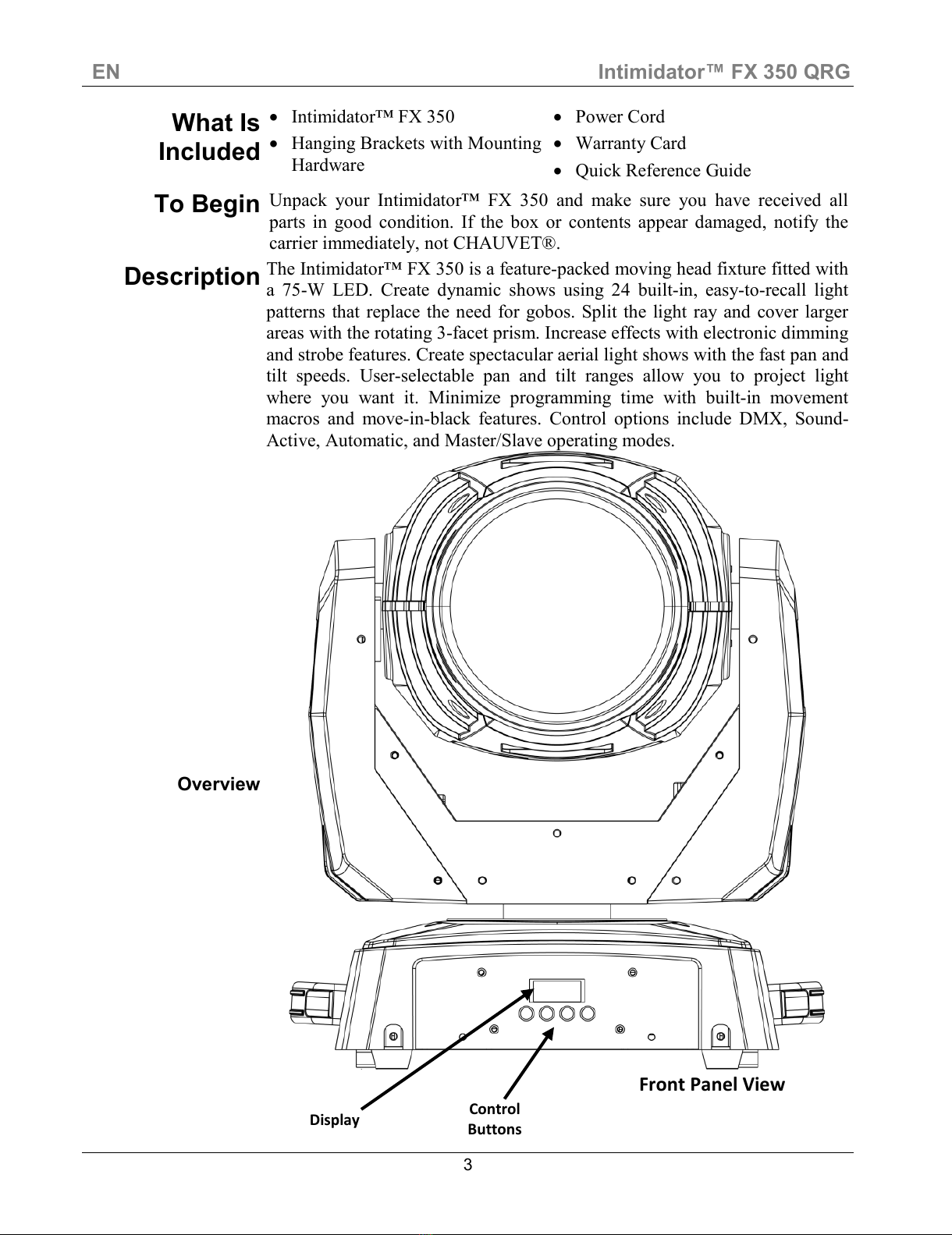

What Is
Included
•Intimidator™ FX 350
•
Hanging Brackets with Mounting
Hardware
•Power Cord
•Warranty Card
•Quick Reference Guide
To Begin
Unpack your Intimidator™ FX 350
and make sure you have received all
parts in good condition. If the box or contents appear damaged, notify the
carrier immediately, not CHAUVET®.
Description
The Intimidator™ FX 350 is a feature-packed moving head fixture fitted with
a 75-W LED. Create dynamic shows using 24 built-in, easy-to-
recall light
patterns that replace the need for gobos. Split the light ray
and cover larger
areas with the rotating 3-facet prism.
Increase effects with electronic dimming
and strobe features. Create spectacular aerial light shows with the fast pan and
tilt speeds. User-selectable pan and tilt ranges
allow you to project light
where you want it. Minimize programming time with built-i
n movement
macros and move-in-black features. Control options include DMX, Sound-
Active, Automatic, and Master/Slave operating modes.
Overview
Front Panel View
Display
Control
Buttons
All manuals and user guides at all-guides.com

Intimidator™ FX 350 QRG EN
4

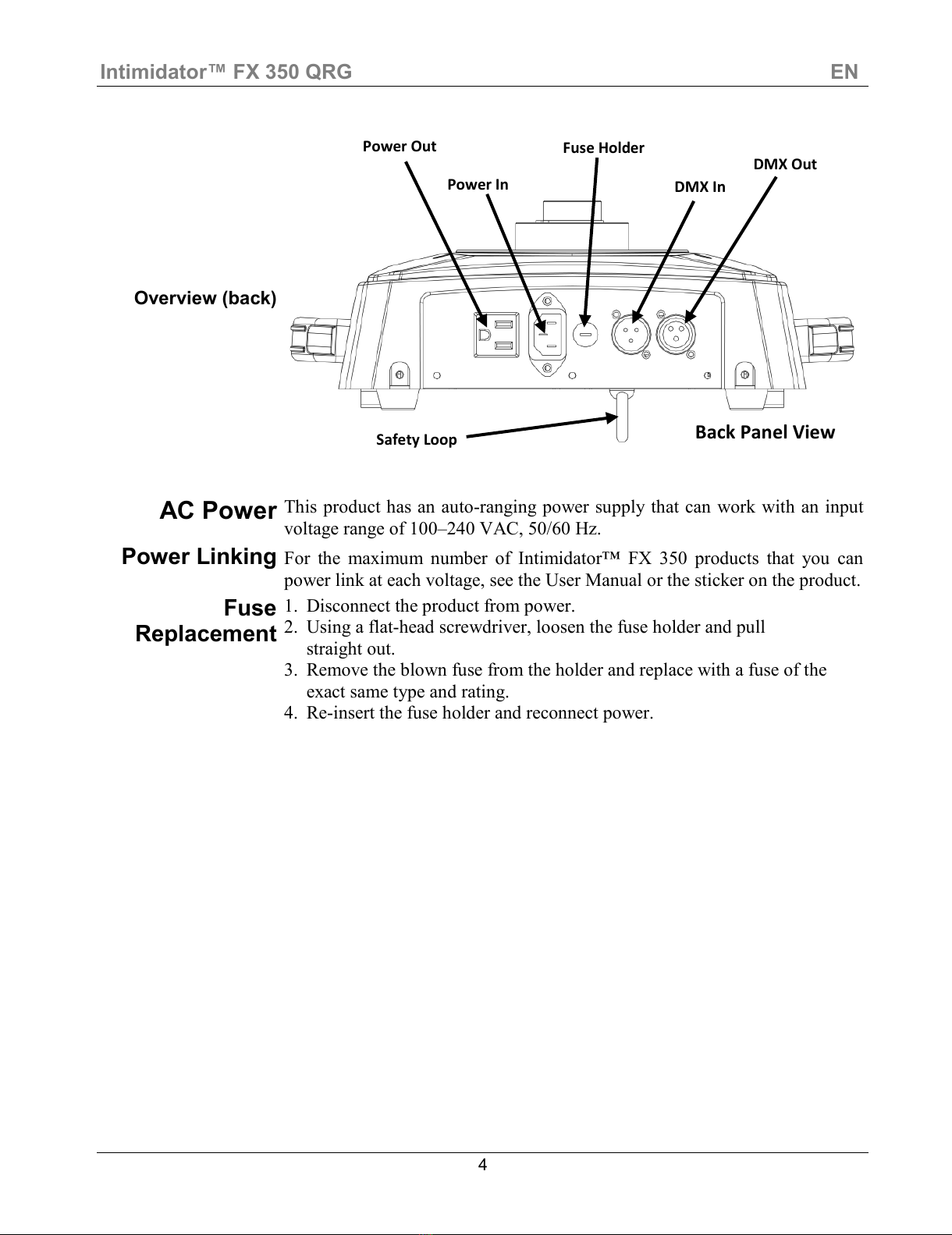

Overview
(back)
AC Power
This product has an auto-
ranging power supply that can work with an input
voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
For the maximum number of Intimidator™ FX 350 products
that you can
power link at each voltage, see the User Manual or the sticker on the product.
Fuse
Replacement
1. Disconnect the product from power.
2. Using a flat-head screwdriver, loosen the fuse holder and pull
straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the
exact same type and rating.
4. Re-insert the fuse holder and reconnect power.
Back Panel View
Power In
Fuse Holder
Power Out
DMX Out
DMX In
Safety Loop
All manuals and user guides at all-guides.com

EN Intimidator™ FX 350 QRG
5
Mounting
Before mounting this product, read the Safety Notes. Use at least
two
mounting points
per product. Make sure the mounting clamps (such as
CLP-15
from CHAUVET®) are capable of supporting the weight of the
product. For our CHAUVET® line of mounting
clamps, go to
www.chauvetlighting.com/cables-clamps-main.html.
Product
Mounting
Diagram
When using only one mounting clamp with this fixture, you must use a
clamp with a captive bolt to prevent accidental loosening.
Mounting Clamps
Safety Cable
Hanging/
Mounting
Brackets
(x2)
Rubber Feet (x4)
for floor mounting
All manuals and user guides at all-guides.com

Intimidator™ FX 350 QRG EN
6
Control Panel
Description
Button Function
<MODE/ESC>
Exits from the current menu or function
<UP>
Navigates upwards through the menu list and increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases the
numeric value when in a function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
Menu Options
Main Level Programming Levels Description
DMX Mode
d001–d512
Sets the DMX starting address
Operating Mode
NASL (SLoU)
Automatic mode, slow program
NAFA (FASt)
Automatic mode, fast program
NStS (SrUn)
Sound-Active mode
SLAv (Son)
Slave operating mode
Pan
Pan
Normal pan operation
rPAn
Inverse pan operation
Tilt
tit
Normal tilt operation
rtit
Inverse tilt operation
Display
diS
Normal display
rdiS
Inverse display
Channel Mode
15CH
Selects the 15-channel DMX personality
7CH
Selects the 7-channel DMX personality
Manual Pan Range
PA54
Selects the 540° pan angle range
PA36
Selects the 360° pan angle range
PA18
Selects the 180° pan angle range
Manual Tilt Range
ti27
Selects the 270° tilt angle range
ti18
Selects the 180° tilt angle range
ti 9
Selects the 90° tilt angle range
Reset
rESt
Resets fixture
Load
LoAd
Load factory defaults
DMX Linking
The Intimidator™ FX 350 can work with a DMX controller when linked by
DMX serial connections.
Instructions for connecting and configuring this
product for DMX operation are in the User Manual.
If you are not familiar
with DMX, download the DMX Primer from www.chauvetlighting.com.
Starting
Address
To e
nsure full access to all channels in each DMX mode, the highest
recommended DMX address is 498.
Master/Slave
Connection
The Intimidator™ FX 350 uses the DMX data connec
tion for its
Master/Slave mode. Instructions for connecting and configuring this produ
ct
for Master/Slave operation are in the User Manual.
All manuals and user guides at all-guides.com
all-guides.com

EN Intimidator™ FX 350 QRG
7
DMX Values
15-CH
Channel
Function Value Percent/Setting
1
Pan
000 255
0–540°
2
Fine Pan
000 255
Fine control of panning
3
Tilt
000 255
0–270°
4
Fine Tilt
000 255
Fine control of tilting
5
Speed
000 255
Pan/Tilt speed (fast to slow)
6 Color Wheel
000 006
White
007 013
Yellow
014 020
Pink
021 027
Green
028 034
Red
035 041
Light Blue
042 048
Kelly
049 055
Orange
056 063
Dark Blue
064 070
White + Yellow
071 077
Yellow + Pink
078 084
Pink + Green
085 091
Green + Red
092 098
Red + Light Blue
099 105
Light Blue + Kelly
106 112
Kelly + Orange
113 119
Orange + Dark Blue
120 127
Dark Blue + White
128 191
Color cycling rainbow with increasing speed
192 255
Reverse color cycling rainbow with
increasing speed
7 Prism
000 007
Open
008 012
Prism effect
013 130
Prism rotation with increasing speed
131 247
Reverse prism rotation with increasing
speed
248 255
Prism effect
8
Dimmer
000 255
0–100%
All manuals and user guides at all-guides.com

Intimidator™ FX 350 QRG EN
8

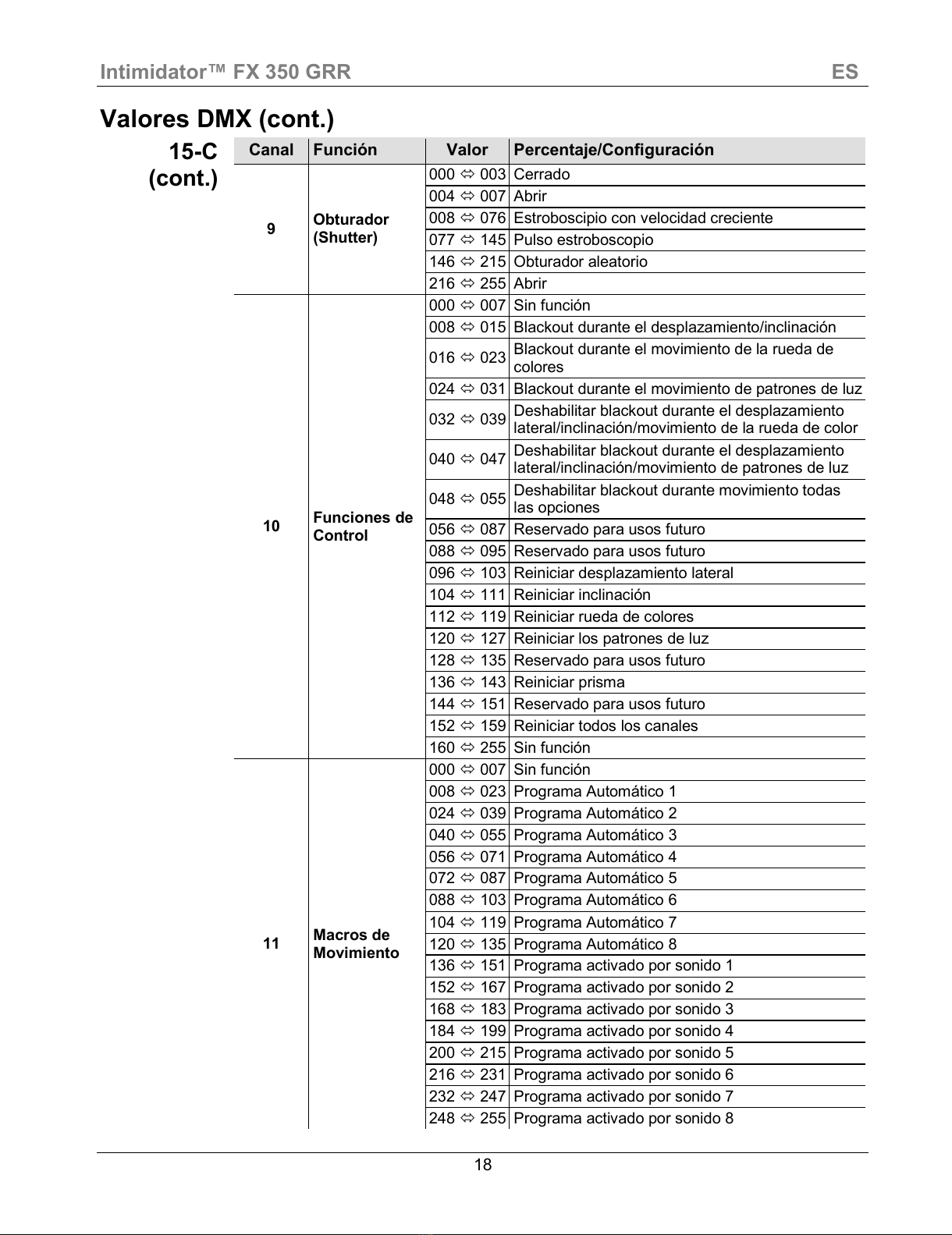

DMX Values (cont.)
15-CH
(cont.)
Channel
Function Value Percent/Setting
9 Shutter
000 003
Closed
004 007
Open
008 076
Strobe with increasing speed
077 145
Pulse strobe
146 215
Random shutter
216 255
Open
10 Control Functions
000 007
No function
008 015
Blackout while panning/tilting
016 023
Blackout while moving color wheel
024 031
Blackout while moving light patterns
032 039
Disable blackout while panning/tilting/
moving color wheel
040 047
Disable blackout while panning/tilting/
moving light patterns
048 055
Disable blackout while moving all options
056 087
Reserved for future use
088 095
Reserved for future use
096 103
Reset pan
104 111
Reset tilt
112 119
Reset color wheel
120 127
Reset light patterns
128 135
Reserved for future use
136 143
Reset prism
144 151
Reserved for future use
152 159
Reset all channels
160 255
No function
11 Movement Macros
000 007
No function
008 023
Automatic movement 1
024 039
Automatic movement 2
040 055
Automatic movement 3
056 071
Automatic movement 4
072 087
Automatic movement 5
088 103
Automatic movement 6
104 119
Automatic movement 7
120 135
Automatic movement 8
136 151
Sound-Active movement 1
152 167
Sound-Active movement 2
168 183
Sound-Active movement 3
184 199
Sound-Active movement 4
200 215
Sound-Active movement 5
216 231
Sound-Active movement 6
232 247
Sound-Active movement 7
248 255
Sound-Active movement 8
All manuals and user guides at all-guides.com

EN Intimidator™ FX 350 QRG
9

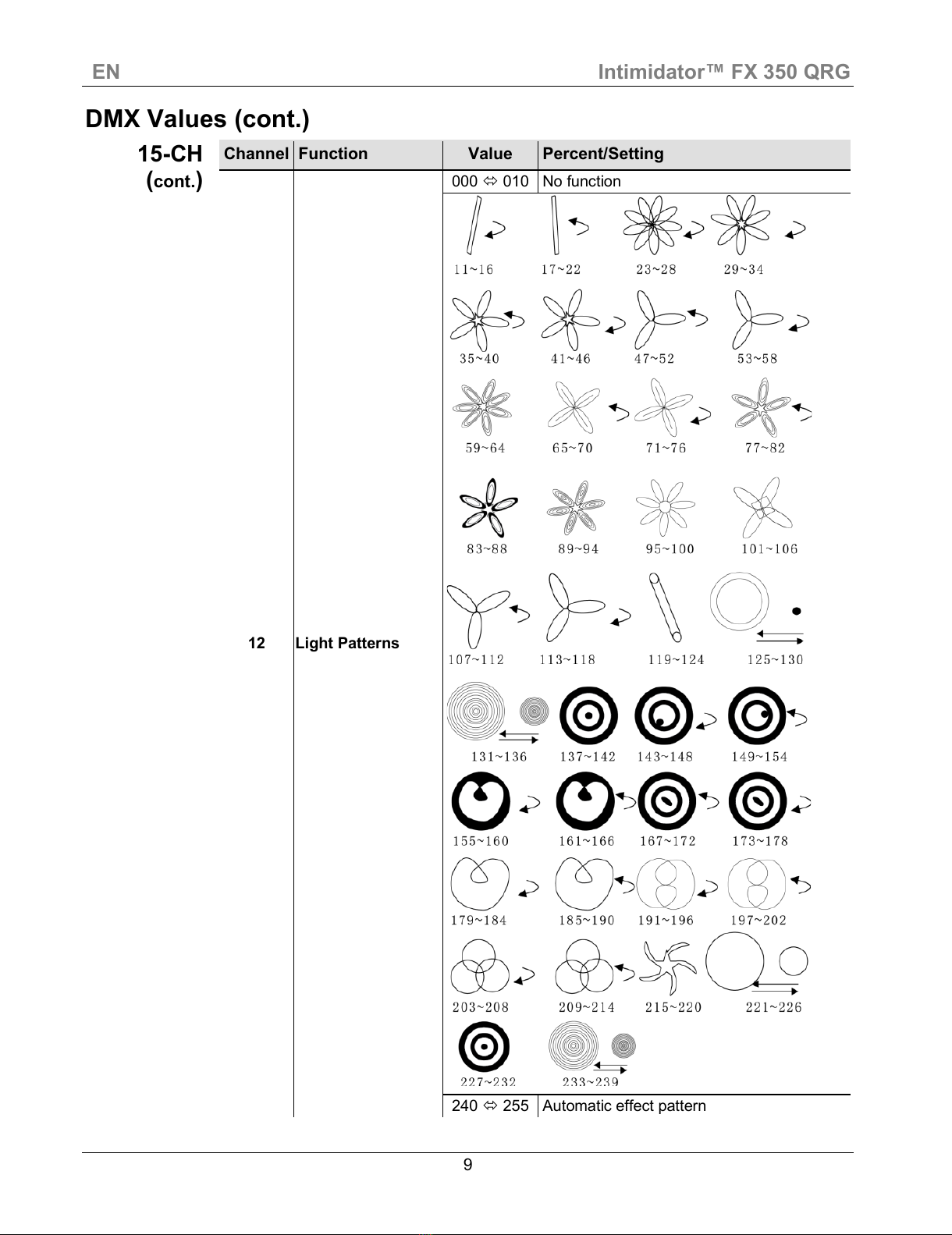

DMX Values (cont.)
15-CH
(cont.)
Channel
Function Value Percent/Setting

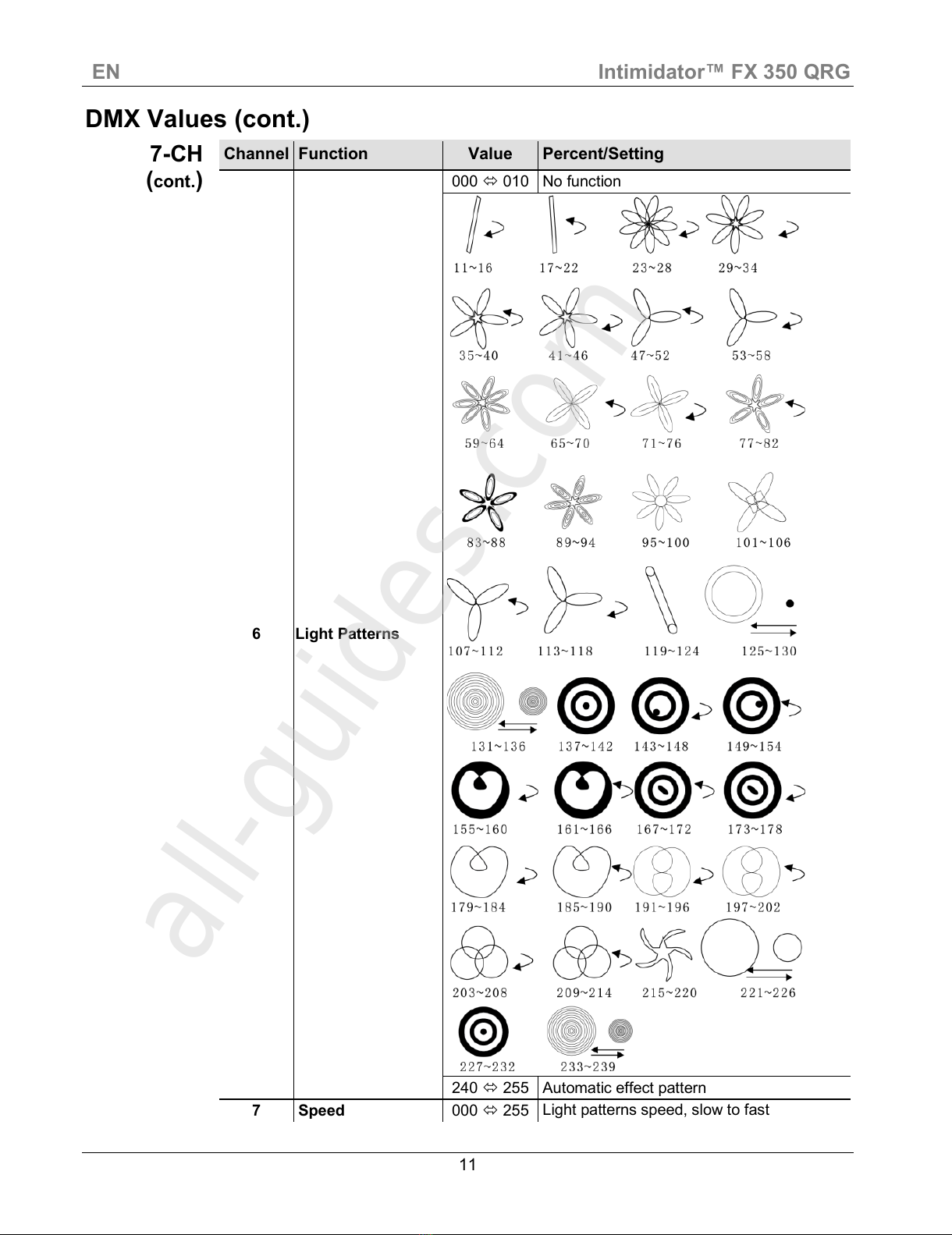

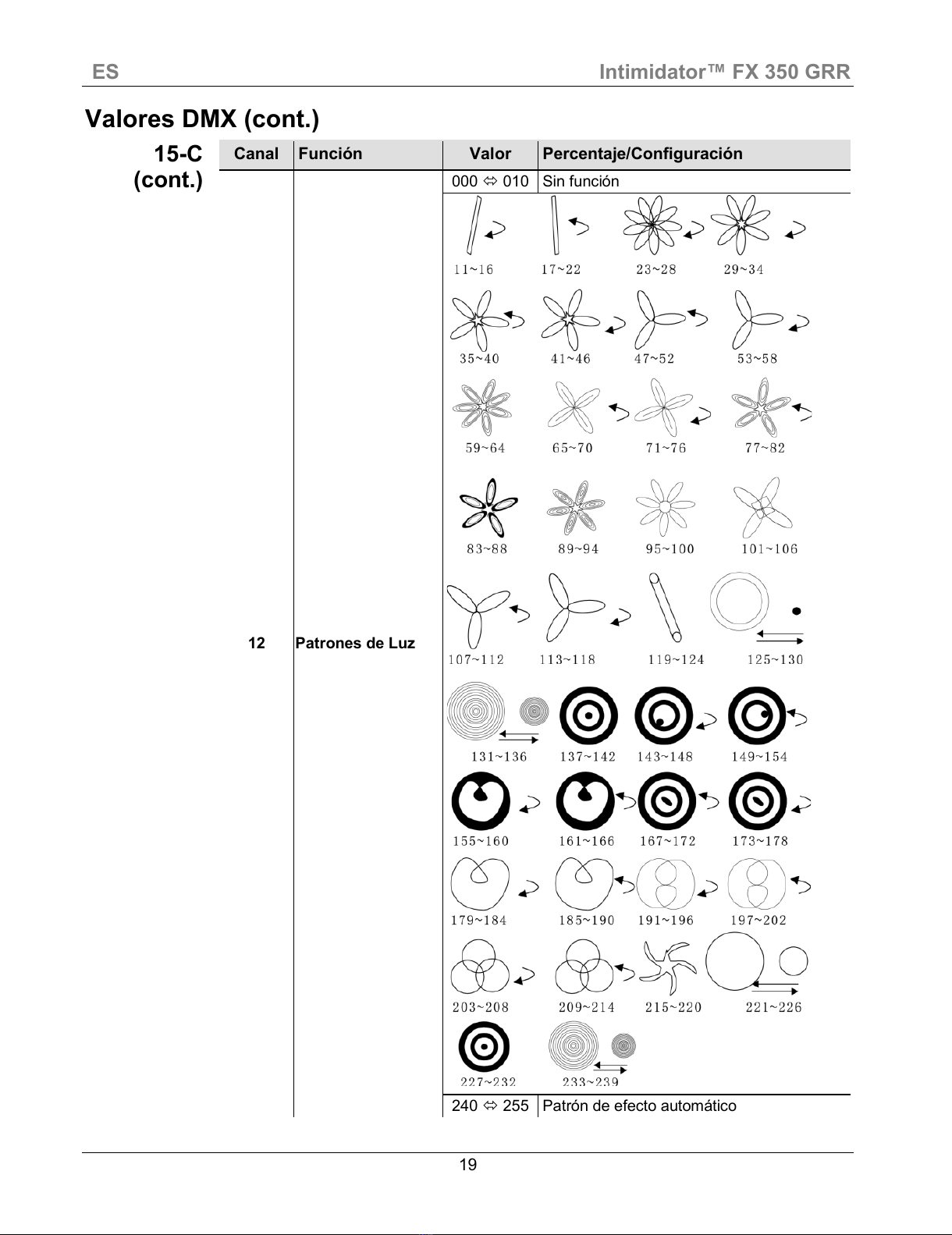

12 Light Patterns
000 010
No function
240 255
Automatic effect pattern
All manuals and user guides at all-guides.com

Intimidator™ FX 350 QRG EN
10
DMX Values (cont.)
15-CH
(cont.)
Channel
Function Value Percent/Setting
13
Speed
000 255
Light patterns speed, slow to fast
14 Effect Motor 1
000
No function
001 127
Forward, slow to fast
128 255
Inverted, slow to fast
15 Effect Motor 2
000
No function
001 127
Forward, slow to fast
128 255
Inverted, slow to fast
7-CH
Channel Function Value Percent/Setting
1
Pan
000 255
0–540°
2
Tilt
000 255
0–270°
3 Color Wheel
000 006
White
007 013
Yellow
014 020
Pink
021 027
Green
028 034
Red
035 041
Light Blue
042 048
Kelly
049 055
Orange
056 063
Dark Blue
064 070
White + Yellow
071 077
Yellow + Pink
078 084
Pink + Green
085 091
Green + Red
092 098
Red + Light Blue
099 105
Light Blue + Kelly
106 112
Kelly + Orange
113 119
Orange + Dark Blue
120 127
Dark Blue + White
128 191
Color cycling rainbow with increasing speed
192 255
Reverse color cycling rainbow with
increasing speed
4 Prism
000 007
Open
008 012
Prism effect
013 130
Prism rotation with increasing speed
131 247
Reverse prism rotation with increasing
speed
248 255
Prism effect
5 Shutter
000 003
Closed
004 007
Open
008 076
Strobe with increasing speed
077 145
Pulse strobe
146 215
Random Shutter
216 255
Open
All manuals and user guides at all-guides.com
