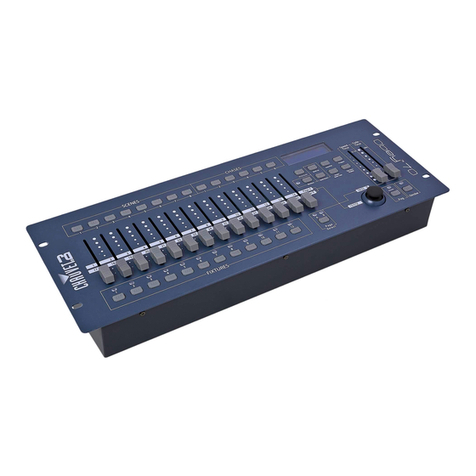

Chauvet Obey 70 User manual

User Manual

Page 2of 40 Obey™ 70 User Manual Rev. 5 ML
Table of Contents
1. Before You Begin...............................................................................................................................6
What is Included ................................................................................................................................................. 6
Claims ................................................................................................................................................................. 6
Text Conventions.................................................................................................................................................6
Symbols ..............................................................................................................................................................6
Disclaimer ...........................................................................................................................................................6
Safety Notes........................................................................................................................................................7
2. Introduction .......................................................................................................................................7
Product Overview................................................................................................................................................7
Dimensions ......................................................................................................................................................... 8
3. Setup ..................................................................................................................................................8
AC Power ............................................................................................................................................................ 8
Mounting ............................................................................................................................................................8
Orientation ...................................................................................................................................................... 8
Rigging .............................................................................................................................................................8
Product Addressing .............................................................................................................................................9
Signal Output ...................................................................................................................................................9
Physical Fader Assignment ...............................................................................................................................9
Joystick Assignment..........................................................................................................................................9
Copying Physical Fader Assignment ................................................................................................................ 10
Fader Reverse (0~255/255~0)......................................................................................................................... 10
Resetting the System...................................................................................................................................... 10
4. Programming ...................................................................................................................................10
Entering Program Mode .................................................................................................................................... 10
Exiting Program Mode....................................................................................................................................... 10
Creating a Scene................................................................................................................................................ 10
Create a Chase .................................................................................................................................................. 11
Chase Modifications....................................................................................................................................... 11
Adding a Step to a Chase...............................................................................................................................................11
Delete a Scene/Step in a Chase......................................................................................................................................11
Copy a Bank into a Chase ..............................................................................................................................................11
5. Programming Modifications............................................................................................................11
Delete One Scene.............................................................................................................................................. 11
Delete All Scenes............................................................................................................................................... 11
Delete a Chase .................................................................................................................................................. 11
Delete All Chases............................................................................................................................................... 11
Delete a Bank of Scenes..................................................................................................................................... 11
6. Playback...........................................................................................................................................12
Scene Playback.................................................................................................................................................. 12
Manual Scene Playback (Single)...................................................................................................................... 12
Auto Bank Playback........................................................................................................................................ 12
Music Bank Playback ...................................................................................................................................... 12
Chase Playback............................................................................................................................................... 12
Manual Chase Playback .................................................................................................................................. 12
Auto Chase Playback ...................................................................................................................................... 12
Music Chase Playback..................................................................................................................................... 12

Obey™ 70 User Manual Rev. 5 ML Page 3of 40
Playback Modifications...................................................................................................................................... 13
MIDI Operation .............................................................................................................................................. 13
Setting the MIDI Channel................................................................................................................................ 13
MIDI Configuration (Response).......................................................................................................................... 13
Tap Sync............................................................................................................................................................ 13
Fog Control ....................................................................................................................................................... 13
Strobe Control................................................................................................................................................... 13
7. Technical Information......................................................................................................................14
Maintenance..................................................................................................................................................... 14
Technical Specifications..................................................................................................................................... 14
Returns ............................................................................................................................................................. 15
1. Antes De Empezar ...........................................................................................................................16
Qué va Incluido ................................................................................................................................................. 16
Reclamaciones .................................................................................................................................................. 16
Convenciones de Texto...................................................................................................................................... 16
Símbolos ........................................................................................................................................................... 16
Exención de Responsabilidad............................................................................................................................. 16
Notas de Seguridad ........................................................................................................................................... 17
2. Introducción.....................................................................................................................................17
Visión General del Producto .............................................................................................................................. 17
Dimensiones ..................................................................................................................................................... 18
3. Instalación........................................................................................................................................19
Corriente Alterna............................................................................................................................................... 19
Montaje ............................................................................................................................................................ 19
Orientación .................................................................................................................................................... 19
Colocación ..................................................................................................................................................... 19
Asignación de Direcciones del Producto............................................................................................................. 19
Salida de Señal ............................................................................................................................................... 19
Asignación del Fader Físico ............................................................................................................................. 19
Asignación del Joystick ................................................................................................................................... 20
Copiar la Asignación del Fader Físico............................................................................................................... 20
Fader Inverso (0~255/255~0) ......................................................................................................................... 20
Reiniciar el Sistema ........................................................................................................................................ 20
4. Programación ..................................................................................................................................21
Entrar en el Modo de Programa......................................................................................................................... 21
Salir del Modo de Programa. ............................................................................................................................. 21
Crear una Escena............................................................................................................................................... 21
Crear una Secuencia.......................................................................................................................................... 21
Modificaciones de Secuencia.......................................................................................................................... 21
Añadir un Paso a una Secuencia ....................................................................................................................................21
Borrar una Escena/Paso en una Secuencia.....................................................................................................................22
Copiar un Banco en una Secuencia ................................................................................................................................22
5. Modificaciones De Programación...................................................................................................22
Borrar una Escena ............................................................................................................................................. 22
Borrar Todas las Escenas ................................................................................................................................... 22
Borrar una Secuenciae....................................................................................................................................... 22
Borrar Todas las Secuencias............................................................................................................................... 22
Borrar un Banco de Escenas............................................................................................................................... 22

Page 4of 40 Obey™ 70 User Manual Rev. 5 ML
6. Reproducción ..................................................................................................................................22
Reproducción de Escena.................................................................................................................................... 22
Reproducción Manual de Escena (única)......................................................................................................... 22
Reproducción Automática de Banco ............................................................................................................... 23
Reproducción de Banco de Música ................................................................................................................. 23
Reproducción de Secuencia............................................................................................................................ 23
Reproducción de Secuencia Manual ............................................................................................................... 23
Reproducción de Secuencia Automática ......................................................................................................... 23
Reproducción de Secuencia Musical ............................................................................................................... 23
Modificaciones de la Reproduccións .................................................................................................................. 23
Funcionamiento MIDI..................................................................................................................................... 23
Configurar el Canal MIDI................................................................................................................................. 23
Configuración MIDI............................................................................................................................................ 24
(Respuesta) ....................................................................................................................................................... 24
Sincronización al Toque..................................................................................................................................... 24
Control de Niebla .............................................................................................................................................. 24
Control de Estroboscopio .................................................................................................................................. 24
7. Información Técnica........................................................................................................................25
Mantenimiento ................................................................................................................................................. 25
Especificaciones Técnicas .................................................................................................................................. 25
Devoluciones..................................................................................................................................................... 26
1. Avant De Commencer......................................................................................................................27
Ce qui est Compris............................................................................................................................................. 27
Réclamations..................................................................................................................................................... 27
Conventions de Texte........................................................................................................................................ 27
Symboles........................................................................................................................................................... 27
Clause de non Responsabilité ............................................................................................................................ 27
Consignes de Sécurité........................................................................................................................................ 28
2. Introduction .....................................................................................................................................29
Aperçu du Produit ............................................................................................................................................. 29
Dimensions ....................................................................................................................................................... 30
3. Configuration...................................................................................................................................31
Alimentation CA ................................................................................................................................................ 31
Installation ........................................................................................................................................................ 31
Orientation .................................................................................................................................................... 31
Suspension..................................................................................................................................................... 31
Adressage de l'appareil...................................................................................................................................... 31
Sortie de Signal .............................................................................................................................................. 31
Attribution du Potentiomètre Physique .......................................................................................................... 31
Attribution de la Manette............................................................................................................................... 32
Attribution du Potentiomètre Physique .......................................................................................................... 32
Potentiomètre Inversé (0~255/255~0)............................................................................................................ 32
Réinitialisation du Système............................................................................................................................. 33
4. Programmation................................................................................................................................33
Entrer dans le Mode Programmation................................................................................................................. 33
Sortir du Mode Programmation......................................................................................................................... 33
Créer une Scène ................................................................................................................................................ 33
Créer un Chenillard............................................................................................................................................ 33
Modifications Apportées au Chenillard ........................................................................................................... 34

Obey™ 70 User Manual Rev. 5 ML Page 5of 40
Ajouter un pas à un Chenillard.......................................................................................................................................34
Supprimer une Scène/un pas d'un Chenillard.................................................................................................................34
Copier une Banque dans un Chenillard ..........................................................................................................................34
5. Modifications Apportees Aux Programmes ...................................................................................34
Supprimer une Scène ........................................................................................................................................ 34
Supprimer Toutes les Scènes ............................................................................................................................. 34
Supprimer un Chenillard.................................................................................................................................... 34
Supprimer Tous les Chenillards.......................................................................................................................... 34
Supprimer une Banque de Scènes...................................................................................................................... 34
6. Lecture .............................................................................................................................................35
Lecture de Scène ............................................................................................................................................... 35
Lecture Manuelle de Scène (simple) ............................................................................................................... 35
Lecture Automatique de Banque .................................................................................................................... 35
Lecture d'une Banque de Musique ................................................................................................................. 35
Lecture de Chenillards.................................................................................................................................... 35
Lecture Manuelle de Chenillards..................................................................................................................... 35
Lecture Automatique de Chenillard ................................................................................................................ 35
Lecture de Chenillards de Musique................................................................................................................. 35
Modifications Apportées à la Lecture................................................................................................................. 36
Fonctionnement MIDI .................................................................................................................................... 36
Configurer le Canal MIDI................................................................................................................................. 36
Configuration MIDI (réponse) ............................................................................................................................ 36
Tap Sync............................................................................................................................................................ 37
Commande du Brouillard................................................................................................................................... 37
Commande du Stroboscope............................................................................................................................... 37
7. Informations Techniques ................................................................................................................38
Entretien........................................................................................................................................................... 38
Spécificités Techniques...................................................................................................................................... 38
Renvois ............................................................................................................................................................. 39
Contact Us......................................................................................................................................................... 40

Page 6of 40 Obey™ 70 User Manual Rev. 5 ML
1. Before You Begin
What is Included
•Obey™ 70
•12 VDC, 500 mA External Power Supply
•Warranty Card
•User Manual
Claims
If the box or the contents appear damaged from shipping, or show signs of
mishandling, notify the carrier immediately, not CHAUVET®. Failure to do so in a
timely manner may invalidate your claim with the carrier. In addition, keep the
container and all the packing material for insp
ection. For other issues, such as
missing components or parts, damage not related to shipping, or concealed damage,
file a claim with CHAUVET® within 7 days of delivery.
Text Conventions
CHAUVET® manuals use the following conventions to differentiate certain types of
information from the regular text.
Convention
Meaning
[10]
A DIP switch to be configured
<Menu>
A key to be pressed on the fixture’s control panel
1~512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified (for example, showing the operating
mode/current status)
MENU > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Symbols
This manual uses the following symbols for information that requires special
attention.
Symbol
Meaning
Critical installation, configuration, or operation information. Failure to
comply may make the product not work, damage it, or cause harm to the
user.
Important installation or configuration information. The product may not
function correctly if this information is not used.
Useful information.
Disclaimer
The information and specifications contained in this document are subject to change
without notice. CHAUVET® assumes no responsibility or liability for any errors or
omissions that may appear in this manual, and reserves the right to revise or
recreate thi
s manual at any time. Download the latest version from
www.chauvetlighting.com.
© Copyright 2012 CHAUVET®. All rights reserved.
Printed in P.R.C.
Electronically published by CHAUVET® in the United States of America.
Author
Date
Editor
Date
A. Diaz
2/21/12
D. Couppe
7/17/12

Obey™ 70 User Manual Rev. 5 ML Page 7of 40
Safety Notes
•Please keep this User Manual for future consultation. If you sell the unit to
another user, be sure that they also receive this manual.
•Always make sure that you are connecting the product to the proper voltage,
and that the line voltage you are connecting to is not higher than that stated on
the sticker or rear panel of the fixture.
•This product is intended for indoor use only! To prevent risk of fire or shock, do
not expose fixture to rain or moisture.
•Make sure there are no flammable materials close to the unit while operating.
•The unit must be installed in a location with adequate ventilation, at least 20″
(50 cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
•Always disconnect from power source before servicing or replacing fuse and be
sure to replace with same fuse source.
•Maximum ambient temperature (Ta) is 104° F (40° C). Do not operate fixture at
temperatures higher than this.
•In the event of a serious operating problem, stop using the unit immediately.
Never try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized
technical assistance center.
•Never connect the device to a dimmer pack.
•Make sure the power cord is never crimped or damaged.
•Never disconnect the power cord by pulling on the cord.
•Avoid direct eye exposure to the light source while it is on.
2. Introduction
Product Overview
Please read these instructions carefully. It includes important
information about the installation, usage, and maintenance
of this product.
Scene Selection Buttons
Chase Selection Buttons
LCD Display
Mode Modification Area
Speed Time Fader
Fade Time Fader
Fixture Selection Buttons
Page Selection Button
Strobe Button
Fog Button
X/Y Joystick

Page 8of 40 Obey™ 70 User Manual Rev. 5 ML
Dimensions
3. Setup
AC Power
This product requires an external power supply, which is included. The included
power supply is rated for 100~240 VAC, 50/60 Hz, 500 mA max. Before powering on
the unit, make sure the line voltage to which you are connecting it is within the range
of accepted voltages listed on the label affixed to the product
or refer to the
Technical Specifications. The
listed current rating indicates average current draw
under normal conditions.
Always connect the fixture to a grounded circuit. Never connect the fixture to a
rhe
ostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used only as a 0 to 100% switch.
Mounting
Before mounting the product, read and follow the safety recommendations indicated
in the Safety Notes.
Orientation
The Obey™ 70 may be mounted in any position; make sure adequate ventilation is
provided around the product.
Rigging
•Choose a location for the product that gives easy access for maintenance and
programming.
•Make sure that the structure or surface onto which you are
mounting the product
can support the product’s weight (see Technical Information).
•When rigging the product onto a truss, you should use a mounting clamp of
appropriate weight capacity and a safety cable.
MIDI In
DMX Polarity
Switch
DMX Out
Connections
Description
Sticker
Power On/Off
Fog Out
Strobe Out
DC Power In

Obey™ 70 User Manual Rev. 5 ML Page 9of 40
Product
Addressing
The Obey™ 70 can control up to 12 separate fixtures. Each fixture must be set to
predetermined DMX addresses. Please see the chart below for the DMX starting
addresses of each of the 12 fixtures.
Product Address
DIP
switch
Product Address
DIP
switch
Product Address
DIP
switch
1
1
1
5
129
1,8
9
257
1,9
2
33
1,6
6
161
1,6,8
10
289
1,6,9
3
65
1,7
7
193
1,7,8
11
321
1,7,9
4
97
1,6,7
8
225
1,6,7,8
12
353
1,6,7,9
Signal Output
In order to use this controller with multiple fixtures, you must daisy chain from the
output of the Obey™ 70, using DMX cables to link from one fixture to another.
Physical Fader
Assignment
Use this feature to combine or unify fixture control attributes for different fixtures. For
example; if you are controlling 4 moving mirrors and 4 moving yokes, the color, gobo,
and dimmer channels may not line up ideally on the physical
faders. Use this
function to reassign these channels to faders 1, 2, and 3:
1. Press <PROGRAM> and <TAP SYNC/DISPLAY>. This will enter the physical fader
assignment mode.
2. Select one of the fixtures: <FIXTURE 1~12>
3. Move the <SPEED> fader to select the physical slider (control channel).
4. Move the <FADE TIME> fader to select the DMX channel.
5. Press <MIDI/ADD> to save the setting.
6. Repeat steps 3~5 until all of the faders have been assigned for the fixture.
7. Press <PROGRAM> and <TAP SYNC/DISPLAY> two times to exit physical fader
assignment mode.
Reset the fader assignment back to the original, factory settings by performing
a soft reset. Please see the section “Resetting the System”
for detailed
instructions on this procedure.
The joystick will be displayed as [SLIDERT1/SLIDERP1] for Page A, and
[SLIDERT2/SLIDERP2] for Page B.
The joystick is pre assigned to channels 15/16 (Page A) and 31/32 (Page B).
When moving channels, you must relocate the previously addressed channel
to a new location. For example: w
hen moving channel 12 to channel 1, channel
1 must be relocated to a new channel.
Joystick
Assignment
The joystick is designed for moving head & scanning mirror products.
1. Press <PROGRAM> and <TAP SYNC/DISPLAY>. This will enter the physical fader
assignment mode.
2. Select one of the products: <FIXTURE 1~12> (this will be the fixture that you want to
modify the channels for).
3. Move the <SPEED> fader to select the pan control [SLIDERP1/1].
4. Move the <FADE TIME> fader to select the DMX channel to assign it to.
5. Press <MIDI/ADD> to save the setting.
6. Repeat steps 3-5 for the tilt [SLIDERT1/2].
7. Press <PROGRAM> and <TAP SYNC/DISPLAY> two times to exit physical fader
assignment mode.
When assigning the joystick to a channel (for example, channel two), you must
also relocate channel two to a new location.

Page 10 of 40 Obey™ 70 User Manual Rev. 5 ML
Copying Physical
Fader Assignment
This process will copy the physical fader assignment from one fixture into another.
1. Press <PROGRAM> and <TAP SYNC/DISPLAY>. This will enter the physical fader
assignment mode.
2. Press & hold the fixture button that contains the desired physical fader assignment.
3. While still holding the previous fixture button, press & hold the fixture that you want to copy
into.
4. While still holding the two fixture buttons above, press & hold <MIDI/ADD>.
5. While still holding all three buttons down, release the fixture selected in step # 2 above.
6. While still holding down <MIDI/ADD>, release the fixture selected in step # 3 above.
7. Release <MIDI/ADD>.
8. All fixture LEDs will flash.
9. Press <PROGRAM> and <TAP SYNC/DISPLAY> two times to exit physical fader
assignment mode.
This will not copy the fader-reverse setting(s).
Fader Reverse
(0~255/255~0)
This function will allow you to reverse the DMX output of the physical fader(s).
1. Press <PROGRAM> and <TAP SYNC/DISPLAY> two times. This will enter the fader
reverse assignment mode.
2. Select one of the fixtures: <FIXTURE 1~12> (this will be the fixture that you want to modify
the channels for).
3. Move the <SPEED> fader to select the physical slider (control channel).
4. Move the <FADE TIME> fader to activate/deactivate this function.
5. Press <MIDI/ADD> to save the setting.
6. Repeat steps 3~5 until all of the faders have been assigned for the fixture.
7. Press <PROGRAM> and <TAP SYNC/DISPLAY> one time to exit fader reverse
assignment mode.
Resetting the
System
Use this function to revert all settings and scenes back to the state they were in
when the product left the factory.
1. Turn off the unit.
2. Press and hold <BANK UP> and <AUTO/DEL>.
3. Turn on power to the unit (while still holding <BANK UP> and <AUTO/DEL>).
4. All LEDs will blink to indicate a successful reset.
This will erase all scenes, chases, and other settings!
This process may take
up to 30 seconds to complete.
4. Programming
Entering Program
Mode
No programming may be done on the Obey™ 70 without first entering program
mode. You will find references to this process in many other sections of this user
manual. Press and hold <PROGRAM>for three seconds to exit program mode.
1. Turn on the controller.
2. Press and hold <PROGRAM> for three seconds.
3. When the LED display Program LED lights, you have entered program mode.
Exiting Program
Mode
You will find references to this process in many other sections of this user manual.
1. While currently in program mode, press and hold <PROGRAM> for three seconds.
2. When the LED display Program LED turns off, you have exited program mode.
Creating a Scene
Use this function to create a static look on stage.
1. Turn on the controller.
2. Enter program mode.
3. Select one or more fixtures.
4. Using the 8 sliders, modify the value of the desired channel(s).
5. When the desired look has been achieved, press <MIDI/ADD>.
6. Use <BANK UP/DOWN> to select a desired bank (30 possible) to save the scene to.
7. Once you have navigated to the desired bank, press the <SCENE> (1~8) to save the
scene directly to.
8. All LEDs will flash to indicate that the scene has been saved.
9. Repeat steps 3~8 until you are finished programming all scenes.
10. Exit program mode.
You may select more than one fixture at a time. If you do so, you will not have
separate control over each of them.
You may program multiple fixtures into the
same scene.
Use PAGE A/B to switch between the 2 pages for the selected fixture.

Obey™ 70 User Manual Rev. 5 ML Page 11 of 40
Create a Chase
A chase is a series of scenes. Program the scenes before programming the chases.
1. Enter program mode.
2. Select the chase that will be programmed (1~6).
3. Call up the first scene for the chase by pressing the appropriate <SCENE> button. You
may use <BANK UP/DOWN> to navigate through the different pages of the scenes.
4. Once the controller is outputting the correct scene to the lights, press <MIDI/ADD>.
5. All LEDs will flash when the scene is added to the chase.
6. Call up the second scene for the chase by pressing the appropriate <SCENE> button.
7. Once the controller is outputting the correct scene to the lights, press <MIDI/ADD>.
8. All LEDs will flash when the scene is added to the chase.
9. Continue through steps 6~8 until all of the scenes have been added to the chase.
10. Exit program mode.
Chase Modifications
Adding a Step to a
Chase
This function will add a step after any step within a chase.
1. Enter program mode.
2. Activate the chase.
3. Using <BANK UP/DOWN>, scroll through the banks until you arrive at the bank that
contains the new scene.
4. Press <TAPSYNC/DISPLAY>. The display will change to step display mode.
5. Using <BANK UP/DOWN>, scroll to the step that will appear before the new step.
6. Press <MIDI/ADD>. The current step on the display will increase by one.
7. Press the new scene: <SCENE 1~8>.
8. Press <MIDI/ADD>. All LEDs on the controller will flash.
Delete a Scene/Step in a
Chase
1. Enter program mode.
2. Activate the chase.
3. Press <TAPSYNC/DISPLAY>. The display will change to step display mode.
4. Using <BANK UP/DOWN>, scroll to the step that you want to delete.
5. Press <AUTO/DEL>.
6. All LEDs on the controller will flash.
Copy a Bank into a
Chase
This function copies an entire bank after any existing steps in a chase.
1. Enter program mode.
2. Activate the desired chase.
3. Using <BANK UP/DOWN>, scroll through the banks until you arrive at the bank that you
want to copy into the chase.
4. Press <MUSIC/BANK COPY> and <MIDI/ADD> simultaneously.
5. All LEDs on the controller will flash.
5. Programming Modifications
Delete One Scene
Use this function to delete one of the scenes in the controller. Repeat this process for
each scene that you need to delete.
1. Enter program mode.
2. Use <BANK UP/DOWN> to navigate program banks.
3. Press and hold the <AUTO/DEL> button while pressing the SCENE you want to delete.
Delete All Scenes
Use this function to delete all of the scenes in the controller.
1. Turn off the unit.
2. Press and hold <BANK DOWN> and <PROGRAM>.
3. Turn on power to the unit (while still holding <BANK DOWN> and <PROGRAM>).
4. When all LEDs blink, the function is successfully completed.
Delete a Chase
1. Enter program mode.
2. Activate the chase to be deleted: <CHASE 1~6>.
3. Press <AUTO/DEL> and <CHASE 1~6> simultaneously.
4. When all LEDs blink, the function is successfully completed.
Delete All Chases
1. Enter program mode.
2. Press <AUTO/DEL> and <BANK DOWN>simultaneously.
3. While still holding the buttons down, turn the controller OFF.
Delete a Bank of
Scenes
1. Enter program mode.
2. Activate the BANK that you want to delete.
3. Press <AUTO/DEL> and the <MUSIC/BANK COPY>simultaneously.
4. When all LEDs blink, the function is successfully completed.

Page 12 of 40 Obey™ 70 User Manual Rev. 5 ML
6. Playback
Scene Playback
Manual Scene
Playback (Single)
This controller is capable of playing back a single scene at a time. The <SPEED>
and <FADE TIME> faders will not function in this mode.
Please see the instructions
below for further explanation.
1. Set the controller in [MANUAL] playback mode. If [AUTO] or [MUSIC] is visible on the
display, press the appropriate button(s) to disable the mode(s). When these modes are
disabled, the controller will be in manual scene playback mode.
2. Using <BANK UP/DOWN>, navigate to the appropriate bank of the desired scene.
3. Activate the appropriate scene by pressing <SCENE 1~8>.
4. Activate another scene, if desired. This will disable any previously selected scene.
Auto Bank Playback
This controller is capable of playing back all 8 scenes on one of the 30 banks. These
scenes will play back in sequential order. The <SPEED> and <FADE TIME>
faders
are used to control the transition between the individual scenes.
Please see the
instructions below for further explanation.
1. Press <AUTO/DEL> to set the controller in [AUTO] playback mode.
2. Using <BANK UP/DOWN>, navigate to the appropriate bank of scenes.
3. Use the <SPEED> and <FADE TIME> faders to adjust the scene transition.
The scenes will play in sequential order within the bank.
Only programmed
scenes will play back. Empty scenes will be skipped during playback.
Music Bank
Playback
This controller is capable of playing back all 8 scenes on one of the 30 banks. These
scenes will play back in sequential order. The triggering from
one scene to another
will be
synchronized to the beat of the music. Please see the instructions below for
further explanation.
1. Press <MUSIC/BANK COPY>to set the controller in [MUSIC] playback mode.
2. Using <BANK UP/DOWN>, navigate to the appropriate bank of scenes.
The scenes will play in sequential order within the bank.
Only programmed scenes will play back.
Empty scenes will be skipped during
playback.
Chase Playback
There are three different modes of playback for the chases in the Obey™ 70. Please
see the sections below for detailed instructions on these modes.
You may activate multiple chases in this controller.
They will play back in
sequential order.
Manual Chase
Playback
You may play back the individual scenes within a chase manually.
1. Enter program mode.
2. Activate the desired chase.
3. Press <TAP SYNC/DISPLAY>.
4. Use <BANK UP/DOWN> to scroll through the scenes within the chase. The current scene
will be shown on the display as [STEP ***].
Auto Chase
Playback
You may control the playback of the chases in this controller by using the <SPEED>
and <FADE TIME> faders. Please see the instructions below for further explanation.
1. Activate the desired chase by pressing <CHASE 1~6>.
2. Press <AUTO/DEL>.
3. Using the <SPEED>and <FADE TIME> faders, adjust the playback speed and transition
between the individual scenes (steps).
Music Chase
Playback
You may synchronize the playback of the chases in this controller to the beat of the
music. Please see the instructions below for further explanation.
1. Activate the desired chase by pressing <CHASE 1~6>.
2. Press <MUSIC/BANK COPY>.

Obey™ 70 User Manual Rev. 5 ML Page 13 of 40
Playback Modifications
MIDI Operation
The controller will only respond to MIDI commands on the MIDI channel when it is
set to full stop. Perform all MIDI
control using Note on commands. All other MIDI
instructions are ignored. To stop a chase, send the blackout on note.
The controller is always in MIDI receive mode. It is not necessary for the
display to read [MIDI] for the controller to respond to MIDI commands.
Setting the MIDI
Channel
1. Press <MIDI/ADD>. The display should read [MIDI] and the current channel assignment.
2. Using <BANK UP/DOWN>, select the MIDI channel (1~16).
3. Press <MIDI/ADD> to save the setting.
MIDI
Configuration
(Response)
MIDI Note
Function (Turns On/Off)
00~07
Scenes 1~8, Bank 1
08~15
Scenes 1~8, Bank 2
16~23
Scenes 1~8, Bank 3
24~31
Scenes 1~8, Bank 4
21~39
Scenes 1~8, Bank 5
40~47
Scenes 1~8, Bank 6
48~55
Scenes 1~8, Bank 7
56~63
Scenes 1~8, Bank 8
64~71
Scenes 1~8, Bank 9
72~79
Scenes 1~8, Bank 10
80~87
Scenes 1~8, Bank 11
88~95
Scenes 1~8, Bank 12
96~103
Scenes 1~8, Bank 13
104~111
Scenes 1~8, Bank 14
112~119
Scenes 1~8, Bank 15
120
Chase 1
121
Chase 2
122
Chase 3
123
Chase 4
124
Chase 5
125
Chase 6
126
Blackout
Tap Sync
This feature is another method of adjusting the playback speed. It functions in the
same modes in which the <SPEED> fader is active. Please see the steps below for
the operation.
1. Press <TAP SYNC/DISPLAY> three (3) times. The timing between pressing this button
determines the speed.
2. Repeat, as necessary, until the time has been set to the desired speed.
It may be a good idea to synchronize pressing this button three times along
with the beat of the music (bpm). This will allow the
lights to synchronize with
the music.
Fog Control
The Obey™ 70 has a dedicated fog button that will work with compatible
CHAUVET® fog machines. This button works with the dedicated 5-
pin connector that
is located on the back panel of the controller.
When the fog LED is on, it indicates that the fog machine has reached the
maximum temperature. When the LED is not on
, the fog machine may still
function, but it will not operate for maximum rated time, as it will begin below
the maximum temperature.
Strobe Control
The Obey™ 70 has a dedicated strobe button that will work with compatible
CHAUVET® products. This button works with the dedicated ¼”
connector that is
located on the back panel of the controller.
The LED indicator for the strobe button will f
lash at the same rate as the strobe
light(s).

Page 14 of 40 Obey™ 70 User Manual Rev. 5 ML
7. Technical Information
Maintenance
To maintain optimum performance and minimize wear, fixtures should be cleaned
frequently. Usage and environment are contributing factors in determining frequency.
As a general rule, fixtures should be cleaned at least twice a month. Dust build-
up
reduces light output performance and can cause overheating. This can lead to
reduced lamp life and increased mechanical wear. Be sure to power off fixture before
conducting maintenance.
•Unplug fixture from power.
•Use a vacuum or air compressor and a soft brush to remove dust collected on
external vents.
•Clean all lenses when the fixture is cold with a mild solution of glass cleaner or
Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue.
•Apply solution to the cloth or tissue and drag dirt and grime to the outside of the
lens.
•Gently polish optical surfaces until they are free of haze and lint.
Always dry the parts carefully after cleaning them.
Never spin a fan using compressed air.
Technical
Specifications
Dimensions and
Weight
Length
Width
Height
Weight
19 in (483 mm)
7 in (178 mm)
2.8 in (71 mm)
7.3 lbs (3.3 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type
Range
Voltage Selection
External power supply
100~240 V, 50/60 Hz
Auto-ranging
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
<1 W
<1 W
Operating/Inrush
current
0.2 A 0.2 A
DMX Refresh Rate
25 Hz
Thermal
Maximum External Temp.
104° F (40° C)
DMX
I/O Connectors
Connector Type
Channel Range
3-pin XLR
Sockets
384
Ordering
Product Name
Item Code
Item Number
Obey™ 70
09080234
OBEY70

Obey™ 70 User Manual Rev. 5 ML Page 15 of 40
In case you need to return a product or request support, follow the procedure below:
•If you live in the U.S., contact CHAUVET® World Headquarters (see below).
•If you live in the UK or Ireland, contact CHAUVET® Europe Ltd. (see below).
•
If you live in any other country, DO NOT contact CHAUVET®. Instead, contact
your distributor of record. See www.chauvetlighting.com
for distributors outside
the U.S., United Kingdom, or Ireland.
If you live outside the U.S., United Kingdom, or Ireland, contact your distributor
of record and follow their
instructions on how to return CHAUVET® products
to them. Visit our website for contact details.
Returns
Call the corresponding CHAUVET® Tech Support office and request a Return
Merchandise Authorization (RMA) number before shipping the product. Be
prepared
to provide the model number, serial number, and a brief description of the cause for
the return.
You must send the merchandise prepaid, in its original box, and with its original
packing and accessories. CHAUVET® will not issue call tags.
Clearly
label the package with the RMA number. CHAUVET® will refuse any product
returned without an RMA number.
Write the RMA number on a properly affixed label. DO NOT write the RMA number
directly on the box.
Before sending the product, clearly write the following information on a piece of
paper and place it inside the box:
•Your name
•Your address
•Your phone number
•The RMA number
•A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from
inadequate packaging will be your responsibility. FedEx packing or double-
boxing
are recommended.
CHAUVET® reserves the right to use its own discretion to repair or replace
returned product(s).

Page 16 of 40 Obey™ 70 Manual de Usuario Rev. 5 ML
1. Antes De Empezar
Qué va Incluido
•Obey™ 70
•Fuente de Alimentación Externa de12 VDC, 500 mA
•Tarjeta de Garantía
•Manual de Usuario
Reclamaciones
Si la caja o los contenidos parecen dañados por el transporte, o muestran signos de
manejo incorrecto, notifíqueselo al transportista inmediatamente, no a CHAUVET®.
Si no lo hace oportunamente, puede quedar invalidada su reclamación al
transportista. Además, guarde la caja y todo el material de embalaje para su
inspección. Para otras incidencias, como componentes o piezas que falten, daños
no relacionados con el trans
porte o daños no evidentes, presente una reclamación a
CHAUVET® en el plazo de 7 días de la entrega.
Convenciones de
Texto
Los manuales de CHAUVET® usan las siguientes convenciones para diferenciar
ciertos tipos de información del texto normal.
Convention
Meaning
[10]
Un conmutador DIP para configurar
<Menu>
Una tecla que se tiene que pulsar en el panel de control del aparato
1~512
Un rango de valores
50/60
Un conjunto de valores de los cuales solo se pude escoger uno
Configuración
Una opción de menú que no se modifica (por ejemplo, mostrar el modo
de funcionamiento/estado actual)
MENÚ >
Configuración
Una secuencia de opciones de menú que ha de seguirse
<ENTER>
Una tecla que se tiene que pulsar en el panel de control del producto
ON
Un valor que se tiene que introducir o seleccionar
Símbolos
Este manual usa los siguientes símbolos para información que requiere atención
especial.
Symbol
Meaning
Instalación, configuración o información sobre funcionamiento crítica. Su
incumplimiento podría hacer que el producto no funcione, que se averíe, o
causar daños al usuario.
Instalación o información de configuración importante. El producto puede
no funcionar correctamente si esta información no se usa.
Información útil.
Exención de
Responsabilidad
La información y especificaciones contenidas en este documento están sujetas a
cambio sin previo aviso. CHAUVET® no asume responsabilidad de ningún tipo por
cualquier error u omisión que pueda aparecer en este manual, y se rese
rva el
derecho a revisar o rehacer este manual en cualquier momento. Descargue la última
versión de www.chauvetlighting.com.
© Copyright 2012 CHAUVET® Todos los derechos reservados.
Impreso en la R. P. China.
Publicación en formato electrónico por CHAUVET® en EE.UU.
Author
Fecha
Editor
Fecha
A. Diaz
2/21/12
D. Couppe
7/18/12

Obey™ 70 Manual de Usuario Rev. 5 ML Page 17 of 40
Notas de
Seguridad
•Guarde este Manual de Usuario para futuras consultas. Si vende este producto
a otro usuario, asegúrese de que este recibe también este manual.
•Asegúrese siempre de que conecta el producto a la tensión adecuada, y d
e que
la tensión de la línea a la que está conectándolo no es superior a la establecida
en la pegatina o en el panel posterior del aparato.
•¡Este producto está destinado al uso en interiores solamente! Para evitar
riesgos de incendio o descarga, no exponga el aparato a la lluvia o la humedad.
•Asegúrese de que no hay materiales inflamables cerca de la unidad cuando
esté en funcionamiento.
•
La unidad debe instalarse en una ubicación con ventilación adecuada, al menos
a 20'' (50cm) de superficies adyacentes. Asegúrese de que no se han
bloqueado las ranuras de ventilación.
•Desconecte siempre de la fuente de alimentación antes de repararlo o sustituir
el fusible, y asegúrese de sustituir el fusible con uno de la misma clase.
•La máxima temperatura ambiente (Ta) es de 104º F (40º C). No haga funcionar
el aparato a temperaturas más altas que esta.
•En caso de un problema grave de funcionamiento, deje de usar la unidad
inmediatamente. Nunca intente reparar el producto por usted mismo. Las
reparaciones llevadas a cabo por personal no cualificado pueden provocar
averías o funcionamiento defectuoso. Póngase en contacto con el centro de
asistencia técnica autorizado más cercano.
•Nunca conecte el dispositivo a un regulador de intensidad.
•Asegúrese de que el cable de alimentación no está retorcido ni estropeado.
•Nunca desconecte de la alimentación tirando del cable.
•Evite la exposición directa de los ojos a la fuente de luz mientras esté
encendido.
2. Introducción
Visión General
del Producto
Por favor, lea estas instrucciones detenidamente. Incluyen
información importante sobre la instalación,
uso y
mantenimiento de este producto.
Botones de Selección de
Escena
Botones de Selección de
Secuencia
Pantalla LCD
Área de Modo de Notificación
Fader de Tiempo de
Velocidad
Fader de Tiempo de
Fade
Botones de Selección de
Dispositivo
Botón de Selección de
Página
Botón de
Estroboscopio
Botón de
Niebla
Joystick X/Y

Page 18 of 40 Obey™ 70 Manual de Usuario Rev. 5 ML
Dimensiones
Entrada MIDI
Conmutador
Polaridad DMX
Salida DMX
Pegatina de
Descripción de
Conexiones
Alimentación
On/Off
Salida de Niebla
Salida
Estroboscopio
Entrada
Alimentación DC

Obey™ 70 Manual de Usuario Rev. 5 ML Page 19 of 40
3. Instalación
Corriente Alterna
Este producto requiere una fuente de alimentación externa, que va incluida. La
fuente de alimentación incluida está clasificada como 100~240 VAC, 50/60 Hz, 500
mA máx. Antes de alimentar la unidad, asegúrese de que la tensión de la línea a la
que está cone
ctando está dentro del rango de voltajes aceptados listados en la
etiqueta pegada al producto o consulte las Especificaciones Técnicas. La
especificación de corriente listada indica el consumo de corriente promedio en
condiciones normales.
Conecte siempre el aparato a un circuito con toma de tierra. Nunca conecte el
producto a un reostato (resistor variable) o circuito de atenuación, incluso si el
canal del reostato o atenuador sirve solo como conmutador 0 a 100%.
Montaje
Antes de montar el producto, lea y siga las recomendaciones de seguridad indicadas
en las Notas de seguridad.
Orientación
El Obey™ 70 se puede montar en cualquier posición; asegúrese de que existe una
ventilación adecuada alrededor del producto.
Colocación
•Escoja una ubicación para el producto que le proporcione fácil acceso para
mantenimiento y programación.
•Asegúrese de que estructura o superficie sobre la que está montando el
producto puede soportar su peso (vea las Especificaciones técnicas).
•Cuando cuelgue el producto de un
truss, debe usar una abrazadera de montaje
de la resistencia al peso adecuada y un cable de seguridad.
Asignación de
Direcciones del
Producto
El Obey™ 70 puede controlar hasta 12 dispositivos independientes. Cada
dispositivo debe configurarse con las direcciones DMX predeterminadas. Vea el
gráfico inferior para las direcciones DMX de inicio de cada uno de los 12
dispositivos.
Producto
Dirección
Conmutador
DIP
Producto
Dirección
Conmutador
DIP
Producto
Dirección
Conmutador
DIP
1
1
1
5
129
1,8
9
257
1,9
2
33
1,6
6
161
1,6,8
10
289
1,6,9
3
65
1,7
7
193
1,7,8
11
321
1,7,9
4
97
1,6,7
8
225
1,6,7,8
12
353
1,6,7,9
Salida de Señal
Con objeto de usar este controlador con múltiples dispositivos, debe conectarlos en
cascada desde la salida del Obey™ 70
usando cables DMX para enlazar de un
dispositivo a otro.
Asignación del
Fader Físico
Use esta característica para combinar o unir atributos de control del dispositivo para
distintos dispositivos. Por ejemplo, si está controlando 4 espejos móviles y 4 yug
os
móviles, los canales de color, gobo y atenuador pueden no alienarse exactamente con
los faders físicos. Utilice esta función para reasignar estos canales a los faders 1, 2 y 3:
1. Pulse <PROGRAM> y <TAP SYNC/DISPLAY>. Así entrará en el modo de asignación del
fader físico.
2. Seleccione uno de los dispositivos: <FIXTURE 1~12>
3. Mueva el fader <SPEED> para seleccionar el deslizador físico (control de canal).
4. Mueva el fader <FADE TIME> para seleccionar el canal DMX.
5. Pulse <MIDI/ADD> para guardar la configuración.
6. Repita los pasos 3~5 hasta que todos los faders se hayan asignado para el dispositivo.
7. Pulse <PROGRAM> y <TAP SYNC/DISPLAY> dos veces para salir del modo de
asignación del fader físico.
Reinicie la asignación de fader a sus valores de fábrica realizando un reinicio
por software. Vea la sección "Reiniciar el sistema" para instrucciones
detalladas sobre este procedimiento.
Cuando mueva los canales, debe trasladar el canal previamente asignado a
una nueva dirección. Por ejemplo: cuando mueva el canal 12
al canal 1, debe
trasladar el canal 1 a un nuevo canal.
El joystick se mostrará como [SLIDERT1/SLIDERP1] para la Página A, y
[SLIDERT2/SLIDERP2] para la Página B.
El joystick se pre-asigna a los canales 15/16 (Página A) y 31/32 (Página B).

Page 20 of 40 Obey™ 70 Manual de Usuario Rev. 5 ML
Asignación del
Joystick
El joystick está diseñado para productos de cabeza móvil y espejos de escáner.
1. Pulse <PROGRAM> y <TAP SYNC/DISPLAY>. Así entrará en el modo de asignación del
fader físico.
2. Seleccione uno de los productos: <DISPOSITIVO 1~12> (este será el dispositivo para el
que desea modificar los canales).
3. Mueva el fader <SPEED> para seleccionar el control de desplazamiento [SLIDERP1/1].
4. Mueve el fader <FADE TIME> para seleccionar el canal DMX al que lo quiere asignar.
5. Pulse <MIDI/ADD> para guardar la configuración.
6. Repita los pasos 3-5 para la inclinación [SLIDERP1/2].
7. Pulse <PROGRAM> y <TAP SYNC/DISPLAY> dos veces para salir del modo de
asignación del fader físico.
Cuando asigne el joystick a un canal (por ejemplo el canal dos),
debe también
trasladar el canal dos a otro lugar.
Copiar la
Asignación del
Fader Físico
Este proceso copiará la asignación del fader físico de un dispositivo a otro.
1. Pulse <PROGRAM> y <TAP SYNC/DISPLAY>. Así entrará en el modo de asignación del
fader físico.
2. Pulse y mantenga pulsado el botón del dispositivo que contiene la asignación del fader
físico deseada.
3. Mientras mantiene aún pulsado el botón del dispositivo anterior, pulse y mantenga
pulsado el dispositivo en el que quiere copiar.
4. Mientras aún mantiene pulsados los botones de ambos dispositivos, pulse y mantenga
pulsado <MIDI/ADD>.
5. Mientras mantiene pulsados estos tres botones, suelte el dispositivo seleccionado en el
paso 2 de más arriba.
6. Mientras mantiene pulsado <MIDI/ADD>, suelte el dispositivo seleccionado en el paso 3
de más arriba.
7. Suelte <MIDI/ADD>.
8. Los LEDs de todos los dispositivos parpadearán.
9. Pulse <PROGRAM> y <TAP SYNC/DISPLAY> dos veces para salir del modo de
asignación del fader físico.
Esto no copiará las configuraciones de fader inverso.
Fader Inverso
(0~255/255~0)
Esta función le permitirá invertir la salida DMX del fader o faders físicos.
1. Pulse <PROGRAM> y <TAP SYNC/DISPLAY> dos veces. Así entrará en el modo de
asignación del fader inverso.
2. Seleccione uno de los dispositivos: <FIXTURE 1~12> (este será el dispositivo para el que
desea modificar los canales).
3. Mueva el fader <SPEED> para seleccionar el deslizador físico (control de canal).
4. Mueva el fader <FADE TIME> para activar/desactivar esta función.
5. Pulse <MIDI/ADD> para guardar la configuración.
6. Repita los pasos 3~5 hasta que todos los faders se hayan asignado para el dispositivo.
7. Pulse <PROGRAM> y <TAP SYNC/DISPLAY> una vez para salir del modo de asignación
del fader inverso.
Reiniciar el Sistema
Use esta función para revertir todas las escenas al estado en el que se encontraban
cuando el producto salió de fábrica.
1. Apague la unidad.
2. Pulse y mantenga pulsado <BANK UP> y <AUTO/DEL>.
3. Encienda la alimentación de la unidad (mientras todavía mantiene pulsado <BANK UP>
y<AUTO/DEL>.
4. Todos los LEDs parpadearán para indicar que el reinicio se ha efectuado con éxito.
¡Esto borrará todas las escenas, secuencias y otras configuraciones! Este
proceso puede tardar hasta 30 segundos en completarse.
