B-250 Bubble Machine User Manual Rev. 6 Page 3 of 10
1.BEFORE YOU BEGIN
What Is
Included
•1 x B-250 Bubble Machine
•1 x Power Cord •1 x Warranty Card •1 x User Manual
Unpacking
Instructions
Immediately upon receipt, carefully unpack the product
and check the container to make
sure you have received all the parts indicated above in good condition.
Claims
If the container or the material inside the container (the product and
included
accessories) appear damaged from shipping, or show
signs of mishandling, notify the
carrier immediately, not CHAUVET®, upon receipt.
Failure to do so in a timely manner
may invalidate your claim with the carrier. In addition, keep the container and all the
packing material for inspection.
For other issues such as missing components or parts, damage not related to shipping,
or concealed damage, file a claim with CHAUVET® within 7 days of receiving the
merchandise.
Text
Conventions
Convention Meaning
1–512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Icons
Icon Meaning
Critical installation, configuration, or operation information. Failure
to comply with this information may render the product partially or
completely inoperative, cause damage to the product, or cause
harm to the user.
Important installation or configuration information. Failure to
comply with this information may keep the product from working.
Useful information.
Document
Information
The information and specifications contained in this document are subject to change
without notice. CHAUVET® assumes no responsibility or liability for any errors or
omissions that may appear in this manual. CHAUVET® reserves the right
to update the
existing document or to create a new document to correct any errors or omissions.
You can download the latest version of this document from www.chauvetlighting.com.
© Copyright 2013 CHAUVET®. All rights reserved
Electronically published by CHAUVET® in the United States of America
Author Date Editor Updated
A. Leon 06/07/13 T. Yeago 06/17/13

Page 4 of 10 B-250 Bubble Machine User Manual Rev. 6
Product at a
Glance
Use on Dimmer
x
Auto Programs
x
Outdoor Use
x
Fixed voltage (120 V or 230 V)
P
Sound-Activated
x
Replaceable Fuse
P
DMX
x
User-Serviceable
x
Master/Slave
x
Safety Notes
Please read the following Safety Notes carefully before working with the product. The
Notes include important safety information about installation, usage, and maintenance.
•Always connect the product to a grounded circuit to avoid the risk of electrocution.
•Always disconnect the product from the power source before cleaning or replacing
the fuse.
•Make sure the power cord is not crimped or damaged.
•Never disconnect the product from power cord by pulling or tugging on the cord.
•If mounting the product overhead, always secure to a fastening device using a
safety cable.
•
Make sure there are no flammable materials close to the product when operating.
•Always make sure that the voltage of the outlet to which you are connecting the
product is within the range stated on the decal or rear panel of the product.
•The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not
expose the product to rain or moisture.
•Always install the product in a location with adequate ventilation, at least 20 in (50
cm) from adjacent surfaces.
•Be sure that no ventilation slots on the product’s housing are blocked.
•Never connect the product to a dimmer.
•Make sure to replace the fuse with another of the same type and rating.
•Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket or the handles.
•The maximum ambient temperature is 104° F (40° C). Do not operate the product at
higher temperatures.
•Do not leave unused fluid in the reservoir for an extended period. The fluid
may thicken in the reservoir.
•In the event of a serious operating problem, stop using the product immediately.
•Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center.
•Keep this User Manual for future consultation. If you sell the product to another
user, be sure that they also receive this document.

B-250 Bubble Machine User Manual Rev. 6 Page 5 of 10
2.INTRODUCTION

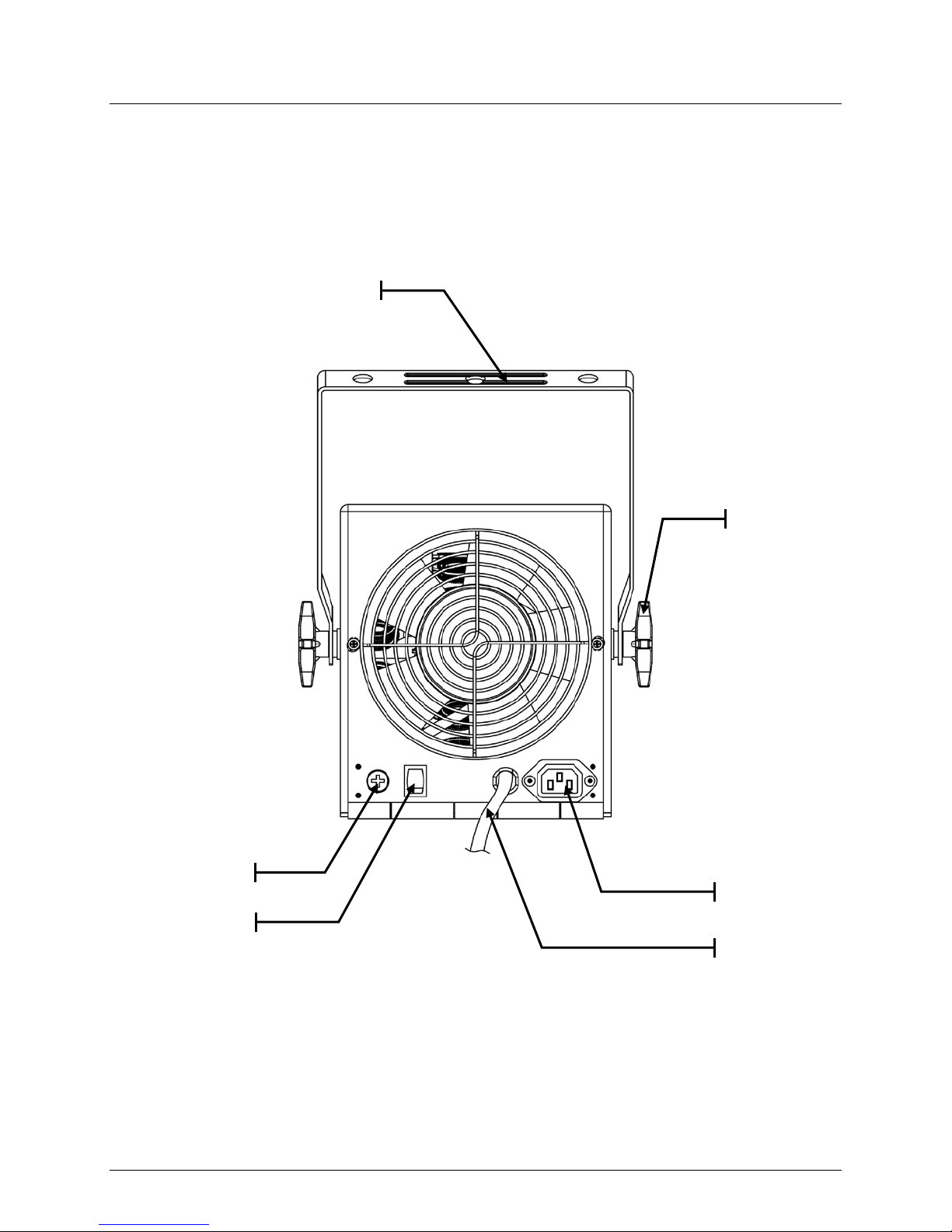

Product Overview
Adjustment Knob
Mounting Bracket
On/Off Switch
Fuse Holder
Remote In
Power Cord

Page 6 of 10 B-250 Bubble Machine User Manual Rev. 6
3.SETUP
AC Power
The B-250 Bubble Machine has a fixed voltage power supply and
can work with an input
voltage of either 120 V, 60 Hz or 230 V, 50 Hz, depending on the specific model.
To determine the product’s power requirements (circuit breaker, power outlet, and
wiring), use the current value listed on the label affixed to the product’s back panel, or
refer to the product’s specification chart. The listed current rating indicates the product’s
average current draw under normal conditions.
Always connect the product to a protected circuit
(circuit breaker or fuse). Make
sure the product has
an appropriate electrical ground to avoid the risk of
electrocution or fire.
Never connect the product to
a rheostat (variable resistor) or dimmer circuit, even
if the rheostat or dimmer channel serves only as a 0 to 100% switch.

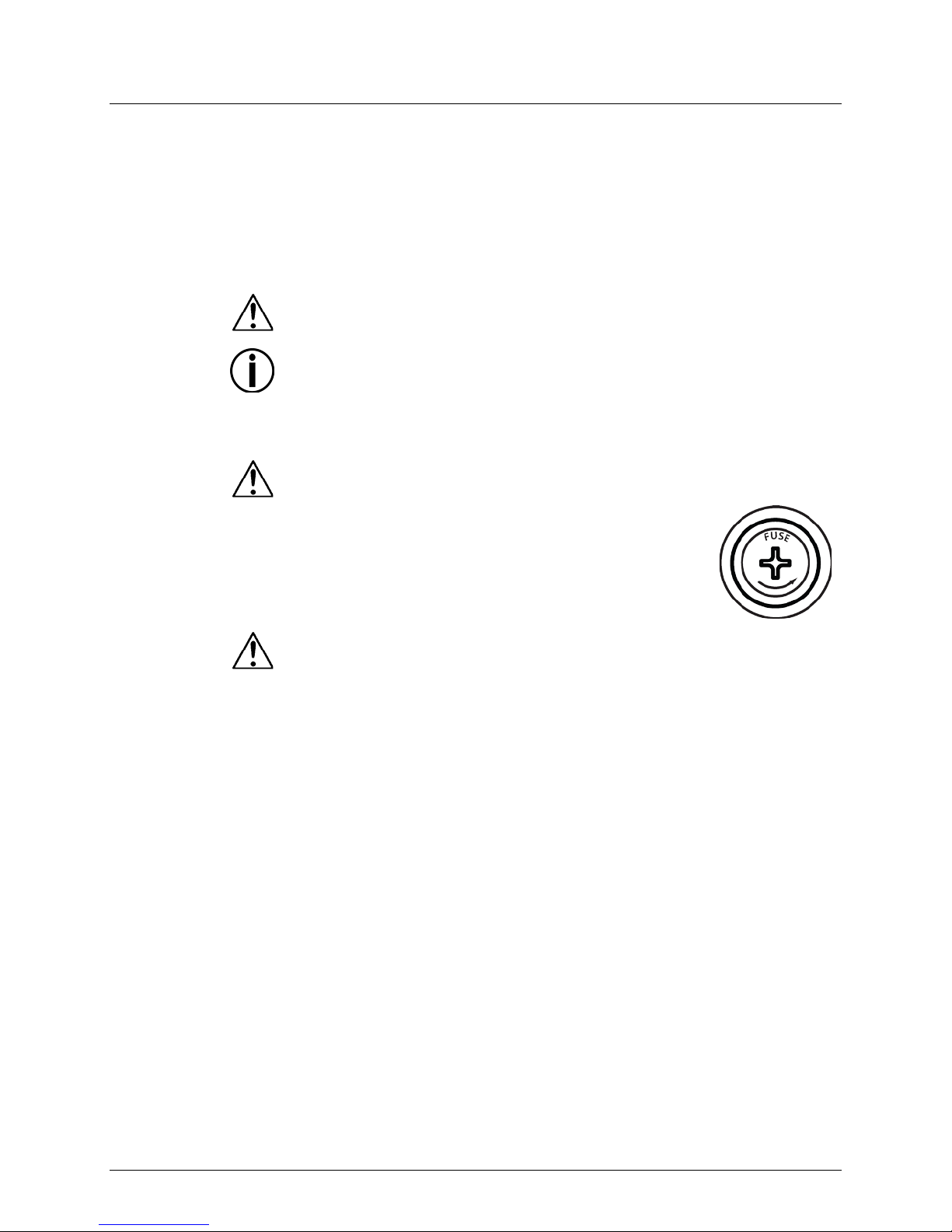

Fuse
Replacement Follow the instructions below to change the fuse, if necessary.
Disconnect the product from the power outlet before replacing the fuse.
1. Disconnect the product from the power outlet.
2. With a Phillips #2 head screwdriver, unscrew the fuse holder
cap from the housing.
3. Remove the blown fuse and replace with a good fuse of the
same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
Always replace a blown fuse with the same type and rating.

B-250 Bubble Machine User Manual Rev. 6 Page 7 of 10
Mounting
Before mounting the product
, read and follow the safety recommendations indicated in
the Safety Notes section.
Orientation
The Bubble Machine
may be mounted in any position; however, make sure adequate
ventilation is provided around the product.
Rigging
•Before deciding on a location for the product, always make sure there is easy
access to the product for maintenance and fluid replenishment purposes.
•Make sure that the structure or surface onto which you are mounting the product
can support the product’s weight. See the Technical Specifications section of this
manual for weight information.
•When mounting the product overhead, always use a safety cable.
Mount the
product securely to a rigging point, whether an elevated platform or a truss.
•When rigging the product onto a truss, you should use a mounting clamp of
appropriate weight capacity. The bracket has a 13 mm hole, which is appropriate for
this purpose.
•The bracket adjustment knobs allow for directional adjustment when aiming the
product to the desired angle. Only loosen or tighten the bracket knobs manually.
Using tools could damage the knobs.
Mounting Diagram
Mounting Bracket
Adjustment Knob

Page 8 of 10 B-250 Bubble Machine User Manual Rev. 6
4.OPERATION
Operation
1. Place the Bubble Machine
on a level surface and loosen the thumbscrews on the
front of the unit for fluid tank access. Lift the cover.
2. Fill the tank with bubble fluid.
Note: We recommend using CHAUVET® bubble fluid (BJU) which
has been
specially formulated for use with CHAUVET® bubble machines.
The tank
capacity is 24 oz (0.7 l).
3. Lower the cover and tighten screws.
4. Plug into a suitable wall outlet.
5.
Turn on the unit. For remote use, move the switch to Remote and use the optional
remote controller to operate the bubble machine.
Note: Do not leave unused fluid in the reservoir for an extended period. The
fluid may thicken in the reservoir.

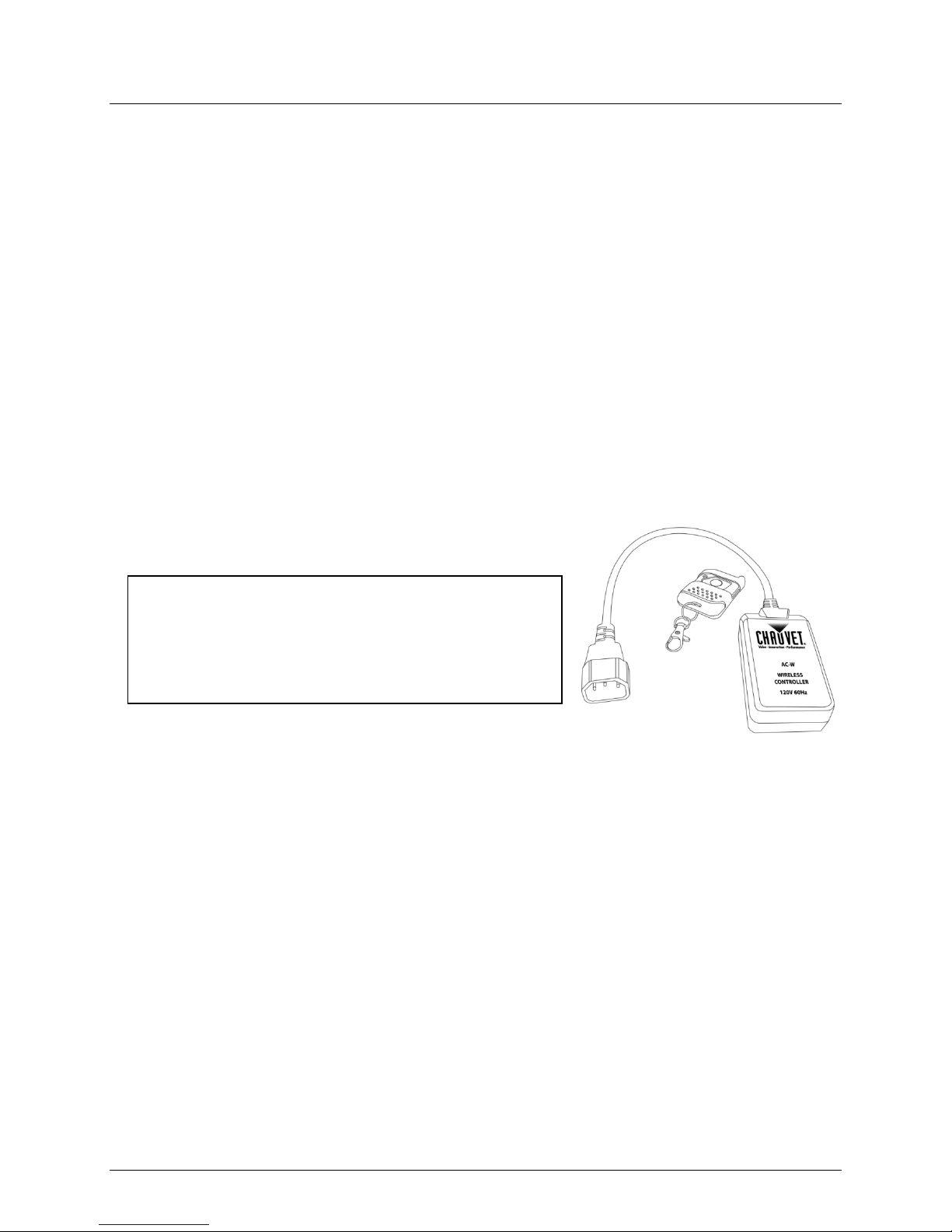

AC-W wireless controller is now available for use with the
Bubble Machine. The AC-W is a wireless trigger that does not
need an external power supply — easy setup and easy teardown.
In addition, the AC-W has an operation range of 100 ft.
(unobstructed) for increased flexibility enabling
the attached
machines to be triggered from almost anywhere.

B-250 Bubble Machine User Manual Rev. 6 Page 9 of 10
5.TECHNICAL INFORMATION
Product
Maintenance
Dust build up reduces output performance and can cause overheating. This can lead to
reduction of the product’s life and mechanical wear.
To maintain optimum performance
and minimize wear, you should clean your products frequently.
However, be aware that
usage and environmental conditions could be contributing factors
to increase the
cleaning frequency.
After every 40 hours of continuous operation or when the machine will be idle for a long
time it is recommended to rinse
the bubble wands and fluid tank with warm water to
prevent a build-up of residue which could reduce performance.
To clean the product, follow the instructions below:
•While the unit is unplugged, loosen the thumbscrew and lift cover to reveal the fluid
tank.
•Empty all bubble fluid from the tank and replace with warm water.
•Plug the product in and allow it to run as usual until all wands appear to be free of
residue.
Always dry the surfaces carefully after cleaning them.
Do not spin the fan using compressed air because you could damage it.
6.TECHNICAL SPECIFICATIONS
Dimensions and
Weight
Length
Width
Height
Weight
12.5 in (318 mm)
7 in (178 mm)
6.5 in (165 mm)
6.8 lbs (3.1 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Tank Capacity
U.S.
UK/Europe
24 oz.
0.7 l
Power
Power Supply Type
Range
Voltage Selection
Voltage specific
115 V, 60 Hz or 230 V, 50 Hz
Fixed voltage
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
42 W
41 W
Operating / Inrush current
0.5 A / 0.6 A
0.2 A / 0.3 A
Fuse
F 1 A, 250 V
F 1 A, 250 V
Power I/O
US/Worldwide
UK/Europe
Power Cord plug
Edison (US)
Local plug
Thermal
Maximum External Temp.
104° F (40° C)
Ordering
Product Name
Item Code
Item Number
Bubble Machine
02070054
B-250

Page 10 of 10 B-250 Bubble Machine User Manual Rev. 6
Contact
Procedure
In case you need to return a product or request support, follow the procedure below:
•If you live in the U.S., contact CHAUVET® World Headquarters (see below).
•If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below).
•If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your
distributor of record. Refer to our Web site for contact details of distributors outside
the US, United Kingdom, or Ireland.
CHAUVET®
Contact
Information
World Headquarters
CHAUVET®
General Information
Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: [phone]
Fax: [phone]
Toll free: [phone]
United Kingdom & Ireland
CHAUVET® Europe Ltd.
General Information
Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: [phone]
Fax: [phone]
Technical Support
Voice: [phone] (Press 4)
Fax: [phone]
Email: [e-mail]
Technical Support
Email: [e-mail]
World Wide Web
www.chauvetlighting.com
World Wide Web
www.chauvetlighting.co.uk
If you live outside the U.S., United Kingdom, or Ireland, contact your distributor of
record and follow their instructions on how to return CHAUVET® product
s to
them. Visit our Web site for contact details.
Returning
Products
to
CHAUVET®
Call the corresponding CHAUVET®
Tech Support office and request a Return
Merchandise Authorization (RMA) number before shipping the product
. Be prepared to
provide the model number, serial number, and a brief description of the cause for the
return.
You must send the merchandise prepaid
, in its original box, and with its original packing
and accessories. CHAUVET® will not issue call tags.
Clearly label the package with the RMA number. CHAUVET® will refuse any product
returned without an RMA number.
Write the RMA number on a properly affixed label. DO NOT write the RMA number
directly on the box.
Before sending the product, clearly write
the following information on a piece of paper
and place it inside the box:
•Your name
•Your address
•Your phone number
•RMA number
•A brief description of the problem
Be sure to pack the product
properly. Any shipping damage resulting from inadequate
packaging will be your responsibility. As a suggestion, proper UPS packing or double-
boxing is always a safe method to use.
CHAUVET®
reserves the right to use its own discretion to repair or replace
returned product(s).
