COLORado™ 1-Tri IP v2 QRG EN
2
About this
Guide
The COLORado™ 1-Tri IP v2 Quick Reference Guide (QRG) has basic
product information such as connection, mounting, menu options, and DMX
values. Download the User Manual from www.chauvetlighting.com
for more
details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•CAUTION: This product’s housing may be hot when lights are
operating.
•Mount this product in a location with adequate ventilation, at least 20
in (50 cm) from adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product
while operating or connected to power.
•USE a safety cable when mounting this product overhead.
•DO NOT submerge this product (IP66). Regular outdoor operation is
fine.
•DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the hanging/mounting bracket to carry this product.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 104° F (40° C). Do not operate
this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, or Ireland, contact your distributor to
request support or return a product. Visit www.chauvetlighting.com
for contact
information.
What Is
Included
•COLORado™ 1-Tri IP v2
•IP 66 Power Input Cord
•Male/Female 5-pin IP 66
Adaptor
•Accessory Holder
•Gel Frame
•Safety Cable
•Warranty Card
•Quick Reference Guide

EN COLORado™ 1-Tri IP v2 QRG
3
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
Power Linking
You can link up to 18 COLORado™ 1-Tri IP v2 products at 120 VAC or
34
at 230 VAC. Never exceed this number. Power linking cords can be
purchased separately.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
DMX Linking
The COLORado™ 1-Tri IP v2 will work with a DMX controller using a regular
DMX serial connection. A DMX Primer is available from
www.chauvetpro.com.
DMX Connection
The COLORado™ 1-Tri IP v2 uses a regular DMX data connection for its
DMX personalities: TR16,TOUR, ARC.1, AR1.d, AR1.S, and HSV
. See the
User Manual to connect and configure for DMX operation.
Note: For optimum control of the 16-bit dimming channels in the TR16
personality, be sure that both dimming curves in SET > DIMX and SET >
CURV are set to OFF.
Master/Slave
Connection
The COLORado™ 1-Tri IP v2 uses the DMX data connection for its
Master/Slave mode. See the User Manual to connect and configure for
Master/Slave operation.

COLORado™ 1-Tri IP v2 QRG EN
4

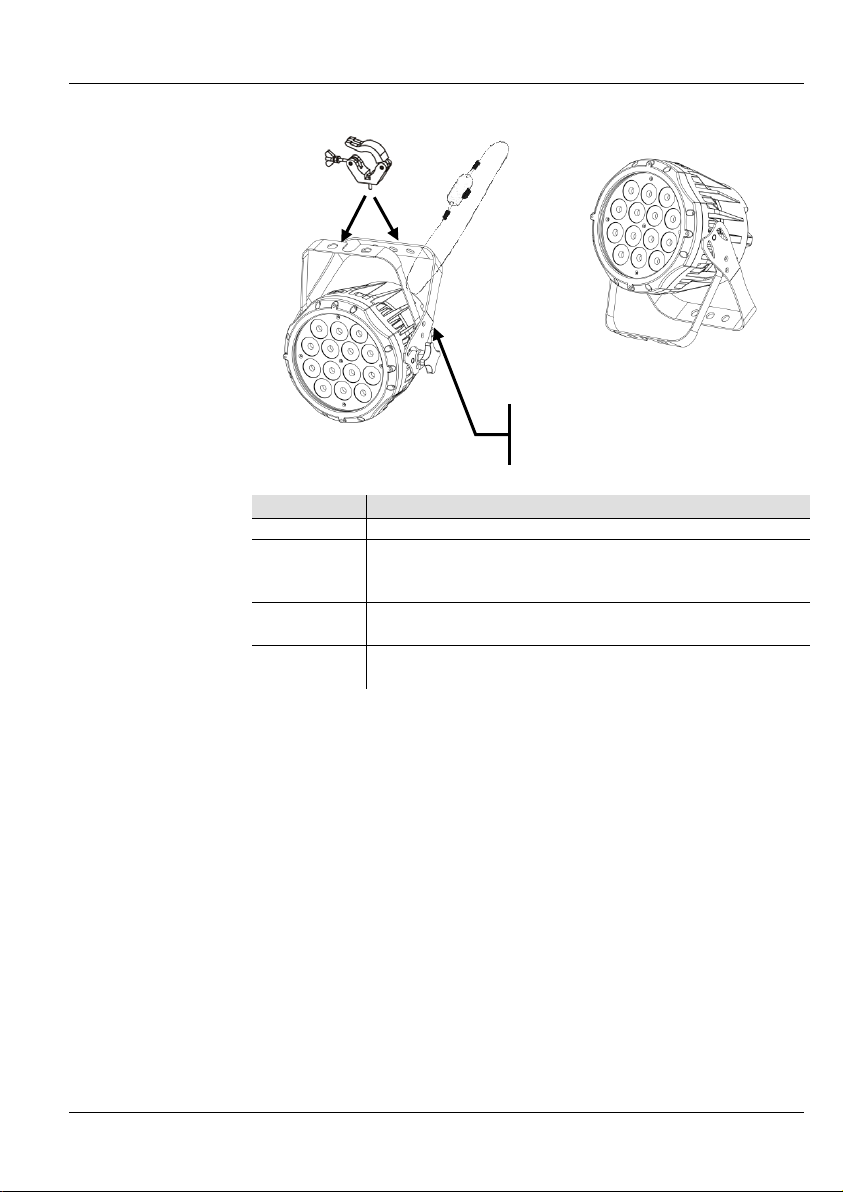

Mounting
Product
Mounting
Diagram
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
<UP>
Navigates upwards through the menu list and increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases
the numeric value when in a function
Password
After being prompted, enter the following password by pressing:
<UP>, <DOWN>, <UP>, <DOWN>, <ENTER>
This password cannot be changed and must be used whenever prompted.
Secure the safety cable using
the passageway on the back
of the product.
Overhead Mounting
Floor Mounting

EN COLORado™ 1-Tri IP v2 QRG
5
Menu Options
Main Level
Programming Levels
Description
STAT
R.
000~255 Combine Red, Green, and Blue to make
a custom color
G.
b.
ST. 00~20
Selects the strobe frequency
(0~20 Hz)
AUTO
AT.
01~10
10 automatic programs
PR.
10 customizable programs
RUN
dMX.
DMX mode
SLAV
Master/Slave mode
dMX
d.
001~512
Selects the DMX starting address
PERS
TOUR
9 Channels: R/G/B, dimmer, strobe, color
macro, auto/custom, dimmer speed, auto
speed,
TR16.
13 Channels: 16-bit- R/G/B, dimmer,
strobe, color macro, auto/custom, dimmer
speed, auto speed
ARC.1
3-channel: R/G/B control
AR1.d
4-channel: R/G/B, dimmer
AR1.S
5-channel: R/G/B, dimmer, strobe
HSV.
3-channel: HSV control
EdIT PR. 01~
10 SC. 01~
30
R.
000~
255 Combine Red, Green, and Blue, to
generate a custom color (0~100%)
G.
b.
Sb.
00~
20
Selects the strobe frequency
(0~20 Hz)
T. 000~
255
Defines the step duration
(0~100%)
F.
Defines the fade duration
(0~100%)

COLORado™ 1-Tri IP v2 QRG EN
6
Menu Options (cont.)
Main Level
Programming Levels
Description
SET
UPLd.
….
(Enter Passcode)
Uploads custom programs to other
COLORado™ 1-Tri IP v2
REST.
….
(Enter Passcode)
Defaults product to factory settings
COLO.
OFF
RGB set to “255”= max. output
RGBw.
RGB set to “255” = balanced white
UC.
Universal color balance
dIM.
OFF.
No dimmer
dIM1.
Dimmer curve
dIM2.
dIM3.
dIM4.
CURV.
OFF.
No dimmer
CV1.
Slow (CV3) to fast (CV1) dimmer curves
CV2.
CV3.
DERR.
BLAK.
Blacks out fixture upon loss of DMX
SAVE.
Continues with last command upon loss of
DMX control
SLCK.
OFF.
SET main level access lock
ON .
STRB.
CLAS.
Selects strobe personality used in TOUR,
and TR16 personalities
SPEC.
CAL ….
(Enter
Passcode)
CAL
1 wT. 01~
11
R.
000~
255
Modifies the color macros used in the
TOUR and TR16 personalities
G.
b.
CAL
2 RGBw.
R.
Defines the color temperature used when
COLO is set to RGBw.
G.
b.
CAL
R
….
(Enter
Passcode)
CAL
R OK Defaults CAL to factory settings
KEY
ON
Turns the password on or off
OFF

EN COLORado™ 1-Tri IP v2 QRG
7
DMX Values
TOUR.
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0~100%
2
Red
000 ó255
000~255 (Step Time if Auto 1~10 active)
3
Green
000 ó255
000~255 (Fade Time if Auto 1~10 active)
4
Blue
000 ó255
0~100%
5 Color Macro +
White Balance
000 ó010
011 ó030
031 ó050
051 ó070
071 ó090
091 ó110
111 ó130
131 ó150
151 ó170
171 ó200
201 ó205
206 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
No Function
R: 100% G: 0~100% B: 0
R: 100%~0G: 100% B: 0
R: 0 G: 100% B: 0~100%
R: 0 G: 100%~0 B: 100%
R: 0~100%G: 0 B: 100%
R: 100% G: 0 B: 100%~0
R: 100% G: 0~100% B: 0~100%
R: 100%~0G: 100%~0 B: 100%
R: 100% G: 100% B: 100%
White 1
White 2
White 3
White 4
White 5
White 6
White 7
White 8
White 9
White 10
White 11
6*
Special Strobe
000 ó010
011 ó099
100 ó109
110 ó179
180 ó189
190
ó
255
No Function
Slow to Fast
No Function
Lighting Effect Slow to Fast
No Function
Random
Classic Strobe
000 ó010
011 ó019
020 ó029
030 ó039
040 ó049
050 ó059
060 ó069
070 ó079
080 ó089
090 ó099
100 ó109
110 ó119
120 ó129
130 ó139
140 ó149
150 ó159
160 ó169
170 ó179
180 ó189
190 ó199
200 ó255
No Function
1 Hz
2Hz
3Hz
4Hz
5Hz
6Hz
7Hz
8Hz
9Hz
10 Hz
11 Hz
12 Hz
13 Hz
14 Hz
15 Hz
16 Hz
17 Hz
18 Hz
19 Hz
20 Hz
*Select strobe
function in the
main menu
under SET >
STRB > CLAS
or SPEC

COLORado™ 1-Tri IP v2 QRG EN
8
DMX Values (cont.)
TOUR.
(Cont.)
Channel
Function
Value
Percent/Setting
7 Programs
000 ó020
021 ó030
031 ó040
041 ó050
051 ó060
061 ó070
071 ó080
081 ó090
091 ó100
101 ó110
111 ó120
121 ó130
131 ó140
141 ó150
151 ó160
161 ó170
171 ó180
181 ó190
191 ó200
201 ó210
211 ó220
221 ó255
No Function
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8
Auto 9
Auto 10
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Custom 6
Custom 7
Custom 8
Custom 9
Custom 10
No Function
8
Auto Speed
000 ó255
0~100% (Only when using Auto1~10)
9 Dimmer Speed
000 ó009
010 ó029
030 ó069
070 ó129
130 ó189
190 ó255
Preset dimmer speed from display menu
Linear dimmer
Nonlinear dimming curve 1 (fastest)
Nonlinear dimming curve 2
Nonlinear dimming curve 3
Nonlinear dimming curve 4 (slowest)

EN COLORado™ 1-Tri IP v2 QRG
9
DMX Values (cont.)
TR16.
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0~100%
2
Fine Dimmer
000 ó255
0~100%
3
Red
000 ó255
000~255 (Step Time if Auto 1~10 active)
4
Fine Red
000 ó255
000~255 (Fade Time if Auto 1~10 active)
5
Green
000 ó255
0~100%
6
Fine Green
000 ó255
0~100%
7
Blue
000 ó255
0~100%
8
Fine Blue
000 ó255
0~100%
9 Color Macro +
White Balance
000 ó010
011 ó030
031 ó050
051 ó070
071 ó090
091 ó110
111 ó130
131 ó150
151 ó170
171 ó200
201 ó205
206 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
No Function
R: 100% G: 0~100% B: 0
R: 100%~0G: 100% B: 0
R: 0 G: 100% B: 0~100%
R: 0 G: 100%~0 B: 100%
R: 0~100%G: 0 B: 100%
R: 100% G: 0 B: 100%~0
R: 100% G: 0~100% B: 0~100%
R: 100%~0G: 100%~0 B: 100%
R: 100% G: 100% B: 100%
White 1
White 2
White 3
White 4
White 5
White 6
White 7
White 8
White 9
White 10
White 11

COLORado™ 1-Tri IP v2 QRG EN
10
DMX Values (cont.)
TR16.
(Cont.)
Channel
Function
Value
Percent/Setting
10*
Special Strobe
000 ó010
011 ó099
100 ó109
110 ó179
180 ó189
190 ó255
No Function
Slow to Fast
No Function
Lighting Effect Slow to Fast
No Function
Random
Classic Strobe
000 ó010
011 ó019
020 ó029
030 ó039
040 ó049
050 ó059
060 ó069
070 ó079
080 ó089
090 ó099
100 ó109
110 ó119
120 ó129
130 ó139
140 ó149
150 ó159
160 ó169
170 ó179
180 ó189
190 ó199
200 ó255
No Function
1 Hz
2Hz
3Hz
4Hz
5Hz
6Hz
7Hz
8Hz
9Hz
10 Hz
11 Hz
12 Hz
13 Hz
14 Hz
15 Hz
16 Hz
17 Hz
18 Hz
19 Hz
20 Hz
11 Programs
000 ó020
021 ó030
031 ó040
041 ó050
051 ó060
061 ó070
071 ó080
081 ó090
091 ó100
101 ó110
111 ó120
121 ó130
131 ó140
141 ó150
151 ó160
161 ó170
171 ó180
181 ó190
191 ó200
201 ó210
211 ó220
221 ó255
No Function
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8
Auto 9
Auto 10
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Custom 6
Custom 7
Custom 8
Custom 9
Custom 10
No Function
*Select
strobe
function in
the main
menu under
SET >
STRB >
CLAS or
SPEC
