Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL

Rogue R1 FX-B QRG EN
2
About This
Guide
The Rogue R1 FX-B Quick Reference Guide (QRG) has basic product information
such as connection, mounting, menu options, and DMX values. Download the
User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•To eliminate unnecessary wear and improve its lifespan, during periods of
non-use completely disconnect the product from power via breaker or by
unplugging it.
•CAUTION: When transferring product from extreme temperature
environments, (e.g., cold truck to warm humid ballroom) condensation may
form on the internal electronics of the product. To avoid causing a failure,
allow product to fully acclimate to the surrounding environment before
connecting it to power.
•CAUTION: This product’s housing may be hot when lights are operating.
•Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product while
operating or connected to power.
•USE a safety cable when mounting this product overhead.
•DO NOT operate this product outdoors or in any location where dust,
excessive heat, water, or humidity may affect it. (IP20)
•DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the mounting brackets or the handles to carry this product. Do not
carry by the moving head.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this
product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your
distributor to request support or return a product. From inside the U.S., UK,
Ireland, Mexico, or Benelux, use the information in Contact Us
at the end of this
QRG.
What Is
Included
•Rogue R1 FX-B
•Neutrik® powerCON® power cord
•2 Omega brackets with mounting hardware
•Warranty Card
•Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage
range of 100–240 VAC, 50/60 Hz.
To eliminate unnecessary wear and improve its lifespan, during periods of
non-
use completely disconnect the product from power via breaker or by
unplugging it.

Rogue R1 FX-B QRG EN
3
Power Linking
You can link up to 8 Rogue R1 FX-B products at 120 V, 14 products at 208 V, or
15 products at 230 V. Never exceed this
number. Power linking cords can be
purchased separately.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Replacing The
Fuse
1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
Signal
Connections
You can link the Rogue R1 FX-B to a controller or controller software using a DMX
connection, an Ethernet connection, or both. If using other Art-Net™, sACN
, or
Kling-Net -compatible products with the Rogue R1 FX-B
, you can control each
individually o
n a single network. See the User Manual for information about how to
connect and configure the product for these signals.
Control
Personalities
The Rogue R1 FX-B uses DMX, Art-Net™, sACN, and Kling-Net for its control
personalities:
Single Control
Dual Control Movement
Dual Control Pixel
Tour 2 (52-channel)
Tour (47-channel)
Advanced (47-channel)
Advanced (23-channel)
RGBW (20-channel)
Standard (25-channel)
Standard (17-channel)
RGB (15-channel)
Basic (18-channel)
Basic (10-channel)
Uses DMX, Art-Net,
sACN, or Kling-Net
Uses DMX, Art-Net™, or sACN
DMX Connection
The Rogue R1 FX-B will work with a DMX controller using a 3- or 5-pin DMX
data connection. A DMX Primer is available from www.chauvetprofessional.com.
Art-Net™
Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount
of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large
network. An Art-
Net™ protocol document is available from
www.chauvetprofessional.com.
Chauvet Professional recommends using unicast
Art-Net™ for best results.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the
layering and formatting of Architecture for Control Networks to transport DMX512
data over IP or any other ACN compatible network. ACN is maintained by the
Professional Lighting and Sound Association (PLASA).
Kling-Net
Connection
Kling-Net is a network protocol that allows auto configuration of display devices
using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos
software manual for detailed instructions on programming this product.
For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000
Mbps) Ethernet card and network router.

Rogue R1 FX-B QRG EN
4

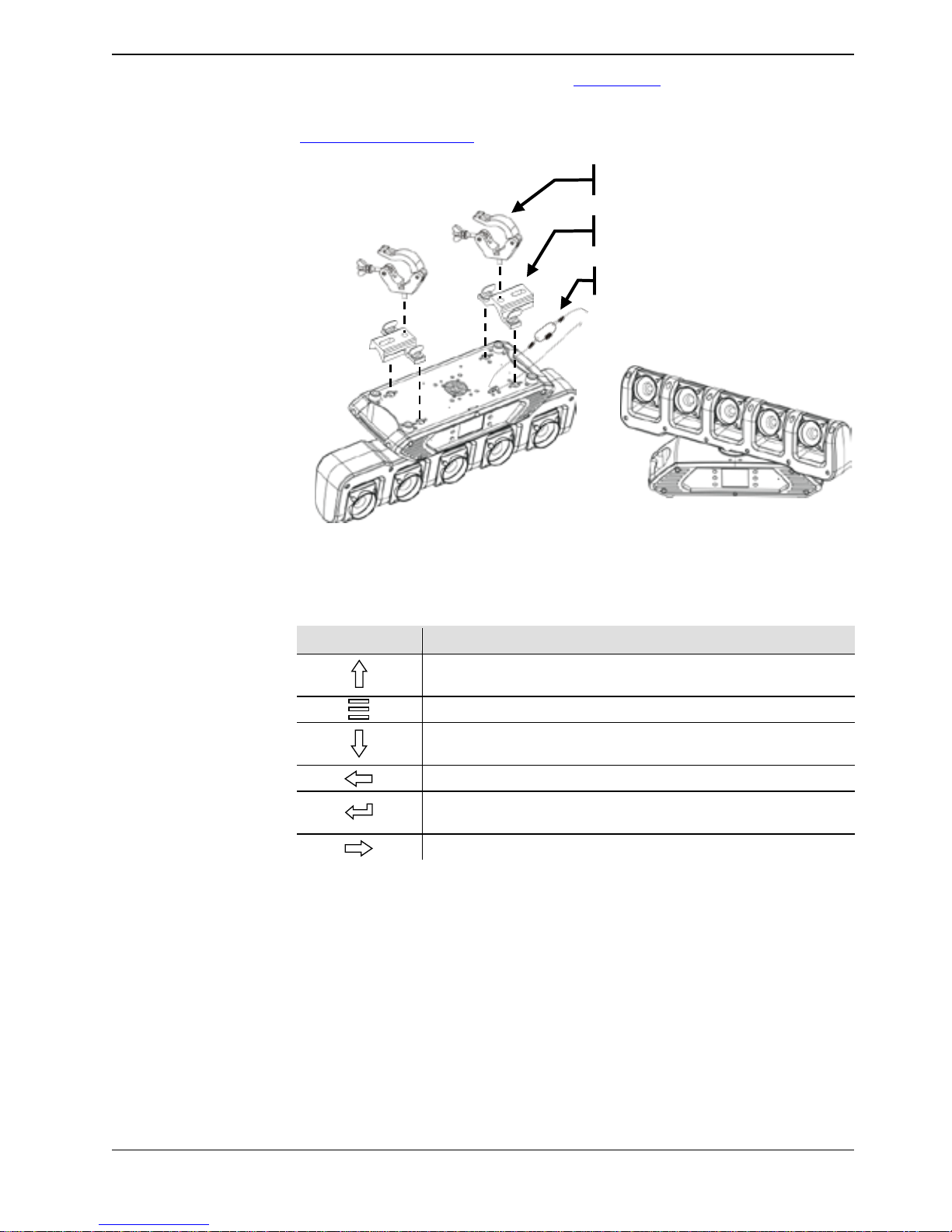

Mounting
Before mounting this product, read the Safety Notes. Use at least two mounting
points per product. Make sure the mounting clamps are capable of su
pporting the
weight of the product. For our Chauvet line of mounting clamps, g
o to
http://trusst.com/products/.
Product
Mounting
Diagram
Touchscreen
Control Panel
The Rogue R1 FX-B has a touchscreen display as well as 6 control buttons. The
touchscreen can be locked and calibrated through the Setup options in the menu.
Control Panel
Description
Button
Function
Navigates upwards through the menu list or increases the
numeric value when in a function
Exits from the current menu or function
Navigates downwards through the menu list or decreases the
numeric value when in a function
Navigates leftwards through the menu list
Enables the currently displayed menu or sets the currently
selected value into the selected function
Navigates rightwards through the menu list
Overhead Mounting
Floor Mounting
Mounting
Clamp
Safety Cable
Omega Bracket
< >
< >
< >
< >
< >
< >

Rogue R1 FX-B QRG EN
5
Menu Map
Programming Levels
Description
Control Settings
Control Settings Main Level
Control Settings
Single
Control
DMX Personality
Basic
Sets the DMX personality, from
Basic (18CH), Standard (25CH),
Advanced (47CH), Tour (47CH) or
Tour 2 (52CH)
Standard
Advanced
Tour
Tour 2
Start Address
001–512
Sets the DMX starting address
ArtNet Personality
Basic
Sets the Art-Net™ personality from
Basic (18CH), Standard (25CH),
Advanced (47CH), Tour (47CH) or
Tour 2 (52CH)
Standard
Advanced
Tour
Tour 2
Start Address
001–512
Sets the Art-Net™ starting address
Universe
0–254
Sets the Art-Net™ universe
sACN Personality
Basic
Sets the sACN personality, from
Basic (18CH), Standard (25CH),
Advanced (47CH), Tour (47CH) or
Tour 2 (52CH)
Standard
Advanced
Tour
Tour 2
Start Address
001–512
Sets the sACN starting address
Universe
0–255
Sets the sACN universe
Dual
Control
Movement
DMX Personality
Basic
Sets the DMX personality, from
Basic (10CH), Standard (17CH), or
Advanced (23CH)
Standard
Advanced
Start Address
001–512
Sets the DMX starting address
ArtNet Personality
Basic
Sets the Art-Net™ personality, from
Basic (10CH), Standard (17CH), or
Advanced (23CH)
Standard
Advanced
Start Address
001–512
Sets the Art-Net™ starting address
Universe
0–254
Sets the Art-Net™ universe
sACN Personality
Basic
Sets the sACN personality, from
Basic (10CH), Standard (17CH), or
Advanced (23CH)
Standard
Advanced
Start Address
001–512
Sets the sACN starting address
Universe
0–255
Sets the sACN universe
Pixels
DMX Personality
RGB
Sets the DMX personality, from
RGB (15CH) or RGBW (20CH)
RGBW
Start Address
001–512
Sets the DMX starting address
ArtNet Personality
RGB
Sets the Art-Net™ personality, from
RGB (15CH) or RGBW (20CH)
RGBW
Start Address
001–512
Sets the Art-Net™ starting address
Universe
0–254
Sets the Art-Net™ universe
sACN Personality
RGB
Sets the sACN personality, from
RGB (15CH) or RGBW (20CH)
RGBW
Start Address
001–512
Sets the sACN starting address
Universe
0–255
Sets the sACN universe
KlingNet Personality
RGB
Sets the Kling-Net personality, from
RGB (15CH) or RGBW (20CH)
RGBW
Note: In Dual Control mode, the Movement protocol and the Pixel protocol cannot be the same.

Rogue R1 FX-B QRG EN
6
Menu Map (cont.)
Programming Levels
Description
Test Mode
Test Mode Main Level
Test Mode
Auto test
Auto test all functions
Manual test
Pan
000–255 Manually control and test all
settings through the control panel
Pan Speed
Pan 360
Tilt 1
Tilt 2
Tilt 3
Tilt 4
Tilt 5
Tilt Speed
Tilt 1 360
Tilt 2 360
Tilt 3 360
Tilt 4 360
Tilt 5 360
Dimmer
Shutter
Red
Green
Blue
White
Color
LED Macro
LED Macro Speed
Setup
Setup Main Level
Setup
Network Settings IP Mode
Manual
Manually set IP address
DHCP
Network sets IP address
Static
Product sets IP address
IP
xxx.xxx.xxx.xxx
Set IP address in Manual mode
SubMask
xxx.xxx.xxx.xxx
Set Subnet Mask in Manual mode
Pan Reverse
NO
Normal pan
YES
Reversed pan
Tilt Reverse
NO
Normal tilt
YES
Reversed tilt
Screen Reverse
NO
Normal display
YES
Inverted display
AUTO
Automatic display orientation
Pan Angle
540
540° pan range
360
360° pan range
180
180° pan range
Tilt Angle
540
540° tilt range
270
270° tilt range
180
180° tilt range
BL. O. P/T Move
NO
Do not black out while pan/tilt
YES
Blackout while pan/tilt
Calibration
NO
Keep current settings
YES
Calibrate touchscreen
Touchscreen Lock
NO
Display responds to touch
YES
Display does not respond to touch
Lock Screen
NO
Lock the buttons and touch screen
Passcode: 0920
YES

Rogue R1 FX-B QRG EN
7
Menu Map (cont.)
Programming Levels
Description
Setup (cont.)
Setup Main Level (cont.)
Setup (cont.)
Backlight Timer
30S
Display turns off after 30 seconds
1M
Display turns off after 1 minute
5M
Display turns off after 5 minutes
ON
Display stays on
Loss of Data
Hold
Holds last signal received
Close
Blacks out fixture
C Mixing Mode
RGBW
Additive color mixing (0–100%)
CMY
Subtractive color mixing (100%–0)
Dimmer Curve
Linear
Set the dimmer curve
Square
I Squa
SCurve
Dimmer Speed
Smooth
Change the dimmer speed
Fast
PWM Option
600Hz
Selects the PWM output frequency
1200Hz
2000Hz
4000Hz
6000Hz
25000Hz
Color Balance
Red
100–255
Sets red LED maximum value
Green
Sets green LED maximum value
Blue
Sets blue LED maximum value
White
Sets white LED maximum value
Preset Select
PRESET A
Recorded preset menu options
PRESET B
PRESET C
Preset Sync
NO
Allows recorded preset menu
options to be transferred to other
Rogue R1 FXBs in the DMX daisy
chain
YES
Reset Function
Pan
NO
Reset individual functions or all
functions from start-up
YES
Tilt
NO
YES
All
NO
YES
Factory Settings
NO
Reset to factory default settings
YES
Sys Info
Sys Info Main Level
Sys Info
Fixture Information
Ver
VX
Shows firmware version
Running Mode
Xxx
Shows current running mode
DMX Address
xxx
Shows current starting address
Temperature xx
Shows current product
temperature in °C
Fixture Hours xxxxx
Shows number of hours product
has been powered on
IP
xxx.xxx.xxx.xxx
Shows current IP address
SubMask
xxx.xxx.xxx.xxx
Shows current Subnet Mask
MAC
xx.xx.xx.xx.xx.xx
Shows current MAC address
Error Information
No Error!*
Shows any errors, or No Error!

Rogue R1 FX-B QRG EN
8
Menu Map (cont.)
Programming Levels
Description
Sys Info (cont.)
Sys Info Main Level (cont.)
Sys Info (cont.)
Channel Information
Frequency
xxx Shows all current values from
input signals, 000–255
Pan
Pan Fine
Pan 360
Tilt 1
Tilt 1 Fine
Tilt 2
Tilt 2 Fine
Tilt 3
Tilt 3 Fine
Tilt 4
Tilt 4 Fine
Tilt 5
Tilt 5 Fine
Tilt 1 360
Tilt 2 360
Tilt 3 360
Tilt 4 360
Tilt 5 360
Y Macro
Y Macro Speed
Function
Dimmer
Shutter
Color
Lamp Number
LED Macro
LED Ma. Speed
Red 1
Green 1
Blue 1
White 1
Red 2
Green 2
Blue 2
White 2
Red 3
Green 3
Blue 3
White 3
Red 4
Green 4
Blue 4
White 4
Red 5
Green 5
Blue 5
White 5

Rogue R1 FX-B QRG EN
9
Single Control Values
Tour 2
(52CH)
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3 Continuous Pan
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
4 Tilt Macro
000ó047
No function
048ó055
Tilt macro 1
056ó063
Tilt macro 2
064ó071
Tilt macro 3
072ó079
Tilt macro 4
080ó087
Tilt macro 5
088ó095
Tilt macro 6
096ó103
Tilt macro 7
104ó111
Tilt macro 8
112ó119
Tilt macro 9
120ó127
Tilt macro 10
128ó135
Tilt macro 11
136ó143
Tilt macro 12
144ó151
Tilt macro 13
152ó159
Tilt macro 14
160ó167
Tilt macro 15
168ó175
Tilt macro 16
176ó183
Tilt macro 17
184ó191
Tilt macro 18
192ó199
Tilt macro 19
200ó207
Tilt macro 20
208ó215
Tilt macro 21
216ó223
Tilt macro 22
224ó231
Tilt macro 23
232ó239
Tilt macro 24
240ó247
Tilt macro 25
248ó255
Tilt macro 26
5
Tilt Macro Speed
000ó255
Fast to slow
6 Control
000ó009
No function
010ó014
Manual tilt blackout
015ó019
Cancel manual tilt blackout
020ó024
1 fixture macro
025ó029
2 fixture macro 1
030ó034
2 fixture macro 2
035ó039
4 fixture macro 1
040ó044
4 fixture macro 2
045ó049
4 fixture macro 3
050ó054
4 fixture macro 4
055ó059
Pan reset
060ó064
Tilt reset

Rogue R1 FX-B QRG EN
10
Tour 2
(52
CH
cont.)
Channel
Function
Value
Percent/Setting
6 Control
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó079
No function (reserved for future use)
080ó084
Pan/Tilt reverse
085ó089
Pan reverse
090ó094
Tilt reverse
095ó099
Cancel pan reverse
100ó104
Cancel tilt reverse
105ó109
Cancel pan/tilt reverse
110ó114
No function (reserved for future use)
115ó119
Link all heads to head 1
120ó124
Unlink all heads from head 1
125ó129
No function (reserved for future use)
130ó134
No function (reserved for future use)
135ó139
Dimmer speed mode fast
140ó144
Dimmer speed mode smooth
145ó255
No function
7
Dimmer
000ó255
0–100%
8 Shutter
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On
9 Color Macro
000ó013
No function
014ó020
Color 1
021ó028
Color 2
029ó036
Color 3
037ó044
Color 4
045ó052
Color 5
053ó060
Color 6
061ó068
Color 7
069ó076
Color 8
077ó084
Color 9

Rogue R1 FX-B QRG EN
11
Tour 2
(52
CH
cont.)
Channel
Function
Value
Percent/Setting
9 Color Macro
085ó092
Color 10
093ó100
Color 11
101ó108
Color 12
109ó116
Color 13
117ó124
Color 14
125ó133
Color 15
134ó185
No function
186ó207
Rainbow effect, fast to slow
208ó213
Stop
214ó235
Reverse Rainbow effect, fast to slow
236ó240
No function
241ó255
Color jump, fast to slow
10 On/Off Preset
(●= on; ○= off)
Head 1
Head 2
Head 3
Head 4
Head 5
000ó005
●
●
●
●
●
006ó011
○
●
●
●
●
012ó017
○
○
●
●
●
018ó023
○
○
○
●
●
024ó029
○
○
○
○
●
030ó035
○
○
○
○
○
036ó041
●
○
○
○
○
042ó047
●
●
○
○
○
048ó053
●
●
●
○
○
054ó059
●
●
●
●
○
060ó065
●
●
●
●
●
066ó071
○
○
○
○
○
072ó077
●
○
○
○
○
078ó083
○
●
○
○
○
084ó089
○
○
●
○
○
090ó095
○
○
○
●
○
096ó101
○
○
○
○
●
102ó107
○
○
○
○
○
108ó113
●
●
○
○
○
114ó119
○
●
●
○
○
120ó125
○
○
●
●
○
126ó131
○
○
○
●
●
132ó137
●
○
○
○
●
138ó143
○
○
○
○
○
144ó149
○
●
●
●
●
150ó155
●
○
●
●
●
156ó161
●
●
○
●
●
162ó167
●
●
●
○
●
168ó173
●
●
●
●
○
174ó179
○
○
○
○
○
180ó185
○
○
○
○
●
186ó191
○
○
○
●
●
192ó197
○
○
●
●
●
198ó203
○
●
●
●
●
204ó209
●
●
●
●
●
210ó215
○
○
○
○
○
216ó221
●
●
●
○
○
222ó227
○
●
●
●
○
228ó233
○
○
●
●
●

Rogue R1 FX-B QRG EN
12
Tour 2
(52
CH
cont.)
Channel
Function
Value
Percent/Setting
10 On/Off Preset
(●= on; ○= off)
Head 1
Head 2
Head 3
Head 4
Head 5
234ó239
●
○
○
●
●
240ó245
●
●
○
○
●
246ó255
●
●
●
●
●
11 LED Macro/
Auto Program
000ó015
No function
016ó020
LED Macro 1
021ó025
LED Macro 2
026ó030
LED Macro 3
031ó035
LED Macro 4
036ó040
LED Macro 5
041ó045
LED Macro 6
046ó050
LED Macro 7
051ó055
LED Macro 8
056ó060
LED Macro 9
061ó065
LED Macro 10
066ó070
LED Macro 11
071ó075
LED Macro 12
076ó080
LED Macro 13
081ó085
LED Macro 14
086ó090
LED Macro 15
091ó095
LED Macro 16
096ó100
LED Macro 17
101ó105
LED Macro 18
106ó110
LED Macro 19
111ó115
LED Macro 20
116ó120
LED Macro 21
121ó125
LED Macro 22
126ó130
LED Macro 23
131ó135
LED Macro 24 (cycle 1–23)
136ó140
Auto program 1
141ó145
Auto program 2
146ó150
Auto program 3
151ó155
Auto program 4
156ó160
Auto program 5
161ó165
Auto program 6
166ó170
Auto program 7
171ó175
Auto program 8
176ó180
Auto program 9
181ó185
Auto program 10
186ó190
Auto program 11
191ó195
Auto program 12
196ó200
Auto program 13
201ó205
Auto program 14
206ó210
Auto program 15
211ó215
Auto program 16
216ó220
Auto program 17
221ó225
Auto program 18
226ó230
Auto program 19
231ó235
Auto program 20
236ó240
Auto program 21
241ó245
Auto program 22
246ó250
Auto program 23
251ó255
Auto program 24 (cycle 1–23)
12
LED Macro Speed
000ó255
Slow to fast

Rogue R1 FX-B QRG EN
13
Tour 2
(52
CH
cont.)
Channel
Function
Value
Percent/Setting
13
Tilt 1
000ó255
0–100%
14
Fine Tilt 1
000ó255
0–100%
15 Continuous Tilt 1
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
16
Head 1 Dimmer
000ó255
0–100%
17
Head 1 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Head 1 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Head 1 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Head 1 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Tilt 2
000ó255
0–100%
22
Fine Tilt 2
000ó255
0–100%
23 Continuous Tilt 2
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
24
Head 2 Dimmer
000ó255
0–100%
25
Head 2 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Head 2 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Head 2 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
Head 2 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Tilt 3
000ó255
0–100%
30
Fine Tilt 3
000ó255
0–100%
31 Continuous Tilt 3
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
32
Head 3 Dimmer
000ó255
0–100%
33
Head 3 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
Head 3 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Head 3 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
Head 3 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
37
Tilt 4
000ó255
0–100%
38
Fine Tilt 4
000ó255
0–100%
39 Continuous Tilt 4
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
40
Head 4 Dimmer
000ó255
0–100%
41
Head 4 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
42
Head 4 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
43
Head 4 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
44
Head 4 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
45
Tilt 5
000ó255
0–100%
46
Fine Tilt 5
000ó255
0–100%
47 Continuous Tilt 5
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
48
Head 5 Dimmer
000ó255
0–100%

Rogue R1 FX-B QRG EN
14
Tour 2
(52
CH
cont.)
Channel
Function
Value
Percent/Setting
45
Tilt 5
000ó255
0–100%
46
Fine Tilt 5
000ó255
0–100%
47 Continuous Tilt 5
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
48
Head 5 Dimmer
000ó255
0–100%
49
Head 5 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
50
Head 5 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
51
Head 5 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
52
Head 5 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Tour
(47CH)
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3 Continuous Pan
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
4 Tilt Macro
000ó047
No function
048ó055
Tilt macro 1
056ó063
Tilt macro 2
064ó071
Tilt macro 3
072ó079
Tilt macro 4
080ó087
Tilt macro 5
088ó095
Tilt macro 6
096ó103
Tilt macro 7
104ó111
Tilt macro 8
112ó119
Tilt macro 9
120ó127
Tilt macro 10
128ó135
Tilt macro 11
136ó143
Tilt macro 12
144ó151
Tilt macro 13
152ó159
Tilt macro 14
160ó167
Tilt macro 15
168ó175
Tilt macro 16
176ó183
Tilt macro 17
184ó191
Tilt macro 18
192ó199
Tilt macro 19
200ó207
Tilt macro 20
208ó215
Tilt macro 21
216ó223
Tilt macro 22
224ó231
Tilt macro 23
232ó239
Tilt macro 24
240ó247
Tilt macro 25
248ó255
Tilt macro 26
5
Tilt Macro Speed
000ó255
Fast to slow

Rogue R1 FX-B QRG EN
15
Tour (47CH
cont.)
Channel
Function
Value
Percent/Setting
6 Control
000ó009
No function
010ó014
Manual tilt blackout
015ó019
Cancel manual tilt blackout
020ó024
1 fixture macro
025ó029
2 fixture macro 1
030ó034
2 fixture macro 2
035ó039
4 fixture macro 1
040ó044
4 fixture macro 2
045ó049
4 fixture macro 3
050ó054
4 fixture macro 4
055ó059
Pan reset
060ó064
Tilt reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó079
No function (reserved for future use)
080ó084
Pan/Tilt reverse
085ó089
Pan reverse
090ó094
Tilt reverse
095ó099
Cancel pan reverse
100ó104
Cancel tilt reverse
105ó109
Cancel pan/tilt reverse
110ó114
No function (reserved for future use)
115ó119
Link all heads to head 1
120ó124
Unlink all heads from head 1
125ó129
No function (reserved for future use)
130ó134
No function (reserved for future use)
135ó139
Dimmer speed mode fast
140ó144
Dimmer speed mode smooth
145ó255
No function
7
Dimmer
000ó255
0–100%
8 Shutter
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On

Rogue R1 FX-B QRG EN
16
Tour (47CH
cont.)
Channel
Function
Value
Percent/Setting
9 Color Macro
000ó013
No function
014ó020
Color 1
021ó028
Color 2
029ó036
Color 3
037ó044
Color 4
045ó052
Color 5
053ó060
Color 6
061ó068
Color 7
069ó076
Color 8
077ó084
Color 9
085ó092
Color 10
093ó100
Color 11
101ó108
Color 12
109ó116
Color 13
117ó124
Color 14
125ó133
Color 15
134ó185
No function
186ó207
Rainbow effect, fast to slow
208ó213
Stop
214ó235
Reverse Rainbow effect, fast to slow
236ó240
No function
241ó255
Color jump, fast to slow
10 On/Off Preset
(●= on; ○= off)
Head 1
Head 2
Head 3
Head 4
Head 5
000ó005
●
●
●
●
●
006ó011
○
●
●
●
●
012ó017
○
○
●
●
●
018ó023
○
○
○
●
●
024ó029
○
○
○
○
●
030ó035
○
○
○
○
○
036ó041
●
○
○
○
○
042ó047
●
●
○
○
○
048ó053
●
●
●
○
○
054ó059
●
●
●
●
○
060ó065
●
●
●
●
●
066ó071
○
○
○
○
○
072ó077
●
○
○
○
○
078ó083
○
●
○
○
○
084ó089
○
○
●
○
○
090ó095
○
○
○
●
○
096ó101
○
○
○
○
●
102ó107
○
○
○
○
○
108ó113
●
●
○
○
○
114ó119
○
●
●
○
○
120ó125
○
○
●
●
○
126ó131
○
○
○
●
●
132ó137
●
○
○
○
●
138ó143
○
○
○
○
○
144ó149
○
●
●
●
●
150ó155
●
○
●
●
●
156ó161
●
●
○
●
●
162ó167
●
●
●
○
●
168ó173
●
●
●
●
○

Rogue R1 FX-B QRG EN
17
Tour (47CH
cont.)
Channel
Function
Value
Percent/Setting
10 On/Off Preset
(●= on; ○= off)
Head 1
Head 2
Head 3
Head 4
Head 5
174ó179
○
○
○
○
○
180ó185
○
○
○
○
●
186ó191
○
○
○
●
●
192ó197
○
○
●
●
●
198ó203
○
●
●
●
●
204ó209
●
●
●
●
●
210ó215
○
○
○
○
○
216ó221
●
●
●
○
○
222ó227
○
●
●
●
○
228ó233
○
○
●
●
●
234ó239
●
○
○
●
●
240ó245
●
●
○
○
●
246ó255
●
●
●
●
●
11 LED Macro/
Auto Program
000ó015
No function
016ó020
LED Macro 1
021ó025
LED Macro 2
026ó030
LED Macro 3
031ó035
LED Macro 4
036ó040
LED Macro 5
041ó045
LED Macro 6
046ó050
LED Macro 7
051ó055
LED Macro 8
056ó060
LED Macro 9
061ó065
LED Macro 10
066ó070
LED Macro 11
071ó075
LED Macro 12
076ó080
LED Macro 13
081ó085
LED Macro 14
086ó090
LED Macro 15
091ó095
LED Macro 16
096ó100
LED Macro 17
101ó105
LED Macro 18
106ó110
LED Macro 19
111ó115
LED Macro 20
116ó120
LED Macro 21
121ó125
LED Macro 22
126ó130
LED Macro 23
131ó135
LED Macro 24 (cycle 1–23)
136ó140
Auto program 1
141ó145
Auto program 2
146ó150
Auto program 3
151ó155
Auto program 4
156ó160
Auto program 5
161ó165
Auto program 6
166ó170
Auto program 7
171ó175
Auto program 8
176ó180
Auto program 9
181ó185
Auto program 10
186ó190
Auto program 11
191ó195
Auto program 12
196ó200
Auto program 13
201ó205
Auto program 14

Rogue R1 FX-B QRG EN
18
Tour (47CH
cont.)
Channel
Function
Value
Percent/Setting
11 LED Macro/
Auto Program
206ó210
Auto program 15
211ó215
Auto program 16
216ó220
Auto program 17
221ó225
Auto program 18
226ó230
Auto program 19
231ó235
Auto program 20
236ó240
Auto program 21
241ó245
Auto program 22
246ó250
Auto program 23
251ó255
Auto program 24 (cycle 1–23)
12
LED Macro Speed
000ó255
Slow to fast
13
Tilt 1
000ó255
0–100%
14
Fine Tilt 1
000ó255
0–100%
15 Continuous Tilt 1
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
16
Head 1 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
17
Head 1 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Head 1 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Head 1 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Tilt 2
000ó255
0–100%
21
Fine Tilt 2
000ó255
0–100%
22 Continuous Tilt 2
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
23
Head 2 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
Head 2 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Head 2 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Head 2 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Tilt 3
000ó255
0–100%
28
Fine Tilt 3
000ó255
0–100%
29 Continuous Tilt 3
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
30
Head 3 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
Head 3 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
Head 3 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
Head 3 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
Tilt 4
000ó255
0–100%
35
Fine Tilt 4
000ó255
0–100%
36 Continuous Tilt 4
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
37
Head 4 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
38
Head 4 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
39
Head 4 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
40
Head 4 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0

Rogue R1 FX-B QRG EN
19
Tour (47CH
cont.)
Channel
Function
Value
Percent/Setting
41
Tilt 5
000ó255
0–100%
42
Fine Tilt 5
000ó255
0–100%
43 Continuous Tilt 5
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
44
Head 5 Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
45
Head 5 Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
46
Head 5 Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
47
Head 5 White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Advanced
Mode
(47CH)
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3 Continuous Pan
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
4
Tilt 1
000ó255
0–100%
5
Fine Tilt 1
000ó255
0–100%
6
Tilt 2
000ó255
0–100%
7
Fine Tilt 2
000ó255
0–100%
8
Tilt 3
000ó255
0–100%
9
Fine Tilt 3
000ó255
0–100%
10
Tilt 4
000ó255
0–100%
11
Fine Tilt 4
000ó255
0–100%
12
Tilt 5
000ó255
0–100%
13
Fine Tilt 5
000ó255
0–100%
14 Continuous Tilt 1
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
15 Continuous Tilt 2
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
16 Continuous Tilt 3
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
17 Continuous Tilt 4
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast
18 Continuous Tilt 5
000
No function
001ó127
Counterclockwise rotation, slow to fast
128
Stop
129ó255
Clockwise rotation, slow to fast

Rogue R1 FX-B QRG EN
20
Advanced
Mode
(47CH
cont.)
Channel
Function
Value
Percent/Setting
19 Tilt Macro
000ó047
No function
048ó055
Tilt macro 1
056ó063
Tilt macro 2
064ó071
Tilt macro 3
072ó079
Tilt macro 4
080ó087
Tilt macro 5
088ó095
Tilt macro 6
096ó103
Tilt macro 7
104ó111
Tilt macro 8
112ó119
Tilt macro 9
120ó127
Tilt macro 10
128ó135
Tilt macro 11
136ó143
Tilt macro 12
144ó151
Tilt macro 13
152ó159
Tilt macro 14
160ó167
Tilt macro 15
168ó175
Tilt macro 16
176ó183
Tilt macro 17
184ó191
Tilt macro 18
192ó199
Tilt macro 19
200ó207
Tilt macro 20
208ó215
Tilt macro 21
216ó223
Tilt macro 22
224ó231
Tilt macro 23
232ó239
Tilt macro 24
240ó247
Tilt macro 25
248ó255
Tilt macro 26
20
Tilt Macro Speed
000ó255
Fast to slow
