Chauvet Intimidator Wash Zoom 350 IRC User manual

Quick Reference Guide

Intimidator™ Wash Zoom 350 IRC QRG EN
2
About This
Guide
The Intimidator™ Wash Zoom 350 IRC
Quick Reference Guide (QRG) has
basic product information such as mounting, menu options, and DMX values.
Download the User Manual from www.chauvetlighting.com for more details.
Disclaimer
The information and specifications contained in this QRG
are subject to
change without notice.
Safety Notes
These Safety Notes include important information about
installation, use, and
maintenance.
•This product is not intended for permanent installation.
•Only connect this product to a grounded and protected circuit.
•Always disconnect from power before cleaning or replacing the fuse.
•Do not look at the light source when the product is on.
•Make sure the power cord is not crimped or damaged.
•Never disconnect this product from power by pulling on the cord.
•When mounting this product overhead, use a safety cable.
•Do not allow flammable materials close to the unit while operating.
•
Do not touch this product when it is operating because it may be hot.
•The voltage of the outlet to which you are connecting this product must
be within the range stated on the decal or rear panel of the product.
•This product is for indoor use only! (IP20) To prevent risk of fire or
shock, do not expose this product to rain or moisture.
•Always mount this product in a location with adequate ventilation, at
least 20 in (50 cm) from adjacent surfaces.
•Be sure that no ventilation slots on the unit’s housing are blocked.
•Never connect this product to a dimmer or rheostat.
•Replace the fuse with another of the same type and rating.
•Only use the handles or attached mounting clamp of appropriate weight
capacity to carry this product.
•The maximum ambient temperature is 104 °F (40 °C). Do not operate
this product at higher temperatures.
•In the event of a serious operating problem, stop using immediately.
•
Do not open this product. It contains no user-serviceable parts.
Contact
Outside the U.S., United Kingdom, Ireland, or Mexico,
contact your
distributor to request support or return a product. Visit
www.chauvetlighting.com for contact information.
What is
Included
•Intimidator™ Wash Zoom 350 IRC
•Power Cord
•Thread Reducing Adaptor
•Warranty Card
•Quick Reference Guide
To Begin
Unpack your Intimidator™ Wash Zoom 350 IRC
and make sure you have
received all parts in good condition. If the box or contents appear damaged,
notify the carrier immediately, not CHAUVET®.

EN Intimidator™ Wash Zoom 350 IRC QRG
3
Description
The Intimidator™ Wash Zoom 350 IRC is a feature-
packed compact moving
head wash fitted with 20 W quad-
color RGBW LEDs. Motorized zoom
allows short-throw and long-
throw applications. Simple navigation and full
text readout is displayed on a high-contrast, full-
color LCD display. Generate
a synchronized show in Master/Slave mode with easy-to-access, built-
in
automated programs. The optional IRC-6
remote from CHAUVET® offers
convenient, wireless non-
DMX control. The Intimidator™ Wash Zoom 350
IRC fits best in the CHS-50 VIP Gear Bag available from CHAUVET®.
Overview
LCD Display
Control
Buttons
IR Sensor
Indicator
Light
Yoke
Back Panel View
Power Out
DMX In
DMX Out
Fuse
Holder
Power In

Intimidator™ Wash Zoom 350 IRC QRG EN
4
AC Power
This product has an auto-
ranging power supply that can work with an input
voltage range of 100 to 240 VAC, 50/60 Hz.
Power Linking
For the maximum number of Intimidator™ Wash Zoom 3
50 IRC products
that you can power link at each voltage, see the User Manual or the
sticker on
the product.
Fuse
Replacement
1. Disconnect the product from power.
2. Using a flat-
head screwdriver, loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the
exact same type and rating.
4. Re-insert the fuse holder and reconnect power.
Infrared Remote
Control
6
(IRC-6)
The Intimidator™ Wash Zoom 350 IRC is compatible with the Infrared
Remote Control 6 (IRC-6) from CHAUVET®.
The following IRC-6 buttons are used with the Intimidator™ Wash 350 IRC:
•<BLACKOUT> - turns LED on/off
•<AUTO> - selects auto program mode
•<SOUND> - selects Sound-Active mode
•<STROBE> - strobing (0–20 Hz)
•<SPEED> - auto program speed
•<SENSITIVITY> - selects sound sensitivity
•<%> - dimmer
•<MANUAL> - white LED manual control
•<FADE/SNAP> - color change
•<R> - red LED manual control
•<G> - green LED manual control
•<B> - blue LED manual control
•<+> - shutter/dimmer/sensitivity/pan speed/tilt speed and macro increase
•<-> - shutter/dimmer/sensitivity/pan speed/tilt speed and macro decrease
•<0> to <9> - pan/tilt macro movements

EN Intimidator™ Wash Zoom 350 IRC QRG
5
Mounting
Before mounting this product, read the Safety Notes.
Product
Mounting
Diagram
The included Thread Reducing Adaptor changes the built-in threaded mounting hole
down to M10
size. The smaller M10 size works with the CLP-
10 clamp from
CHAUVET®.
Control Panel
Description
Button Function
<MENU>
Exits from the current menu or function
<UP>
Navigates upwards through the menu list and increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases the
numeric value when in a function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
Mounting Clamp
(works with CLP-15 or CLP-15N
clamp from CHAUVET®)
Safety Cable
Threaded Mounting Hole
size M12 on bottom panel
Rubber Feet (x4)
for floor mounting
Handle (x2)

Intimidator™ Wash Zoom 350 IRC QRG EN
6
Menu Options
Main Function Programming Levels Description
Address
001–512
Sets the DMX starting address
Run Mode
DMX
14CH
Selects DMX mode
29CH
Auto
Auto01—Auto16
Selects auto program
Sound
Selects Sound-Active mode
Slave
Selects Slave mode
IR
Selects infrared control
Setup
Pan Reverse
OFF
Normal pan operation
ON
Reverse pan operation
Tilt Reverse
OFF
Normal tilt operation
ON
Reverse tilt operation
Pan Angle
540
Selects the 540° pan angle range
360
Selects the 360° pan angle range
180
Selects the 180° pan angle range
Tilt Angle
270
Selects the 270° tilt angle range
180
Selects the 180° tilt angle range
90
Selects the 90° tilt angle range
P/T Speed
Normal
Selects the panning/tilting speed
Fast
Slow
Fans
Auto
Sets fan speed according to temperature
Full
Fan speed set to full speed
Display OFF
Display background light turns off after
inactivity
ON
Display background light stays on
Screen Rev
OFF
Normal display
ON
Reverse display
Dimmer Curve
Square
Selects the dimmer curve mode
I Squa
SCurve
Linear
Dimmer Speed
Fast
Selects the dimmer speed
Smooth
Color Balance
RED
Selects color balance (100 to 255)
GREEN
BLUE
WHITE
Sensitivity
001—100
Sets sound sensitivity
Reset
Resets the product
Factory Set
Loads factory defaults

EN Intimidator™ Wash Zoom 350 IRC QRG
7
Menu Options (cont.)
Main Function Programming Levels Description
Sys Info
Ver VX
Displays the software version
Running Mode XXXXX
Displays the current running mode
DMX Address XXX
Displays the current DMX address
Temperature XXX
Displays the LED temperature in Celsius
DMX Linking
The Intimidator™ Wash Zoom 350 IRC
can work with a DMX controller
when linked by DMX serial connections.
Instructions for connecting and
configuring this product for DMX operation are in the User Manual.
If you
are not familiar with DMX, download the DMX Primer
from
www.chauvetlighting.com.
Starting
Address
To ensure full access to all channels in each DMX mode, the highest
recommended DMX address is 484.
Master/Slave
Connection
The Intimidator™ Wash Zoom 350 IRC uses the DMX data connec
tion for
its Master/Slave mode. Instructions for connecting and configuring this
product for Master/Slave operation are in the User Manual.

Intimidator™ Wash Zoom 350 IRC QRG EN
8
DMX Values
29-CH
Channel Function Value Percent/Setting
1
Pan
000 ó255
0 to 540°
2
Fine Pan
000 ó255
Fine control of panning
3
Tilt
000 ó255
0 to 270°
4
Fine Tilt
000 ó255
Fine control of tilting
5
Speed
000 ó255
Pant/Tilt speed (fast to slow)
6
Red
000 ó255
0 to 100%
Zone 1
7
Green
000 ó255
0 to 100%
8
Blue
000 ó255
0 to 100%
9
White
000 ó255
0 to 100%
10
Red
000 ó255
0 to 100%
Zone 2
11
Green
000 ó255
0 to 100%
12
Blue
000 ó255
0 to 100%
13
White
000 ó255
0 to 100%
14
Red
000 ó255
0 to 100%
Zone 3
15
Green
000 ó255
0 to 100%
16
Blue
000 ó255
0 to 100%
17
White
000 ó255
0 to 100%
18
Red
000 ó255
0 to 100%
Zone 4
19
Green
000 ó255
0 to 100%
20
Blue
000 ó255
0 to 100%
21
White
000 ó255
0 to 100%

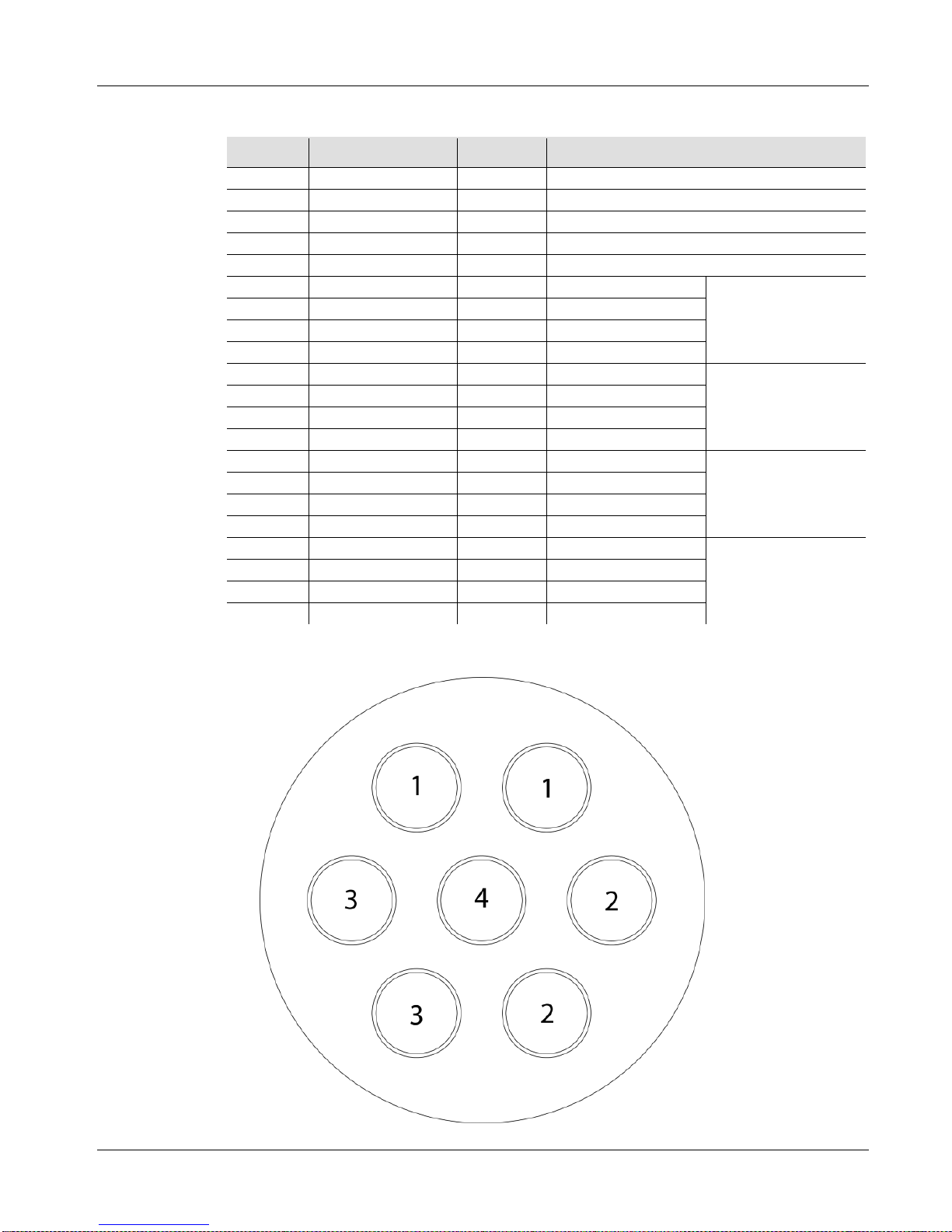

Intimidator™ Wash Zoom 350 IRC Zones of Control

EN Intimidator™ Wash Zoom 350 IRC QRG
9
DMX Values (cont.)
29-CH
(cont.)
Channel Function Value Percent/Setting
22 Colors
000 ó004
No function
005 ó009
Color 1
010 ó014
Color 2
015 ó019
Color 3
020 ó024
Color 4
025 ó029
Color 5
030 ó034
Color 6
035 ó039
Color 7
040 ó044
Color 8
045 ó049
Color 9
050 ó054
Color 10
055 ó059
Color 11
060 ó064
Color 12
065 ó069
Color 13
070 ó074
Color 14
075 ó079
Color 15
080 ó084
Color 16
085 ó089
Color 17
090 ó094
Color 18
095 ó099
Color 19
100 ó104
Color 20
105 ó109
Color 21
110 ó114
Color 22
115 ó119
Color 23
120 ó124
Color 24
125 ó129
Color 25
130 ó134
Color 26
135 ó139
Color 27
140 ó144
Color 28
145 ó149
Color 29
150 ó154
Color 30
155 ó159
Color 31
160 ó164
Color 32
165 ó169
Color 33
170 ó174
Color 34
175 ó179
No function
180 ó201
Clockwise color change (fast to slow)
202 ó207
Stop (color stays in the current color)
208 ó229
Counter-clockwise color change
(slow to fast)
230 ó234
No function
235 ó249
Color jump (fast to slow)
250 ó255
Sound-Active colors

Intimidator™ Wash Zoom 350 IRC QRG EN
10
DMX Values (cont.)
29-CH
(cont.)
Channel Function Value Percent/Setting
23 Built-in Control
000 ó015
No function
016 ó031
Zone macro 1
032 ó047
Zone macro 2
048
ó
063
Zone macro 3
064 ó079
Zone macro 4
080 ó095
Zone macro 5
096 ó111
Zone macro 6
112 ó127
Built-in 7 (zone macros 1—6)
128 ó143
Built-in 8
144 ó159
Built-in 9
160 ó175
Built-in 10
176 ó191
Built-in 11
192 ó207
Built-in 12
208
ó
223
Built-in 13
224
ó
239
Built-in 14
240 ó255
Built-in 15 (built-in 8—14)
24
Built-in Speed
000 ó255
Zones and built-in speed (slow to fast)
25
Dimmer
000 ó255
0 to 100%
26 Shutter
000 ó019
Closed
020 ó024
Open
025 ó064
Strobe effect (decreasing speed)
065 ó069
Open
070 ó084
Fast on, slow off (decreasing speed)
085 ó089
Open
090 ó104
Slow on, fast off (decreasing speed)
105 ó109
Open
110 ó124
Random shutter (decreasing speed)
125 ó129
Open
130 ó144
Random fast on, slow off (decreasing speed)
145 ó149
Open
150 ó164
Random slow on, fast off (decreasing speed)
165 ó169
Open
170 ó184
Pulse effect 1 (decreasing speed)
185 ó189
Open
190 ó204
Pulse effect 2 (decreasing speed)
205 ó209
Open
210 ó224
Gradually on and off (decreasing speed)
225 ó229
Open
230 ó244
Pulse effect 3 (decreasing speed)
245 ó255
Open
27
Zoom
000
ó
255
Zoom in and out
