Chauvin Arnoux Metrix MTX 3293B User manual

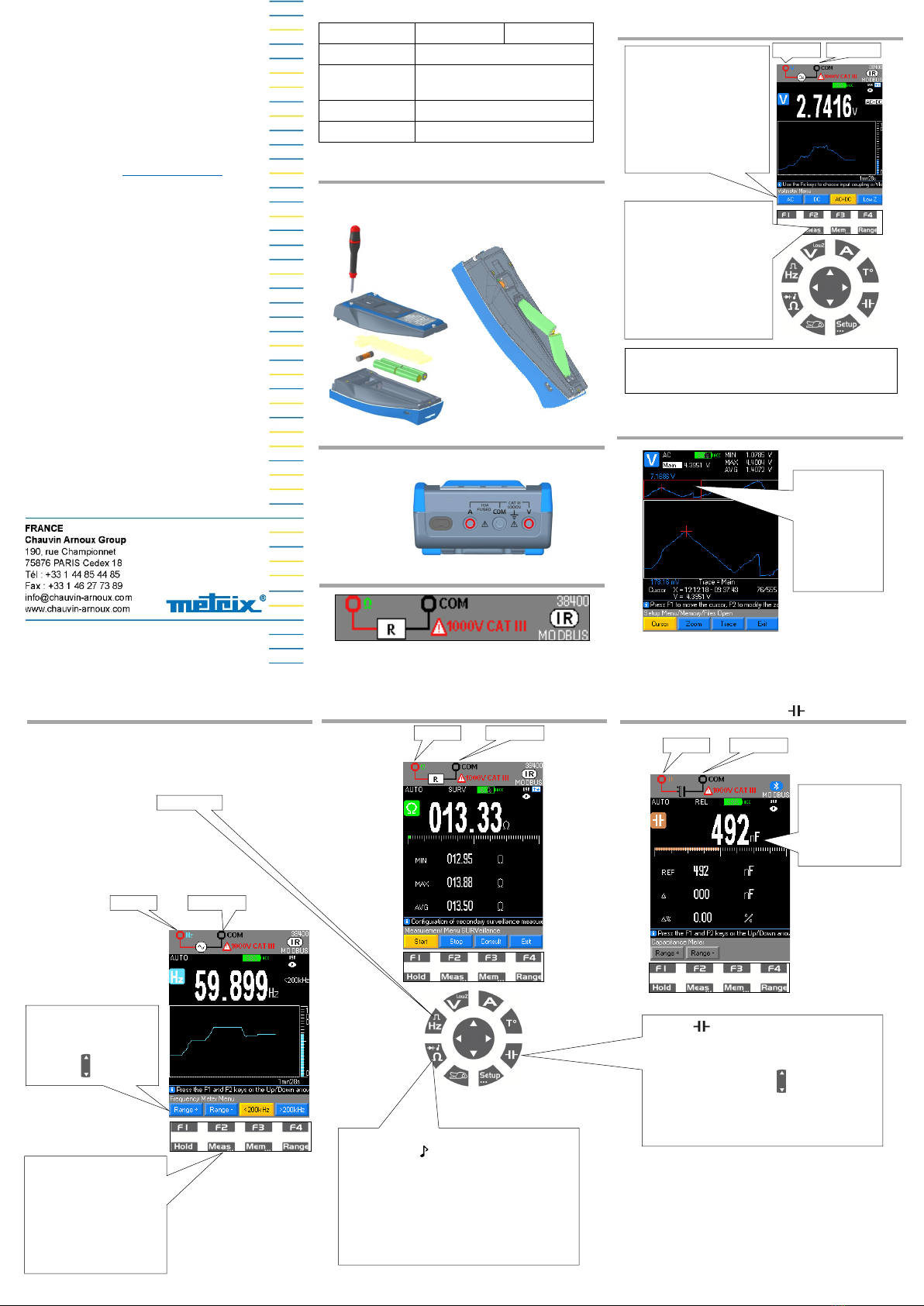

Quick Start Guide
MTX 3292B / 3293B, ASYC IV
Portable 100,000 cts Graphic Multimeter
This guide is available in various laguages on the CD
supplied with the instrument.
We thank you for your confidence in the quality of your products.
A complete user’s manual is also provided on the CD supplied
with the instrument.
It can be download from : www.chauvin-arnoux.com.
Attention : for your safety and to protect your property,
please read carefully the safety datasheet enclosed with
your instrument.
This multimeter complies with the EN 61010-2-033 CAT IV
600 V – CAT III 1000 V, safety standard on double insulation for
electronic measuring instruments. IP 67 as per standard
IEC 60529. Then, if the instrument is immersed, it must be dried,
in particular the terminal block, before it can be used again.
This instrument has been designed for use indoors :
- in an environment with pollution level 2,
- at an altitude of less than 2000 m,
- at a temperature between 0°C and 50°C,
- with relative humidity < 80 % up to 35 °C.
It can be used for measurements on the circuits of :
- Category III installations for voltages up to 1,000 V
(AC or DC) relative to earth.
- Category IV installations for voltages up to 600 V
(AC or DC) relative to earth.
For safety reasons, only use suitable cords supplied with the
instrument: they comply with the EN 61010-031 standard.
Before each use, make sure that they are in perfect condition.
When the instrument is connected to the measuring circuits,
never touch a terminal which is not in use. Use only suitable
accessories delivered with the instrument or approved by the
manufacturer.
If the measurement category of the accessory is different from
that of the instrument, the lowest category applies to the unit.
X04856A02_Ed1_11/2018
MTX 3292B MTX 3293B
Display Graphic color (70 x 52)
Power supply 1 set of AA/R6 batteries or
1 set of 4-Ni-Mh storage batteries
Counts 100 000
Communication IR / USB (Bluetooth, optional)
FUSE AND BATTERIES OR RECHARGEABLE
BATTERIES
Fuse : 11 A : 10 x 38 – 1000 V
F – breaking capacity : > 18 kA
4 batteries : 1.5 V AA LR6 or batteries 1.2 V Ni MH LSD
TERMINAL BLOCK
Terminal block : with 3 4-m banana inputs and an optical connector for
USB communication.
DISPLAY OF THE CONNECTION ON THE SCREEN
VOLTAGE : VAC, VDC, VAC+DC
GRAPHIC DISPLAY OF Mem IN VAC+DC MODE
FREQUENCY : Hz
RESISTANCE :
Ω
, DIODE, CONTINUITY
CAPACITY :
1. Activate « V », then press F1,
F2,F3,F4 to select the
coupling :
AC,
DC,
AC+DC or
VlowZ.
Configuration SETUP MESURE
to adjust the parameters : filters,
impedance, reference...
V
input
COM
input
2. Graphic mode (default), but
select Meas for another display
GRAPH graphical history of
the measurements
REL relative measurement
SURV for MIN/MAX/AVG
(time stamped)
SPEC to get the specs
MEAS+ to select a secondary
function

WFORM wave form
3. Select Mem… to save or stop (up to 30 000 measurements,
depending on model)
Consult data by long press on Mem...
Delimitation of the
enlarged area.
Use F1/F2/F3 to
select the object to
be modified
(cursor, Zoom or
Trace) and the
arrows to change
the value.
2. Select Range ±, frequency
range and
< 200 kHz or
> 200 kHz
By the keys .
COM inputVinput
1. Activate
Ω
,by pressing this key :
F2 accesses (continuity)
F3 accesses 100 Ohm range
F4 selects the diodes (4 V or 26 V diode test) or
subsequent presses
2. Select Meas…,then
REL relative measurement
SURV for time-stamped MIN/MAX/AVG
SPEC to obtain the specifications
MEAS+for the MATH secondary function
COM input
Vinput
3. Select Meas…, then
REL relative measurement
SURV for tiem stamped
MIN/MAX/AVG
SPEC to obtain the
specifications.
MEAS+ to select a
secondary function among :
MATCH, DCY, PER,
PW+/-, CNT+/-
1. Activate Hz
COM input
Vinput
RUN is displayed
when the
measurements is
running and OL is
diplayed if the value
is > range or if there
is a short-circuit.
1. Activate ,by pressing this key.
Pressing :
F1 accesses Range+
F2 accesses Range-
Select ranges by those keys .
2. Select Meas…,then :
REL relative measurement
SURV for time-stamped MIN/MAX/AVG

SPEC to obtain the specifications.

1. Activate the « clamp »
function.
2. Select the coupling,
then 2nd press on
SETUP menu :
MESURE or input V or
A.
3. Enter te ratio of the
clamp
0001.0 A / 0001.0 V
(default) by pressing
4. Select the unit, A
(default).
TEMPERATURE
°C, °F, K in TL/TJ or Pt100/Pt1000
Display in REL mode :
°C by Pt1000 graphic display :
DIRECT MEASUREMENT OF CURRENT : A
CURRENT WITH CLAMP
SECONDARY MODES ACCESSIBLE VIA
MEAS…
GRAPH : graphic display
REL : relative mode (REF, ∆, ∆%)
SURV : surveillance mode (MIN, MAX, AVG)
SPEC : specifications (SMIN, SMAX, %, digits)
MEAS+ : to access the secondary functions
WFORM : to view the waveform
SETUP MENU :
The SETUP menu sets the parameters through main adjustments and 3
levels :
1. General Setup
Util : lighting, standby, beep, language, clock
Com. : IR or BT type, baud IR, protocol : SCPI or
MODBUS
Power supply : battery or rechargeable battery, capacity
2. Measurement configuration
Measure : filter on or off, impedance, reference, dBm and W
Clamp : V or A measurement, ratio, unit
Math : measurement, serial number, software version
3. Configuration et personnalisation MTX
Memory : files, numbers or recordings, frequency
Config : factory configuration, USER or BASIC start
About : model, serial number, software version.
SURVEILLANCE MODE : MEAS/SURV MATH FUNCTION
Function Ax + B configurable to obtain a direct reading of the original
quantity.
Parameters to be adjuted :
MATH function, recall in the secondary function V Meas…/MEAS+ :
MEMORY MODE : Mem…
1. Activate Aand then
press F1, F2,F3 to
choose the coupling :
AC,
DC or
AC+DC
2. Select SETUP 
MESURE to adjust the
parameters : filters,
impedance, reference, etc.
Activate or deactivate the selected mode by pressing the
MEAS… key then F1 / F2 / F3 / F4.
Activate T°
1st press on F1 / F2 / F3

°C, °F, K
2nd press

Pt100, Pt1000
3rd press

TC J or TC K
1. Open « Menu » using the SETUP key, then MATH.
2. Select the V, A, Ωor Hz function by the keys F1, F2, F3,
F4.
3. Select and enter the A or B coefficients.
4. Select the unit.
Activate or start
deactivate or stop
the SURV mode
by pressing on F1/F2
COM input
Vinput
REL
Reference
∆Difference
∆% difference in %
A long press on Meas…,
resets the reference.
Ainput
COM input
Pt100
Pt1000
TC J
TC K
SETUP menu
Pressing F3 in SURV opens a consultation window
of CONSULT record :
MATH function
result in secondary
function and
displayed main
quantity.
1. Activate by the SETUP menu or long press on Mem :
2. Select and modify the parameters :
Files : list of the stored files, by date and time
Nb rec. : number of recordings max. 10,000 or
30,000 cts depending on the model.
Freq. : recording frequency in h, min, s, ms
Activate / deactivate the MEM auto-recording mode
by a short press : max. 10 or 30 sequences,
depending on the model.
Incrementing the number of
steps since startup
sequence.
A long press on Mem… opens the record consultation menu :
File F1 :
1. Display or open the list by F1.
2. Select a file with the keys
3. Validate it to display by the F1 key, then Open.
4. Erase a sequence or Erase all memory sequences.
Select the V or A waveform.
The Waveform mode is only
available in AC for frequencies
between 10 and 600 Hz. It can
be used to view the waveforms
and displays the MIN and MAX
