CONCORD Reverso User manual

CAR FITTING LIST
cfl_REVERSO_140801-final.indd 31 06.08.14 10:44

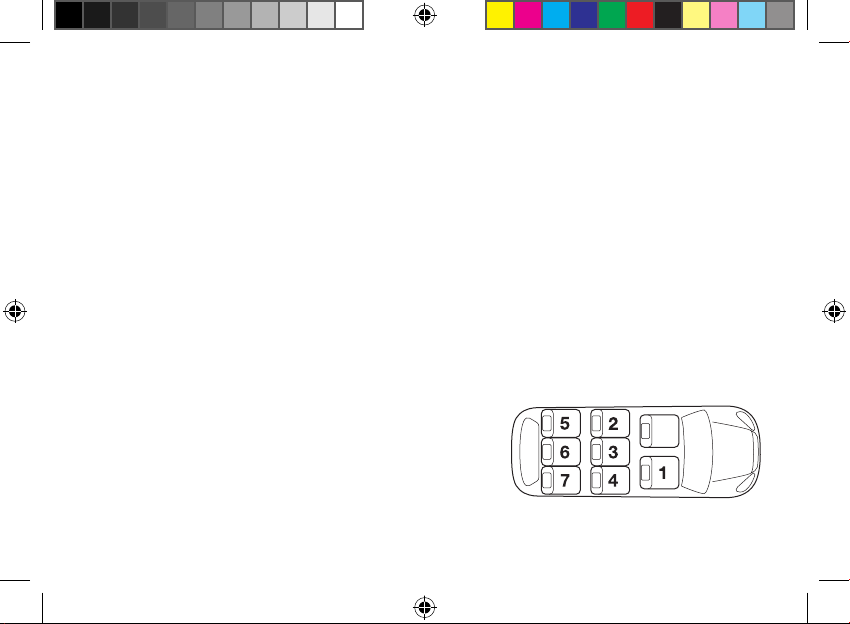

* Passenger seat
cfl_REVERSO_140801-final.indd 1 06.08.14 10:44

2
Der CONCORD REVERSO kann in Fahrzeugen mit Sitzplätzen, die als i-Size-Sitzplätze genehmigt
wurden (siehe die Angaben in der Fahrzeugbetriebsanweisung) verwendet werden.
Auf den folgenden Seiten finden Sie eine Übersicht weiterer Fahrzeuge und Fahrzeugsitze, die
zusätzlich für die Verwendung des CONCORD REVERSO geeignet sind.
Diese Übersicht zeigt die zum Zeitpunkt der Erstellung dieser Übersicht aktuellen Fahrzeuge.
Eine stetig aktualisierte Übersicht finden Sie unter www.concord.de.
Sollte Ihr Fahrzeug nicht in der Übersicht aufgelistet sein, testen Sie bitte vor dem Kauf, ob der
CONCORD REVERSO in Ihrem Fahrzeug / auf dem gewünschten Fahrzeugsitz korrekt eingebaut
werden kann!
Beachten Sie hierzu die Bedienungsanleitung des Fahrzeugherstellers, sowie die Installations- und
Warnhinweise der Bedienungsanleitung des CONCORD REVERSO.
_ ALLGEMEINE INFORMATIONEN
cfl_REVERSO_140801-final.indd 2 06.08.14 10:44

3
ACHTUNG !!
Bitte beachten Sie auch die Hinweise zur Verwendung von Kinderrückhalteeinrichtungen in der
Bedienungsanleitung Ihres Fahrzeugs.
Der CONCORD REVERSO kann an den ISOFIX-Adaptern des Fahrzeugs befestigt werden.
Legende:
since ab Baujahr
seat zugelassene Sitzplätze
check! Bitte vor dem Kauf überprüfen, ob das Fahrzeug
mit ISOFIX-Verankerungen ausgestattet ist.
off Beifahrer AIRBAG muss deaktiviert und der Sitz
in der oberen / hinteren Position arretiert sein
cfl_REVERSO_140801-final.indd 3 06.08.14 10:44

4
The CONCORD REVERSO can be used in vehicles with seats that have been approved as i-Size seats
(refer to the data in the vehicle operating manual).
The following pages contain an overview of additional vehicles and car seats also compatible with the
CONCORD REVERSO.
The overview relates to the current list of vehicles at the time it was produced.
For a continuously updated version, please visit www.concord.de.
Should your vehicle not be listed here, please ensure that the CONCORD REVERSO can be properly
mounted in your car/ on the desired seat before you purchase the child seat!
Read the user manual provided by the manufacturer of your vehicle and the mounting and security
notices contained in this user manual for the CONCORD REVERSO.
_ GENERAL INFORMATION
cfl_REVERSO_140801-final.indd 4 06.08.14 10:44

5
CAUTION!
Please read instructions regarding the use of child safety restraints contained in the user manual for
your vehicle.
The CONCORD REVERSO can be secured to the vehicle’s ISOFIX points.
Legend:
since Starting from the year of manufacture
seat approved seats
check! Before you purchuase, please check that the
vehicle is equipped with ISOFIX anchoring points.
off Passenger AIRBAG must be deactivated and
the seat must be locked in top / back position
* Passenger seat
cfl_REVERSO_140801-final.indd 5 06.08.14 10:44

6
maker model since seat notes
Alfa Romeo 159 (939) 2006 - 2008 2 4
Alfa Romeo 159 FL (939) 1.2008 2 4
Alfa Romeo 159 saloon (939) 2006 - 2008 2 4
Alfa Romeo Giuletta FL (940) 10.2013 2 4
Alfa Romeo Giulietta (940) 6.2010 2 4
Audi A3 (8V) 8.2012 1 2 4 OFF!
Audi A3 Cabrio (8V) 5.2014 1 2 4 OFF!
Audi A3 Saloon (8V) 9.2013 1 2 4 OFF!
Audi A3 Sportback (8V) 2.2013 1 2 4 OFF!
Audi A3_Sportsback_g-tron 3.2014 1 2 4 OFF!
Audi A5 FL (B8 8F) 11.2011 1 2 4 OFF!
Audi A5 Sportback 4 seater (B8) 11.2011 1 2 4 OFF!
Audi A5 Sportback 5 seater (B8) 11.2011 1 2 4 OFF!
Audi A8 (4H) 2.2010 2 4
Audi A8 FL (D4 4H) 11.2013 2 4
Audi A8 L 4-seat (D4 4H) 2.2010 2 4
Audi Q3 (8U) 10.2011 1 2 4 OFF!
Audi Q5 FL (8R) 9.2012 1 2 4 OFF!
cfl_REVERSO_140801-final.indd 6 06.08.14 10:44

7
maker model since seat notes
Audi Q7 FL II (4L) 9.2013 1 2 4 OFF!
Audi RS4 (B8) 2012 1 2 4 OFF!
Audi SQ5 (8R) 1.2013 1 2 4 OFF!
BMW 1 (F20) 9.2011 2 4
BMW 1 3-door 5-seater (F21) 6.2012 2 4
BMW 1 Cabrio FL (E88) 3.2011 1 OFF!
BMW 1 Coupé FL (E82) 3.2011 1 OFF!
BMW 1 FL (E87) 3.2007 - 9. 2011 1 OFF!
BMW 2 Coupe (F22) 11.2013 2 4
BMW 3 (F30) 2.2012 2 4
BMW 3 Cabrio (E93) 3.2007 1 OFF!
BMW 3 Coupe FL (E92) 3.2010 2 4
BMW 3 FL (E90) 9.2008 2 4
BMW 3 GT (F34) 6.2013 2 4
BMW 3 Touring (F31) 9.2012 2 4
BMW 3 Touring FL (E91) 9.2008 - 2012 2 4
BMW 4 Coupé (F32) 10.2013 2 4
BMW 5 (F10) 3.2010 - 7. 2013 2 4
cfl_REVERSO_140801-final.indd 7 06.08.14 10:44

8
maker model since seat notes
BMW 5 FL (F10) 6.2013 2 4
BMW 5 GranTurismo (F07) 8.2009 2 4
BMW 5 Touring (F11) 6.2010 2 4
BMW 5 Touring FL (F11) 7.2013 2 4
BMW 7 (F01) 11.2008 - 7. 2012 2 4
BMW 7 FL (7L) 7.2012 2 4
BMW BMW X5 (F15) 11.2013 2 4
BMW i3 (I3) 7.2013 2 4
BMW M4 3.2014 2 4
BMW M5 (F10) 11.2011 2 4
BMW X1 (E84) 10.2009 2 4
BMW X1 FL (E84) 6.2012 2 4
BMW X3 (E83) 1.2004 - 8. 2010 1 2 4 OFF!
BMW X3 (F25) 11.2010 2 4
BMW X5 (F15) 11.2013 2 4
BMW X5 (X70_E70) 3.2007 - 11. 2013 2 4
BMW X6 (E71) 2008 2 4
BMW X6 FL (X6_E71) 6.2012 2 4
cfl_REVERSO_140801-final.indd 8 06.08.14 10:44

9
maker model since seat notes
Cadillac Escalade_7-seats (926) 2006 2 4
Chevrolet Aveo (KLAS) 10.2011 2 4
Chevrolet Aveo hatchback (KL1T) 9.2011 2 4
Chevrolet Captiva (KLAC) 10.2006 - 2011 2 4
Chevrolet Captiva FL (KLAC) 2011 2 4
Chevrolet Captiva FL2 (KLAC) 4.2013 2 4
Chevrolet Cruze (KL1J) 8.2011 2 4
Chevrolet Cruze SW (KL1J) 9.2012 2 4
Chevrolet Epica (KLAL) 5.2006 - 9. 2010 2 4
Chevrolet Malibu (KL1G) 7.2012 2 4
Chevrolet Orlando (KL1Y) 3.2011 2 4
Chevrolet Spark (KL 1M) 3.2010 - 2013 2 4
Chevrolet Spark FL (KL1M) 1.2013 2 4
Chevrolet TRAX (KL1B) 4.2013 2 4
Chevrolet Volt (D1JCI) 10.2011 2 4
Chrysler Grand Voyager (RT) 3. 2008 - 10. 2011 6
Chrysler Sebring (JS) 2007 - 2010 2 4
Citroen C-Crosser (V) 6.2007 - 3. 2013 2 4
cfl_REVERSO_140801-final.indd 9 06.08.14 10:44

10
maker model since seat notes
Citroen C3 (F) 1.2010 - 3. 2013 2 4
Citroen C3 FL (F) 4.2013 2 4
Citroen C3 FL 5 door (S) 2005 - 2009 2 4
Citroen C4 (L) 2004 - 2010 2 4
Citroen C4 3 door (L) 2004 - 9.2010 2 4
Citroen C4 Aircross (B) 6.2012 2 4
Citroen C4 II (N) 10.2010 2 4
Citroen C4 Picasso (U) 11.2006 - 10.2010 3
Citroen C4 Picasso single seats (3) 6.2013 2 3 4
Citroen C5 (R) 1.2008 - 2010 1 2 4 OFF!
Citroen C5 FL (R) 12.2010 - 2012 1 2 4 OFF!
Citroen C5 Tourer (R) 4.2008 1 2 4 OFF!
Citroen C5 Tourer FL (R) 12.2010 2 4
Citroen C6 (T) 11.2005 - 2012 2 4
Citroen DS3 (S) 3.2010 2 4
Citroen DS3 Cabrio (S) 3.2013 2 4
Citroen DS4 (N) 3.2011 2 4
Citroen DS5 (K) 3.2012 2 4
cfl_REVERSO_140801-final.indd 10 06.08.14 10:44

11
maker model since seat notes
Citroen Grand C4 Picasso (3) 10.2013 2 3 4
Citroen Nemo (A) 2007 2 4
Dacia Dokker (SD) 2.2013 2 3 4
Dacia Duster (SD) 4.2010 2 4
Dacia Duster FL (SD) 1.2014 2 4
Dacia Lodgy (SD) 6.2012 2 3 4
Dacia Logan MCV (SR) 6.2013 2 4
Dacia Logan MCV FL (SD) 3.2009 - 6. 2013 2 4
Dacia Sandero (SD) 6.2008 2 4
Dacia Sandero II (SR) 11.2012 2 4
Dacia Sandero StepWay (SR) 2013 2 4
Daihatsu Sirion (M3) 2005 - 2012 2 4
Daihatsu Terios II FL (J2) 2009 2 4
FIAT 500L (199) 10.2012 2 4
FIAT 500L Living (199) 9.2013 2 4
FIAT Bravo (198) 7.2007 2 4
FIAT Croma II (194) 5.2005 - 2008 2 4
FIAT Croma II FL (194) 1.2008 - 2010 2 4
cfl_REVERSO_140801-final.indd 11 06.08.14 10:44

12
maker model since seat notes
FIAT Doblo (263) 2.2010 2 4
FIAT Grande Punto (199) 1.2006 2 4
FIAT Idea (350) 2003 2 4
FIAT Panda (319) 3.2012 2 4
FIAT Punto 3door FL2 (199) 2.2012 2 4
FIAT Punto Evo (199) 6.2010 - 2011 2 4
FIAT Qubo (225) 2.2008 2 4
Ford B-Max (JK8) 10.2012 2 4
Ford EcoSport (JK8) 6.2014 2 4
Ford Focus hatchback (DYB) 3.2011 2 4
Ford Focus saloon (DYB) 4.2011 2 4
Ford Focus Turnier (DYB) 5.2011 2 4
Ford Kuga (DM3) 3.2013 2
Ford Mondeo FL (BA7) 12.2010 2 4
Ford Mondeo Turnier (BA7) 6. 2007 - 11. 2010 2 4
Ford Mondeo Turnier FL (BA7) 11.2010 2 4
Ford S-Max FL (WA6) 4.2010 3
Ford Tourneo Connect (PJ2) 2009 - 10. 2009 3
cfl_REVERSO_140801-final.indd 12 06.08.14 10:44

13
maker model since seat notes
Ford Tourneo Connect (PJ2) 9.2009 2 4
Ford Tourneo CUSTOM (FAC) 7.2012 2 3
Ford Transit Kombi (FSG6) 11.2011 2 3
Hyundai Grand Santa Fe 6-seater (DM) 10.2013 2 4
Hyundai Grand Santa Fe 7-seater (DM) 10.2013 2 4
Hyundai H1-Travel (H1) 2.2008 2 4
Hyundai i10 (IA) 11.2013 2 4
Hyundai i10 FL (PA) 2.2011 2 4
Hyundai i20 FL 3door (PBT) 6.2012 2 4
Hyundai i20 FL 5door (PBT) 6.2012 2 4
Hyundai i30 (FD) 7. 2007 - 7. 2010 2 4
Hyundai i30 (FDH) 7.2010 - 3. 2012 2 4
Hyundai i30 (GD) 3.2012 2 4
Hyundai i30 3-door (GD) 2.2013 2 4
Hyundai i30 CW (FD) 2008 - 2010 2 4
Hyundai i30 cw (FDH) 2010 - 6. 2012 2 4
Hyundai i30 cw (GD) 6.2012 2 4
Hyundai i40 (VF) 10.2011 2 4
cfl_REVERSO_140801-final.indd 13 06.08.14 10:44

14
maker model since seat notes
Hyundai i40 cw (VF) 6.2011 2 4
Hyundai i40 FL (VF) 1.2014 2 4
Hyundai ix20 (JC) 11.2010 2 4
Hyundai ix35 (ELH) 3. 2010 - 10. 2013 2 4
Hyundai ix35 FL (ELH) 10.2013 2 4
Hyundai Santa Fe (DM) 9.2012 2 4
Infiniti M35h (Y51H) 9.2011 2 4
Jaguar XF (CC9) 3.2008 - 2011 2 4
Jaguar XF FL (CC9) 8.2011 2 4
Jaguar XJ (NNA) 11.2009 2 4
Jeep Compass FL (MK49) 6.2013 2 4
Jeep Grand Cherokee (WK2) 12.2010 2 4
Jeep Grand Cherokee FL (WK) 6.2013 2 4
Kia Cee‘d (JD) 6.2012 2 4
Kia Cee‘d FL (ED) 10.2010 2 4
Kia Cee‘d sw (ED) 2007 2 4
Kia Cee´d sw (JD) 9.2012 2 4
Kia Optima (TF) 2.2012 - 11. 2013 2 4
cfl_REVERSO_140801-final.indd 14 06.08.14 10:44

15
maker model since seat notes
Kia Optima FL (TF) 12.2013 2 4
Kia Optima hybrid (TFE) 1.2013 - 2014 2 4
Kia Pro Cee‘d (JD) 3.2013 2 4
Kia Pro Cee‘d FL (ED) 1.2011 - 2013 2 4
Kia Pro Cee‘d GT (JD) 3.2013 2 4
Kia Sorento FL (XM) 10.2012 2 4
Kia Soul (AM) 2008 - 10. 2011 2 4
Kia Soul (PS) 3.2014 2 4
Kia Soul FL (AM) 10.2011 2 4
Kia Sportage (SL) 8. 2010 - 2. 2014 2 4
Kia Sportage FL (SL) 2.2014 2 4
Kia Venga (YN) 1.2010 2 4
Lancia Delta (181) 1.2008 - 2011 2 4
Lancia Delta FL (844) 2011 2 4
Lancia Flavia Cabrio (JS) 6.2012 2 4
Lancia Thema (405) 11.2011 2 4
Lancia Voyager (404) 11.2011 6
Lancia Ypsilon 4seater (312) 6.2011 2 4
cfl_REVERSO_140801-final.indd 15 06.08.14 10:44

16
maker model since seat notes
Lancia Ypsilon 5seater (312) 7.2011 2 4
Land Rover Discovery FL (LA) 10.2011 2 4
Land Rover Freelander (LF) 2006 - 3. 2011 2 4
Land Rover Freelander2 FL (LF) 3.2011 2 4
Land Rover Freelander2 FL2 (LF) 2013 2 4
Land Rover Range Rover (LG) 10.2012 2 4
Land Rover Range Rover Evoque (LV) 9.2011 2 4
Land Rover Range Rover Sport (LS) 2010 - 9. 2013 2 4
Land Rover Range Rover Sport (LW) 9.2013 2 4
Mazda 3 (BL) 1.2009 - 2011 2 4
Mazda 3 (BM) 10.2013 2 4
Mazda 3 FL (BL) 9.2011 2 4
Mazda 3 FL (BL) !!! nicht verwenden!!! 11.2010 2 4
Mazda 3 saloon (BM) 10.2013 2 4
Mazda 3 saloon FL2 (BL) 9.2011 - 10. 2013 2 4
Mazda 5 (CW) 10.2010 2 4
Mazda 5 (CW) FL 3.2013 2 4
Mazda 6 estate (GJ) 2.2013 2 4
cfl_REVERSO_140801-final.indd 16 06.08.14 10:44

17
maker model since seat notes
Mazda 6 estate FL (GH) 2010 2 4
Mazda 6 Hatchback FL (GH) 2010 2 4
Mazda 6 saloon (GJ) 3.2013 2 4
Mazda CX-5 (KE) 4.2012 2 4
Mazda CX-7 (ER) 8.2007 - 10. 2009 2 4
Mazda CX-7 FL (ER) 10.2009 2 4
Mercedes A (176) 9.2012 2 4
Mercedes B (246) 11.2011 2 4
Mercedes C (204) 3.2007 2 4
Mercedes C (205) 3.2014 2 4
Mercedes C Coupe FL (204) 6.2011 2 4
Mercedes C FL (204) 3.2011 2 4
Mercedes C model T (204) 12.2007 - 3. 2011 2 4
Mercedes C Model T FL (204) 3.2011 2 4
Mercedes CLA (117) 4.2013 2 4
Mercedes CLS (C218) 1.2011 2 4
Mercedes E (212) 3.2009 2 4
Mercedes E Cabrio (207) 3.2010 2 4
cfl_REVERSO_140801-final.indd 17 06.08.14 10:44

18
maker model since seat notes
Mercedes E Coupe (207) 5.2009 2 4
Mercedes E FL (212) 1.2013 2 4
Mercedes E model T (212) 11.2009 2 4
Mercedes E model T FL (212) 4.2013 2 4
Mercedes G FL (W463) 6.2012 2 4
Mercedes GL (164G) 2006 2 4
Mercedes GLA (245_G) 3.2014 2 4
Mercedes GLK (X 204) 10.2008 2 4
Mercedes GLK FL (X204) 6.2012 2 4
Mercedes ML (W164) 2005 - 11. 2011 2 4
Mercedes R (W 251) 9.2010 2 4
Mini Clubman 4seater (R55) 9.2007 2 4
Mini COUNTRYMAN 4-seater (UKL_X)
(R60)
9.2010 2 4
Mini COUNTRYMAN 5-seater (UKL_X)
(R60)
9.2010 2 4
Mini Countryman 5-seater FL (R60) 10.2012 2 4
Mini Paceman (UKL-C_X) 6.2012 2 4
cfl_REVERSO_140801-final.indd 18 06.08.14 10:44

19
maker model since seat notes
Mitsubishi ASX (GA0) 2.2010 2 4
Mitsubishi ASX FL (GA0) 10.2012 2 4
Mitsubishi Outlander (CW0) 10.2012 2 4
Mitsubishi Outlander (CW0W) 2006 2 4
Mitsubishi Outlander PHEV (CW0) 10.2013 2 4
Nissan Juke (F15) 10.2010 2 4
Nissan Leaf (ZE0) 4.2012 2 4
Nissan Micra (K13) 11.2010 2 4
Nissan Micra FL (K13) 9.2013 2 4
Nissan Note (E12) 10.2013 2 4
Nissan Pixo (HF) 6.2009 2 4
Opel Adam (S-D) 1.2013 2 4
Opel Agila (H-B) 4.2008 2 4
Opel Ampera (D1JOI) 11.2011 2 4
Opel Antara FL (L-A) 2010 2 4
Opel Astra H Caravan FL (A-H) 2.2007 - 2010 2 4
Opel Astra J (PJ-SW) 12.2009 2 4
Opel Astra J GTC (PJ-SW) 1.2012 2 4
cfl_REVERSO_140801-final.indd 19 06.08.14 10:44
