Contents
Introduction .............................. 1
Keys, Doors, and Windows . . . . . . . . . . . . . . . 9
Seats and Restraints . . . . . . . . . . . . . . . . . . . . . 21
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Instruments and Controls . . . . . . . . . . . . . . . 44
Lighting ................................. 68
Infotainment System . . . . . . . . . . . . . . . . . . . . 72
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . 102
Driving and Operating . . . . . . . . . . . . . . . . . . 108
Vehicle Care ............................ 189
Service and Maintenance . . . . . . . . . . . . . . . 262
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . 288
Customer Information . . . . . . . . . . . . . . . . . . 299
Reporting Safety Defects . . . . . . . . . . . . . . . 304
Index. . . . . . . . . . . . . . . . . . . . . . . . . . 306
Introduction
California Proposition 65 Warning
Litho in U.S.A.
Part No. 86775563 A First Printing ©2022 General Motors LLC. All Rights Reserved.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
2 Introduction
Introduction
The names, logos, emblems, slogans, vehicle
model names, and vehicle body designs
appearing in this manual including, but not
limited to, GM, the GM logo, CHEVROLET,
and the CHEVROLET Emblem are trademarks
and/or service marks of General Motors LLC,
its subsidiaries, affiliates, or licensors.
This manual has been prepared to acquaint
you with the operation and maintenance of
your vehicle, and to provide important
safety information. It includes a
Maintenance Schedule and is supplemented
with a Warranty and Owner Assistance
Information booklet. We urge you to read
these publications carefully. The following
recommendations will help ensure the most
enjoyable, safe, and trouble-free operation
of your vehicle. When it comes to service,
keep in mind that your commercial truck
dealer knows your vehicle best and is
interested in your complete satisfaction.
Your dealer invites you to return for all of
your service needs both during and after the
warranty period. Remember, if you have a
concern that has not been handled to your
satisfaction, follow the steps in the separate
Warranty and Owner Assistance Information
booklet. We thank you for choosing our
product, and want to assure you of our
continuing interest in your motoring
pleasure and satisfaction.
This manual describes features that may or
may not be on the vehicle because of
optional equipment that was not purchased
on the vehicle, model variants, country
specifications, features/applications that may
not be available in your region, or changes
subsequent to the printing of this owner’s
manual, including changes in standard or
optional content.
Model Reference
The models covered in this manual are 6500
XD and 7500 XD:
Single Cab:
.6500 XD
.7500 XD
Using this Manual
To quickly locate information about the
vehicle, use the Index in the back of the
manual. It is an alphabetical list of what is
in the manual and the page number where
it can be found.
Danger, Warning, and Caution
Warning messages found on vehicle labels
and in this manual describe hazards and
what to do to avoid or reduce them.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Introduction 3
{Danger
Danger indicates a hazard with a high
level of risk which will result in serious
injury or death.
{Warning
Warning indicates a hazard that could
result in injury or death.
Caution
Caution indicates a hazard that could
result in property or vehicle damage.
A circle with a slash through it is a safety
symbol which means “Do Not,” “Do not do
this,”or “Do not let this happen.”
Cautions and Other Labels in Your
Vehicle
The warning/caution labels in your vehicle
indicate very important instructions and
information that you should respect to
ensure safe and proper use of the vehicle.
Be sure to read them before using the
vehicle.
If any of these labels are peeling or illegible
due to wear or scratches, please contact
your dealer for a replacement.
Some examples of warning/caution labels
are indicated on the following pages, but
there are many others not shown. Also, the
contents of these labels may vary from
model to model.
The warning/caution labels shown may be
located differently in your vehicle.
Warning/Caution Labels

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
4 Introduction
No. Description
1 Cab tilt instruction
2 Cab tilt handle location
No. Description
3 Automatic transmission fluid level
4VIN, weight rating, and
Greenhouse Gas (GHG) emissions
5 Towing
6 NO STEP instruction
7Vehicle noise emission control
information
8 Engine cooling
9 Engine coolant
10 Fan blade
No. Description
1 Fuse box
2 Parking brake

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Introduction 5
No. Description
3 Exhaust heat warning
No. Description
1 Power steering fluid
2 Body
3 Engine start
4 A/C refrigerant

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
6 Introduction
Instrument Panel Overview

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Introduction 7
1. Air Flow Direction Control Lever. See Air
Vents 0105.
2. Exterior Lamp Controls 068.
Cruise Control Set Switch. See Cruise
Control 0179.
3. Windshield Wiper and Windshield
Washer Switch. See Windshield Wiper/
Washer 045.
Exhaust Brake Switch (Diesel Only). See
Exhaust Brake 0178.
4. Heater and Manual Air Conditioner. See
Climate Control Systems 0102.
5. Small Article Storage Pockets. See
Instrument Panel Storage 036.
6. Glove Box 036.
7. Relay Box. See Electrical System Overload
0229.
8. Cupholders 037.
9. Hook. See Shopping Bag Hooks 038.
10. Card Holder. See Instrument Panel
Storage 036.
11. Accessory Power Outlet. See Power
Outlets 046.
12. Accessory Power Outlet. See Power
Outlets 046.
Instrument Panel Overview (Vehicle Interior)
1. Overhead Tray. See Storage
Compartments 035.
2. Sun Visor. See Sun Visors 020.
3. Dome Lamps 071.
4. Seat Belt. See Three-Point Seat Belt 027.
5. Seat Back Pocket (Driver’s Side). See
Storage Compartments 035.
6. Seat. See Seat Position 021.
7. Cupholders 037.
8. Parking Brake Lever. See Parking Brake
0176.
9. Selector Lever 0170.
10. Fully Adjustable Steering. See Steering
Wheel Adjustment 044.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
8 Introduction
Instrument Panel Overview (Driver Side)
1. Instruments, Warning Lights and
Indicator Lights. See Instrument Cluster
048.
2. Horn Button. See Horn 045.
3. Diesel Particulate Filter (DPF)
Regeneration Start Switch. See Diesel
Particulate Filter 0147.
4. Diesel Particulate Filter (DPF)
Regeneration Inhibit Switch (If Equipped).
See Diesel Particulate Filter 0147.
5. Cruise Control Main Switch. See Cruise
Control 0179.
6. Air Suspension Dump Switch. See Air
Suspension 0141.
7. Hazard Warning Flasher Switch. See
Hazard Warning Flashers 069.

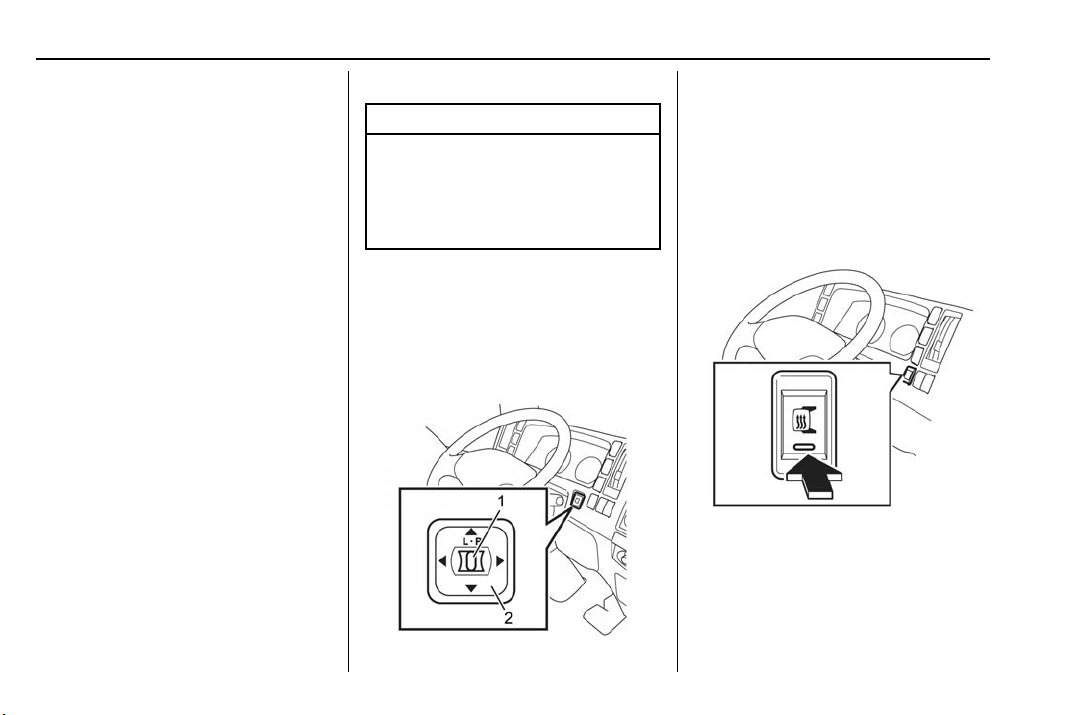

8. Remote Mirror Control Switch. See
Remote Control Mirrors 018.
9. Outside Rearview Mirror Heater Switch.
See Heated Mirrors 018.
10. Odometer Check Switch. See Odometer
049.
11. Door Lock Switch. See Power Door Locks
016.
12. Instrument Panel Light Level Control. See
Instrument Panel Illumination Control
071.
13. Power Take Off (PTO) Main Switch. See
Power Take-Off (PTO) 0187.
14. Power Take Off (PTO) Engine Speed
Control Switch. See Power Take-Off (PTO)
0187.
15. Rear Body Interior Light Switch. See
Cargo Lamp 071.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Keys, Doors, and Windows 9
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Keyless Entry (RKE) System . . . . 10
Remote Keyless Entry (RKE) System
Operation ............................. 11
Getting In and Out of the Vehicle . . . . . . 14
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . 16
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 16
Exterior Mirrors
Mirrors ................................. 17
Remote Control Mirrors . . . . . . . . . . . . . . . . . 18
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 18
Windows
Power Windows ........................ 19
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Keys and Locks
Keys
1. Main Key
2. Spare Key
3. Metal plate with key code
One key (1) can operate all the locks on the
vehicle. Keep one of the two keys provided
as a spare (2). Record the key code numbers.
Both sides of the key are identical, so you
can insert the key in the engine control
switch without worrying about which way
you insert it.
The key code is indicated on a separate
metal plate (3) in order to prevent it from
being acquired by an unauthorized person.
Where is the Key Used?
Where For What
Engine Control
Switch
Starting and
shutting down the
engine
Front doors Locking and
unlocking the doors.
Wipe off the key to remove any dirt or
dust, etc. before using it.
To prevent theft, store the metal plate with
key code in a safe place other than the
vehicle.
Should you lose the key, please give the key
number to the nearest dealer. The dealer
will be able to duplicate your key.
If you resell the vehicle, be sure to hand
over the plate with key code to the new
owner together with the vehicle.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
10 Keys, Doors, and Windows
{Warning
If the key is unintentionally rotated while
the vehicle is running, the ignition could
be moved out of the RUN position. This
could be caused by heavy items hanging
from the key ring, or by large or long
items attached to the key ring that could
be contacted by the driver or steering
wheel. If the ignition moves out of the
RUN position, the engine will shut off,
braking and steering power assist may be
impacted, and airbags may not deploy.
To reduce the risk of unintentional
rotation of the ignition key, do not
change the way the ignition key and
(Continued)
Warning (Continued)
Remote Keyless Entry (RKE) transmitter,
if equipped, are connected to the
provided key rings.
The ignition key and key rings, and RKE
transmitter, if equipped, are designed to
work together as a system to reduce the
risk of unintentionally moving the key out
of the RUN position. The ignition key has a
small hole to allow attachment of the
provided key ring. It is important that any
replacement ignition keys have a small hole.
See your dealer if a replacement key is
required.
The combination and size of the rings that
came with your keys were specifically
selected for your vehicle. The rings are
connected to the key like two links of a
chain to reduce the risk of unintentionally
moving the key out of the RUN position. Do
not add any additional items to the ring
attached to the ignition key. Attach
additional items only to the second ring,
and limit added items to a few essential
keys or small, light items no larger than an
RKE transmitter.
Remote Keyless Entry (RKE)
System
See Radio Frequency Statement 0304.
If there is a decrease in the Remote Keyless
Entry (RKE) operating range:
.Check the distance. The transmitter may
be too far from the vehicle.
.Check the location. Other vehicles or
objects may be blocking the signal.
.Check the transmitter's battery. See
“Replacing the Battery in the Remote
Control Unit”later in this section.
.If the transmitter is still not working
correctly, see your dealer or a qualified
technician for service.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Keys, Doors, and Windows 11
Remote Keyless Entry (RKE)
System Operation
The keyless entry system allows you to
lock/unlock the doors by simply pressing the
remote control button rather than inserting
the key into the lock.
The remote control unit works within a 10 m
(33 ft) radius of the cab center as indicated
in the figure. The actual distance over which
the unit operates may vary depending on
conditions.
Unlocking and Locking the Doors
Remote Control Unit
Unlocking
Press the unlock button (2) of the remote
control unit for 1 second or longer. The
vehicle's keyless entry system causes the
right and left turn signal lights to
simultaneously flash twice upon receiving
the signals from the remote control unit.
Locking
Press the lock button (1) of the remote
control unit for 1 second or longer. The
vehicle's keyless entry system causes the
right and left turn signal lights to
simultaneously flash once upon receiving
the signals from the remote control unit.
Should you lose the remote control unit,
please contact your dealer.
After locking the doors using the remote
control unit, be sure to check that they are
locked by pulling the door handles.
Avoid getting water on the remote control
unit, dropping it, hitting it against another
object, or stepping on it; otherwise, the
remote control unit could malfunction.
Do not leave the remote control unit on the
dashboard or any other surface where the
unit might be exposed to high temperatures
(exceeding 60°C/140°F). Doing so may result
in shorter battery life or malfunction of the
remote control unit.
If the keyless entry system fails to operate
normally, lock and unlock the doors using
the key and have the system inspected by
your dealer.
The lock or unlock buttons on the remote
control unit must be fully pressed for more
than 1 second to work.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
12 Keys, Doors, and Windows
If you do not open any doors within about
30 seconds after pressing the unlock button
to unlock the doors, the automatic locking
function of the system will lock the doors
again to prevent theft.
In areas near a TV tower, electric power
plant, radio station, etc. or under any
conditions involving strong electrical
disturbances, the remote control unit
operating range might change or the keyless
entry system might not work.
The keyless entry system does not operate
in the following cases:
.The engine control switch is in the "ON"
position.
.The key is inserted in the engine control
switch.
.One of the doors is open.
Replacing the Battery in the Remote
Control Unit
When the battery runs down, replace it.
Battery life is approximately two years.
Battery Used Number of Battery
Lithium battery 1
Model number:
CR 2032
Voltage: DC3V
1. Battery Cover
2. Remote Control Cover Notch
3. Remote Control Unit Cover
4. Transmission Unit
5. Battery
1. Pry open the remote control unit
cover (3) by inserting a flat head
screwdriver or similar tool into the notch
of the remote control unit cover (2).
Wrap a piece of cloth or tape around the
tip of the screwdriver so as not to
damage the remote control unit
cover (3).

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Keys, Doors, and Windows 13
2. Remove the battery cover (1).
3. Insert a flat head screwdriver or similar
tool into the recess of the transmission
unit (4) to remove the old battery.
4. Insert the new battery into the
transmission unit (4) with its positive
side visible, and press the battery
downward until fully seated.
5. Install the transmission unit (4),
battery (5), and battery cover (1) in their
original positions inside the remote
control unit cover (3).
6. Close the remote control unit cover (3).
When closing the remote control unit
cover (3), check that there is no dust, hair,
or anything else caught underneath it.
A poorly sealed remote control unit could
become deteriorated.
Please comply with the collection system
available in your country for the disposal of
old batteries. In addition, take special care
to prevent any danger to children.
{Warning
When changing the battery, use only a
battery of the same type as the original
battery, or an equivalent. Otherwise,
there is a risk of explosion.
Do not place the battery in direct
sunlight, or near a fire or other sources
of heat.
Be sure to install the battery with the "+"
and "-" sides correctly oriented. Incorrect
installation will result in leakage of
chemicals from inside the battery or
other operational problems.
You and others could be seriously injured.
The battery life varies depending on how
the remote control unit is used.
The battery has reached its end of life when
the remote control unit works intermittently
or does not work at all. Replace the battery
as soon as this happens.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
14 Keys, Doors, and Windows
Getting In and Out of the Vehicle
1. Grip
2. Step
Carefully check that the area around the
vehicle is safe, hold the grip (1), and place
your foot on the step (2) when getting in or
out of the vehicle.
{Warning
When getting in or out of the vehicle,
make sure you use the step and grips to
support yourself at 3 points. It is very
dangerous to stand on the tire or wheel
when getting in or out of the vehicle.
(Continued)
Warning (Continued)
Furthermore, do not try to jump in or out
of the vehicle, as doing so could cause
unexpected accidents or injuries.
Getting in or out of the vehicle with oily
or greasy hands or shoes could cause you
to slip. Always thoroughly clean grease,
etc. from your hands and shoes before
getting in or out of the vehicle.
Rain and snow can cause the step to
become very slippery. Therefore, always
remove snow and ice from your shoes
and the step, and be careful not to slip
when getting in and out of the vehicle.
Exercise caution when opening or closing
doors, as strong winds or steep slopes
may cause doors to open or close
suddenly.
Do not hold parts other than the grip
when getting in or out of the vehicle.
Doing so may cause damage to the
vehicle or injuries to yourself or others.
You and others could be seriously injured.
Door Locks
{Warning
Be sure to do the following whenever
you leave the vehicle:
1. Fully engage the parking brake.
2. Shut down the engine.
3. Lock the doors.
When you close the door after sitting
behind the wheel, check that the door is
fully closed. Driving with any door ajar is
very dangerous.
Before opening the door when climbing
into or out of the cab, carefully check all
areas around the vehicle for safety,
especially the area at the rear of the
vehicle. If you suddenly open a door
without checking the surrounding area,
the door could be hit by a vehicle behind
you or a pedestrian.
Never leave the key in the vehicle.
Tilt the cab only after fully closing the
doors.
(Continued)

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Keys, Doors, and Windows 15
Warning (Continued)
To help reduce the risk of personal injury
in an accident, always lock the doors
when driving. Along with using the seat
belts properly, locking the doors helps
prevent people from being thrown from
the vehicle. It also helps prevent
unintended opening of the doors and
helps keep out intruders.
You and others could be seriously injured.
{Warning
To protect the child from the danger of
getting his/her hands and head trapped,
an adult must open, close and lock the
door for the child.
Be careful that the child does not
interfere with the power window
switches and get his/her hands or head
trapped in the window. While a child is
in the cab, be sure to control the power
windows using the power window
switches beside the driver's seat.
You and others could be seriously injured.
Overriding door locks are a standard safety
feature. When the doors are locked, the
inside handles will not open them. This is to
prevent accidental opening of the doors.
Front Doors
Locking and Unlocking the Door from Outside
Using the Key
Turn the key toward the front of the vehicle
to lock the door and turn it toward the rear
of the vehicle to unlock it. The doors can be
opened by pulling the outside door handle.
To close the door, push the outside door
handle.
Locking the Door from Outside without Using
the Key
First, push the lock button (1) on the inside
door handle forward and then close the
door while keeping the outside door
handle (2) raised.
Before closing the door, be sure to check
that you have the key with you.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
16 Keys, Doors, and Windows
Locking and Unlocking the Door from Inside
Push the lock button (1) forward to lock the
door; pull the lock button backward to
unlock it. After unlocking the door, open it
by pulling the inside door handle (2). If the
door is locked, the lock mechanism overrides
operation of the door handle.
To close the door, pull the pull handle.
Power Door Locks
Power Door Lock (Central Door Lock)
How the Power Door Lock System Operates
When you lock the driver's door using the
key or by operating the lock button, the
power door lock system will automatically
lock all doors simultaneously.
Door Lock Switch
1. Upper Side
2. Unlock
3. Lock
Both doors can be locked and unlocked by
pressing the power door lock switch.
Vehicle Security
Guard Against Theft
Your new vehicle has many features to help
prevent theft of the vehicle, its equipment
and contents. But these anti-theft features
depend upon you to work.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Keys, Doors, and Windows 17
The time to be most on guard is when
leaving the vehicle:
.Park in a lighted spot when you can.
.Turn the engine control switch to "LOCK"
and remove the key. This locks the switch
and the steering controls. The selector
lever is not locked.
.Keep items that may appear to be of
value out of sight and locked up when
possible.
.Fully close all windows and lock all doors.
Exterior Mirrors
Mirrors
{Warning
Before driving, be sure to adjust the seat
and mirrors to positions that give you a
correct driving posture.
Do not adjust the outside mirrors while
operating the vehicle. Adjust the mirrors
when the vehicle is stationary, not while
the vehicle is in motion.
(Continued)
Warning (Continued)
When checking the rear of the vehicle
with mirrors, be careful that this does
not distract your attention from the
traffic ahead.
Outside mirrors may make the vehicle
behind you appear farther away than it
really is. Use these mirrors very carefully
until you are able to correctly determine
distances from the images.
Keep the mirrors in mind when passing
another vehicle on a narrow road, moving
the vehicle into a garage, or driving near
pedestrians.
Do not drive with the mirrors folded.
You and others could be seriously injured.
Sit in the correct driving position with the
seat adjusted properly. Then, check each
mirror to ensure that a proper view of the
rear and sides of the vehicle are provided.
Make adjustments and clean mirrors if
necessary.
1. Side Cross Mirror
2. Wide-angle Mirror
3. Outside Rearview Mirror
Outside Rearview Mirror
After properly adjusting your seat for proper
driving position, adjust the mirrors indicated
below so that they provide adequate views
for checking the rear and the sides of the
vehicle.
Adjust the outside rearview mirrors by hand
(or using the remote mirror control switch,
if equipped) before vehicle operation. This
helps you determine the location of objects
seen in the mirror.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
18 Keys, Doors, and Windows
Lateral-direction: Adjust the mirror so that
you can see the vehicle's side including the
cargo bed within the inner one-third of the
mirror.
Vertical-direction: Adjust the mirror so that
you see the rear bottom corner of the
vehicle halfway up the height of the mirror.
Wide-angle Mirror
Lateral-direction: Adjust the mirror so that
you can see the vehicle's side within the
inner one-fourth of the mirror.
Vertical-direction: Adjust the mirror so that
you see the rear bottom corner of the
vehicle halfway up the height of the mirror.
Side Cross Mirror
Lateral-direction: Adjust the mirror so that
you can see the cab's side in the mirror.
Vertical-direction: Adjust the mirror so that
you see the cab within the upper one-fourth
of the mirror.
Remote Control Mirrors
Caution
Do not try to forcefully move the surface
of the outside rearview mirror by hand if
your vehicle is equipped with a remote
mirror control switch. Otherwise, the
mirror motor may sustain damage.
If equipped, the remote mirror control
switch is used to adjust the outside rearview
mirrors remotely and is active only when
the engine control switch is in the "ACC" or
"ON" position.
Adjustment
1. Left/Right Selector Switch
2. Angle Adjustment Switch
1. Press the left/right selector switch (1) on
the "L" (Left) or "R" (Right) side to move
the mirror to the desired position.
2. Press the angle adjustment switch (2) to
adjust the mirror angle.
Heated Mirrors
If the outside mirrors fog up, press the
outside rearview mirror heater switch to
defog them. When the switch is pressed the
indicating light will illuminate. If the switch
is pressed once again, it will switch to
“OFF”, and the operation indicating light will
go out.

Chevrolet Low Cab Forward 6.7L Diesel Engine 6500XD/7500XD (GMNA-
Localizing-U.S.-16493605) - 2023 - CRC - 2/22/22
Keys, Doors, and Windows 19
Do not use this switch while the engine is
off. Due to high power consumption, the
battery can be discharged.
Turn off the switch as soon as defogging is
complete.
Windows
Power Windows
{Warning
If you are traveling with a child, do not
leave the child alone in the vehicle. If the
child touches the controls or equipment,
an accident could occur. (For example, the
vehicle could move or a fire could start.)
Also, the cab inside could become
dangerously hot in hot weather.
{Warning
Before closing the windows, make sure
that there is no risk of a hand, head,
or anything else being trapped in the
moving window.
You and others could be seriously injured.
{Warning
Regardless of whether the vehicle is
moving or stationary, you must never
allow a child to put his/her head, hands,
or other body part out of the window.
Allowing such behavior would be
dangerous because the child could hit an
obstacle.
You and others could be seriously injured.
The power windows operate only when the
engine control switch is in the ON position.
Open each door window by pressing the
power window switch; close each one by
raising the switch.
Window Switches on Driver’s Door
The power window switch on the driver’s
door can operate both driver’s (2) and
passenger’s (1) power windows.
To Open the Driver’s Window
Lightly pressing the driver-side window
switch will lower the driver’s window until
the switch is released (manual mode
operation). When the switch is firmly
pressed, the window will lower completely
without the need to press the switch
continuously (automatic mode operation).
If you want to stop the automatic
movement of the window before it lowers
completely, raise the switch lightly.
