Chipsee PPC-CM4-070 User manual

Industrial PC
EPC/PPC-CM4-070
PN: CS10600RA4070
Content can change at anytime, check documentation website for latest information.
www.chipsee.com

Contents
41. EPC/PPC-CM4-070
61.1. Product Overview
71.2. Ordering Options
71.2.1. Pi CM4 Module
71.2.2. Operating System
71.2.3. Optional Features
71.3. 7 inch CM4 Products Comparision
91.4. Specications
111.5. Power Input
121.6. Touch Screen
131.7. Connectivity
131.7.1. RS232/RS485/CAN
141.7.2. GPIO Port
161.7.3. USB Connectors
171.7.4. LAN Connectors
181.7.5. WiFi & BT Module
181.7.6. 3G/4G/LTE Module
191.7.7. Zigbee Module
201.7.8. Camera Connector
221.8. TF Card Slot
231.9. Audio Connectors
241.10. PROG Button
251.11. Mounting Procedure
251.11.1. CS10600RA4070E
251.11.2. CS10600RA4070P
261.12. Mechanical Specications
261.12.1. CS10600RA4070P
261.12.2. CS10600RA4070E
261.13. 3D Model
271.14. Disclaimer
®
Chipsee IPC Page 2 of 27

271.15. Technical Support
Chipsee IPC Page 3 of 27

EPC/PPC-CM4-070

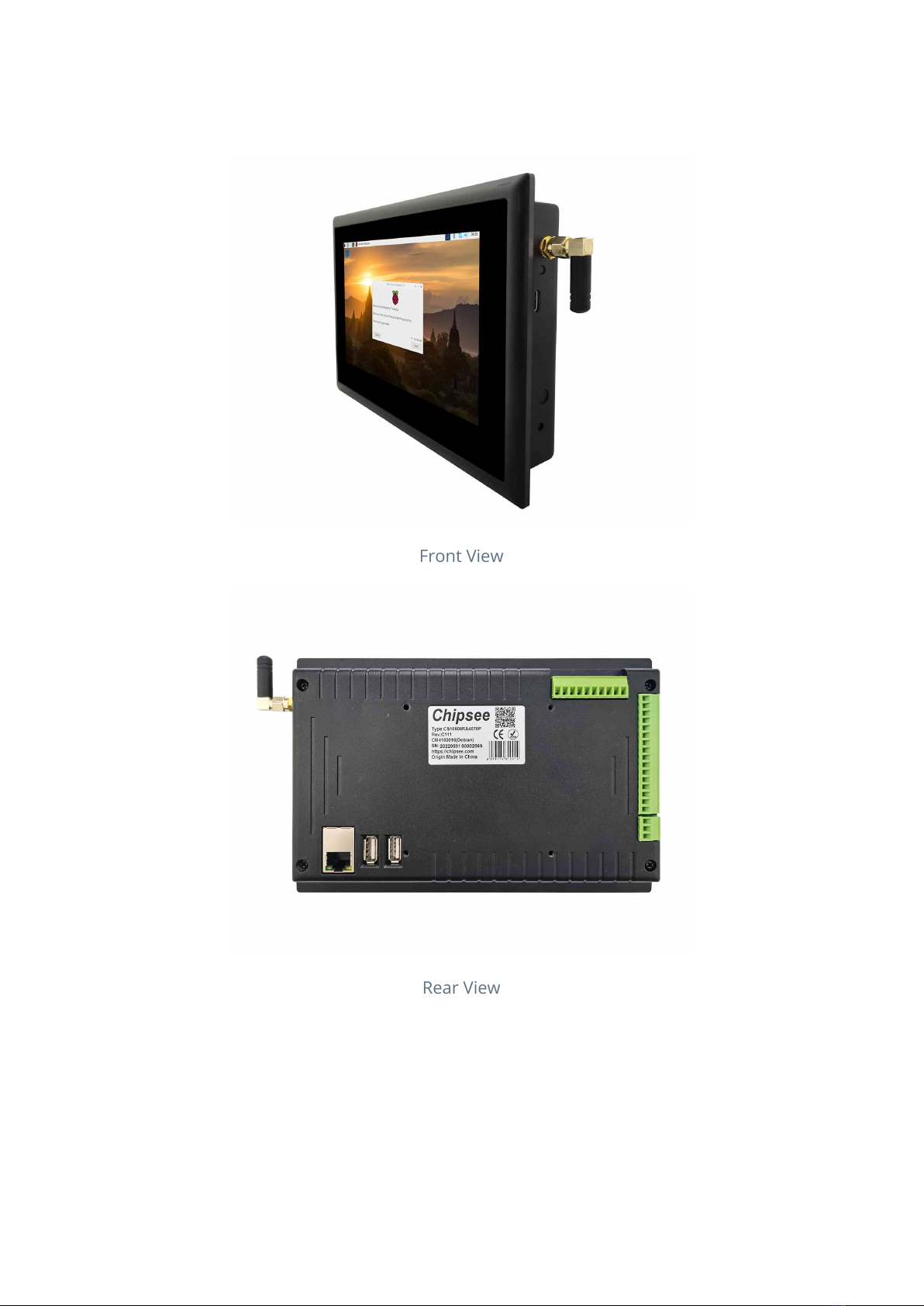

Front View
Rear View
EPC/PPC-CM4-070
Chipsee IPC Page 4 of 27

Front View (Embedded Variant)
Rear View (Embedded Variant)
EPC/PPC-CM4-070
Chipsee IPC Page 5 of 27

Product Overview
The Cortex -A72 Raspberry Pi series EPC/PPC-CM4-070 (PN: CS10600RA4070) is a high-
quality industrial Pi PC. It features a 7” ve-point capacitive touch screen with a resolution of
1024 x 600 pixels and brightness of 500 cd/m .
Key Applications
Human Machine Interface HMI
Process Control
Process Monitoring
HMI
IIoT node
Environmental Monitoring
PLC
Automotive applications
ATM…
It is available both as an embedded solution and as a device hosed in a casing with bezels,
thus facilitating dierent installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The EPC/PPC-CM4-070 industrial Pi PC is based around the powerful Raspberry Pi
Compute Module 4, powered by the Quad Cortex -A72 processor with a processor speed of
1.5GHz.
® ®
2
•
•
•
•
•
•
•
•
•
•
•
®
®
EPC/PPC-CM4-070 Product Overview
Chipsee IPC Page 6 of 27

Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Specications section provides information about the default options bundled
with the product.
Pi CM4 Module
The Pi Compute Module 4 appears in dierent versions depending on the size of the DDR4
and eMMC.
The EPC/PPC-CM4-070 industrial Pi PC does not include the CM4 Raspberry Pi module by
default. If you would like to purchase it with a CM4, you can select it at the Chipsee store
during the ordering process.
Operating System
This product comes with a pre-installed Debian OS. Chipsee software engineers have
created all the drivers, so every hardware feature is readily available for any standard
development tool.
If your project requires a dierent OS, please Contact us, and we’ll make a customized
version that suits your needs.
Optional Features
The EPC/PPC-CM4-070 industrial Pi PC does not include the 3G/4G/LTE modules by default.
These modules are optional and can be selected at the Chipsee store during the ordering
process.
7 inch CM4 Products Comparision
Chipsee provides two 7 inch Industrial Pi PCs, EPC/PPC-CM4-070 and PPC-CM4-070-D, here
is the comparison:
Note
You can order EPC/PPC-CM4-070 from the ocial Chipsee Store or from your nearest distributor.

®
®
®
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

EPC/PPC-CM4-070 Ordering Options
Chipsee IPC Page 7 of 27

Product EPC/PPC-CM4-070 PPC-CM4-070-D
LAN 1 x LAN 2 x LAN
USB-A 2 x USB 2.0 2 x USB 3.0
GPIO 8 x Optical Isolated
GPIO
6 x Raspberry Pi CPU GPIO (Compatible with Pi GPIO Software
Libraries) or 8 x Optical Isolated GPIO
Connectors Distributed on
each side Mostly on the bottom side
Dimension 206 x 135 x 30mm 188.05 x 123.11 x 33.20mm, new case, small and compact
Table 242 Comparison Between the 7 inch CM4 Products
EPC/PPC-CM4-070 7 inch CM4 Products Comparision
Chipsee IPC Page 8 of 27

Specifications
The EPC/PPC-CM4-070 industrial Pi PC oers a broad range of performance and connectivity
options for scalable integration, providing expandability according to future needs. Some of
the key features are listed in the table below.
EPC/PPC-CM4-070
CPU Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz
Storage Support for 2 x TF Card3
RAM 2/4/8 GB, Based on CM4
eMMC 16/32 GB, Based on CM4
Display 7” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m
Touch 5-point capacitive touch with 1mm Armored Glass
USB 2 x USB 2.0 Host, 1 x USB OTG
LAN 1 x Channel Giga LAN
Audio 3.5mm Audio Out Connector, 2W Speaker Internal
Buzzer Onboard Buzzer, driven by GPIO
RTC Yes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not
included)
RS232 Default to 2 x RS232, up to 4 x RS232
RS485 Default to 2 x RS4851, these 2 x RS485 can be congured as 2 x RS232
CAN 1 x CAN-BUS
GPIO 8 Channels, 4 Input, 4 Output
I2C Not Supported
WiFi/BT Supported but depending on the CM4 selected2
ZIGBEE Onboard Zigbee module, not mounted by default
HDMI Yes
SATA II Not Supported
3G/4G/LTE Supported, not mounted by default
Camera Yes, not mounted by default
Power Input From 9V to 36V
Current at 12V 420mA Max
Power Consumption 5W Typical
Working
Temperature From 0°C to +60°C
®
2
EPC/PPC-CM4-070 Specications
Chipsee IPC Page 9 of 27

1
2
3
The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from
within the software.
The default product without the CM4 does not include a Wi-Fi/BT module. You can include a CM4 that has the
Wi-Fi/BT module at the Chipsee store during the ordering process.
Chipsee designed one of the TF card slots for Lite version which have no eMMC. We designed the other one for
storage expansion, as the TF card for storage expansion use same pins with WiFi, it can’t be used with WiFi at
same time.
EPC/PPC-CM4-070
OS Debian
Dimensions CS10600RA4070E: 190 x 108 x 28mm; CS10600RA4070P: 206 x 135 x 30mm
Weight CS10600RA4070E: 400g; CS10600RA4070P: 700g
Table 243 Key Features
Attention
Chipsee does not install a lithium battery by default, as we cannot ship products with batteries. We recommend you
buy it locally and install it by yourself. The lithium battery part number is CR1220. Please Contact us if you need help.

EPC/PPC-CM4-070 Specications
Chipsee IPC Page 10 of 27

Power Input
The EPC/PPC-CM4-070 industrial Pi PC can be powered by a wide range of input voltages:
From 9V to 36V DC. There are two types of power input connectors. One is a 3 Pin, 3.81mm
screw terminal connector, and the other is a 2.1mm DC input head. As shown in the
gure below.
Power Input
Note that the “+” sign represents the positive power input, and it is printed both at the
casing and as a silk-screen on the board of the embedded version. The “-” terminal is
shorted to the ground.
Power Input Denition
Pin Number Denition Description
Pin 1 Positive Input DC Power Positive Terminal
Pin 2 Negative Input DC Power Negative Terminal
Pin 3 Ground Power System Ground
Table 244 Power Connector
Note
The system ground “G” is connected to power negative “-” on board.

EPC/PPC-CM4-070 Power Input
Chipsee IPC Page 11 of 27

Touch Screen
The EPC/PPC-CM4-070 industrial Pi PC uses a 5-point capacitive touch screen. However, the
Debian OS supports only One-Point touch.

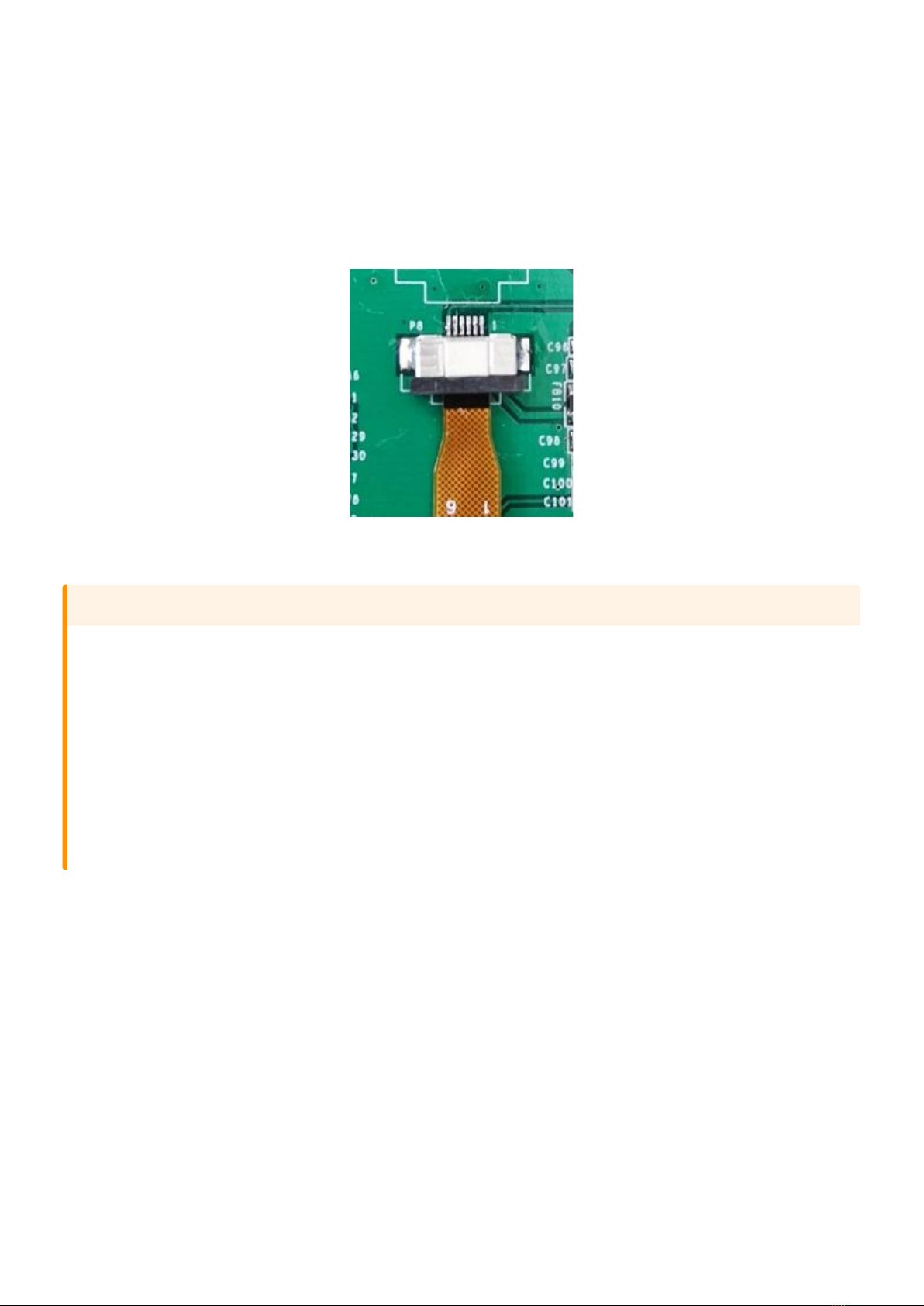

The gure below shows the capacitive touch screen connected to the motherboard via the
FPC connector.
Capacitive Touch Connector
Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples
or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch
points oat erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the EPC/PPC-CM4-070 Power Input connector (pin 3) is properly connected to the Power System
Ground to provide sucient EMI shielding and eliminate the problem entirely.
Bad GND problems can also be conrmed by touching pin 3 of the Power Input connector with one hand while
operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power
System Ground.

1.
2.
3.
EPC/PPC-CM4-070 Touch Screen
Chipsee IPC Page 12 of 27

Connectivity
There are many connectivity options available on the EPC/PPC-CM4-070 industrial Pi PC. It
has 2 x USB 2.0 Host, 1 x USB OTG, 1 x Channel Giga LAN (RJ45) Ethernet connector
supporting up to 1 Gbps, and 4 x UART and 1 x CAN terminals (RS232/RS485/CAN).
RS232/RS485/CAN
The serial communication interfaces (RS485, RS232, and CAN) are routed to a 16-pin
3.81mm terminal, as illustrated in the gure below.
RS232-RS485-CAN on the EPC/PPC-CM4-070 Industrial PC
EPC/PPC-CM4-070 Connectivity
Chipsee IPC Page 13 of 27

The table below oers more detailed description of every pin and its denition:
GPIO Port
The EPC/PPC-CM4-070 industrial Pi PC has a 10 Pin 3.81mm GPIO Connector, as shown in
the gure below. The table below gives details about the denition of every Pin.
Attention
RS485_3 and RS485_5 can control the input and output direction automatically. There’s no need to control it from
within the software.
The 120Ω match resistor for RS485 is already mounted by default.
The 120Ω match resistor for CAN is NOT mounted by default. Be sure to mount the match resistor when testing
CAN.
RS485_3 and RS232_3 share UART3 and can’t work at the same time; RS485_5 and RS232_5 share UART5 and can’t
work at the same time. Meaning the product provides 4 x RS232 + 0 x RS485, or 2 x RS232 + 2 x RS485, or 3 x
RS232 + 1 x RS485.

1.
2.
3.
4.
RS232 / RS485 / CAN Pin Denition:
Pin Number Denition Description
Pin 16 CAN_H CAN BUS “H” signal
Pin 15 CAN_L CAN BUS “L” signal
Pin 14 RS485_5- CPU UART5, RS485 –(B) signal
Pin 13 RS485_5+ CPU UART5, RS485 +(A) signal
Pin 12 RS232_5_RXD CPU UART5, RS232 RXD signal
Pin 11 RS232_5_TXD CPU UART5, RS232 TXD signal
Pin 10 RS485_3- CPU UART3, RS485 –(B) signal
Pin 9 RS485_3+ CPU UART3, RS485 +(A) signal
Pin 8 RS232_3_RXD CPU UART3, RS232 RXD signal
Pin 7 RS232_3_TXD CPU UART3, RS232 TXD signal
Pin 6 RS232_2_RXD CPU UART2, RS232 RXD signal
Pin 5 RS232_2_TXD CPU UART2, RS232 TXD signal
Pin 4 RS232_0_RXD CPU UART0, RS232 RXD signal
Pin 3 RS232_0_TXD CPU UART0, RS232 TXD signal
Pin 2 GND System Ground
Pin 1 +5V System +5V Power Output, No more than 1A Current output
Table 245 Connectivity Section
EPC/PPC-CM4-070 GPIO Port
Chipsee IPC Page 14 of 27

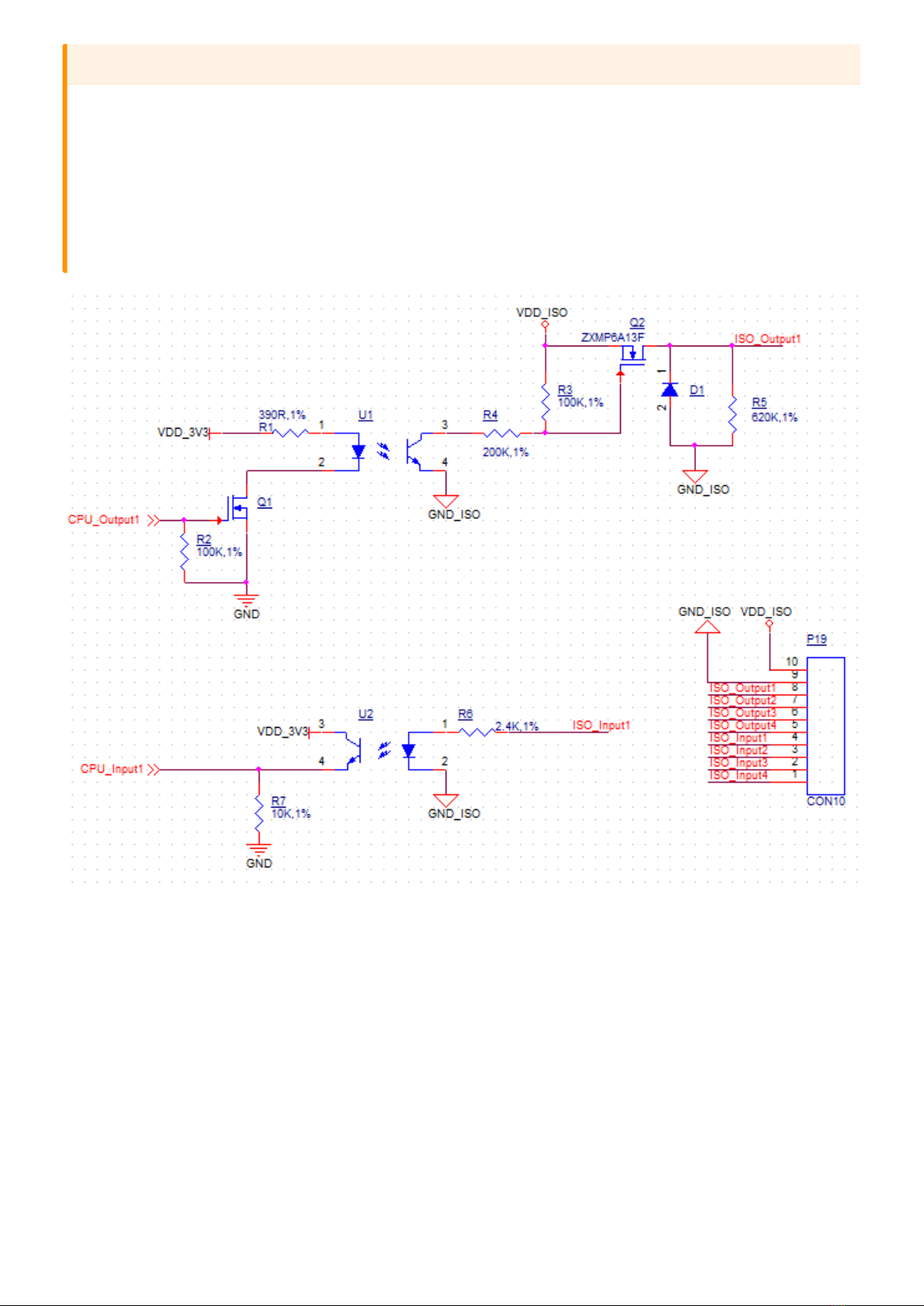

Isolated GPIO reduced schematic
Attention
In order to use the Isolated Output, you need to add an external Isolated Power to the VDD_ISO and GND_ISO.
The power voltage should not exceed 24V.
The output current can achieve 500mA for every channel, but it also depends on the isolated power that is
connected.
In order to use the Isolated Input, you need to add a signal to the ISO_InputX and GND_ISO. A 2.4KΩ resistor, as
R6, can be added to limit the input current, as shown in the gure above. This resistor should work well for the
5-24V input signal. If your input signal is less than 5V, please change this input resistor.

1.
2.
3.
EPC/PPC-CM4-070 GPIO Port
Chipsee IPC Page 15 of 27

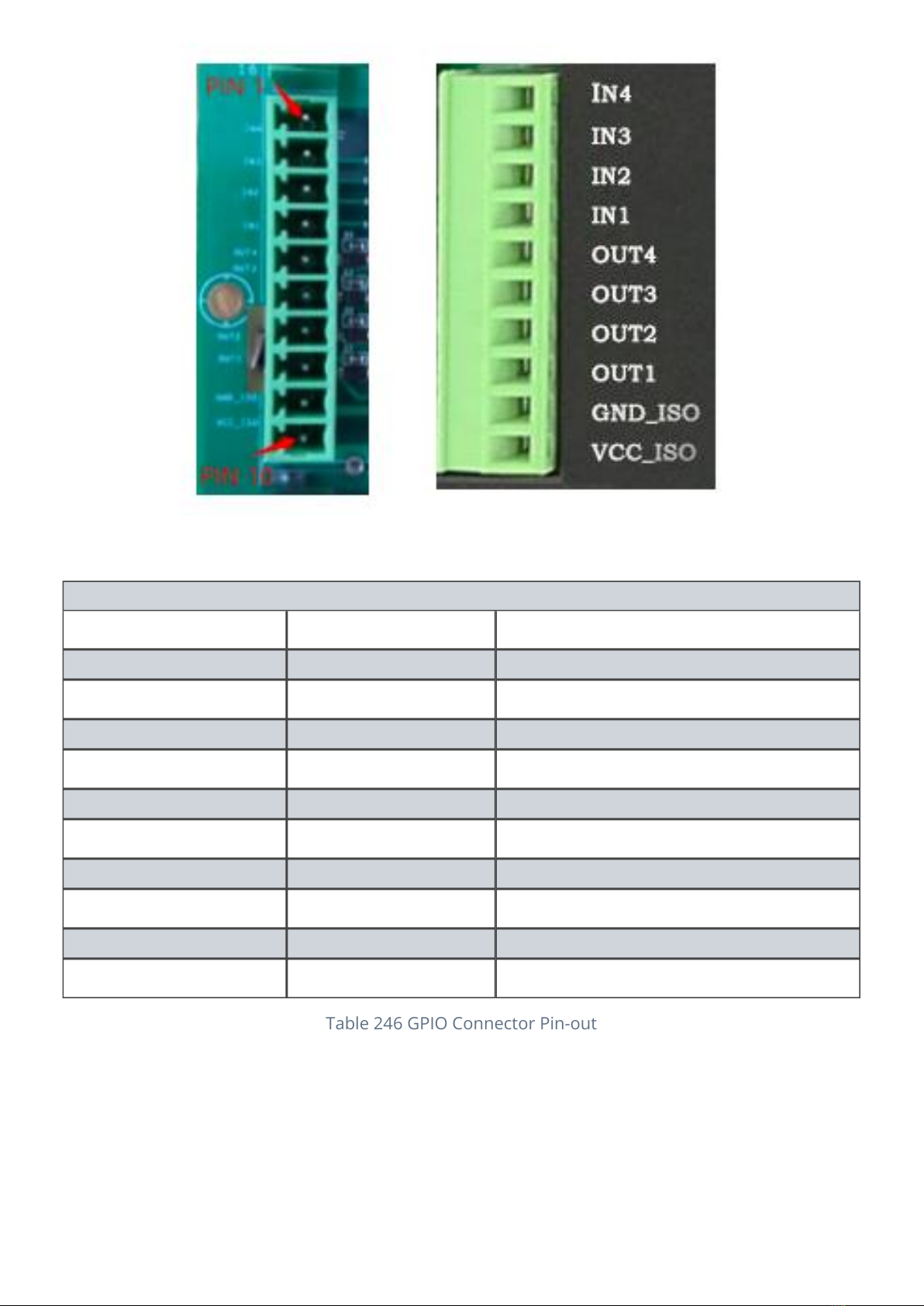

GPIO Connector
USB Connectors

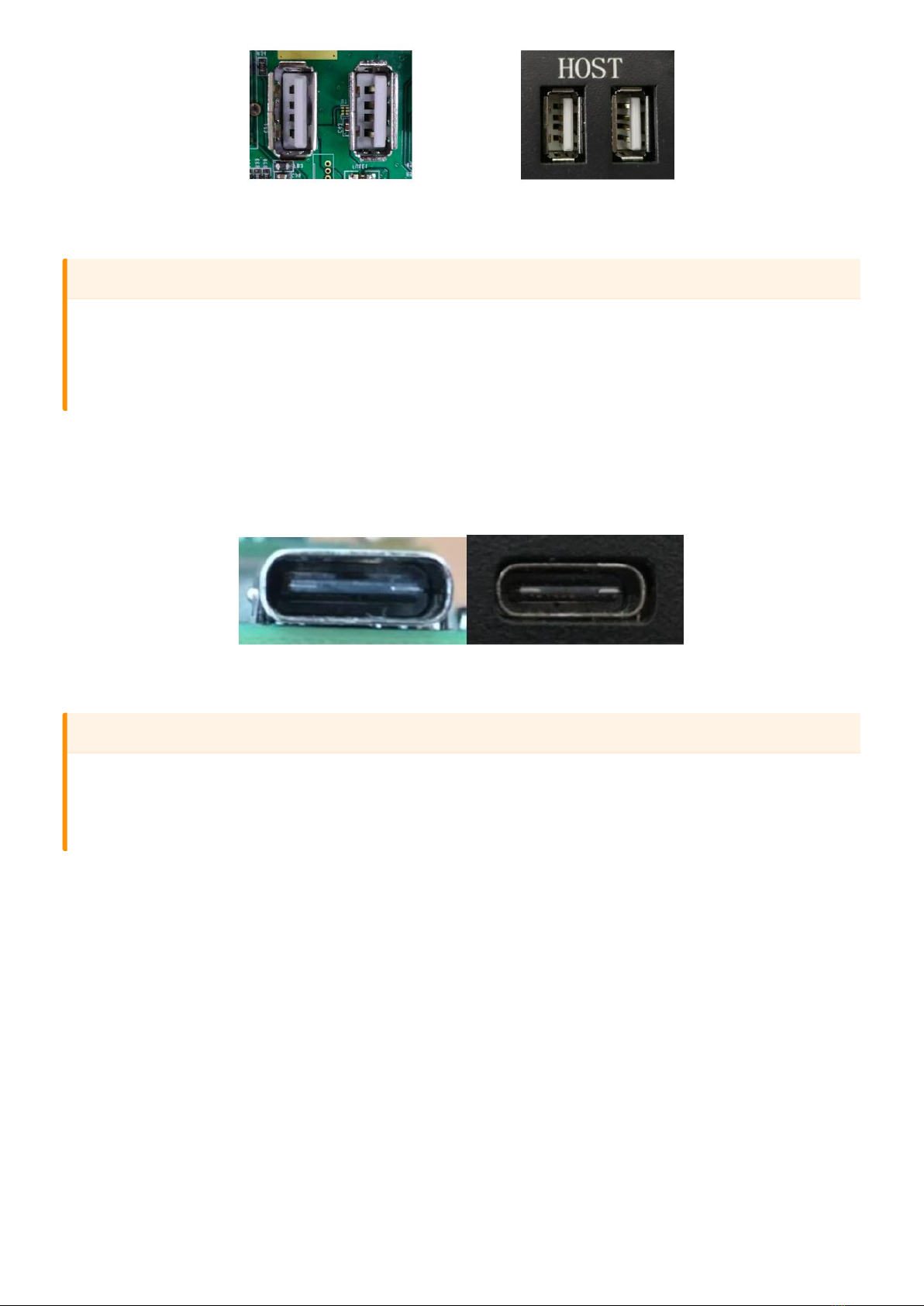

There are 2 x USB 2.0 Host, 1 x USB OTG onboard, as shown in the gure below.
GPIO Connector Pin Denition:
Pin Number Denition Description
Pin 10 VDD_ISO Isolated Power +5V ~ +24V Input
Pin 9 GND_ISO Isolated Ground
Pin 8 OUT1 Isolated Output 1
Pin 7 OUT2 Isolated Output 2
Pin 6 OUT3 Isolated Output 3
Pin 5 OUT4 Isolated Output 4
Pin 4 IN1 Isolated Input 1
Pin 3 IN2 Isolated Input 2
Pin 2 IN3 Isolated Input 3
Pin 1 IN4 Isolated Input 4
Table 246 GPIO Connector Pin-out
EPC/PPC-CM4-070 USB Connectors
Chipsee IPC Page 16 of 27

USB HOST Connectors
The product has one USB Type-C OTG connector that works as a slave by default. You can
use it to establish a connection with the host PC and for downloading the system to the
eMMC of CM4 module.
USB Type-C OTG Connector

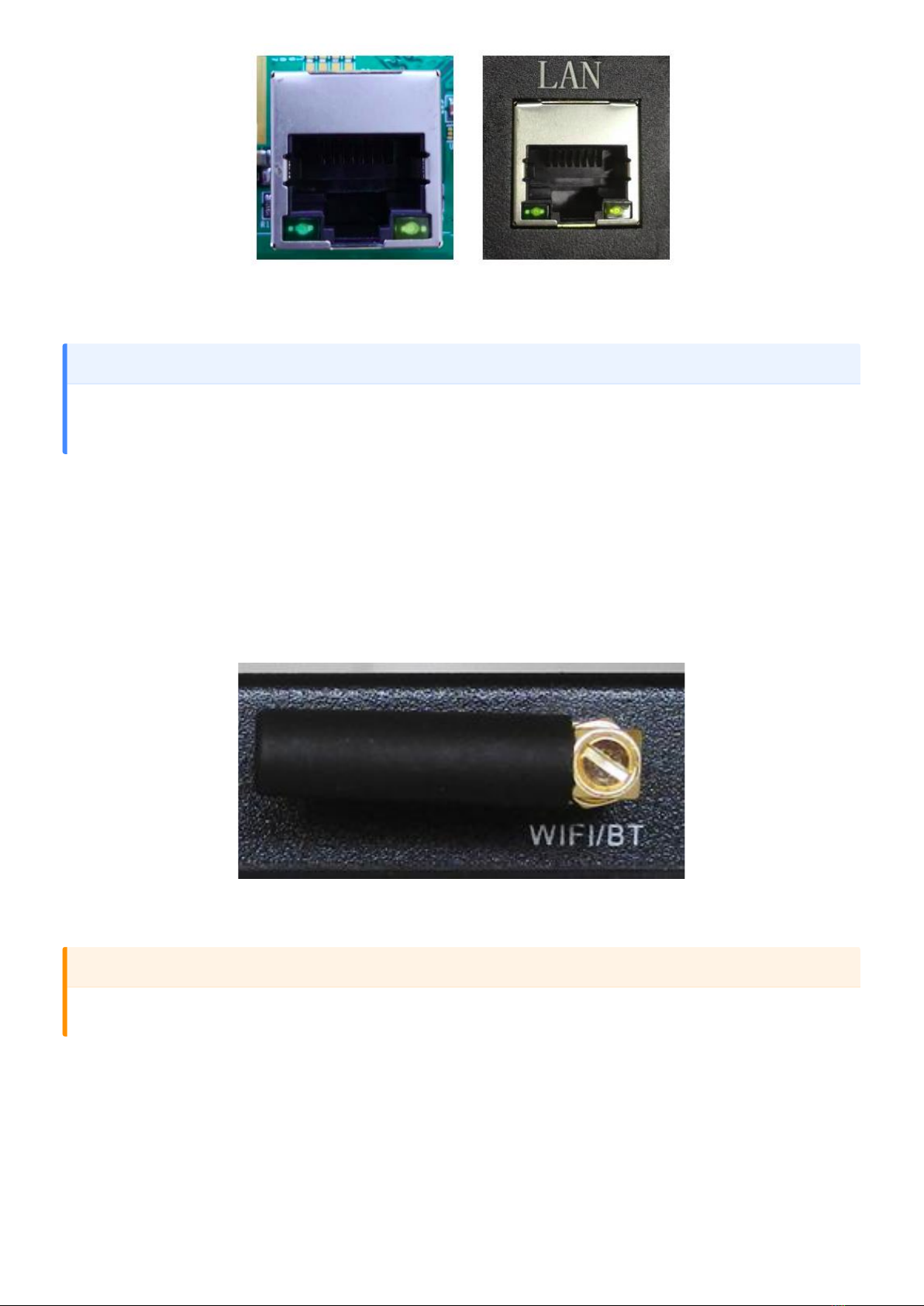

LAN Connectors
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as
shown in the gure below. The integrated Ethernet interface supports up to 1 Gbps data
throughput. These Giga LAN signals come from the CM4 module directly.
Attention
1. These two USB host connectors can drive 500mA for each channel at most.
2. These two USB host connectors, Zigbee and 4G/LTE come from the same USB HUB.
3. When you connect this product to the HOST PC through the Type-C port, the USB HUB will be disabled. As a result,
the two USB host connectors, Zigbee and 4G/LTE will not work.

Warning
Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the
embedded Industrial PC version.
Remember to unplug the Type-C cable after ashing OS, otherwise the USB hosts won’t work.

1.
2.
EPC/PPC-CM4-070 LAN Connectors
Chipsee IPC Page 17 of 27

RJ45 LAN Connector
WiFi & BT Module
The default EPC/PPC-CM4-070 without the CM4 does not include a Wi-Fi/BT module.
If you include a CM4 that has the Wi-Fi/BT module, the product will have Wi-Fi/BT feature.
The enclosed (CS10600RA4070P) variant of the product also includes an SMA connector for
an external WiFi/BT antenna, as illustrated in the gure below.
WiFi+BT Antenna
3G/4G/LTE Module
The EPC/PPC-CM4-070 industrial Pi PC is equipped with a mini-PCIe connector that can
connect to a 3G/4G/LTE module. The customer will also need a SIM Card Holder and a 3G/
4G/LTE antenna to ensure 3G/4G/LTE works on the EPC/PPC-CM4-070. SIM card does NOT
support hot plug. Power o before inserting or removing SIM card.
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

Attention
The product does not come shipped with the Wi-Fi/BT module by default.

EPC/PPC-CM4-070 WiFi & BT Module
Chipsee IPC Page 18 of 27

SIM Card Direction
Figure 914: 3G/4G/LTE Module
Figure 915: SIM Card Holder and 3G/4G/LTE Antenna
Zigbee Module
The EPC/PPC-CM4-070 industrial Pi PC supports an onboard Zigbee module. The Zigbee
controller is TI CC2531, and the Raspberry Pi forum supports it.
For CS10600RA4070P, there is a connector on the backside of the case that you can use to
connect the external Zigbee antenna, as described in the gure below.
Attention
The product does not come shipped with the 3G/4G/LTE module by default. If you need to use 3G/4G/LTE, you can
contact us when placing an order, we can install the necessary hardware for you.

EPC/PPC-CM4-070 Zigbee Module
Chipsee IPC Page 19 of 27

Figure 916: Zigbee controller
Zigbee Antenna
Camera Connector
The EPC/PPC-CM4-070 industrial Pi PC has a 15 Pin Camera Connector, as shown in the
gure below. The camera signals come from CAM1. The table below gives details about the
denition of every Pin.
Attention
The product does not come with the Zigbee module by default.

EPC/PPC-CM4-070 Camera Connector
Chipsee IPC Page 20 of 27
