AIO-CM4-156
Front View
Rear View
AIO-CM4-156
Chipsee IPC Page 3 of 16

Front View (Embedded Variant)

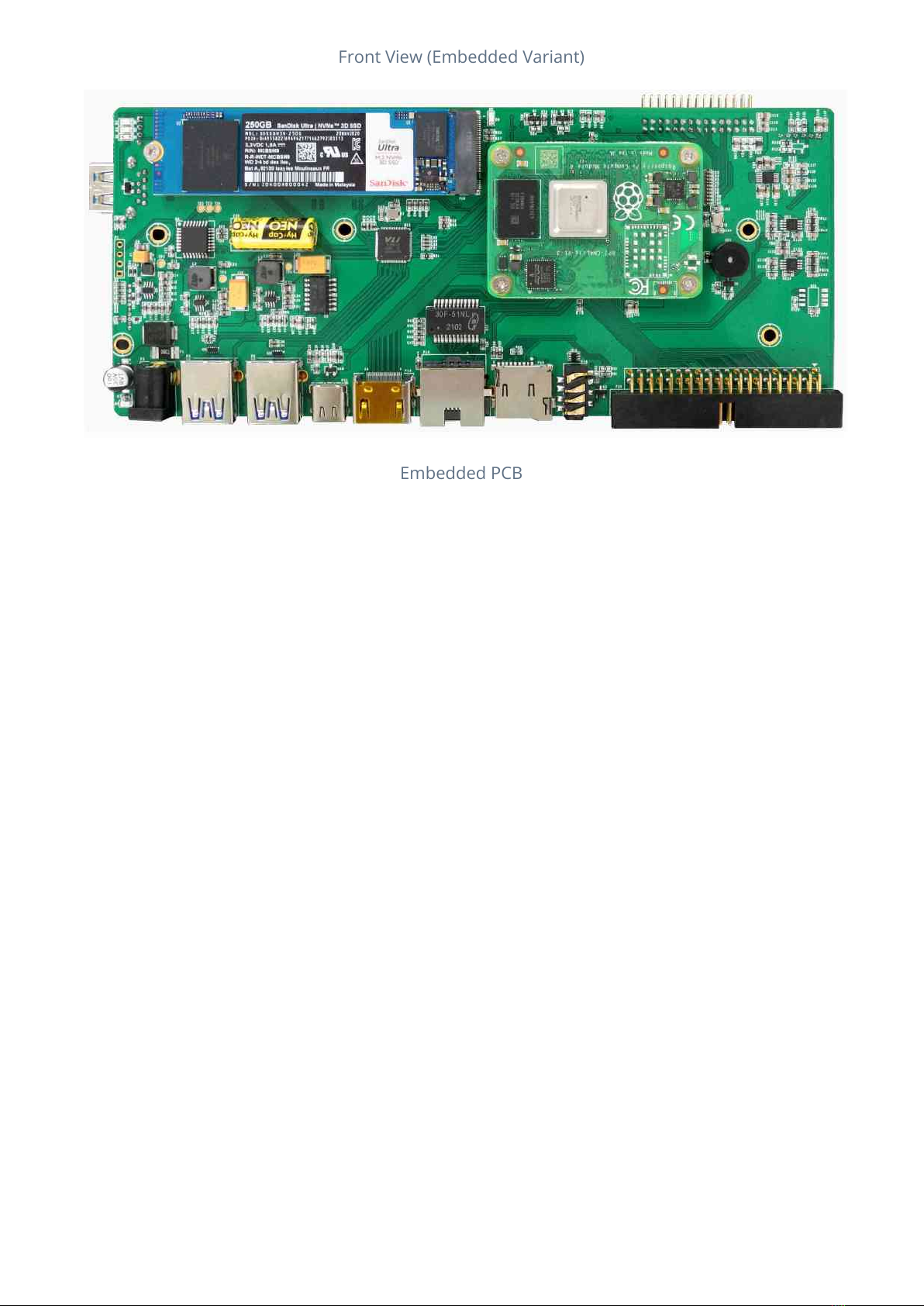

Embedded PCB
Product Overview
The AIO-CM4-156 industrial Pi PC (PN: CS19108RA4156A) is an all-in-one desktop computer
based on Raspberry Pi CM4. It features a 15.6” IPS display with a maximum brightness of
350 cd/m .
The product is easy to use, perfect for developers and makers accustomed to the Raspberry
Pi and is looking for a computer they can use daily. It is fully compatible with the Raspberry
Pi 4 Linux distribution.
Key Applications
Human Machine Interface HMI
Process Control
Process Monitoring
HMI
IIoT node
Environmental Monitoring
PLC
Automotive applications
ATM…
®
2
•
•
•
•
•
•
•
•
•
AIO-CM4-156 Product Overview
Chipsee IPC Page 4 of 16

Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Hardware Features section provides information about the default options
bundled with the product.
Pi CM4 Module
The Pi Compute Module 4 appears in dierent versions depending on the size of the DDR4
and eMMC.
The AIO-CM4-156 industrial Pi PC does not include the CM4 Raspberry Pi module by
default. If you would like to purchase it with a CM4, you can select it at the Chipsee store
during the ordering process.
Operating System
This product comes with a pre-installed Debian OS or Ubuntu OS. Chipsee software
engineers have created all the drivers, so every hardware feature is readily available for any
standard development tool.
If your project requires a dierent OS, please Contact us, and we’ll make a customized
version that suits your needs.
Optional Features
The AIO-CM4-156 industrial Pi PC does not include the 4G/LTE modules by default. These
modules are optional and can be selected at the Chipsee store during the ordering process.
Hardware Features
The AIO-CM4-156 industrial Pi PC oers a board range of performance and connectivity
options for scalable integration, providing expandability according to future needs. Some of
the key features are listed in the table below.
Note
You can order AIO-CM4-156 from the ocial Chipsee Store or from your nearest distributor.

®
®
®
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

AIO-CM4-156 Ordering Options
Chipsee IPC Page 5 of 16

AIO-CM4-156
CPU Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz
Storage 1 x TF card slot for boot. Optional, Internal M.2 NVMe connector for SSD card
RAM 2GB DDR1
eMMC 16GB
Display 15.6” IPS LCD, 1920 x 1080 resolution px, brightness 350 cd/m
Touch Optional, 10-point capacitive touch with 1.1mm Armored Glass
USB 2 x USB 3.0 Host, 1 x Type-C USB (Slave)
LAN 1 x Channel Giga LAN
Audio 2W internal stereo speaker, 3.5mm audio Out connector
Buzzer Internal Buzzer
RTC Yes, High accuracy internal RTC (keep track of time one week after power o)
RS232 N/A
RS485 N/A
Relay N/A
GPIO/Wiegand 40-pin GPIO connector
WiFi/BT WiFi/BT module comes with the CM4
HAT Connector Standard Raspberry Pi 40-way HAT connector
Micro SD card socket For use only with CM4 Lite modules
ZIGBEE N/A
HDMI HDMI 2.0 connectors, slave HDMI port for CM4
4G/LTE N/A
Power Input 12V
Current at 12V 700mA Max
Power Consumption 10W Typical
Working Temperature From 0°C to +50°C
OS Debian, Ubuntu
Dimensions 374 x 238 x 33mm
Weight 1600g
Plastic Case Color Black
Certication CE, ROHS
Table 256 Key Features
®
2
AIO-CM4-156 Hardware Features
Chipsee IPC Page 6 of 16

1RAM can be 1/2/4/8GB based on CM4 Lite onboard.
Power Input
The AIO-CM4-156 industrial Pi PC can be powered by an input voltage: 12V DC. The total
power consumption is typically about 8.4W. The power input connector is a 2.1mm I.D x
5.5mm O.D x 9.5mm DC connector. For a proper DC power adapter, refer to the gure
below.
Figure 1019: Power Adapter
Buttons and Status LED
Status LED
This product has a status LED on the front panel. The LED turns RED after power on and
GREEN when the system is booted. It can be controlled by software to ash YELLOW when
the CPU is working.
Figure 1020: Status LED
Buttons
There are ve (5) buttons on the front panel: Brightness +, Brightness -, Volume +, Volume -,
and Power, as the gure below shows.
AIO-CM4-156 Power Input
Chipsee IPC Page 7 of 16

Figure 1021: Buttons
The AIO-CM4-156 industrial Pi PC supports two (2) boot modes, the auto-boot and manual
boot modes. The default boot mode is the auto-boot mode. You can change the boot mode
by using Software or by pushing Volume + and Volume - buttons at the same time before
power on and releasing it 3 seconds after power on to toggle, as the table below shows.
The AIO-CM4-156 industrial Pi PC boots from the internal eMMC by default. If you want
it to boot from the Type-C connector, press and hold the Volume + button before power
ON, and release it 3 seconds after power ON.
You can use Brightness + / Brightness - buttons to control the backlight of the LCD.
You can also use Volume + / Volume - buttons to control the System Volume.
For a detailed explanation of button functions, check the table below.
Boot
mode
Behaviors Default
Conguration
How to toggle
Auto Auto boot after power on √ Software control or Push Volume+ and
Volume- buttons at the same time before
power on, and release it 3 seconds after
power on.
Manual
Boot after pushing the
Power button and releasing
it 3 seconds after power on
Table 257 Boot mode
•
•
•
Buttons Functions before the system boot Functions after the system boot
Power Push after power on and release after 3
seconds will boot the system
Push after the system booted and
release after 3 seconds will close the
system.
Brightness + NULL Increase the brightness of LCD
Brightness - NULL Reduce the brightness of LCD
Volume +
Push before power on and release it after 3
seconds, the system will boot from the Type-
C port
Increase the volume of the system
Volume - NULL Reduce the volume of the system
Toggle the boot mode NULL
AIO-CM4-156 Buttons
Chipsee IPC Page 8 of 16

Connectivity
There are many connectivity options available on the AIO-CM4-156 industrial Pi PC. It has 2
x USB 3.0 Host, 1 x Type-C USB (Slave), 1 x Channel Giga LAN (RJ45) Ethernet connector
supporting up to 1 Gbps, and RS232+RS485+Relay connector.
USB HOST and Type C
There are 2 x 3.0 USB HOST connectors and 1 x Type-C Connector onboard, as shown on
the gures below.
Figure 1022: USB3.0 HOST and Type-C Connectors
LAN Connectors
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as
shown the gure below. The integrated Ethernet interface supports up to 1 Gbps data
throughput. These Giga LAN signals come from the CM4 module directly.
Figure 1023: RJ45 LAN Connectors
Buttons Functions before the system boot Functions after the system boot
Volume + and
Volume -
Table 258 Boot mode
Note
External USB peripherals like a USB disk or USB mouse or keyboard can connect to the USB3.0 HOST.
You can download software to the Raspberry Pi CM4 eMMC using the Type-C.
When you connect the Type-C to a device, it will disable the USB HOST.

•
•
•
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

AIO-CM4-156 Connectivity
Chipsee IPC Page 9 of 16

TF Card Slot
The AIO-CM4-156 industrial Pi PC features 1 x TF Card (micro SD) slot that can only be used
with CM4 Lite modules, as shown on the gure below.

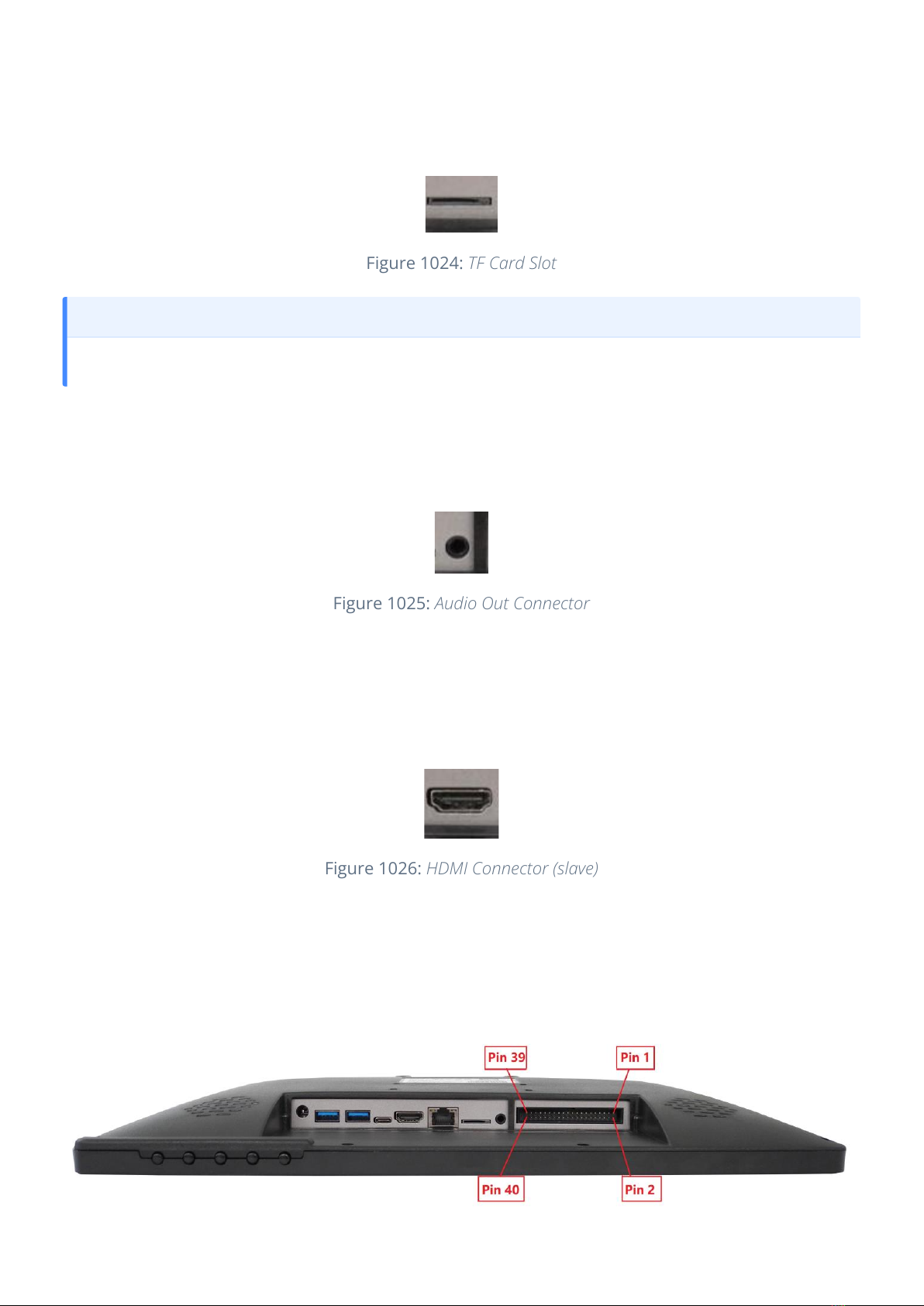

Figure 1024: TF Card Slot
Audio Out Connector
The product features audio Out connector as shown on the gure below.
Figure 1025: Audio Out Connector
HDMI
The CM4 supports dual HDMI 2.0 connectors. The product uses the master HDMI for the
LCD so, customers can use the slave HDMI port, as the gure below shows.
Figure 1026: HDMI Connector (slave)
40-Pin Expansion Connector
The AIO-CM4-156 industrial Pi PC has a standard Raspberry Pi 40 way HAT connector, as the
gure below shows. You also can check Pinout for more details.
Note
The product does not come shipped with the TF Card by default.

1.
AIO-CM4-156 TF Card Slot
Chipsee IPC Page 10 of 16

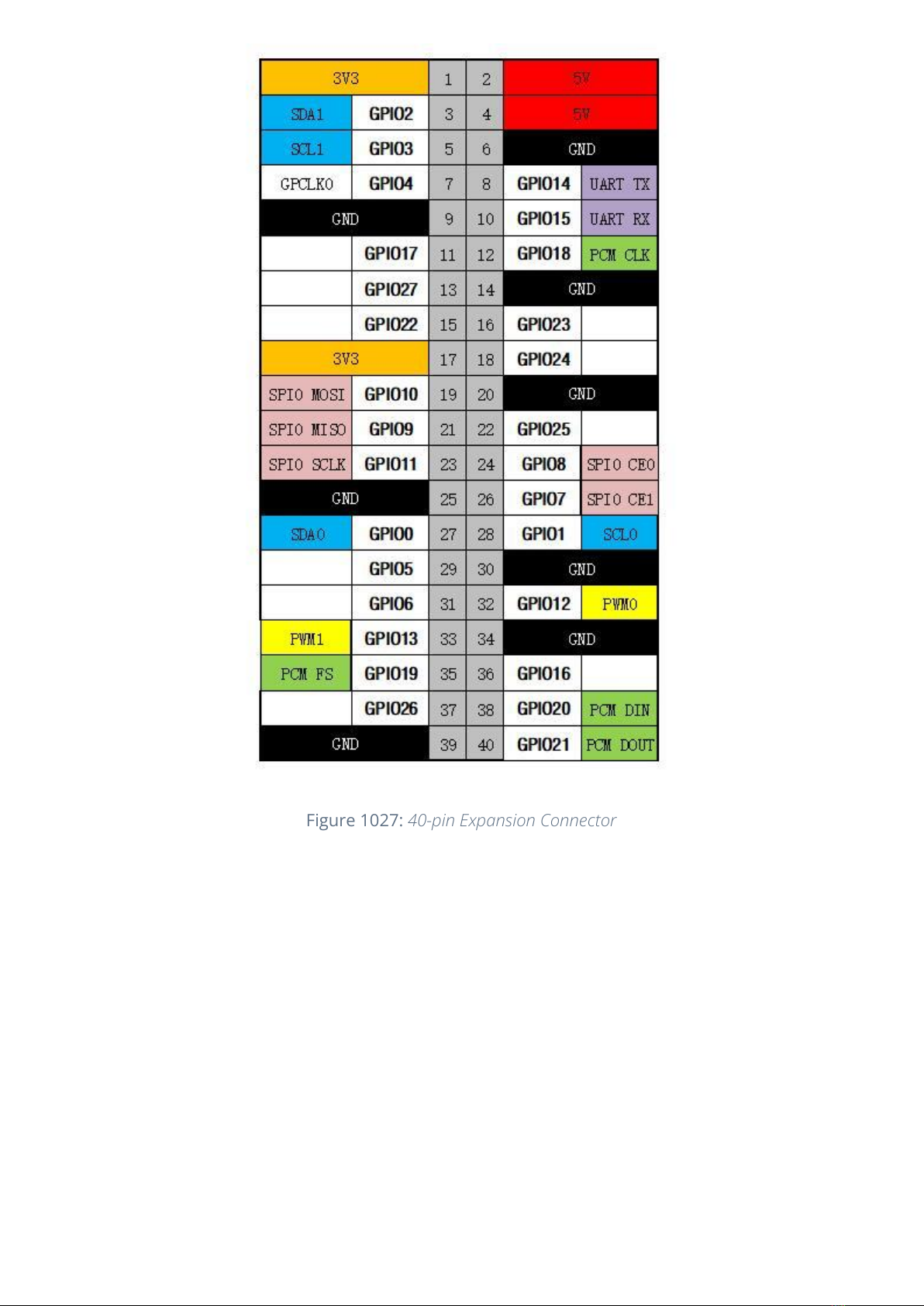

Figure 1027: 40-pin Expansion Connector
Raspberry Pi Hat adapter
The product also has an available I/O connector that is 100% compatible with any Raspberry
Pi cape or extensions, making the AIO-CM4-156 a perfect t with your existing tools.
The product also comes with an adapter with a standard Raspberry Pi HAT pin-out to add
more exibility to your project. It oers a convenient way to develop and test your hardware
with all the connectors at hand. You can learn more about it in the product manual.
AIO-CM4-156 Raspberry Pi Hat adapter
Chipsee IPC Page 11 of 16

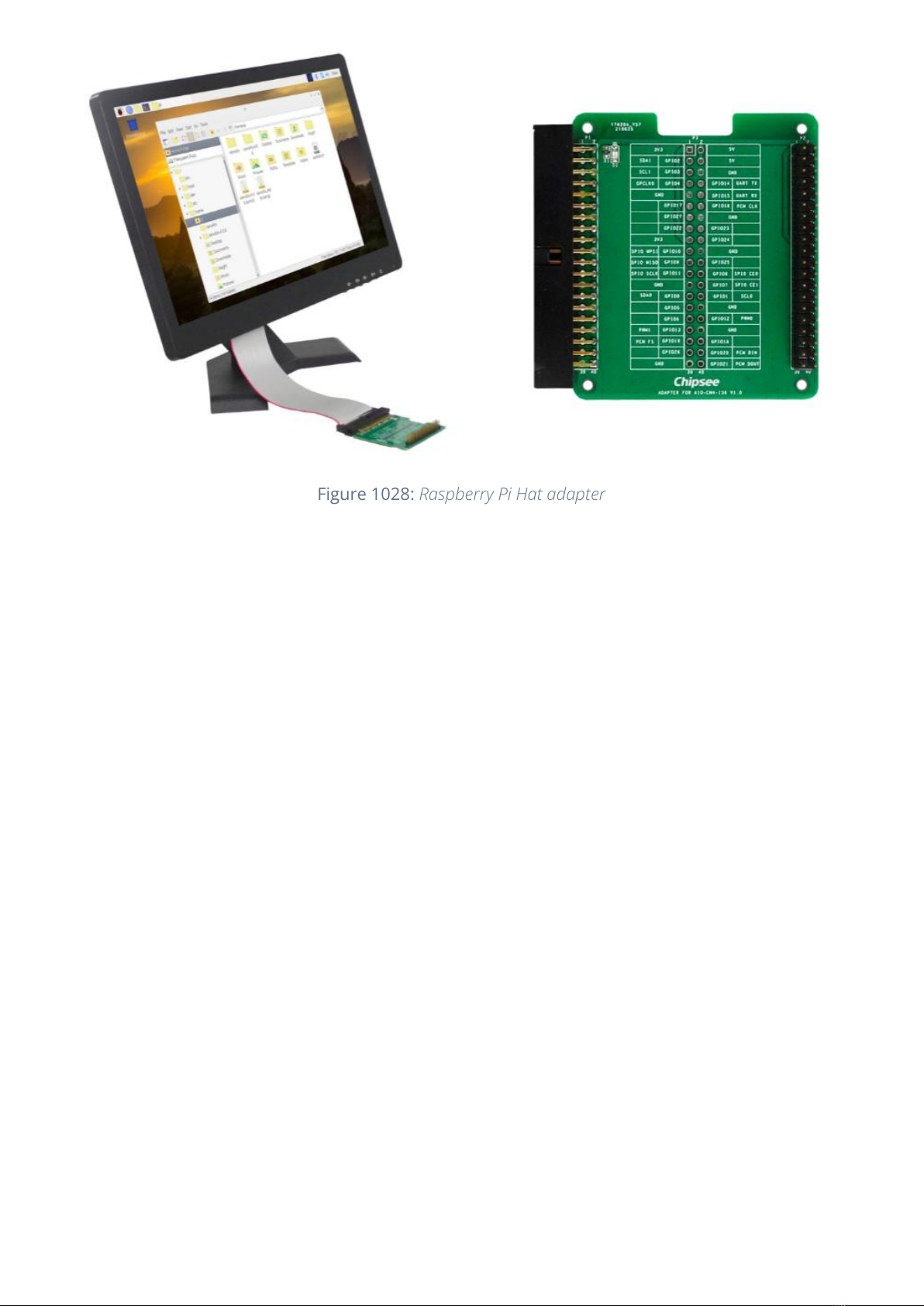

Figure 1028: Raspberry Pi Hat adapter
Camera
The AIO-CM4-156 industrial Pi PC has a camera on the front panel but is not mounted by
default.
Mounting Procedure
You can mount AIO-CM4-156 with the Vesa (75 x 75mm) and Stand mounting methods, as
shown in the gures below.
AIO-CM4-156 Camera
Chipsee IPC Page 12 of 16

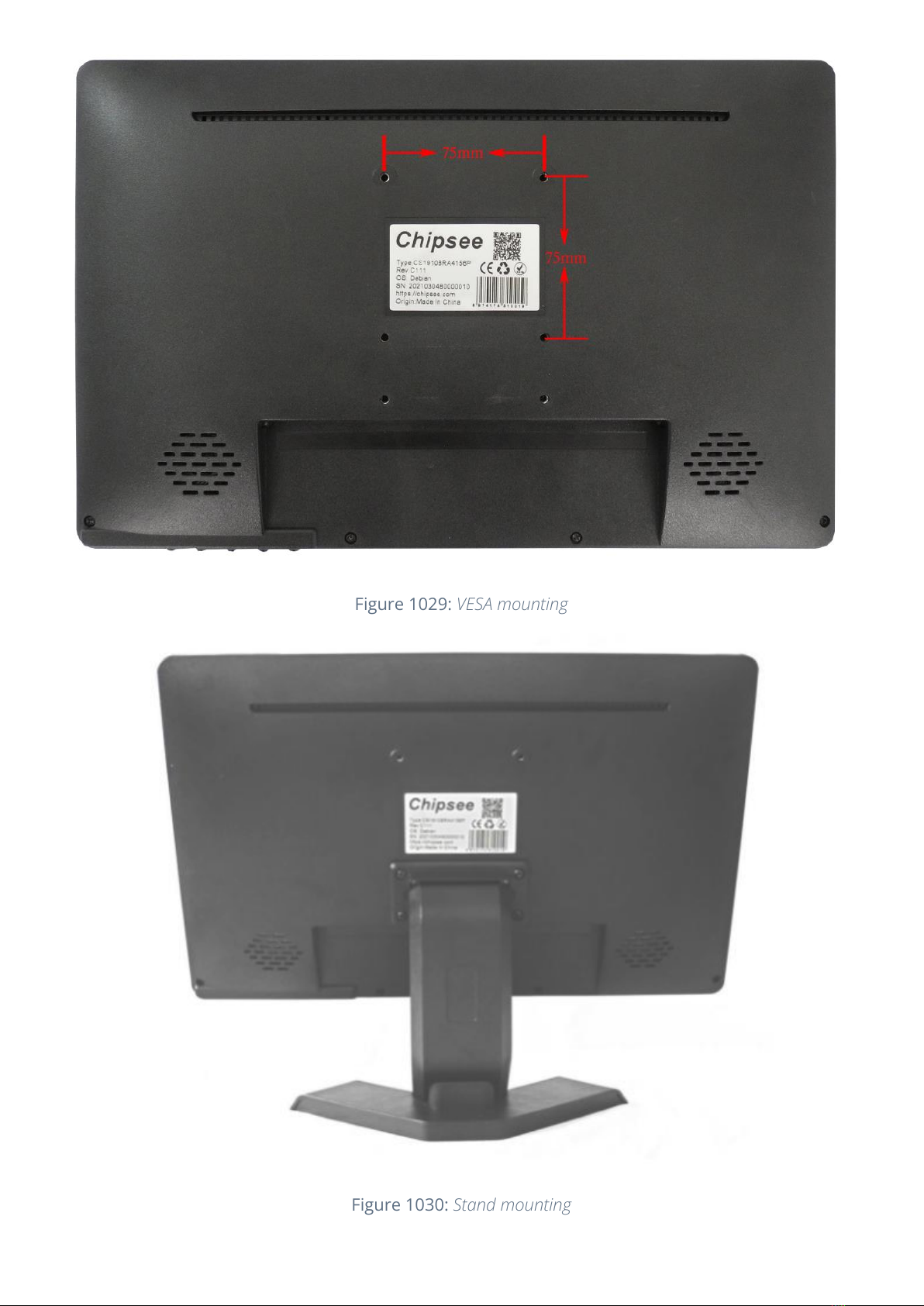

Figure 1029: VESA mounting
Figure 1030: Stand mounting
AIO-CM4-156 Mounting Procedure
Chipsee IPC Page 13 of 16

You can nd detailed information about mounting in the Mount IPC Guide.
Mechanical Specifications
The outer mechanical dimensions of AIO-CM4-156 are 374 x 238 x 33mm (W x L x H). Please
refer to the technical drawing in the gures below for details related to the specic product
measurements.

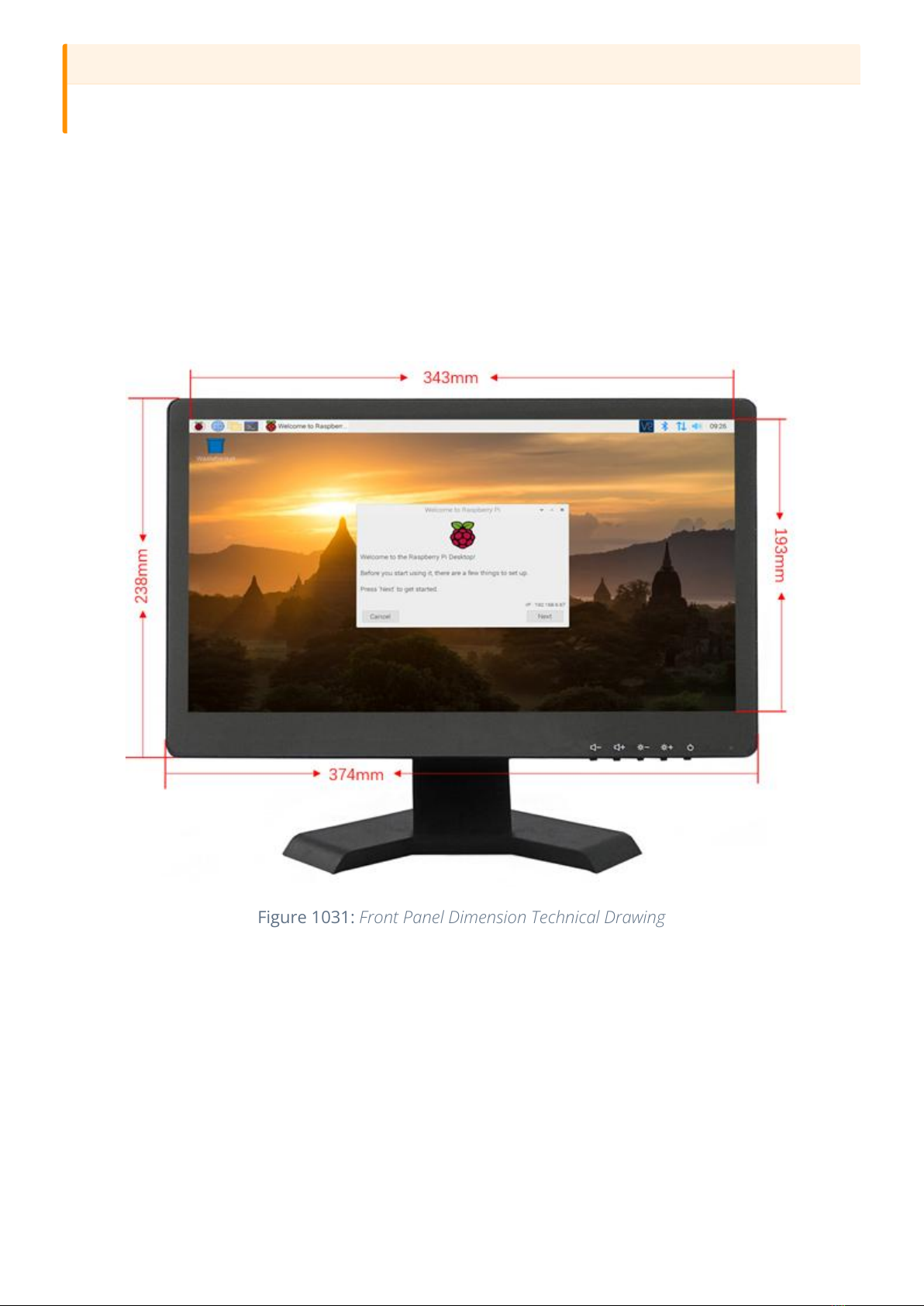

Figure 1031: Front Panel Dimension Technical Drawing
Attention
Please make sure the display is not exposed to high pressure when mounting into an enclosure.

AIO-CM4-156 Mechanical Specications
Chipsee IPC Page 14 of 16

Figure 1032: Backside Dimension Technical Drawing
Figure 1033: Side Dimension Technical Drawing
Disclaimer
This document is provided strictly for informational purposes. Its contents are
subject to change without notice. Chipsee assumes no responsibility for any errors
that may occur in this document. Furthermore, Chipsee reserves the right to alter the
hardware, software, and/or specications set forth herein at any time without prior
notice and undertakes no obligation to update the information contained in this
document.
AIO-CM4-156 Disclaimer
Chipsee IPC Page 15 of 16

While every eort has been made to ensure the accuracy of the information
contained herein, this document is not guaranteed to be error-free. Further, it does
not oer any warranties or conditions, whether expressed orally or implied in law,
including implied warranties and conditions of merchantability or tness for a
particular purpose. We specically disclaim any liability with respect to this
document, and no contractual obligations are formed either directly or indirectly by
this document.
Despite our best eorts to maintain the accuracy of the information in this
document, we assume no responsibility for errors or omissions, nor for damages
resulting from the use of the information herein. Please note that Chipsee products
are not authorized for use as critical components in life support devices or systems.
Technical Support
If you encounter any diculties or have questions related to this document, we encourage
you to refer to our other documentation for potential solutions. If you cannot nd the
solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at
[email protected], providing all relevant information. We value your queries and
suggestions and are committed to providing you with the assistance you require.
AIO-CM4-156 Technical Support
Chipsee IPC Page 16 of 16
