Chipsee PPC-CM4-190 User manual

Industrial PC
PPC-CM4-190
PN: CS12102RA4190
Content can change at anytime, check documentation website for latest information.
www.chipsee.com

Contents
3PPC-CM4-190
71. Product Overview
82. Ordering Options
82.1. Pi CM4 Module
82.2. Operating System
92.3. Optional Features
103. Specications
124. Power Input
135. Touch Screen
146. Connectivity
146.1. RS232/RS485/CAN
166.2. GPIO Port
186.3. USB Connectors
196.4. LAN
206.5. WiFi & BT Module
216.6. 3G/4G/LTE Module
226.7. Zigbee Module
247. TF Card Slot
258. Audio Connectors
269. PROG Button
2710. Mounting Procedure
2811. Mechanical Specications
2811.1. CS12102RA4190P
2912. Disclaimer
2913. Technical Support
®
Chipsee IPC Page 2 of 29

PPC-CM4-190
Front View
PPC-CM4-190
Chipsee IPC Page 3 of 29

Rear View
PPC-CM4-190
Chipsee IPC Page 4 of 29

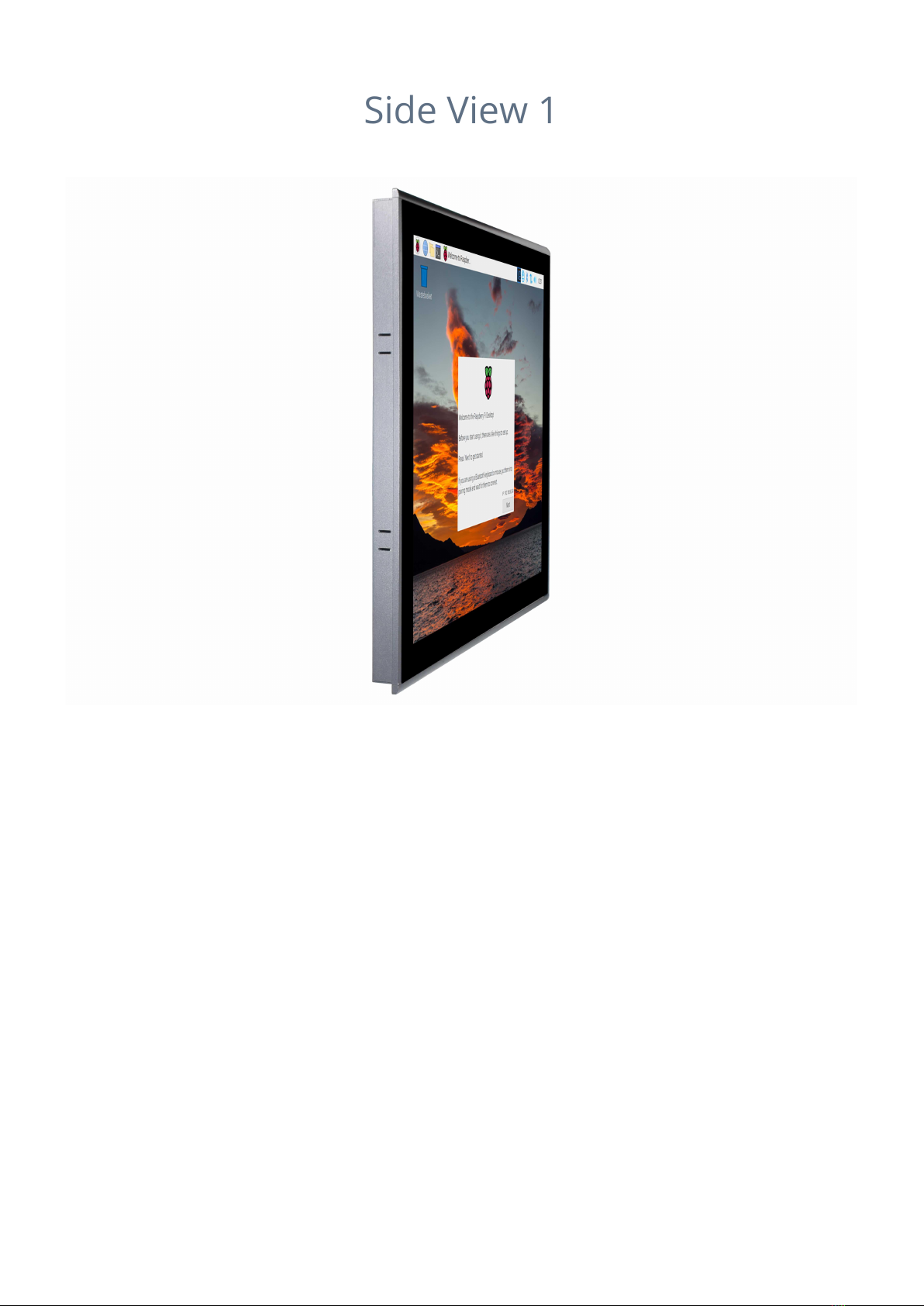

Side View 1
PPC-CM4-190
Chipsee IPC Page 5 of 29

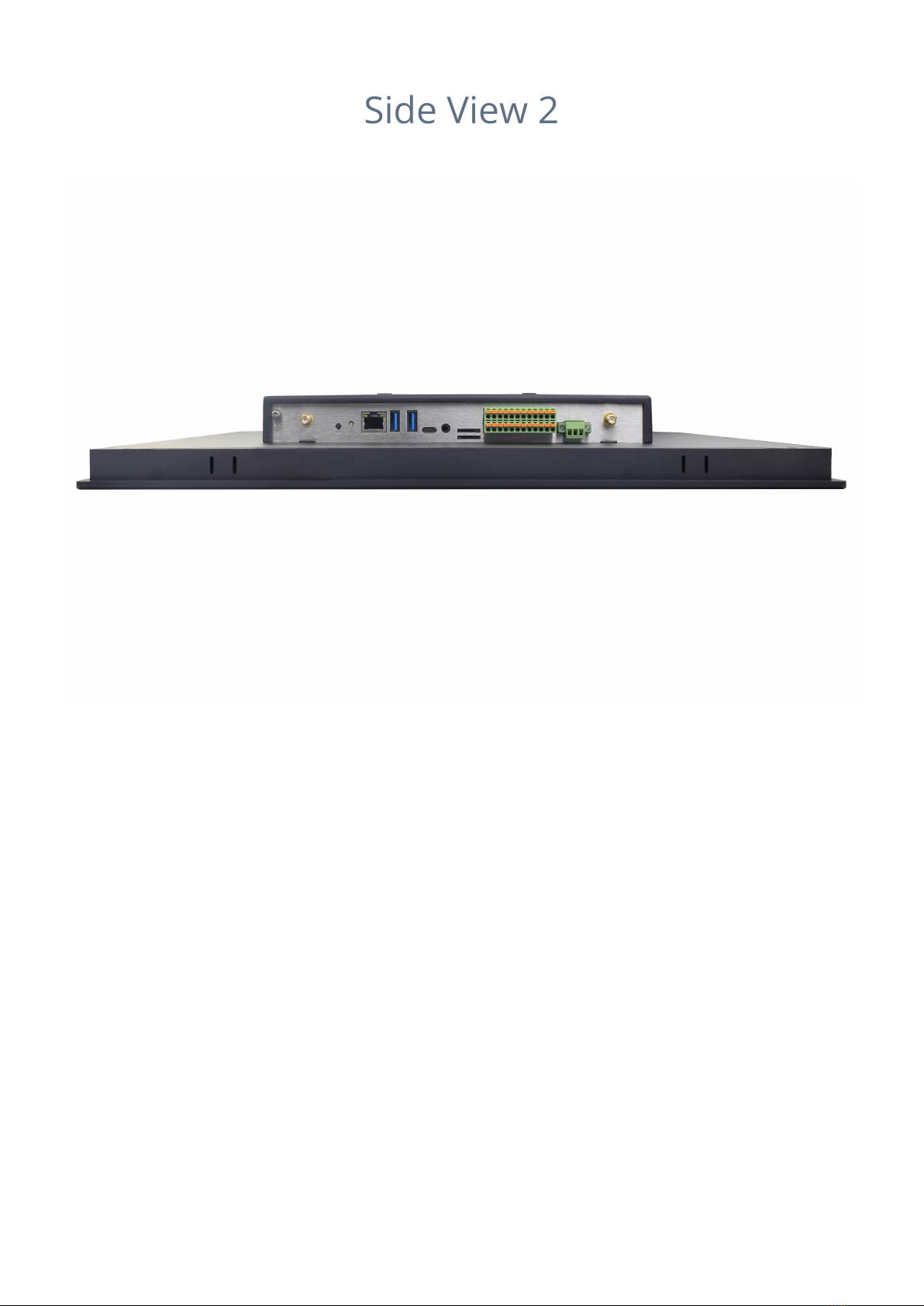

Side View 2
PPC-CM4-190
Chipsee IPC Page 6 of 29

Product Overview
The Cortex -A72 Raspberry Pi series PPC-CM4-190 (PN: CS12102RA4190) is a high-quality
industrial Pi PC. It features a 19.0” Ten-point capacitive touch screen with a resolution of
1280 x 1024 pixels and brightness of 250 cd/m .
Key Applications
Human Machine Interface HMI
Process Control
Process Monitoring
HMI
IIoT node
Environmental Monitoring
PLC
Automotive applications
ATM…
It is available both as an embedded solution and as a device hosed in a casing with bezels,
thus facilitating dierent installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The PPC-CM4-190 industrial Pi PC is based around the powerful Raspberry Pi Compute
Module 4, powered by the Quad Cortex -A72 processor with a processor speed of 1.5GHz.
® ®
2
•
•
•
•
•
•
•
•
•
•
•
®
®
PPC-CM4-190 Product Overview
Chipsee IPC Page 7 of 29

Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Specications section provides information about the default options bundled
with the product.
Pi CM4 Module
The Pi Compute Module 4 appears in dierent versions depending on the size of the DDR4
and eMMC.
The PPC-CM4-190 industrial Pi PC does not include the CM4 Raspberry Pi module by
default. If you would like to purchase it with a CM4, you can select it at the Chipsee store
during the ordering process.
Operating System
This product comes with a pre-installed Raspberry Pi OS. Chipsee software engineers have
created all the drivers, so every hardware feature is readily available for any standard
development tool.
If your project requires a dierent OS, please Contact us, and we’ll make a customized
version that suits your needs.
Note
You can order PPC-CM4-190 from the ocial Chipsee Store or from your nearest distributor.

®
®
®
PPC-CM4-190 Ordering Options
Chipsee IPC Page 8 of 29

Optional Features
The PPC-CM4-190 industrial Pi PC does not include the 3G/4G/LTE modules by default.
These modules are optional and can be selected at the Chipsee store during the ordering
process.
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

PPC-CM4-190 Optional Features
Chipsee IPC Page 9 of 29

Specifications
The PPC-CM4-190 industrial Pi PC oers a broad range of performance and connectivity
options for scalable integration, providing expandability according to future needs. Some of
the key features are listed in the table below.
PPC-CM4-190
CPU Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz
Storage Support for 1 x TF Card3
RAM 2/4/8 GB, Based on CM4
eMMC 16/32 GB, Based on CM4
Display 19.0” IPS LCD, 1280 x 1024 resolution, brightness 250 cd/m
Touch 10-point capacitive touch with 1mm Armored Glass
USB 2 x USB 3.0 Host, 1 x USB OTG
LAN 1 x Channel Giga LAN
Audio 3.5mm Audio Out Connector, 2W Speaker Internal
Buzzer Onboard Buzzer, driven by GPIO
RTC
High accuracy RTC with farad capacitor, can work 1 week after power o (default).
High accuracy RTC with lithium coin battery, can work 3 years after power o
(optional).
RS232 Default to 2 x RS232, up to 4 x RS232
RS485 Default to 2 x RS4851, these 2 x RS485 can be congured as 2 x RS232
CAN 1 x CAN-BUS
GPIO 8 Channels, 4 Input, 4 Output
I2C Not Supported
WiFi/BT Supported but depending on the CM4 selected2
ZIGBEE Onboard Zigbee module, not mounted by default
HDMI Not Supported
SATA II Not Supported
3G/4G/LTE Supported, not mounted by default
Camera No
Power Input From 12V to 36V
Current N/A
Power
Consumption N/A
®
2
PPC-CM4-190 Specications
Chipsee IPC Page 10 of 29

1
2
3
The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from
within the software.
The default product without the CM4 does not include a Wi-Fi/BT module. You can include a CM4 that has the
Wi-Fi/BT module at the Chipsee store during the ordering process.
This TF card is designed for storage expansion, as the TF card uses the same pins with WiFi, it can’t be used
with WiFi at the same time
PPC-CM4-190
Working
Temperature From 0°C to +60°C
OS Raspberry Pi OS
Dimensions CS12102RA4190P: 435 x 363 x 53.5mm
Weight CS12102RA4190P: 5.4kg
Mounting
Method CS12102RA4190P: Panel, VESA
Table 322 Key Features
PPC-CM4-190 Specications
Chipsee IPC Page 11 of 29

Power Input

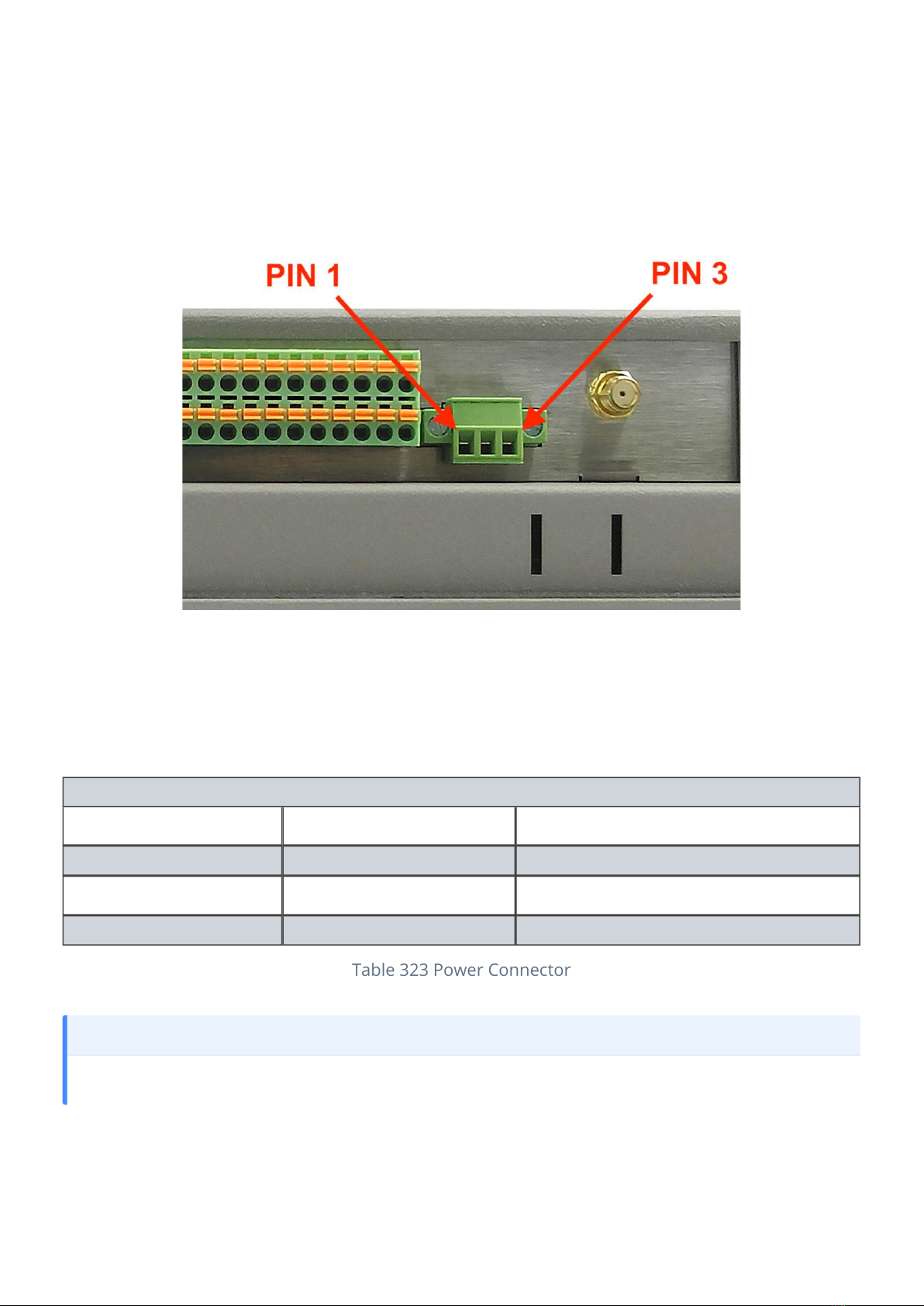

The PPC-CM4-190 industrial Pi PC can be powered by a wide range of input voltages: From
12V to 36V DC. It is a 3 Pin, 3.81mm screw terminal connector. As shown in the gure
below.
Power Input
Note that the “+” sign represents the positive power input, and it is printed both at the
casing and as a silk-screen on the board of the embedded version. The “-” terminal is
shorted to the ground.
Power Input Denition
Pin Number Denition Description
Pin 1 Positive Input DC Power Positive Terminal
Pin 2 Negative Input DC Power Negative Terminal
Pin 3 Ground Power System Ground
Table 323 Power Connector
Note
The system ground “G” is connected to power negative “-” on board.

PPC-CM4-190 Power Input
Chipsee IPC Page 12 of 29

Touch Screen
The PPC-CM4-190 industrial Pi PC uses a 10-point capacitive touch with 1mm Armored Glass
screen. However, the Raspberry Pi OS supports only One-Point touch.
The gure below shows the capacitive touch screen connected to the motherboard via the
USB connector.
Capacitive Touch Connector
Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples
or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch
points oat erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the PPC-CM4-190 Power Input connector (pin 3) is properly connected to the Power System
Ground to provide sucient EMI shielding and eliminate the problem entirely.
Bad GND problems can also be conrmed by touching pin 3 of the Power Input connector with one hand while
operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power
System Ground.

1.
2.
3.
PPC-CM4-190 Touch Screen
Chipsee IPC Page 13 of 29

Connectivity
There are many connectivity options available on the PPC-CM4-190 industrial Pi PC. It has 2
x USB 3.0 Host, 1 x USB OTG, 1 x Channel Giga LAN (RJ45) Ethernet connector supporting up
to 1 Gbps, and 4 x UART and 1 x CAN terminals (RS232/RS485/CAN).
RS232/RS485/CAN
The serial communication interfaces (RS485, RS232, and CAN) are routed to a phoenix
terminal, as illustrated in the gure below.
RS232-RS485-CAN on the PPC-CM4-190 Industrial PC
The table below oers more detailed description of every pin and its denition:
Attention
RS485_3 and RS485_5 can control the input and output direction automatically. There’s no need to control it from
within the software.
The 120Ω match resistor for RS485 is already mounted by default.
The 120Ω match resistor for CAN is NOT mounted by default. Be sure to mount the match resistor when testing
CAN.
The 2 x RS485 can be congured to 2 x RS232, if you want a custom conguration, you can contact us when
placing an order.

1.
2.
3.
4.
RS232 / RS485 / CAN Pin Denition:
Pin Number Denition Description
Pin 1 CAN_H CAN BUS “H” signal
PPC-CM4-190 Connectivity
Chipsee IPC Page 14 of 29

RS232 / RS485 / CAN Pin Denition:
Pin 2 CAN_L CAN BUS “L” signal
Pin 3 RS485_5- CPU UART5, RS485 –(B) signal
Pin 4 RS485_5+ CPU UART5, RS485 +(A) signal
Pin 5 RS485_3- CPU UART3, RS485 –(B) signal
Pin 6 RS485_3+ CPU UART3, RS485 +(A) signal
Pin 7 RS232_2_RXD CPU UART2, RS232 RXD signal
Pin 8 RS232_2_TXD CPU UART2, RS232 TXD signal
Pin 9 RS232_0_RXD CPU UART0, RS232 RXD signal
Pin 10 RS232_0_TXD CPU UART0, RS232 TXD signal
Pin 11 GND System Ground
Pin 12 +5V System +5V Power Output, No more than 1A Current output
Table 324 Connectivity Section
PPC-CM4-190 RS232/RS485/CAN
Chipsee IPC Page 15 of 29

GPIO Port
The PPC-CM4-190 industrial Pi PC has a phoenix connector, as shown in the gure below.
The table below gives details about the denition of every Pin.
Isolated GPIO reduced schematic
Attention
In order to use the Isolated Output, you need to add an external Isolated Power to the VDD_ISO and GND_ISO.
The power voltage should not exceed 24V.
The output current can achieve 500mA for every channel, but it also depends on the isolated power that is
connected.
In order to use the Isolated Input, you need to add a signal to the ISO_InputX and GND_ISO. A 2.4KΩ resistor, as
R6, can be added to limit the input current, as shown in the gure above. This resistor should work well for the
5-24V input signal. If your input signal is less than 5V, please change this input resistor.

1.
2.
3.
PPC-CM4-190 GPIO Port
Chipsee IPC Page 16 of 29

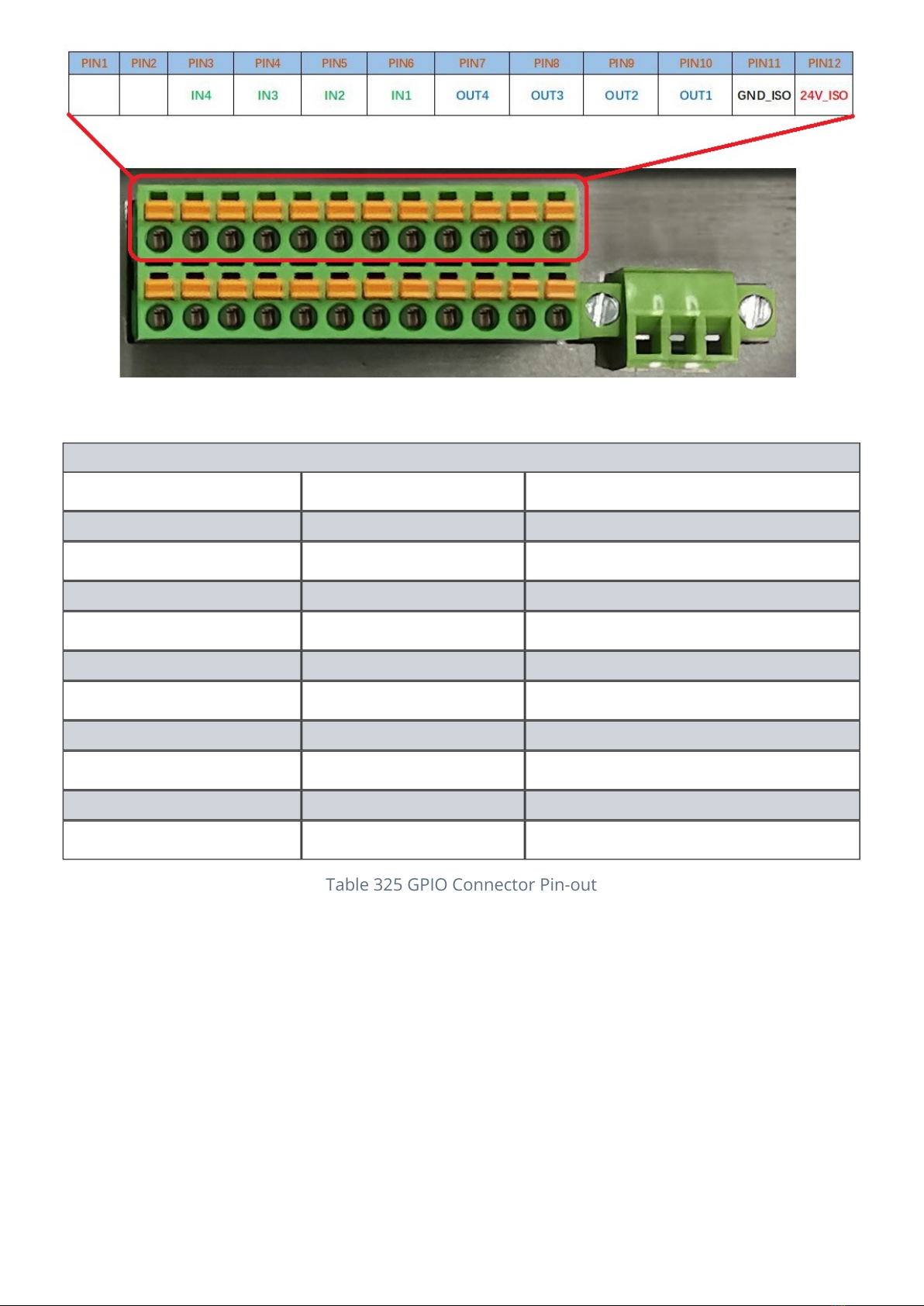

GPIO Connector
GPIO Connector Pin Denition:
Pin Number Denition Description
Pin 12 24V_ISO Isolated Power +24V Input
Pin 11 GND_ISO Isolated Ground
Pin 10 OUT1 Isolated Output 1
Pin 9 OUT2 Isolated Output 2
Pin 8 OUT3 Isolated Output 3
Pin 7 OUT4 Isolated Output 4
Pin 6 IN1 Isolated Input 1
Pin 5 IN2 Isolated Input 2
Pin 4 IN3 Isolated Input 3
Pin 3 IN4 Isolated Input 4
Table 325 GPIO Connector Pin-out
PPC-CM4-190 GPIO Port
Chipsee IPC Page 17 of 29

USB Connectors

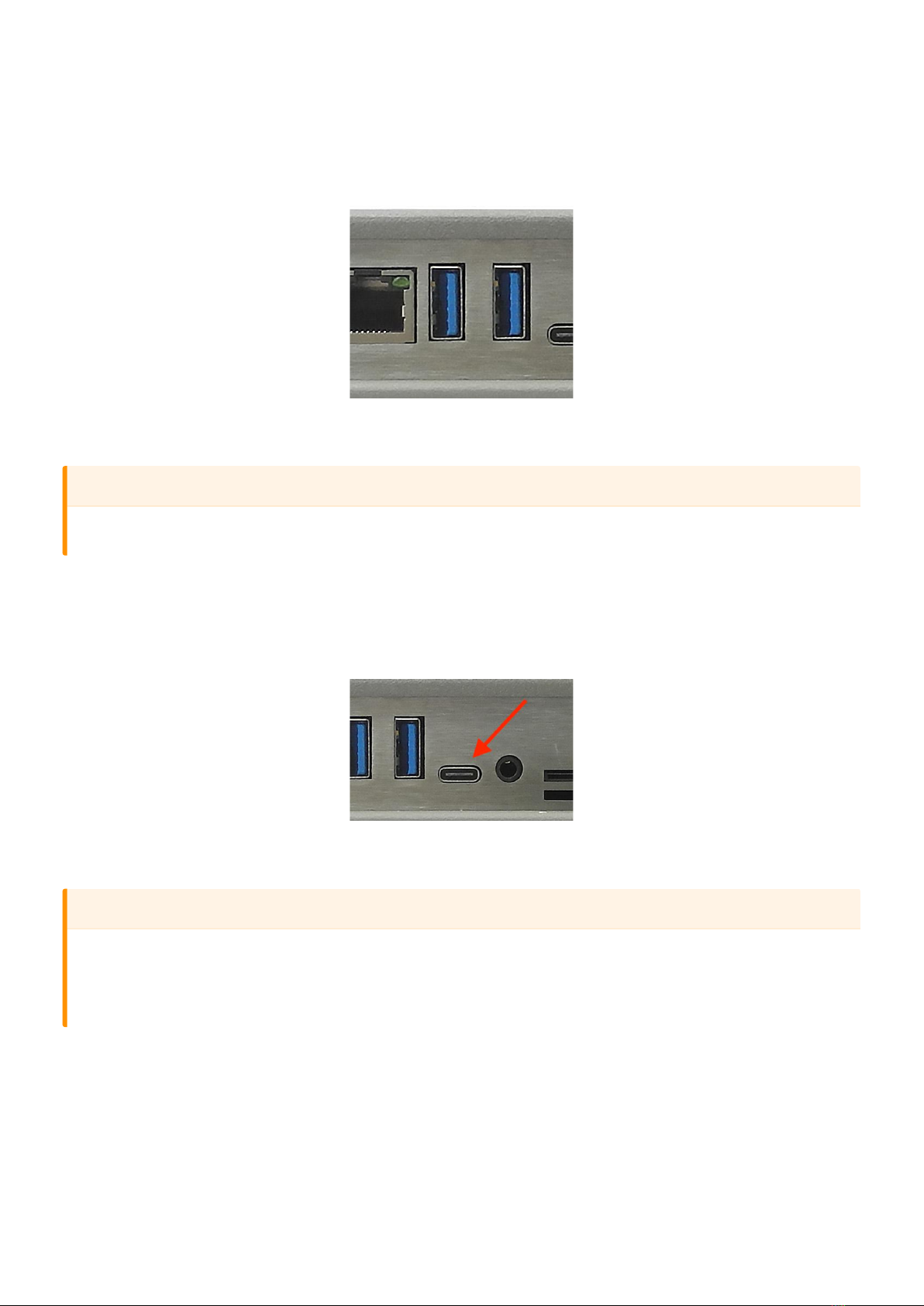

There are 2 x USB 3.0 Host, 1 x USB OTG onboard, as shown in the gure below.
USB HOST Connectors
The product has one USB Type-C OTG connector that works as a slave by default. You can
use it to establish a connection with the host PC and for downloading the system to the
eMMC of CM4 module.
USB Type-C OTG Connector
Attention
1. These two USB host connectors can drive 500mA for each channel at most.

Warning
Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the
embedded Industrial PC version.
Remember to unplug the Type-C cable after ashing OS, otherwise the USB hosts won’t work.

1.
2.
PPC-CM4-190 USB Connectors
Chipsee IPC Page 18 of 29

LAN
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as
shown in the gure below. The integrated Ethernet interface supports up to 1 Gbps data
throughput. These Giga LAN signals come from the CM4 module directly.
RJ45 LAN Connector
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

PPC-CM4-190 LAN
Chipsee IPC Page 19 of 29

WiFi & BT Module
The default PPC-CM4-190 without the CM4 does not include a Wi-Fi/BT module.
If you include a CM4 that has the Wi-Fi/BT module, the product will have Wi-Fi/BT feature.

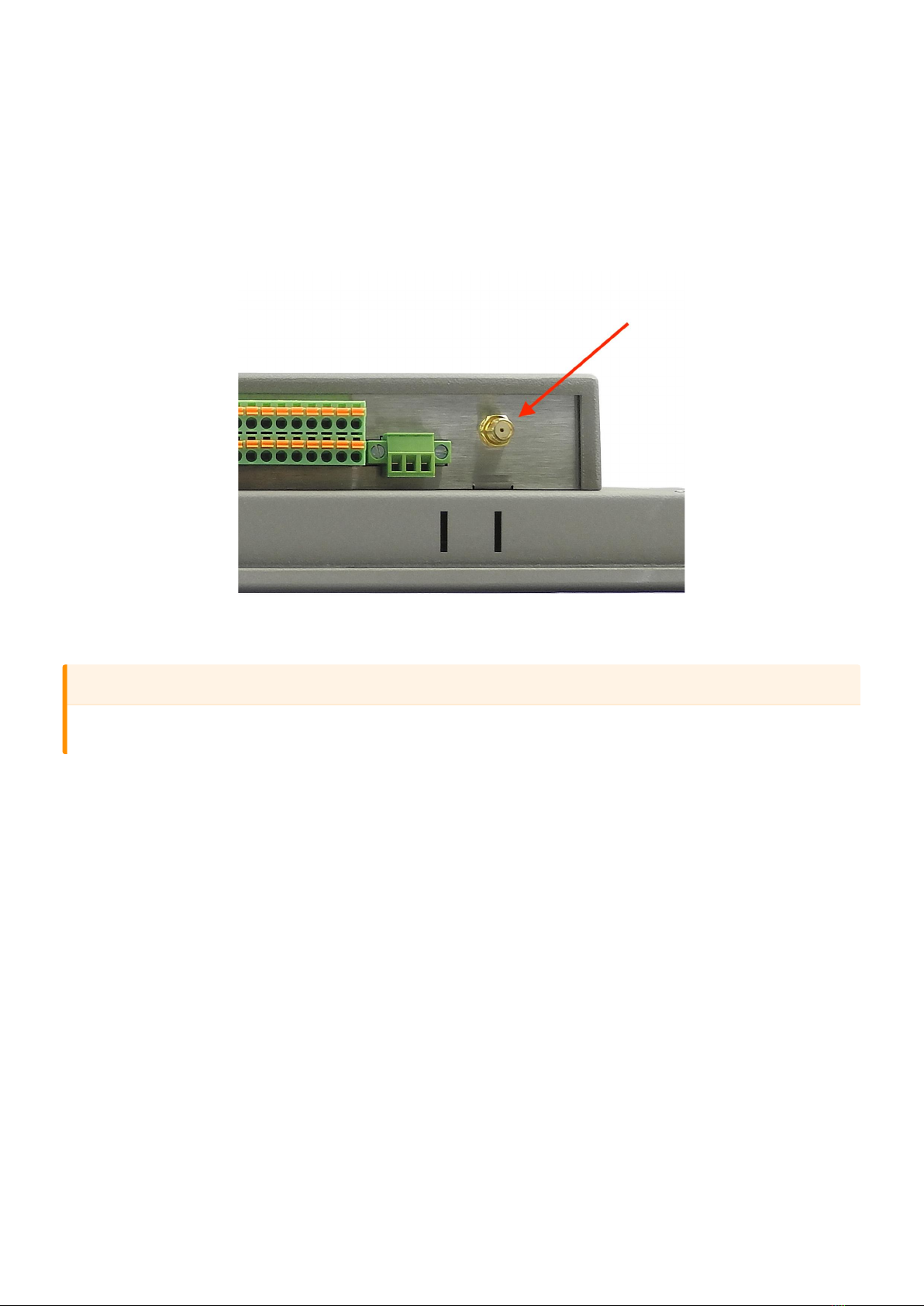

The enclosed (CS12102RA4190P) variant of the product also includes an SMA connector for
an external WiFi/BT antenna, as illustrated in the gure below.
WiFi+BT Antenna
Attention
The product does not come shipped with the Wi-Fi/BT module by default.

PPC-CM4-190 WiFi & BT Module
Chipsee IPC Page 20 of 29
