Chipsee PPC-A55-070 User manual

Industrial PC
PPC-A55-070
PN: CS10600-RK3568-070P
Content can change at anytime, check documentation website for latest information.
www.chipsee.com

Contents
31. PPC-A55-070
41.1. Product Overview
51.2. Ordering Options
51.2.1. Operating System
61.2.2. Optional Features
61.3. Hardware Features
71.4. Power Input
81.5. Touch Screen
91.6. Connectivity
91.6.1. RS232/RS485/CAN
101.6.2. USB Connectors
111.6.3. LAN Connectors
111.6.4. WiFi & BT Module
121.6.5. 4G/LTE Module
131.7. TF Card & SIM Card Slot
131.8. Audio Connectors
141.9. HDMI Connector
141.10. PROG Button
141.11. GPIO
161.12. Mounting Procedure
161.12.1. PPC-A55-070
171.13. Mechanical Specications
171.13.1. PPC-A55-070
171.14. 3D Model
181.15. Disclaimer
181.16. Technical Support
Chipsee IPC Page 2 of 18

PPC-A55-070
Front View
Rear View
PPC-A55-070
Chipsee IPC Page 3 of 18

Side View 1
Side View 2
Product Overview
The Cortex -A55 series PPC-A55-070 (PN: CS10600-RK3568-070P) is a high-quality IP65-
compliant industrial panel PC. It features a 7” ten-point capacitive touch screen with a
resolution of 1024 x 600 pixels and brightness of 500 cd/m .
Key Applications
Human Machine Interface HMI
Mobile Applications
Video Processing
Machine Learning
Video Gaming
Process Control
®
2
•
•
•
•
•
•
PPC-A55-070 Product Overview
Chipsee IPC Page 4 of 18

Process Monitoring
ATM…
It is available both as an embedded solution and as a device hosed in an aluminum casing
with bezels, thus facilitating dierent installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The PPC-A55-070 Industrial Panel PC is based around the powerful RK3568 System on Chip
(SoC), powered by the Rockchip RK3568 low-power processor which integrates a quad-core
Cortex -A55 processor.
The RK3568 supports multi-format video decoders and has a high-performance RAM
(LPDDR4X) capable of sustaining demanding memory bandwidths. It also provides a
complete set of peripheral interfaces.
Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Hardware Features section provides information about the default options
bundled with the product.
Operating System
This product comes with a pre-installed OS of your choice. Please see the list below for the
supported OSes, which can also be obtained from the Software Documentation section,
along with the detailed installation instructions.
Debian 11
Android 11
Buildroot Linux Qt 5.15
•
•
•
•
®
Note
You can order the PPC-A55-070 from the ocial Chipsee Store or from your nearest distributor.

•
•
•
Warning
The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.
However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”
your device, please contact Chipsee Technical Support at [email protected] for further assistance

PPC-A55-070 Ordering Options
Chipsee IPC Page 5 of 18

Optional Features
The PPC-A55-070 Industrial Panel PC does not include 4G/LTE module by default. The
module is optional and can be selected at the Chipsee store during the ordering process.
Hardware Features
The PPC-A55-070 Industrial Panel PC oers a broad range of performance and connectivity
options for scalable integration, providing expandability according to future needs. Some of
the key features are listed in the table below.
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear
any responsibility for damage caused by inadequate handling of the product.

PPC-A55-070
CPU Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz)
RAM 2GB LPDDR4
eMMC 16GB
Storage TF Card, Supports up to 128GB SDHC
Display 7” LCD, 1024 x 600, High Brightness: 500 cd/m
HDMI 1 x HDMI-D
Touch 5-point capacitive touch screen
USB 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C
LAN 2 x RJ45, GbE
POE Supported, Optional
Audio 3.5mm Audio In/Out Connector, 2W Internal Speaker
Buzzer Yes
RTC
High accuracy RTC with farad capacitor, can work 1 week after power o (default).
High accuracy RTC with lithium coin battery, can work 3 years after power o
(optional).
RS232 default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port)1
RS485 default 3 x RS485 at most1
CAN default 2 x CAN
GPIO 8 Channels Isolated IO, 4 x Input and 4 x Output
WiFi/BT Integrated WiFi/BT Module
4G/LTE Supported, Optional
2
PPC-A55-070 Optional Features
Chipsee IPC Page 6 of 18

1(1,2)This product has 6 x UART channels in total. The default conguration is 2 x RS232 and 3 x RS485, include 1
debug port. UART can be swapped between RS232 and RS485 modes easily, so if you need dierent RS232/
RS485 conguration, please get in touch with the Chipsee Technical Support at [email protected]
Power Input
The PPC-A55-070 Industrial Panel PC can be powered by a wide range of input voltages:
From 6V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity
and the pinout is clearly marked on the housing of the product as shown on the gure
below. There is one power input connector which is a 2.1mm I.D x 5.5mm O.D x 9.5mm DC
connector. For a proper DC power adapter, refer to the gure below.
PPC-A55-070
Power Input From 6V to 36V
Current at 12V 550mA Max at 12V
Power
Consumption 6.6W Max
Working
Temperature From 0°C to +60°C
OS Android 11, Debian11, Buildroot Linux Qt
Dimensions PPC-A55-070 (PN: CS10600-RK3568-070P): 188.05 x 123.11 x 33.20mm
Weight PPC-A55-070 (PN: CS10600-RK3568-070P): null
Mounting PPC-A55-070 (PN: CS10600-RK3568-070P): Panel
Table 128 Key Features
PPC-A55-070 Power Input
Chipsee IPC Page 7 of 18

Figure 576: Power Input
Note that the “+” sign represents the positive power input, and it is printed both at the
casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to
the ground.
Touch Screen
The PPC-A55-070 Industrial Panel PC uses a 5-point capacitive touch screen.

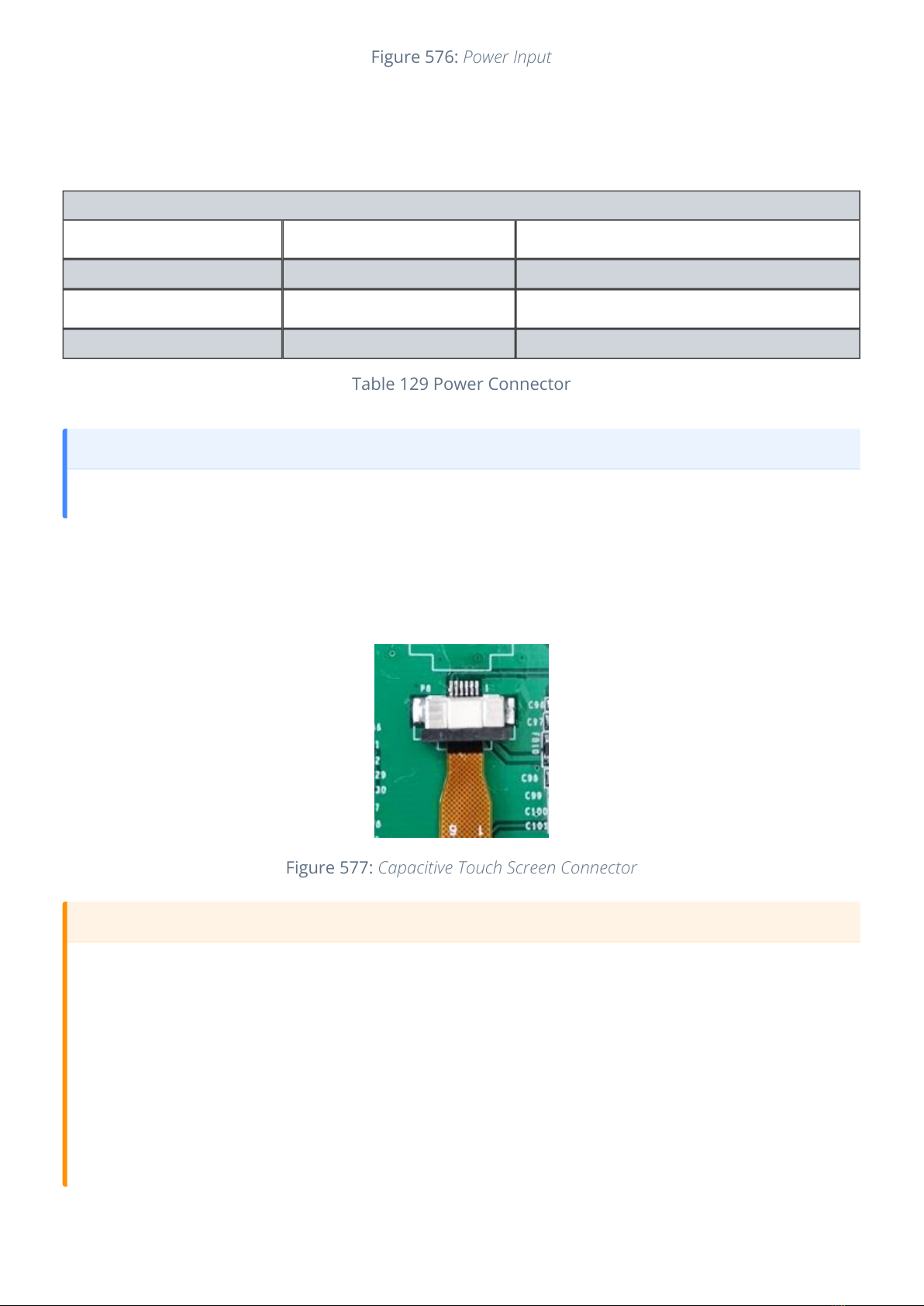

Figure 577: Capacitive Touch Screen Connector
Power Input Denition
Pin Number Denition Description
Pin 1 Positive Input DC Power Positive Terminal
Pin 2 Negative Input DC Power Negative Terminal
Pin 3 Ground Power System Ground
Table 129 Power Connector
Note
The system ground “G” is connected to power negative “-” on board.

Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples
or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch
points oat erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the PPC-A55-070 Power Input connector (pin 3) is properly connected to the Power System
Ground to provide sucient EMI shielding and eliminate the problem entirely.
Bad GND problems can also be conrmed by touching pin 3 of the Power Input connector with one hand while
operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power
System Ground.

1.
2.
3.
PPC-A55-070 Touch Screen
Chipsee IPC Page 8 of 18

Connectivity
There are many connectivity options available on the PPC-A55-070 industrial PC. It has 1 x
USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 2 x RJ45, GbE (RJ45) Ethernet connector
supporting up to 1 Gbps, and 5 x UART terminals (RS232/RS485/CAN).
RS232/RS485/CAN
The serial communication interfaces (RS485, RS232, and CAN) are routed to a 16-pin
3.81mm terminal, as illustrated on the gure below.

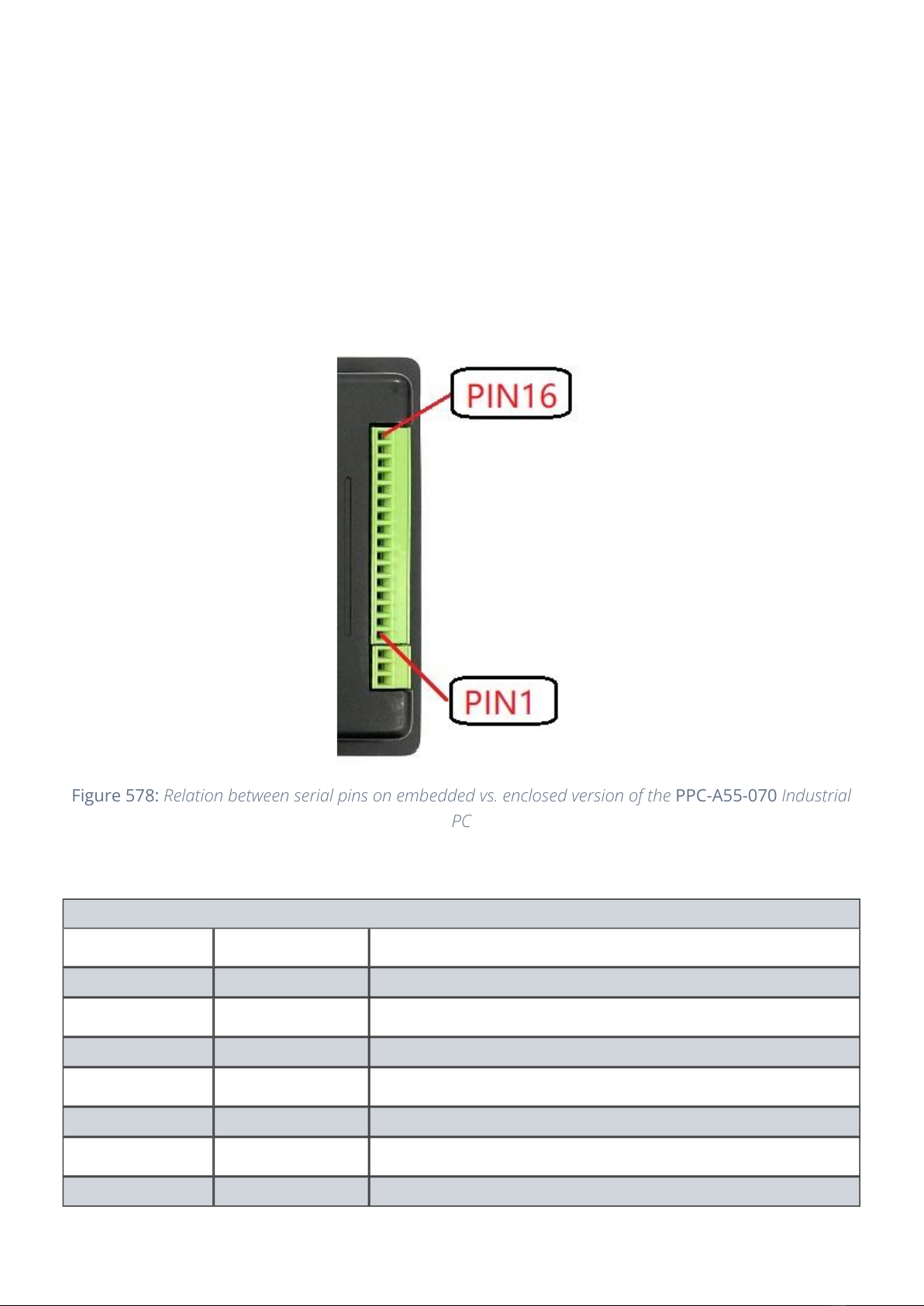

Figure 578: Relation between serial pins on embedded vs. enclosed version of the PPC-A55-070 Industrial
PC
The table below oers more detailed description of every pin and its denition:
RS232 / RS485 / CAN Pin Denition:
Pin Number Denition Description
Pin 16 CAN1_H CAN H signal
Pin 15 CAN1_L CAN L signal
Pin 14 CAN0_H CAN H signal
Pin 13 CAN0_L CAN L signal
Pin 12 RS485_5- CPU UART5, RS485 –(B) signal
Pin 11 RS485_5+ CPU UART5, RS485 +(A) signal
Pin 10 RS485_4- CPU UART4, RS485 –(B) signal
PPC-A55-070 Connectivity
Chipsee IPC Page 9 of 18

USB Connectors
There are 2 x USB HOST connectors onboard which includes 1 x USB 2.0 HOST, 1 x USB 3.0
HOST, 1 x USB Type-C , as shown in the gures below.
Figure 579: USB 2.0 and USB3.0 HOST Connectors (enclosed PC version)
Figure 580: USB Type-C Connector (enclosed PC version)
RS232 / RS485 / CAN Pin Denition:
Pin 9 RS485_4+ CPU UART4, RS485 +(A) signal
Pin 8 RS485_3- CPU UART3, RS485 –(B) signal
Pin 7 RS485_3+ CPU UART3, RS485 +(A) signal
Pin 6 RS232_0_RXD CPU UART0, RS232 RXD signal
Pin 5 RS232_0_TXD CPU UART0, RS232 TXD signal
Pin 4 RS232_2_RXD CPU UART2, RS232 RXD signal, Debug Port
Pin 3 RS232_2_TXD CPU UART2, RS232 TXD signal Debug Port
Pin 2 GND System Ground
Pin 1 +5V System +5V Power Output, No more than 1A Current output
Table 130 Connectivity Section
Attention
RS485_3,RS485_4 and RS485_5 can control the input and output direction automatically. There’s no need to
control it from within the software.
The 120Ω match resistor for the RS485 is mounted by default.
The 120Ω match resistor for the CAN bus is NOT mounted by default.

1.
2.
3.
PPC-A55-070 USB Connectors
Chipsee IPC Page 10 of 18

LAN Connectors
LAN (RJ45) connector provides 2 x Ethernet connectivity over standardized Ethernet cables
as shown the gure below. The integrated Ethernet interface supports up to 1 Gbps data
throughput. The right port also support POE function, not support default.
Figure 581: RJ45 LAN Connector
WiFi & BT Module
The PPC-A55-070 Industrial Panel PC is equipped with the popular Realtek RTL8821CS
WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps
2.4/5.8 GHz Wireless LAN (WLAN).
Figure 582: RTL8821CS WiFi/BT Module
The PPC-A55-070 includes an SMA connector for an external WiFi/BT antenna, as illustrated
in the gure below.
Warning
Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the
embedded IPC version.

Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

PPC-A55-070 LAN Connectors
Chipsee IPC Page 11 of 18

WiFi+BT Antenna SMA
4G/LTE Module
The PPC-A55-070 Industrial Panel PC is equipped with a mini-PCIe connector that can
connect a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE
Antenna Connector to ensure 4G/LTE works on the PPC-A55-070. SIM card does NOT
support hot plug. Power o before inserting or removing SIM card.
Figure 583: mini-PCIe Connector & 4G Module
Figure 584: SIM Card Holder & 4G Antenna
PPC-A55-070 4G/LTE Module
Chipsee IPC Page 12 of 18

SIM Card Direction
TF Card & SIM Card Slot
The PPC-A55-070 Industrial Panel PC features 1 x TF Card (micro SD) slot and 1 x SIM Card
slot. TF Card can address up to 128GB of memory.

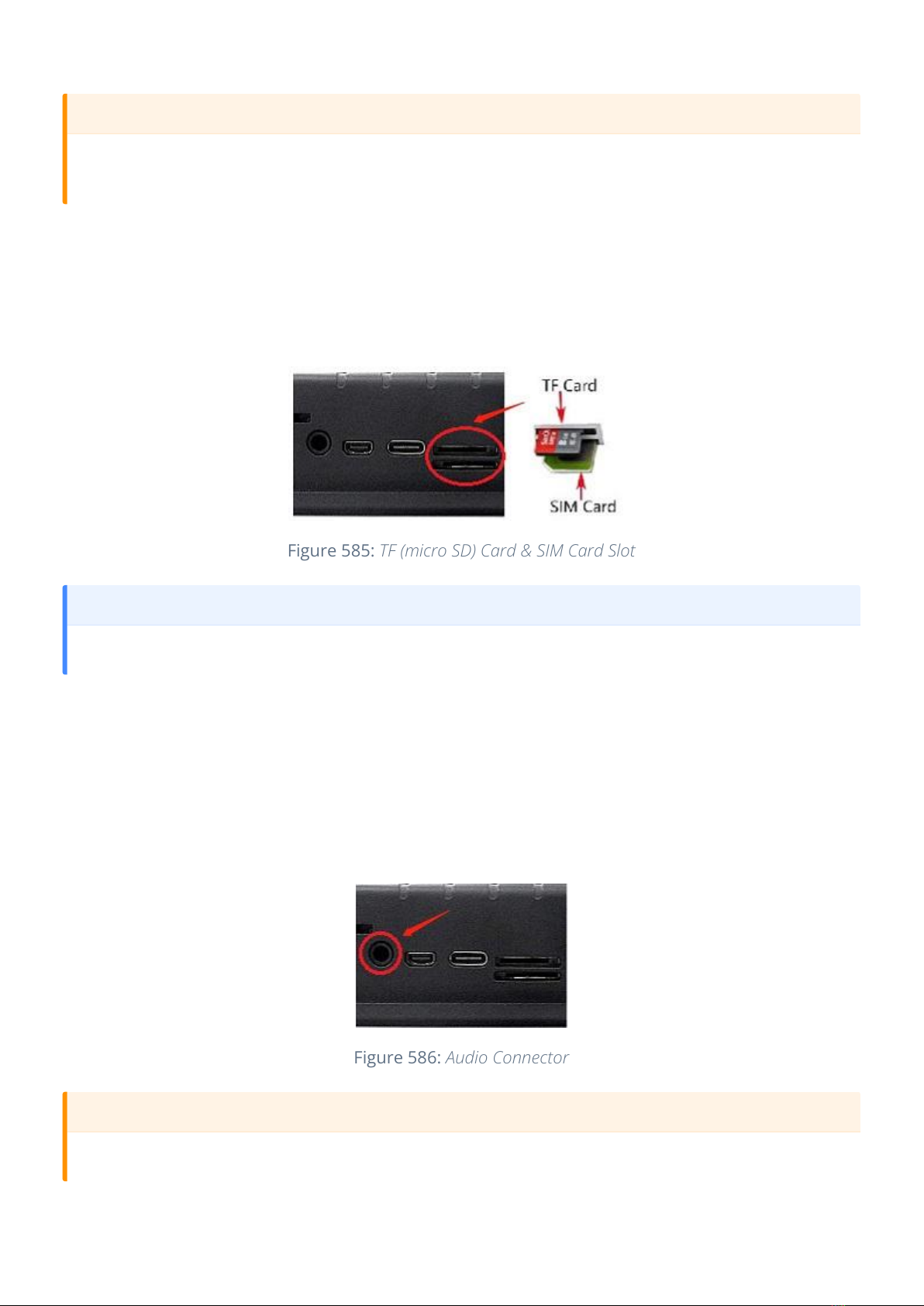

Figure 585: TF (micro SD) Card & SIM Card Slot
Audio Connectors
The PPC-A55-070 Industrial Panel PC features some audio peripherals. It has 1 x 3.5mm
audio output jack.
Also, the PPC-A55-070 industrial PC has a miniature 2W internal speaker for audio
reproduction, as well as a small buzzer for alarm/notication sounds.
Figure 586: Audio Connector
Attention
The product does not come shipped with the 4G/LTE module by default. The customer can choose the 4G/LTE module
option when placing an order, we will install all the necessary components.

Note
The product does not come shipped with the TF Card by default.

Attention
By plugging in the headphone cable, the internal speaker will be disabled automatically.

PPC-A55-070 TF Card & SIM Card Slot
Chipsee IPC Page 13 of 18

HDMI Connector
The PPC-A55-070 Industrial Panel PC supports 1 x HDMI-D 2.0 interfaces.
Figure 587: HDMI Connector
PROG Button
The PPC-A55-070 Industrial Panel PC has one button on the board marked as PROG, shown
in the gure below.
When button is pressed before power, the PPC-A55-070 will enter MASKROM mode which
can use Type-C port do upgrade system. You can use this function to download the OS
software to the internal eMMC.
When button is released before power, the PPC-A55-070 will boot normally.
There is no need to press the button during regular operation. However, if you need to
reinstall the OS, please refer to the detailed information on how to re-ash the OS.
Figure 588: PROG Button
GPIO
The PPC-A55-070 Industrial Panel PC features a 10-pin 3.81 mm terminal that provides 8 x
opto-isolated GPIO pins, of which 4 x are output, and 4 x are input pins. The 10-pin terminal
also includes an isolated PSU input in the range of 5 to 24 VDC. The exact pinout is given in
follow table.
The GPIO HIGH output level corresponds to the voltage connected at the Isolated Power
Input, while the GPIO LOW output level corresponds to the isolated Ground Input. Each
GPIO output can drive loads up to 500mA, enough to drive various applications directly,
such as relays or solenoid valves.
PPC-A55-070 HDMI Connector
Chipsee IPC Page 14 of 18

Figure 589: GPIO Terminal (enclosed PC version)
Isolated GPIO reduced schematic
GPIO Pin Denition:
Pin Number Denition
Pin 1 Isolated Power Input2
Pin 2 Isolated Ground Input
Pin 3 OUT1
Pin 4 OUT2
Pin 5 OUT3
Pin 6 OUT4
PPC-A55-070 GPIO
Chipsee IPC Page 15 of 18

2If the isolation is not a requirement, it is possible to use a non-isolated PSU instead.
It is also possible to use the onboard 5V power supply: it can be re-routed to the Isolated Power Input pin by
populating R251 and R247 PCB footprints with 0Ω resistors.
Note that in this case, the Isolated Power Input pin will become an output for the onboard 5V power supply.
Mounting Procedure
The PPC-A55-070 Industrial Panel PC can be mounted with 4 x M4 screws, enabling
simplied installation onto any standard mounting xture.
PPC-A55-070
You can mount PPC-A55-070 with the Vesa (75 x 75mm) and Panel mounting methods, as
shown on the gure below.
Figure 590: Panel mounting
You can nd detailed information about mounting in the Mount IPC Guide.
Pin 7 IN1
Pin 8 IN2
Pin 9 IN3
Pin 10 IN4
Table 131 GPIO Pinout
Attention
Please make sure the display is not exposed to high pressure when mounting into an enclosure.

PPC-A55-070 Mounting Procedure
Chipsee IPC Page 16 of 18

Mechanical Specifications
PPC-A55-070
The outer mechanical dimensions of PPC-A55-070 are 188.05 x 123.11 x 33.20mm (W x L x
H). Please refer to the technical drawing in the gure below for details related to the specic
product measurements.
Figure 591: PPC-A55-070 Technical Drawing
3D Model
PPC-A55-070 3D model can be viewed in the online doc in a web browser, if you are reading
from the PDF version, please visit the online doc.
PPC-A55-070 Mechanical Specications
Chipsee IPC Page 17 of 18

Disclaimer
This document is provided strictly for informational purposes. Its contents are
subject to change without notice. Chipsee assumes no responsibility for any errors
that may occur in this document. Furthermore, Chipsee reserves the right to alter the
hardware, software, and/or specications set forth herein at any time without prior
notice and undertakes no obligation to update the information contained in this
document.
While every eort has been made to ensure the accuracy of the information
contained herein, this document is not guaranteed to be error-free. Further, it does
not oer any warranties or conditions, whether expressed orally or implied in law,
including implied warranties and conditions of merchantability or tness for a
particular purpose. We specically disclaim any liability with respect to this
document, and no contractual obligations are formed either directly or indirectly by
this document.
Despite our best eorts to maintain the accuracy of the information in this
document, we assume no responsibility for errors or omissions, nor for damages
resulting from the use of the information herein. Please note that Chipsee products
are not authorized for use as critical components in life support devices or systems.
Technical Support
If you encounter any diculties or have questions related to this document, we encourage
you to refer to our other documentation for potential solutions. If you cannot nd the
solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at
[email protected], providing all relevant information. We value your queries and
suggestions and are committed to providing you with the assistance you require.
PPC-A55-070 Disclaimer
Chipsee IPC Page 18 of 18
