Citizen BN7020-09E User manual

取扱説明書

1
Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure
correct use.
After reading the manual, store it in a safe place for future reference.
Be sure to visit the Citizen website at http://www.citizenwatch-global.com/ .
Here you will find a variety of information such as electronic setting guides,
answers to frequently asked questions, Eco-Drive recharging information and
more.
To check the movement number
A case number—4 alphanumeric characters and 6 or
more alphanumeric characters—is engraved on the
case back. (Figure on the right)
The first 4 characters of the case number represent
the movement number of the watch. In the example
on the right, “ ” is the movement number.
Engraving position example
The engraving position may
differ depending on watch
model.

2
Safety precautions — IMPORTANT
This manual may contain certain safety advisories. Your watch should be used in
accordance with these advisories at all times to ensure optimal enjoyment of your watch
and to prevent injury to yourself, other persons and/or damage to property. Understand
the meaning of the following symbols and read pages from 28 to 39.
■Safety advisories are categorized and depicted in this manual as follows:
DANGER Highly likely to cause death or serious injury
WARNING Can cause serious injury or death
CAUTION Can or will cause minor or moderate injury or damage
■Important instructions are categorized and depicted in this manual as follows:
(Following symbols are examples of Pictograms.)
Warning (caution) symbol followed by prohibited matters.
Warning (caution) symbol followed by instructions that should
be followed or precautions that should be observed.

3
Features
Water resistant construction capable of withstanding a depth of 1,000 m (water pressure
equivalent to 100 atm)
• This watch features enhanced water resistance that enables it to withstand saturation
diving using helium gas.
Equipped with a helium escape valve for discharging helium gas
• In saturation diving, when decompressing to surface pressure in a diver decompression
chamber, the helium escape valve in the watch automatically discharges the helium gas
that has seeped into the watch to improve safety.
Rotating bezel with reverse rotation prevention mechanism to prevent incorrect operation
• The rotating bezel, which is important for checking diving time, employs a reverse
rotation prevention mechanism that prevents the rotating bezel from being rotated
inadvertently.
Request to customers
All parts of this watch, except for the band, are to be repaired only at CITIZEN.
This is because special technologies and equipment are required to perform repairs,
inspections and adjustments. Please make requests for repairs to an authorized service
center when having your watch repaired.

4
CONTENTS
Before using this watch ....................................................................6
Band adjustment............................................................................................................. 7
Protective stickers............................................................................................................ 7
How to use a specially designed crown............................................................................ 8
Component identification.................................................................9
Helium escape valve.....................................................................................................10
Charging your watch...................................................................... 11
When the watch reaches a low charge state (insufficient charge warning function) ....12
Charging time by environment.....................................................................................13
Checking the current power reserve................................................ 14
Before diving ................................................................................ 16
Cautions while diving .................................................................... 17

5
Maintenance after diving .............................................................. 18
Setting the time............................................................................ 20
Adjusting the calendar .................................................................. 21
Using the rotating bezel ................................................................ 22
Adjusting the length using the extension band ............................... 26
Troubleshooting............................................................................ 27
Eco-Drive watch handling precautions ............................................ 28
Water resistance ........................................................................... 30
Precautionary items and usage limitations..................................... 32
Warranty and service..................................................................... 40
Specifications................................................................................ 42
Contact us..................................................................................... 44
CONTENTS

6
Before using this watch
After unpacking, the following must be done before using the watch:
Check the power reserve indication. (page 14)
Charge immediately if the power reserve level is “0” or “1”.
This watch has a rechargeable cell which is charged by
exposing the dial to light.
Expose the dial to direct sunlight regularly to charge the
watch.
For details of charging, see pages 11 to 15.

7
Band adjustment
Do not adjust the length of the band (metal or rubber) yourself. If you fail to
perform the work properly, the watch may fall off, or an injury may occur during
adjustment.
For band adjustment, consult the shop where you purchased the watch or an
authorized service center. Other shops may not be able to handle the watch, or may
charge a fee.
Protective stickers
Be sure to remove any stickers covering the metal parts (back cover, band, clasp)
or glass of the watch before use. Otherwise, perspiration or moisture may enter the
gaps between the protective stickers and the parts, which may result in a skin rash
and/or corrosion of the metal parts.
Before using this watch

8
How to use a specially designed crown
This watch is equipped with a specially designed crown to prevent accidental operation.
Screw down crown
Unlock the crown prior to operate your watch.
Unlock Lock
Screw
down
crown
Rotate the crown
counterclockwise until it
releases from the case.
Push the crown in and
rotate it clockwise until the
orange warning color is no
longer visible.
• Depending on the model, the warning color may differ or there may be no warning
color.
Note
• A screw down locking crown is employed to enhance the water resistance of the
watch. When operating the crown, first rotate it counterclockwise to disengage the
screw lock. Once you have finished operating the crown, always make sure to return
the crown to the normal position and then rotate it clockwise while pushing it in so
that the screw lock is securely engaged.
Before using this watch

9
Component identification
• The illustrations in this instruction manual may differ from the actual appearance of
your watch.
• A solar cell is placed under the dial.
Hour hand Minute hand
Second hand
Power reserve
indication hand Crown
Date indication
Helium escape valve
Bezel lock
Rotating bezel

10

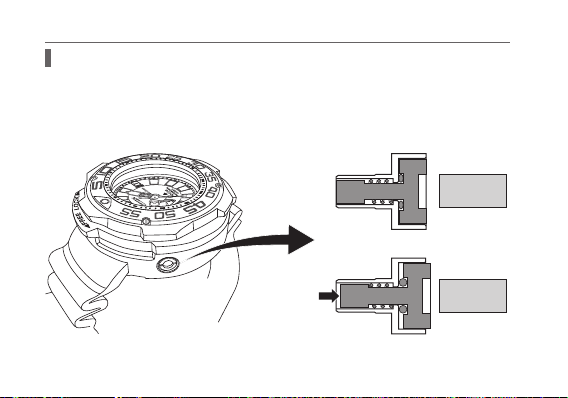

Helium escape valve
For professional saturation diving that uses helium, when decompressing to surface
pressure in a diver decompression chamber the helium escape valve built into the
watch automatically discharges the helium gas that has seeped into the watch. This
prevents the watch from breaking. Valve cross section
Inside the watch ↔outside the watch
When not
discharging
When
discharging
Component identification

11

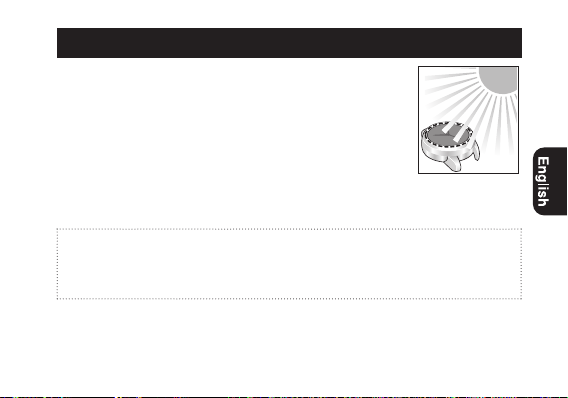

Charging your watch
This watch has a rechargeable cell which is charged by
exposing the dial to light, such as direct sunlight or
fluorescent lamps. After taking off the watch, put it in a
location where the dial is exposed to bright light, such as
by a window.
For optimal performance, be sure to:
•Expose it to direct sunlight for 5 or 6 hours at least once
a month.
•Avoid leaving it in dark places for long periods of time.
Caution
• Do not charge the watch at high temperature (about 60°C (140°F) or higher).
• If the watch is obscured from light by long sleeves frequently, supplemental charging
may be needed to ensure continual operation.

12
Charging your watch
When the watch reaches a low charge state (insufficient charge warning
function)
When the power reserve becomes low, the second hand
moves once every two seconds. This is the insufficient
charge warning function. Be sure to fully charge your watch.
• When the watch is sufficiently charged, the second hand will
move normally.
• If you do not charge the watch for four days or longer after the
insufficient charge warning movement has begun, the watch
will be depleted of all power and stop.
Caution
• Even when the second hand moves once every two seconds, the current time and
date are indicated.
Run time
From fully charged without extra charging: 1.5 years (at normal use)

13
Charging your watch
Charging time by environment
Below are the approximate charging times when exposing to light continuously.
Please use this table as a reference only.
Environment Illuminance (lx)
Charging time (approx.)
To work for one day
To start working
normally when the cell
is discharged
To become fully
charged when the cell
is discharged
Outdoors (sunny) 100,000 2 minutes 2 hours 35 hours
Outdoors (cloudy) 10,000 8 minutes 3.5 hours 90 hours
20 cm (8 inches)
away from a
fluorescent lamp
(30 W)
3,000 30 minutes 8 hours 290 hours
Interior lighting 500 3 hours 50 hours —
• To charge your watch, it is recommended to expose the dial to direct sunlight.
Optimal charging is achieved by exposing the dial to direct sunlight outdoors for a
short time each day.

14

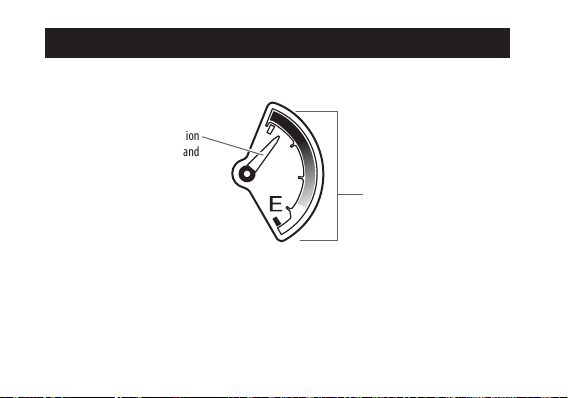

Checking the current power reserve
Power reserve level scale
Power reserve indication
hand
Power reserve level scale

15

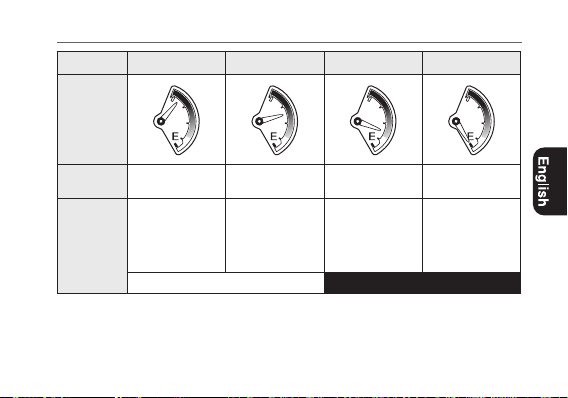

Level 3210
Power reserve
level scale
Duration
(approx.) 540 – 450 days 450 – 280 days 280 – 10 days 10 days or shorter
Meaning
Power reserve is
sufficient.
Power reserve
is OK.
Power reserve is
getting low.
Power reserve is
insufficient. The
insufficient charge
warning will start
soon.
OK for normal use. Charge immediately.
• To ensure the maximum duration is available (approx. 540 days), charge the watch
according to the times shown on page 13.
Checking the current power reserve

16
Before diving
Always make sure to check the following items before diving.
•Is the time set correctly? ( page 20)
•Is the power reserve level "2" or more? ( page 15)
•Is the crown fully locked? ( page 8)
•Can the rotating bezel be operated correctly?
•Is the band securely attached?
•Is the band damaged?
•Are there any scratches, cracks or chips in the glass?
•Do you have the commercially available diving apparatus required?

17
Cautions while diving
•Never operate the crown while diving.
•Do not bump the watch against rocks or other hard objects.

18
Maintenance after diving
Be sure to check the following items to maintain the watch after diving.
Items to check after diving
•The watch is cleansed with fresh water immediately after use in water and water
is wiped away with a dry soft cloth or something similar.
•No fog appears inside the watch’s glass.
•No water entered the watch.
•The band of the watch is not worn or damaged.
•The crown is screwed down. ( page 8)
•The watch is fully recharged. ( page 11)

19
When cleansing the watch with fresh water
Cleanse the watch in a basin or something similar filled with fresh water.
•Do not expose the watch directly to water flowing from a water tap.
•Do not operate the crown or depress the buttons when the watch is wet.
When fog appears inside the watch’s glass or water enters the watch
If the inside of the watch fogs up for a long time or sea water enters it, put it in a
box or plastic bag and immediately consult an authorized service center for repair.
( page 44)
•Otherwise, pressure inside the watch will increase and parts (crystal, crown, etc.)
may come off.
Maintenance after diving
