Civco GUS G10VPL User manual

Manufactured by:
CIVCOMedical Solutions
102 First Street South
Kalona, IA 52247 USA
319.248.6757 / 800.445.6741
WWW.CIVCO.COM
Copyright © 2018 All Rights Reserved.
GUS® is a registered trademark of CIVCO Medical Solutions.
All other trademarks are property of their respective owners.
Printed in the USA.
G10VPL
Wall-Mounted
Disinfection Soak Station
For Transvaginal and Transrectal
Ultrasound Probes
Operator's Manual

Table of Contents
Principle of Operation 2
Safety Precautions 2
Environmental Conditions 2
Ventilation Requirements 2
Supply Ratings 2
Warning Symbols 3
Signal Words 3
Quick Troubleshoot 3
Installation and Setup 4
Items Included 4
Wall Mounting Instructions 4
Using High-Level Disinfectants with GUS 6
Step 1: Probe Soaking Instructions 6
Step 2: Filling the Containers 7
Step 3: Ready for Use 7
Repair and Modification 8
Filter Life 9
Filter Replacement 9
Cleaning the System 9
Disposing of Used High-Level Disinfectants 10
Main Wiring Diagram 10
Limited Warranty 11
Specifications and Technical Data 11
Registration Card 11
M0046_H 1 G10VPL
GUS Disinfection Soak Station™

Principle of Operation
Your probe is suspended in the soaking container, preventing damage to the sensitive tip. Fumes are drawn into
the unit away from the operator and into the filter.
One of the containers is used for clean rinse water. This ensures that when the probe is removed from the unit for
the final rinse, no high-level disinfectant will drip or off-gas.
Two blowers draw the fumes through the carbon filter where they are effectively neutralized and clean air is
returned to the room. No ductwork or external venting is required.
Safety Precautions
Disconnect power before replacing filter or when servicing the unit.
Refer to the MSDS of the high-level disinfectant that you are using for additional safety precautions.
Environmental Conditions
lFor indoor use only.
lAltitude up to 2,000 meters.
lTemperature range: 5°C to 40°C.
lMain supply voltage fluctuations not to exceed +/- 10% of the nominal voltage.
lInsulation over voltage category II.
Ventilation Requirements
There must be a minimum of 2” on the right side of the unit (for air flow) and 4” of clearance on the left side (for
switch and fuse access).
Supply Ratings
G10VPL: AC 110-120V0.5A - 2.0A50/60 Hz
Fuse: Type FSF 5x20mm1 amp250VAC externally panel mounted
M0046_H 2 G10VPL
GUS Disinfection Soak Station™

Warning Symbols
The meaning of the labels and symbols that appear on the packaging and/or the system are as follows:
Dangerous electrical voltage
Hazardous area
Protective Grounding
Signal Words
The following signal words are used throughout this manual:
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices or potential equipment damage.
NOTE: Indicates additional helpful information.
Quick Troubleshoot
If the GUS system is not running, check the following:
1. Ensure that the unit is plugged into a live wall outlet.
2. Make sure the On/Off switch (located on left side) is on.
3. In the event that the unit is still not working, check the fuse. The fuse is located on the left side of the unit
above the power cord. UNPLUG UNIT BEFORE UNSCREWING FUSE COVER.
4. Unscrew the fuse cover and remove the fuse. If the filament is damaged, replace it with a Type FSF 5 x
20mm 1 amp 250VAC.
5. If the unit is still not working, call CIVCO Medical Solutions at 1-800-445-6741.
M0046_H 3 G10VPL
GUS Disinfection Soak Station™

Installation and Setup
Please check to ensure your new system arrived with the following parts.
Items Included
lFour hollow wall anchors and screws for wall mounting the unit
lOne ‘High-Level Disinfectant’ warning label Note: it is an OSHA requirement that containers holding high-level
disinfectants be clearly marked as such.
lOne ‘Initial Rinse’ label
lOne indelible ink pen for marking cable
lTwo 17” soak/rinse containers with caps
lTwo keys to safety door
lOne Glute-Out® Caddy with 5 sample bottles of Glute-Out® glycine based neutralizer
lOne Philips screwdriver
lLaminated Probe Soaking Instructions (This MUST be placed above the workstation)
lOne Bottom support bracket
lOne filter installed in unit
Wall Mounting Instructions
1. You will need the following items before attempting to install this unit:
lMeasuring tape
lLevel
lPencil or pen
2. Install Bottom support bracket using 3 screws already attached to bottom of unit.
3. Location selection:
lThere must be a minimum of 4” of clearance on the left side (for switch and fuse access) and 2” on the
right side of the unit (for air flow).
4. Measure up from the floor to the top of the unit approx. 54 ½” (recommended) or to the comfort level of
the operator.
5. At that point, using a level, draw a line approximately 10” long. Mark two points on this line 8” apart.
CAUTION: Anchors should not be installed into wall studs.
M0046_H 4 G10VPL
GUS Disinfection Soak Station™

6. Using the enclosed Philips screwdriver, press the tip of the wall anchor through these two points and turn
clockwise until the anchor is flush with the wall.
7. Screw two of the Philips screws into the anchors. Back off the screws approximately 1/8” from the wall and
place the unit over the screws.
8. Mark the 2 holes for the bottom support bracket. Remove unit from the wall and repeat step 5.
9. Place the unit back over the two top screws. Screw the two remaining Philip screws into the bottom bracket
and tighten. Tighten the top screws.
CAUTION: Do not over-tighten the screws.
10. For masonry walls use a suitable lead or plastic shield and bolt. These shields are not supplied.
11. Remove the tape on the fuse holder, which is on the left side of the soak station.
12. Place labels on containers and insert into unit.
13. Display the laminated Probe Soaking Instructions on the wall in a visible location directly above or beside the
unit.
M0046_H 5 G10VPL
GUS Disinfection Soak Station™

Using High-Level Disinfectants with GUS
Step 1: Probe Soaking Instructions
CIVCO Medical Solution's new soak and rinse containers for the GUS G10VP and G14KA units are 17" tall. This
allows your probes to be disinfected past the handle and strain relief.
CAUTION: Older probes are not water-resistant above the handle and must not be soaked above the
top of the handle. Failure to follow these instructions may result in expensive probe damage, may lead
to unsafe use or inability to use, and may result in injury.
Check with your probe manufacturer to determine whether your probe’s handle or strain relief can be
submerged.

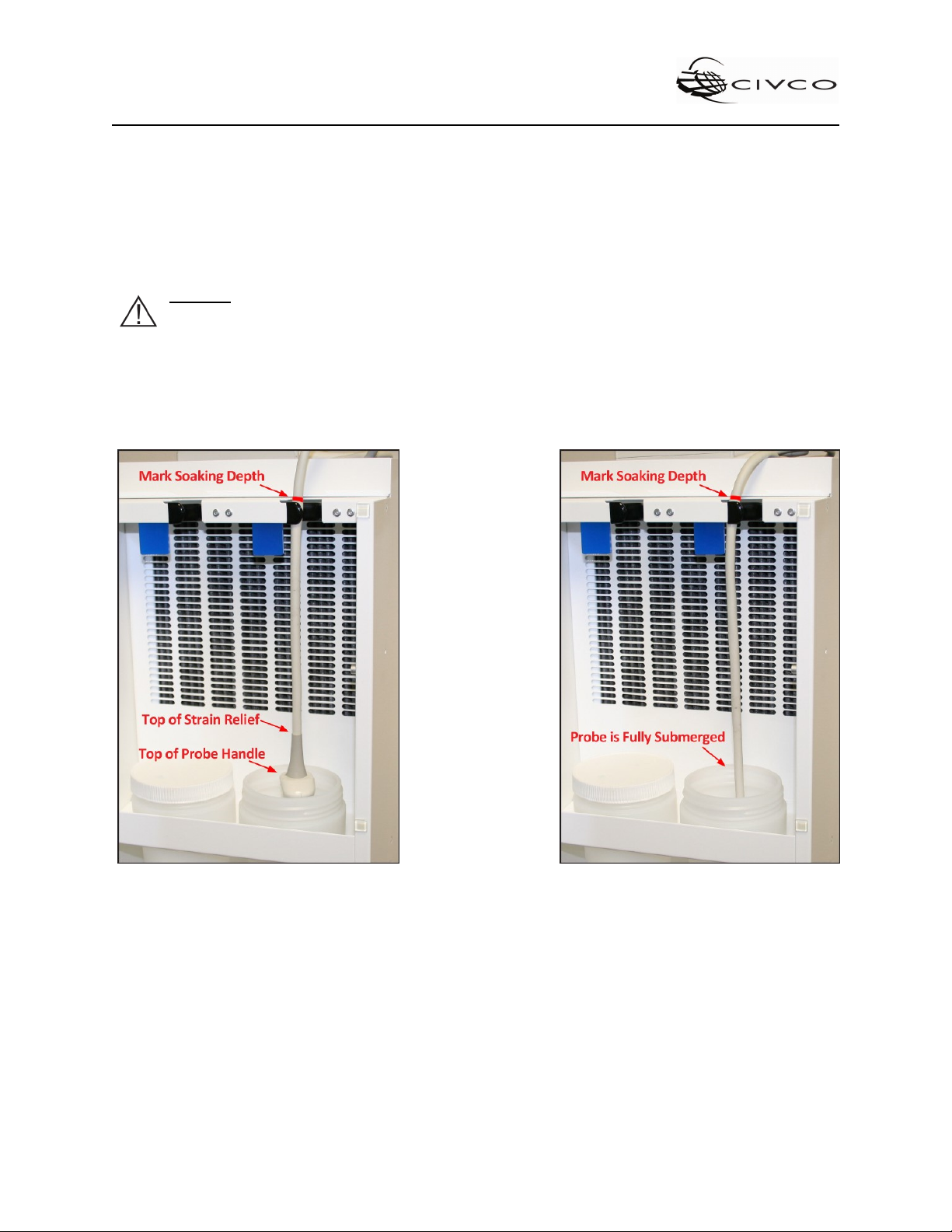

Every probe to be soaked MUST be marked on the cable as follows:
If your probe is NOTwater-resistant:
Suspend the probe into an empty
container so that the top of the handle is
level with the top of the container.
Depress blue tab and place probe cable
into the grip clip. Mark the cable just
above the top of the grip clip using a
permanent marker or tape.
If your probe ISwater-resistant:
Suspend the probe into an empty
container so that the tip of the probe is
about 1/2" above the bottom of the
container.
Depress blue tab and place probe cable
into the grip clip using a permanent
marker or tape
IMPORTANT: By keeping the red mark above the grip clip, the probe will always be at the right length.
DISCLAIMER: CIVCO MEDICAL SOLUTIONS IS NOT RESPONSIBLE FOR ANY DAMAGES, DIRECT OR INDIRECT, ARISING FROM OR RELATED TO USERS
FALURE TO FOLLOW THE INSTRUCTIONS SET FORTH ABOVE.
M0046_H 6 G10VPL
GUS Disinfection Soak Station™

Step 2: Filling the Containers
1. Plug in the unit and switch it on using the ON/OFF switch located on left side of unit. The red indicator will
light when the unit is operating.
2. The G10VPL has two 17” containers: one for disinfectant and one for rinse water.
3. Some disinfectants require activation before use; follow the manufacturer’s Instructions for Use. Pour the
disinfectant into the soaking container. DO NOT fill above the lower shoulder of the container. See Figure
below.
4. To prevent evaporation of disinfectant, always replace the screw caps on the containers after removing the
probes.
NOTE: Always replace the screw caps on the containers before turning the station OFF.
NOTE: Your GUS system should be left running as long as there are chemicals inside the containers.
5. Fill the remaining container with clean rinse water for the preliminary rinse. You MUST have one container
for rinse water. This ensures that when the probe is removed from the unit for the final rinse, no high-level
disinfectant will drip or off-gas.
Step 3: Ready for Use
Disconnect the cable from the ultrasound machine. The electrical connector may be placed in the top padded
compartment of the unit.
CAUTION: It is very important to follow the probe manufacturers’ instructions for cleaning, disinfecting
and rinsing your specific probes. The following is a guide only.
Cleaning:
1. Remove any sheath or condom and wipe off gel. Wash probe with enzymatic cleaner or nonabrasive
detergent prior to disinfection to remove any foreign material that remains on the probe or cable. Follow
the enzymatic manufacturer’s instructions for cleaning.
M0046_H 7 G10VPL
GUS Disinfection Soak Station™

Disinfection:
1. Using the grip clips, place the probe gently into the soak container according to where the cable has been
marked. (Review Probe Marking Instructions on page 6).
CAUTION: Do not let the probe hit the bottom of the container.
CAUTION: Older probes are not water-resistant above the handle and must not be soaked above the
top of the handle. Check with your probe manufacturer to determine whether your probe’s handle or
strain relief can be submerged.
2. Close the door.
3. Soaking time is dependent on your facility’s infection control guidelines. In North America this is between 8
to 20 minutes. (Cidex OPA®is 12 minutes)
Rinsing:
1. The initial rinse is done in the rinse container inside the GUS unit. This is an important step to prevent drips
and off-gassing when transferring the probe for the final rinse. After disinfection is complete, push back on
the blue tab and lift the probe up, shake it gently to remove large drops of disinfectant. Then place it directly
into the rinse container while keeping your thumb on the red mark above the tab.
2. Rinse the disinfectant off the probe by GENTLY swirling it around in the rinse container. The probe can now
be removed, wiped with a paper towel, and given a final rinse in the sink. This should be for at least 60
seconds under running cold water. Check the disinfectant manufacturer’s instructions for rinsing.
3. Empty the rinse container, flush and then refill with fresh water.
4. For cleaning containers, see "Cleaning the System."
Repair and Modification
Do not modify or repair the unit without reviewing with CIVCO Medical Solutions; contact CIVCO Medical Solutions
to purchase replacement filters and parts.
Before attempting to perform routine maintenance on the unit, thoroughly review and understand this manual for
complete familiarization with the unit and its operation.
M0046_H 8 G10VPL
GUS Disinfection Soak Station™

Filter Life
GUS® has a patented filter that, in normal everyday use, will have a six-month life. Call CIVCO Medical Solutions at
1-800-445-6741 to purchase additional filters.
Filter Replacement
WARNING: Put cap on the tube containing your disinfectant. Turn the main power OFF and disconnect
the power cord from the electrical outlet.
1. Remove the foam pad from the top compartment.
2. Remove the top plate located in the top compartment by turning the captive screws counterclockwise.
3. Remove the old filter by inserting fingers into the finger holes and pulling up. Filter may be snug but should
slide up with steady pressure.
4. Using a mild detergent on a soft cloth, wipe down the whole front of the machine. Also, wipe inside the
machine behind the air intake panel. Dry all surfaces.
5. Replace with a new filter, making sure the airflow arrows are pointing to the rear of the machine.
6. Put the used filter into a plastic bag and dispose of it with other non-hazardous waste. This does not need to
be red tagged.
7. Replace the top plate and tighten the captive screws by turning clockwise. Replace the foam pad and turn on
the machine before replacing disinfectant.
Cleaning the System
WARNING: Turn the main power switch OFF and disconnect the power cord from the electrical outlet.
DAILY CLEANING:
1. Remove the rinse water container, empty and wash both the container and cap. Some facilities do this after
each use.
2. Using a mild detergent solution on a soft cloth, wipe down the area around the containers.
3. Wipe off any drips around the disinfectant container and cap and below the shelf.
4. Do not spray cleaning liquids on the intake area of the machine as this will damage the filter.
5. After drying the areas, replace the rinse water and disinfectant containers.
Refer to “Filter Replacement” section for additional cleaning steps when changing the filter.
M0046_H 9 G10VPL
GUS Disinfection Soak Station™

CLEANING THE G10VPL CONTAINERS:
The containers that are supplied with the GUS Disinfection Soak Stations can be cleaned by the following methods:
lIn an instrument washer/disinfector with a thermal rinse of 190°F.
or
lManually cleaning with soap and water. Rinse the containers afterwards.
The water/rinse container should be cleaned at least daily or in accordance with your facility’s guidelines. The
container used for the disinfectant can be cleaned before refilling with fresh disinfectant.
Most customers replace the containers at least once a year, particularly when using OPA, because of its propensity
to stain. These are available from CIVCO Medical Solutions.
Disposing of Used High-Level Disinfectants
In some states and municipalities, it is illegal to dispose of used disinfectants without first deactivating them.
Deactivation also protects the user from exposure to splashes and spills.
CIVCO Medical Solutions manufactures Glute-Out®, a glycine-based neutralizer (part # 610-1099) which comes in a
convenient single-use bottle. Glute-Out® is specifically for use with glutaraldehyde and OPA based disinfectants.
For more information, please see the insert that is included with the enclosed sample.
With the unit running, open the bottle of neutralizer and slowly pour the contents into the container of high-level
disinfectant. After five minutes the disinfectant is deactivated and it is then safe to dispose of down the sink/drain
with the cold water running.
NOTE: Be sure to put the screw cap on the container before transporting it to the sink/drain for
disposal.
IMPORTANT: Thoroughly clean and rinse out the container. With the unit turned on, put the soaking container
back into place and refill it with fresh high-level disinfectant.
Main Wiring Diagram
A main wiring diagram is available upon request.
CIVCO Medical Solutions does not disclose detailed circuit diagrams. Spare parts and replacements are available
upon request.
M0046_H 10 G10VPL
GUS Disinfection Soak Station™

Limited Warranty
CIVCO Medical Solutions warrants the CIVCO GUS Disinfection Soak Station to be free of defects in materials and
workmanship under normal use, for a period of one year from the date of delivery. This warranty does not include
filters, acrylic, or disposal pump unless it can be determined that the failure is due to defects in material or
workmanship.
If the system is not working correctly or is defective, contact CIVCO Medical Solutions and we will repair or replace
the device at our option during the warranty period.
CIVCOMedical Solutions assumes no liability for consequential damages of any kind as a result of the use or misuse
of the system by the purchaser, the purchaser's employees, or any others.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES, OBLIGATIONS OR OTHER
LIABILITIES EXPRESSED OR IMPLIED, AND THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE HEREOF. WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR
PURPOSE ARISING FROM A COURSE OF DEALING OR USAGE ARE SPECIFICALLY EXCLUDED.
This warranty does not cover conditions and damages resulting from any of the following:
lImproper installation, delivery within the facility, or maintenance.
lAny repair, modification, alteration or adjustment not authorized by the manufacturer.
lMisuse, abuse, accidents or unreasonable use.
lIncorrect electric current, voltage or supply.
lFailure to follow proper procedures for use outlined in this manual.
lConsequential or incidental damages sustained by any person as a result of any breach of this warranty.
Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above
exclusion may not apply.
Specifications and Technical Data
Model G10VPL
Number of probes soaked 1
Face Velocity (FPM) 45
Electrical (115V 50/60Hz) .5A
Space & Weight Requirements:
Width 16"
Depth 10"
Height (Installed) 59"
Weight (lbs.) 30
Registration Card
Please complete and return the attached Warranty Card to CIVCO Medical Solutions. Call 1-800-445-6741 to
purchase additional filters.
M0046_H 11 G10VPL
GUS Disinfection Soak Station™
