clage E-convenience DSX Instruction Manual

Operating instructions for the user
E-convenience instant water heater DSX
en > 2
Subject to technical changes, design changes and errors. 
9120-15031 12.20*9120-15031*

DSX
2
Contents
1. Safety instructions .............................................................................................2
2. Description of the appliance .....................................................................................4
3. How to use ....................................................................................................5
Temperature setting ............................................................................................5
Programme keys ...............................................................................................5
Info menu .....................................................................................................6
Setup menu ...................................................................................................7
Energy Efficiency Monitor ........................................................................................9
How to save energy............................................................................................10
Power limit ...................................................................................................10
Top-up heating................................................................................................10
Temperature limitation .........................................................................................10
Reset to factory setting .........................................................................................10
Venting after maintenance work .................................................................................11
Cleaning and maintenance......................................................................................11
4. Remote control ...............................................................................................11
Mounting the wall bracket ......................................................................................12
Initial operation ...............................................................................................12
Registration of remote control at the instant water heater............................................................12
Safety notes ..................................................................................................13
Battery replacement ...........................................................................................13
Disposal .....................................................................................................13
FX programme buttons .........................................................................................13
5. Trouble-shooting and service....................................................................................14
1. Safety instructions
Please read these instructions carefully before installing or using the appliance! Keep
the instructions handy with the appliance for future use!
Instruction manuals are intended for the specialist who is responsible for the installation of
the appliance. Operation manuals are for the end user. The provided manuals correspond
to the technical specifications of the appliance.
The latest version of the instructions can be found online at: www.clage.com/downloads
• Do not use the appliance until it has been correctly installed and unless it
is in perfect working order.
• Do not remove the front cover under any circumstances before switching
off the mains electrical supply to the unit.

3
• Keep the remote control and wall bracket away from credit cards or other cards with magnetic strips. The
built in magnets can damage the card’s magnetic strip.
CLAGE
• Never make technical modifications, either to the appliance itself or the electrical leads and water pipes.
• The appliance must be earthed at all times.
• Pay attention to the fact that water temperatures in excess of approx. 43 °C are perceived as hot, especially
by children, and may cause a feeling of burning. Please note that the fittings and taps may be very hot
when the appliance has been in use for some time.
• The appliance is only suitable for domestic use and similar applications inside closed rooms, and must only
be used to heat incoming water from the mains supply.
• The appliance must never be exposed to frost.
• The values stated on the rating plate must be observed.
• In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the mains water
supply instantly. Repairs must only be carried out by the customer service department or an authorised
professional.
• This appliance can be used by children aged 3years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or ins-
truction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be performed by children without
supervision.
1. Safety instructions
• If the appliance is factory equipped with a connection cable, it must be replaced with an original spare cable
from the manufacturer in case of damage by an authorised technician in order to avoid any hazards.
• In accordance with VDE 0700, a circuit breaker with a contact opening gap of at least 3mm for each pole
must be provided on the mains side of the connecting box for appliances with a fixed connection.
• The wall bracket must be secured with the supplied screws and dowels. The appliance must be secured to
the wall bracket. The appliance may only be operated if it has been properly mounted on the wall bracket.
• The prescribed nominal pressure stated on the rating plate may not be exceeded at any time.
• The required water resistance may not fall below the value stated on the rating plate at any time.
To observe additionally for pressureless installation:
• The water outlet behind the devices must not be blocked, and the water flow must not be restricted.
• The water outlet facilities, such as shower head, jet control and other outlet unit, must be decalcified
regularly. Deposits must be removed in regular intervals.
• Only the fittings recommended by the manufacturer may be used.
• If the appliance is exclusive connected to a single shower, only the shower heads recommended by the
manufacturer may be used. No other fittings or appliances which decrease the water flow to the shower
may be installed.

DSX
4
The instantaneous water heater DSX is a electronically-controlled, pressure-resistant
water heater for a decentralised water supply to one or more tap connections.
Its electronic control regulates the power consumption depending on the selected out-
let temperature, the respective inlet temperature and the flow rate, thus reaching the
set temperature exactly to the degree and keeping it constant in case of pressure fluc-
tuations. The required outlet temperature can be entered on a keypad within a range
between 20 °C and 60 °C and can be read off the digital display.
The maximum inlet temperature can be up to 70 °C so that operation in connection
with solar heating systems is possible.
It is possible to use the instantaneous water heater in combination with an external
load shedding relay for electronically controlled instantaneous water heaters (refer to
installing instructions).
2. Description of the appliance

5
CLAGE
As soon as you open the hot water tap, the instantaneous water heater switches
on automatically. When the tap is closed, the appliance automatically switches
off. The water heater is operated at the device itself or with the wireless remote
control.
Temperature setting
You can set the required temperature gradually to a lower or higher value with the
arrow keys and . The temperature changes by 1 °C, in the convenience zone
between 35 °C and 42 °C even by 0.5 °C, if key is pressed shortly one time. Pressing a
key for a longer time changes the temperature continuously. You can select the outlet
temperature from 20 °C to 60 °C. The display confirms the temperature changes by
“warmer” respectively “colder”.
Note: If temperature is set below 20°C with arrow key the display shows “--“
and the appliance switches off the heating function.
Note: If the water heater supplies a shower, the maximum temperature was
reduced during initial operation. This limitation cannot be exceeded.
Programme keys

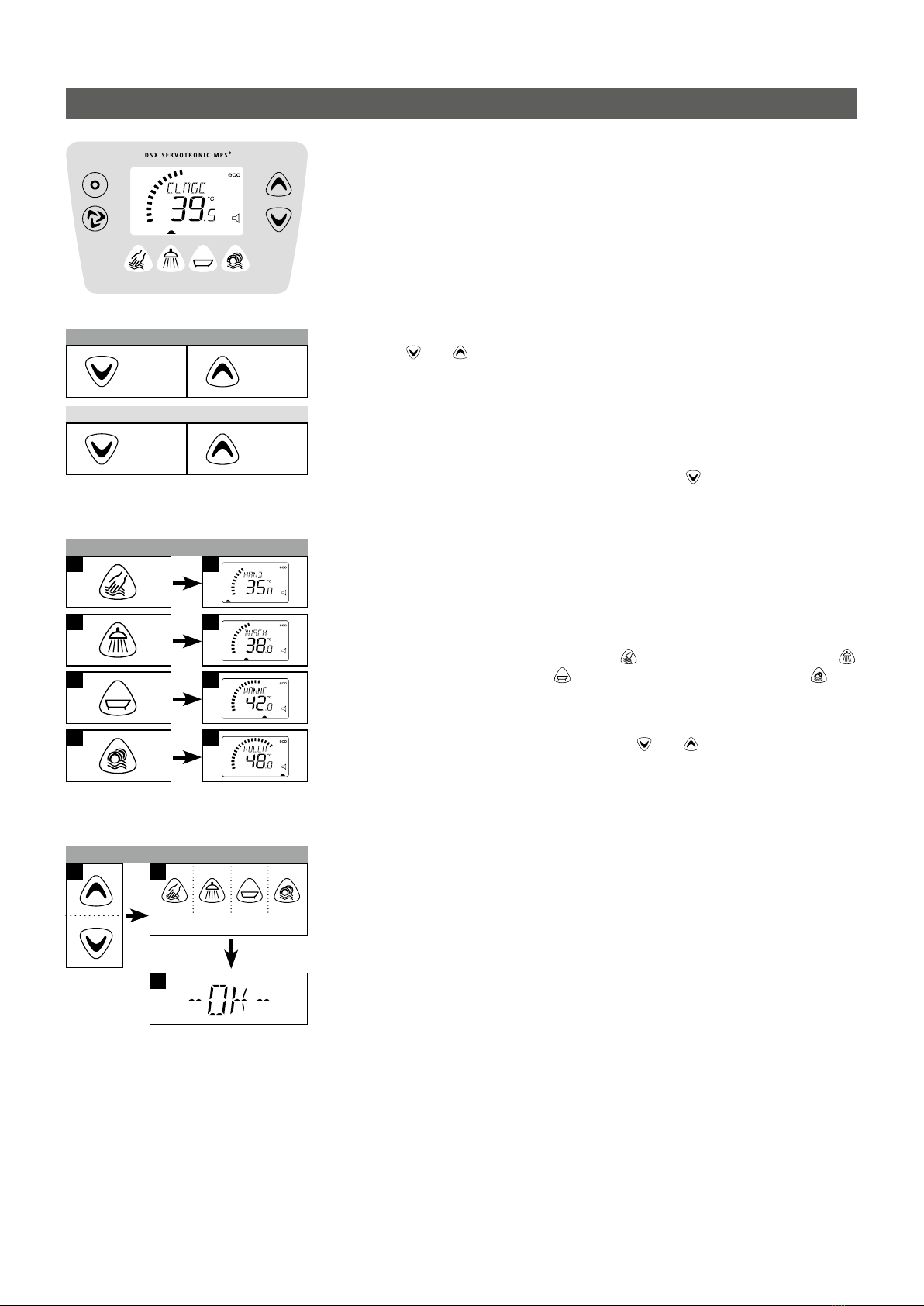

The four programme keys at the device allow to quickly select the preset temperature.
The factory setting for application “hand wash” is 35 °C, for application “shower”
it is 38 °C, for application “bath tub” it is 42 °C, and for application “kitchen” it is
48 °C.
You can assign your own settings for the programme keys:
Select the desired temperature via the arrow keys and . Prolonged pressing
(at least 3 seconds) of one of the four programme keys stores the previously selected
temperature. The display confirms by “ --OK-- ”and an acoustic signal will resound.
The stored temperature is now available to you each time you press the corresponding
programme key.
Set temperature
1
–1 °C +1 °C
35,0..42,0 °C Convenience zone
1
–0,5 °C +0,5 °C
Select preset temperature
A1 A2
B1 B2
C1 C2
D1 D2
Store temperature
2
Press ≥ 3 sec
3
1
3. How to use

DSX
6
Info menu
The Info menu offers a variety of display values, that provide information on
various parameters.

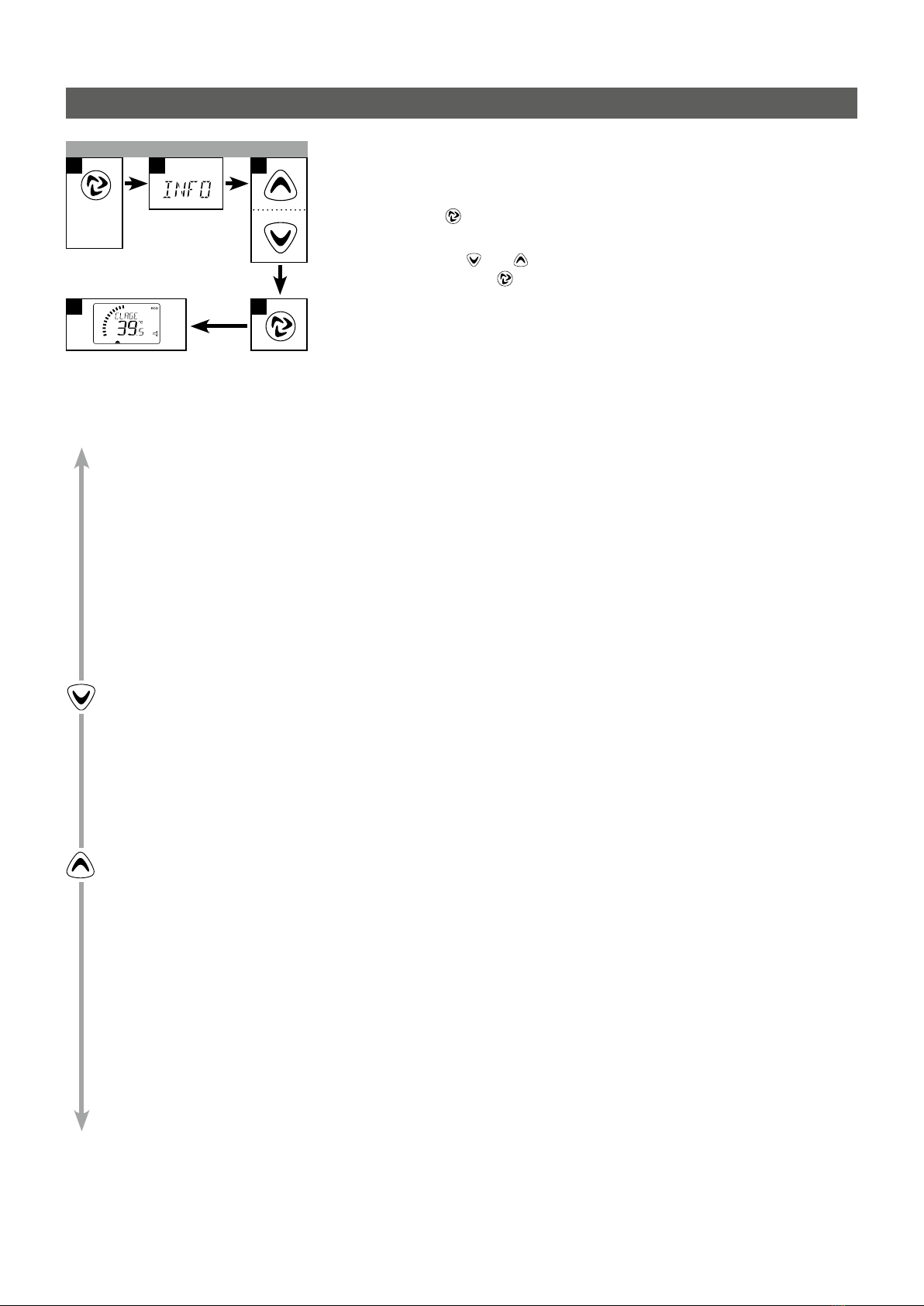

Press the info key for at least 3seconds to call up the Info menu, the display
confirms by “Info”.
Using the arrow keys and you can switch over to the individual display
information. With info key you will get back to the standard display.
Individual display values as follows:
Power limit
Informs about the current maximum power rating (kW) of the appliance.
FX Channel
Information about the current radio channel of the water heater and its remote control.
Temperature protection
Information, if temperature protection is activated or deactivated.
Operating cost per hour
Indication about the current energy consumption given in Euro per hour.
Working time
Indication of total operating time of the heating given in seconds / minutes / days /
years.
Standby time
Indication of the operating time since latest connection of the appliance to the supply
voltage given in seconds / minutes / days / years.
Lifetime counter
Indication of the total operating time of the appliance given in seconds / minutes /
days / years.
Flow
Indication of current flow rate given in l/min.
Temp in
Indication of inlet temperature (°C).
Temp out
Indication of outlet temperature (°C).
Power
Indication of current power consumption (kW).
Control value
Indication of calibration value of the control system.
Diagnostics
Indication of the last ten diagnostic messages.
Signal
Indication of the current I2C-connection quality in %.
Software version
Information about installed software version.
Info menu
2
1
4
3
5
Press
≥ 3 sec
3. How to use
Menu item order of “Info menu“:
POWER LIMIT
FX CHANNEL
TEMPERATURE PROTECTION
OPERATING COST PER HOUR
WORKING TIME
STANDBY TIME
LIFETIME COUNTER
FLOW
TEMP IN
TEMP OUT
POWER
CONTROL VALUE
DIAGNOSTICS
SIGNAL
SOFTWARE VERSION

7
CLAGE
Note: Values of the Info menu cannot be modified or entered. Above mentioned values are
only given for your information!
Note: The values are for information only and are not suitable for billing purposes.
Setup menu
The setup menu offers a variety of adjustabilities, affecting the performance and
the display of the appliance.

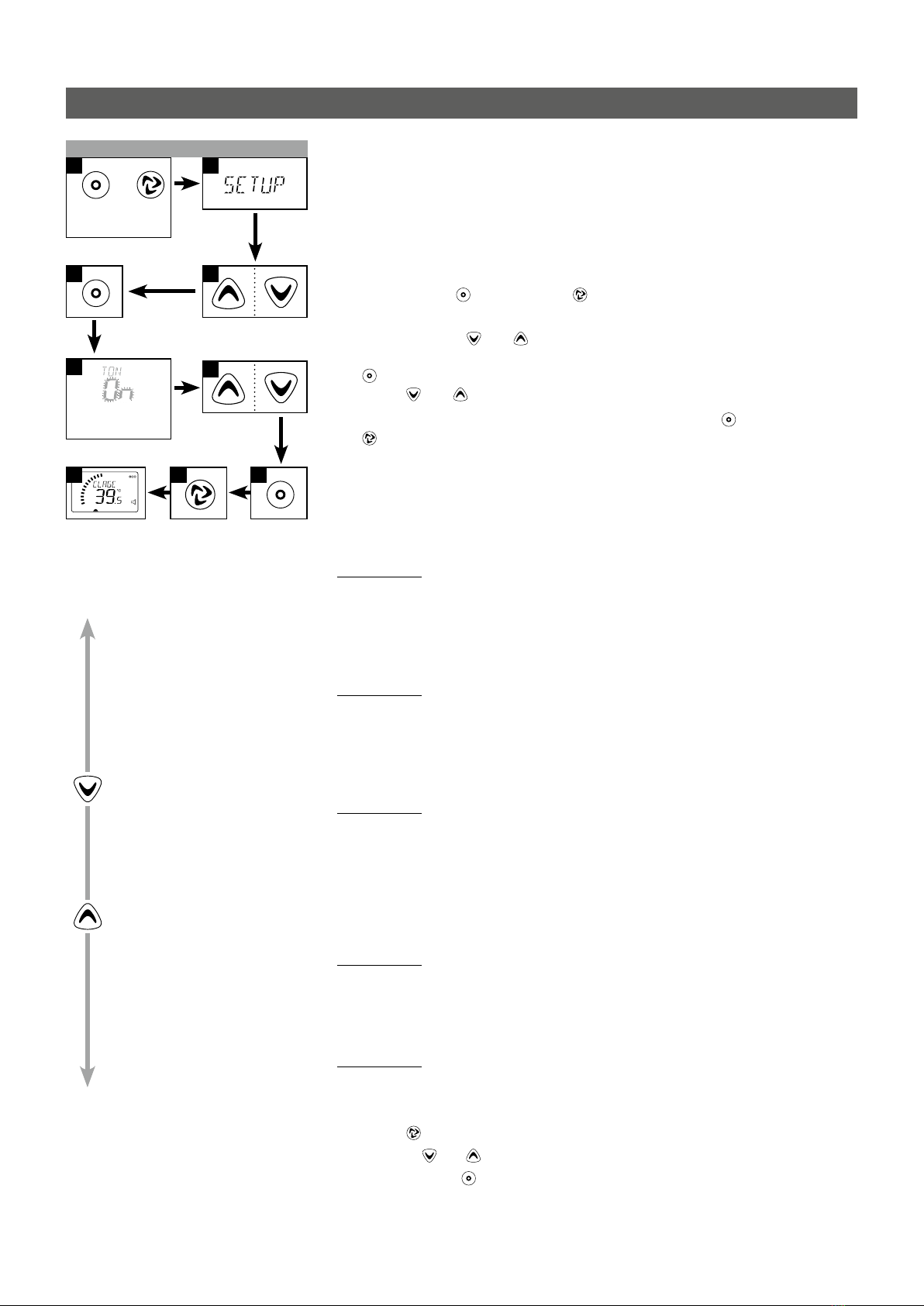

Press the setup key and the info key simultaneously for at least 3seconds to call
up the setup menu, the display confirms by “ setup ”.
Using the arrow keys and you can switch over to the individual parameters. The
setting mode of the individual parameter (e.g. tone) is activated by pressing the setup
key , the display flashes. You can now select the new parameter value with the
arrow keys and .
The new parameter value is stored when pressing the setup key again. With info
key you will get back to the standard display.
Individual parameter as follows:
Language
Operating language can be selected.
Setting options:
“1“ German
“0“ English
Tone
Activation and deactivation of key tone.
Setting options:
“on“ key tone activated
“--“ key tone deactivated
Background light
Activation and deactivation of display background light
Setting options:
“on“ background light constantly on
“At“ background light switches on automatically e.g. when keys are pressed, and switches off
automatically after some time
“--“ background light off
Charges per kWh (ct)
The relevant electricity tariff can be entered.
Setting options:
from 0 ct to 199,90 €
Clock
Time settings can be done
Setting options:
“h“ hours
“min“ minutes
“s“ seconds
The info key selects the clock parameter to be changed (“h”,”min” or “s”).
The arrow keys and changes the set value shown.
Pressing the setup key stores the new value.

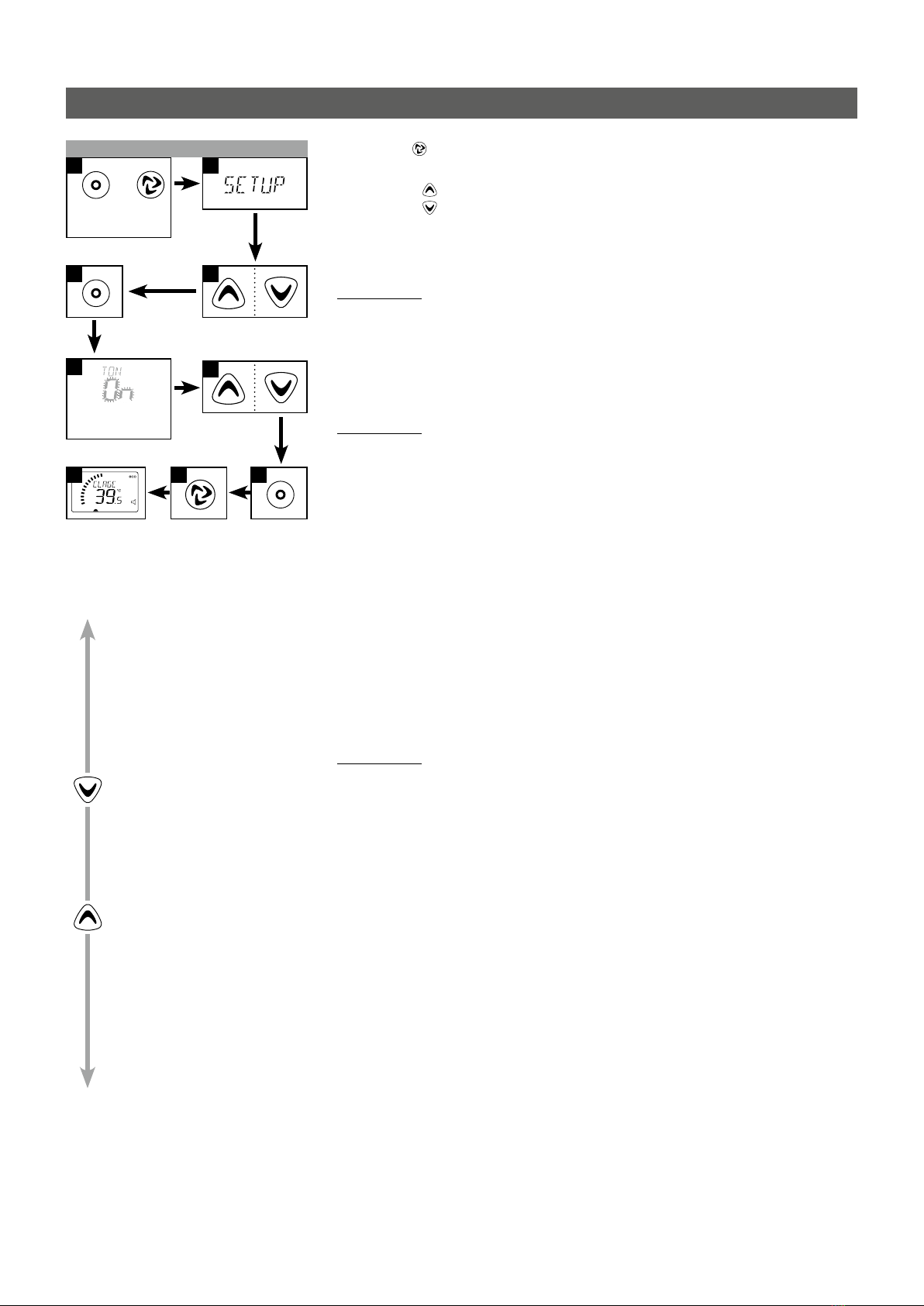

Setup menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥ 3 sec
3. How to use
Menu item order of “Setup menu“
LANGUAGE
TONE
BACKGROUND LIGHT
CHARGES PER KWH (CT)
CLOCK
LOAD DECREASE
LOCK LEVEL
TEMPERATURE LIMIT
FLOW LIMIT

DSX
8
Setup menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥ 3 sec
With info key you will get back to the standard display.
Note:
The arrow key resets the display to zero when mode “s” is chosen.
The arrow key deactivates the display of the clock.
Load decrease
Setting of load shedding parameters
Setting options:
“0“ Operation without load shedding relay, factory setting
“1“ operation with standard load shedding relay
“2“ operation with sensitive load shedding relay
Lock level
Limitation of appliance’s operation complexity.
Setting options:
“0“ no restriction (factory setting)
“1“ factory reset via key (countdown) not possible, parameters can be seen but not be
modified in setup menu
“2“ same as “1”, additionally the setup menu cannot be opened
“3“ same as “2”, additionally nominal value memory (handwash, shower, bathtub, kitchen)
not changeable
“4“ same as “3”, additionally nominal value not changeable
Temperature limit
The maximum settable temperature can be reduced to any value within the
temperature limit.
The Lock level must be activated via placing the jumper to enable the limitation.
Refer to the installation manual to this.
Flow limit
Setting of flow rate limitation.
Setting options:
“--“ no flow rate limitation
“At“ automatic adjustment, i.e. flow rate is limited in a way so that the selected outlet
temperature is reached
“Eco“ flow rate limitation to max. 8.0l/min
e.g. “9.0“ limitation to a selected value
Note:
“Eco” is displayed when operating mode “Eco” is selected and the set temperature is
below 43 °C.
3. How to use
Menu item order of “Setup menu“
LANGUAGE
TONE
BACKGROUND LIGHT
CHARGES PER KWH (CT)
CLOCK
LOAD DECREASE
LOCK LEVEL
TEMPERATURE LIMIT
FLOW LIMIT

9
CLAGE
Energy Efficiency Monitor
In the top row of the display, various information can be displayed permanently.
If you press the info key once, the name of the currently selected monitor is
displayed as scrolling text. To continue to the next monitor, press the info key a
second time while the scrolling text is visible. The name of the monitor will appear as
scrolling text.
After the scrolling text, the value of the currently selected parameter will be displayed
permanently in the top row of the display.
Individual parameter as follows:
CLAGE (or Clock, if enabled)
This is the normal display mode without an activated Energy and Status Monitor. If the
clock was enabled in the Setup menu, it is only shown in normal display mode.
Note:
The menu items “Power“, “Flow“, “Temp In“, “Temp Out“ and “Costs per hour“ are
explained in the chapter “Info Menu“.
Energy last tapping
Energy consumption since opening the hot water tap in Wh or kWh.
Costs last tapping
Indication of the costs since opening the hot water tap.
Water last tapping
Display the amount of water since opening the hot water tap in litres.
Total energy
Display of the total accumulated energy consumption in kWh.
Total costs
Display the total accumulated electricity costs in Euro.
Total water
Indication of the total water consumption in litres.
Note: The values are for information only and are not suitable for billing
purposes.
3. How to use

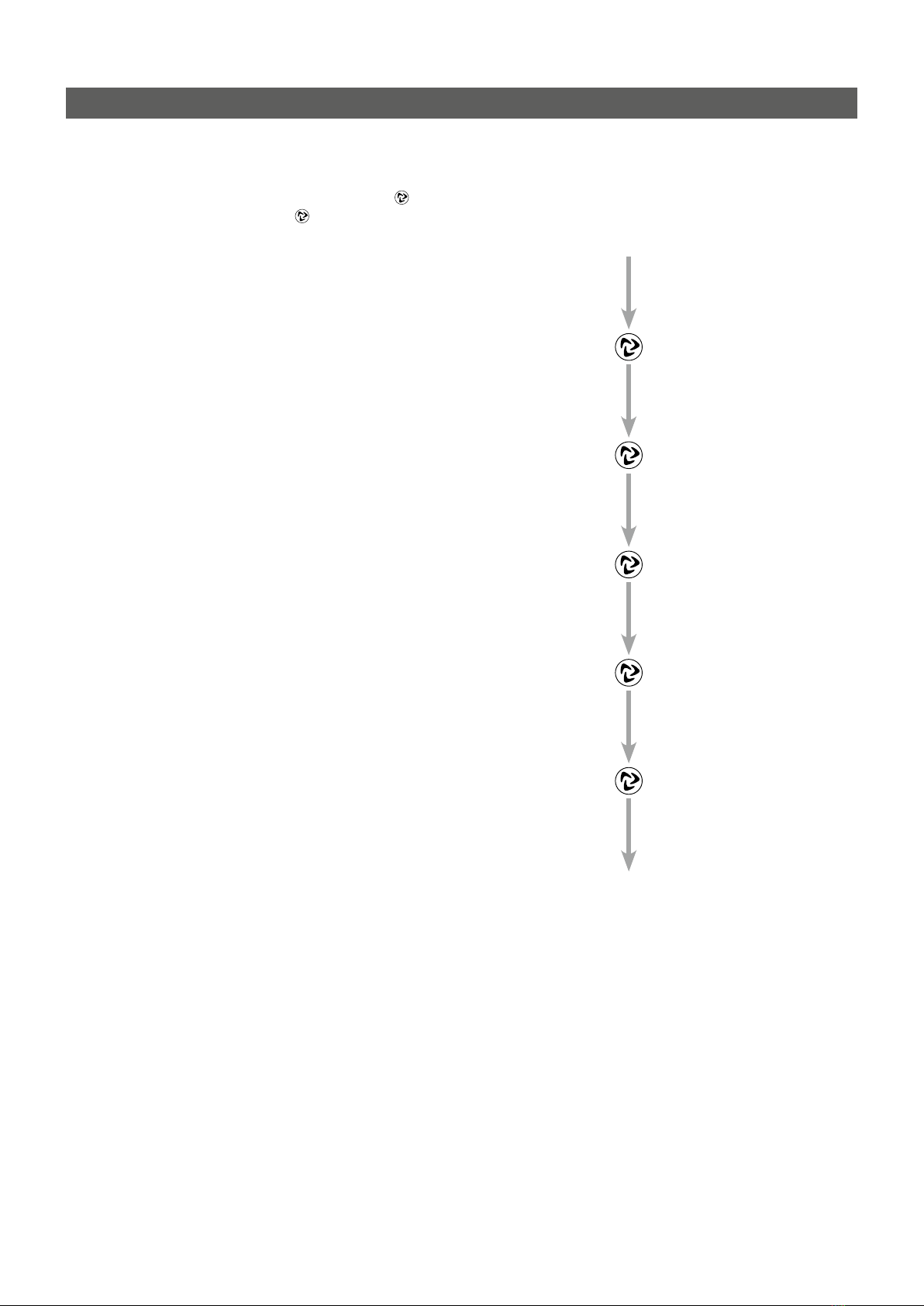

Menu item order of
“Energy Efficiency Monitor“:
CLAGE (CLOCK)
POWER
FLOW
TEMP IN
TEMP
OUT
COSTS PER HOUR
ENERGY LAST TAPPING
COSTS LAST TAPPING
WATER VOLUME LAST TAPPING
TOTAL ENERGY
TOTAL COSTS
TOTAL WATER VOLUME

DSX
10
3. How to use

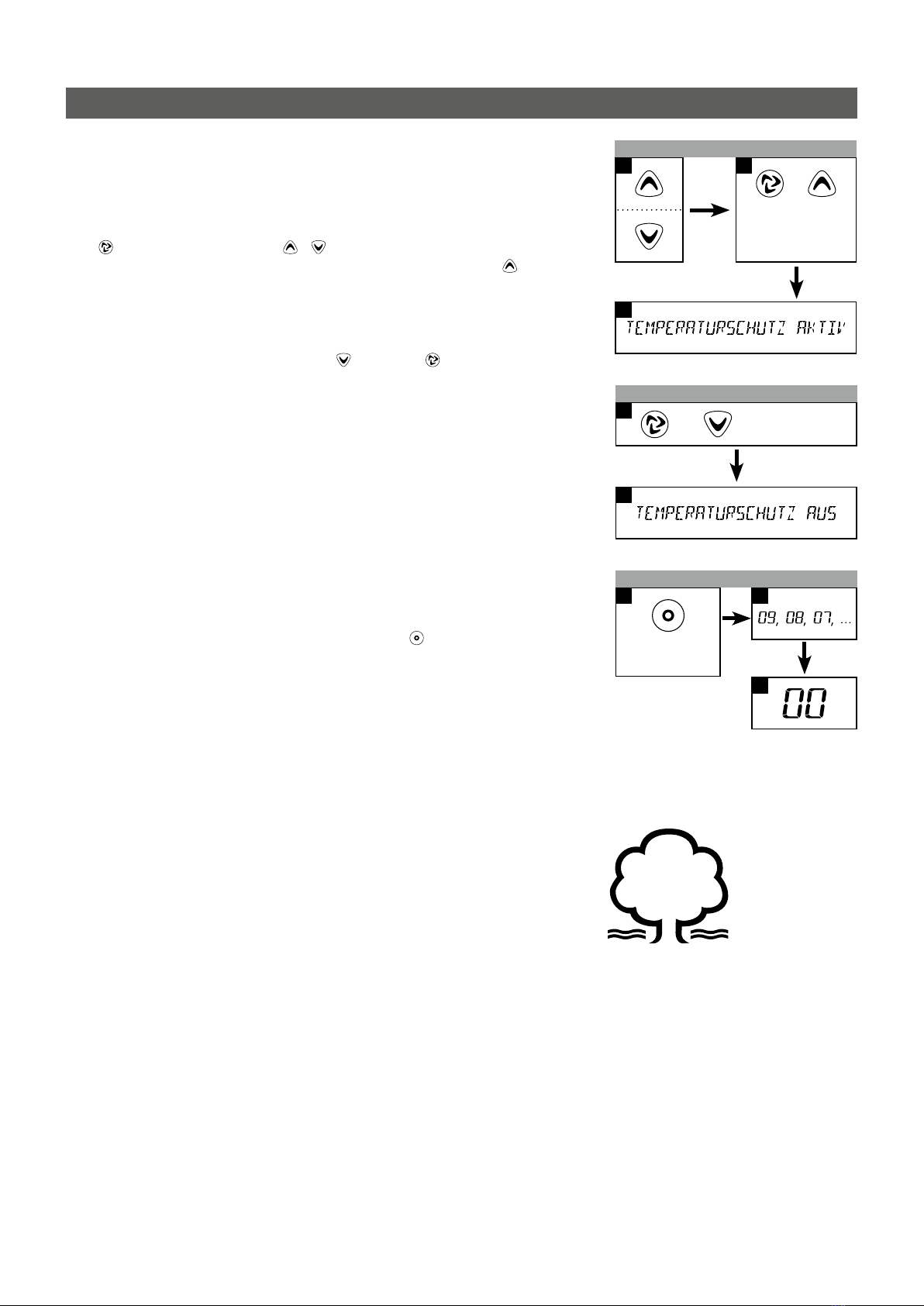

Temperature limitation
This instantaneous water heater is equipped with an optional temperature limiting
function. This scalding protection is deactivated in the works setting.
Switch on:
Select the limit temperature with arrow keys and , then press info key and
arrow key simultaneously for at least 3 sec. The display briefly confirms the
activation by “ TEMP PROTECTION ENABLED ”.
After activation of the scalding protection it is impossible to select a higher
temperature.
Switch off:
Press info key and arrow key simultaneously for at least 3 sec. The display briefly
confirms the deactivation by “ TEMP PROTECTION OFF ”.
Reset to factory setting
All factory settings can be recalled:
• Press setup key , the display now counts backwards from “10” to “00” in second
intervals. The appliance is reset at value “00” – if you stop pressing the key earlier,
the process will be cancelled.
Reset
1
Press + hold!
Reset completed
3
2
Scalding protection on
+
Press
≥ 3 sec
1 2
Display
confirms
activation:
3
Scalding protection off
1+
Display
confirms
deactivation:
2
Press
≥ 3 sec
Power limit
If the full output of the instantaneous water heater DSX does not suffice to heat the
tapped quantity of water, the control valve automatically reduces the flow rate so that
the set temperature is reached.
Top-up heating
When operating with preheated water (e.g. with solar systems), you must ensure that
the inlet temperature does not exceed 70 °C.
If the inlet temperature exceeds the setpoint, the appliance is not providing any
output, and the display shows “
INLET TEMP TOO HIGH ”.
Set the exact temperature you need on the appliance and open the hot water tap.
Once you feel that the water is too hot, do not add any cold water and, instead, enter
a lower temperature on the appliance. If you were to add cold water, the water already
heated would cool down again and valuable energy would be wasted. Moreover, the
cold water added in the tap is not covered by the control range of the electronic cir-
cuitry, with the result that temperature constancy is no longer guaranteed.
How to save energy

11
CLAGE
3. How to use
• Plastic surfaces and fittings should only be wiped with a damp cloth. Do not use
abrasive or chlorine-based cleaning agents or solvents.
• For a good water supply, the outlet fittings (special tap aerators and shower heads)
should be unscrewed and cleaned at regular intervals. Every three years, the electri-
cal and plumbing components should be inspected by an authorised professional in
order to ensure proper functioning and operational safety at all times.
Cleaning and maintenance
This instantaneous water heater features an automatic air bubble protection to
prevent it from inadvertently running dry. Nevertheless, the appliance must be vented
before using it for the first time. Each time the appliance is emptied (e.g. after work on
the plumbing system, if there is a risk of frost or following repair work), the appliance
must be re-vented before it is used again.
1. Disconnect the instantaneous water heater from the mains (e.g. via deactivating the
fuses).
2. Unscrew the jet regulator on the outlet fitting and open the cold water tap valve to
rinse out the water pipe and avoid contaminating the appliance or the jet regulator.
3. Open and close the hot water tap until no more air emerges from the pipe and all
air has been eliminated from the water heater.
4. Only then should you re-connect the power supply again (e.g. via activating the
fuses) to the instantaneous water heater and screw the jet regulator back in.
5. The appliance activates the heater after approx. 10seconds of continuous water
flow.
Venting after maintenance work

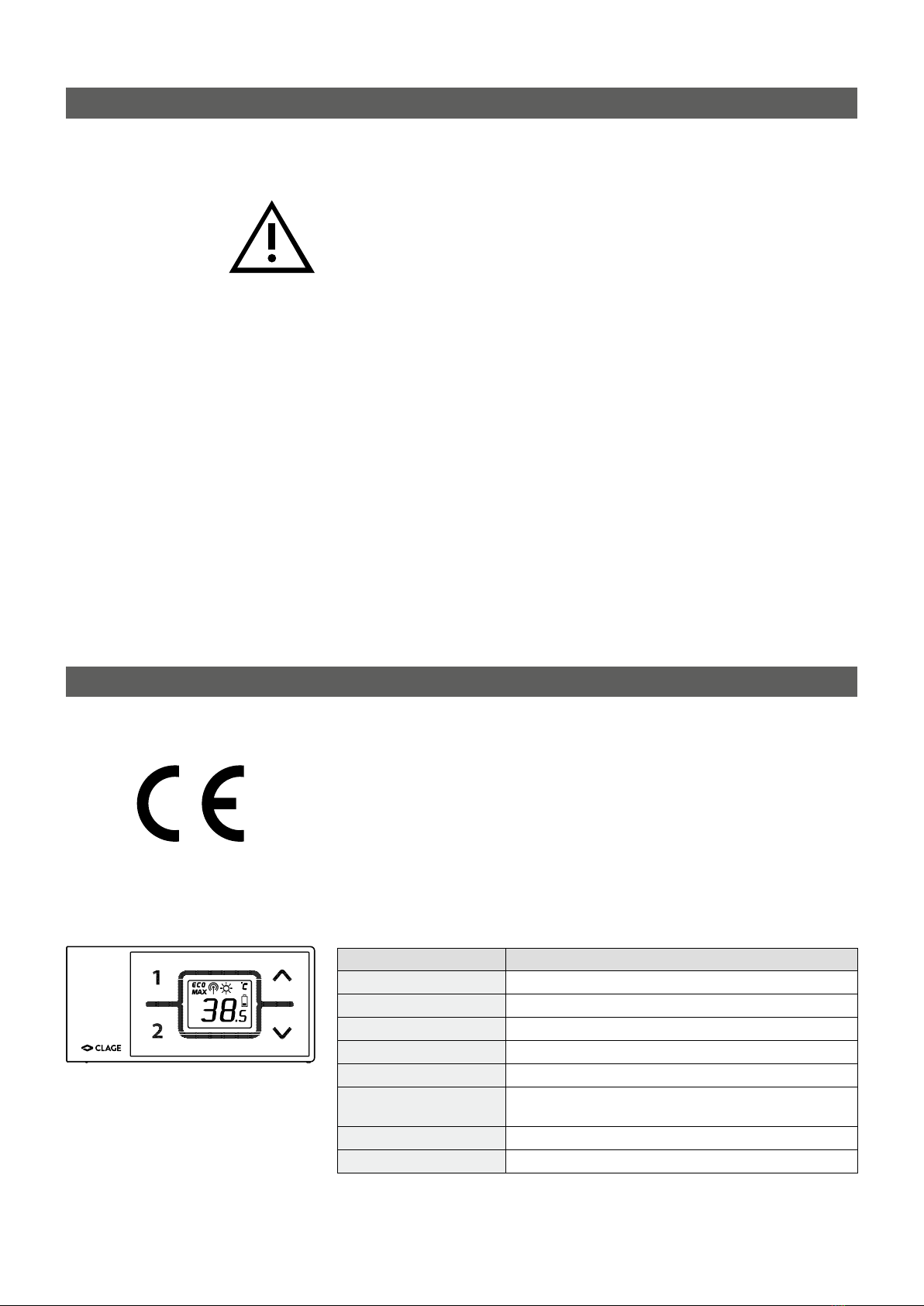

4. Remote control
Technical data
Model FX remote control
Operating voltage 3 V
Type of battery 2x AAA Alkaline 1)
Type of protection IP 20
Transmission range 10 metres incl. barrier
Transmission power < 10 mW
Transmission and receiving
frequency range 868.0 – 868.6 MHz
Radiation undirected
Approvals Europe EN 300 220 / CE
1) Do not use rechargeable batteries.
Simplified EU Declaration of Conformity
CLAGE GmbH hereby declares that this device complies with Directive 2014/53/EU.
The complete text of the EU Declaration of Conformity is available at the following
internet address: www.clage.com/downloads.

DSX
12

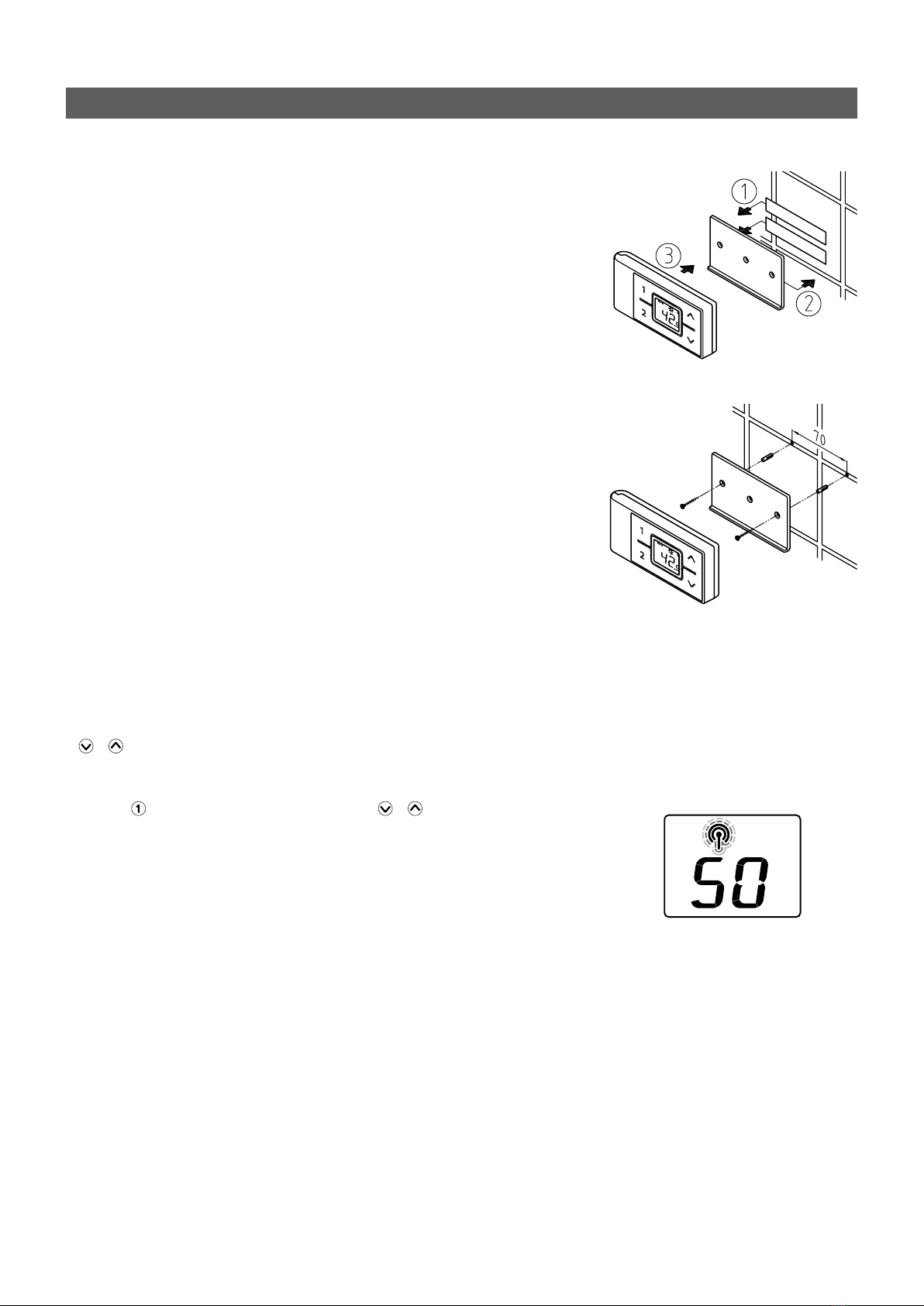

Mounting the wall bracket
• Before attaching the wall bracket to the wall, ensure that the remote control
has radio contact to the instantaneous water heater from its designated
position.
• The wall bracket of the remote control can either be attached securely with the
included adhesive tape, after stripping off the protection film (as shown in the
figure A), on a rigid board (e.g. tile) or with suitable dowels (Ø 4 mm) and screws
(as shown in the figure B).
• When using the adhesive tape it is not possible to further adjust the position
because of the strong adherence of the glue. Therefore, pay attention to a horizontal
alignment when attaching it.
• The remote control is magnetically retained at the wall bracket.
4. Remote control
Figure B:
Optional installation with dowels and screws
Figure A:
Installation with adhesive tape
Initial operation
After inserting the batteries in the remote control its display indicates all symbols for
about 4seconds. By the time the power settings have been carried out, the remote
control indicates the current setpoint (factory setting 38°C) and the state of the
appliance. In case of a failing radio contact, the display indicates “no” and a cyclical,
flashing radio symbol (see Troubleshooting).
Registration of remote control at the instant water heater
The remote control is registered as-delivered condition.
Only register again after performed work reset at the DSX or when the remote control
display continually indicates “no”.
1. Make sure that the power supply to the instantaneous water heater is switched on
(fuse).
2. Remove the batteries until the display expires. After inserting the batteries, the
display indicates all symbols for about 4seconds. During this time, press and hold
the arrow keys and for a short time. Then the display shows the current
channel (1to99) and a flashing radio symbol.
3. Using the arrow keys and chooses the desired channel. Press key to confirm
the selected channel number. The display changes to registration mode and shows
“--“as well as a flashing radio symbol.
4. Place the remote control directly in front of the instantaneous water heater.
5. The display switches to the setpoint value display.
Note: For initial installation we basically recommend to change the radio channel.
In the case of an unsuccessful registration the display indicates “no” by a flashing radio
signal after 45seconds. The remote control quits the registration process and switches
to standby mode. By pressing a key the registration process will be repeated.
Notes:
• With no remote control registered or without working radio connection,
the instantaneous water heater heats to the prior selected set temperature.
• For the professional: After a reset at the water heater (refer to installing instructions,
chapter “Reinstallation”) a registration is required!

13
CLAGE
4. Remote control
Safety notes
• At malfunction of the remote control remove the batteries immediately.
• Do not expose the remote control to moisture.
• Flat batteries can leak and damage the remote control. Hence, replace flat batteries
right away as soon as battery symbol lights up in the display or the remote control
does not response after keystroke.
• When the remote control is not to be used in the long term, remove the batteries.
• After a keystroke the remote control refreshes every 10 seconds when water is
flowing. When the water flow stops the remote control refreshes again 3 more
times.
• Without working radio connection, the appliance heats to the prior selected set
value.
Battery replacement
Replace the batteries with new AAA-batteries when the battery symbol flashes up.
• Do not use rechargeable batteries!
• Non-rechargeable batteries are not to be recharged.
• Different types of batteries or new and used batteries are not to be mixed.
• When replacing the batteries, observe the correct polarity.
Disposal
Batteries may contain environmentally hazardous substances. Therefore, used batteries
must be disposed of at special collecting points and not be mixed with general
household waste.
At the end of the remote control’s lifetime, the batteries must be disposed of separate
from the appliance.
Select preset temperature
A1 A2
B1 B2
Store temperature
2
Press
≥ 3 sec
Display of new value (e.g. 43 °C)
Set required
temperature
(e.g. 43 °C)
4 3
1
FX programme buttons
The two programme buttons allow to quickly select the preset temperature. When
pressing a programme key, the preset temperature is selected and displayed.
The factory setting for programme
is 35 °C and for programme it is 48 °C. You can assign your own settings for the
programme keys:
• Prolonged pressing of the programme key stores the previously selected
temperature. The display changes from ”P1” or “P2“ to the newly stored temperature
value. This newly set temperature is now available to you each time you press the
corresponding program key.

DSX
14
DSX SERVOTRONIC MPS®

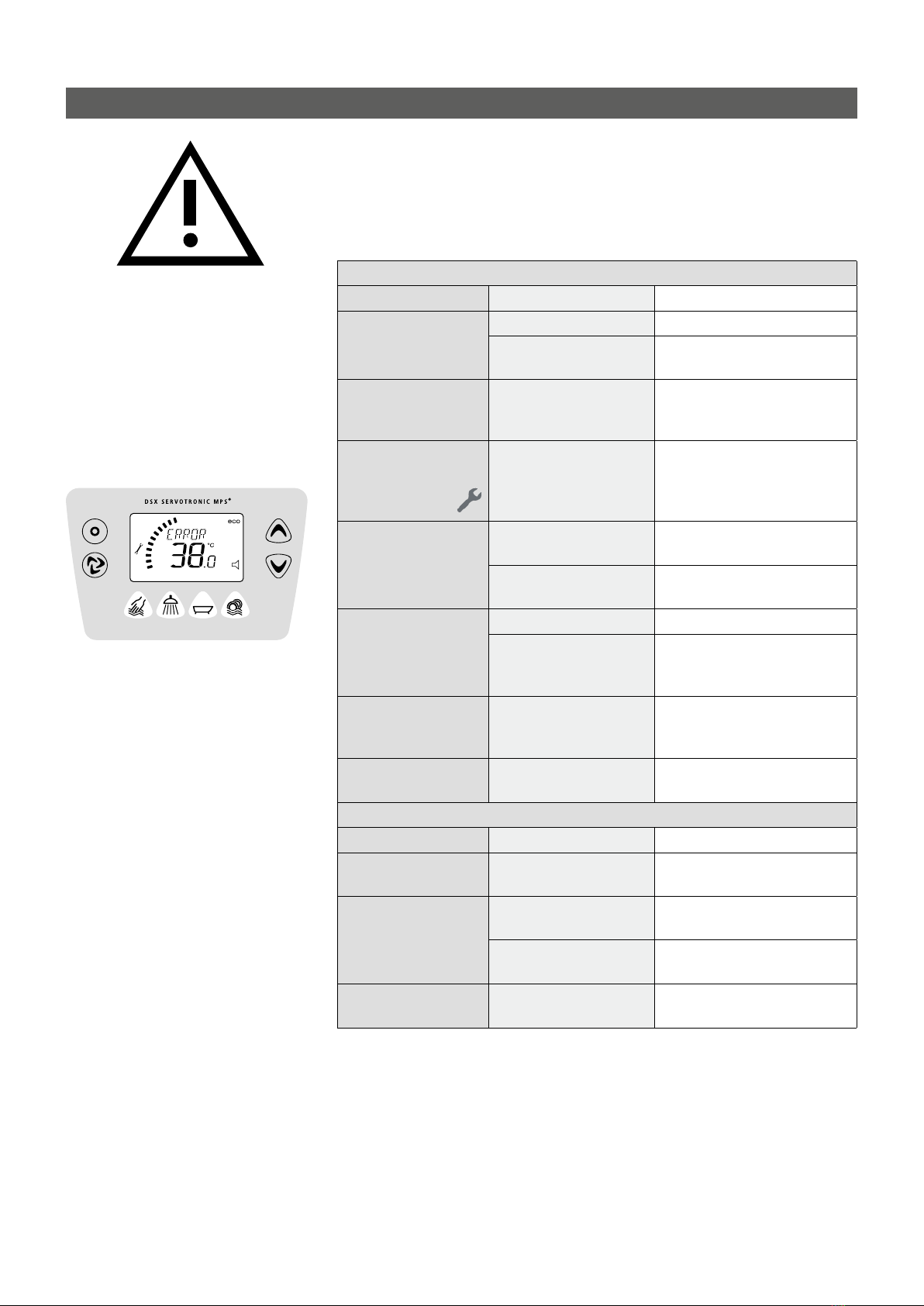

Problem Cause Solution
Water stays cold,
digital display does
not light up
Master fuse tripped Renew or activate fuse
Safety pressure cut-out
tripped Contact customer service
Water stays cold,
digital display does
light up
Safety thermal cut-out
tripped Contact customer service
Display shows error
symbol “wrench”
Control system has
switched off
Switch fuses off and on. If
symbol “screwdriver” is still
indicated, contact customer
service
Flow rate of hot
water too weak
Outlet fitting dirty or
calcified
Clean shower head, jet
regulator or sieves
Fine filter dirty or
calcified
Let clean fine filter by customer
service
Selected temperature
is not reached
Water flow rate too high (Re)activate motor-driven valve
Cold water has been
added via the tap
Tap hot water only; set
temperature, check outlet
temperature
Display:“
inlet TEMP
TOO HIGH ”
Inlet temperature
exceeding nominal
temperature
Reduce inlet temperature
No response upon key
press on device
Hood is not fitted
properly
Let refit the hood properly by
customer service
FX remote control
Problem Cause Solution
Symbol “battery“ lights Flat batteries Insert two new type AAA
batteries in the remote control
Display:“no” and
appliance does not
response to the remote
control
Transmission range
exceeded
Place the remote control closer
to the appliance, press key
Disturbance through
other radio emitters
Repeat login with different
radio channel
Display:“--“ and
radio symbol flashes Registration in process Hold the remote control in front
of the water heater
5. Trouble-shooting and service
CLAGE GmbH
After-Sales Service
Pirolweg 1 – 5
21337 Lüneburg
Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
This instantaneous water heater was manufactured conscientiously and checked
several times before delivery. Should malfunctions nevertheless occur, it is usually only
due to a bagatelle. First attempt to switch the house fuses off and on again in order to
reset the electronics. Next, try to remedy the problem with reference to the following
table. In doing so, you will avoid unnecessary expense of customer service assistance.
Repairs must only be carried out by
authorised professionals.
If a fault in your appliance cannot be
rectified with the aid of this table,
please contact the service organisation
of your importer or the Central
Customer Service Department. Please
have the details of the typeplate at
hand.
Al-Zamil Co. for Industry,
Trade and Transport
2973 Imam Abdullah Bin Saud Bin Abdul
Aziz Road Unit No.6
Riyadh 13217
P.O.BOX: 41397
Kingdom of Saudi Arabia
Phone: [phone]
Fax: [phone]
Email: [email protected]om
www.zamilco.com Nebraska Trading
Mr. Jalal Jaffer
Block 704 Building
2333 Road 439
Salmabad, Block No. 704
Manama – Bahrain
Phone: [phone]
Email: [e-mail]
EHAB CENTER FOR
IMPORT AND EXPORT
162 Omar Lotfy st
Sporting
21648 Alexandria
Arab republic of Egypt.
Call us: 01277779272
15421

CLAGE
14
DSX SERVOTRONIC MPS®





















WRENCH



















inlet TEMP ” :
 “ TOO HIGH











FX 

"battery" 
()

AAA 


“no” :








 ”--” :




 .5











162


01277779272
15421



13217
41397

[phone] 
[phone] 
[email protected]om
www.zamilco.com


704
4392333





CLAGE GmbH

Pirolweg 1 – 5
21337 Lüneburg

[phone] 
[phone] 
[email protected] 



DSX
13
.4

•
•
•


•
•10

•


 AAA
•
•
•
•





A1 A2
B1 B2

2

≥ 3
) 43 


( 43 )
4 3
1
FX



48 35

•
P2P1


CLAGE
12



•

4
•

•
4
:

: 


4
38
no



DSX
no
1
2
 4
991

3   
--

4
5

no
45


•

•


DSX
11
3


4


FX

 3

AAA  (1

IP 20

 10

 1

 868.0 – 868.6


EN 300 220 / CE 
 (1


  

1
2

3

4

510
•

•




.EU/2014/53

.

CLAGE
10
3

  


  
 
 TEMP PROTECTION ENABLED 


  
 TEMP PROTECTION OFF 



•0010 
00


1
! 

3
2

+

≥ 3
1 2



3

1+



2

≥ 3
Power limit
DSX



70
INLET 
  TEMP TOO HIGH







DSX
9


 
 



ClockCLAGE
Status MonitorEnergy
Setup



(Energy last tapping

( Costs last tapping

( Water last tapping

( Total energy

( Total costs

( Total water


3
Menu item order of
“Energy Efficiency Monitor“:
CLAGE (CLOCK)
POWER
FLOW
TEMP IN
TEMP
OUT
COSTS PER HOUR
ENERGY LAST TAPPING
COSTS LAST TAPPING
WATER VOLUME LAST TAPPING
TOTAL ENERGY
TOTAL COSTS
TOTAL WATER VOLUME
