Clarity Bengal SN-6010-720 User manual

Bengal
SN-6010-720
User Guide

i
SN-6010-720
Bengal
60" Video Display Unit
User Guide
070-0147-01
19 October 2004

ii
© by Clarity Visual Systems™, Inc.
All Rights Reserved.
Contents of this publication may not be reproduced in any form without permission of
Trademark Credits
Windows™ is a trademark of Microsoft Corp.
Clarity's Big Picture™ is a trademark of
DLP™ and DMD™ are trademarks of Texas Instruments, Inc.
All other names are trademarks or registered trademarks of their respective companies.
Disclaimer:
The information contained in this document is subject to change without notice.
Company makes no warranty of any kind with regard to this material. While every precaution has been taken in
the preparation of this manual, shall not be liable for errors or omissions contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
LIMITED WARRANTY.Clarity warrants to Buyer that the SN-6010-720 (the “Product”), if properly used
and serviced, will perform substantially in accordance with the product data sheet and users manual, and will be

iii
free from defects in material and workmanship for one year following date of shipment. This warranty does not
apply to air filters and other consumable parts.
If any Product fails to conform to the written warranty, Clarity's exclusive liability and Buyer's exclusive rem-
edy will be, at Clarity's option, to repair, replace or credit Buyer's account with an amount equal to the price paid
for any such defective Product returned by Buyer during the warranty period, provided that: (a) Buyer promptly
notifies Clarity in writing that such Product failed to conform, furnishes an explanation of any alleged deficiency
and obtains from Clarity a return authorization; and (b) Clarity is satisfied that claimed deficiencies actually
exist and were not caused by accident, misuse, neglect, alteration, improper installation, repair or improper test-
ing. Clarity will have a reasonable time to make repairs, to replace Products or to credit Buyer's account.
LIMITATIONS. Any written warranty offered by Clarity is in lieu of all other warranties, express or implied.
Clarity neither assumes nor authorizes any other person to assume any other liabilities in connection with the
sales or use of any product without limitation. Clarity disclaims all other warranties, express or implied, includ-
ing any warranty of merchantability or fitness for a particular purpose.
In no event will Clarity be liable to buyer or any other party for procurement costs, loss of profits, loss of use,
or for any other incidental, consequential, indirect or special damages or for contribution or indemnity claims,
however caused. Clarity's liability shall be limited to actual direct damages not in excess of the amounts paid to
clarity by buyer for the product. These limitations will apply to all claims, including, without limitation, war-
ranty, contract, indemnity, tort (including negligence), strict liability or otherwise.

iv

Feedback About Manuals
, is constantly striving to provide the best product available at a reasonable cost. Part of this Clarity prod-
uct is the manual. If you have found an error in this manual, or if you would like to make any comments
about it, you may use this form.
This form is used with the
BENGAL USER GUIDE, PART NUMBER 070-0147-01 DATED 19 OCTOBER 2004
You may fax this form to , Attention: Manuals at .
Or you may email comments and corrections to . If you use email, please mention the 070- part number
listed above.
What I like about this manual: (We love to read this part.)
What I don’t like about this manual: (We read this part, too.)
Error(s) I found in the manual: (Yipes! We thought we were perfect.)
In future manuals of this type, I wish you would …
Thank you for taking the time to help us improve.

vii
Contents
1Introduction…1
1.1 About the Bengal … 2
1.2 Accessories for Bengal … 4
1.3 Using the Remote Control … 6
1.4 Your Safety is Important … 8
2Installation…11
2.1 What You Will Do … 12
2.2 Unpacking the Bengal … 14
2.3 Installing the Bengal … 16
2.4 Connecting Source Cables … 18
2.5 Connecting RS232/RS485 Cables … 20
3Adjusting…21
3.1 Aligning the Image … 22
3.2 Adjusting Bengal To Its Source … 26
3.2.1 Adjusting to Computer Sources … 28
3.2.2 Adjusting Frequency and Phase … 30
3.2.3 Adjusting to Computer Sources, Digital … 32
3.2.4 Adjusting to Video Sources … 34
3.3 What Does Colorspace Mean? … 36
3.4 Color Balancing Bengal … 38
3.5 Scaling and Cropping … 40

viii
3.6 Saving Your Work and Recalling a Memory … 42
4Operating…45
4.1 Normal Start Up … 46
4.2 Reading the Alpha Numeric Display … 48
4.3 Controlling Bengal with Remote … 50
4.4 Controlling Bengal with RS232/RS485 … 52
5 Maintenance … 55
5.1 Changing a Lamp … 56
5.2 Changing the Air Filter … 58
5.3 Cleaning the Screen … 60
6 Reference Section … 61
6.1 Remote Control Functions … 62
6.5 Connector Wiring … 98
6.7 Meaning of Terms … 104
Index … 113

1
1Introduction
1.1 About the Bengal … 2
1.2 Accessories for Bengal … 4
1.3 Using the Remote Control … 6
1.4 Your Safety is Important … 8

2
1.1 About the Bengal
The Clarity Bengal is a 61" rear-projection display in a native 16x9 format, designed to outperform large
format plasma displays. It combines ultra-thin (6.5" deep) rear projection, DLP technology and rugged
reliable design for outstanding performance in digital signage applications.
Scale
Bengal will up sample resolutions up to a resolu-
tion of 1280 x 720 (720p), and will downsample reso-
lutions up to 1600 x 1200.
Video inputs
A standard 15-pin VGA connector accepts com-
puter pictures up to 1600 X 1200. It also accepts
video RGB with separate H&V Sync, composite sync
and sync on green.
A DVI connector accepts computer images as well
as Digital Video.
An S-Video input is available using a standard 4-
pin Din connector.
A component video input is available as Y, Pb, Pr
on three RCA connectors color coded green, blue and
red.
A composite video input is available on a yellow
RCA connector.
Audio
There are three stereo audio inputs using RCA
connectors. There is an output connection for exter-
nal stereo speakers as well as a line out to be used as
an input to an external stereo amplifier.
Communication
Communicating with the Bengal will be done via
an RJ45 RS232 input or an RJ45 RS485 input. Loop
through from either source will be via an RJ45 RS485
output.
Display Technology
The display technology is single chip DLP.
Service
The Bengal is completely serviceable from the
front. All parts replacement should be performed at
the module level by a qualified service technician.
Lamp life
Median lamp life is rated at 4000 hours. This
means that of a large sample of lamps, at the end of
4000 hours, half of the lamps will still be lit. The
remaining half could have failed at any time prior and
the surviving half could perform well for several thou-
sand hours more. See 5.1 “Changing a Lamp” on
page 56 for more information on when to change a
lamp.

3

4

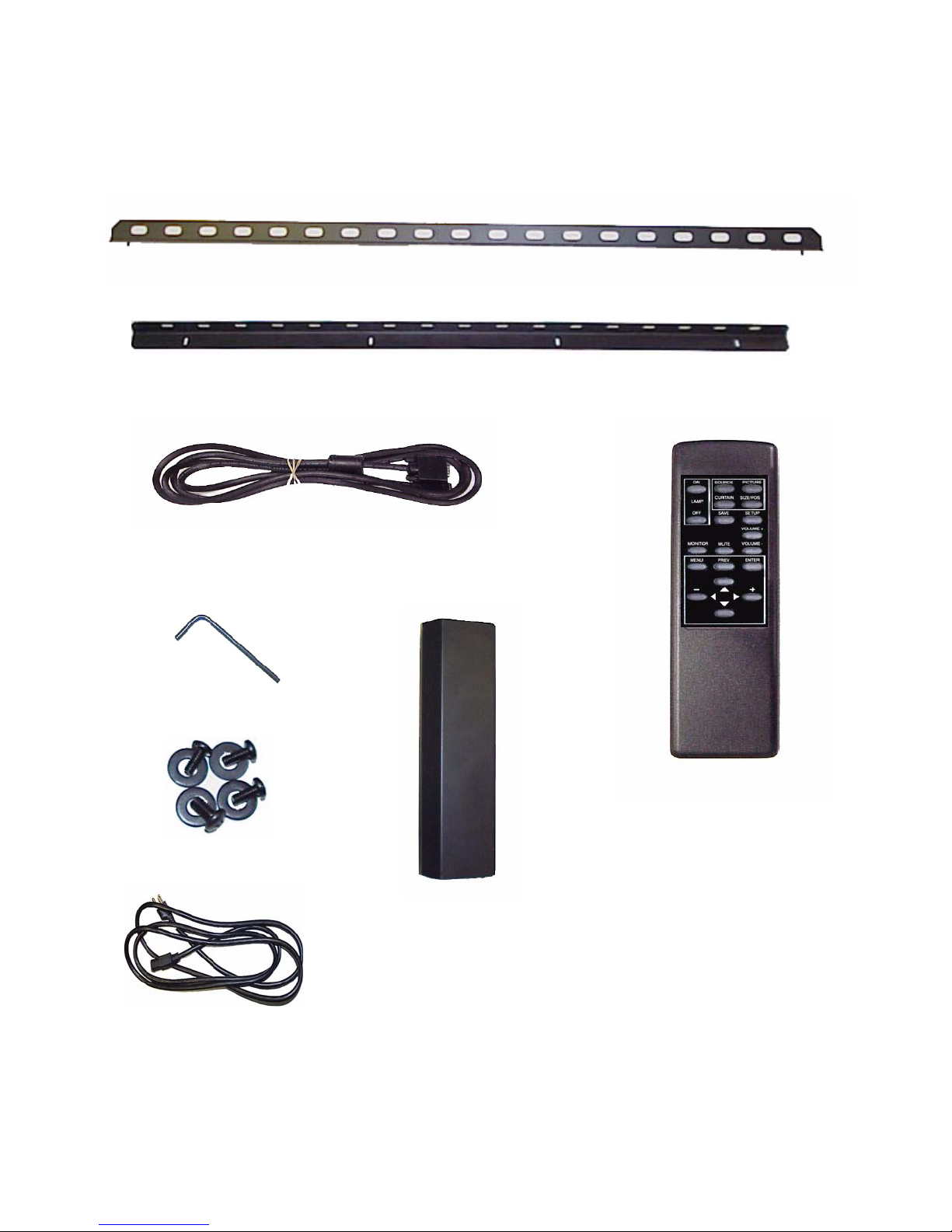

1.2 Accessories for Bengal
The accessory kit for the Bengal contains the following items.
Each Bengal comes with (quantity)
•ACpowercable(1)
• VGA cable (1)DB9F to RJ45 Adapter (1)
• 8-32x3/8 Pan Head Phillips #2 screw (4)
• Wall Mounting Bar (1)
• Lower Retaining Bracket(1)
• Remote Control with batteries(1)
• Quick Start Card
•T25L-KeyTorxWrench
• R e m o v a b l e I / O c o v e r
Customer furnished parts
If you will be controlling the Bengal via RS232 or
RS485, you will need CAT-5 cables with straight
through wiring and RJ45 connectors on each end.
International customers will need to furnish their
own power cables that conform to their country’s
standard.

5
Power Cable
Remote Control
T-25 L-Key Torx Wrench
VGA Cable
Lower Retaining Bracket
Wall Mounting Bracket
Removable I/O Cover
8-32x3/8 pan head screws

6
1.3 Using the Remote Control
Most original setup operations are performed with the remote control. Later, RS232 control may be
used.

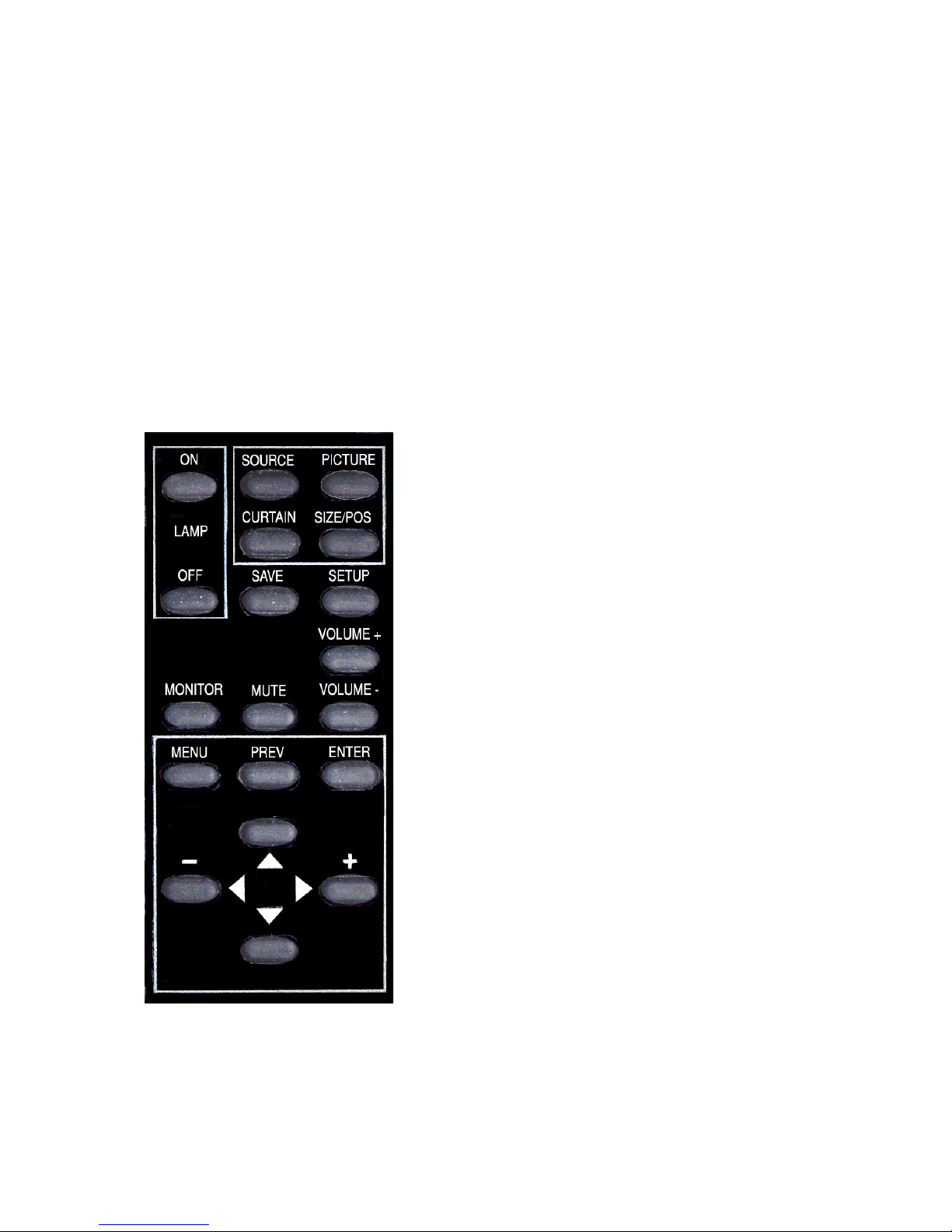

The remote control, shown below, lets you control
the Bengal and get it setup and adjusted initially.
For a complete description of remote control func-
tions. See 6.1 “Remote Control Functions” on
page 62.

7

8
1.4 Your Safety is Important
The Bengal produces UV (ultra-violet) radiation (internally), and some parts are very hot. For your con-
tinued health and safety we strongly suggest you read this section carefully.
The fully assembled display weighs about 106 lb.
(48.08kg). When unpacking and installing the Ben-
gal, you will need two people to handle it.
WARNING
The lamp gets very hot. Allow it to cool fo 15
minutes before removing it.
WARNING
The lamp produces lots of light and UV radia-
tion (ultra-violet) as well. UV light can damage
your retinas. After the light leaves the lamp
and passes through the DLP optical engine,
there is no significant UV, although the light
will be very bright.
WARNING
There is no electrical interlock on the screen.
Removing the screen does not turn off the
high voltage to the lamp.
WARNING
Possible UV exposure. Use protective eye
wear while operating with viewing screen
removed.
CAUTION
There are no user serviceable parts inside.
Refer all repair and maintenance to a qualified
service technician.
WARNING
There are protective electrical interlocks
behind the left and right access panels.
Removing the access panels will cause the
lamp to turn off. Defeating these interlocks will
risk exposure to UV.
Static electricity can damage sensitive electronic com-
ponents.
• Always use a grounding strap when handling the
electronics module or the optical engine if there
are exposed components.
• When shipping these parts, do not use styrofoam
“peanuts.” These carry static electricity and can
damage the parts. Use an anti-static bag, or, if
that is not available, wrap the electronics module
in aluminum foil.

9

10
