Clarke X-PRO CAT167 Installation and operation manual

OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0417
SABRE SAW
MODEL NO: CAT167
PART NO: 3120181

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Sabre Saw, suitable for cutting metal,
wood, polymers and other materials.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Please keep these instructions for future reference.
SAFETY SYMBOLS
Please read all of the safety and operating instructions carefully before using
this product. The following safety symbols are to be found on the machine.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
Read this instruction
booklet carefully
before use.
Wear ear protection
Wear eye protection

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
GENERAL SAFETY RULES
WORK ENVIRONMENT
1. Keep the work area clean and tidy.
2. Dress appropriately: - do not wear loose clothing or jewellery. Tie long hair
out of the way.
3. Keep children and visitors away - do not let children handle the drill.
4. Do not operate the saw where there are flammable liquids or gases.
5. Stay alert and use common sense - do not operate the saw when you are
tired or under the influence of alcohol, drugs or medication.
6. Always wear eye protectors when using the saw - Eye protection must
provide protection from flying particles from the front and the side.
7. Always wear ear protectors and face mask when using the saw.
8. Do not overreach - Keep proper footing and balance at all times.
USE OF AIR POWERED TOOLS
1. Never use any type of bottled gas as a source of power for an air tool.
2. Do not connect the air supply hose with your finger on the trigger.
3. Do not exceed the maximum pressure for the saw 90 psi / 6.2 bar.
4. Check hoses for leaks or worn condition before use and ensure that all
connections are secure.
5. Keep the air supply hose away from heat, oil and sharp edges.
6. Do not use this saw for any other purpose than that described in this
manual.
7. Do not fit this saw to any stand or clamping device that may damage it.
8. Do not carry out any alterations or modifications to this saw.
9. Always disconnect from the air supply when:
• Performing any maintenance
• The saw is not in use.
• The saw will be left unattended.
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
• Moving to another work area.
• Passing the saw to another person.
10. Never use the saw if it is defective or operating abnormally.
11. Always ensure the saw has stopped before putting it down.
12. The saw should be repaired if required by qualified service personnel.
13. Avoid damaging the saw for example by applying excessive force.
14. ALWAYS maintain the saw with care. Keep it clean for the best and safest
performance.
15. Quick change couplings should not be located at the air tool. They add
weight and could fail due to vibration.
16. Do not force or misuse the saw. It will do a better and safer job at the rate
for which it was designed.
17. Do not remove any labels. Damaged labels should be replaced.
18. This saw vibrates with use. Vibration may be harmful to your hands or arms.
Stop using the saw if discomfort, a tingling feeling or pain occurs. Seek
medical advice before resuming use.
19. Never carry the saw by the air hose.
20. Never carry the saw with your finger on the trigger.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PRODUCT DESCRIPTION
The CAT167 sabre saw is a compact and ergonomic tool with rubber
protective grip. It features adjustable work guide to set cut depths. The blade
holder design makes the saw blade installation and replacement fast and
easy. The intended use includes cutting mild steel sheet at auto body shops,
garages and other workshops. It also suitable for cutting reinforced fiberglass,
aluminum, wood, etc.

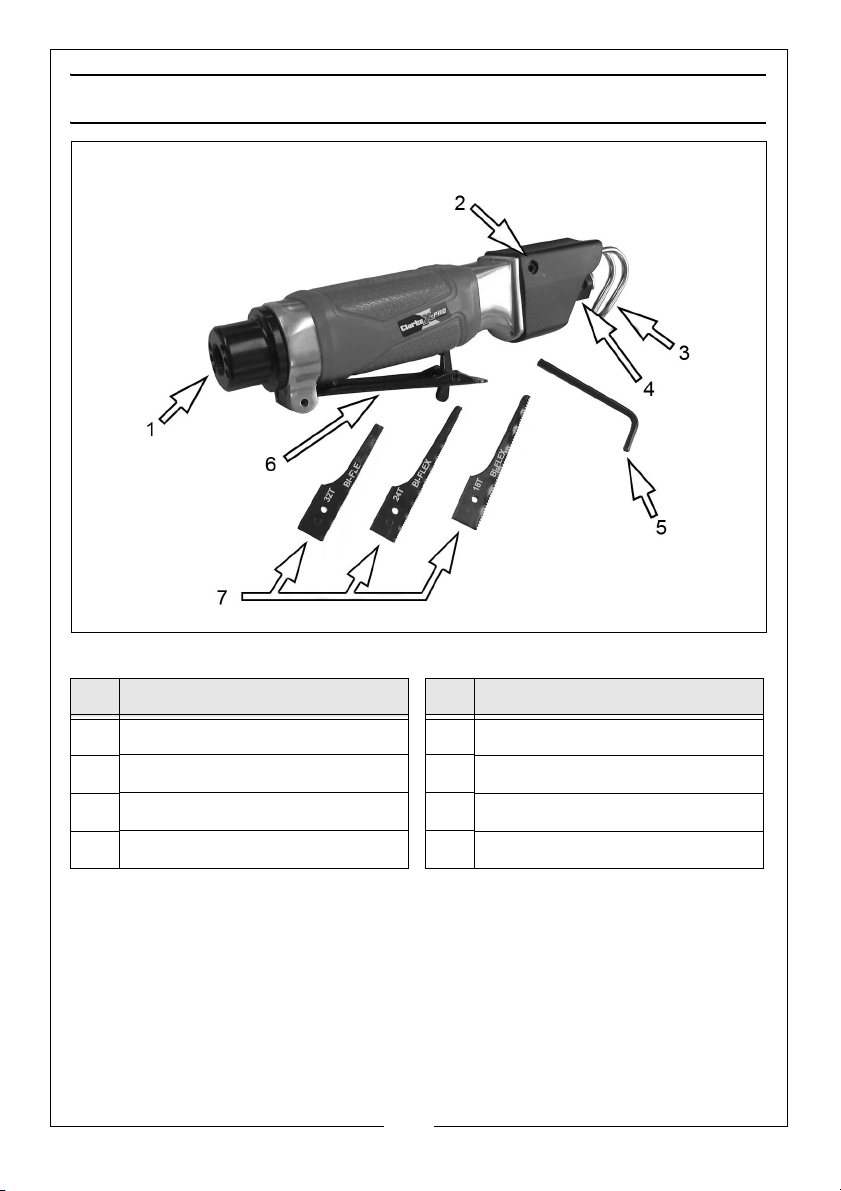

NO DESCRIPTION NO DESCRIPTION
1 Air Inlet 5 Allen Key
2 Adjusting Setscrew 6 Safety Trigger
3 Work Guide 7 3 x Saw Blades (18,24,32 tpi)
4 Blade Holder

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPRESSED AIR REQUIREMENTS
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors used with the tool must comply with the appropriate
European Community Safety Directives.
• A build-up of moisture or oil in the air compressor will accelerate
wear and corrosion in the tool. Ensure any moisture is drained from
the compressor daily and the inlet filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), the line
pressure or the hose inside diameter may need to be increased.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.
• A typical air line layout is shown above. If an automatic in-line filter/
regulator is used, it will keep the air tool in good condition, but
should be regularly checked and topped up with oil. SAE 10 oil
should be used and the lubricator adjusted to approx 2 drops per
minute.
• The minimum hose diameter should be 5/16”(8mm) ID and fittings
should have the same internal dimensions.
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND A COMPRESSED AIR SUPPLY.

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
• Never exceed the maximum operating pressure for the air tool. It is
recommended that air pressure to this tool does not exceed 90 psi
(6.2 bar) at the tool when running. Higher pressures and unclean air
will shorten the life of the tool due to faster wear and is a possible
safety hazard.
BEFORE USE

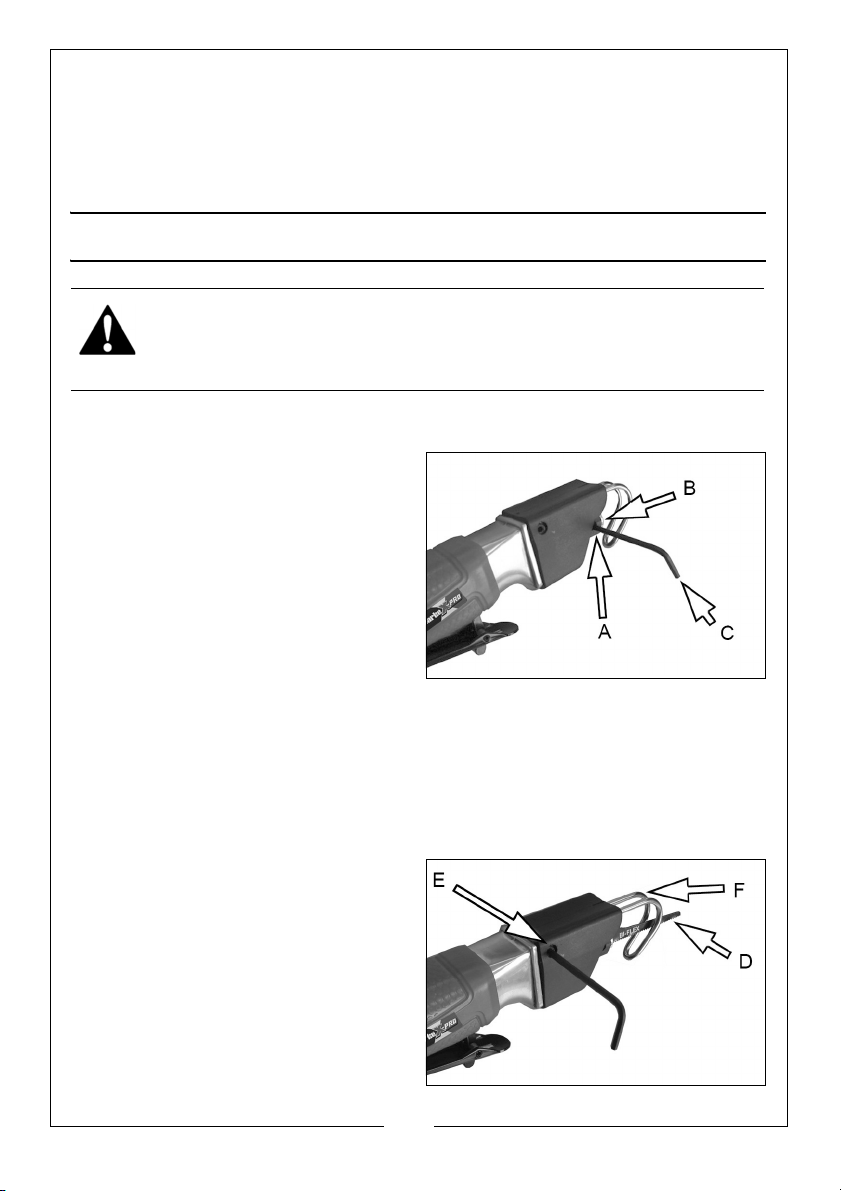

FITTING/REPLACING THE BLADE
1. Loosen the set screw (A) on the
blade holder (B) with the hex key
(C) provided, by turning
counterclockwise.
2. Identify the material and then
select the correct blade for your
operation.
3. Always use the correct saw blade
for the material for smooth and
fast cutting.
• It is recommended that operators use 32T blades for cutting light
sheet metal, body panels, exhaust pipes, etc., use 24T blades for
general purpose sawing including aluminum and other soft
materials, and use 18T blades for cutting plastic, reinforced
fiberglass, wood, etc.
4. Insert a saw blade (D) into the blade holder as far as it will go.
5. Tighten the set screw (A) with the
hex key by turning clockwise.
Ensure the saw blade is held tightly
to avoid it coming loose.
6. Loosen the setscrew (E) and adjust
the position of the work guide (F)
according to the depth of cut
required.
WARNING: MAKE SURE THAT THE SAW IS DISCONNECTED FROM THE AIR
SUPPLY BEFORE INSTALLING, REMOVING OR REPLACING THE BLADE.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

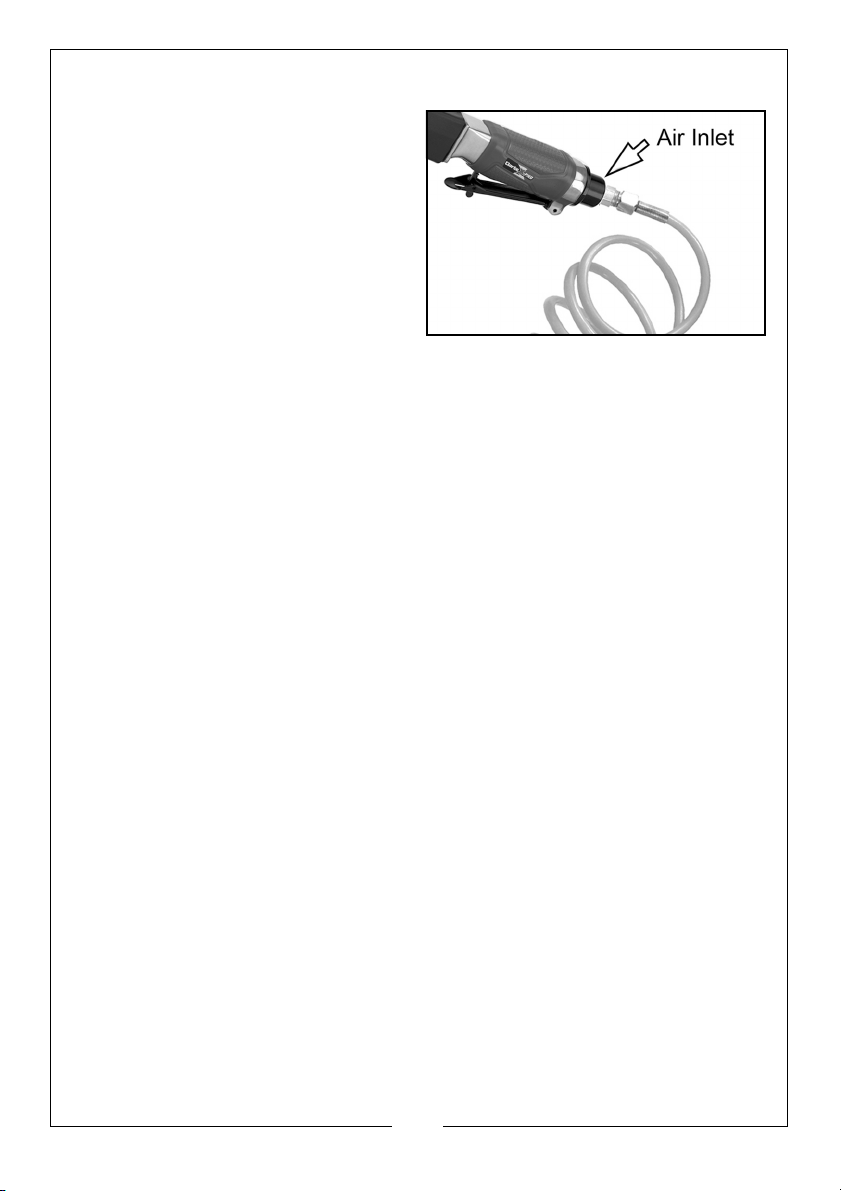

CONNECTING THE AIR LINE
1. Remove the protective plug from
the air inlet and connect a suitable
hose as shown.
2. A gauze filter is fitted within the air
inlet. Ensure this is always in place
and is kept clean. The air line is
connected to the adapter,
preferably via a quick release
coupling (not supplied).
3. Connect the other end of the hose
to the compressed air supply.
4. Ensure the trigger is NOT depressed when connecting the air line.
5. Turn on the air supply and check for air leaks. Rectify any found before
proceeding.
• PTFE tape may be useful for sealing threaded connections.
6. If required, connect an in-line mini oiler to the airline close to the air tool.
• A mini oiler helps to prolong the life of any air tool.
7. If a mini-oiler is not being used, run a few drops of oil through the air tool
before use. It can be entered through the airline inlet or via the hose at the
nearest connection to the air supply.
• Your sabre saw is now ready for use
• You can fit a whip hose with a quick fit coupling if required
(available from your Clarke dealer.)
USEFUL AIRLINE ITEMS FROM THE CLARKE RANGE
CAT150 Mini-Oiler:- Part No 3120164
8mm Rubber Whip Hose:-Part No 3120104
CAT58 6mm Recoil Hose with 1/4”bsp connectors (25 feet):-Part No 3110458
CAT59 6mm Recoil Hose with 1/4”bsp connectors (50 feet):-Part No 3110459
CRH9 9metres professional recoil hose:-Part No 3120100
CAR20PC Manual Air Hose Reel:-Part No 3126250
CAR15PC PVC hose in moulded case with auto re-wind:-Part No 3126000
See the latest catalogue for details of snap couplings & pressure gauges

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATION

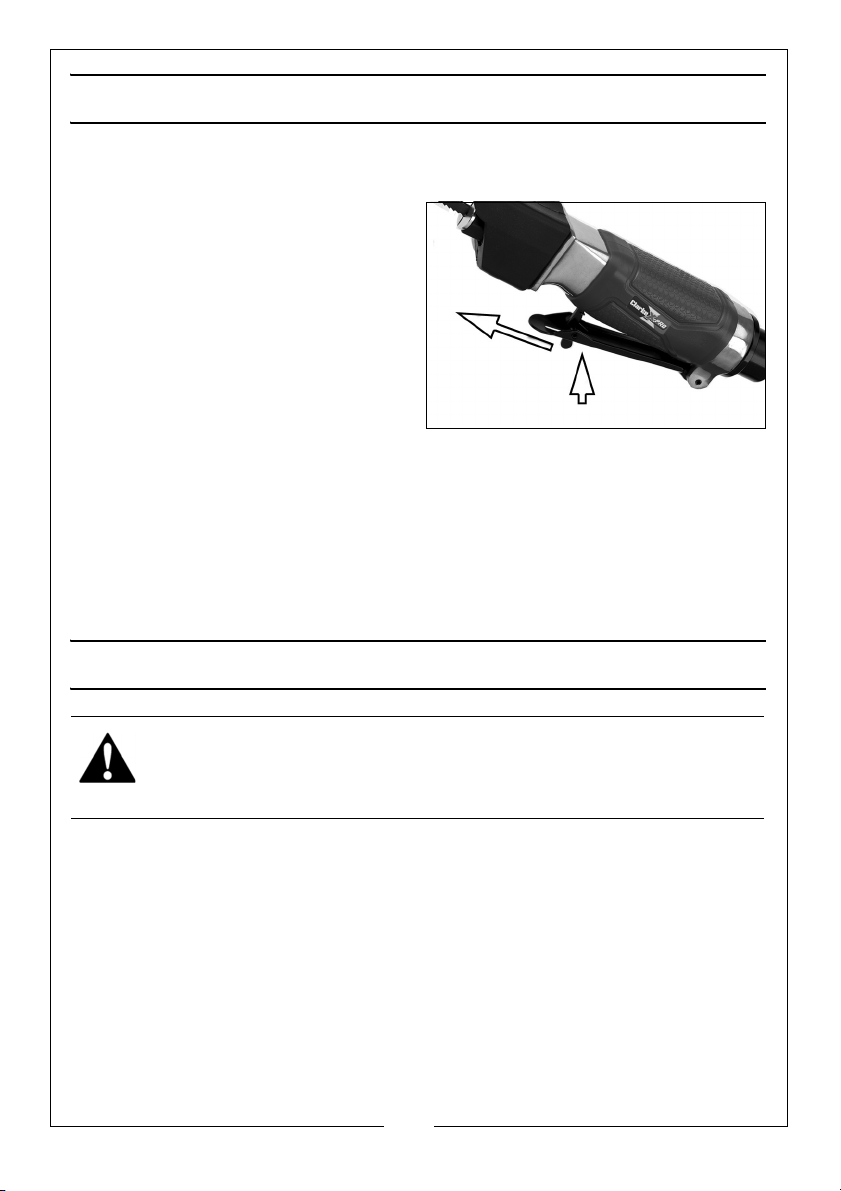

OPERATING THE SAW
1. Adjust the work guide as required
as shown on page 7.
2. Slide the safety lock forward and
squeeze the trigger. Allow the saw
to reach full speed before use.
3. Release the trigger to stop the
saw. When the blade has stopped
remove it from the workpiece.
DISCONNECTING THE AIR SUPPLY
1. Do not disconnect the air supply hose until the air supply has been shut
down and the compressed air released from the hose.
• Refer to the compressor instruction manual for the procedure to shut
down and release the compressed air.
• Once the pressure has been released, disconnect the air supply
hose from the saw.
MAINTENANCE
Please note that factors other than the tools condition may effect its operation
and efficiency, such as reduced compressor output, excessive drain on the
airline, moisture or restrictions in the air-line, or the use of connector
DAILY
1. Before use, drain water from the air-line and compressor.
2. Lubricate the saw daily for optimum performance. Use a high quality airline
oil either via a lubricator in the air supply system or by placing a few drops
into the air inlet immediately before use. This should be carried out
regardless of whether or not an in-line lubricator is used.
WARNING: MAKE SURE THAT THE SAW IS DISCONNECTED FROM THE AIR
SUPPLY BEFORE STARTING ANY CLEANING OR MAINTENANCE
PROCEDURES.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CLEANING & OVERHAUL
1. Keep the saw clean and free from debris.
2. If the saw becomes sluggish and the air supply is of good quality, it may be
necessary to replace worn or damaged parts.
3. Grit or gum deposits in the mechanism may eventually reduce efficiency.
This condition can be corrected by cleaning the air inlet filter and flushing
out the saw with gum solvent oil or an equal mixture of SAE No10 oil and
paraffin.
4. Failing this, the saw should be disassembled, thoroughly cleaned, dried
and reassembled. You may prefer to take the saw to your CLARKE dealer if
internal maintenance is required.
STORAGE
If the saw is to be stored or is idle for longer than 24 hours, run a few drops of
Clarke air-line oil into the air inlet and depress the trigger in order to lubricate
the internal parts.
When not in use, the saw should be disconnected from the air supply and
stored in a dry place out of the reach of children. Avoid storing in a damp
environment.
ACCESSORIES
A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.
Contact your CLARKE dealer for further information or CLARKE International
Service Department on 01992 565333.
Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer
Replacement blades are available as follows:
3-Pack 18tpi - Part no: 3120184
3-Pack 24tpi - Part no: 3120185
3-Pack 32tpi - Part no: 3120186

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLESHOOTING
SYMPTOM PROBLEM SOLUTION
Tool runs at normal
speed but slows down
under any load.
1. Excessive pressure on
drill.
2. Motor parts worn.
3. Worn or sticking
mechanism due to
lack of lubricant.
1. Reduce the force
applied to the drill.
2. Return to Clarke dealer
for repair.
3. Drip air tool lubricating
oil into air inlet. Allow oil
to soak moving parts
before using.
Tool runs slowly. Air flows
weakly from exhaust.
1. Motor parts jammed
with gum/dirt.
2. Regulator in closed
position.
3. General airflow
blocked by dirt.
1. Examine inlet air filter for
cleanliness.
2. Adjust regulator to open
position.
3. Operate tool in short
bursts.
Tool will not run. Air flows
freely from exhaust.
1. Motor vanes stuck
due to buildup of
foreign material.
1. Disconnect air supply
and rotate tool assembly
manually.
2. Try operating tool in
short bursts.
3. Tap motor housing gently
with a rubber mallet.
4. Drip a few drops of air
tool lubricating oil into air
inlet to soak moving
parts.
Tool will not shut off. 1. O-rings damaged or
ill-fitting in seat.
1. Return to Clarke dealer
for repair.

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPONENT PARTS
No Description No Description
1 Cylinder Head Assembly 20 Handle Body
2 Front Dowel Pin 21 Throttle Arbor
3 Bumper 22 Sliding Liner
4 Piston 23 Countersunk Screw
5 Gasket 24 Blade Holder
6 Cylinder 25 Set Screw
7 Muffler 26 Set Screw
8 Rear Dowel Pin 27 Protective Cover
9 Automatic valve 28 Work Guide
10 Valve Body 29 Front gasket
11 Valve Seat 30 3mm Hex Wrench
12 Throttle Valve Case 31 Safety Lever Assembly
13 O-Ring 32 Roll Pin
14 Valve Stem 33 Muffler
15 O-Ring 34 Air Filter
16 Spring 35 Set Screw
17 O-Ring 36 Saw Blade
18 Throttle Valve Cap 37 Protective Grip
19 O-Ring

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPECIFICATION
Please note that the details and specifications contained herein are correct
at the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice.
Model Numbers CAT167
Part Number 3120181
Recommended Hose Size (ID) 10 mm (3/8”)
Air Inlet Size 1/4“ BSP Female
Max Operating Pressure 90 psi (6.2 bar)
Air Consumption (Average) 6 cfm (169 l/min)
Air Consumption (Max) 13 cfm (368 l/min)
Max Speed 10000 rpm @ 90psi
Sound Pressure Level (LpA dB) 89 dB(A)
Sound Power Level (LwA dB) 100 dB(A)
Vibration Levels 13.9 m/s2
Vibration Uncertainty K: 1.5
Weight 0.54 kg
Blade Length 75 mm
No of Teeth 18/24/32 tpi

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY
