Clas Ohlson NE-8302-UK User manual

EnglishSvenskaNorskSuomiDeutsch
Bluetooth Speaker
Bluetooth-högtalare
Bluetooth-høyttaler
Bluetooth-kaiutin
Bluetooth-Lautsprecher
Art.no Model
18-2849, 18-2850 NE-8302-UK
38-5921, 38-5922 NE-8302 Ver. 20140313

2

3
English
Bluetooth Speaker
Art.no 18-2849, 18-2850 Model NE-8302-UK
38-5921, 38-5922 NE-8302
Please read theentire instruction manual before using theproduct and save it
for future reference. We reserve theright for any errors in text or images and any
necessary changes made to technical data. In theevent of technical problems or other
queries, please contact our customer services (see address details on theback).
Safety
• The speaker should not be taken apart or modified. Certain exposed parts inside
thespeaker casing carry dangerous current. Contact with these can lead to fire or
electric shock.
• Do not cover thespeaker. Adequate ventilation, with adistance of at least
5cm between the speaker and surrounding surfaces, are necessary to prevent
thespeaker from overheating.
• The speaker must only be connected to astandard domestic 100–240 V,
50/60Hz electrical supply.
• Make sure that thewall socket to which themains lead is connected is easily
accessible, since this is theonly way to completely disconnect thespeaker from
themains supply.
• Place thespeaker on astable, flat surface.
• Do not place thespeaker in anunstable position where there is arisk that it may
fall into water or other liquids. Donot place any objects containing liquids such as
vases, drinks, etc. onto theproduct .
• Do not place thespeaker near naked flames such as wood stoves, lit candles, etc.
• Locate thespeaker in anarea where there is no risk of anyone tripping over its
mainslead.
• This product is intended for indoor useonly.
• Never subject theproduct to high temperatures, dust, heavy vibrations, impacts,
humidity or moisture.
• Do not abuse themains lead. Neverunplug theproduct by pulling on its mains
lead. Alwaysgrip theplug itself. Makesure that themains lead does not come into
contact with heat, sharp edges or is any way crushed.
• Disconnect theplug from thewall socket during thunderstorms or if thespeaker is
not to be used for alongtime.
• The speaker’s standby switch does not completely disconnect it from themains.
Tocompletely disconnect thespeaker from themains, theplug must be removed
from thewall socket.
• Protect your hearing. Listening on high volume for prolonged periods can lead to
permanent hearing loss.
• Do not use thespeaker if it or its mains lead is damaged in anyway.
• The speaker must only be repaired by qualified service technicians.

4
English
2
3
1
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18
19
20
21
25
24
23
22
Buttons and functions
Speaker
1. IR receiver
2. [l◄◄ ] Skip to previous track on connected Bluetooth/NFC device
3. [ ] On/standby
4. NFC-connection
5. [Volume ]
6. [MODE] Function selector, Bluetooth or AUX (Line in)
7. [►►l] Skip to next track on connected Bluetooth/NFC device
8. [►ll] Play/pause
9. LED indicator for Bluetooth and AUX/Line in connections
10. USB charge port
11. Mainslead
12. Line in (AUX)
Remote control
13. [ ] On/standby
14. [MODE] Function selector, Bluetooth orAUX
15. [▲] Volume up
16. [l◄◄ ] Skip to previous track on connected
Bluetooth/NFC device
17. [▼] Volume down
18. [FLAT ] Equalizer setting
19. [BASS+] Bass setting
20. [BASS-] Bass setting
21. [MUTE] Volume on/off
22. [►ll] Play/pause
23. [►►l] Skip to next track on connected
Bluetooth/NFC device
24. [TREBLE+] Treble setting
25. [TREBLE-] Treble setting

5
English
Remote control battery
The remote control is supplied with abattery. Pleaseremove any protective strip from
thebattery’s terminal before using for thefirsttime.

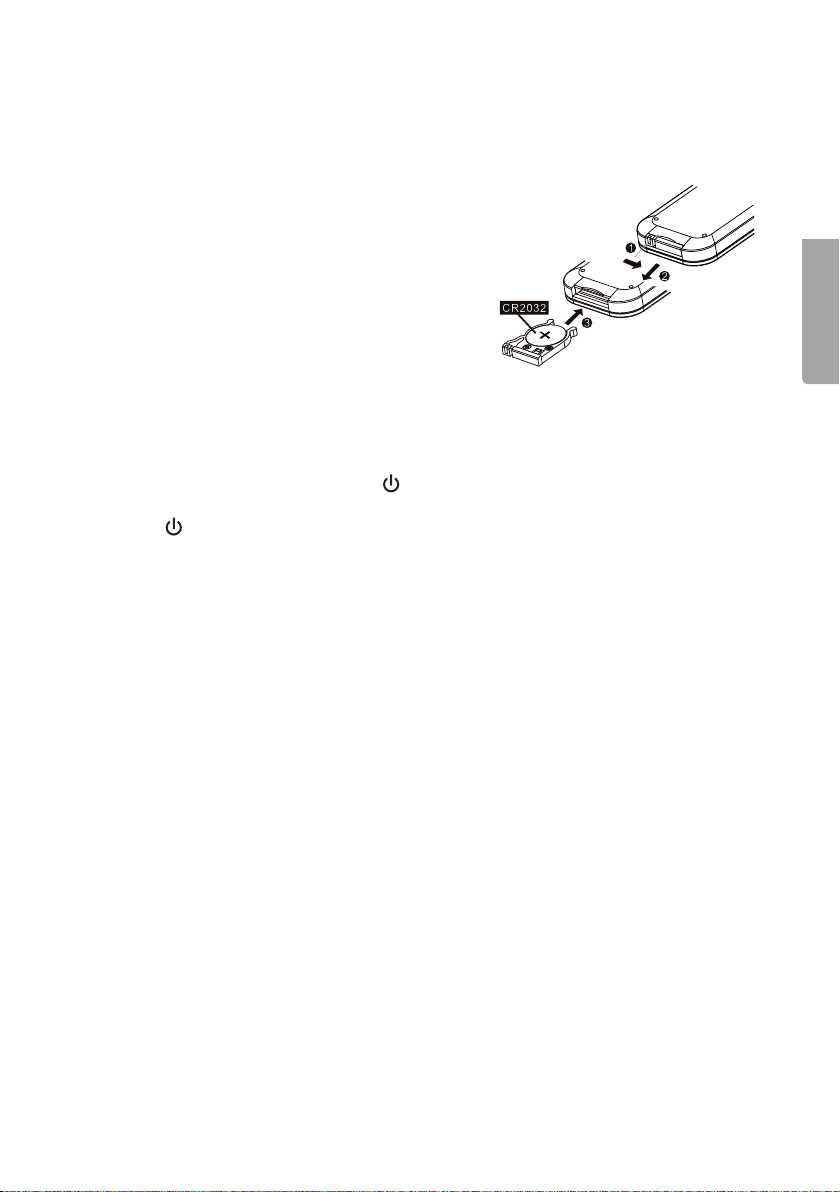

Changing thebattery
1. Press thebattery compartment’s catch to
theside and pull thebattery holder forwards
out of theremote control.
2. Insert anew battery (CR2032), ensuring that
the+ (positive) terminal on thebattery is facing
you as shown in theillustration.
3. Place thebattery holder holder back into
theremote control.
Operating instructions
Switch theBluetooth speaker on
1. Connect theplug to awall outlet. [ ] will shine asolid red while in standby mode.
2. Press [ ] on thespeaker or remote to turn thespeaker on. Thespeaker will turn
on either in Bluetooth or AUX mode, depending on themode that was last used.
Thespeaker will always start in BT mode if themains lead is disconnected from
thewall socket when started.
Function selection
Press the[MODE] button on thespeaker or theremote to select Bluetooth or
AUXmode. Theselected function will be displayed by theLED indicator (9).
Connecting adevice via Bluetooth
1. Switch thespeaker on.
2. Press [MODE] until theLED indicator (9) shows that Bluetooth has been activated.
Thespeaker will emit anaudio prompt and theLED indicator will begin flashing,
indicating that thespeaker is now ready for pairing with other Bluetooth devices.
3. Activate Bluetooth on thedevice to be paired with thespeaker.
4. The speaker will appear as “BTspeakerN” on your device, select this option to
connect your device to thespeaker. Referto theinstruction manual of your device
for further clarification. Note: Ifyou are prompted to enter aPIN code, enter 0000
(four noughts). Certain devices may even require theconnection to be approved.
5. The speaker will emit anaudible signal and theLED indicator will shine asteady
blue once contact has been established.
6. Playback is controlled either from thespeaker itself or theremote control.
7. Any newly connected devices will automatically connect to thespeaker thenext
time if they are on and within range (10 m) of thespeaker.

6
English
Connecting adevice using NFC (Near Field Communication)
Note: NFC can be used to connect to thespeaker in standby-, Bluetooth-mode or
when AUX mode is activated. Anypreviously selected function will automatically be
deactivated while thedevice is connected viaNFC.
1. Activate NFC on thedevice to be connected to thespeaker.
2. Place thepart of your device where theNFC antenna is situated (refer to your
device’s instruction manual if you are unsure) against thespeaker’s NFC detection
zone (4). Information on how to connect thespeaker will appear on your device.
Followthese instructions to connect.
3. The speaker will emit anaudio signal and theBluetooth LED will shine asolid blue
once thespeaker has been successfully connected.
Using theline-in jack for playback
1. Press [MODE] either on thespeaker or theremote until theLED indicator shows
that AUX is selected.
2. Connect thedevice to the3.5 mm line-in jack (12) on thespeaker’s backpanel.
3. Lower thevolume and start playback on thedevice.
4. Adjust thevolume both on thedevice and thespeaker to thedesired level.
Note: Itis not possible to control playback from theBluetooth speaker or remote
when adevice is connected via theline-in jack. Playback must then be controlled from
theconnected device.
Care and maintenance
• Disconnect theplug from thewall socket and remove thebattery from theremote
control if thespeaker is not to be used for alongtime.
• Clean thespeaker using alightly moistened cloth. Useonly mild cleaning agents,
never solvents or corrosive chemicals.

7
English
Troubleshooting guide
The speaker will not
switch on.
• Make sure that theplug is securely connected to
thewall socket.
• Check that thewall socket islive.
Poor sound or
no sound during
Bluetooth or NFC
playback.
• Adjust thevolume on both thedevice and speaker.
• Make sure that theBluetooth/NFC connection is
functioning properly.
• Test theplayback from your external device before
connecting it.
• Try playback using another file or format e.g.
MP3. Thefile you are attempting to play may be
incompatible or corrupted.
• Make sure that no other wireless device disrupts
theBluetooth connection.
• Make sure that theBluetooth device is within range of
thespeaker. (max 10 m).
NFC connection not
possible.
• If thedevice has any type of case attached to it, try
removing it.
• Try moving thedevice slowly over theNFC detection
zone rather than holding itstill.
• Ensure that Bluetooth is working on your device.
Thespeaker uses NFC for establishing theinitial
connection but uses Bluetooth for communicating.
Poor sound or
no sound during
playback via
theline-injack.
• Make sure that the3.5 mm audio cable is undamaged
and securely connected to thedevice and thespeaker.
• Check for sufficient volume level on theconnected
device and thespeaker.
• Test theplayback from theexternal device before
connecting it.
• Try playback using another file. Thefile you are
attempting to play may be damaged.
The remote control
doesn’twork.
• The remote’s batteries may be flat. Changebatteries if
necessary.
• Point theremote control directly at theBluetooth speaker
making sure that you are within range. (max 3 m).
• If either theBluetooth speaker or remote control is
exposed to strong sunlight thesignals between them
may be blocked.
The Bluetooth speaker
freezes or does not
operate correctly.
• Try disconnecting thespeaker from themains
completely by unplugging it from thewall socket.
Thenreconnect theplug back into thewall socket.

8
English
Disposal
This product should be disposed of in accordance with local regulations.
Ifyou are unsure how to proceed, contact your local council.
Specifications
Power supply 100–240 V, 50/60Hz
NFC connection Yes
Bluetooth version V 2.1 + EDR
Bluetooth range 10m
Remote control battery 1×CR2032, 3V
Power consumption 25 W
Standby power output < 0.5W
Line-in 3.5mm
Size 25×22×22 cm
Weight 3.2 kg

9
Svenska
Bluetooth-högtalare
Art.nr 18-2849, 18-2850 Modell NE-8302-UK
38-5921, 38-5922 NE-8302
Läs igenom hela bruksanvisningen före användning och spara den sedan för framtida
bruk. Vireserverar oss för ev. text- och bildfel samt ändringar av tekniska data.
Vid tekniska problem eller andra frågor, kontakta vår kundtjänst (se adressuppgifter
påbaksidan).
Säkerhet
• Högtalaren får inte demonteras eller ändras. Farligspänning finns oskyddad på
komponenter inuti högtalarens hölje. Kontakt med dessa kan leda till brand eller ge
elektriska stötar.
• Täck inte över högtalaren. Tillräcklig ventilation, med ettminsta avstånd på 5 cm
mellan högtalaren och omgivande ytor, är nödvändig för att förhindra att högtalaren
blir förvarm.
• Högtalaren får bara anslutas till ettvägguttag som har 100–240 V, 50/60Hz.
• Se till att vägguttaget där nätsladden ansluts sitter lättillgängligt eftersom nätslad-
den används som frånkopplingsanordning från elnätet.
• Placera högtalaren så att den står stadigt på enplanyta.
• Placera inte högtalaren så att den kan falla ner ivatten eller annan vätska. Ställinte
heller några föremål som innehåller vätska på högtalaren, t.ex. enblomvas ellerdryck.
• Placera inte högtalaren inärheten av öppen eld, t.ex. vedspis/kamin eller levande ljus.
• Placera högtalaren så att ingen riskerar att snubbla på nätsladden.
• Högtalaren är endast avsedd för inomhusbruk.
• Utsätt aldrig högtalaren för höga temperaturer, dammig miljö, starka vibrationer,
stötar, fukt ellerväta.
• Misshandla inte nätsladden. Ryckinte isladden, ta tag istickproppen när du bryter
strömmen. Setill att sladden inte kommer ikontakt med värme, vassa kanter eller
kläms på någotsätt.
• Dra ut stickproppen ur vägguttaget vid åska eller om högtalaren inte ska användas
under enlängre period.
• Högtalarens standbyomkopplare är sekundärt kopplad och skiljer inte högtalaren
från elnätet. Föratt högtalaren fullständigt ska skiljas från elnätet måste stickprop-
pen tas ur vägguttaget.
• Skydda din hörsel. Lyssning med hög volym under lång tid kan leda till bestående
hörselskador.
• Använd inte högtalaren om den eller nätsladden på något sätt är skadade.
• Högtalaren får endast repareras av kvalificerad servicepersonal.

10
Svenska
2
3
1
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18
19
20
21
25
24
23
22
Knappar och funktioner
Högtalare
1. Mottagare för IR-signaler från fjärrkontrollen
2. [l◄◄ ] Uppspelning av föregående spår från Bluetooth-ansluten enhet
3. [ ] På/standby
4. Område för NFC-anslutning
5. [Volym ]
6. [ MODE ] Funktionsväljare, Bluetooth eller AUX (line-in)
7. [ ► ► l] Uppspelning av nästa spår från Bluetooth-ansluten enhet
8. [ ► /ll] Play/pause
9. LED-indikator för Bluetooth- och AUX/line-in-anslutning
10. USB-anslutning för laddning av externa enheter.
11. Nätkabel
12. Line-in (AUX)
Fjärrkontroll
13. [ ] På/standby
14. [MODE] Funktionsväljare, Bluetooth ellerAUX
15. [▲] Höj volymen
16. [l◄◄ ] Uppspelning av föregående spår från
Bluetooth-ansluten enhet
17. [▼] Sänk volymen
18. [FLAT ] Equalizer-inställning
19. [BASS+] Basinställning
20. [BASS-] Basinställning
21. [MUTE] Stäng av ljudet, slå på ljudet
22. [ ► ll] Play/pause
23. [ ► ► l] Uppspelning av nästa spår från
Bluetooth-ansluten enhet
24. [TREBLE+] Diskantinställning
25. [TREBLE-] Diskantinställning
