Claydon HYBRID T6 User manual

OPERATORS MANUAL
CLAYDONYIELD-O-METER LTD
BUNTERS ROAD,WICKHAMBROOK, NEWMARKET, SUFFOLK, CB8 8XY
TEL: [phone]
EMAIL: [e-mail]
www.claydondrill.com
HYBRID
T6 - T8
DOC0006 REV-00

CLAYDONYIELD-O-METER LTD
BUNTERS ROAD,WICKHAMBROOK, NEWMARKET, SUFFOLK, CB8 8XY
TEL: [phone]
EMAIL: [e-mail]
www.claydondrill.com
DOC0006
REV-00
©

3
CONTENTS
DECLARATION OF CONFORMITY
IDENTIFICATION OF MACHINE
INTRODUCTION
SAFETY
DIRECTIVE PROVISIONS
PRE-WORK PREPARATION
IN FIELD OPERATION
CARE AND MAINTENANCE
WARRANTY REGISTRATION
A
B
C
D
E
F
G
H
I
OPERATORS MANUAL - HYBRID - T6 & T8

5
A
DECLARATION OF CONFORMITY
OPERATORS MANUAL - HYBRID - T6 & T8
EC Declaration of Conformity
In accordance with EN ISO 17050-1:2004
We: Claydon Yieldometer Ltd
of: Gaines Hall
in accordance with the following Directive(s):
2006/42/EC
The Machinery Directive
Hereby declare that Equipment: Claydon Drills
Model number: Hybrid
Serial Number:
is in conformity with the applicable requirements of the following documents
I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced
specications and is in accordance with the requirements of the Directive(s)
Oliver Claydon
Director of Operations
Done at
Gaines Hall
Wickhambrook
On: 12/08/2014
The technical documentation for the machinery is available from:
Claydon Yieldometer Ltd
Bunters Road
Wickhambrook
Newmarket, Suffolk, CB8 8XY
Ref. No.
EN ISO 12100-1:2003
EN ISO 12100-2:2003
Title
Safety of Machinery - Basic Concepts
Safety of Machinery - Basic Concepts
Edition / Date
2003
2003
HT60001 - HT6****
HT80001 - HT8****

6OPERATORS MANUAL - HYBRID - T6 & T8
BIDENTIFICATION OF MACHINE
6

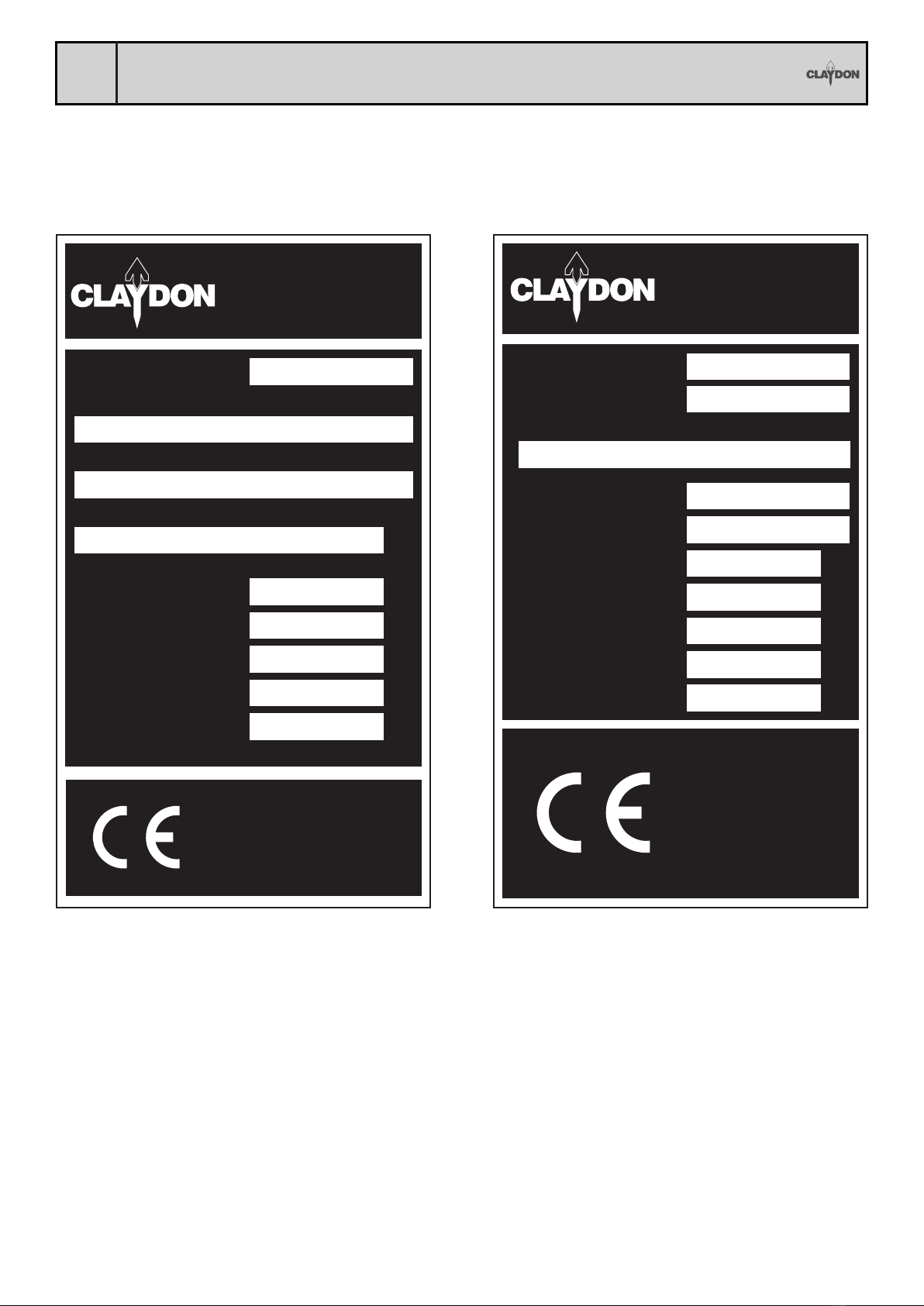

IDENTIFICATION PLATE
Marque
Type / Variante / Version
N° de série ou d'Iden�fica�on
Récep�onné le
Par la DREAL de
PTAC
Masses
maximales
admissibles
1
2
3
4
Kg
Kg
Kg
Kg
Kg
Claydon Yield-O-Meter LTD,
Gaines Hall, Wickhambrook,
Newmarket, Suffolk, CB8 8XY
TEL: [phone]
CLAYDON
/ /2017
Auvergene Rhône-Alpes
Category / Kategorie
Type / Typ
VIN Number / VIN Nummer
Kg
Claydon Yield-O-Meter LTD,
Gaines Hall, Wickhambrook,
Newmarket, Suffolk, CB8 8XY
TEL: [phone]
Max Total Weight / Zul. Ges. Gewicht
Kg
A0 Kg
A1
Model / Modell
Serial No / Ident. Nr.
Year / Jahr.
FRENCHUK / GERMAN
Category - Vehicle category including subcategory
and speed index
Type - EU Type approval number
VIN Number - Vehicle Identication number
MaxTotal Weight - Technically permissible maximum
laden mass of the vehicle in ‘Kg’
A0 - Maximum vertical load on the coupling points
A1 - Maximum mass per axle
Model - Machine information
Serial No - Serial number of machine
Year - Year of manufacture
Marque - Name of manufacturer
Type /Variante /Version - Type of machine,Variation
of machine &Version of breaking system (H - Hydraulic
/ P - Air)
Nº de série ou d’Identication - Serial number of
the machine
Réceptionné le - Homologation pass date
Par La DREAL de - Location of test centre
PTAC - Technically permissible maximum laden mass
of the vehicle in ‘Kg’
1- Max weight on axle
2- N/A
3- N/A
4 - Max weight on hitch

7OPERATORS MANUAL - HYBRID - T6 & T8
B
IDENTIFICATION OF MACHINE
7
When ordering spare parts always quote:
- Model
- Serial No.
- Year of manufacture
- Part numbers of required parts (located in
parts book)
- Account Name
MACHINE WORKING
WIDTH
TRANSPORT
WIDTH
WEIGHT
(APPROX)
UNLADEN
MAX
HOPPER
CAPACITY
NUMBER OF
WORKING
ROWS
HORSE POWER
REQUIREMENTS
(ESTIMATED)
T6 6M 2.85m 9185kg 5500L 19 300 HP
T8 8M 2.85m 11185kg 5500L 25 400 HP
The machines identication plate is located on the front chassis beam of the drill, below the seed hopper
on the right hand side.
Record your serial number here: …………………………………………………………………
TECHNICAL DATA
IDENTIFICATION OF MACHINE
Data plate location
Please ensure separate warranty registration card is lled in upon purchase of your machine to validate
warranty claims.This is located at the rear of the operators manual.
You may need to quote the serial number of your machine when you order spare parts in the future.
WARRANTY REGISTRATION
SPARE PARTS ORDERING PROCEDURE

C
8OPERATORS MANUAL - HYBRID - T6 & T8
INTRODUCTION
Thank you for your purchase of a new Trailed Hybrid 6 / 8 Metre Drill.
The purpose of this Operator’s Manual is to explain to the operator how to set up, use and maintain the
machine.
It is important that the operator reads this manual carefully to correctly set up, use and maintain the machine
safely. It is essential that the Warnings and Cautions section has been read carefully.
For any further assistance or explanation on the use and maintenance of your machine, please contact your
supplying dealer or alternatively ClaydonYield-O-Meter Ltd. using the contact details given on the front cover.
The Claydon T6 / 8 will give many years of excellent service with little maintenance due to its robust
construction and its small number of moving parts. However, regular routine maintenance will give you the
optimum efciency and working machine life of your drill.
In the interest of product development Claydon may (at their discretion) issue updates or component changes
which may improve your machines performance or longevity. In the event of an update or change details will
be made available online at www.claydondrill.com.
HYBRID
T6 - T8

9
D
OPERATORS MANUAL - HYBRID - T6 & T8
SAFETY
Safety decals can be found located on your machine in numerous locations, these decals must be observed to
ensure your safety and that the machine is operated in a safe manner.
If any of the decals become illegible or damaged, new decals can be ordered and attached in the appropriate
position.The decals must not be removed.

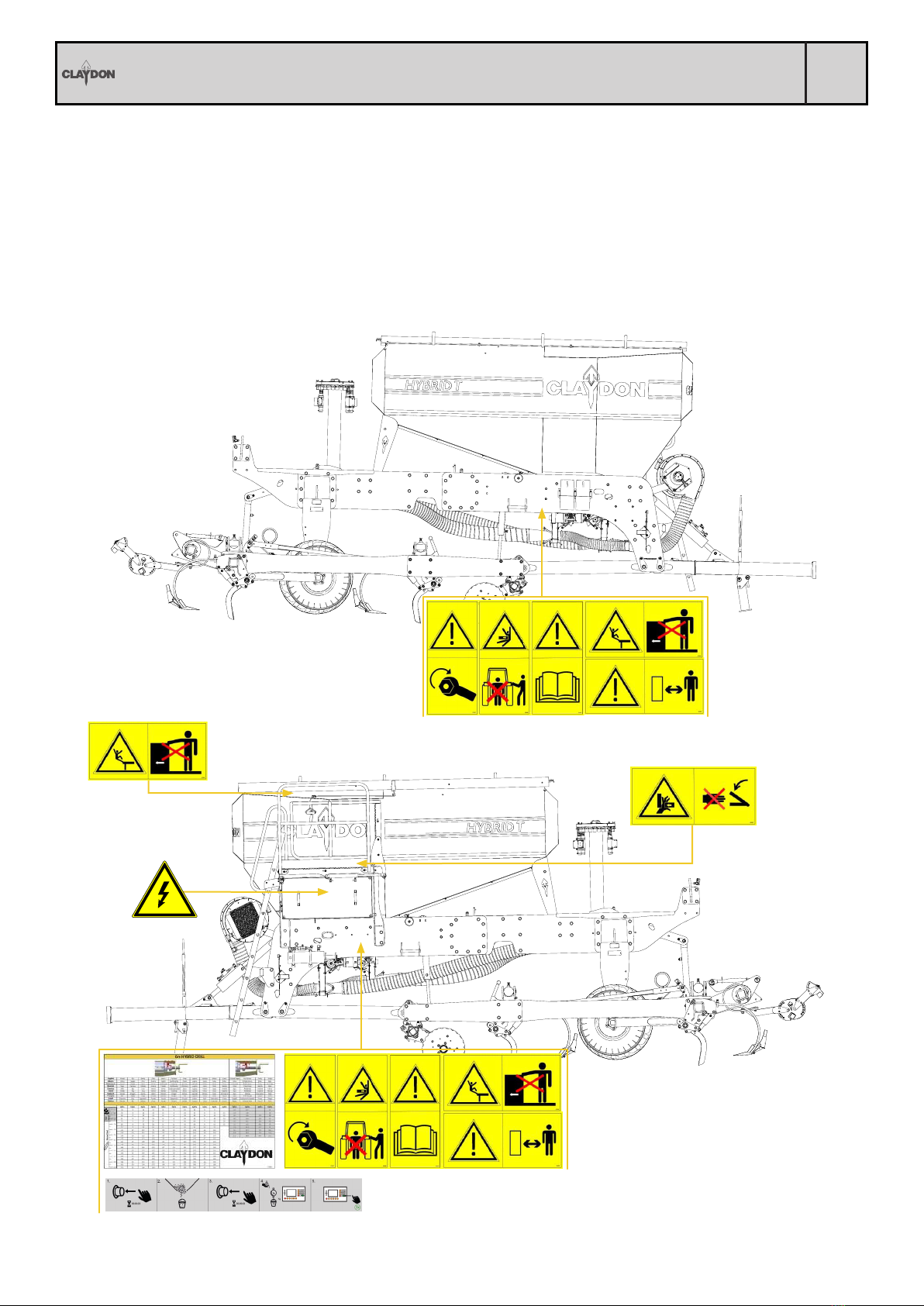

Decal Locations
DC0091

D
10 OPERATORS MANUAL - HYBRID - T6 & T8
SAFETY
Decal Locations

11
D
OPERATORS MANUAL - HYBRID - T6 & T8
SAFETY
Decal Locations
SAFETY DECALS IF BOUT MARKERS ARE FITTED

D
12 OPERATORS MANUAL - HYBRID - T6 & T8
SAFETY

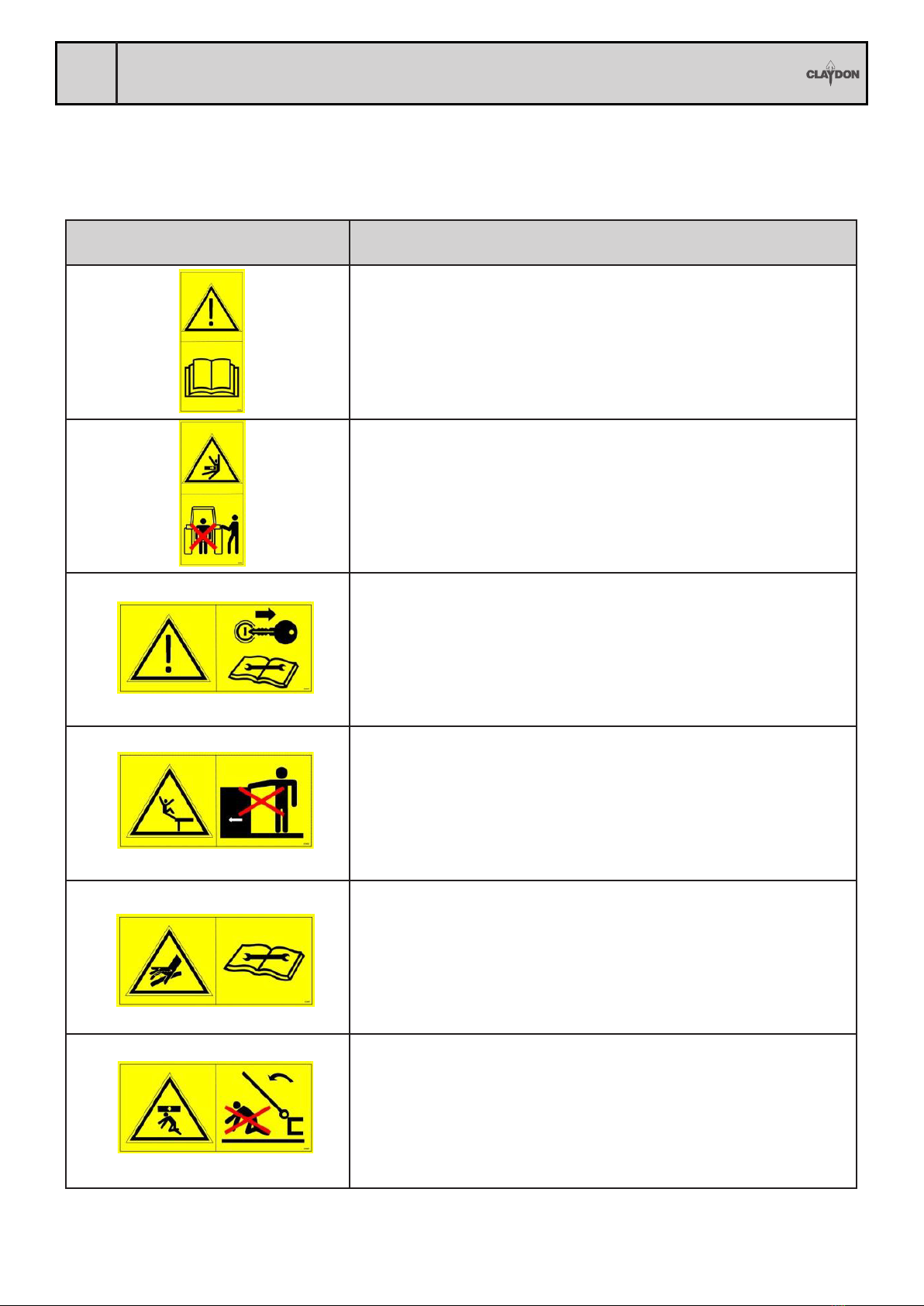

DECAL MEANING
Read the operating manual carefully.
Prior to operating the machine the manual must be read fully and
understood. Special attention should be applied to the Warnings
and Cautions section.
Do not stand between the tractor and the machine.
Standing between tractor and the machine is especially prohibited
during coupling and uncoupling.
Remove the key before servicing.
Before any repairs or servicing turn off the engine and take out
the key.
Riding on the machine is prohibited.
Serious or fatal injury can occur as a result of riding on the
machine.
Proceed with care in the event of leaking hydraulic uid.
Defective hydraulic hoses or incorrectly seated hydraulic
couplings can trigger unpredictable machine movements. High
pressure uid can puncture skin causing serious injury or death.
Keep clear of slewing range.
There is an extreme risk of injury from slewing or folding
machine parts.
Decal Meanings
DC0026
DC0034
DC0027
DC0036
DC0037
DC0039

13
D
OPERATORS MANUAL - HYBRID - T6 & T8
SAFETY

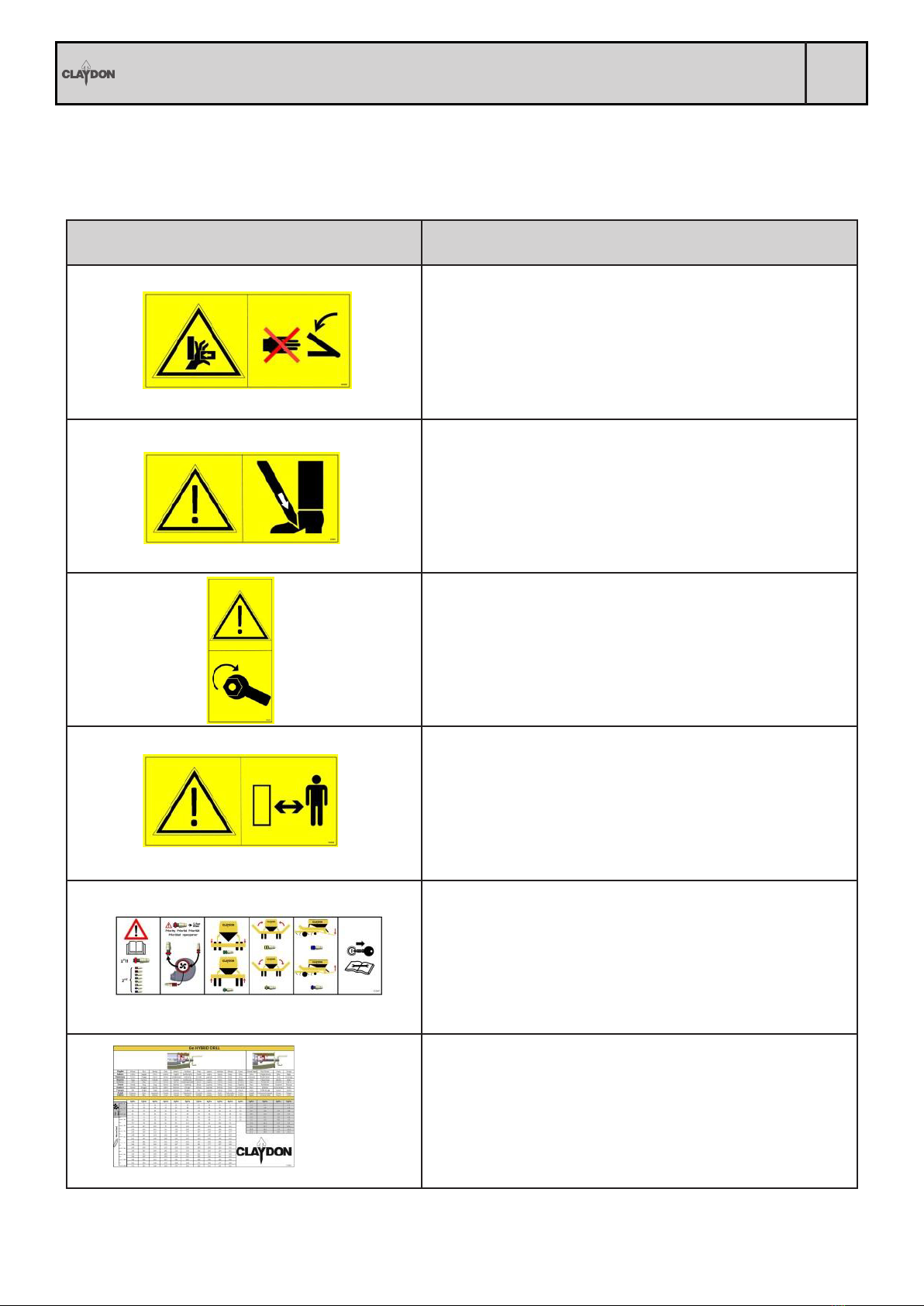

DECAL MEANING
Risk of crushing.
Gaps between components may become smaller or
disappear completely.
Risk of crushing.
Gaps between or under components may become
smaller or disappear completely.
Re-tighten all nuts and bolts.
All nuts should be checked and re-tightened after a few
operating hours. Nuts may come loose due to machine
vibration.
Keep a safe distance.
Ensure that no one is allowed to stand within the
operating range of the machine.
Hydraulic connections.
INSTALL FREE FLOW RETURN BEFORE ANY
OTHER HOSES. Details of the functions of the
hydraulic connections for the drill.
Calibration Settings.
Details approximate settings for the metering unit slider
for a variety of machines.
Decal Meanings
DC0029
DC0030
DC0035
DC0033
DC0047
T6 - DC0021
T8 - DC0075

D
14 OPERATORS MANUAL - HYBRID - T6 & T8
SAFETY
DECAL MEANING

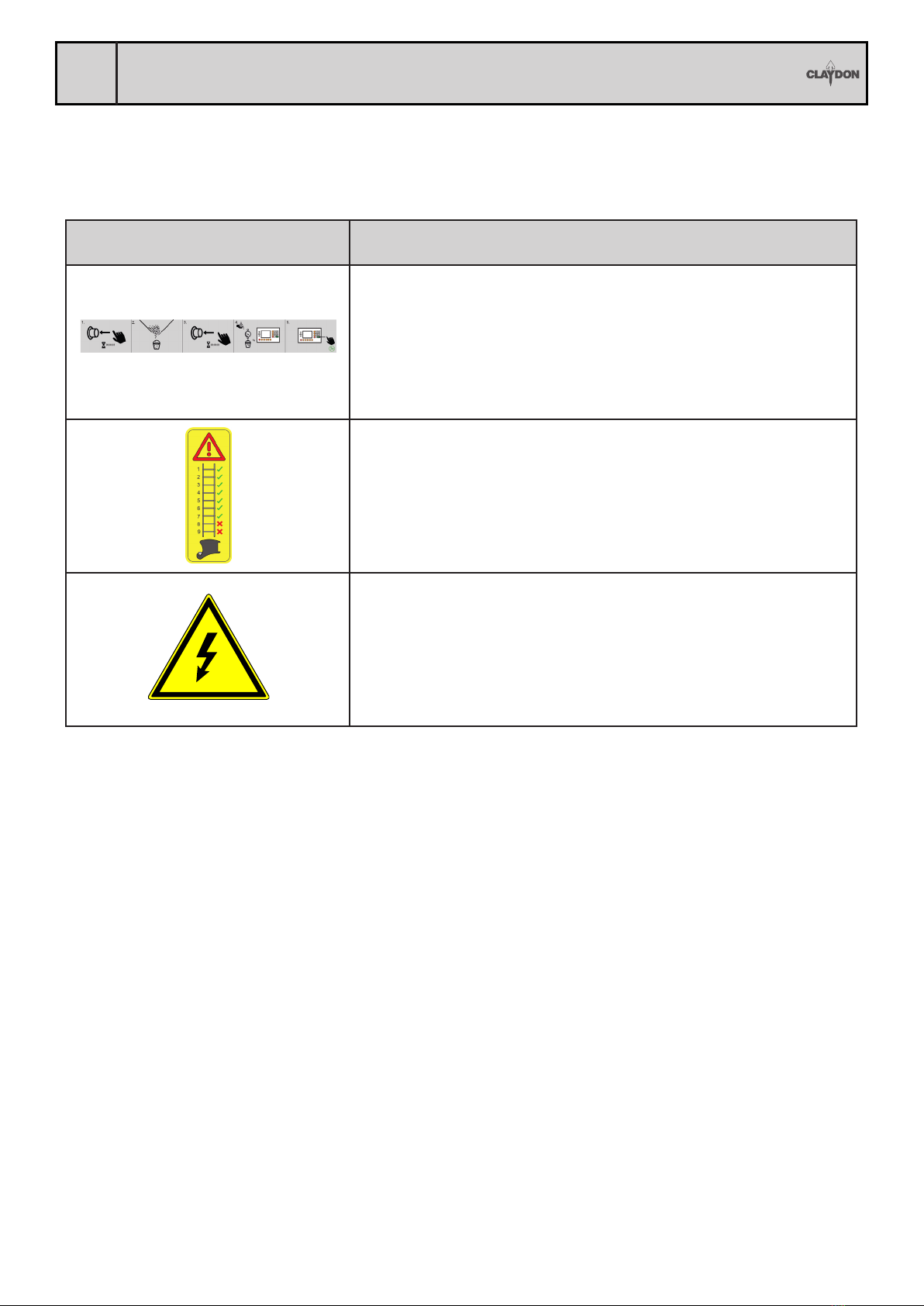

Calibration.
Calibration instructions.
Ladder safety.
Ladder operating instructions.
Electric Cables.
Beware of overhead cables when using or working on the
machine.
Decal Meanings
DC0012
DC0086
DC0091
DC0091

15
E
OPERATORS MANUAL - HYBRID - T6 & T8
DIRECTIVE PROVISIONS
Machine Overview
The terms ‘front’ ‘rear’ ‘left’ and ‘right’ in this manual refer to the machine as follows:
‘Front’ indicates the drawbar end of the machine
‘Rear’ indicates the machine end when viewed from the rear
‘Left’ indicates the left of the machine as you look at the machine from the rear
‘Right’ indicates the right of the machine as you look at the machine from the rear.
Front
Rear
Left
Right

E
16 OPERATORS MANUAL - HYBRID - T6 & T8
DIRECTIVE PROVISIONS

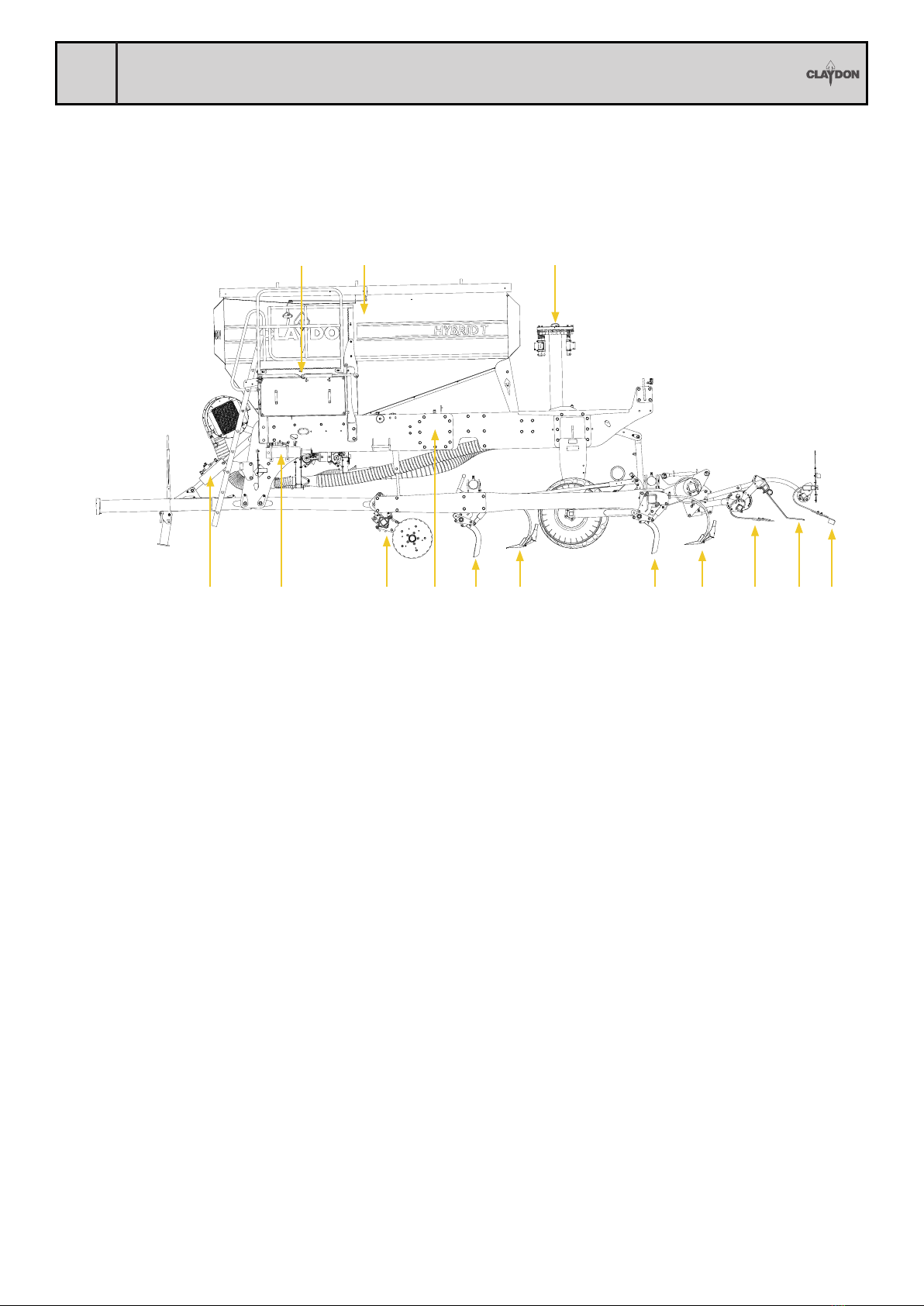

1. Drawbar cylinder – for levelling the hopper chassis/setting drawbar height.
2. Master depth control cylinder.
3. Ladder platform.
4. Hopper.
5. Front wheel / Cutting discs.
6. Hopper chassis.
7. Leading tines.
8. Seeding tines.
9. Distribution head.
10. Ski boards.
11. Rear harrow tines.
12. Pre-Emergence markers.
1. 2. 5. 6.
Machine Overview
7. 8. 7. 8.
3. 4. 9.
10. 11. 12.

17
E
OPERATORS MANUAL - HYBRID - T6 & T8
DIRECTIVE PROVISIONS
This Claydon Hybrid Seed Drill conforms to Machinery Directive 2006/42/EC (see Declaration of Conformity
at the rear of the manual).
AIRBORNE NOISE EMISSIONS
The A-weighted emission sound pressure level of measurements taken directly at the fan is 94dBA.
WARNING AND CAUTION
These warnings and cautions must be observed when operating the Hybrid Seed Drill.
• Ensure total weight of tractor/drill combination does not exceed permitted limits and weight of tractor is
sufcient for safe eld and road use.
• Do not allow anyone to stand between tractor and machine during coupling/uncoupling procedures.
• For maintenance/adjustment of the machine ensure that it is lowered to the ground.
• Seed dressing may be highly poisonous so protective measures-gloves, goggles,face-mask must be used while
loading the hopper and cleaning the machine after use with compressed air.
• The hydraulic system on the machine operates under high pressure. Pressurised hydraulic oil is dangerous
so connecting/disconnecting the drill must only be undertaken with the tractor engine turned off and the
pressure in the hoses released.
• Before operating the machine ensure no-one is standing within range of its turning circle-including the
marker arms.
• The Tungsten points on the leading tines should be protected when lowering onto concrete or paved
surfaces by placing wooden boards under the tines.
Directive Provisions
!
WARNING SYMBOLS
Warning - Always pay extra attention to any text next to this symbol.This symbol could
relate to something which can cause damage to the machine, serious injury or death. Please
take the relevant precautions to avoid dangerous situations.
Eye Protection is required - In the interest of safety, eye protection must be worn.
Gloves are required - In the interest of safety, gloves must be worn.
!Please Note - Information relating to this symbol may be worth noting as a useful tip to
help use the machine more effectively.

F
18 OPERATORS MANUAL - HYBRID - T6 & T8
PRE-WORK PREPARATION
On taking delivery of your drill please check for any possible damage that could have occurred during delivery.
Remove any additional parts (harrow tines, level boards etc.) that may have been stored in the seed hopper
for transit.
Introduction
A tool box is supplied and contains the following items:
1 x Quick Release Tool
1 x Spare Front Tine (Part No. SBA152)
1 x Pack of Shear Bolts (Shear Bolt version machines only)
2 x M16 U-Bolts for Tine
1 x Control Unit and Cable
1 x Control Unit Mounting Bracket and Bolts
1 x Tractor Power Cable
1 x Claydon Instruction Manual
1 x Claydon Instruction DVD
1 x Parts Catalogue
1 x Calibration Tongs
1 x Calibration Scales
1 x RDS Operation manual
1 x Fan 1” ISO with 18L male thread
1 x Depth gauge shims for depth control
1 x ISOCAN Unit
1 x Basket for sample
(Please contact your supplier if any are missing.)

19
F
OPERATORS MANUAL - HYBRID - T6 & T8
PRE-WORK PREPARATION
The Claydon Hybrid T Drill has seven drawbar congurations: 50mm ring hitch, Scharmuller K80 ball hitch
or CATIIIN/CATIVN lower linkage mounting points. (Linkage pins on the lower linkage are supplied but the
balls are not). Scharmuller swivel ball hitch with CATIII (39mm), CATIV (52mm), CATV (71mm) inserts.
If your tractor is only equipped with a xed height drawbar it is possible to raise and lower the hitching point
of the drill by operating the drawbar levelling cylinder with the drill parked on its stand. Once adjusted to
the correct height the tractor can be connected and the drawbar levelling cylinder used to set the level of
the drill. The hopper support chassis should run level with the ground.
Connecting the Drill to the Tractor
1. ISOCAN control unit
2. Screen communication cable to RDS box
3. Electrical power cables to tractor battery terminals
ELECTRICAL CONNECTIONS
Mount the RDS ISOCAN Control Unit in a position in the cab easily visible and within reach from the driving
position.
Connect the main power cable supplied with the RDS ISOCAN Control Unit directly to the battery terminals
on the tractor. Run the screen communication cable to the tractor cab by a safe route so that it can’t be
caught or snagged.
1. 2. 3.
CAT IV LinkageCAT III LinkageRing Hitch
(39mm, 52mm &
71mm)
Scharmuller
K80
50mm Ring
Hitch

F
20 OPERATORS MANUAL - HYBRID - T6 & T8
PRE-WORK PREPARATION
Connecting the Drill to the Tractor

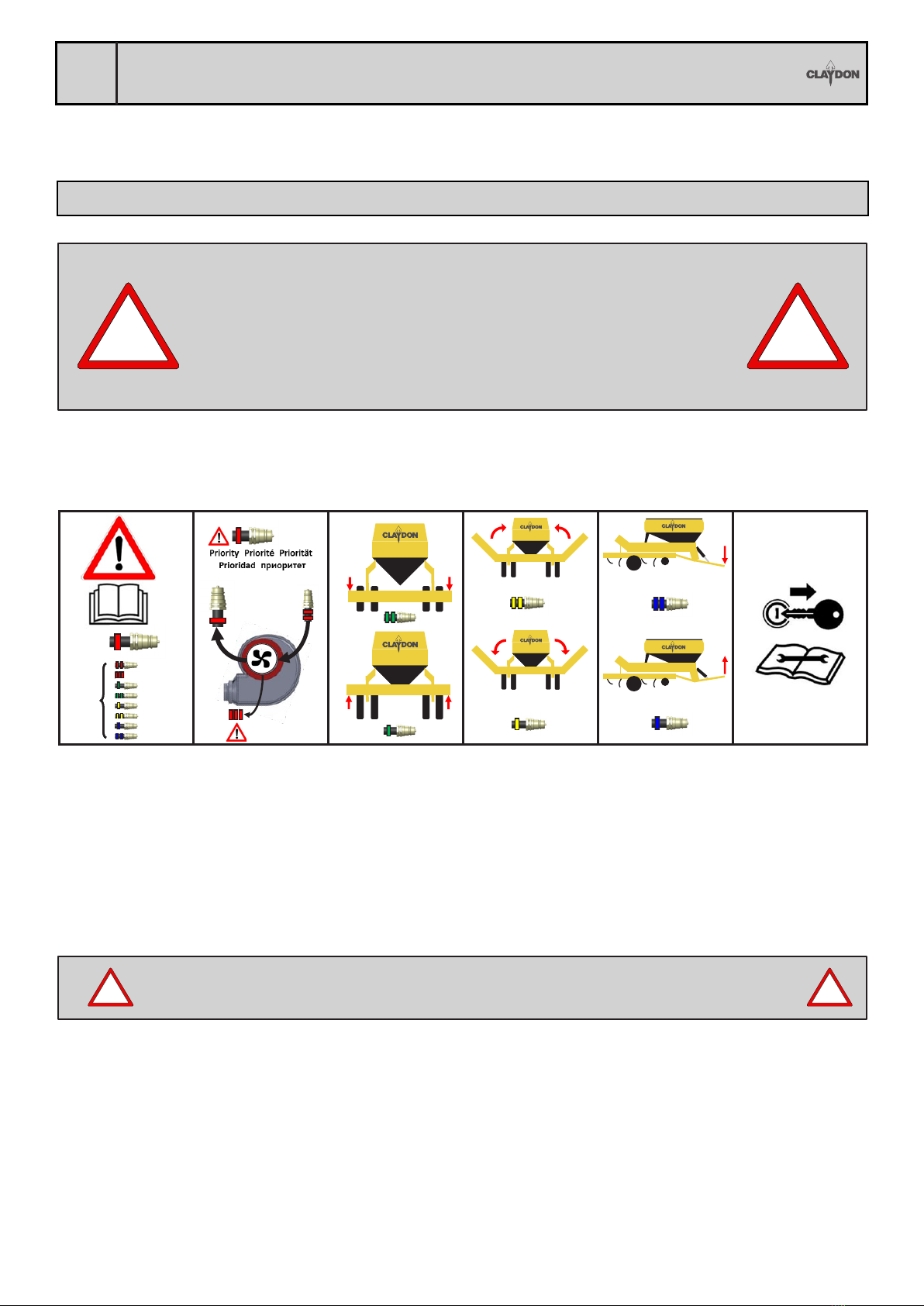

HYDRAULIC CONNECTIONS
The following decal can be found located on the front of the drill seed hopper. These labels specify the
corresponding hydraulic connections and their appropriate colour coding. The freeow return hose
must be connected before any hydraulic services are operated.
2
nd
1
st
!!
DC0047
15 Bar Max
2
nd
1
st
!!
0 BAR / 0 PSI
IMPORTANT
THE HYDRAULIC FREE FLOW SERVICE MUST BE
PLUGGED IN PRIOR TO THE DRILL BEING OPERATED
FAILURE TO DO SO WILL RESULT IN DAMAGE WHICH IS
NOT COVERED BY WARRANTY.
Connect the hydraulic hoses to the tractor spools in their relevant pairs. The 1 inch ISO female coupling
(freeow return) with 18L male thread supplied with your drill MUST be connected to the rear of the
tractor if necessary. Consult your tractors operators manual for correct freeow connection on the rear
of the tractor (Max 15 bar). The free ow return pipe cannot just be inserted into the ller cap as the oil
cannot return to the pump sufciently quickly on many tractors.
Do not change the 1 inch ISO on the free ow return to a difference size as this could cause damage to the
fan motor. The fan free ow return cannot be connected to a tractor ISO.
When connecting the case drain (fan return hose marked III - red) ensure it is connected to a genuine case
drain service on the rear of the tractor. (THIS MUST BE A 0 BAR RETURN PORT)
(There is no quick tting coupling connected to this hose as each tractor manufacturer has a different tting).
Incase of difculty knowing the correct connections available on the rear of your tractor
consult your tractor operators manual or Claydon dealer immediately for assistance. Failure
to connect tractor to drill correctly can result in serious damage to hydraulic components on
both drill and tractor.
!
!
IMPORTANT: CASE DRAIN TO 0 BAR
!
!
