Claydon TERRA STAR User manual

OPERATORS MANUAL
TERRA STAR
REVISION: 03
UPDATED: 23/11/18
CLAYDONYIELD-O-METER LTD
GAINES HALL,WICKHAMBROOK, NEWMARKET, SUFFOLK, CB8 8XY
TEL: [phone] | FAX: [phone]
EMAIL: [email protected]
www.claydondrill.com

TERRASTAR
1
INDEX
TERRASTAR - OPERATORS MAUNUAL
WARRANTY REGISTRATION ...................................................................................2
SAFETY .........................................................................................................................4
SAFETY STICKER LOCATION ...........................................................................................................4
SAFETY STICKER MEANING ..............................................................................................................5
INTRODUCTION ........................................................................................................7
IDENTIFICATION OF MACHINE ......................................................................................................7
DIRECTIVE PROVISION .......................................................................................................................8
AIRBORNE NOISE EMISSIONS ..........................................................................................................8
WARNINGS AND CAUTIONS ..........................................................................................................8
EQUIPTMENT OVERVIEW ..................................................................................................................8
PREPARATION ........................................................................................................................................8
CONNECTING THE TERRASTAR TO THE TRACTOR ...........................................9
TOP-LINK CONVERGENCE POSITION ........................................................................................10
TRANSPORT ...........................................................................................................................................10
TERRASTAR SET-UP .................................................................................................11
SET MACHINE LEVEL ..........................................................................................................................11
WORKING DEPTH ..............................................................................................................................11
HARROW TINE ADJUSTMENT ........................................................................................................11
FIELD USE ...............................................................................................................................................12
CARE AND MAINTENANCE ...................................................................................13
LUBRICATION POINT ........................................................................................................................13
DECLARATION OF CONFORMITY .......................................................................15

TERRASTAR
2
WARRANTY REGISTRATION
TERRA STAR
In order to activate your Claydon Warranty this page must be completed and returned to:
Claydon Yield-O-Meter Ltd,
Gaines Hall,
Wickhambrook,
Newmarket,
Suffolk,
CB8 8YA
Tel: [phone]
Fax: [phone]
IF THE REGISTRATION DOCUMENT IS NOT RETURNED THEN THE
MACHINES WARRANTY WILL BE VOID
PLEASE ENSURE
•The Machine is washed off upon delivery to remove any road salt.
 •Thedrillshydraulicfreeowserviceispluggedinpriortothedrillbeingoperated.
NAME:
SIGNATURE:
CONTACT NUMBER:
SERIAL NUMBER:
DELIVERY DATE:
ADDRESS:
PLEASE RETURN WITH A COPY OFYOUR INVOICE AND THE DELIVERY NOTE.

OPERATORS MANUAL - TERRASTAR3
TERRASTAR
WARRANTY REGISTRATION
COMMISSIONING CHECK SHEET AND CONFORMATION FORM
All points in this form must be completed on the commissioning of a new Claydon machine with the
enduser.ThisformalongwithalledinWarrantyCard(locatedintheinstructionmanual)mustbefully
completed, signed by the customer and returned to:The Service Department, Claydon Yield-O-Meter
Ltd, Gaines Hall,Wickhambrook, Newmarket, Suffolk, CB8 8YA within 7 days of the commissioning of the
machine for Warranty to be valid. It is the customer’s responsibility to return these forms.
CUSTOMER NAME
MACHINE SERIAL NUMBER
COUNTY COUNTRY POST CODE
ADDRESS
TELEPHONE NUMBER
DATE OF COMMISIONING DD/MM/YYYY
TASK COMPLETED
The customer (and any operator of the machine) has been issued with and read the operators manual.
Customer is aware of all transport locks on the machine and knows how to operate them correctly.
Thecustomerhasttedthedrill’selectricalpowercable(7pin)tothetractor.
The customer understands how to correctly change cutting knives.
Thecustomerunderstandshowtocalibratethemachine,andanyotherapplicatorsttedtothemachine.
The customer understands how to set the machine level (front to rear).
The customer understands how to set the machine level (left to right).
The customer understands how to set and adjust the rear tool bar(s).
The customer knows all the lubrication/maintenance points on the machine.
I ...................................................(Representative Name)
have on behalf of ..............................................................
(Dealer Name) commissioned the machine above
to the best of my ability and have covered all the
points in this check as a minimum.
Signed.......................................................................
Date
I …………………………………………(end user
name) have received the commissioning of my
machinefromaqualiedClaydonrepresentative
and am happy with the competence of the
representative and the level of service I have
received.All the details on this form are correct to
the best of my knowledge.
Signed.......................................................................
Date
DD MM YYYY DD MM YYYY

4
TERRASTAR
SAFETY
Safety stickers can be found located on your Claydon Hybrid drill at numerous locations, these stickers
must be observed to ensure your safety and that the machine is operated in a safe manner.
Replacing Stickers
If any of the stickers become illegible or peel off, new stickers can be ordered and attached in the
appropriate position.The stickers must not be removed.
DC0039
DC0038
DC0039
DC0034
DC0026
DC0030
DC0036
DC0037
DC0027
DC0029
DC0038
DC0029
DC0029
DC0039
DC0029
DC0039
DC0051
sheet 5 of 5
CU-B-0001
SAFETY STICKER LOCATIONS

OPERATORS MANUAL - TERRASTAR5
TERRASTAR

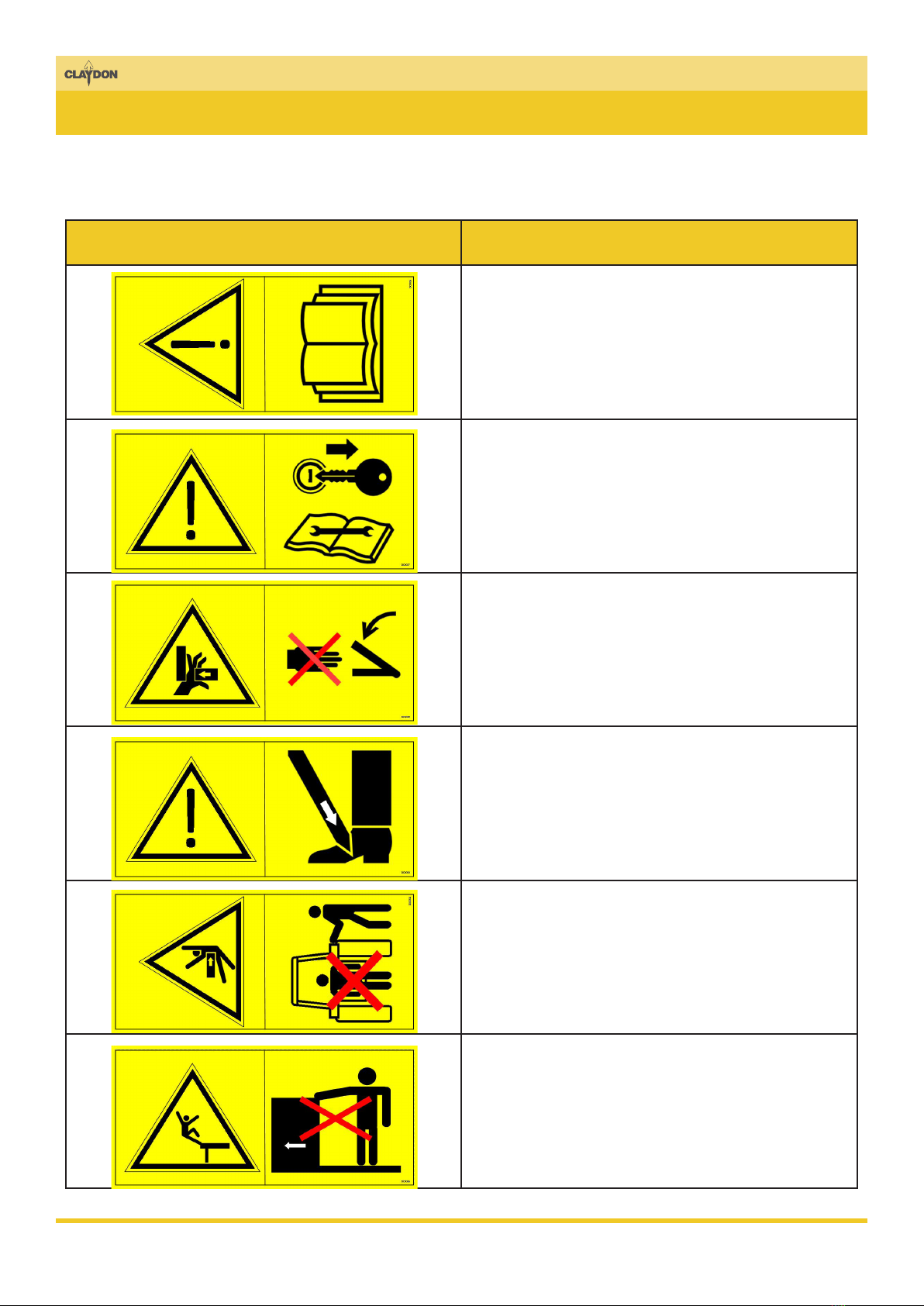

SAFETY STICKER MEANINGS
STICKER MEANING
READ THE OPERATOR’S MANUAL
CAREFULLY
Prior to operating the machine the manual must
be read fully and understood.
REMOVE THE KEY BEFORE SERVICING
Before any repairs or servicing, turn off the engine
and take out the key.
RISK OF CRUSHING
Gaps between components may become smaller,
or disappear completely.
RISK OF CRUSHING
Gaps between or under components may become
smaller or disappear completely.
DO NOT STAND BETWEEN THE
TRACTOR AND THE MACHINE
Standing between tractor and the machine is
prohibited during coupling and uncoupling.
RIDING THE MACHINE IS PROHIBITED
Serious or fatal injury can occur as a result of
riding on the machine.

6
TERRASTAR

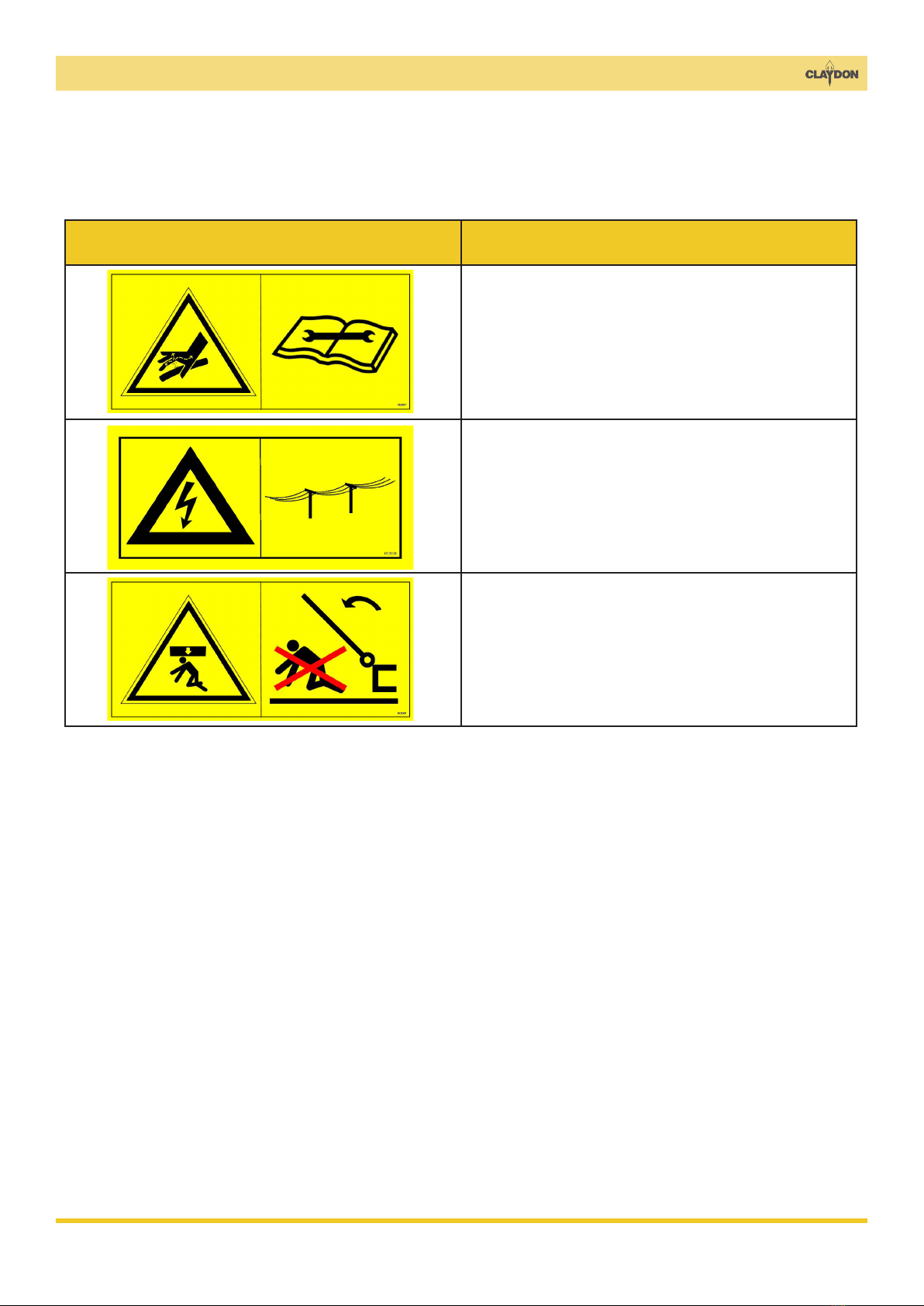

STICKER MEANING
PROCEED WITH CARE IN THE EVENT
OF LEAKING HYDRAULIC FLUID
Defective hydraulic hoses or incorrectly seated
hydraulic couplings can trigger unpredictable
machine movements and cause injury.
OVERHEAD CABLES
When folding the wings and when in transport
watch out for overhead electricity cables.
KEEP CLEAR OF SLEWING RANGE
There is an extreme risk of injury from slewing or
folding machine parts.

OPERATORS MANUAL - TERRASTAR7
TERRASTAR

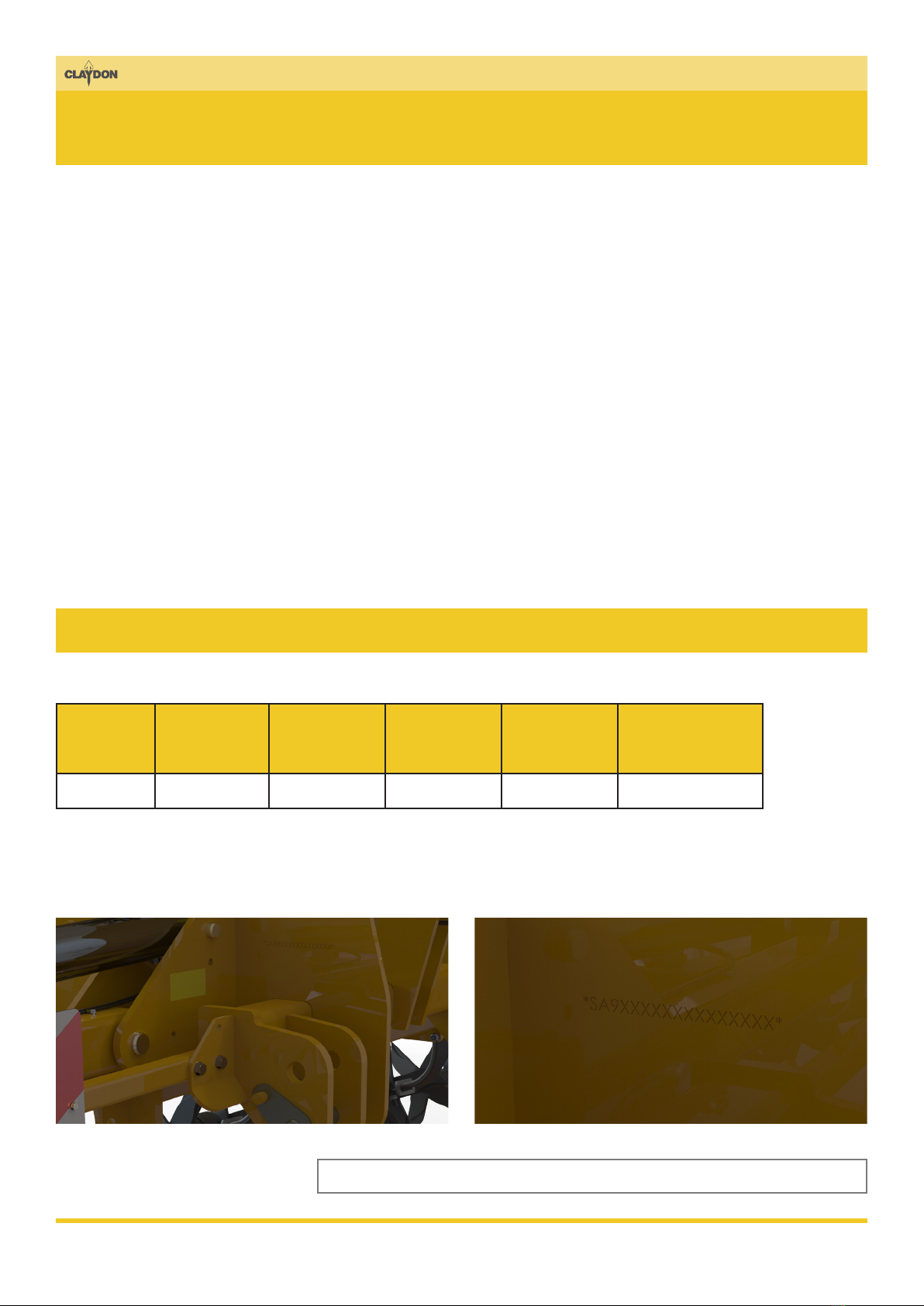

INTRODUCTION
IDENTIFICATION OF MACHINE
Thank you for your purchase of a new TerraStar.The TerraStar. is a simple, low-cost, low disturbance
tool for weed and stubble management, slug control, drainage and the incorporation of manures.
The purpose of this Operator’s Manual is to comprehensively explain to the operator how to set up, use
and maintain the machine. It is essential that the Warnings and Cautions section has been read carefully.
For any further assistance or explanation please contact Claydon Yield-O-Meter using the contact details
given on the front cover.The serial number stamped on the machine will also need to be quoted.
The Claydon TerraStar will give many years of excellent service with little maintenance due to its robust
construction and its small number of moving parts. However, for optimum machine life some maintenance
will be necessary.
Wereservetherighttomakefuturemodicationstothemachinethatcouldmakesomediagramsand
descriptions in this manual ‘out of date’.While the clarity of the manual should not be affected by this,
please bring any concerns to the attention of Claydon Yield-O-Meter Ltd for us to resolve the problem.
Currently the TERRASTAR is available with a 6m span.
Inadditiontothemachineidenticationplate,theVINofthemachineisstampedintothelefthandmain
mounting beam.
You may need to quote the VIN number of your machine when you order spare parts in the future.
Location of VIN number
Record your VIN number here:
Detail of VIN number enhanced
MACHINE WORKING
WIDTH
TRANSPORT
WIDTH
WEIGHT
(APPROX)
UNLOADED
NUMBER OF
STAR TINES
HORSE POWER
REQUIREMENTS
(ESTIMATED
6m 6.4m 2.8m 1,760Kg 68 150hp

8
TERRASTAR
DIRECTIVE PROVISIONS
AIRBORNE NOISE EMISSIONS
WARNINGS AND CAUTIONS
EQUIPMENT OVERVIEW
The Claydon TerraStar conforms to Machinery Directive 2006/42/EC (see - Declaration of Conformity).
N/A
• Ensure total weight of tractor/TerraStar combination does not exceed permitted limits and weight of
tractorissufcientforsafeeldandroaduse.
• Do not allow anyone to stand between tractor and TerraStar during coupling/uncoupling procedures.
• For maintenance/adjustment of the TerraStar ensure that it is lowered to the ground on the 3 point
linkage.
• The hydraulic system on the machine operates under high pressure and pressurised hydraulic oil is
dangerous. Connecting/disconnecting the machine must only be undertaken with the tractor engine
turned off and the pressure in the hoses released.
• Before operating the machine ensure no-one is standing within range of its turning circle.
1
33
2
The terms ‘front’ ‘rear’ ‘left’ and ‘right’ in this manual refer to the machine as follows:
1. ‘Front’ indicated the three point linkage end of the machine
2. ‘Rear’ indicates the machine end on which the tail lights are mounted
3. ‘Left’ indicated the left of the machine as you look at the machine from the rear
4. ‘Right’ indicates the right of the machine as you look at the machine from the rear.
PREPARATION
On taking delivery check for any possible damage that could have occurred during transit.

OPERATORS MANUAL - TERRASTAR9
TERRASTAR
CONNECTING THE TERRASTAR TO THE TRACTOR
FIGURE 1
The Claydon TerraStar. can be mounted onto any CATIIIN or CATIVN compatible three point linkage with
the linkage pins supplied and CATIII balls (not supplied).
3
1
2
The Following Connectors are as follows:
1. TERRASTAR fold connection
2. TERRASTAR un-fold connection
3. 7 pin connection plug
To connect up the drill:
1. Connect the 7 pin connection plug (3) to the 7 pin socket at the rear of the tractor using a safe route
so the cable can’t be caught or snagged
2. Connect the fold and unfold 1/2” ISO connectors (1 & 2) to the tractor
FIGURE 2

10
TERRASTAR
1
2
34 5
FIGURE 3 1. Upper link point
2. Upper hitch point
3. Lower link point
4. Lower hitch point
5. Vertical virtual hitch point
TOP LINK CONVERGENCE POSITION
TRANSPORT
Raise the machine off the ground and fold the wings
fully upright before transport.
LIGHT BRACKET POSITION
Ensure the light brackets are put in this position
for legal transport.The light bracket is adjusted as
shown.
REAR TINE BRACKET POSITION
Ensure the rear harrow tines are no wider than
2.8m when in transport.
IN TANSPORT
IN WORK
REAR LIGHT ASSEMBLY
SHEET 2 of 2
CU-B-0033
WEIGHT:
REV
LAST UPDATED 29/09/2016
04
12.02kg

OPERATORS MANUAL - TERRASTAR11
TERRASTAR

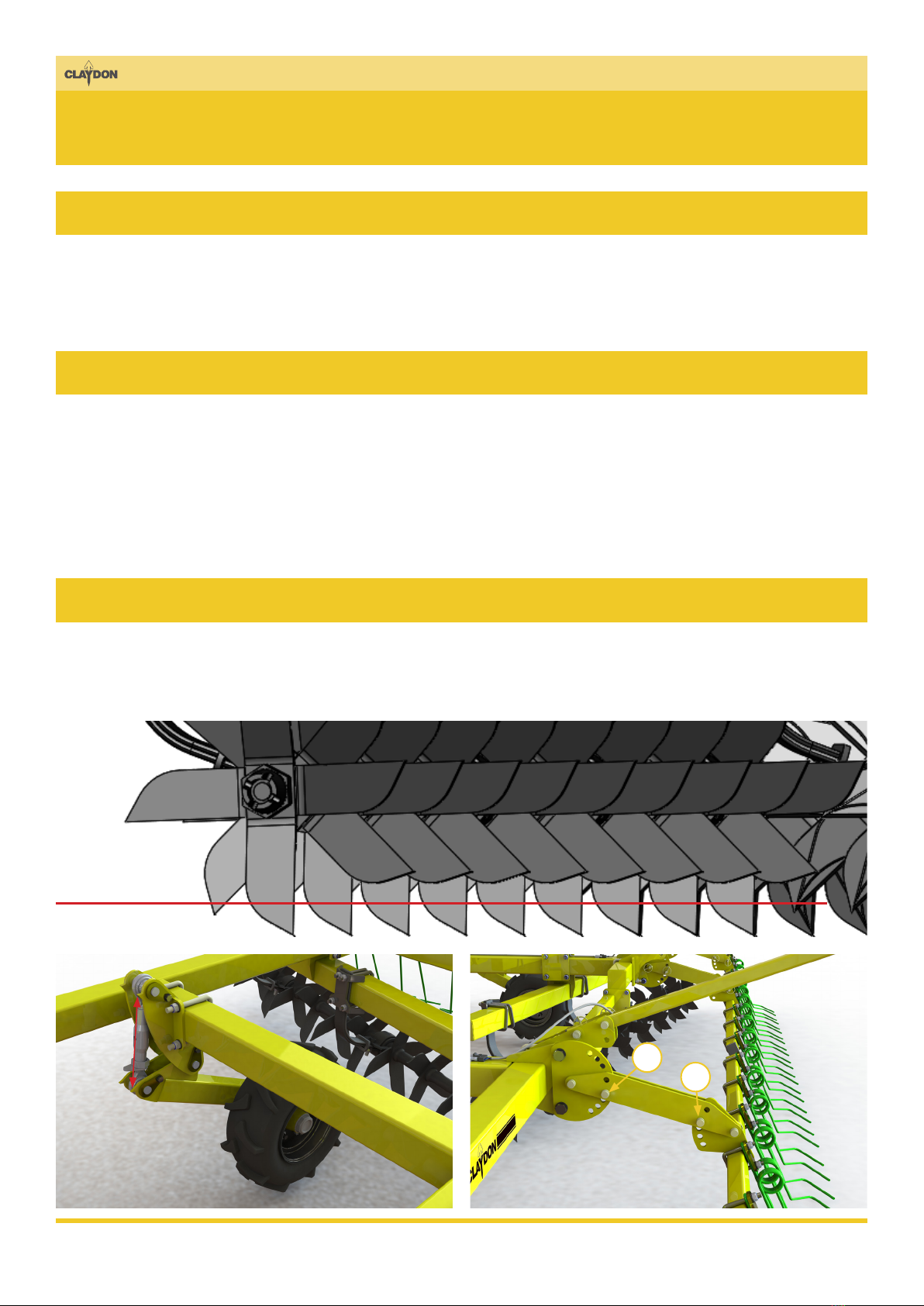

TERRASTAR SET-UP
For optimal working, ensure the TerraStar is set level from front to rear on the top-link of the tractor.
Toconrmthemachinehasbeensetlevel,itisadvisedthatwhilstonepersonisoperatingthemachine,
another person should ensure the harrow is set parallel to the ground.
The TerraStar’s depth wheels allow precise blade depth control in all conditions.
To operate the depth wheels on your TerraStar; lower the machine to the ground and allow the tractor
linkagetooat,thetoplinksonthedepthwheelscanbeadjustedtorestrictthemaximumdepthofthe
blades.The two points at each end of the depth wheel top link can be used as a guide to get both depth
wheels to the same working height using a tape measure.This will make the machine level.
The height and angle of the rear harrow tines can be adjusted as follows:
• Removepin1(gure6)toadjustheightoftrailingtines.
• Removepin2(gure6)toadjustangleoftrailingtines.
SET MACHINE LEVEL
WORKING DEPTH
HARROW TINE ADJUSTMENT
50mm Depth Line
FIGURE 5
1
2
FIGURE 6

12
TERRASTAR

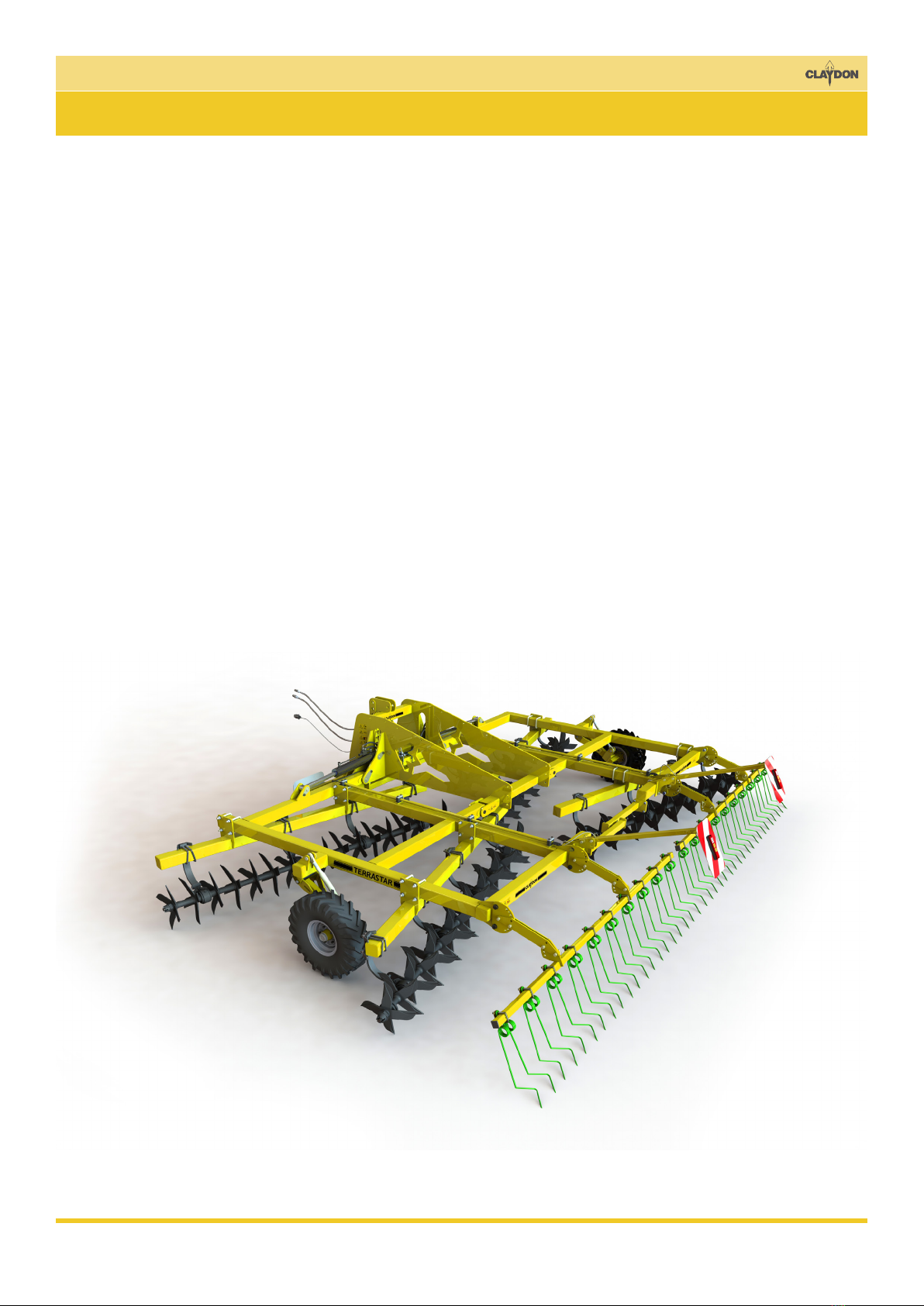

For best results we recommend running the TerraStar so that the blades run 50mm (2”) deep in the
ground.Thepointsofthebladesdigpocketsofsoilandcreateanetilth,levellingtheeldandleavingthe
soil surface largely intact to carry machines whilst encouraging volunteers and grass weeds to germinate
and helping water to drain from the surface layer.The unmoved soil will also retain its capillary action,
bringing moisture to the germination zone.
The shallow tilth can then be moved by the Claydon Straw Harrow, breaking off germinating plants at the
one-leaf stage, eliminating the need to spray while ground conditions allow harrowing.
The implement can be used as a mechanical weeder, reducing the need for glyphosate.This makes stubble
management much easier and cuts slug populations.The TerraStar is also ideal for mulching/incorporating
croporotherresiduesandcanbeusedtohelpleveleldsandproducemoreuniformseedbeds,notonly
in unmoved soil, but behind any other cultivation equipment.The TerraStar is fast and effective and, like the
other machines in the Claydon range, incorporates a minimum of wearing parts, making for extremely low
cost operation.
Forward speed will depend on conditions but should ideally be around 15Kph (10Mph).This is best for
levelling and intense cultivation, shattering the lifted soil.
FIELD USE

OPERATORS MANUAL - TERRASTAR13
TERRASTAR
CARE AND MAINTENANCE
Priortousingthemachine,theTerraStarshouldbecheckedforanybrokenstarpointsorhydraulicuid
leaks.Ensureallboltsarere-tightenedafterthersteighthoursofuseandthattheBellevillewashersat
the ends of the rotors remain compressed.

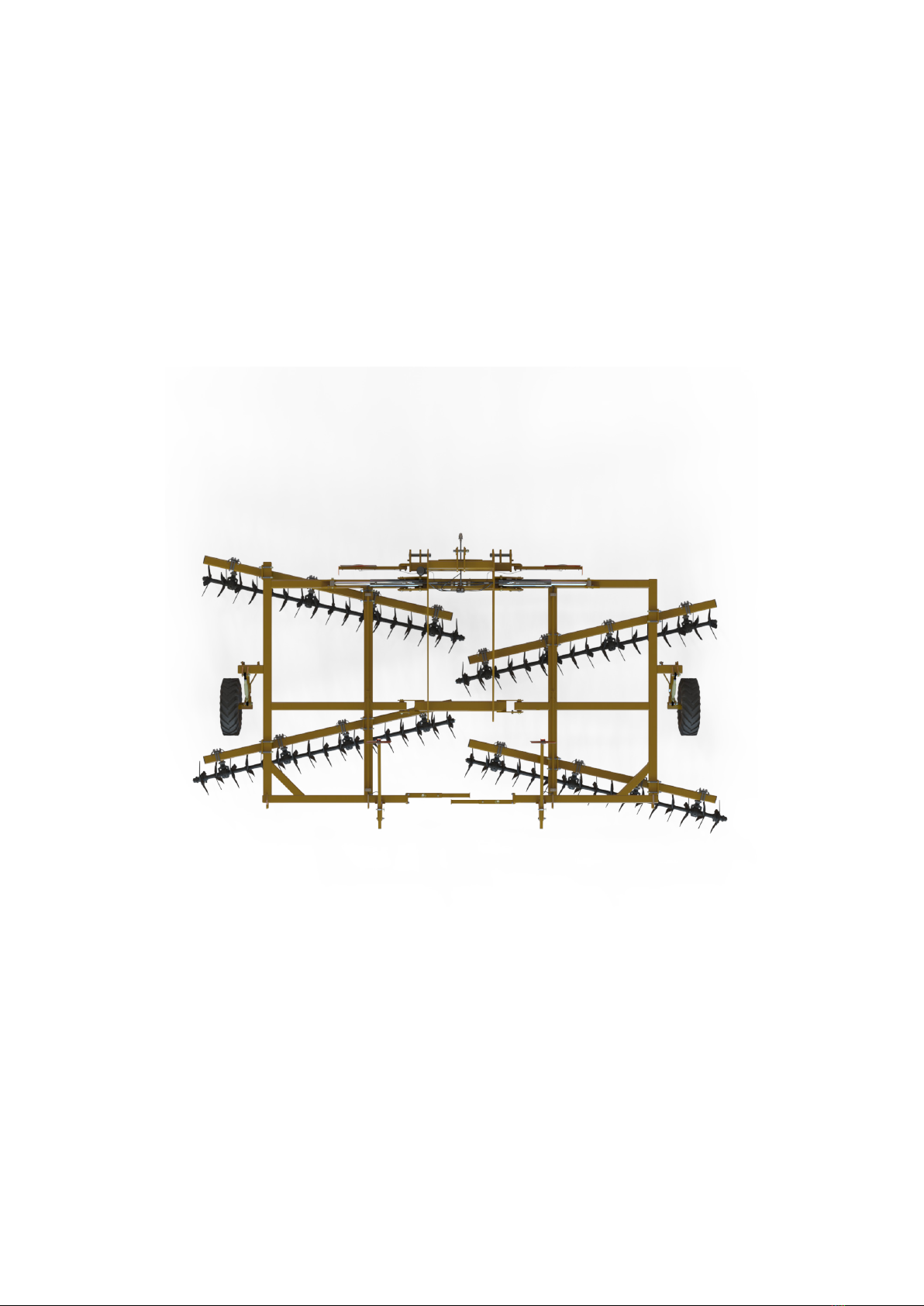

Lubrication should be performed using multi-purpose grease on a daily basis.An overview of the TerraStar
canbeseeninFigure7,withtheidenticationnumberscorrespondingtothedetailsofthelubrication
points in Figure 8.
LUBRICATION POINTS
1
3
24
5
FIGURE 7: Lubrication points

14
TERRASTAR

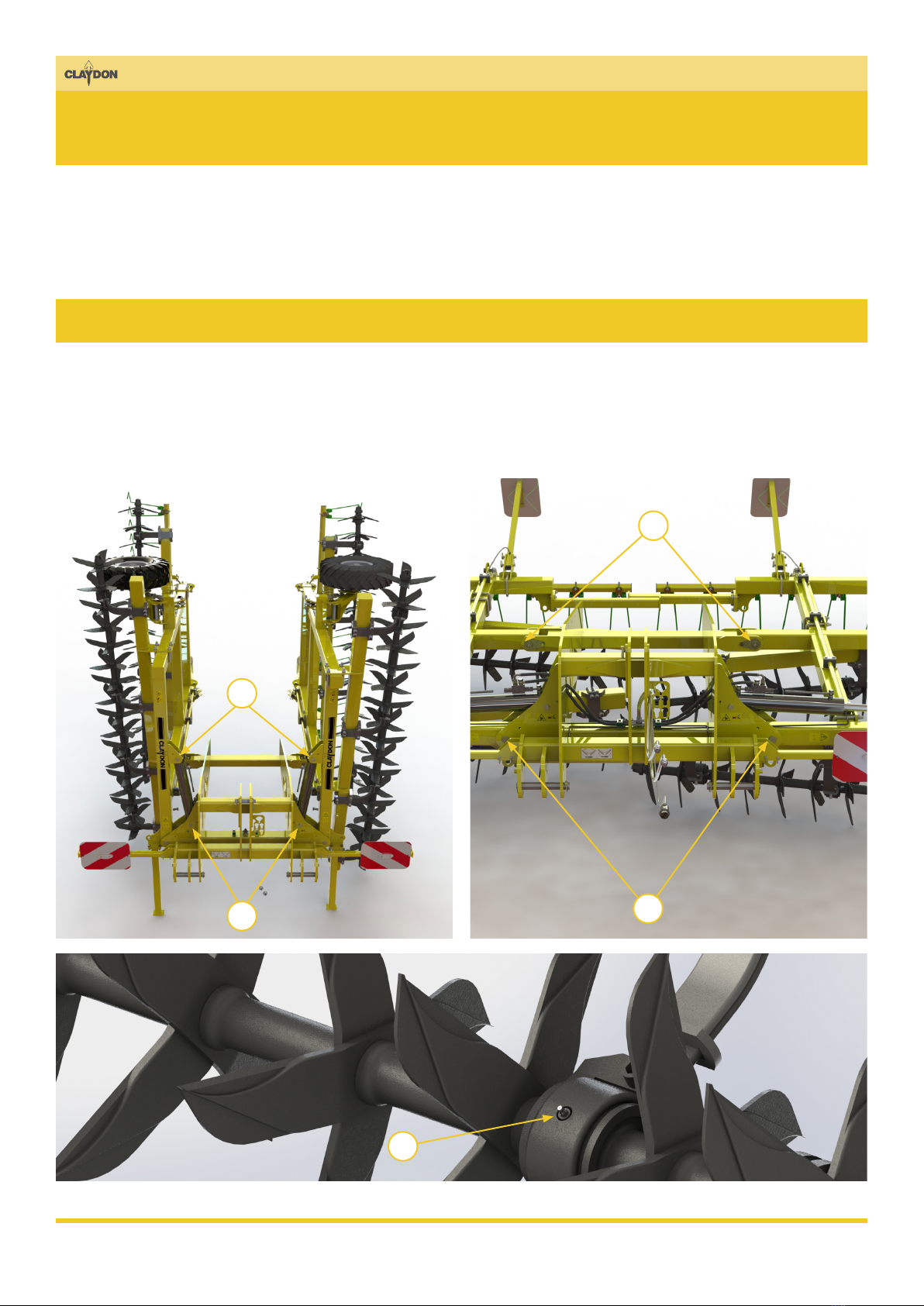

1. FOLDING CYLINDERS - ROD END 2. FOLDING CYLINDERS - BASE END 3. REAR WING PIVOT
4. FRONT WING PIVOT 5. CULTIVATOR TOOL
LUBRICATION POINTS TO BE GREASED DAILY
FIGURE 8: Details of lubrication points

OPERATORS MANUAL - TERRASTAR15
TERRASTAR
DECLARATION OF CONFORMITY
EC Declaration of
Co nf o rmity
In accordance with EN ISO
17050‐1:2004
We
of
Claydon Yieldometer Ltd
Gaines Hall
in accordance with the following D
i rective(s):
2006/42/EC The MachineryDirective
hereby declare that:
Equipment Claydon Drills
Model number
TERRASTAR
Serial Number
is in conformity with the applicable requirements of the following documents
Ref. No. Title Edition/ date
EN ISO 12100-1:2003 Safety of Machinery –Basic Concepts 2003
EN ISO 12100-2
: 2003 Safety of Machinery –Basic Concep t s 2003
I hereby declare that the equipment named above has been designed to comply with the
relevant sections of the above referenced specifications and is in accordance with the
requirements of the Directive(s)
Signed by: ............................................................................................................................
Name: Oliver Claydon
Position: Director of Design and Produc t ion
Done at
Gaines
Hall
Wickhambro
ok
On
07/03/2016
The technical documentation fo r the machinery is available from:
Name: Claydon Yieldometer L
t d
Address:
Gaines Hall
Wickhambrook
Newmarke
t
Suffolk
CB8YA

CLAYDONYIELD-O-METER LTD
BUNTERS ROAD,WICKHAMBROOK, NEWMARKET, SUFFOLK, CB8 8XY
TEL: [phone] | FAX: [phone]
EMAIL: [e-mail]
www.claydondrill.com
