CLAYMORE 3FACE+ Series User manual

6. Specification
Warm : 3000K , Bright : 4200K , Cool : 6200K (±15%)
5V 2A
7. Package
① Claymore 3Face
5. How to solve the problem
* If you have any problems when using the product, please check the below details first.
1. When light is not working : Please check if it is charged or not.
2. External device is not charging from USB Out port : Check the status of button
MADE IN KOREA
DC 12.6V 3A
CLF-2610TS
4 hour
8hour ~ 78hour
296×100×36mm
825g
CLAYMORE 3FACE+ L
60~4,000 Lm
Li-ion
3.6V 26,100mAh
CLF-3150TS
4.5 hour
7hour 40minute ~ 78hour
296×100×36mm
960g
CLAYMORE 3FACE+ X
70~5,000 Lm
Li-ion
3.6V 31,500mAh
CLF-1740TS
3 hour
7hour 30minute ~ 78hour
229×100×36mm
605g
50~3,200 Lm
CLAYMORE 3FACE+ M
Li-ion
3.6V 17,400mAh
③ Adapter ② Strap and carabiner ④ Pouch ⑤ Manual
User Manual
Product name
Model name
Charging time
LED color temperature
OUTPUT
Origin
INPUT
Using time
Size
Weight
Brightness (lumen)
Battery type
Battery capacity
Cautions for long-term storage
* For long-term storage, fully recharge the lantern. (Repeat every six months)
* Please keep in mind that if stored below 10°C the battery life may be affected.
* Please keep in a dry place without moisture.
* After the battery is fully discharged, the battery remaining indicator may not flash.
If this happens, plug the USB cable back in or press the button to turn the battery indicator again.
3FACE plus M/L/X
CLAYMORE 3FACE+ M CLAYMORE 3FACE+ L CLAYMORE 3FACE+ X
CLF-1740TS CLF-2610TS CLF-3150TS
Warranty
Item
Model No.
Seller
Date of Purchase
1. Thank you for purchasing CLAYMORE series of Prism Co., Ltd.
2. This product has passed strict quality control and testing process.
When you find some inappropriate working on the product, please contact
authorized service center listed on below.
Free Service
1) Failure of the product under normal operating conditions during the warranty
period will be repaired by Prism or authorized service center on free of charge.
Some shipping or handling charges may be involved.
2) Warranty period: 1 years
Charged Service
1) Damage caused when the warranty period is over
2) Damage caused due to the user’s mishandling, abuse, or improper operation
3) Damage caused by arbitrary or personal repair or disassemble in unauthorized service center
4) Damage from input electricity or cable defect
5) Damage caused by natural disaster
Manufacturer
www.claymorelight.com / www.prismlight.co.kr
[email protected]
101-1501, Chunui-Technopark, Bucheon-ro 198 Road, 36,
Bucheon-si, Gyeonggi-do, Korea
Bigtent Outdoor Equipment Ltd. www.bigtentoutdoors.com
Prism Co., Ltd.
Official Import Distributor
[e-mail]

3. Operating Manual
4. Installation guide
This portable lantern contains Li-ion battery.
Please follow user's manual before using it. If any abnormality is found in the product,
please discontinue use and contact the dealer or service center that you purchased.
1. Caution
① Do not use it near high temperature such as fire or heating equipment. It may cause explosion and ignition.
② This product is water resistant. However, if left in the rain for a long time, it may cause malfunction.
If you accidentally fall into the water, please quickly wipe it off
③ Do not store or use in vehicles exposed to direct sunlight. It may cause explosion and malfunction.
④ Do not touch the light source directly as it may become very hot during use. Use handle to carry out.
⑤ Do not use when it exceed the operating temperature range (-10 ° C to 40 ° C).
⑥ Never use an external power supply other than the supplied adapter. It may cause heat and ignition.
⑦ Please do not place in the reach of infants. It may cause swallowing of parts or injury.
⑧ Supervisor by guardian is necessary when used by children.
Misuse of lantern may cause injury or electric shock.
⑨ Do not insert any metal parts into the terminal block of the connector.
It may cause heat, explosion or electric shock.
⑩ Do not disassemble or modify the product.
⑪ Do not touch the connector with wet hands. There is a danger of electric shock.
⑫ After use, be sure to turn off the power.
⑬ Dropping or impacting the product can cause damage to the inside of the product,
resulting an unexpected failures in normal use. Be careful not to apply impact to the body.

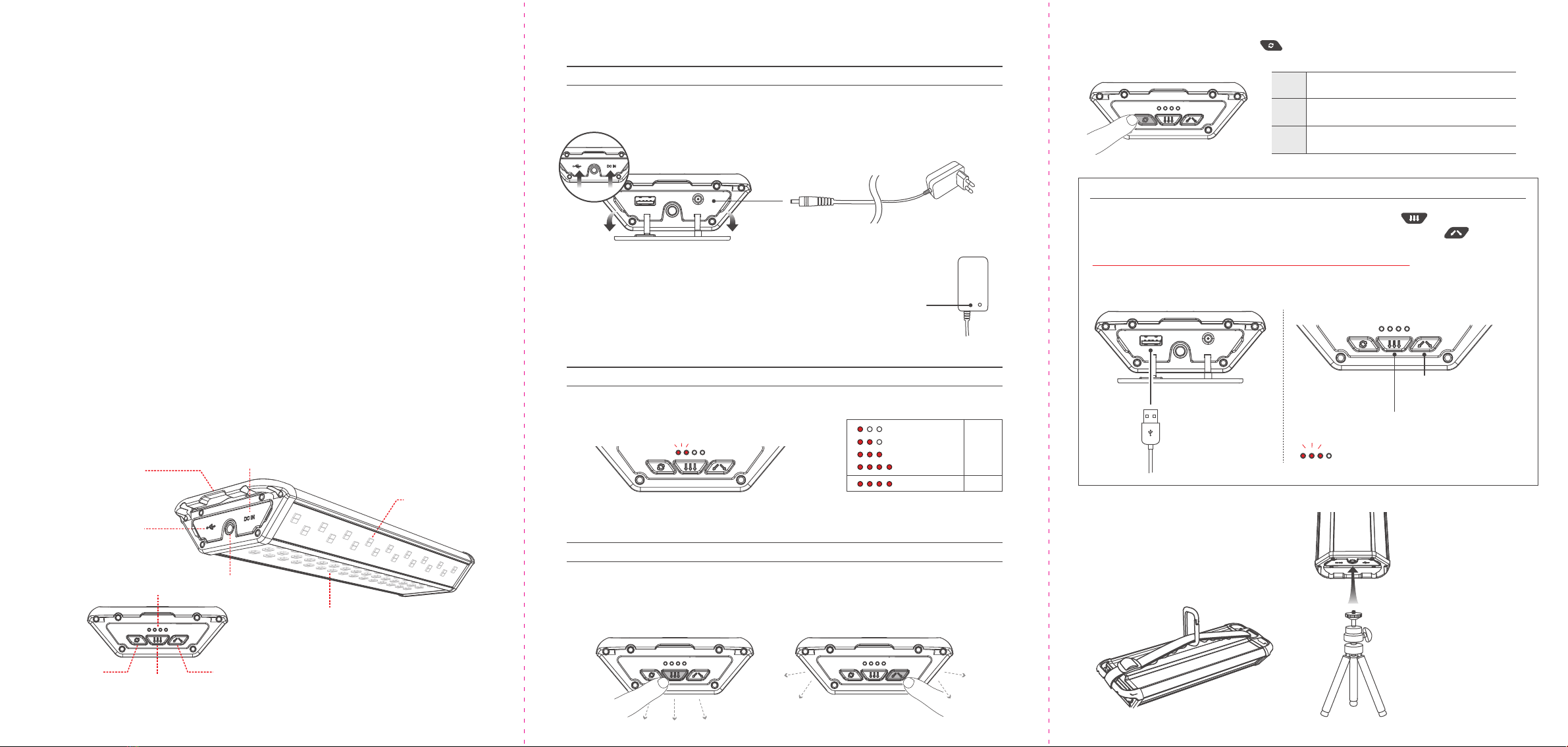

2. Parts & Contents
1) As shown in the figure, open the cover of the product and connect the adapter to the Power In port.
Charging time may vary depending on battery capacity and external environment.
2) When charging the product, you can check the charging level through the adapter.
* This product has built-in protection circuit to prevent overcharge.
Charging the lantern
Battery level indicator
Front Light power button
(On/Off and dimming)
Light Color control
button
Wide Light power button
(On/Off and dimming)
USB Out port
Power In port
Handle / Hook
Wide Light LED
and diffusion filter
Front Light LED
and diffusion filter
Lamp on adapter – Red : Charging / Green : Complete
* To mount on camera tripod:
Turn the fixing screw on the camera
tripod into the socket and fix it.
It can be used in various ways by
connecting to products using
1/4 inch screws.
※ When closing the cover, insert it from the direction of the arrow
as shown on the left, and then press it to close it.
Power bank function
Battery indicator
0~25%
25~50%
50~75%
75~100%
Fully charged
Flickers
Stop
※ When the battery level is lower than 4%, Battery check / Power bank function does not work
so charge the lantern to use properly.
※ Be sure to use the supplied 3Face adapter for this product.
This adapter cannot be used with other Claymore products or other electrical appliances.
Battery Level Check
2) CCT control : When light is on, press button shortly to adjust the light color in three steps:
Warm -> Bright -> Cool.
1) On/Off and dimming control : Press each button shortly to light up and adjust the brightness in
1-2-3 steps. When you press the fourth time, the light turns off.
On/Off · Dimming control · CCT control
Front light Wide light
Warm
Bright
Cool LED light with high color temperature,
cool light feels like ordinary fluorescent light
1/4inch tripod socket
This product can be installed with
strap and carabiner.
After connecting the USB cable as shown in the figure, press and hold button for 2 seconds
to start charging the external device. If you do not want to use it, press and hold side button
for 2 seconds to end the charging.
2 seconds press and hold
→ power bank on
When power bank function works,
battery indicator blinks
※ After 5 hours, the power bank is automatically turned off to prevent battery consumption.
→ After using the power bank, adjust the lighting to the desired level.
※ When using a carabiner, be sure to insert it
into the lower hole of the strap.
(Prevent product fall in case of emergency)
The battery indicator blinks and indicates the remaining battery level
in four steps. (The remaining battery level is displayed for about
2 seconds in the 1-step brightness on both sides.)
2 seconds press and hold
→ power bank off
LED light with low color temperature,
warm light feels like ordinary gas lantern
LED light with a neutral color of daylight and light bulb
and comfortable feeling
