Claypaky AXCOR PROFILE 600 User manual

INSTRUCTI N MANUAL
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
INDEX
ENGLISH
Page Contents
2 1. Safety information
3 2. Unpacking and preparation
4 3. Installation and start-up
4 3.1 Installing the fixture
4 3.2 Connecting to manis supply
5 3.3 Connecting the control signal line: DMX / Art-Net
5 3.4 Switching on the fixture and basic SetUp
7 4. Maintenance
7 4.1 Opening the covers
8 4.2 Periodical cleaning
9 4.3 Effects module removal
14 4.4 Cleaning of the filters
16 4.5 Rotating gobos
18 4.6 Battery removal
19 5. Specifications
AXCOR PROFILE 600 - AXCOR PROFILE 600 HC
AXCOR PROFILE 600 ST
AXCOR PROFILE 600 HC-ST
C61705
C61706
C61708
C61709

2
AXCOR PROFILE 600
EN
IT
DE
ES
FR
RU
SAFETY INF RMATI N
IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
www.claypaky.com
Ref: FIS00W - Safety Information Axcor 600 series
INF RMAZI NI DI SICUREZZA
IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
www.claypaky.com
Rif: FIS00W - Safety Information Axcor 600 series
INF RMATI NEN ZUR SICHERHEIT
WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
www.claypaky.com
Ref: FIS00W - Safety Information Axcor 600 series
INF RMACI NES DE SEGURIDAD
IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
www.claypaky.com
Ref: FIS00W - Safety Information Axcor 600 series
C NSIGNES DE SÉCURITÉ
IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
www.claypaky.com
Réf. : FIS00W - Safety Information Axcor 600 series
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и со ранить инструкцию по те нике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
www.claypaky.com
Наименование: FIS00W - Safety Information Axcor 600 series
1. SAFETY INF RMATI N

3
AXCOR PROFILE 600
1
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
Packing contents - Fig. 1
90˚
90˚
90˚
90˚
UNLOCKED
LOCKED
45˚45˚
45˚
45˚
45˚
45˚
45˚
2 x 183102/805
2. UNPACKING AND PREPARATI N
2 3

4
AXCOR PROFILE 600
4
2
1
1
2
3
5
3. INSTALLATI N AND START-UP
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: ith the exception of hen the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/001 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
3.1 Installing the fixture
3.2 Connecting to manis supply

5
AXCOR PROFILE 600
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
Axcor Version X.X.X Dmx Address xxx E: .........................
600 Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address (if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
1
2
Dmx Address
Warning Message
Fixture ID
8
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5 pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMP RTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
Connecting to the mains supply - Fig. 6
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
SCREEN
1
3
2
DMX 512
3 PIN
SIGNAL
SIGNAL
Mains
6
7
Continue ➔
3.3 Connecting the control signal line: DMX / Art-Net
3.4 Switching on the fixture and basic SetUp

AXCOR PROFILE 600
6
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT

7
AXCOR PROFILE 600
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPAC ING AND PREPARATION section.
pening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
1/4 Turn
2
1
CLICK!!
1/4 Turn
2
1/4 Turn
1
21
10 11
Continue ➔
4. MAINTENANCE
4.1 pening the covers

Lower side
Upper side
8
AXCOR PROFILE 600
12
Periodical cleaning - Fig. 12
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
•General cleaning of internal parts.
•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
•General visual check of the internal components, cabling, mechanical parts, etc.
•Electrical, photometric and functional checks; eventual repairs.
N TE: keep a careful cleaning
of the ''CMY/colour filters assembly''
to prevent rapid deterioration.
Light collimation system
This product contains internal light
collimation system. Avoid intense
light from any angle.
4.2 Periodical cleaning

9
AXCOR PROFILE 600
Upper side
1
Lower side
2
3
13
Extraction of the effect modules: Preliminary operations - Fig. 13.
N TE:
- Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards.
- Do not switch-on the fixtures with wiring harness disconnected.
Continue ➔
4.3 Effects module removal

10
AXCOR PROFILE 600
2Lower side
1
Upper side
1
3
3
2
14
Extraction of the effect modules: Preliminary operations - Fig. 14.
N TE:
- Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards.
- Do not switch-on the fixtures with wiring harness disconnected.

11
AXCOR PROFILE 600
1
Upper side
2
Extraction of the effect modules - Fig. 15.
IMP RTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order.
15
Continue ➔

12
AXCOR PROFILE 600
1
Upper side
2
Extraction of the effect modules - Fig. 16.
IMP RTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order.
16

13
AXCOR PROFILE 600
2
1
Lower side
Extraction of the effect modules - Fig. 17.
IMP RTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order.
17
Continue ➔

14
AXCOR PROFILE 600
Cleaning of the filters - Fig. 18.
2
11/4 Turn
3
4
18
4.4 - Cleaning of the filters

15
AXCOR PROFILE 600
1
1/4 Turn
4
5
2
5
4
3
3
19
Cleaning of the filters - Fig. 19.
Continue ➔

16
AXCOR PROFILE 600
2
1
INDEX
GOD019/013
GOD019/014
GOD019/010
GOD019/009
GOD019/008
GOD019/012GOD019/011
25 ±0.1
1 ±0.1
ø25.9 ±0.1
Immagine ø20
21
Replacing rotating gobos (max 20 mm image – thickness 1 mm) - Fig. 21
- Before use custom gobos contact Claypaky;
- The original gobos have a special coating designed specifically to resist to the high temperatures;
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Claypaky;
Bearing group replacement - Fig. 20
20
4.5 - Rotating gobos

17
AXCOR PROFILE 600
Gobo orientation - Fig. 22
The pictures shown the correct gobos orientation.
22
GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2
To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
Grey/Black side
away from light source
Coated side towards
light source
Coated side
Uncoated side
Uncoated side
Reflective side towards light source
COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2

18
AXCOR PROFILE 600
This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
1
3
5
2
4
6
23
4.6 Battery removal

19

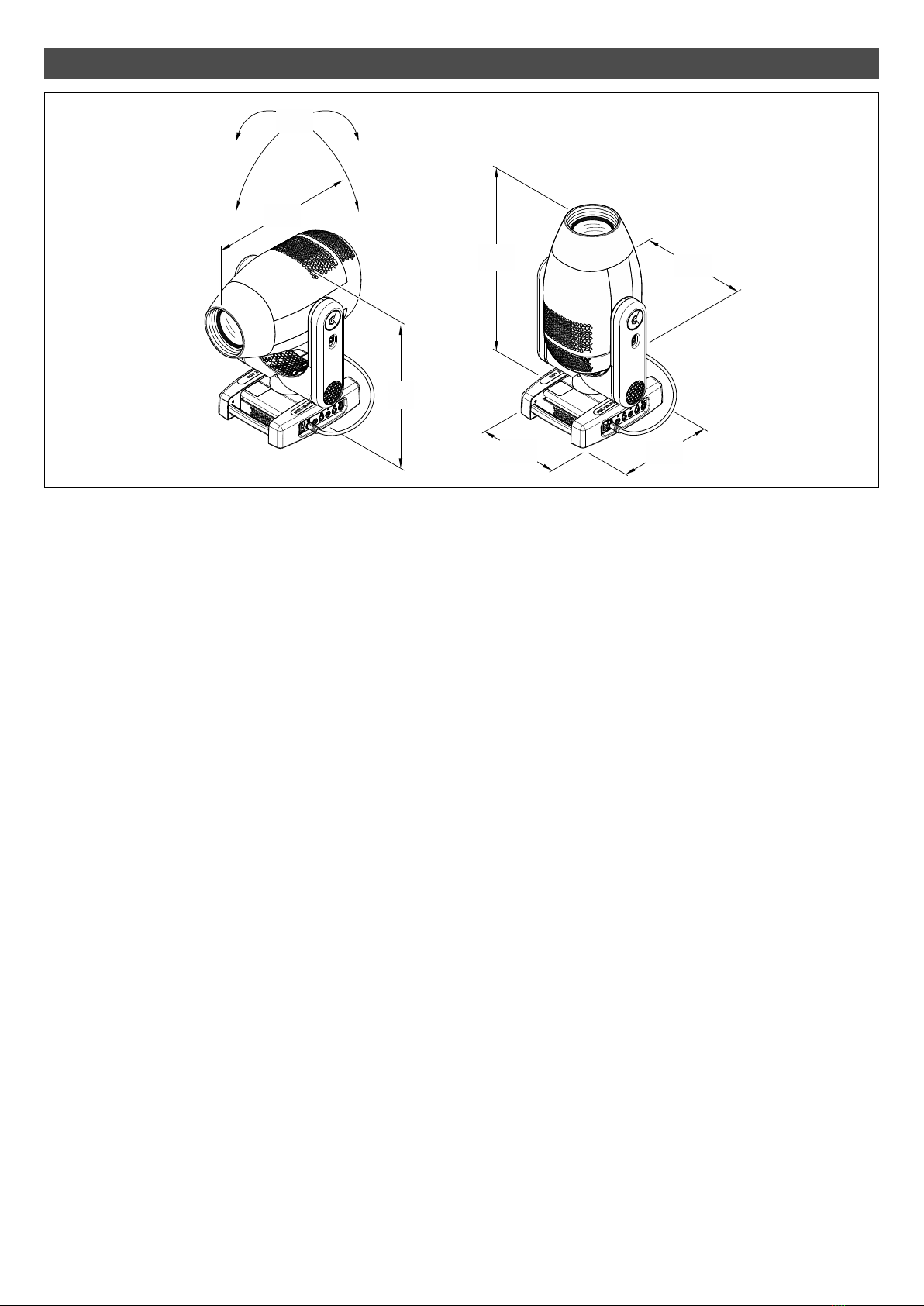

AXCOR PROFILE 600
329
(12.95") 388
(15.28")
636
(25.04")
570
(22.44")
785
(30.91") 409
(16.10")
607
(23.90")
P WER SUPPLIES
AC power input Neutrik PowerCON True
100-240V, 50/60 Hz
INPUT P WER
800 VA @230Vac - 50Hz
LIGHT S URCE
Source: 500W White LED Engine
Versions available:
- CRI: at least 70, CT 6500 (Axcor Profile 600 and ST)
- CRI: at least 90, CT 5600 (Axcor Profile 600 HC and HC-ST)
PTICS
Ø 132mm front lens
5.3°- 47.2° linear Zoom
C L R SYSTEM
CMY + Linear CTO
One Color Wheel with 5 Colors
FRAMING SYSTEM
Motorized framing system with 4 focal planes
4 Blades that move separately
Smooth, flexible blade movements at variable speed
Faming system indexable over 90 degrees
EFFECTS SECTI N
One Rotating Gobo Wheel with 7 Gobos
Rotating 4-facet prism
Animation wheel (interchangeable with fixed gobo wheel)
Variable Frost 0-100% linear
Iris with multiple macros (random, pulsing…)
Electronic linear dimmer, 16 bit and 4 curves
Electronic strobe @25 f/sec.
C NTR L AND PR GRAMMING
40/44 control channels
inputs: DMX 512 – Art-Net
Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net
Display Graphic LCD backlit b/w Display
Display battery Long life self-charging buffer battery
Pan/Tilt Resolution 16 bit
Focus Resolution 16 bit
Gobo Resolution 16 bit
Dimmer Resolution 16 bit
Movement control vectorial
DMX signal connection 3 or 5 pole XLR input and output
Ethernet Input
Firmware update Software upload through DMX/Ethernet input
B DY
Aluminum and steel structure with plastic covers.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.
M VING B DY
PAN range 540°
TILT range 268°
ELECTR NICS
Long life self-charging buffer battery.
Function reset from the lighting desk.
“AUTOTEST” function from menu ARTNET.
Electronic monitoring with status error.
Cooling system monitoring.
DMX level monitoring on all channels.
Internal data transmission diagnostics.
Firmware Upgrade with no power.
Firmware upload from another fixture.
SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating.
Forced ventilation with axial fans.
Minimum distance of illuminated objects: 3 meters (9’ 10”).
Minimum distance from flammable materials: 0.2 meters (8”).
Max ambient temperature: 40°C (104°F).
Max temperature of the external surface: 90°C (194°F).
W RKING P SITI N
Working position: Any.
Hanging system 2x fast-lock omega clamps (1/4 turn) on the
base.
Optional: 48-51mm, max300 g clamps; Ø 4mm, lenght
680mm safety cable
CE MARKING
In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS) •
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
WEIGHT
33 g (72.7 lbs)
5. SPECIFICATI NS

IST01A/001 – EN - Rev.0 03/2019
Clay Paky S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. [phone] - Fax [phone] - www.claypaky.com
