Clevo W830T User manual

Preface
I
Preface
Notebook Computer
W830T/W830T1/W840T/W840T1
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
October 2009
Trademarks
Intel and Intel Core are trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the W830T/
W830T1/W840T/W840T1 series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output
of 19V, 3.42A OR 18.5V, 3.5A (65 Watts) minimum AC/DC Adapter.
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This Computer’s Optical Device is a Laser Class 1 Product

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable surface. Do not place anything heavy on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance on your computer.

Preface
VI
Preface

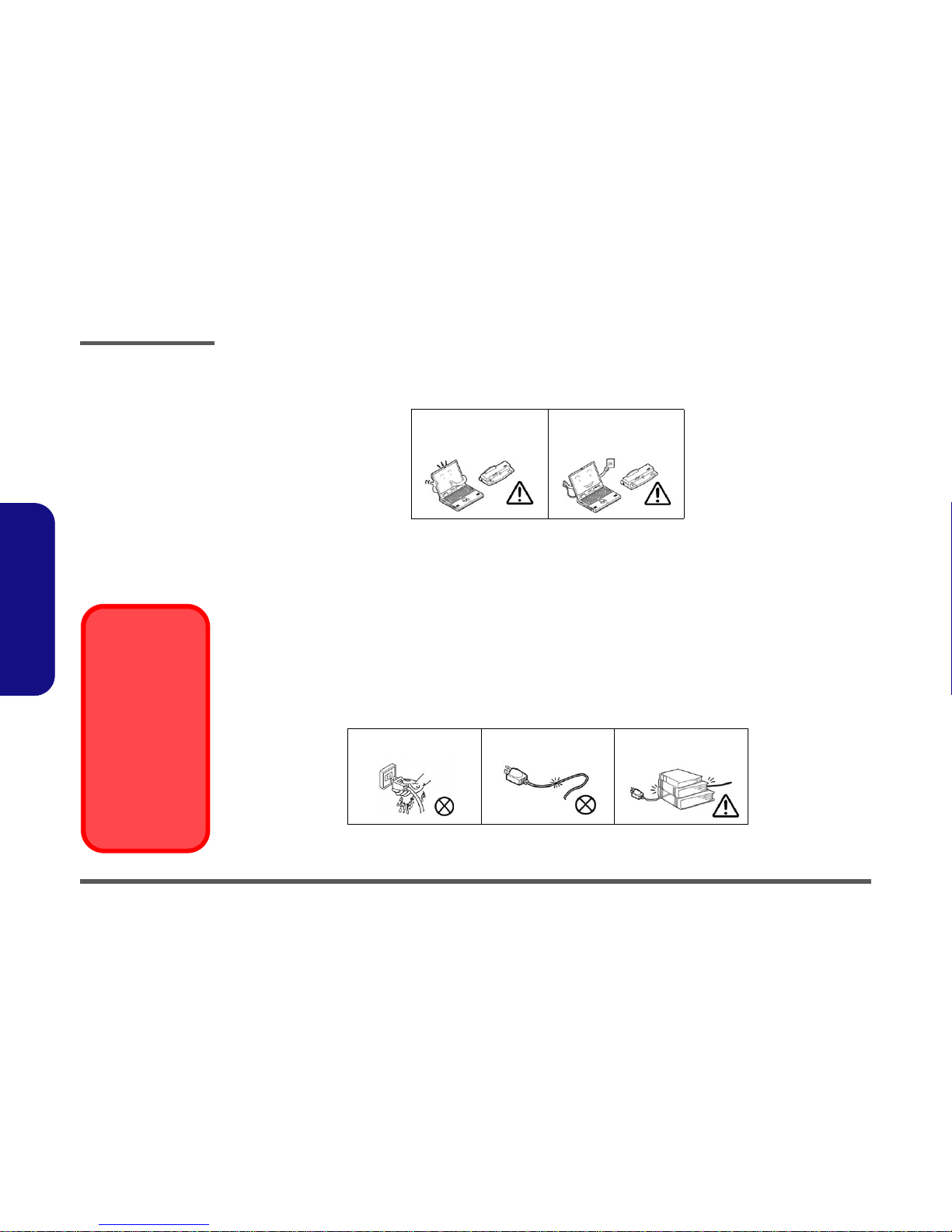

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if it is broken. Do not place heavy objects on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on Disc
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications .....................................................................1-2
External Locator - Top View with LCD Panel Open ......................1-4

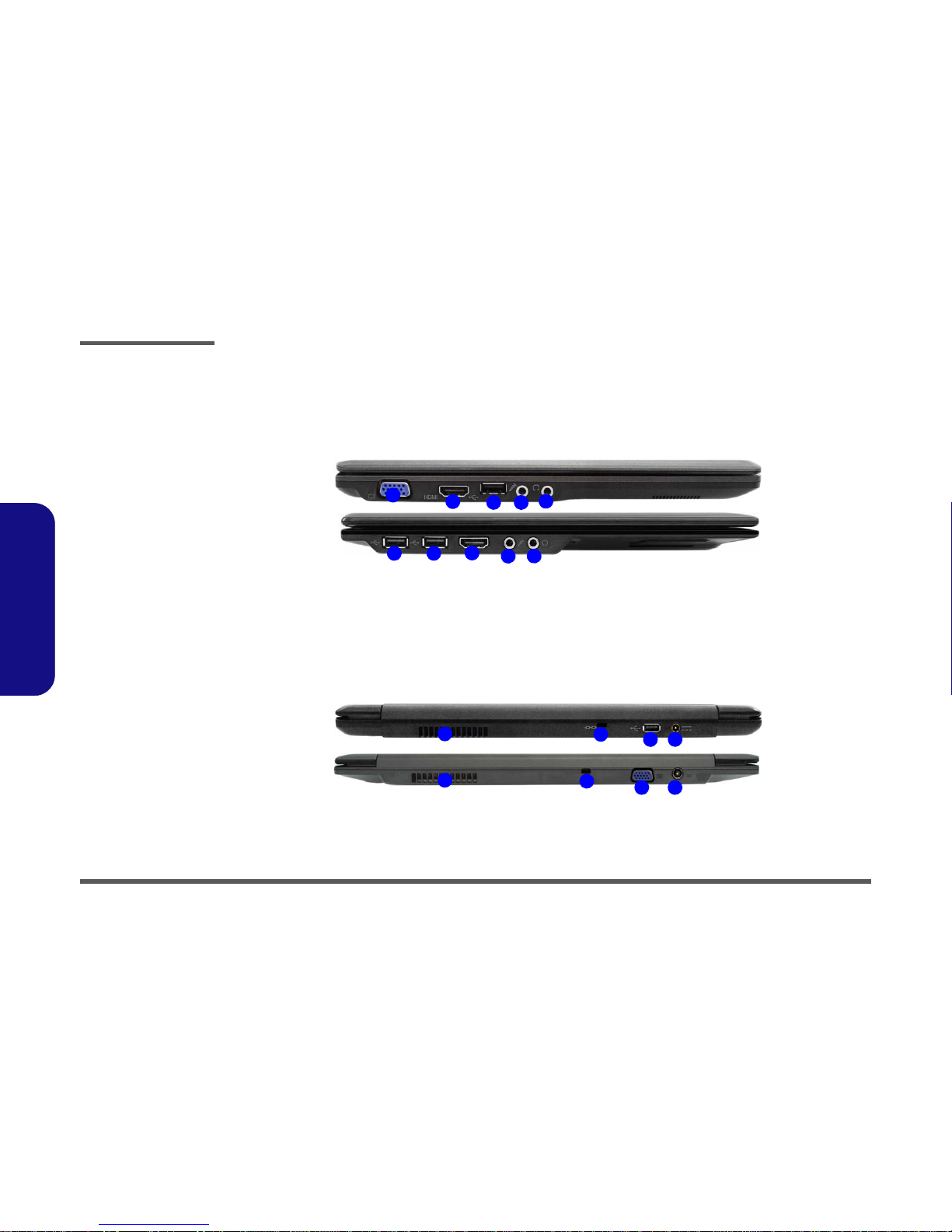

External Locator - Front & Right side Views .................................1-5
External Locator - Left Side & Rear View .....................................1-6
External Locator - Bottom View .....................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-6
Removing the Keyboard ..................................................................2-8
Removing the System Memory (RAM) ..........................................2-9
Removing the Wireless LAN Module ...........................................2-10
Removing the 3.75G Module ........................................................2-11
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top (W830T/W830T1) ..................................................................A-3
Top (W840T/W840T1) ..................................................................A-4
Bottom (W830T/W830T1) .............................................................A-5
Bottom (W840T/W840T1) .............................................................A-6
LCD (W830T/W830T1) ................................................................ A-7
LCD (W840T/W840T1) ................................................................ A-8
HDD (W830T/W830T1/W840T/W840T1) ................................... A-9
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
Clock Generator ..............................................................................B-3
Penryn SFF 1/3 ...............................................................................B-4
Penryn SFF 2/3 ...............................................................................B-5
Penryn SFF 3/3 ...............................................................................B-6
Cantiga SFF 1/6, PEG .....................................................................B-7
Cantiga SFF 2/6, CLK ....................................................................B-8
Cantiga SFF 3/6, DDR ....................................................................B-9
Cantiga SFF 4/6, Power 1 .............................................................B-10
Cantiga SFF 5/6, Power 2 .............................................................B-11
Cantiga SFF 6/6, GND .................................................................B-12
DDR3 So-DIMM_0 ......................................................................B-13
ICH9-M SFF 1/5, SATA, HDD CON ..........................................B-14
ICH9-M SFF 2/5, PCI, USB .........................................................B-15
ICH9-M SFF 3/5, GPIO ...............................................................B-16
ICH9-M SFF 4/5, Power ...............................................................B-17
ICH9-M SFF 5/5, GND ................................................................B-18
EC KBC-ITE IT8502E .................................................................B-19
Power VCore ................................................................................B-20
Power 1.5V/0.75V/1.5VS .............................................................B-21
Power 1.8V/1.05VS ......................................................................B-22
Power VGA GPU (VGFX_Core) .................................................B-23
Power 5VS, 3VS, 3.3V, 5V ..........................................................B-24
Power VDD3/VDD5 .....................................................................B-25
LCD/CCD/Click/BT Conn ...........................................................B-26
To Multi, I/O Conn, W840T LED ................................................B-27

Preface
X
Preface
System Block Diagram (W830T) ................................................. B-28
W830T I/O (JMC251) .................................................................. B-29
W830T I/O (CCD, MINI, WLAN/3G) ........................................ B-30
W830T I/0 (New Card, Fan, USB) ..............................................B-31
W830T I/O to MB Conn (SW) .....................................................B-32
W830T Multi (Audio ALC272) ...................................................B-33
W830T Multi (AC_In, Charger) .................................................. B-34
W830T Multi (HDMI/CRT Port) ................................................. B-35
W830T to CPU Conn (Jack, USB) ...............................................B-36
W830T Click Board (LED) ..........................................................B-37
System Block Diagram (W840T) ................................................. B-38
W840T I/O (JMC251) .................................................................. B-39
W840T I/O (CCD, MINI, WLAN/3G) ........................................ B-40
W840T I/0 (New Card, Fan, USB) ..............................................B-41
W840T I/O to MB Conn (SW) .....................................................B-42
W840T Multi (Audio ALC272) ...................................................B-43
W840T Multi (AC_In, Charger) .................................................. B-44
W840T Multi (HDMI/CRT Port) ................................................. B-45
W840T to CPU Conn (Jack, USB) ...............................................B-46
W840T Click Board (LED) ..........................................................B-47

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the W830T/W830T1/W840T/W840T1 series note-
book computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s
Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the
computer.
Operating systems (e.g. Windows XP, Windows Vista, etc.) have their own manuals as do application software (e.g. word
processing and database programs). If you have questions about those programs, you should consult those manuals.
The W830T/W830T1/W840T/W840T1 series notebook is designed to be upgradeable. See Disassembly on page 2 - 1
for a detailed description of the upgrade procedures for each specific component. Please note the warning and safety in-
formation indicated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Processor
W830T/W840T:
Intel® Celeron® Processor ULV:
723 (1.20GHz)
45nm (45 Nanometer) Process Technology,
1MB L2 Cache & 800MHz FSB - TDP 10W,
BGA Socket P Pin-Out, 22 * 22mm CPU On
Board
Intel® Celeron® Processor ULV:
743 (1.30GHz)
45nm (45 Nanometer) Process Technology,
1MB L2 Cache & 800MHz FSB - TDP 10W,
BGA Socket P Pin-Out, 22 * 22mm CPU On
Board
Intel® Pentium® Processor SU2300:
(1.20GHz)
45nm (45 Nanometer) Process Technology,
2MB L2 Cache & 800MHz FSB - TDP 10W,
BGA Socket P Pin-Out, 22 * 22mm CPU On
Board
Intel® Pentium® Processor SU2700:
(1.30GHz)
45nm (45 Nanometer) Process Technology,
2MB L2 Cache & 800MHz FSB - TDP 10W,
BGA Socket P Pin-Out, 22 * 22mm CPU On
Board
Intel® Pentium® Processor SU4100:
(1.30GHz)
45nm (45 Nanometer) Process Technology,
2MB L2 Cache & 800MHz FSB - TDP 10W,
BGA Socket P Pin-Out, 22 * 22mm CPU On
Board
W830T1/W840T1:
Intel® Core™2 Solo Processor ULV:
SU3500 (1.40GHz)
45nm (45 Nanometer) Process Technology,
3MB L2 Cache & 800MHz FSB - TDP 5.5W,
BGA Socket P Pin-Out, 22 * 22mm CPU On
Board
Intel® Core™2 Duo Processor ULV:
SU7300 (1.30GHz)
45nm (45 Nanometer) Process Technology,
3MB L2 Cache & 800MHz FSB - TDP 10W,
BGA Socket P Pin-Out, 22 * 22mm CPU On
Board
Core Logic
W830T/W840T:
Intel® GS40 + ICH9M-SFF Chipset
===============================
W830T1/W840T1:
Intel® GS45 + ICH9M-SFF Chipset
Display
W830T/W830T1:
13.3” HD (1366 * 768) TFT LCD
===============================
W840T/W840T1:
14.0” HD (1366 * 768) TFT LCD
BIOS
One 16Mb SPI Flash ROM
Phoenix™ BIOS
Security
Security (Kensington® Type) Lock Slot
BIOS Password
Memory
64-bit Wide DDRIII (DDR3) Data Channel
Supporting Single Channel DDRIII (DDR3)
SDRAM
Memory Expandable up to 2GB
===============================
W830T/W840T:
One 204 Pin SO-DIMM Socket Supporting
DDRIII (DDR3) 800MHz
===============================
W830T1/W840T1:
One 204 Pin SO-DIMM Socket Supporting
DDRIII (DDR3) 1066MHz
Video
W830T/W840T:
Intel® GMA 4500M
High Preference 3D/2D Graphic Accelerator
Shared Memory Architecture of up to 256MB
Supports Microsoft DirectX 10
===============================
W830T1/W840T1:
Intel® GMA 4500MHD
High Preference 3D/2D Graphic Accelerator
Shared Memory Architecture of up to 256MB
Supports Microsoft DirectX 10
Audio
High Definition Audio
Direct Sound 3D™ Compatible
Built-In Microphone
2 * Built-In Speakers

Introduction
System Specifications 1 - 3
1.Introduction
Storage
One Changeable 2.5" 9.5 mm (h) HDD with
SATA (Serial) Interface
Keyboard & Pointing Device
Full Size WinKey Keyboard
Built-in TouchPad with Scrolling and Multi-
Finger Key Functionality
Interface
Three USB 2.0 Ports
One HDMI-Out Port (High-Definition
Multimedia Interface)
One External Monitor Port
One Headphone-Out Jack
One Microphone-In Jack
One RJ-45 LAN Jack for 10/100/1000Mb Fast
Ethernet
One DC-In Jack
Card Reader
Embedded 7-in-1 Card Reader (MS/ MS Pro/
SD/ Mini SD/ MMC/ RS MMC/ MS Duo) Note:
MS Duo/ Mini SD/ RS MMC Cards require a
PC adapter
Slots
One ExpressCard 34 Slot
Two Mini-Card Slots with USB & PCIe
interface:
Slot 1 for Half Mini-Card WLAN Module
Slot 2 for 3.75G Module ( Factory Option )
Operating System
Windows® Vista (with Service Pack 2)
Windows® 7
Communication
Built-In 10M/100M/1000M Base-TX Ethernet
LAN
Bluetooth 2.1 + EDR (Enhanced Data Rate)
Module (Factory Option)
Intel® WiFi Link 5300 Series (3*3 - 802.11a/g/
n) Wireless LAN PCIe interface Half Mini-Card
Module (Factory Option)
3rd Party 802.11b/g/n Wireless LAN PCIe
interface Half Mini-Card Module (Factory
Option)
1.3M Pixel PC Camera Module with USB
interface
3.75G Module:
UMTS/HSPDA-based 3.75G Module with USB
Mini-Card Interface (
Factory Option )
Quad-band GSM/GPRS (850 MHz, 900 MHz,
1800 MHz, 1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Note that UMTS modes CAN NOT be used
in North America
Power Management
Supports Wake on LAN
Power
Full Range AC/DC Adapter
AC input 100 - 240V, 50 - 60Hz,
DC Output 19V, 3.42A or 18.5V, 3.5A (65
Watts)
Removable Polymer Battery Pack 31.08WH
Removable Polymer Battery Pack 62.16WH
(
Option )
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Dimensions & Weight
W830T/W830T1:
330mm (w) * 221mm (d) * 23mm (h)
1.50 kg (full system with 1G RAM, 2.5” HDD,
and Polymer Battery)
W840T/W840T1:
340mm (w) * 231mm (d) * 23mm (h)
1.60 kg ((full system with 1G RAM, 2.5” HDD,
and Polymer Battery)
Optional
Intel® WiFi Link 5300 Series (3*3 - 802.11a/g/
n) Wireless LAN PCIe interface Half Mini-Card
Module (Factory Option)
3rd Party 802.11b/g/n Wireless LAN PCIe
interface Half Mini-Card Module (Factory
Option)
External Super Multi Optical Device Drive with
USB Interface
Removable Polymer Battery Pack 62.16WH
Bluetooth 2.1 + EDR (Enhanced Data Rate)
Module (Factory Option)
UMTS/HSPDA-based 3.75G Module with
Mini-Card Interface (Factory Option)

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. Optional Built-In
PC Camera
2. LCD
3. Power Button
4. Keyboard
5. Built-In
Microphone
6. Touchpad &
Buttons
7. LED Status &
Power Indicators
(W830T/W830T1)
8. LED Power
Indicators
(W840T/W840T1)
9. LED Status
Indicators
(W840T/W840T1)
W830T/W830T1 W840T/W840T1
2
5
1
4
7
3
6
2
5
1
9
4
83
6

Introduction
External Locator - Front & Right side Views 1 - 5
1.Introduction
External Locator - Front & Right side Views
Figure 2
Front Views
1. LED Indicators
Figure 3
Right Side Views
1. ExpressCard 34
Slot
2. 7-in-1 Card
Reader
3. RJ-45 LAN Jack
4. USB 2.0 Port
1
W830T/W830T1
W840T/W840T1
2
134
2
134
W830T/W830T1
W840T/W840T1

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. External Monitor
Port (W830T/
W830T1 Only)
2. HDMI-Out Port
3. USB 2.0 Ports
4. Microphone-In
Jack
5. Headphone-Out
Jack
14
23
2
3 3 45
5
W830T/W830T1
W840T/W840T1
Figure 5
Rear View
1. Vent/Fan Intake/
Outlet
2. Security Lock Slot
3. USB Port (W830T/
W830T1 only)
4. External Monitor
Port (W840T/
W840T1 Only)
5. DC-In Jack
3
2
4
1
12
5
5
W830T/W830T1
W840T/W840T1

Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. 3.75G/HSPA
USIM Card Bay
2. Hard Disk Bay
Cover
3. Battery
4. Vent/Fan Intake/
Outlet
5. Speakers

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
W830T/W830T1 W840T/W840T1
2
3
14
4
5 5 2
3
1
4
4
5 5

Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction
Mainboard Overview - Top (Key Parts)
Figure 7
Mainboard Top
Key Parts
1. Memory Slots
DDR3 SO-DIMM
2. Intel CPU
3. North Bridge
4. South Bridge
1
23
4
