CLINTON INDUSTRIES 230 User manual

UPHOLSTERED TOP
MAT PLATFORM
MODEL 230
ASSEMBLY INSTRUCTIONS

Thank you for counting on Clinton to meet your medical
and physical therapy equipment needs by purchasing this
fine equipment.
All Clinton equipment is designed and manufactured to
provide years of dependable service because we want you
as a customer now and in the future. Below are easy to follow
instructions on how to properly assemble your equipment.
Please contact us at 800-441-9131 if you experience any
difficulty with the assembly or have questions.
INTENDED USE
Clinton Upholstered Top Mat Platform, model 230, is
specifically designed and engineered for physical therapy
use by persons who are attended to and observed by
trained physical therapy personnel. Never leave anyone
on the platform unsupervised. Person’s weight and the
combination of force exerted on the mat platform during
therapy is not to exceed a total of 1,000 lbs.
Contents
A. Upholstered Top
B. Frame
C. Legs
Tools Required
• 1/2 " Wrench
Time Required
• 15 Minutes
Hardware
(12) 3 1/2 " Hex Head Bolts
(12) Keps nuts
(24)
5/16
" Flat Washers
Extra hardware may be included

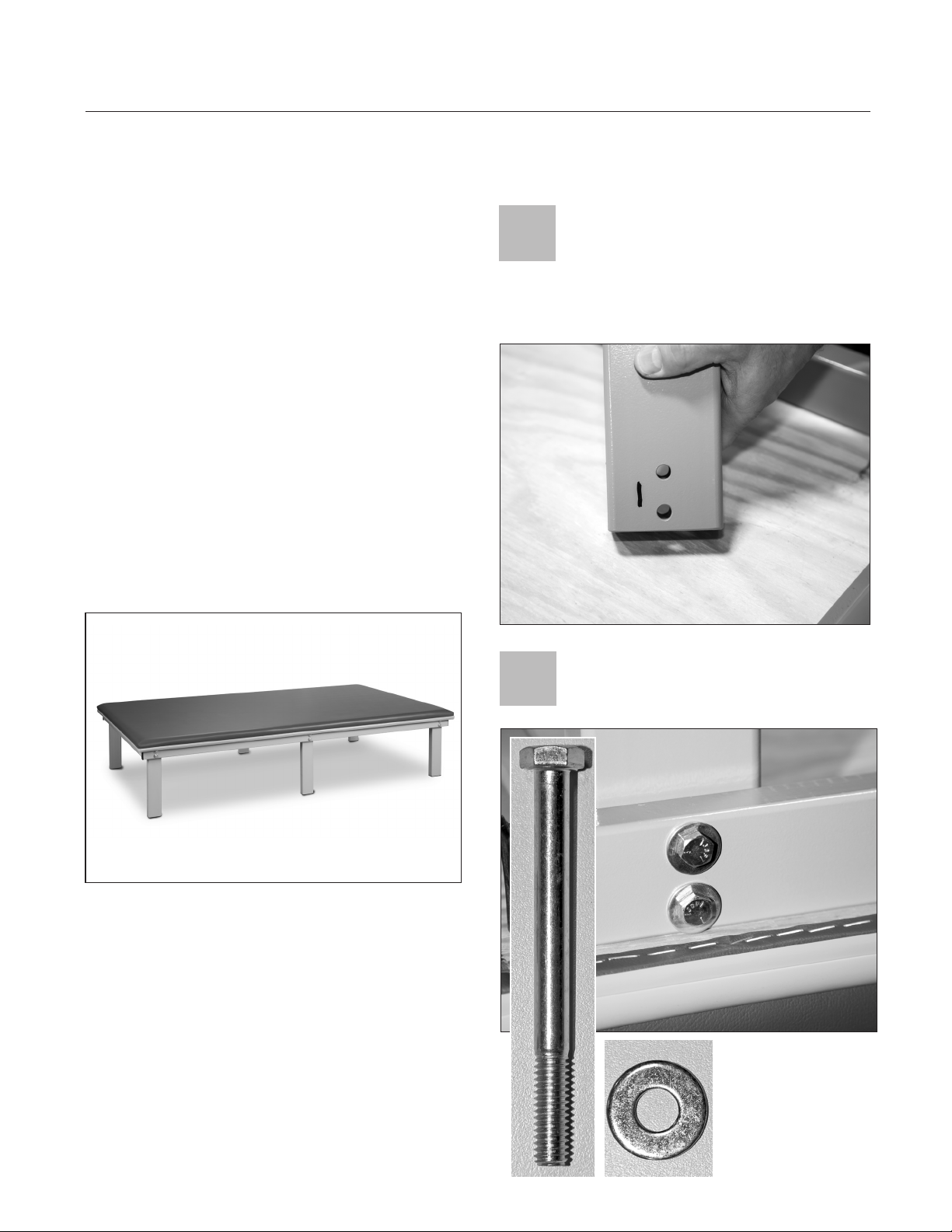

ASSEMBLY INSTRUCTIONS FOR UPHOLSTERED TOP MAT PLATFORM
MODEL 230
MAXIMUM WEIGHT CAPACITY 1,000 LBS
2
1
Place a washer on each bolt and insert it
through the outside of the frame and through
the leg.
Using at least two people and proper lifting
techniques. invert the top of the mat platform
onto a smooth soft surface that will not
puncture or scratch the upholstered top. Match the
numbered legs with the corresponding number on the
frame
A
C
C
CC
C
C
B

4
3Invert mat platform to upright position and
clean with disinfectant according to facility
standards and Care & Cleaning Guidelines
below prior to use
Place a washer on the leg side of the bolt
and secure with a Keps nut. Repeat steps 1
through 3 for all 6 legs.
Clinton Industries warrants manufactured products to be free of defects in materials, workmanship or design
under normal use for five years on all products, from the date of purchase. This warranty does not include
damage resulting from accident, abuse or misuse, alteration, or negligence of the product and expressly
excludes normal wear of parts (including but not limited to vinyl). Contact Clinton for full warranty details.
Warranty
Clinton products are built to be durable. With proper care, your Clinton equipment will provide years of superior
looks and performance. Clean platform with a soft cloth and any mild cleaning agent that may be required
for sanitation. NEVER use abrasive scrubbing agents that may scratch the surfaces. Prior to cleaning entire
surface, test cleaning agents on an inconspicuous area. Note that certain cleaning agents can be
harmful to the surfaces of the product. Periodically check all fasteners to make sure they remain secure.
Care & Cleaning
Limited Warranty
ON FRAME &
ELECTRICAL
COMPONENTS
Limited
Warranty
FOR SAFETY PURPOSES, TAKE TIME TO CHECK ALL BOLTS AND NUTS TO INSURE THAT
THEY ARE SECURELY TIGHTENED AND THAT THE MAT PLATFORM HAS BEEN PROPERLY ASSEMBLED
ACCORDING TO THESE INSTRUCTIONS.
