CMOSTEK CMT2300A User manual

CMT2300A
Rev 1.0 | Page1/46
www.cmostek.com
CMT2300A
Ultra Low Power Sub-1GHz RF Transceiver
Copyright © By CMOSTEK
Features:
Frequency range: 127 ~1020MHz
Modem: OOK, (G)FSK 和(G)MSK
Data rate: 0.5 ~ 300 kbps
Sensitivity: -121 dBm 2.0 kbps, FRF = 433.92 MHz
-111 dBm 50 kbps, FRF = 433.92 MHz
Voltage range: 1.8 ~3.6 V
Transmit current: 23 mA @ 13 dBm, 433.92 MHz, FSK
72 mA @ 20 dBm, 433.92 MHz, FSK,
Rx current: 8.5 mA @ 433.92 MHz, FSK (High power mode)
7.2 mA @ 433.92 MHz, FSK (Low power mode)
Super Low Power receive mode
Sleep current: 300 nA, Duty Cycle = OFF
800 nA, Duty Cycle = ON
Receiver Features:
Fast and stable automatic frequency control (AFC)
3 types of clock data recovery system (CDR)
Fast and accurate signal detection (PJD)
4-wire SPI interface
Direct and packet mode supported
Configurable packet handler and 64-Byte FIFO.
NRZ, Manchester codec, Whitening codec, Forward Error
Correction (FEC)
Applications:
Automatic meter reading
Home security and building automation
ISM band data communication
Industrial monitoring and control
Remote control and security system
Remote key entry
Wireless sensor node
Tag reader
Ordering information
Model
Frequency
Package
MOQ
CMT2300A-EQR
433.92 MHz
QFN16
3,000 pcs
For more information, see Page 42 Table 23.
Descriptions:
CMT2300A is an ultra-low power, high performance, OOK (G)
FSK RF transceiver suitable for a variety of 140 to 1020 MHz
wireless applications. It is part of the CMOSTEK NextGenRFTM
RF product line. The product line contains the complete
transmitters, receivers and transceivers.The high integration of
CMT2300A simplifies the peripheral materials required in the
system design. Up to +20 dBmTx Power and -121 dBm
sensitivity optimize the performance of the application. It
supports a variety of packet formats and codec methodsto
meet the needs of various different applications.In addition,
CMT2300A also supports64-byte Tx/Rx FIFO, GPIO and
interrupt configuration, Duty-Cycle operation mode, channel
sensing, high-precision RSSI, low-voltage detection, power-on
reset, low frequency clock output, manual fast frequency
hopping, squelch and etc. The features make the application
design more flexible and differentiated. CMT2300A operates
from 1.8 V to 3.6 V. Only 8.5 mA current is consumed when the
sensitivity is -121 dBm, SuperLow Power mode can further
reduce the chip power consumption. Only 23mA Txcurrent is
consumed when the output power is 13dBm.
QFN16 (3X3)
17
GND
SCLK
SDIO
CSB
FCSB
XI
XO
GPIO2
GPIO1
AVDD
PA
RFIN
RFIP
GPIO3
DVDD
DGND
AGND
13
14
15
16
1
2
3
4
5678
9
10
11
12
CMT2300A top view

CMT2300A
Rev 1.0 | Page2/46
www.cmostek.com
Table of contents
1. Electrical Characteristics............................................................................................................................................ 4
1.1 Recommended Operation Condition ..................................................................................................................... 4
1.2 Absolute Maximum Rating .................................................................................................................................... 4
1.3 Power Consumption.............................................................................................................................................. 5
1.4 Receiver................................................................................................................................................................ 6
1.5 Transmitter ............................................................................................................................................................ 7
1.6 Settle Time............................................................................................................................................................ 8
1.7 Frequency Synthesizer ......................................................................................................................................... 8
1.8 Crystal Oscillator ................................................................................................................................................... 9
1.9 Low Frequency Oscillator...................................................................................................................................... 9
1.10 Low Battery Detection ......................................................................................................................................... 10
1.11 Digital Interface ................................................................................................................................................... 10

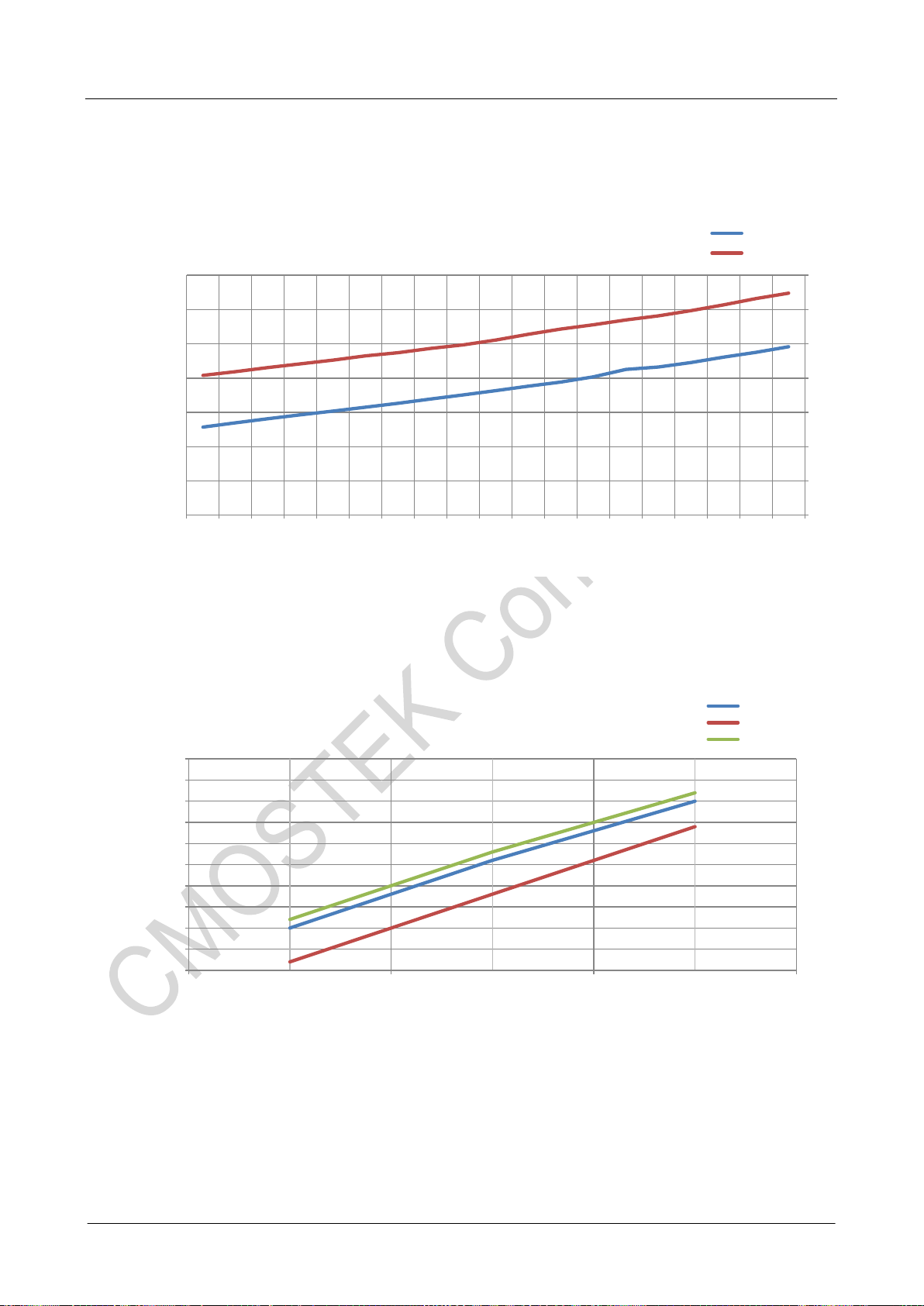

1.12 Figures of Critical Parameters............................................................................................................................. 11
1.12.1 Rx Current VS. Supply Voltage ................................................................................................................ 11
1.12.2 Rx Current VS. Voltage Temperature....................................................................................................... 11
1.12.3 Sensitivity VS. Voltage ............................................................................................................................. 12
1.12.4 Sensitivity VS. Temperature..................................................................................................................... 13
1.12.5 Tx Power VS. Supply Voltage .................................................................................................................. 13

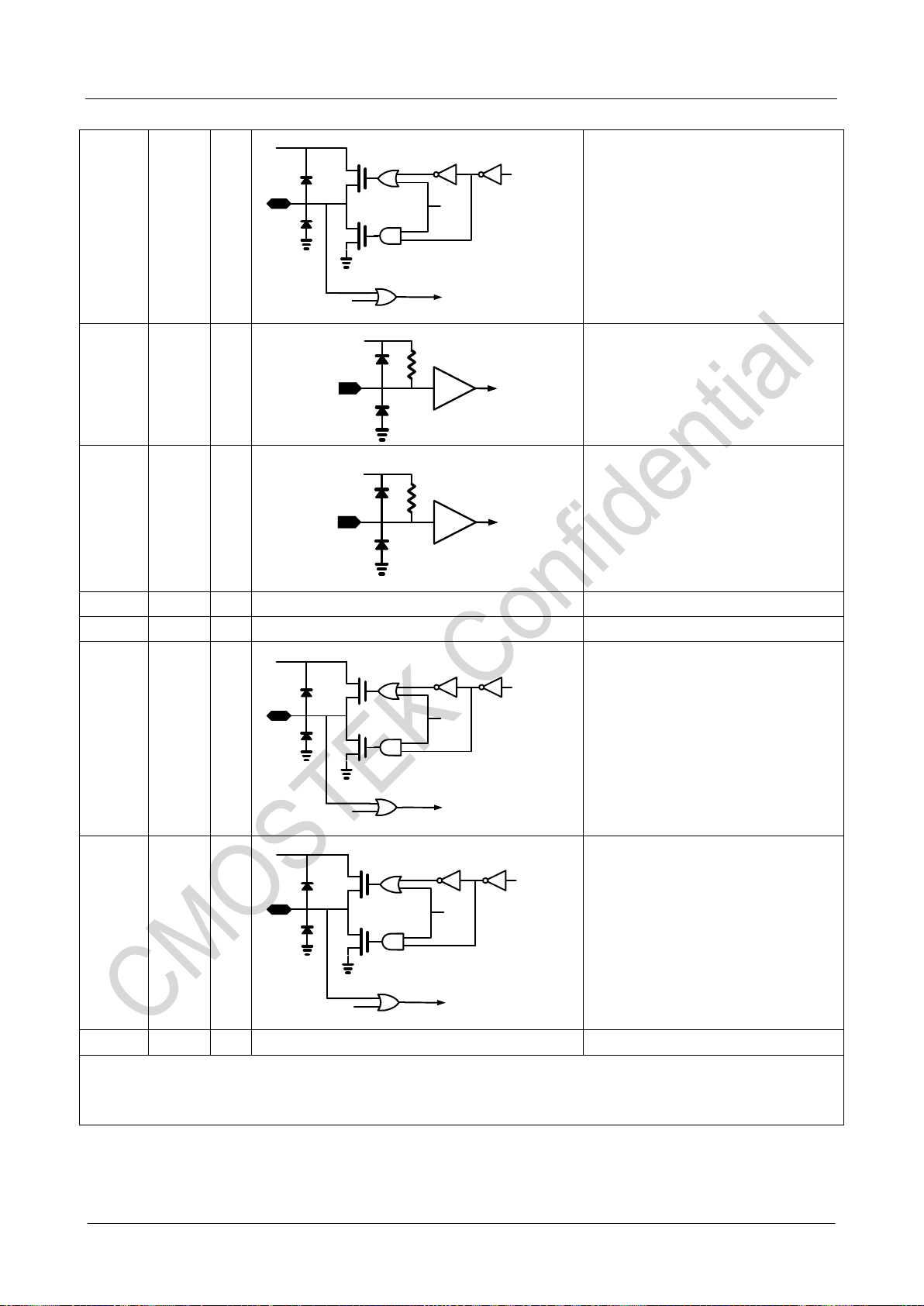

2. Pin Descriptions ........................................................................................................................................................ 15

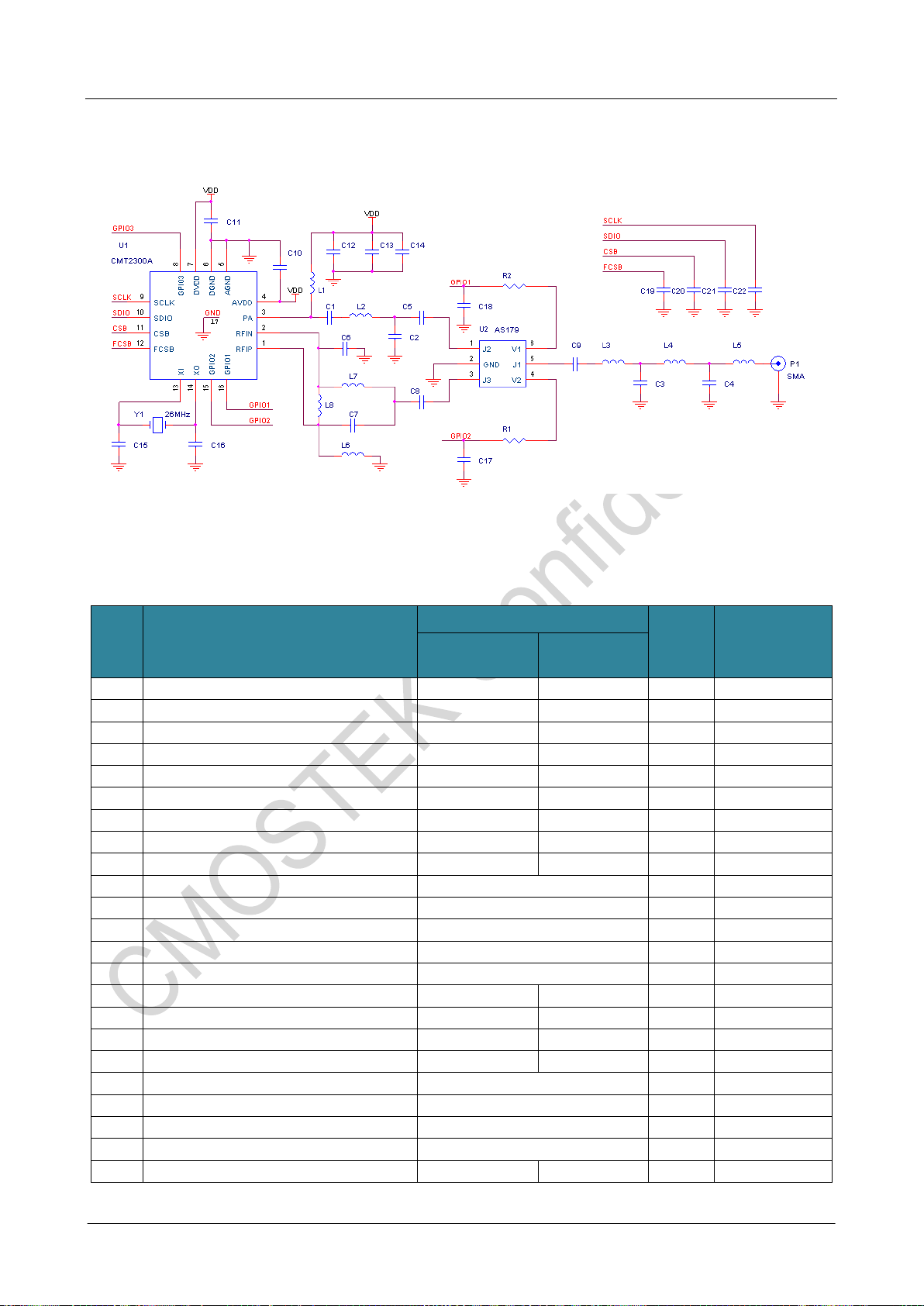

3. Typical Application Schematic ................................................................................................................................. 17

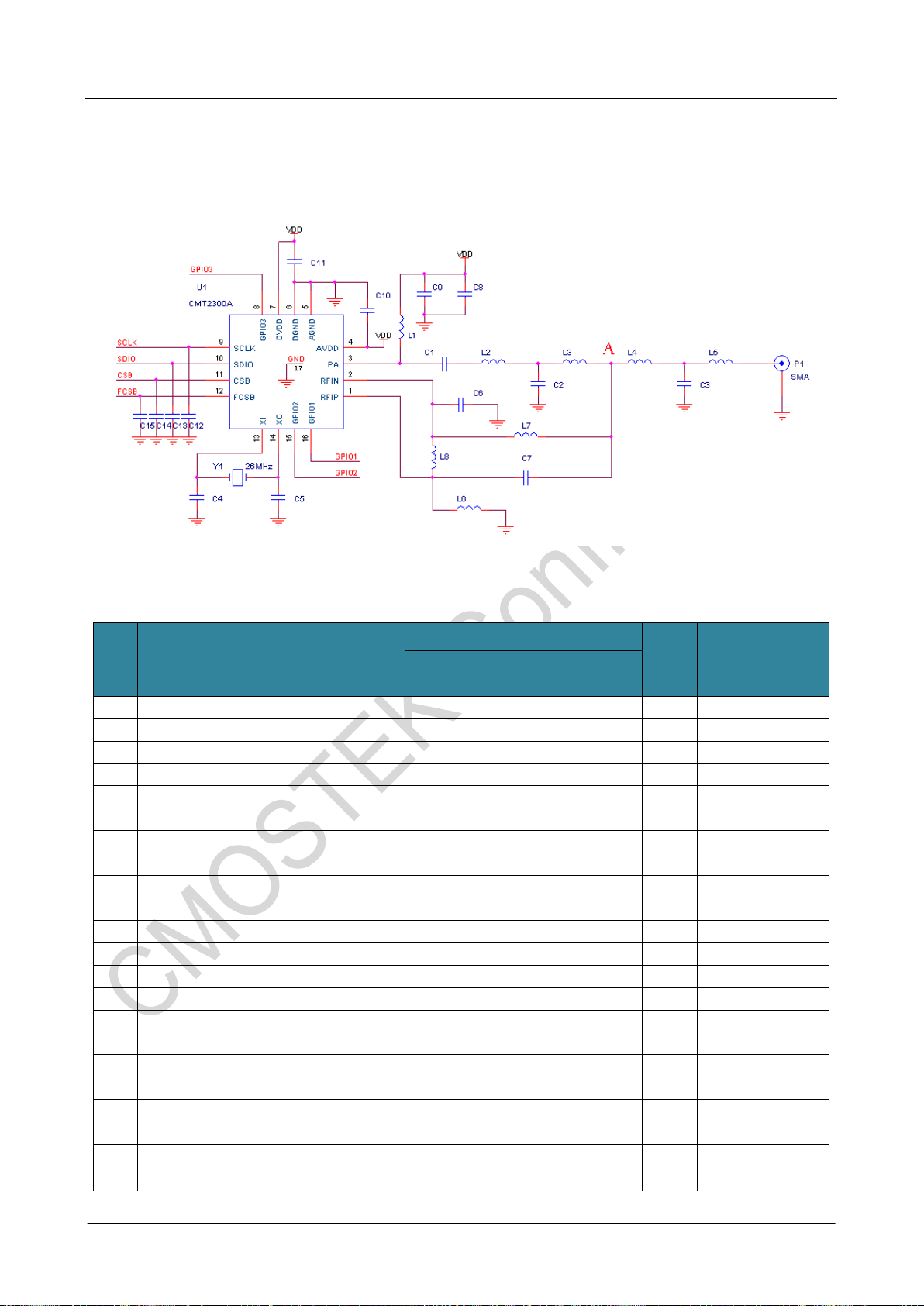

3.1 Direct tie Schematic Diagram.............................................................................................................................. 17
3.2 RF Switch Type Schematic ................................................................................................................................. 19
4. Function Descriptions............................................................................................................................................... 21
4.1 Transmitter .......................................................................................................................................................... 21
4.2 Receiver.............................................................................................................................................................. 22
4.3 Auxiliary Blocks ................................................................................................................................................... 22
4.3.1 Power-On Reset (POR) ........................................................................................................................... 22
4.3.2 Crystal Oscillator...................................................................................................................................... 23
4.3.3 Sleep Timer.............................................................................................................................................. 23
4.3.4 Low Battery Detection.............................................................................................................................. 24
4.3.5 Received Signal Strength Indicator (RSSI) .............................................................................................. 24
4.3.6 Phase Jump Detector（PJD）................................................................................................................ 24
4.3.7 Automatic Frequency Control (AFC) ........................................................................................................ 25
4.3.8 Clock Data Recovery (CDR) .................................................................................................................... 25
4.3.9 Fast Frequency Hopping.......................................................................................................................... 26
5. Chip Operation........................................................................................................................................................... 27
5.1 SPI Interface ....................................................................................................................................................... 27
5.2 FIFO.................................................................................................................................................................... 27
5.2.1 FIFO Read Operation .............................................................................................................................. 28
5.2.2 FIFO Associated Interrupt ........................................................................................................................ 28
5.3 Operation State, Timing and Power Consumption .............................................................................................. 29

CMT2300A
Rev 1.0 | Page3/46
www.cmostek.com
5.3.1 Startup Timing.......................................................................................................................................... 29
5.3.2 Operation State........................................................................................................................................ 30
5.4 GPIO and Interrupt.............................................................................................................................................. 32
6. Packet Handler........................................................................................................................................................... 35
6.1 Direct Mode......................................................................................................................................................... 35
6.2 Packet Mode ....................................................................................................................................................... 36
7. Low Power Operation................................................................................................................................................ 38
7.1 Duty Cycle Operation Mode ................................................................................................................................ 38
7.2 Supper Low Power (SLP) Receive Mode............................................................................................................ 38
7.3 Receiver “Power VS Performance” Configuration ............................................................................................... 39
8. User Register ............................................................................................................................................................. 40
9. Ordering Information................................................................................................................................................. 42
10. Packaging Information.............................................................................................................................................. 43
11. Top Marking ............................................................................................................................................................... 44
12. Document Change List.............................................................................................................................................. 45
13. Contact Information .................................................................................................................................................. 46

CMT2300A
Rev 1.0 | Page4/46
www.cmostek.com
1. Electrical Characteristics
VDD= 3.3 V, TOP= 25 °C, FRF = 433.92 MHz, the sensitivity is measured by receiving a PN9 coded data and matching the
impedance to 50Ωunder the 0.1%BER standard.Unless otherwise stated, all results are tested on theCMT2300A-EM evaluation
board.
1.1 Recommended OperationCondition
Table 1. Recommended operation condition
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Power voltage
VDD
1.8
3.6
V
Operating temperature
TOP
-40
85
℃
Power voltage slope
1
mV/us
1.2 Absolute Maximum Rating
Table 2. Absolute Maximum Ratings[1]
Parameter
Symbol
Conditions
Min
Max
Unit
Supply Voltage
VDD
-0.3
3.6
V
Interface Voltage
VIN
-0.3
VDD +0.3
V
Junction Temperature
TJ
-40
125
℃
Storage Temperature
TSTG
-50
150
℃
Soldering Temperature
TSDR
Lasts at least 30 seconds
255
℃
ESD Rating[2]
Human Body Model (HBM)
-2
2
kV
Latch-up Current
@ 85 ℃
-100
100
mA
Notes:
[1]. Stresses above those listed as “absolute maximum ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating
conditions for extended periods may affect device reliability.
[2].
Caution! ESD sensitive device. Precaution should be used when handling the device in order
to prevent permanent damage.

CMT2300A
Rev 1.0 | Page5/46
www.cmostek.com
1.3 Power Consumption
Table 3. Power consumption specification
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Sleepcurrent
ISLEEP
Sleep mode, sleep timeris off
300
nA
Sleep mode, sleep timeris on
800
nA
Standbycurrent
IStandby
Crystal oscillatoris on
1.45
mA
RFScurrent
IRFS
433 MHz
5.7
mA
868 MHz
5.8
mA
915 MHz
5.8
mA
TFScurrent
ITFS
433 MHz
5.6
mA
868 MHz
5.9
mA
915 MHz
5.9
mA
RXcurrent(high powermode)
IRx-HP
FSK, 433 MHz, 10 kbps,10 kHz FDEV
8.5
mA
FSK, 868 MHz, 10 kbps, 10 kHz FDEV
8.6
mA
FSK, 915 MHz, 10 kbps,10 kHz FDEV
8.9
mA
RXcurrent(low power mode)
IRx-LP
FSK, 433 MHz, 10 kbps, 10 kHz FDEV
7.2
mA
FSK, 868 MHz, 10 kbps, 10 kHz FDEV
7.3
mA
FSK, 915 MHz, 10 kbps, 10 kHz FDEV
7.6
mA
TXcurrent
ITx
FSK, 433 MHz, +20 dBm (Direct Tie)
72
mA
FSK, 433 MHz, +20 dBm (RF switch)
77
mA
FSK, 433 MHz, +13 dBm (Direct Tie)
23
mA
FSK, 433 MHz, +10 dBm (Direct Tie)
18
mA
FSK, 433 MHz, -10 dBm(Direct Tie)
8
mA
FSK, 868 MHz, +20 dBm(Direct Tie)
87
mA
FSK, 868 MHz, +20 dBm(RF switch)
80
mA
FSK, 868 MHz, +13 dBm (Direct Tie)
27
mA
FSK, 868 MHz, +10 dBm (Direct Tie)
19
mA
FSK, 868 MHz, -10 dBm (Direct Tie)
8
mA
FSK, 915 MHz, +20 dBm (Direct Tie)
70
mA
FSK, 915 MHz, +20 dBm (RF switch)
75
mA
FSK, 915 MHz, +13 dBm (Direct Tie)
28
mA
FSK, 915 MHz, +10 dBm (Direct Tie)
19
mA
FSK, 915 MHz, -10 dBm (Direct Tie)
8
mA

CMT2300A
Rev 1.0 | Page6/46
www.cmostek.com
1.4 Receiver
Table 4. Receiver specification
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Data rate
DR
OOK
0.5
40
kbps
FSK and GFSK
0.5
300
kbps
Deviation
FDEV
FSK and GFSK
2
200
kHz
Sensitivity
@ 433 MHz
S433-HP
DR = 2.0 kbps, FDEV = 10 kHz
-121
dBm
DR = 10 kbps, FDEV = 10 kHz
-116
dBm
DR = 10 kbps, FDEV = 10 kHz（Low power setting）
-115
dBm
DR = 20 kbps, FDEV = 20 kHz
-113
dBm
DR = 20 kbps, FDEV = 20 kHz （Low power
setting）
-112
dBm
DR = 50 kbps, FDEV = 25 kHz
-111
dBm
DR =100 kbps, FDEV = 50 kHz
-108
dBm
DR =200 kbps, FDEV = 100 kHz
-105
dBm
DR =300 kbps, FDEV = 100 kHz
--103
dBm
Sensitivity
@ 868 MHz
S868-HP
DR = 2.0 kbps, FDEV = 10 kHz
-119
dBm
DR = 10 kbps, FDEV = 10 kHz
-113
dBm
DR = 10 kbps, FDEV = 10 kHz（Low power setting）
-111
dBm
DR = 20 kbps, FDEV = 20 kHz
-111
dBm
DR = 20 kbps, FDEV = 20 kHz （Low power
setting）
-109
dBm
DR = 50 kbps, FDEV = 25 kHz
-108
dBm
DR =100 kbps, FDEV = 50 kHz
-105
dBm
DR =200 kbps, FDEV = 100 kHz
-102
dBm
DR =300 kbps, FDEV = 100 kHz
-99
dBm
Sensitivity
@ 915 MHz
S915-HP
DR = 2.0 kbps, FDEV = 10 kHz
-117
dBm
DR = 10 kbps, FDEV = 10 kHz
-113
dBm
DR = 10 kbps, FDEV = 10 kHz（Low power mode）
-111
dBm
DR = 20 kbps, FDEV = 20 kHz
-111
dBm
DR = 20 kbps, FDEV = 20 kHz （Low power mode）
-109
dBm
DR = 50 kbps, FDEV = 25 kHz
-109
dBm
DR =100 kbps, FDEV = 50 kHz
-105
dBm
DR =200 kbps, FDEV = 100 kHz
-102
dBm
DR =300 kbps, FDEV = 100 kHz
--99
dBm
Saturation Input Signal
Level
PLVL
20
dBm
Image Rejection Ratio
IMR
FRF=433 MHz
35
dBc
FRF=868 MHz
33
dBc
FRF=915 MHz
33
dBc
RX Channel
Bandwidth
BW
RX channel bandwidth
50
500
kHz
Co-channel Rejection
Ratio
CCR
DR = 10 kbps, FDEV = 10 kHz; Interference with
the same modulation
-7
dBc
Adjacent Channel
Rejection Ratio
ACR-I
DR = 10 kbps, FDEV = 10 kHz; BW=100kHz, 200
kHzChannel spacing, interference with the same
modulation
30
dBc

CMT2300A
Rev 1.0 | Page7/46
www.cmostek.com
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
AlternateChannel
Rejection Ratio
ACR-II
DR = 10 kbps, FDEV = 10 kHz; BW=100kHz, 400
kHzChannel spacing, interference with the same
modulation
45
dBc
Blocking Rejection
Ratio
BI
DR = 10 kbps, FDEV = 10 kHz; ±1 MHzDeviation,
continuous wave interference
70
dBc
DR = 10 kbps, FDEV = 10 kHz; ±2 MHzDeviation,
continuous wave interference
72
dBc
DR = 10 kbps, FDEV = 10 kHz; ±10 MHzDeviation,
continuous wave interference
75
dBc
Input 3rd Order
Intercept Point
IIP3
DR = 10 kbps, FDEV = 10 kHz; 1 MHz and 2 MHz
Deviation dual tone test, maximum system gain
setting.
-25
dBm
RSSIRange
RSSI
-120
20
dBm
More Sensitivity
(Typical Configuration)
433.92 MHz, DR = 1.2kbps, FDEV = 5 kHz
-122.9
dBm
433.92 MHz, DR = 1.2kbps, FDEV = 10 kHz
-121.8
dBm
433.92 MHz, DR = 1.2kbps, FDEV = 20 kHz
-119.5
dBm
433.92 MHz, DR = 2.4kbps, FDEV = 5 kHz
-120.6
dBm
433.92 MHz, DR = 2.4kbps, FDEV = 10 kHz
-120.3
dBm
433.92 MHz, DR = 2.4kbps, FDEV = 20 kHz
-119.7
dBm
433.92 MHz, DR = 9.6 kbps, FDEV = 9.6 kHz
-116.0
dBm
433.92 MHz, DR = 9.6 kbps, FDEV = 19.2 kHz
-116.1
dBm
433.92 MHz, DR = 20 kbps, FDEV = 10 kHz
-114.2
dBm
433.92 MHz, DR = 20 kbps, FDEV = 20 kHz
-113.0
dBm
433.92 MHz, DR = 50 kbps, FDEV = 25 kHz
-110.6
dBm
433.92 MHz, DR = 50 kbps, FDEV = 50 kHz
-109.0
dBm
433.92 MHz, DR = 100 kbps, FDEV = 50 kHz
-107.8
dBm
433.92 MHz, DR = 200 kbps, FDEV = 50 kHz
-103.5
dBm
433.92 MHz, DR = 200 kbps, FDEV = 100 kHz
-104.3
dBm
433.92 MHz, DR = 300 kbps, FDEV = 50 kHz
-98.0
dBm
433.92 MHz, DR = 300 kbps, FDEV = 150 kHz
-101.6
dBm
1.5 Transmitter
Table 5. Transmitter specifications
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Output power
POUT
Need specific peripheral materials for
different frequency bands
-20
+20
dBm
Output power step
PSTEP
1
dB
GFSK Gaussian filter
coefficient
BT
0.3
0.5
1.0
-
Output power variation
POUT-TOP
Temperature from -40 to +85 C
1
dB
Stray radiation
POUT = +13 dBm,433MHz, FRF<1 GHz
-42
dBm
1 GHz to 12.75 GHz, with harmonic
-36
dBm
Harmonic output for
H2433
2ndharmonic +20 dBm POUT
-46
dBm

CMT2300A
Rev 1.0 | Page8/46
www.cmostek.com
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
FRF= 433 MHz[1]
H3433
3ndharmonic +20 dBm POUT
-50
dBm
Harmonic output for
FRF= 868 MHz[1]
H2868
2ndharmonic +20 dBm POUT
-43
dBm
H3868
3ndharmonic +20 dBm POUT
-52
dBm
Harmonic output for
FRF= 915 MHz[1]
H2868
2ndharmonic +20 dBm POUT
-48
dBm
H3868
3ndharmonic +20 dBm POUT
-53
dBm
Harmonic output for
FRF= 433 MHz[1]
H2433
2ndharmonic +13 dBm POUT
-52
dBm
H3433
3ndharmonic +13 dBm POUT
-52
dBm
Harmonic output for
FRF= 868 MHz[1]
H2868
2ndharmonic +13 dBm POUT
-52
dBm
H3868
3ndharmonic +13 dBm POUT
-52
dBm
Harmonic output for
FRF= 915 MHz[1]
H2868
2ndharmonic +13 dBm POUT
-52
dBm
H3868
3ndharmonic +13 dBm POUT
-52
dBm
1.6 SettleTime
Table 6. SettleTime
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Settle time
TSLP-RX
From Sleep to RX
1000
us
TSLP-TX
From Sleep to TX
1000
us
TSTB-RX
From Standby to RX
350
us
TSTB-TX
From Standby to TX
350
us
TRFS-RX
From RFS to RX
20
us
TTFS-RX
From TFS to TX
20
us
TTX-RX
From TX to RX
（Ramp Down time needs 2Tsymbol ）
2Tsymbol
+350
us
TRX-TX
From RX to TX
350
us
Note:
[1]. TSLP-RXis dominated by the crystal oscillator startup time, which depends on its own characteristics.
1.7 Frequency Synthesizer
Table 7. Frequency Synthesizer Specifications
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Frequency range
FRF
Need different matching networks
760
1020
MHz
380
510
MHz
190
340
MHz
127
170
MHz
Frequency resolution
FRES
25
Hz
Frequency tuning time
tTUNE
150
us
Phase noise@ 433
MHz
PN433
10 kHz frequency deviation
-94
dBc/Hz
100 kHz frequency deviation
-99
dBc/Hz
500 kHz frequency deviation
-118
dBc/Hz
1MHz frequency deviation
-127
dBc/Hz
10 MHz frequency deviation
-134
dBc/Hz
Phase noise@ 868
PN868
10 kHz frequency deviation
-92
dBc/Hz

CMT2300A
Rev 1.0 | Page9/46
www.cmostek.com
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
MHz
100 kHz frequency deviation
95
dBc/Hz
500 kHz frequency deviation
-114
dBc/Hz
1MHz frequency deviation
-121
dBc/Hz
10 MHz frequency deviation
-130
dBc/Hz
Phase noise@ 915
MHz
PN915
10 kHz frequency deviation
-89
dBc/Hz
100 kHz frequency deviation
-92
dBc/Hz
500 kHz frequency deviation
-111
dBc/Hz
1MHz frequency deviation
-121
dBc/Hz
10 MHz frequency deviation
-130
dBc/Hz
1.8 Crystal Oscillator
Table 8. Crystal Oscillator Specifications
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Crystal frequency[1]
FXTAL
26
MHz
Frequency tolerance[2]
ppm
20
ppm
Load capacitance
CLOAD
15
pF
Equivalent resistance
Rm
60
Ω
Start-up time[3]
tXTAL
400
us
Remarks:
[1]. CMT2300A can use the external reference clock to drive the XIN pin through the coupling capacitor. The peak value of
the external clock signal is between 0.3V and 0.7V.
[2]. The value includes (1) initial error; (2) crystal load; (3) aging; and (4) change with temperature. The acceptable crystal
frequency tolerance is limited by the receiver bandwidth and the RF frequency offset between the transmitter and the
receiver.
[3]. The parameter is largely related to the crystal.
1.9 Low Frequency Oscillator
Table 9. Low Frequency Oscillator Specifications
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Calibration frequency [1]
FLPOSC
32
kHz
Frequency accuracy
After calibration
±1
%
Temperature coefficient [2]
-0.02
%/°C
Supply voltage coefficient [3]
+0.5
%/V
Initial calibration time
tLPOSC-CAL
4
ms
Remarks:
[1]. The low frequency oscillator is automatically calibrated to the crystal oscillator frequency at the PUP stage and
periodically calibrated at this stage.
[2]. After calibration, the frequency changes with temperature.
[3]. After calibration, the frequency changes with the change of the supply voltage.

CMT2300A
Rev 1.0 | Page10/46
www.cmostek.com
1.10 Low BatteryDetection
Table 10. Low Battery detection specifications
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Detection accuracy
LBDRES
50
mV
1.11 Digital Interface
Table 11. Digital interface specifications
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Digital input high level
VIH
0.8
VDD
Digital input low level
VIL
0.2
VDD
Digital output high level
VOH
@IOH= -0.5mA
Vdd-0.4
V
Digital output low level
VOL
@IOL= 0.5mA
0.4
V
SCLKFrequency
FSCL
5
MHz
SCLK high time
TCH
50
ns
SCLK low time
TCL
50
ns
SCLKrise time
TCR
50
ns
SCLKfall time
TCF
50
ns

CMT2300A
Rev 1.0 | Page11/46
www.cmostek.com
1.12 Figures of Critical Parameters
1.12.1 Rx Current VS. Supply Voltage
Testing Condition: Freq = 434MHz / 868MHz, Fdev = 10KHz, BR = 10Kbps
1.12.2 Rx Current VS. Voltage Temperature
Test Condition: Freq = 434MHz,Fdev = 10KHz, BR = 10Kbps
7.40
7.60
7.80
8.00
8.20
8.40
8.60
8.80
3.6
3.5
3.4
3.3
3.2
3.1
3.0
2.9
2.8
2.7
2.6
2.5
2.4
2.3
2.2
2.1
2.0
1.9
1.8
Current Comsumption(mA)
Supply Voltage(V)
Rx Current vs. Supply Voltage
434MHz
868MHz
7.0
7.3
7.5
7.8
8.0
8.3
8.5
8.8
9.0
9.3
9.5
-40
25
85
Current Consumption(mA)
Temperature(℃)
Rx Current vs. Volt-Temp
3.3V
1.8V
3.6V

CMT2300A
Rev 1.0 | Page12/46
www.cmostek.com
Test Condition: Freq = 868MHz, Fdev = 10KHz, BR = 10Kbps
1.12.3 Sensitivity VS. Voltage
Test Condition: FSK, DEV = 10KHz, BR = 10Kbps
7.0
7.3
7.5
7.8
8.0
8.3
8.5
8.8
9.0
9.3
9.5
-40
25
85
Current Consumption(mA)
Temperature(℃)
Rx Current vs. Volt-Temp
3.3V
1.8V
3.6V
-117.5
-117.0
-116.5
-116.0
-115.5
-115.0
-114.5
-114.0
-113.5
-113.0
1.8
2.1
2.4
2.8
3.0
3.3
3.6
Sensitivity(dBm)
Supply Voltage(V)
Sensitivity vs. Voltage
434MHz
868MHz

CMT2300A
Rev 1.0 | Page13/46
www.cmostek.com
1.12.4 Sensitivity VS. Temperature
Test Condition: FSK, DEV = 10KHz, BR = 10Kbps
1.12.5 Tx Power VS. Supply Voltage
Test Condition:Freq = 434MHz, 20dBm / 13dBmmatching network
-118.0
-117.0
-116.0
-115.0
-114.0
-113.0
-112.0
-40
25
85
Sensitivity(dBm)
Temperature(℃)
Sensitivity vs. Temperature
434MHz
868MHz
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
3.6
3.5
3.4
3.3
3.2
3.1
3.0
2.9
2.8
2.7
2.6
2.5
2.4
2.3
2.2
2.2
2.1
2.0
1.9
1.8
Tx Power(dBm)
Supply Voltage(V)
Tx Power vs. Supply Voltage
20dBm
13dBm

CMT2300A
Rev 1.0 | Page14/46
www.cmostek.com
Test Condition:Freq = 868MHz, 20dBm / 13dBmmatching network
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
3.6
3.5
3.4
3.3
3.2
3.1
3.0
2.9
2.8
2.7
2.6
2.5
2.4
2.3
2.2
2.1
2.1
2.0
1.9
1.8
Tx Power(dBm)
Supply Voltage(V)
Tx Power vs. Supply Voltage
13dBm
20dBm

CMT2300A
Rev 1.0 | Page15/46
www.cmostek.com
2. Pin Descriptions
17
GND
SCLK
SDIO
CSB
FCSB
XI
XO
GPIO2
GPIO1
AVDD
PA
RFIN
RFIP
GPIO3
DVDD
DGND
AGND
13
14
15
16
1
2
3
4
5678
9
10
11
12
Figure 1. CMT2300A pin arrangements
Table 12. CMT2300A pin descriptions
Pin No.
Name
I/O
Internal IO Schematic
Descriptions
1
RFIP
I
RF signal input P
2
RFIN
I
RF signal input N
3
PA
O
PA output
4
AVDD
IO
Analog VDD
5
AGND
IO
Analog GND
6
DGND
IO
Digital GND
7
DVDD
IO
Digital VDD
8[1]
GPIO3
IO
GPIO3
din
pd_din
dout
pd_dout
Data tristate
pd_din default value is “1”
pd_dout default value is “0”
VDD
Configured as CLKO, DOUT/DIN, INT2
and DCLK (TX/RX)
9
SCLK
I
SCLK
din
Buffer
VDD
SPI clock

CMT2300A
Rev 1.0 | Page16/46
www.cmostek.com
10
SDIO
IO
SDIO
din
pd_din
dout
pd_dout
Data tristate
pd_din default value is “0”
pd_dout default value is “1”
VDD
SPI data input and output
11
CSB
I
CSB
Buffer
VDD
SPI chip selection bar for register access,
active low
12
FCSB
I
FCSB
Buffer
VDD
SPI chip selection bar for FIFO access,
active low
13
XI
I
Crystal circuit input
14
XO
O
Crystal circuit output
15[1]
GPIO2
IO
GPIO2
din
pd_din
dout
pd_dout
Data tristate
pd_din default value is “1”
pd_dout default value is “0”
VDD
Configured as INT1, INT2, DOUT/DIN,
DCLK (TX/RX) and RF_SWT
16[1]
GPIO1
IO
GPIO1
din
pd_din
dout
pd_dout
Data tristate
pd_din default value is “1”
pd_dout default value is “0”
VDD
Configured as DOUT/DIN, INT1, INT2,
DCLK (TX/RX) and RF_SWT
17
GND
I
Analog GND. It must be grounded.
Note:
[1]. INT1 and INT2 are interrupts. DOUT is demodulated output. DIN is a modulation input. DCLK is a modulation or
demodulation data rate synchronization clock, automatic switching in TX/RX mode.

CMT2300A
Rev 1.0 | Page17/46
www.cmostek.com
3. Typical Application Schematic
3.1 Direct tie SchematicDiagram
Figure 2. Direct tie application schematic diagram
Table 13. 13dBm direct tie application BOM
No.
Descriptions
Values
Unit
Supplier
433 MHz
+13 dBm
868 MHz
+13dBm
915 MHz
+13dBm
C1
±5%, 0603 NP0, 50 V
15
22
22
pF
C2
±5%, 0603 NP0, 50 V
5.6
6.2
6.2
pF
C3
±5%, 0603 NP0, 50 V
7.5
3.6
3.3
pF
C4
±5%, 0603 NP0, 50 V
24
24
24
pF
C5
±5%, 0603 NP0, 50 V
24
24
24
pF
C6
±5%, 0603 NP0, 50 V
4.7
2.2
2.2
pF
C7
±5%, 0603 NP0, 50 V
4.7
2.2
2.2
pF
C8
±5%, 0603 NP0, 50 V
4.7
uF
C9
±5%, 0603 NP0, 50 V
470
pF
C10
±5%, 0603 NP0, 50 V
0.1
uF
C11
±5%, 0603 NP0, 50 V
0.1
uF
L1
±5%, 0603 Multilayer chip inductor
180
100
100
nH
Sunlord SDCL
L2
±5%, 0603 Multilayer chip inductor
56
10
8.2
nH
Sunlord SDCL
L3
±5%, 0603 Multilayer chip inductor
39
8.2
6.8
nH
Sunlord SDCL
L4
±5%, 0603 Multilayer chip inductor
18
10
8.2
nH
Sunlord SDCL
L5
±5%, 0603 Multilayer chip inductor
18
10
8.2
nH
Sunlord SDCL
L6
±5%, 0603 Multilayer chip inductor
27
15
12
nH
Sunlord SDCL
L7
±5%, 0603 Multilayer chip inductor
27
15
12
nH
Sunlord SDCL
L8
±5%, 0603 Multilayer chip inductor
68
12
12
nH
Sunlord SDCL
Y1
±10 ppm, SMD32*25 mm
26
MHz
EPSON
U1
CMT2300A, Ultra Low Power Sub-1GHz RF
Transceiver
-
CMOSTEK

CMT2300A
Rev 1.0 | Page18/46
www.cmostek.com
Table 14. 20dBm direct tie application BOM
No.
Descriptions
Values
Unit
Supplier
433 MHz
+20 dBm
868 MHz
+20 dBm
915 MHz
+20 dBm
C1
±5%, 0603 NP0, 50 V
15
18
18
pF
C2
±5%, 0603 NP0, 50 V
3.0
3.6
3.6
pF
C3
±5%, 0603 NP0, 50 V
6.2
3.3
3.3
pF
C4
±5%, 0603 NP0, 50 V
24
24
24
pF
C5
±5%, 0603 NP0, 50 V
24
24
24
pF
C6
±5%, 0603 NP0, 50 V
4.7
2
1.8
pF
C7
±5%, 0603 NP0, 50 V
4.7
2
1.8
pF
C8
±5%, 0603 NP0, 50 V
4.7
2
1.8
uF
C9
±5%, 0603 NP0, 50 V
470
pF
C10
±5%, 0603 NP0, 50 V
0.1
uF
C11
±5%, 0603 NP0, 50 V
0.1
uF
L1
±5%, 0603 Multilayer chip inductor
180
100
100
nH
Sunlord SDCL
L2
±5%, 0603 Multilayer chip inductor,
22
12
12
nH
Sunlord SDCL
L3
±5%, 0603 Multilayer chip inductor
cap 15pF
15
15
nH
Sunlord SDCL
L4
±5%, 0603 Multilayer chip inductor
33
6.2
6.2
nH
Sunlord SDCL
L5
±5%, 0603 Multilayer chip inductor
33
6.2
6.2
nH
Sunlord SDCL
L6
±5%, 0603 Multilayer chip inductor
27
15
15
nH
Sunlord SDCL
L7
±5%, 0603 Multilayer chip inductor
27
15
15
nH
Sunlord SDCL
L8
±5%, 0603 Multilayer chip inductor
68
12
12
nH
Sunlord SDCL
Y1
±10 ppm, SMD32*25 mm
26
MHz
EPSON
U1
CMT2300A, Ultra Low Power Sub-1GHz RF
Transceiver
-
CMOSTEK

CMT2300A
Rev 1.0 | Page19/46
www.cmostek.com
3.2 RF Switch Type Schematic
Figure 3. RF switch type application schematic diagram
Table 15. RF switch type application BOM
No.
Descriptions
Values
Unit
Supplier
434 MHz
+20 dBm
868 /915 MHz
+20 dBm
C1
±5%, 0402 NP0, 50 V
15
15
pF
C2
±5%, 0402 NP0, 50 V
10
3.9
pF
C3
±5%, 0402 NP0, 50 V
8.2
2.7
pF
C4
±5%, 0402 NP0, 50 V
8.2
2.7
pF
C5
±5%, 0402 NP0, 50 V
18nH
220
pF
C6
±5%, 0402 NP0, 50 V
4.7
2
pF
C7
±5%, 0402 NP0, 50 V
4.7
2
pF
C8
±5%, 0402 NP0, 50 V
220
220
uF
C9
±5%, 0402 NP0, 50 V
220
220
pF
C10
±5%, 0402 NP0, 50 V
0.1
0.1
uF
C11
±5%, 0402 NP0, 50 V
0.1
0.1
uF
C12
±5%, 0402 NP0, 50 V
470
470
pF
C13
±5%, 0402 NP0, 50 V
2200
2200
pF
C14
±5%, 0402 NP0, 50 V
4.7
4.7
uF
C15
±5%, 0402 NP0, 50 V
24
24
pF
C16
±5%, 0402 NP0, 50 V
24
24
pF
C17
±5%, 0402 NP0, 50 V
10
10
pF
C18
±5%, 0402 NP0, 50 V
10
10
pF
C19
±5%, 0402 NP0, 50 V
27
pF
C20
±5%, 0402 NP0, 50 V
27
pF
C21
±5%, 0402 NP0, 50 V
27
pF
C22
±5%, 0402 NP0, 50 V
27
pF
L1
±5%, 0603 Multilayer chip inductor
180
100
nH
Sunlord SDCL

CMT2300A
Rev 1.0 | Page20/46
www.cmostek.com
No.
Descriptions
Values
Unit
Supplier
434 MHz
+20 dBm
868 /915 MHz
+20 dBm
L2
±5%, 0402 Multilayer chip inductor
27
6.8
nH
Sunlord SDCL
L3
±5%, 0402 Multilayer chip inductor
18
12
nH
Sunlord SDCL
L4
±5%, 0402 Multilayer chip inductor
33
22
nH
Sunlord SDCL
L5
±5%, 0402 Multilayer chip inductor
15
10
nH
Sunlord SDCL
L6
±5%, 0402 Multilayer chip inductor
27
12
nH
Sunlord SDCL
L7
±5%, 0402 Multilayer chip inductor
27
12
nH
Sunlord SDCL
L8
±5%, 0402 Multilayer chip inductor
68
18
nH
Sunlord SDCL
Y1
±10 ppm, SMD32*25 mm
26
MHz
EPSON
U1
CMT2300A, Ultra Low Power Sub-1GHz RF
Transceiver
-
-
CMOSTEK
U2
AS179, PHEMT GaAs IC SPDT Switch
-
-
SKYWORKS
R1
±5%, 0402
2.2
kΩ
R2
±5%, 0402
2.2
kΩ
