CNB IDB4110NVF/IDB4110PVF/IVB4110NVF/IVB4110PVF User manual

Ver. 1.0
XNET Network Dome Camera
(IDB4110NVF/IDB4110PVF/IVB4110NVF/IVB4110PVF)
Installation Manual

2 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
About this Manual
A compatibility and durability test ensured this product’s high performance.
This manual is for XNET Network Dome Camera users only, and it describes operations related to
XNET Network Dome Camera.
Please read this manual thoroughly paying attention to cautions and warnings before using the
product even if you have used similar products before.
Important Notices
Damages caused by use of parts not recommended and by misuse will not be applicable for
support.
Contact the store or the manufacturer immediately if (you think) there is any problem with the
product.
Contact the store or the manufacturer before disassembling the product for alteration or repair.
This product complies for CE (Europe) and FCC (USA) regulations for industrial/home use
electrical device.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

3 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
Index
1. About XNET......................................................................................................................4
1.1. About XNET .............................................................................................................................4
1.2. Features of XNET ....................................................................................................................4
1.3. Applications ..............................................................................................................................4
2. About the Product ...........................................................................................................5
2.1. Contents...................................................................................................................................5
2.2. Product Information..................................................................................................................5
2.2.1 Product Composition.....................................................................................................5
2.3. Hardware Designation..............................................................................................................6
2.3.1. Switch and Controls .....................................................................................................6
2.3.2 Connecting Cables........................................................................................................6
2.3.3 Connecting to Alarm Devices........................................................................................9
3. Software Installation......................................................................................................10
3.1. Installing XNET.......................................................................................................................10
3.1.1. Installation..................................................................................................................10
3.1.2. Cable Connection ......................................................................................................11
3.2. Installing IP-Installer Software and Configuring IP address ...................................................12
3.2.1. About IP-Installer........................................................................................................12
3.2.2. Configuring IP Address ..............................................................................................12
4. Using Web Viewer..........................................................................................................14
4.1. Logging In ..............................................................................................................................14
4.2. Web Viewer Page...................................................................................................................16
5. Specification ..................................................................................................................18

4 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
1. About XNET
1
1. .1 1. . A Ab bo ou ut t X XN NE ET T
XNET is an internet based security and surveillance system that is compatible with various network conditions
through easy installation and user interface as well as multi-functional compressor Codec such as H.264,
MPEG-4,MJPEG. XNET provides stable real-time surveillance by real time video/ audio at D1 level, local
storage for any network problems, and hybrid IP technology that can be used with existing analog CCTV
devices.
1
1. .2 2. . F Fe ea at tu ur re es s o of f X XN NE ET T
 Most advanced Video compression technology (H.264/MPEG-4/MJPEG)
 Hybrid IP Technology - CCTV analog video output can be used for existing analog CCTV devices.
 Transmission of Multi-Codec stream - Live video signal can be compressed to H.264 or MJPEG and sent to
meet various applications of network or user.
 2-way Audio Communication (Bi-directional voice communication between Client’s PC and XNET)
 Smart Event feature - On the top of motion detection and sensor/alarm feature, pre- and post- alarm
feature allows automated surveillance without an attendant’s monitoring.
 Install/ Operation Wizard - Install/ Operation Wizard not only makes it easy for installers and users, but
also offers a unified installation setup for massive scale installations.
 Up to 3 motion detection areas
and Video data transmission to FTP site or e-mail upon detecting a motion.
 Remote Control over the network for software upgrade
1
1. .3 3. . A Ap pp pl li ic ca at ti io on ns s
S urveillance (Building, store, factory, parking lot, financial institutions, government buildings, military
facilities, etc.)
Remote video monitoring (Hospital, kindergarten, traffic monitoring, remote branch office, weather,
environment preservation, and illegal disposal of trash, etc.)
Real time broadcasting over t he internet (Resort facility, parties, festivals, etc), remote business meetings,
and educational trainings, etc.

5 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
2. About the Product
2
2. .1 1. . C Co on nt te en nt ts s

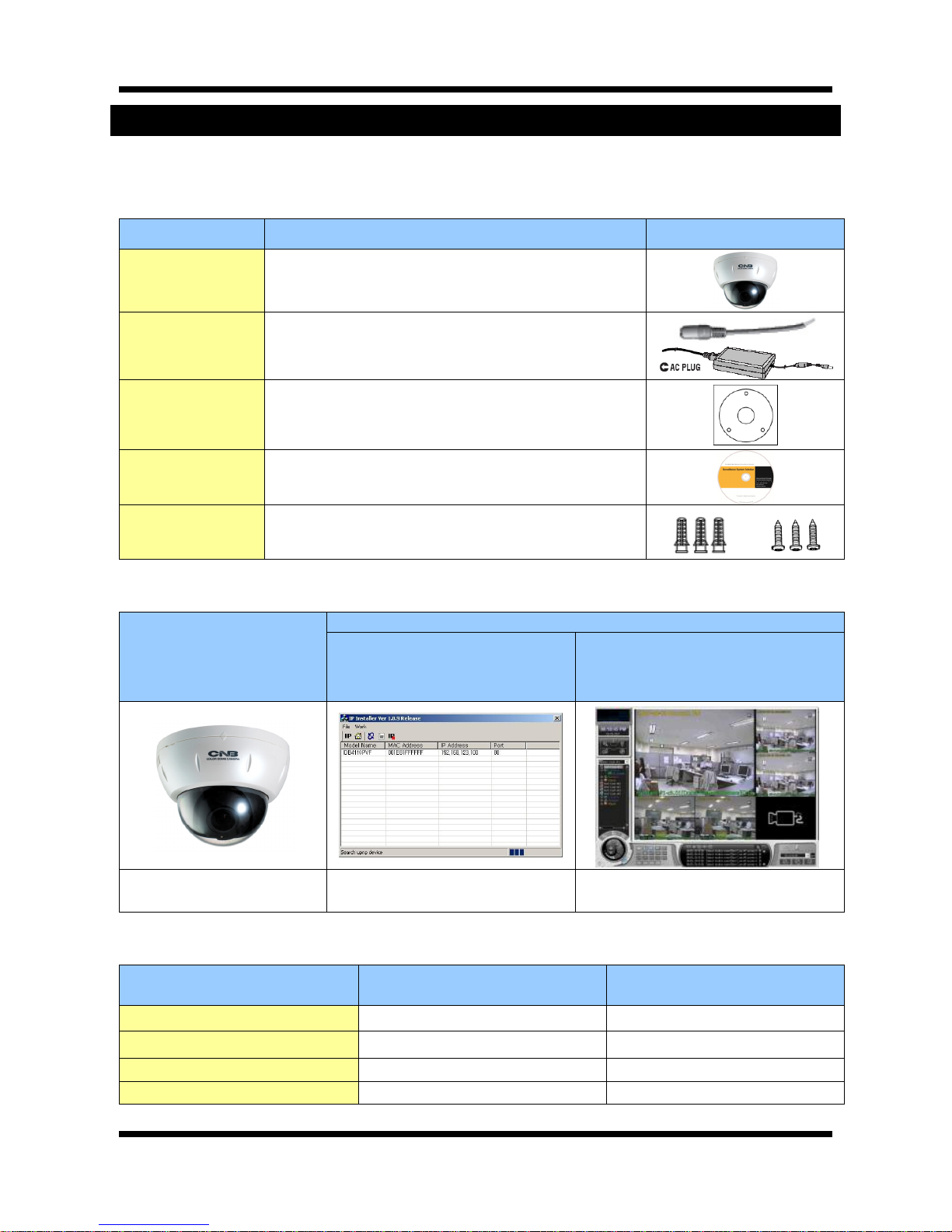

Please make sure the following contents are included when you open the package.
Contents Description Additional info.
XNET XNET IP Dome Camera
AC Power Cable,
POWER ADAPTOR
2Jack Cable
INPUT : 100~240VAC 50-60Hz
OUTPUT : 12VDC 2A
GUIDE PATTERN Guide Pattern
CD Software and User’s manual
Accessory Terminal (8P) 1EA, SCREW 3EA, Wall Anchors 3EA
2
2. .2 2. . P Pr ro od du uc ct t I In nf fo or rm ma at ti io on n
XNET
(IDB4110NVF,
IDB4110PVF,
IVB4110NVF,
IVB4110PVF)
Install CD
IP-Installer Viewer Program
(CMS)
IP Dome Camera A software that assigns an IP
address to the product
A software that monitors and records
Audio and Video signal from the device
2
2. .2 2. .1 1 P Pr ro od du uc ct t C Co om mp po os si it ti io on n
XNET Model Video out CASSE
IDB4110NVF NTSC PLASTIC
IDB4110PVF PAL PLASTIC
IVB4110NVF NTSC VANDAL
IVB4110PVF PAL VANDAL

6 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
2
2. .3 3. . H Ha ar rd dw wa ar re e D De es si ig gn na at ti io on n
2
2. .3 3. .1 1. . S Sw wi it tc ch h a an nd d C Co on nt tr ro ol ls s
This shows Camera module inside the dome cover.
Factory Reset
Press and hold for more than 3 seconds while power is on to recall factory default settings
Adjusting Lens
Focus Adjust: Adjust the Focus using a knob.
PWR, CPU, EVENT LED
PWR LED: LED will be turned on when power is supplied.
CPU LED: LED will be turned on and blinking if camera is successfully booted up.
EVENT LED: LED will be turned on whenever event is detected.
2
2. .3 3. .2 2 C Co on nn ne ec ct ti in ng g C Ca ab bl le es s
Analog Video Output
Use this output to monitor the analog video signal while installing.
(Select Video Out at menu screen to enable this output)
Power Terminal
Network Terminal
Factory Reset button
Recalls factory default
configurations
Analog Video Output
Alarm Input/Output
Mic/Audio Input
PWR,CPU,EVENT LED
Network DC FAN

7 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
Power
Supplies Power to the Xnet product. Use 12V DC Adapter in the package.
Do not use this connector when powering up the product through LAN cable. (PoE)
The product is not covered under warranty when it is damaged by connecting both
Ethernet power and 12V DC power to this terminal.
AudioConnection
MIC/Line Input (Mono)
Connects to auxiliary Audio Device or microphone.
Line Output (Mono)
Audio signal output to a Power Amplified device or Speaker. This can be used to listen to the audio
signal sent from a remote PC for Bi-directional Audio communication.
- Alarm Sensor Input (+)
- Alarm Sensor Input (-)
- Alarm Output
- Alarm Output (COMMON)
- MIC/ Line Input
- GND
- Line Output
- GND
Alarm Terminal
Audio Connection Terminal
Connect to a
Monitor
Connect to an
Adaptor

8 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
ALARM Input/Output
Connect to Alarm Input and Output
Sensor Input : Wires from various sensor type (IR, heat, and magnetic) can be connected.
Relay Output : Connect to an external Alarm device that operates by a relay such as Siren
Lamp or Alarm Light.
Please refer to “2.3.3 Connecting to Alarm devices” for Sensor and Relay connection.
Network Terminal
This Ethernet terminal connects to 100Mbps LAN through an RJ-45 connector. When optional PoE is used,
the power will be supplied from the Network Cable.
Link LED
Yellow light indicates that the network is properly connected.
Act LED
Green light indicates that the XNET system connected to 100Mbps LAN. This green lamp will blink if
the system receives data.
Act LED
Link LED

9 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
2
2. .3 3. .3 3 C Co on nn ne ec ct ti in ng g t to o A Al la ar rm m D De ev vi ic ce es s

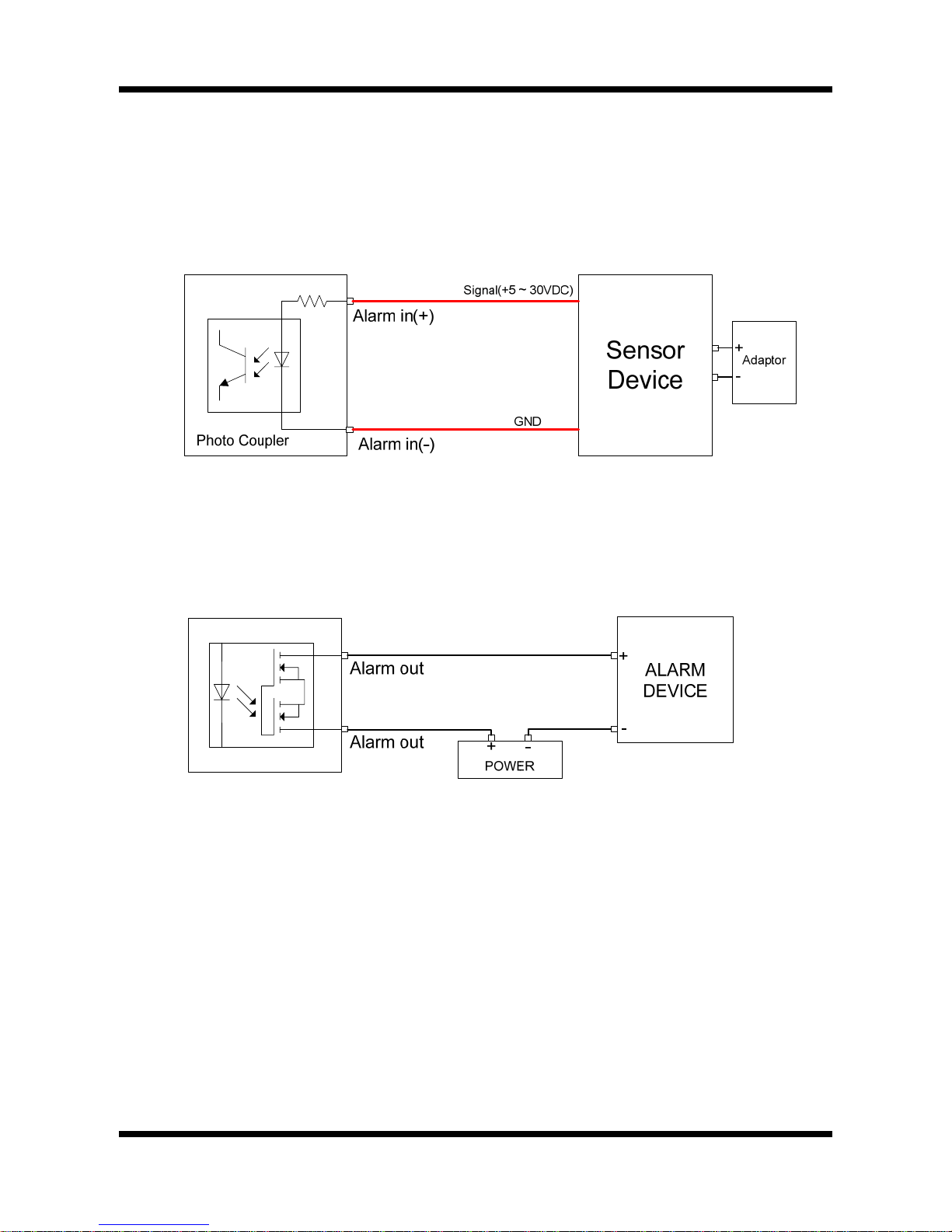

Alarm Input
Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as
shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.)
Alarm Sensor device requires a separate power source.
Internal Circuitry External Circuitry
Alarm Output
This terminal can only be connected up to DC 30V/400mA. An additional relay device has to be used to
control higher voltage or current.
Internal Circuitry External Circuitry

10 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
3. Software Installation
This section provides brief guidelines to install the XNET quickly and to monitor XNET’s Video and Audio
signals easily. If you have questions about details not explained in this section or if the product is not
functioning as described, please refer to FAQ before contacting the store.
3
3. .1 1. . I In ns st ta al ll li in ng g X XN NE ET T
3
3. .1 1. .1 1. . I In ns st ta al ll la at ti io on n

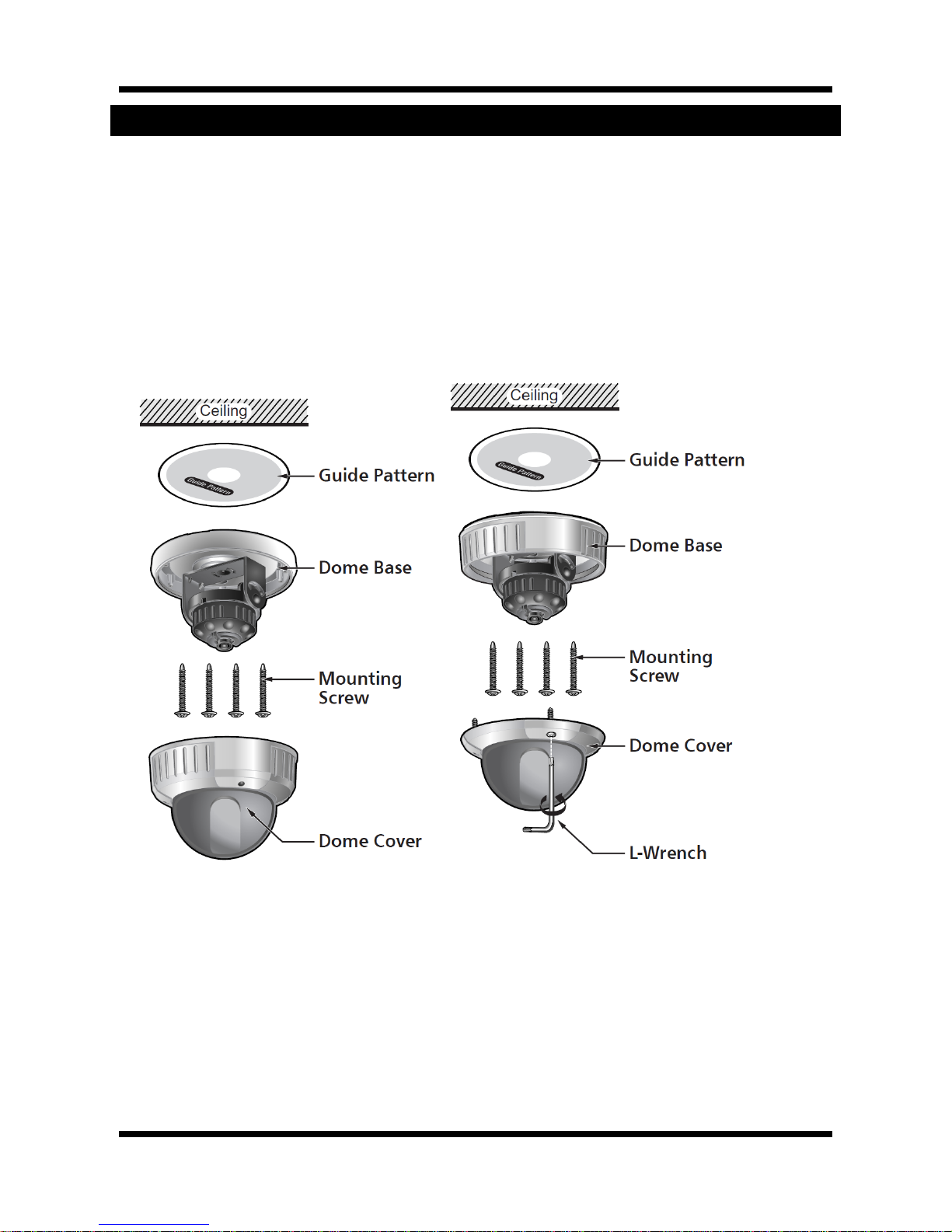

Mount the Camera to a ceiling or a wall. Make sure the base is firm enough to hold the Camera.
IDB4110xVF Model IVB4110xVF Model

11 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l

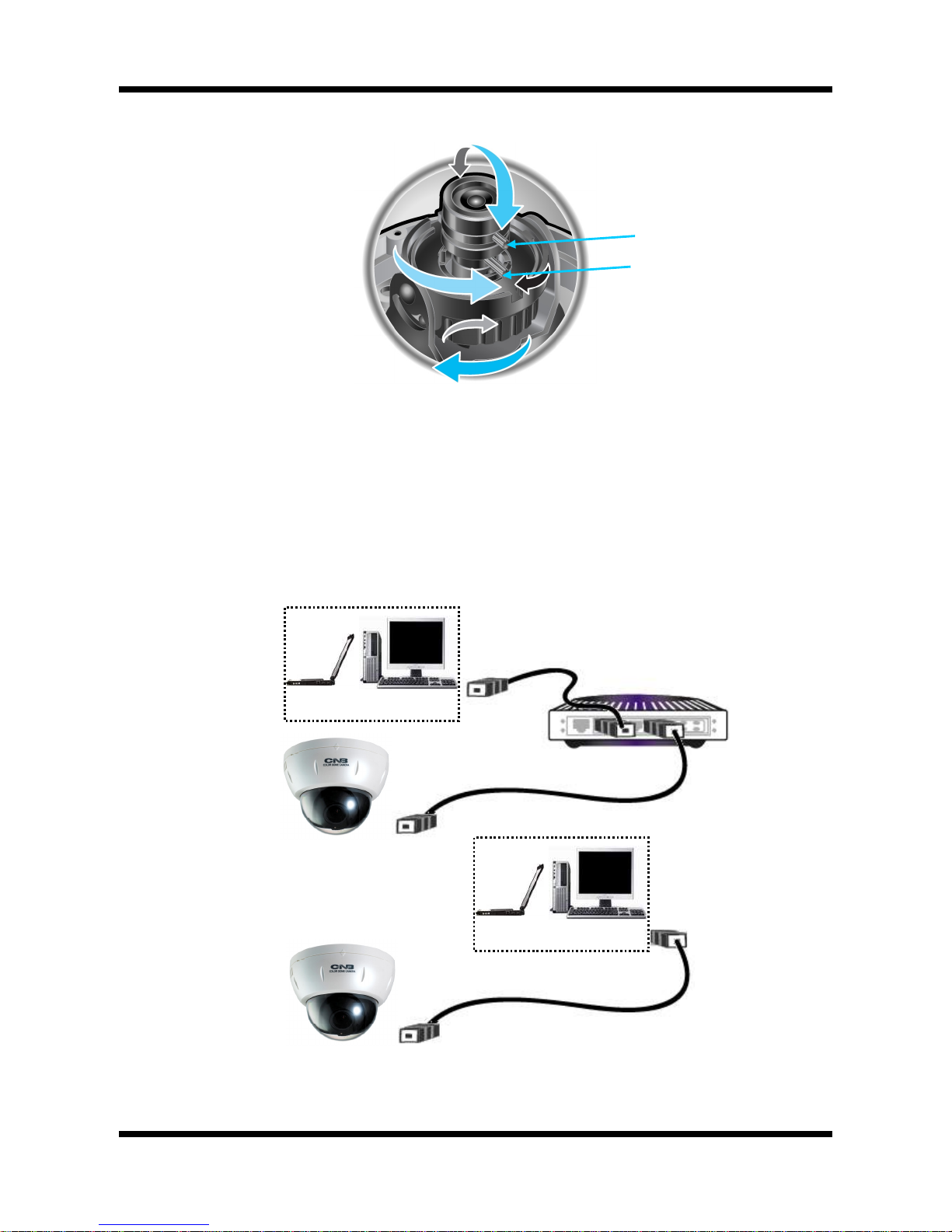

Adjust the position, zoom, and focus as shown below:
3
3. .1 1. .2 2. . C Ca ab bl le e C Co on nn ne ec ct ti io on n
A PC or a laptop computer is required to set up an IP address.
Compatible operating system: Windows 2000/ Windows XP/ Windows Vista
Since the default IP address of the device is 192.168.123.100, set up the IP address of the
computer like the following:
IP Address : 192.168.123.101 Subnet Mask : 255.255.255.0
Connect LAN cable to the Network Terminal of the product.( Use a crossover cable when connecting it
directly to a PC, and use a direct cable when connecting it to a HUB)
Connect the camera to the power.
Use the Alarm Sensor/ output and audio terminal if necessary.
TILT : 90˚
Horizontal
Rotation : 360˚
PAN : 360˚
FOCUS
ZOOM
COMPUTER
Direct Network
Cable
NETWORK HUB
COMPUTER
Crossover Networ
k
Cable

12 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
3
3. .2 2. . I In ns st ta al ll li in ng g I IP P- -I In ns st ta al ll le er r S So of ft tw wa ar re e a an nd d C Co on nf fi ig gu ur ri in ng g I IP P a ad dd dr re es ss s
3
3. .2 2. .1 1. . A Ab bo ou ut t I IP P- -I In ns st ta al ll le er r
A unique IP address has to be configured in order to connect IP camera and monitoring PC to a network. IP-
Installer software provided in the Installation CD (included in the package) will configure IP address easily. If
your network have a DHCP server that automatically assigns IP addresses to IP cameras. If your network
does not have a DHCP server, the default IP address of the device is 192.168.123.100. Refer to IP Installer
user’s manual for detail.
3
3. .2 2. .2 2. . C Co on nf fi ig gu ur ri in ng g I IP P A Ad dd dr re es ss s

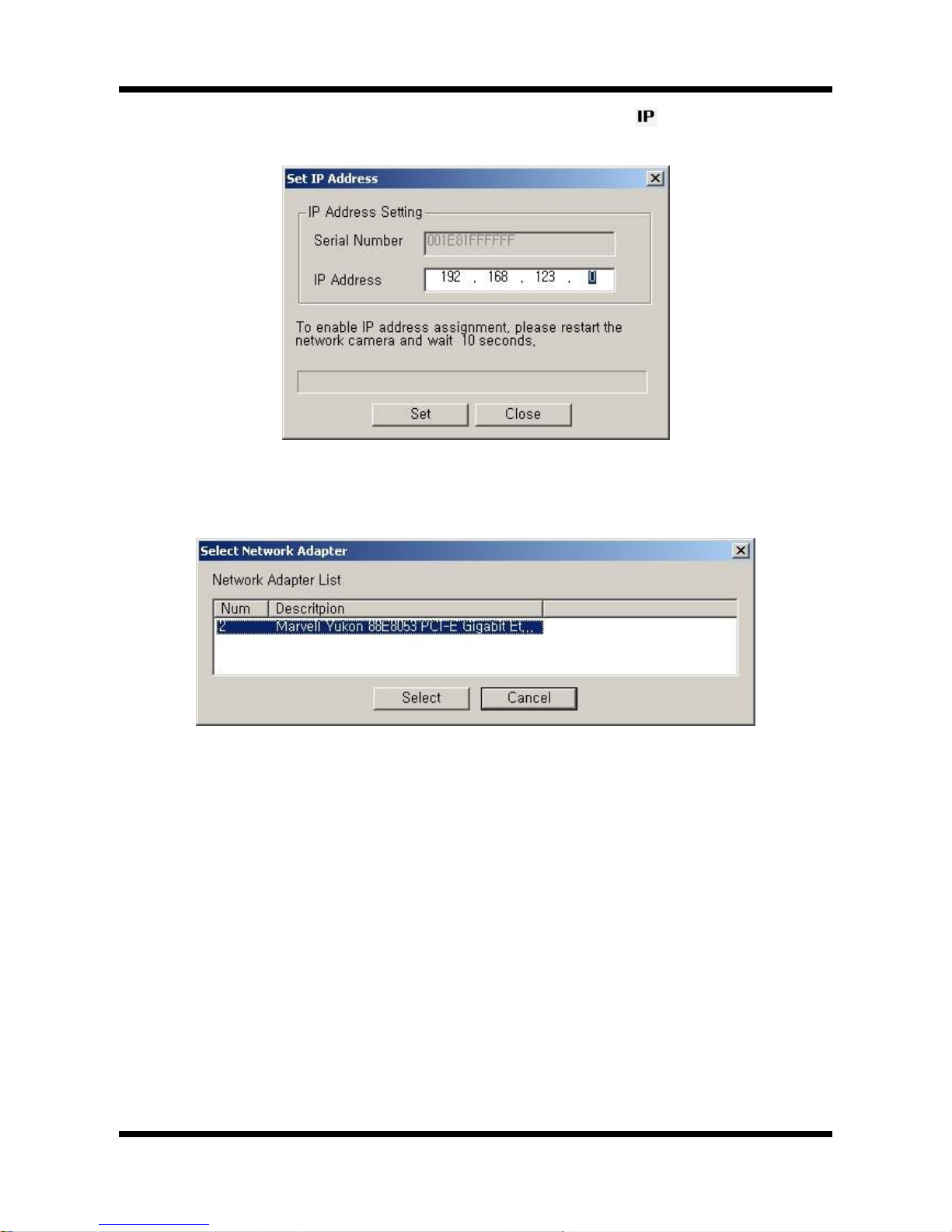

1. The following box will appear when you start the IP-installer software.
Figure 3-2. IP Installer Start box

13 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
2. Select the camera of which you wish to change the IP address and click (Set IP Address)
button to bring up the following box in Figure 3-3.
Figure 3-3. IP Address box
3. When you enter the IP address and click Set button, the box shown in Figure 3-4 will appear.
Figure 3-4. Select Network Adapter Box
4. Select the adapter and click select button to change the IP address of the camera.

14 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
4. Using Web Viewer
Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide
explains about using internet web browser only. For instructions on how to configure network connection
using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD.
4
4. .1 1. . L Lo og gg gi in ng g I In n
Enter the IP address of the device on the address bar of your web browser and press enter key. Then the
following webpage will appear:

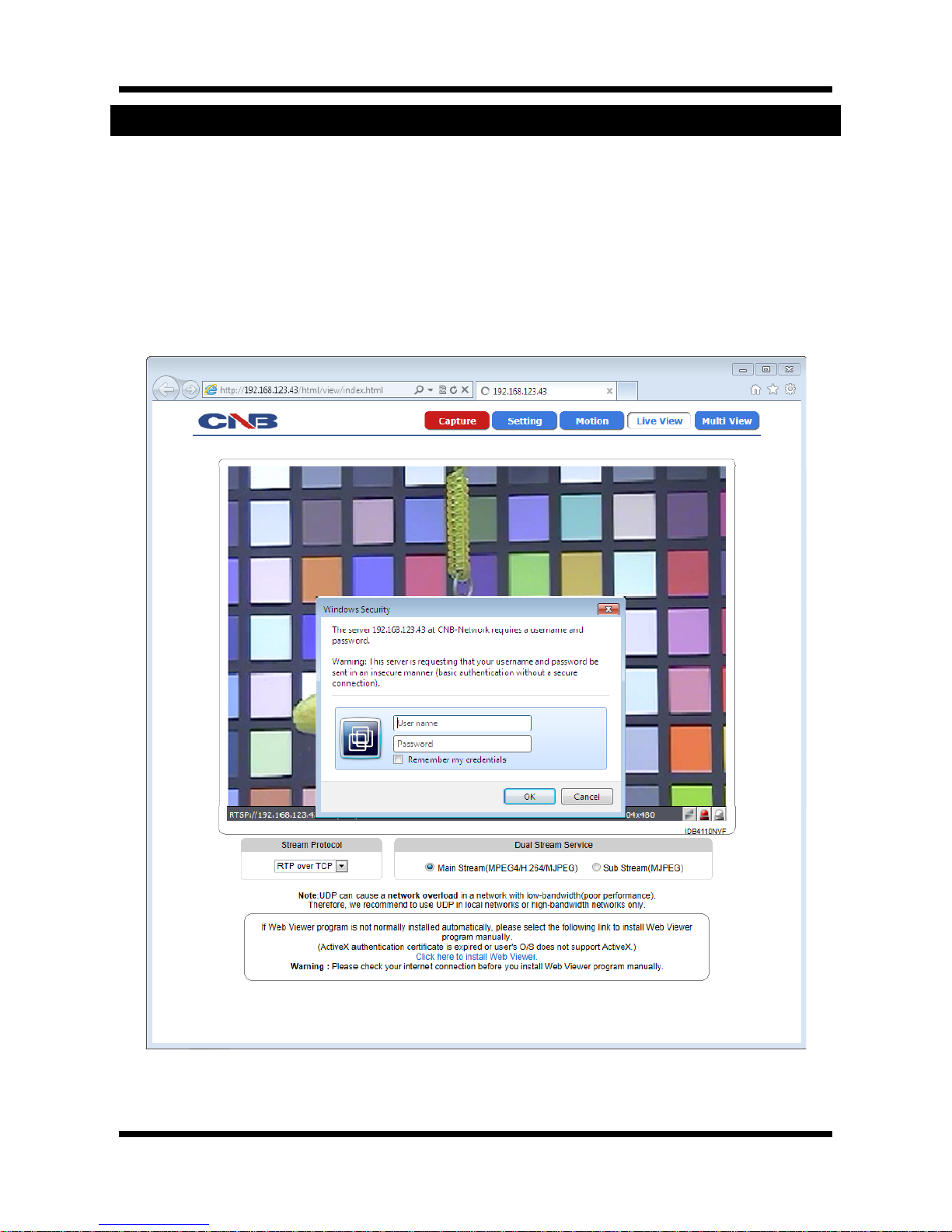

Figure 4-1. Log-in Box

15 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
Enter the user name and password to bring up the web viewer page. The default id and password is
“root”, “admin” respectively. If you want to use a different HTTP port number from the default value,
simply put a colon and port number at the end of the IP address. (For example, enter the following
address when changing the port to 8080: http://192.168.123.100:8080)
<Address format for accessing as an administrator>
(When using default IP address and port number)
http://192.168.123.100
(When IP address and port number changed) http://IP address: new port number
If you forget the administrator’s password, “Factory Reset” is the only way to regain
access. However, since this will retrieve all default settings, you need to configure
the network settings using IP installer software again.
For security purpose, it is recommended to change the administrator’s id and
password from their default values. Please be careful not to forget them or expose
them to others. Please refer to
[
Web Viewer Manual
]
for detail.

16 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
4
4. .2 2. . W We eb b V Vi ie ew we er r P Pa ag ge e
Web viewer page consists of Video monitor screen and menu option buttons.
Figure 4-2. Web Viewer Page

17 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
Item Sub Item Description
Capture - Captures and saves the current image as a still picture.
The image is saved as jpeg file in the following folder: C:₩xNetCapture
Setting -
Brings up Menu screen.
Setup page for each XNET feature can be opened from this Menu screen.
Please refer to [XNET Owner’s Manual] for detail.
Motion -
Opens up Motion Detection page.
You can add or delete areas for detecting motion in this page.
Please refer to [XNET Owner’s Manual] for detail.
Multi View -
Opens up Multi View page.
You can view videos from cameras that are programmed in Multi Video
Player setup page.
Please refer to [XNET Owner’s Manual] for detail.
Live View
Main Stream When this box is checked, Main Stream Video is displayed.
Sub Stream
When this box is checked, Sub Stream Video is displayed.
Dual-Codec needs to be enabled in Video Setup Page in order for Sub
Stream to be displayed.
Please refer to [XNET Owner’s Manual] for detail.

18 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
5. Specification
IDB4110NVF/ IDB4110PVF
IVB4110NVF/ IVB4110PVF Specifications
Camera Signal System NTSC / PAL
Scanning System 10Bit Digital out - De-Interlace
Image Sensor 1/3" High sensitivity CCD
Sync. System Internal
Effective Pixel Number NTSC / 768 (H) x 494(V) PAL / 752 (H) x 582(V)
Horizontal Resolution 580 TV Lines(BW 650 TV lines)
Video Output Level 1.0Vp-p Composite Signal (BNC 75Ω)
Lens C/CS Mount, DC Iris (Recommend lens: SCVHM408D, CBC HG2Z0414FC-MP,
T
AMRON M13VG308, M13VG246, M12VG412
)
Min. Illumination 0.05 Lux (Color), 0.0002 Lux (Sens-up Auto), F1.2, 30 IRE
Back Light Compensation On/Off
White Balance ATW / PUSH / MANUAL
Exposure Control Auto/Manual
Functions B/W, Flickerless
Day & Night System AUTO / DAY / NIGHT / EXT / IRED
DSS OFF / AUTO ⅹ(2 ~ 128)
3D-DNR ON / OFF ( 0 ~ 63)
AGC OFF / LOW / MID / HIGH
WDR Up to 60 dB (LOW / MIDDLE / HIGH)
BLC LOW / MIDDLE / HIGH
ECLIPSE ON / OFF (16 Zones)
Stabilizer ON / OFF
Digital-ZOOM ⅹ1.00 ~ ⅹ6.13
Night Burst ON / OFF
Motion Detection ON/OFF(4 Programmable Zone)
Privacy ON/OFF(8 Programmable Zone)
D-EFFECT V – FLIP / MIRROR / ROTATE
Sharpness 1 ~ 100
Baud Rate 4800 / 9600 / 19200 / 38400 / 57600
OSD Language ENG / KOR / RSN / CHN / SPN / FRN
Electronic Shutter Speed AUTO / OFF / A.FLK / ⅹ(2 ~ 512) / (1/90000 ~ 1/160)
System Main Processors 32bit Embedded CPU with Linux
System Memory NAND Flash Memory : 64MB, DDR Memory : 128MB
SD Card : Support for Max 4GB Size
Video/Audio Compression MJPEG / MPEG4 / H.264
Frame rate Dual Mode : MJPEG (15fps) MPEG4 / H.264 (30fps)
Resolution D1 (NTSC:720 x 480, PAL:720 x 576)
CIF (NTSC:360 x 240, PAL:360 x 288)
Video streaming MJPEG / MPEG4(or H.264) Dual mode
Constant and variable bit rate in MPEG4 (128kbps ~ 3M bps)
Controllable frame rate and bandwidth
Image settings Compression level setting
Configurable Brightness, Sharpness, White Balance
Audio Two-way(full duplex / ADPCM G.711 or G.726)
Network Protocol IPv4, HTTP, TCP, RTSP, RTP, RTCP, UDP,SMTP, FTP, ICMP, DHCP, UPnP, Bonjour,
ARP, DNS, DynDNS
Supported DDNS 1. DDNS 2. DynDNS.org 3. Reference code with SDK

19 / 19
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll la at ti io on n M Ma an nu ua al l
Video access from Web
browser
Camera live view for up to 10 clients-
LAN Interface Ethernet 10/100 Base-T ( RJ-45 Type)
Support PoE Standard IEEE 802.3af supported
Security Access level setup Multiple user access levels with password protection
Network Security IP Filtering
Alarm and Event
Management
Image detection Motion Detection(Select 3 Regions – each area)
Sensor detection Sensor In, Scheduling, Alarm out
After Event process JPEG Image upload over FTP server / SMTP (E-mail Server)
Local storage JPEG Image write to Internal & SD card memory
Inter memory : 32MB, SD Memory : Support Max 4GB
Pre / Post alarm Detail time-set : Max Pre alarm 5 sec / Post alarm 8 sec
Local storage (Internal memory or SD card memory : JPEG image)
Applications Browser Internet Explorer Ver. 6.0 or later
Monitoring Applications Web Viewer(Window Web Browser Base)
Live view for up to 10 user clients
Video Snapshot & recording to file (JPEG, Stream data)
XNVR Viewer and Utility(IP-Installer, ETC)
Maintenance System upgrade Firmware upgrade over HTTP
TZ Control (RS-485) PTZ Protocol Service(User define update)
Mechanical Operating Temperature 0 ~ 40℃℃
Power DC 12V Max. 6 W
Dimensions / Weight (Net) 92(Ø) mm
