CNB IDP4030VR User manual

1/ 17
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll l G Gu ui id de e
XNET Network Dome Camera Install Guide
( IDP4030VR , IVP4030VR )
Ver. 1.0 (090905)

2/ 17
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll l G Gu ui id de e
Please read this manual thoroughly paying attention to cautions and warnings before
using the product even if you have used similar products before.
This manual is for XNET Network Dome Camera users only, and it describes operations
related to XNET Network Dome Camera.
A compatibility and durability test ensured this product’s high performance.
About this Manual
XNET is a trademark of CNB Technology Inc.
This product complies for CE (Europe) and FCC (USA) regulations for
industrial/home use electrical device.
Important Notices
The copyright of this manual is owned by CNB Technology Inc.
It is illegal to copy and distribute this manual without permission.
Damages caused by use of parts not recommended and by misuse will not be
applicable for support.
Contact the store or the manufacturer immediately if (you think) there is any
problem with the product.
Contact the store or the manufacturer before disassembling the product for
alteration or repair.

3
/
17
X
XN NE ET T N Ne et tw wo or rk k D Do om me e C Ca am me er ra a I In ns st ta al ll l G Gu ui id de e
Index
1. About XNET....................................................................................................................................4
1.1. About XNET............................................................................................................................4
1.2. Features of XNET....................................................................................................................4
1.3. Applications............................................................................................................................4
2. About the Product .........................................................................................................................5
2.1. Contents.................................................................................................................................5
2.2. Product Information...............................................................................................................5
2.3. Hardware Designation............................................................................................................6
2.3.1. Switch and Controls ...................................................................................................6
2.3.2 Connecting Cables.......................................................................................................7
2.3.3 Connecting to Alarm Devices ......................................................................................8
3. Software Installation......................................................................................................................9
3.1. Installing XNET.......................................................................................................................9
3.1.1. Installation.................................................................................................................9
3.1.2. Cable Connection.....................................................................................................10
3.2. Installing IP-Installer Software and Configuring IP address.................................................11
3.2.1. About IP-Installer.....................................................................................................11
3.2.2. Configuring IP Address ............................................................................................11
4. Using Web Viewer........................................................................................................................13
4.1. Logging In............................................................................................................................13
4.2. Web Viewer Page .................................................................................................................14
5. Specification.................................................................................................................................15

1. About XNET
1
1. .1 1. . A Ab bo ou ut t X XN NE ET T
XNET is an internet based security and surveillance system that is compatible with various network conditions
through easy installation and user interface as well as multi-functional compressor Codec such as MJPEG,
MPEG-4, and H.264. XNET provides stable real-time surveillance by real time video/ audio at SXGA level, local
storage for any network problems, and hybrid IP technology that can be used with existing analog CCTV
devices.
1
1. .2 2. . F Fe ea at tu ur re es s o of f X XN NE ET T
Most advanced Video/ Audio compression technology (MJPEG/MPEG-4/H.264, ADPCM/G726)
Progressive technology - Progressive scan makes the image sharp and clear without ghost effect.
Hybrid IP Technology - CCTV analog video output can be used for existing analog CCTV devices.
Transmission of Multi-Codec stream - Live video signal can be compressed to MJPEG or MPEG-4 (or H.264)
and sent to meet various applications of network or user.
2-way Audio Communication (Bi-directional voice communication between Client’s PC and XNET)
Smart Event feature - On the top of motion detection and sensor/alarm feature, pre- and post- alarm
feature allows automated surveillance without an attendant’s monitoring.
Install/ Operation Wizard - Install/ Operation Wizard not only makes it easy for installers and users, but
also offers a unified installation setup for massive scale installations.
Up to 3 motion detection areas
Motion Detection – Alarm output and Video/ Audio data transmission to FTP site or e-mail upon detecting a
motion.
Supports Various resolutions - SXGA (1280x960), XGA (1024x768), VGA (640x480), CIF (320x240)
Remote Control over the network for software upgrade
1
1. .3 3. . A Ap pp pl li ic ca at ti io on ns s
Surveillance (Building, store, factory, parking lot, financial institutions, government buildings, military
facilities, etc.)
Remote video monitoring (Hospital, kindergarten, traffic monitoring, remote branch office, weather,
environment preservation, and illegal disposal of trash, etc.)
Real time broadcasting over the internet (Resort facility, parties, festivals, etc), remote business meetings,
and educational trainings, etc.

2. About the Product
2
2. .1 1. . C Co on nt te en nt ts s
Please make sure the following contents are included when you open the package.
Contents Description Additional info.
XNET XNET Network Dome Camera
AC Power Cable 2Jack Cable
Terminal Terminal for Alarm and Audio
CD Software and User’s manual
2
2. .2 2. . P Pr ro od du uc ct t I In nf fo or rm ma at ti io on n
Install CD
XNET
(IxP4030VR) IP-Installer Viewer Program
(XNET-NVR)
Network Dome Camera A software that assigns an IP
address to the product
A software that monitors and
records Audio and Video signal from
the device (supports up to 16
channels)

2
2. .3 3. . H Ha ar rd dw wa ar re e D De es si ig gn na at ti io on n
2
2. .3 3. .1 1. .
S
Sw wi it tc ch h
a
an nd d
C
Co on nt tr ro ol ls s
This shows Camera module inside the dome cover.
FAN
Power Terminal
Network
Factory Reset button
Recalls factory default
configurations
Zoom Ad
j
ust
Focus Ad
j
ust
Analog Video Output
A
larm Input/Output
CDS Sensor
Mic/Audio Input
Audio Output
IR LED
This CDS Sensor detects Low Light (night) and turns on
IR LEDs.
Factory Reset
Press and hold for more than 3 seconds while power is on to recall factory default settings
Adjusting Lens
Zoom Adjust: Adjust Zoom using the knob.
Focus Adjust: Adjust Focus using the knob.

2
2. .3 3. .2 2
C
Co on nn ne ec ct ti in ng g
C
Ca ab bl le es s
Power
Supplies Power to the Xnet product. Use 12V DC Adapter in the package.
Do not use this connector when powering up the product through LAN
cable. (PoE) The product is not covered under warranty when it is
damaged by connecting both Ethernet power and 12V DC power to this
terminal.
To 12VDC Power Adapter
Analog Video Output
Use this output to monitor the analog video signal while installing.
(Select Video Out at menu screen to enable this output)
- Alarm Sensor In (+)
- Alarm Sensor In (-)
- Alarm Output
- Alarm Output COMMMON
Alarm Terminal
Audio Connection Terminal
- MIC/ Line In)
- GND
- Line Out
- GND
AudioConnection
MIC/Line In (Mono)
Connects to auxiliary Audio Device or microphone.
Line Out (mono)
Audio signal output to a Power Amplified device or Speaker. This can be used to listen to the audio
signal sent from a remote PC for Bi-directional Audio communication.
ALARM IN/OUT
Connect to Alarm Input and Output
Sensor Input : Wires from various sensor type (IR, heat, and magnetic) can be connected.
Relay Output : Connect to an external Alarm device that operates by a relay such as Siren
LamporAlarmLight.
Please refer to “2.3.3 Connecting to Alarm devices” for Sensor and Relay connection.

Network Terminal
This Ethernet terminal connects to 100Mbps LAN through an RJ-45 connector. When optional PoE is used,
the power will be supplied from the Network Cable.
Link LED
Yellow light indicates that the network is properly connected.
Act LED
Green light indicates that the XNET system connected to 100Mbps LAN. This green lamp will blink if
the system receives data.
2
2. .3 3. .3 3
C
Co on nn ne ec ct ti in ng g
t
to o
A
Al la ar rm m
D
De ev vi ic ce es s
Alarm Input
Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in (+)/ (-) terminal
as shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.)
Alarm Sensor device requires a separate power source.
InternalCircuitry ExternalCircuitry
Alarm Output
This terminal can only be connected up to AC 30V/400mA or DC 30V/400mA. An additional relay device
has to be used to control higher voltage or current.
InternalCircuitry ExternalCircuitry

3.Software Installation
This section provides brief guidelines to install the XNET quickly and to monitor XNET’s Video and Audio
signals easily. If you have questions about details not explained in this section or if the product is not
functioning as described, please refer to FAQ before contacting the store.
Our homepage is
http://www.cnbtec.com .
3
3. .1 1. . I In ns st ta al ll li in ng g X XN NE ET T
3
3. .1 1. .1 1. .
I
In ns st ta al ll la at ti io on n
Mount the Camera to a ceiling or a wall. Make sure the base is firm enough to hold the Camera.
IDP4000VR Model IVP4000VR Model

Adjust the position, zoom, and focus as shown below:
3
TILT : 90˚
Horizontal
Rotation : 360˚
FOCUS
ZOOM
PAN : 360˚
3. .1 1. .2 2. . C Ca ab bl le e C Co on nn ne ec ct ti io on n
1.A PC or a laptop computer is required to set up an IP address.
zCompatible operating system: Windows 2000/ Windows XP/ Windows Vista
zSince the default IP address of the device is 192.168.123.100, set up the IP address of the
computer like the following:
IP Address : 192.168.123.101 Subnet Mask : 255.255.255.0
2.Connect LAN cable to the Network Terminal of the product.( Use a crossover cable when connecting it
directly to a PC, and use a direct cable when connecting it to a HUB)
COMPUTE
R
Direct Network
Cable
NETWORK HUB
COMPUTE
R
Crossover
Network Cable
3.Connect the camera to the power.
4.Use the Alarm Sensor/ output and audio terminal if necessary.

3
3. .2 2. . I In ns st ta al ll li in ng g I IP P- -I In ns st ta al ll le er r S So of ft tw wa ar re e a an nd d C Co on nf fi ig gu ur ri in ng g I IP P a ad dd dr re es ss s
3
3. .2 2. .1 1. .
A
Ab bo ou ut t
I
IP P- -I In ns st ta al ll le er r
A unique IP address has to be configured in order to connect network camera and monitoring PC to a
network. IP-Installer software provided in the Installation CD (included in the package and also available to
download from our website http://www.cnbtec.com) will configure IP address easily. If your network have
a DHCP server that automatically assigns IP addresses to network cameras. If your network does not have a
DHCP server, the default IP address of the device is 192.168.123.100. Refer to IP Installer user’s manual for
detail.
3
3. .2 2. .2 2. .
C
Co on nf fi ig gu ur ri in ng g
I
IP P
A
Ad dd dr re es ss s
A. The following box will appear when you start the IP-installer software.
Figure 3-2. IP Installer Start box

B. Select the camera of which you wish to change the IP address and click (Set IP Address)
button to bring up the following box in Figure 3-3.

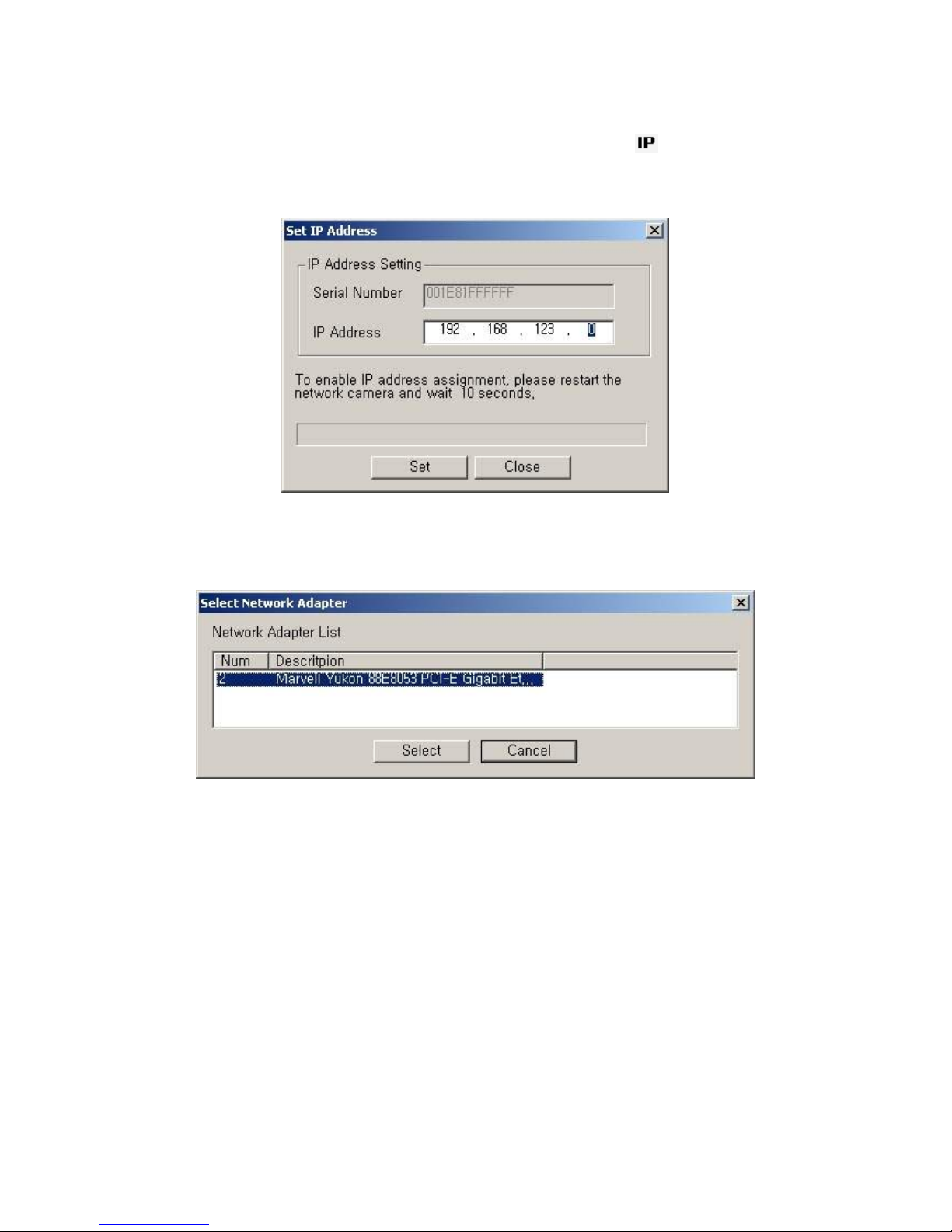

Figure 3-3. IP Address box
C. When you enter the IP address and click Set button, the box shown in Figure 3-4 will appear.
Figure 3-4. Select Network Adapter Box
D. Select the adapter and click select button to change the IP address of the camera.

4.Using Web Viewer
Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide
explains about using internet web browser only. For instructions on how to configure network connection
using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD.
4
4. .1 1. . L Lo og gg gi in ng g I In n
Enter the IP address of the device on the address bar of your web browser and press enter key. Then the
following webpage will appear:
Figure 4-1 Log-in Box

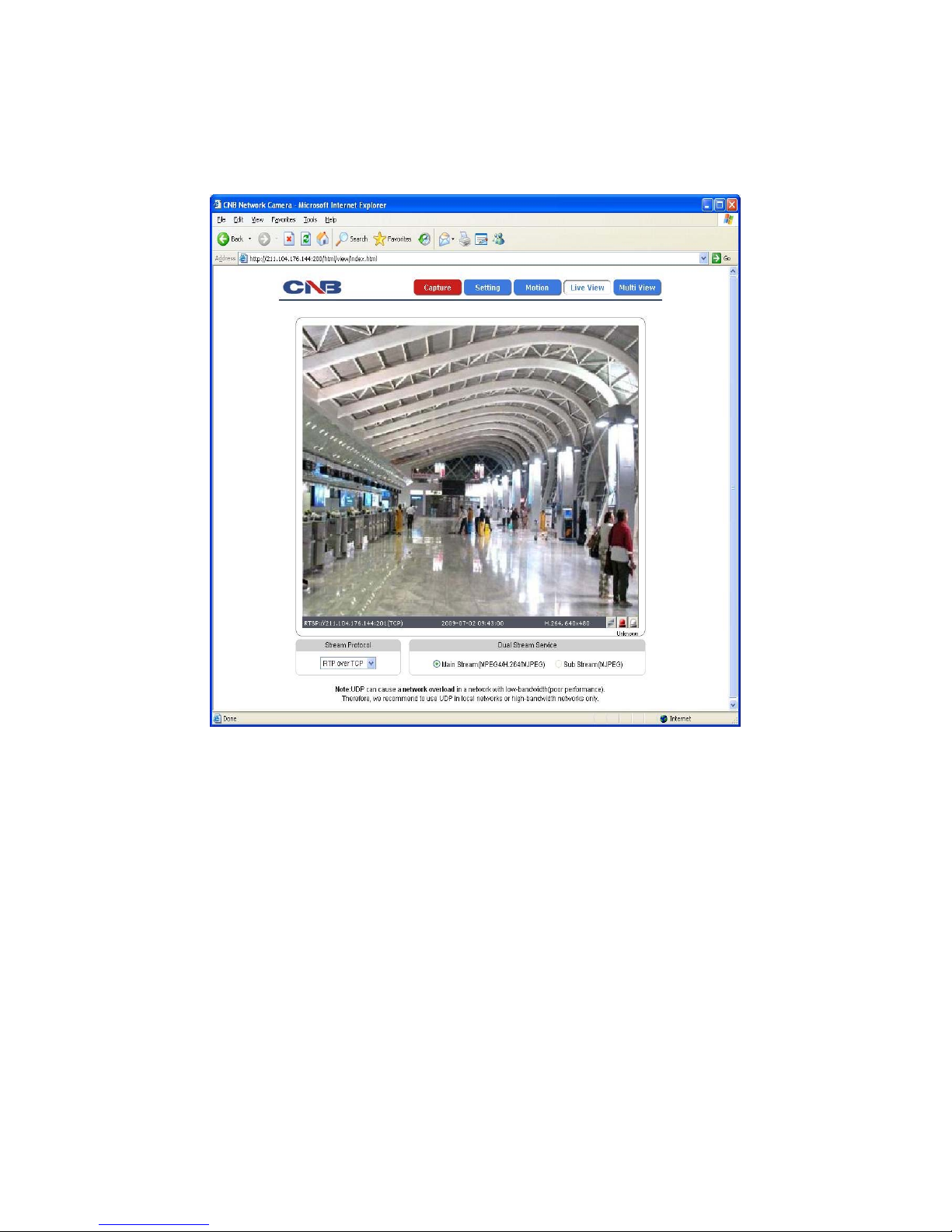

Enter the user name and password to bring up the web viewer page. The default id and password is
“root”, “admin” respectively. If you want to use a different HTTP port number from the default value,
simply put a colon and port number at the end of the IP address. (For example, enter the following
address when changing the port to 8080: http://192.168.123.100:8080)
<Address format for accessing as an administrator>
(When using default IP address and port number)
http://192.168.123.100
(When IP address and port number changed) http://IP address: new port number
If you forget the administrator’s password, “Factory Reset” is the only way to regain
access. However, since this will retrieve all default settings, you need to configure
the network settings using IP installer software again.
For security purpose, it is recommended to change the administrator’s id and password from
their default values. Please be careful not to forget them or expose them to others. Please refer
to
[
Web Viewer Manual
]
for detail.

4
4. .2 2. . W We eb b V Vi ie ew we er r P Pa ag ge e
Web viewer page consists of Video monitor screen and menu option buttons.
Figure 4-2 Web Viewer Page

Item Sub Item Description
Capture - Captures and saves the current image as a still picture.
The image is saved as jpeg file in the following folder: C:₩xNetCapture
Setting -
Brings up Menu screen.
Setup page for each XNET feature can be opened from this Menu screen.
Please refer to [XNET Owner’s Manual] for detail.
Motion -
Opens up Motion Detection page.
You can add or delete areas for detecting motion in this page.
Please refer to [XNET Owner’s Manual] for detail.
Multi View -
Opens up Multi View page.
You can view videos from cameras that are programmed in Multi Video
Player setup page.
Please refer to [XNET Owner’s Manual] for detail.
Main Stream When this box is checked, Main Stream Video is displayed.
Live View When this box is checked, Sub Stream Video is displayed.
Dual-Codec needs to be enabled in Video Setup Page in order for Sub
Stream to be displayed.
Sub Stream
Please refer to [XNET Owner’s Manual] for detail.
5.Specification
IDP4030VR/IVP4030VR Specifications
Signal System Progressive Image processing
Scanning System 4:3 Progressive
Pixel Clock 48 MHz
Scanning Frequency (H) 26 KHz(NTSC) / 27 KHz (PAL)
Scanning Frequency (V) 24 Hz (NTSC) / 25 Hz(PAL)
Image Sensor Progressive CMOS Sensor
Sync. System Internal
Total Pixel Number 2103 (H) X 1559 (V)
Effective Pixel Number 1280 (H) X 960 (V)
Horizontal Resolution 800 TV Lines
Video Output Level Select NTSC/PAL 1.0Vp.p (BNC 75, composite) * VGA/CIF Mode Only
Lens(Mega-Pixel) Built-in DC Iris Vari-focal Lens, f=3 ~ 9mm, F 1.2
Min. Illumination 1 Lux, 0 Lux(IR LED)
Camera
IR LED IR On(3 Lux) / IR Off(7 Lux)

Back Light Compensation On/Off
White Balance Auto/Manual
Exposure Control Auto/Manual
Day & Night Auto/Manual
Functions B/W, Flickerless
Electronic Shutter Speed NTSC : 1/6 ~ 1/600(13 Step), PAL : 1/6 ~ 1/500 (13 Step)
Main Processors 32bit Embedded CPU with Linux
System
System Memory NAND Flash Memory : 64MB, DDR Memory : 128MB
Compression SXGA / XGA : MJPEG
VGA : MJEPG / MPEG4 / H.264
Frame rate SXGA / XGA / VGA / CIF : 24 fps
Resolution SXGA (1280 x 960), XGA ( 1024 x 768), VGA (640 x 480), CIF (320 x 240)
Video/Audio
Video streaming SXGA / XGA : MJPEG Single mode, VGA : Dual Capable
Constant and variable bit rate in MPEG4 or H264
Controllable frame rate and bandwidth
Image settings Compression level setting
Configurable Brightness, Sharpness, White Balance
Audio Two-way(full duplex / ADPCM G.726)
Protocol IPv4, TCP, UDP, RTSP, RTCP, RTP, HTTP, SMTP, FTP, DHCP, UPnP,
Bonjour, DNS,DynDNS,IGMP,SAP,ICMP,ARP
Supported DDNS CNB DDNS, DyncDDNS.org, Reference code with SDK
Video access from Web
browser Camera live view for up to 10 clients
LAN Interface Ethernet 10/100 Base-T ( RJ-45 Type)
Network
Support PoE Standard IEEE 802.3af supported(Optional)
Access level setup Multiple user access levels with password protection
Security
Network Security IP Filtering
Image detection Motion Detection(Select 3 Regions – each area)
Sensor detection Sensor In, Scheduling, Alarm out
After Event process JPEG Image upload over FTP server / SMTP (E-mail Server)
Local storage JPEG Image write to Internal memory : Max 32MB
Alarm and Event
Management
Pre / Post alarm Detail time-set : Max Pre alarm 5 sec/ Post alarm 8 sec
Local storage(Internal memory : JPEG)
Browser Internet Explorer Ver. 6.0 or later
Web Viewer(Window Web Browser Base)
Live view for up to 10 user clients
Video Snapshot & recording to file (JPEG, Stream data)
Applications
Monitoring Applications
XNVR Viewer and Utility(IP-Installer, ETC)
Maintenance System upgrade Firmware upgrade over HTTP
Pan/Tilt/Horizontal 3-Axis bracket makes 3D rotation
Operation Temperature -10℃~ 50 (Day mode),℃-10℃~ 40 (Night mode℃- IR LED ON),
Power 12VDC, Max 7W
Mechanical
Dimensions / Weight(Net) 92(Ø) mm
