CNC SJT Series User manual

User Manual
III
SAFETY PRECAUTIONS
1. The motor is installed with the photoelectric encoder, and it’s not allowed to hit the
motor. And the user can’t disassemble the photoelectric encoder by himself; otherwise,
the relative position (zero position) between the encoder and the motor winding is
changed, which causes the motor out of running!
2. In the normal climate, measure the insulation resistance which the motor winding is
against with the case, by 500V megameter, and the value should NOT be less than 20
MΩ.
3. The motor and the drive should be connected correctly based on the manual to
guarantee the protective grounding stable and reliable.
4. The motor can run with load only after the motor is free of noise and vibration during
running from zero speed to the maximum speed in the dry run state.
5. During the motor running, it’s not allowed to touch the motor shaft and case.
6. Only the qualified person can adjust and maintain the motor.
7. It is forbidden to move the motor by dragging the wire (cable) or the motor shaft.
8. GSK does NOT take any responsibility for any change on the product by the user, and
the warranty bill becomes invalid.
All specifications and designs are subject to change without notice.
The incorrect connection and operation may cause the accident, so
before using and operating the motor, please read the manual carefully!

User Manual
IV
RESPONSIBILITY
Responsibility of the manufacturer
——The manufacturer should be in charge of the design and the structure of the
motor and its accessories.
——The manufacturer should be responsible for the safety of the motor and its
accessories.
——The manufacturer should be in charge of the provided information and
suggestion for the user.
Responsibility of the end user
——The user should be very familiar with the safety operation through learning
the motor safety operation or participating in the training session.
——The user should be responsible for the safety after adding, changing or
modifying the original motor and its accessories by himself.
——The user should be in charge of the danger resulted from the operation,
adjusting, maintenance, installation and storage which are not complied
with the manual regulation.
The manual is kept by the end user.
Thank you for your friendly support during using GSK
product.

GSK SJT series AC servo motor
V
CONTENT
RESPONSIBILITY ·······································································IV
ⅠPRODUCT CHARACTERISTICS ················································1
ⅡRUNNING CONDITIONS ···························································1
ⅢMODELS of the MACHINE ························································2
ⅣMAIN TECHNICAL PARAMETERS of the MOTOR ························ 3
ⅤMOTOR OVERALL and INSTALLATION DIMENSION ·················· 13
ⅥCONNECTION between the MOTOR and the DRIVE ··················· 17
ⅦSTORAGE of the MOTOR ······················································· 19
ⅧTRANSPORTATION of the MOTOR ·········································· 19
ⅨPROTECTION of the MOTOR ·················································· 19
ⅩWARRANTY ········································································· 20
ⅪORDER················································································ 21

GSK SJT series AC servo motor
1
ⅠPRODUCT CHARACTERISTICS
SJT series sine shaped AC permanent magnet synchronous servo motor, which is researched,
developed and manufactured by GSK, adopts the rare earth permanent magnet material of high
performance, with the characteristics of high torque inertia ratio, low speed performance, strong
overload capacity and high reliability etc, which can widely satisfy the requirements of the machine
CNC system and automation.
ⅡRUNNING CONDITIONS
2.1 The height above sea level should NOT exceed 1000m. If it’s more than 1000m, some
performance may get affected due to the air cooling.
2.2 The environment temperature should be in the range of -10℃~ +40℃.
2.3 The relative air humidity is ≤90% (without the condensation).
2.4 AC voltage value of steady state is:（0.85 ~1.1）multiplies the rated voltage value.

GSK SJT series AC servo motor
2
ⅢMODELS of the MACHINE
Example: 80SJT － MZ032EH（A4Y1X）
80 SJT - M Z 032 E H（A□Y□X）
Dimension for
installing the flange:
60
80
110
130
150
175
AC servo motor series
SJT Common
SJTG High precision & high
speed
SJTR Dedicated for the
robot
SJTE Performance
improving series
SJTA Performance
improving series A
SJTB Performance
improving series B
Safe brake:
None None
Z Available
Remark: When the power
supply of the safe brake is
DC. （0.9~1.1 ）×24V, the
interface is 3-cord socket,
the pins 1 and 2 are power
supply terminals (without
pole), pin 3 is the earth one.
When pins 1 and 2 are
connected with the power
supply, the brake doesn’t
operate; when the power
supply is OFF, it operates.
The safe brake operation
time is ≤0.1s.
Connection mode
None Industrial (aviation) socket
type
X Cable direct t
yp
e
Shaft end or installation config.
None: Standard shaft end
Y□Special cylinder shaft end
Z□Special cone shaft end
S□Stepped motor installation
configuration
Remark: The digit code is in “□”,
about the number representing
the special shaft end, refer to the
installation overall figure of the
motor.
Encoder type
A or none Incremental 2500p/r
A1
A2 Incremental 5000p/r
A3 Incremental split-type 2500p/r
A4 Absolute 17bit
A4ⅠAbsolute 17bit, Biss treaty
A4ⅡAbsolute 17bit, Smart-Abs
treaty
Rated speed
A 1000 r/min
B 1500 r/min
C 2000 r/min
D 2500 r/min
E 3000 r/min
F 3500 r/min
G 4000 r/min
Zero-speed torque
Remark: It is represented
by three digits, and its value
is in three digits ×10-1 and
its unit is N·m.
Example: 032×10-1=3.2N·m
Input voltage of the drive
None 220V
H 380V
Feedback unit
M Photoelectric encoder

GSK SJT series AC servo motor
3
ⅣMAIN TECHNICAL PARAMETERS of the MOTOR
4.1 Refer to list 1 about the main technical parameters of 80SJTA serial motor.
List 1
Torque-speed characteristics （T—N）（A：Continuous working zone；B：Intermittent working zone）
N (r/min)
3000
2000
1000
T (N·m)
2.5 5.0 7.50
80SJTA-M024C
AB
4000
3000
2000
1000
2.5 5.0 7.50
80SJTA-M024E
AB
4000
3000
2000
1000
3.0 6.0 9.00
80SJTA-M032E
AB
3000
2000
1000
0
80SJTA-M032C
AB
3.0 6.0 9.0
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)
TYPE
ITEM
80SJTA-M024C 80SJTA-M024E 80SJTA-M032C 80SJTA-M032E
Rated power （ kW ）
0.5 0.75 0.66 1.0
Pole pairs 4
Drive input voltage （ V ） AC220, three-phase（or single phase）
AC220, three-phase
Rated current（A）2.5 3.8 3.2 5.5
Zero-speed torque （ N · m ）
2.4 2.4 3.2 3.2
Rated torque（N·m）2.4 2.4 3.2 3.2
Max. torque（N·m）7.2 7.2 9.6 9.6
Rated speed（r/min）2000 3000 2000 3000
Max. speed（r/min）2500 4000 2500 4000
Moment of inertia
（ kg · m P
2
P
）
0.91×10-4 0.91×10-4 1.18×10-4 1.18×10-4
Weight（kg）3.1 3.1 3.7 3.7
Insulation grade F（GB 755
— 2008/IEC 60034-1:2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14:2007）
Protection level IP65（GB 4208
— 2008/IEC 60529：2001，GB/T 4942.1 — 2006）
Installation type IMB5（flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working system）（GB 755
— 2008）
Encoder pulses （ p/r ）
Incremental 2500 (standard configuration)
Safe brake DC24V, 3.2N·m, 11.5W, the weight of the
corresponding motor is increased by 0.9 kg.

GSK SJT series AC servo motor
4
4.2 Refer to list 2 about the main technical parameters of 110SJT series motor.
List 2
Torque-speed characteristics（T—N）（A: Continuous working zone；B：Intermittent working zone）
3000
2000
1000
4.0 8.0 12.00
110SJT-M040D
AB
110SJT-M060E
0
110SJT-M040E
3600
2700
1800
900
AB
4.0 8.0 12.0
0
3600
2700
1800
900
AB
4.0 8.0 12.0
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)
110SJT-M060D
3000
2000
1000
4.0 8.0 12.00
AB
N (r/min)
T (N·m)
TYPE
ITEM 110SJT-M040D 110SJT-M040E 110SJT-M060D 110SJT-M060E
Rated power（kW）1.0 1.2 1.5 1.8
Pole pairs 4
Drive input
voltage（V）
AC220 three-phase
（or single phase）AC220，three-phase
Rated current（A）4.5 5 7 8
Zero-speed torque
（N·m）
4 4 6 6
Rated torque（N·m）4 4 6 6
Max. torque（N·m）12 10 12 12
Rated speed（r/min）2500 3000 2500 3000
Max. speed（r/min）3000 3300 3000 3300
Moment of inertia
（ kg · m P
2
P
）
0.68×10P
-3
P0.68×10P
-3
P0.95×10P
-3
P0.95×10P
-3
P
Weight（kg）6.1 6.1 7.9 7.9
Insulation grade B（GB 755
— 2008/IEC 60034-1:2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14:2007）
Protection level IP65（GB 4208
— 2008/IEC 60529:2001，GB/T 4942.1 — 2006）
Installation type IMB5（flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working system）（GB 755
— 2008）
Encoder pulses (p/r ） Incremental 2500（Standard configuration）
Safe brake DC24V, 6N·m, 20W，the weight of the
corresponding motor is increased by 1.6kg.

GSK SJT series AC servo motor
5

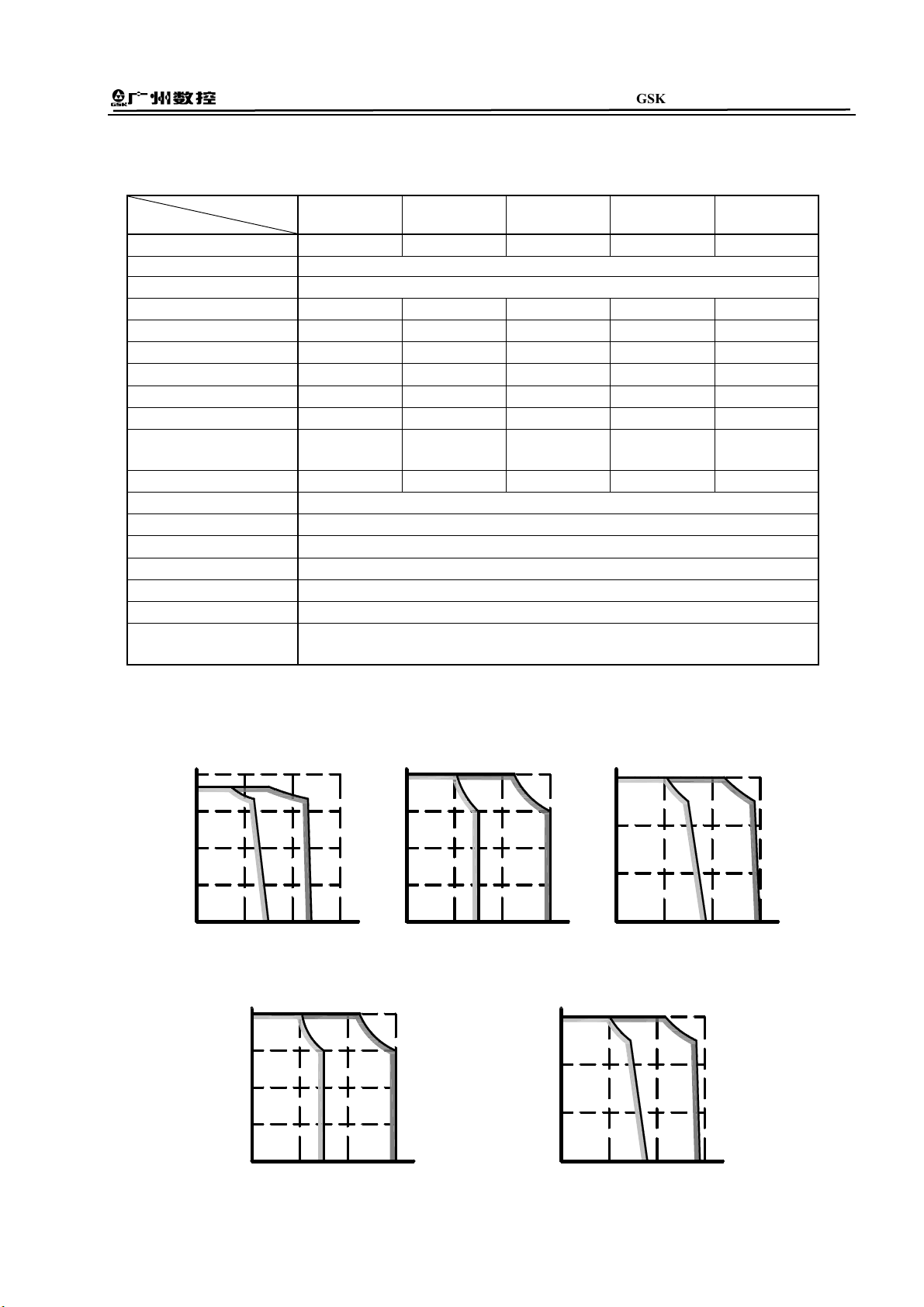

4.3 Refer to list 3 about the main technical parameters of 130SJT, 130SJTE and 130SJTB series
motor. List 3
Torque-speed characteristics（T—N）（A: Continuous working zone；B：Intermittent working zone）
130SJT-M050D130SJT-M040D
4000
3000
2000
1000
510150
AB
N (r/min)
T (N·m)
130SJT-M050E
N (r/min)
T (N·m)
N (r/min)
T (N·m)
3000
2000
1000
4.0 8.0 12.00
AB
3000
2000
1000
4.0 8.0 12.00
AB
3000
2000
1000
6.0 12.0 18.00
AB
130SJT-M060D
N (r/min)
T (N·m)
4000
3000
2000
1000
612180
AB
N (r/min)
T (N·m)
130SJT-M060E
TYPE
ITEM
130SJT-M
040D
130SJT-M
050D
130SJT-M
050E
130SJT-M
060D
130SJT-M
060E
Rated power （ kW ）
1.0 1.3 1.57 1.5 1.88
Pole pairs 4
Drive input
voltage（V）AC220，three-phase
Rated current（A）4 5 7.2 6 7.8
Zero-speed torque （ N · m ）
4 5 5 6 6
Rated torque（N· m）4 5 5 6 6
Max. torque（N·m）10 12.5 15 18 18
Rated speed（r/min）2500 2500 3000 2500 3000
Max. speed（r/min）3000 3000 3500 3000 3500
Moment of inertia
（ kg · m P
2
P
）
1.1×10P
-3
P1.1×10P
-3
P1.1×10P
-3
P1.33×10P
-3
P1.33×10P
-3
P
Weight（kg）6.5 6.5 6.6 7.2 7.3
Insulation grade B（GB 755
— 2008/IEC 60034-1: 2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14: 2007）
Protection level IP65（GB 4208
— 2008/IEC 60529：2001，GB/T 4942.1 — 2006）
Installation type IMB5（Flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working system）（GB 755
— 2008）
Encoder pulses （ p/r ） Incremental 2500（Standard configuration）
Safe brake DC24V, 12N·m, 28W，the weight of
the corresponding motor is increased by 2.9kg.

GSK SJT series AC servo motor
6
List 3 （Continued）
TYPE
ITEM
130SJT-M
075D
130SJT-M
075E
130SJT-M
100B
130SJT-M
100D
130SJTB-M
150B
130SJTE-M
150D
Rated power（kW）1.88 2.36 1.5 2.5 2.4 3.9
Pole pairs 4
Drive input voltage （ V ） AC220，three-phase
Rated current（A）7.5 9.9 6 10 10 19.5
Zero-speed torque
（ N· m ）
7.5 7.5 10 10 15 15
Rated torque（N· m）7.5 7.5 10 10 15 15
Max. torque（N·m）20 22.5 25 25 45 35
Rated speed（r/min）2500 3000 1500 2500 1500 2500
Max. speed（r/min）3000 3500 2000 3000 2000 3000
Moment of inertia
（ kg·m P
2
P
）
1.85×10P
-3
P1.85×10P
-3
P2.42×10P
-3
P2.42×10P
-3
P2.7×10-3 2.89×10-3
Weight（kg）8.1 8.2 9.6 9.7 12.8 13.7
Insulation grade B（GB 755
— 2008/IEC 60034-1: 2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14: 2007）
Protection level IP65（GB 4208
— 2008/IEC 60529：2001，GB/T 4942.1 — 2006）
Installation type IMB5（Flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working system）（GB 755
— 2008）
Encoder pulses（p/r）Incremental 2500（Standard configuration）
Safe brake DC24V, 12N·m, 28W，the weight of the
corresponding motor is increased by 2.9kg
DC24V, 15N·m, 28W，
the weight of the
corresponding motor is
increased by 2.9kg
Torque-speed characteristics（T—N）（A：Continuous working zone；B：Intermittent working zone）
130SJTB-M150B
2000
1500
1000
10.0 20.0 30.00
AB
3000
2000
1000
0
AB
130SJT-M075D 130SJT-M100B
130SJT-M100D 130SJTE-M150D
3000
2000
1000
7.5 15.0 22.50
AB
500
3000
2000
1000
10.0 20.0 30.00
AB
2000
1500
1000
15.0 30.0 45.00
AB
500
15.0 30.0 45.0
4000
3000
2000
1000
7.5 15 22.50
AB
T (N·m)
130SJT-M075E
N (r/min)
T (N·m) T (N·m)
T (N·m) T (N·m) T (N·m)
N (r/min) N (r/min)
N (r/min) N (r/min) N (r/min)

GSK SJT series AC servo motor
7
4.4 Refer to list 4 about the main technical parameters of 175SJT series motor.
List 4
TYPE
ITEM
175SJT-M
120E
175SJT-M
150B
175SJT-M
150D
175SJT-M
180B
175SJT-M
180D
Rated power（kW）3 2.4 3.1 2.8 3.8
Pole pairs 3
Drive input voltage （ V ） AC220，three-phase
Rated current（A）13 11 14 15 16.5
Zero-speed torque （ N· m ）
12 15 15 18 18
Rated torque（N· m）9.6 15 12 18 14.5
Max. torque（N·m）19.2 30 24 36 29
Rated speed（r/min）3000 1500 2500 1500 2500
Max. speed（r/min）3300 2000 3000 2000 3000
Moment of inertia
（kg·mP2P）
5.1×10P
-3
P5.1×10P
-3
P5.1×10P
-3
P6.5×10P
-3
P6.5×10P
-3
P
Weight（kg）18.9 18.5 19 22.8 22.9
Insulation grade F（GB 755
— 2008/IEC 60034-1: 2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14: 2007）
Protection level IP65（GB 4208
— 2008/IEC 60529: 2001，GB/T 4942.1 — 2006）
Installation type IMB5（flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working system）（GB 755
— 2008）
Encoder pulses（p/r）Incremental 2500（Standard configuration）
Safe brake DC24V, 23N·m, 30W，the weight of
the corresponding motor is increased by 5.6 kg.
Torque-speed characteristics（T—N）（A: Continuous working zone；B: Intermittent working zone）
175SJT-M120E 175SJT-M150B 175SJT-M150D
175SJT-M180B 175SJT-M180D
0
3600
2700
1800
900
AB
8.0 16.0 24.0
2000
1500
1000
10.0 20.0 30.00
AB
500
3000
2000
1000
0
AB
8.0 16.0 24.0
2000
1500
1000
12.0 24.0 36.00
AB
500
3000
2000
1000
0
AB
10.0 20.0 30.0
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)

GSK SJT series AC servo motor
8
List 4 （Continued 1）
TYPE
ITEM
175SJT-M
220B
175SJT-M
220D
175SJT-M
300B
175SJT-M
300D
175SJT-M
380B
Rated power（kW）3.5 4.5 4.7 6 6
Pole pairs 3
Drive input voltage （ V ） AC220，three-phase
Rated current（A）17.5 19 24 27.5 29
Zero-speed torque （ N·m ）
22 22 30 30 38
Rated torque（N·m）22 17.6 30 24 38
Max. torque（N·m）44 35.2 60 48 76
Rated speed（r/min）1500 2500 1500 2500 1500
Max. speed（r/min）2000 3000 2000 3000 1800
Moment of inertia
（ kg·m P
2
P
）
9.0×10P
-3
P9.0×10P
-3
P11.2×10P
-3
P11.2×10P
-3
P14.8×10P
-3
P
Weight（kg）28.9 29.2 34.3 34.4 42.4
Insulation grade F（GB 755
— 2008/IEC 60034-1: 2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14: 2007）
Protection level IP65（GB 4208
— 2008/IEC 60529: 2001，GB/T 4942.1 — 2006）
Installation type IMB5（flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working system）（GB 755
— 2008）
Encoder pulses（p/r）Incremental 2500（standard configuration）
Safe brake
DC24V, 23N·m, 30W ，
the weight of the corresponding
motor is increased by 5.6 kg.
DC24V,46N·m,40W，the weight of the
corresponding motor is increased by
7.7kg.
Torque-speed characteristics（T—N）（A：Continuous working zone；B：Intermittent working zone）
175SJT-M220B 175SJT-M220D 175SJT-M300B
175SJT-M300D 175SJT-M380B
2000
1500
1000
15.0 30.0 45.00
AB
500
3000
2000
1000
0
AB
11.0 22.0 33.0
2000
1500
1000
20.0 40.0 60.00
AB
500
3000
2000
1000
0
AB
16.0 32.0 48.0
2000
1500
1000
25.0 50.0 75.00
AB
500
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)

GSK SJT series AC servo motor
9
List 4 （Continued 2）
TYPE
ITEM
175SJT-M
380BH
175SJT-M
380DH
175SJT-M
500BH
175SJT-M
500DH
Rated power（kW）6 7.9 7.8 10.5
Pole pairs 3
Drive input voltage （ V ） AC 380，three-phase
Rated current（A）15 26 20 33
Zero-speed torque （ N·m ）
38 38 50 50
Rated torque（N·m）38 30 50 40
Max. torque（N·m）76 60 100 80
Rated torque （r/min）1500 2500 1500 2500
Max. speed（r/min）2000 3000 2000 3000
Moment of inertia
（ kg·m P
2
P
）
14.8×10P
-3
P14.8×10P
-3
P14.8×10P
-3
P14.8×10P
-3
P
Weight（kg）42.2 42.4 48.7 48.9
Insulation grade F（GB 755
— 2008/IEC 60034-1: 2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14: 2007）
Protection level IP65（GB 4208
— 2008/IEC 60529: 2001，GB/T 4942.1 — 2006）
Installation type IMB5（Flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working system）（GB 755
— 2008）
Encoder pulses（p/r）Incremental 2500（Standard configuration）
Safe brake
DC24V, 46N·m, 40W，
the weight of the corresponding
motor is increased by 7.7kg.
DC24V, 46N·m, 40W，
the weight of the corresponding
motor is increased by 8.5kg.
Cooling fan Not available
AC380 three-phase, 50Hz （ terminal 1
earth connection
， terminals 2,3 and 4
connected with the power supply
），
30W
， IP54
Torque-speed characteristics（T—N）（A:Continuous working zone；B:Intermittent working zone）
175SJT-M380BH
2000
1500
1000
25.0 50.0 75.00
AB
500
175SJT-M380DH
3000
2000
1000
0
AB
20.0 40.0 60.0
175SJT-M500BH
2000
1500
1000
25.0 50.0 75.00
AB
500
175SJT-M500DH
3000
2000
1000
0
AB
100.0 20.0 40.0 60.0 80.0
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)
N (r/min)
T (N·m)

GSK SJT series AC servo motor
10
4.5 Refer to list 5 about the main technical parameters of 130SJTG series motor.
List 5
TYPE
ITEM
130SJTG-M
050EH
130SJTG-M
060EH
130SJTG-M
075EH
130SJTG-M
100EH
130SJTG-M
120EH
Rated power（kW）1.6 1.9 2.4 3.1 3.8
Pole pairs 4
Drive input voltage
（V）AC380 three-phase
Rated current（A）5.3 6.4 8 8.2 10.2
Zero-speed torque
（N· m）5 6 7.5 10 12
Rated torque（N·m）5 6 7.5 10 12
Max. torque （N·m） 15 18 22.5 30 36
Rated speed（r/min） 3000 3000 3000 3000 3000
Max. speed（r/min）4500 4500 4500 4000 4000
Moment of inertia
（kg·m2）1.0×10-3 1.2×10-3 1.5×10-3 1.9×10-3 2.5×10-3
Weight（kg）6.6 7.5 8.4 9.9 11.9
Insulation grade F（GB 755
— 2008/IEC 60034-1：2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14：2007）
Protection level IP65（GB 4208
— 2008/IEC 60529：2001，GB/T 4942.1 — 2006）
Installation type IMB5（Flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working mode）（GB 755
— 2008）
Encoder pulses
（p/r）Absolute 17bit（Standard configuration）
Safe brake DC24V, 12N·m, 28W, the weight of
the corresponding motor is increased by 2.9kg.
Torque-speed characteristics (T—N)（A:Continuous working zone；B:Intermittent working zone）
N (r/min)
T (N·m)
4500
3000
1500
5.0 10.0 15.00
AB
130SJTG-M120EH
4000
AB
130SJTG-M100EH
3000
2000
1000
N (r/min)
0 20.0 30.0
T (N·m)
10.0
4000
AB
3000
2000
1000
N (r/min)
0 24.0 36.0
T (N·m)
12.0
N (r/min)
T (N·m)
4500
3000
1500
6.0 12.0 18.00
AB
N (r/min)
4500
3000
1500
7.5 15.0 22.50
AB
130SJTG-M050EH 130SJTG-M060EH 130SJTG-M075EH
T (N·m)

GSK SJT series AC servo motor
11
List 5（continued）
TYPE
ITEM
130SJTG-M
040GH
130SJTG-M
050GH
130SJTG-M
060GH
130SJTG-M
075GH
130SJTG-M
100GH
Rated power（kW）1.7 2.1 2.5 3.1 4.2
Pole pairs 4
Drive input voltage
（V）AC380 three-phase
Rated current（A）4.8 6 7.2 7.5 10
Zero-speed torque
（N· m）4 5 6 7.5
10
Rated torque（N·m）4 5 6 7.5 10
Max. torque （N·m） 12 15 18 22.5 30
Rated speed（r/min） 4000 4000 4000 4000 4000
Max. speed（r/min）6000 6000 6000 5000 5000
Moment of inertia
（kg·m2）1.0×10-3 1.2×10-3 1.5×10-3 1.9×10-3 2.5×10-3
Weight（kg）6.6 7.5 8.4 9.9 11.9
Insulation grade F（GB 755
— 2008/IEC 60034-1: 2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14: 2007）
Protection level IP65（GB 4208
— 2008/IEC 60529: 2001，GB/T 4942.1 — 2006）
Installation type IMB5（Flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working mode）（GB 755
— 2008）
Encoder pulses
（p/r）Absolute 17bit（Standard configuration）
Safe brake DC24V, 12N·m, 28W, the weight of
the corresponding motor is increased by 2.9kg.
Torque-speed characteristics (T—N)（A:Continuous working zone；B:Intermittent working zone）
130SJTG-M040GH
N (r/min)
T (N·m)
6000
4000
2000
4.0 8.0 12.00
AB
5000
0
AB
130SJTG-M100GH
10.0 20.0 30.0
4000
3000
2000
1000
N (r/min)
T (N·m)
5000
AB
130SJTG-M075GH
4000
3000
2000
1000
N (r/min)
0 15.0 22.5
T (N·m)
7.5
130SJTG-M050GH
N (r/min)
T (N·m)
6000
4000
2000
5.0 10.0 15.00
AB
130SJTG-M060GH
N (r/min)
T (N·m)
6000
4000
2000
6.0 12.0 18.00
AB

GSK SJT series AC servo motor
12
4.6 Refer to list 6 about the main technical parameters of 175SJTG series motor.
List 6
TYPE
ITEM
175SJTG-M
120EH
175SJTG-M
150EH
175SJTG-M
180EH
175SJTG-M
220EH
175SJTG-M
300EH
175SJTG-M
380EH
Rated power（kW）3.8 4.7 5.7 6.9 9.4 11.9
Pole pairs 4
Drive input voltage
（V）AC380 three-phase
Rated current（A）10.5 12.5 15.5 18.5 25 32
Zero-speed torque
（N· m）12 15 18 22 30 38
Rated torque
（N·m）12 15 18 22 30 38
Max. torque（N·m）36 45 54 66 90 114
Rated speed
（r/min）3000 3000 3000 3000 3000 3000
Max. speed（r/min）4500 4500 4500 4500 4500 4500
Moment of inertia
（kg·m2）4.1×10-3 4.9×10-3 6.1×10-3 7.2×10-3 9.5×10-3 12.1×10-3
Weight（kg）18.8 21.2 24.5 27.8 34.4 41.8
Insulation grade F（GB 755
— 2008/IEC 60034-1: 2004）
Vibration grade A（GB 10068
— 2008/IEC 60034-14: 2007）
Protection level IP65（GB 4208
— 2008/IEC 60529: 2001，GB/T 4942.1 — 2006）
Installation type IMB5（Flange installation）（GB/T 997
— 2008 / IEC 60034-7:2001）
Working mode S1（Continuous working mode）（GB 755
— 2008）
Encoder pulses
（p/r）Absolute 17bit（Standard configuration）
Safe brake DC24V,23N·m,30W, the corresponding motor is
increased by 5.6 kg.
DC24V, 46N·m、40W，
the corresponding motor
is increased by 7.7 kg.

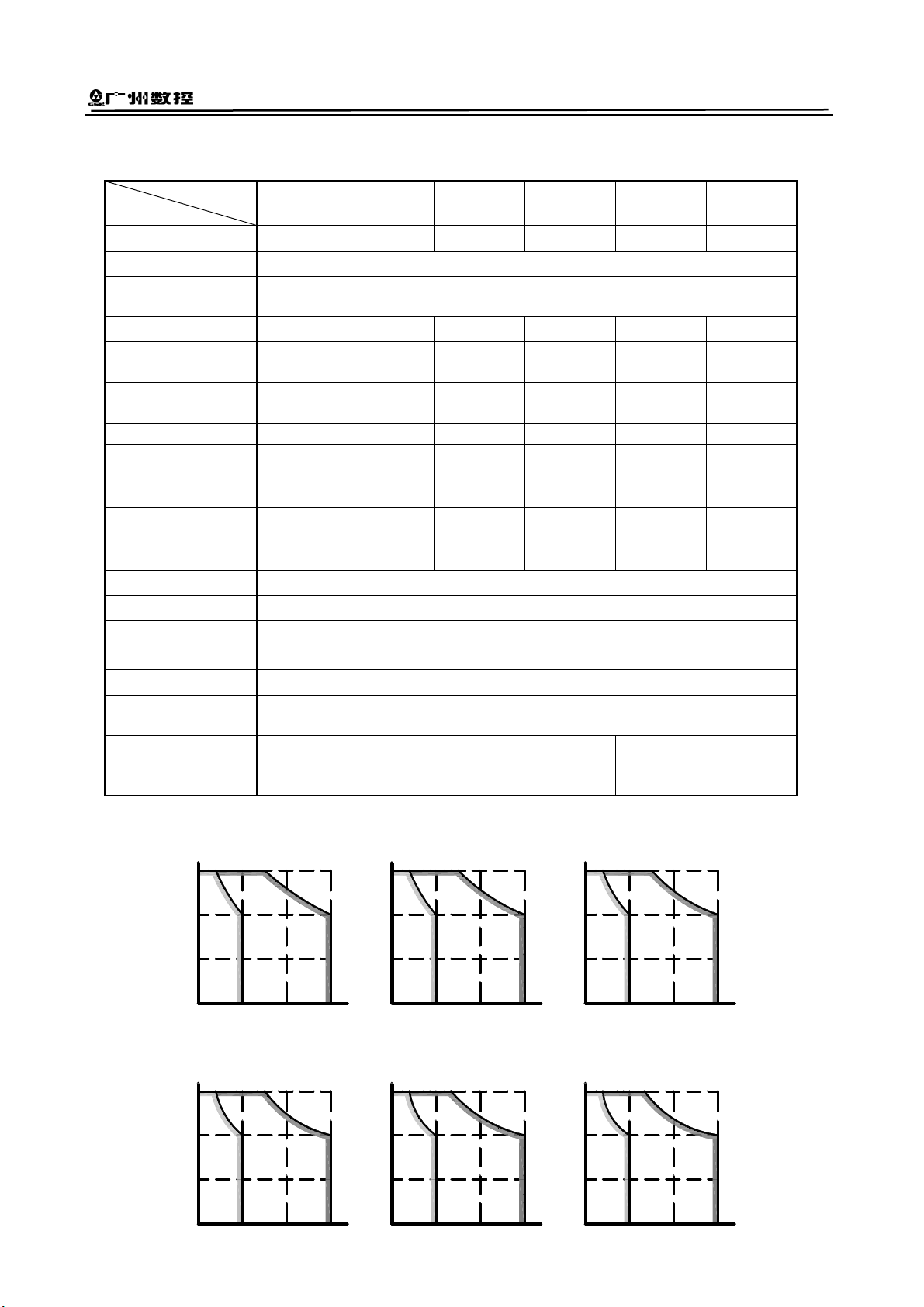

Torque-speed characteristics (T—N)（A:Continuous working zone；B:Intermittent working zone）
175SJTG-M120EH
4500
3000
1500
12 24 360
AB
N (r/min)
T (N·m)
175SJTG-M150EH
4500
3000
1500
15 30 450
AB
N (r/min)
T (N·m)
175SJTG-M180EH
4500
3000
1500
18 36 540
AB
N (r/min)
T (N·m)
175SJTG-M220EH
4500
3000
1500
22 44 660
AB
N (r/min)
T (N·m)
175SJTG-M300EH
4500
3000
1500
30 60 900
AB
N (r/min)
T (N·m)
175SJTG-M380EH
4500
3000
1500
38 76 1140
AB
N (r/min)
T (N·m)

GSK SJT series AC servo motor
13
ⅤMOTOR OVERALL and INSTALLATION DIMENSION

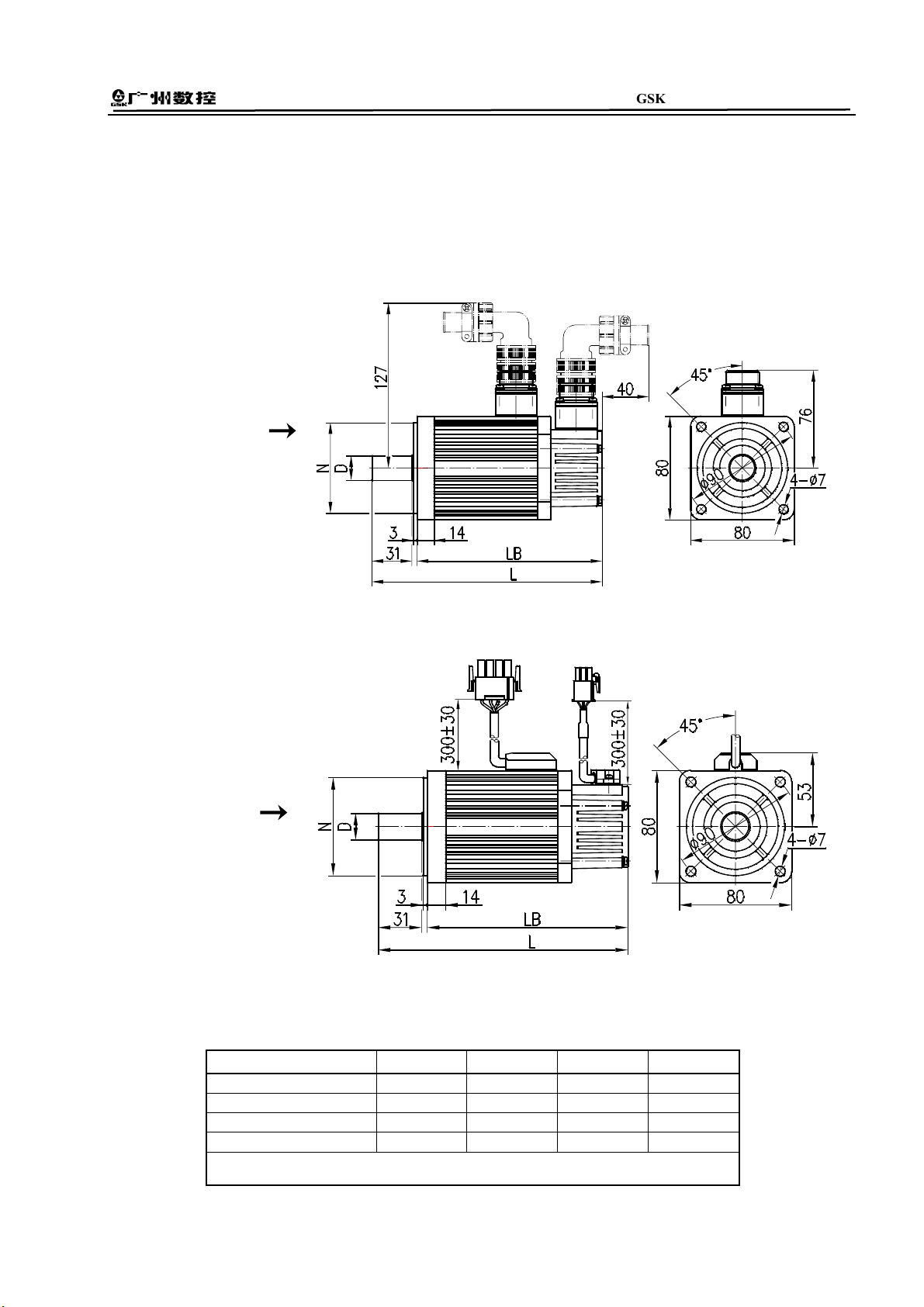

5.1 Refer to figure 1 and list 7 about 80SJTA serial motor overall installation dimension and
connection mode.
Fig. 1
List 7
TYPE D(mm)N(mm)LB(mm)L(mm)
80SJTA—M024C φ19P
0
PB-0.013B φ70P
0
PB-0.03B 171(213)206(248)
80SJTA—M024E φ19P
0
PB-0.013B φ70P
0
PB-0.03B 171(213)206(248)
80SJTA—M032C φ19P
0
PB-0.013B φ70P
0
PB-0.03B 189(231)224(266)
80SJTA—M032E φ19P
0
PB-0.013B φ70P
0
PB-0.03B 189(231)224(266)
Remark: The values of the bracketed LB and L are the length values of the
motors of the corresponding specification, which are with the safe brakes.
Industrial(aviation)
socket t
yp
e
Cable direct type

GSK SJT series AC servo motor
14
5.2 Refer to figure 2 and list 8 about 110SJT series motor overall installation dimension.
Fig. 2
List 8
TYPE D(mm)N(mm)LB(mm)L(mm)
110SJT—M040D φ19P
0
PB-0.013B φ95P
0
PB-0.035B 186 (237)241 (292)
110SJT—M040E φ19P
0
PB-0.013B φ95P
0
PB-0.035B 186 (237)241 (292)
110SJT—M060D φ19P
0
PB-0.013B φ95P
0
PB-0.035B 212 (263)267 (318)
110SJT—M060E φ19P
0
PB-0.013B φ95P
0
PB-0.035B 212 (263)267 (318)
Remark: The values of the bracketed LB and L are the length values of
the motors of the corresponding specification, which are with the safe
brakes.

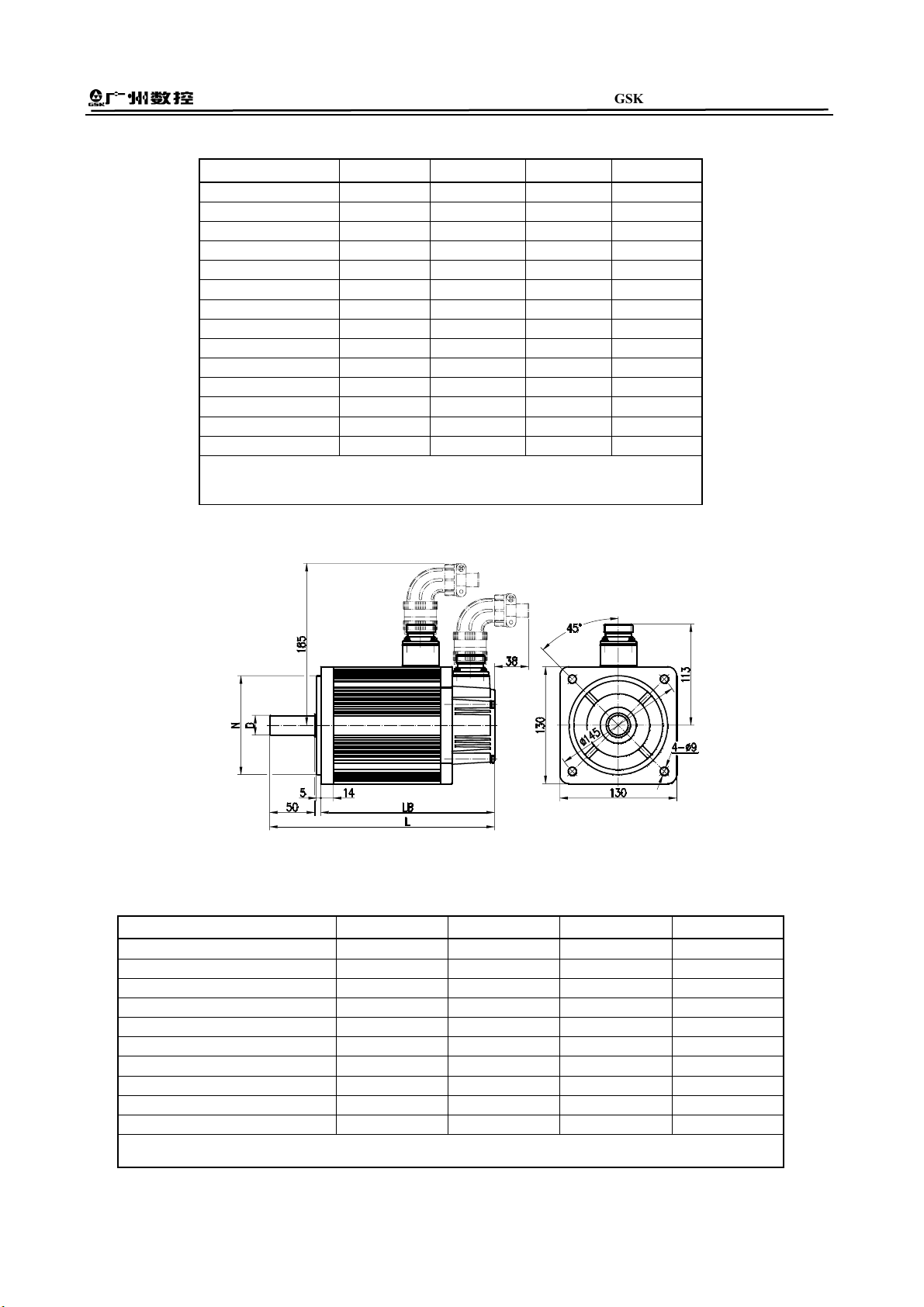

5.3 Refer to figure 3 and list 9 about 130SJT, 130SJTE and 130SJTA series motor overall
installation dimension.
Fig. 3

GSK SJT series AC servo motor
15
List 9
TYPE D(mm)N(mm)LB(mm)L(mm)
130SJT—M040D φ22P
0
PB-0.013Bφ110P
0
PB-0.035B 168 (227)225 (284)
130SJT—M050D φ22P
0
PB-0.013B φ110P
0
PB-0.035B 168 (227)225 (284)
130SJT—M050E φ22P
0
PB-0.013B φ110P
0
PB-0.035B 168 (227)225 (284)
130SJT—M060D φ22P
0
PB-0.013B φ110P
0
PB-0.035B 176 (235)233 (292)
130SJT—M060E φ22P
0
PB-0.013B φ110P
0
PB-0.035B 176 (235)233 (292)
130SJT—M075D φ22P
0
PB-0.013B φ110P
0
PB-0.035B 188 (247)245 (304)
130SJT—M075E φ22P
0
PB-0.013B φ110P
0
PB-0.035B 188 (247)245 (304)
130SJT—M100B φ22P
0
PB-0.013B φ110P
0
PB-0.035B 208 (267)265 (324)
130SJT—M100D φ22P
0
PB-0.013B φ110P
0
PB-0.035B 208 (267)265 (324)
130SJTB—M150B φ220-0.013 φ1100-0.035 248 (307) 305 (364)
130SJTE—M150D φ220-0.013 φ1100-0.035 264 (323) 321 (380)
Remark: The values of the bracketed LB and L are the length values of the
motors of the corresponding specification, which are with the safe brakes.

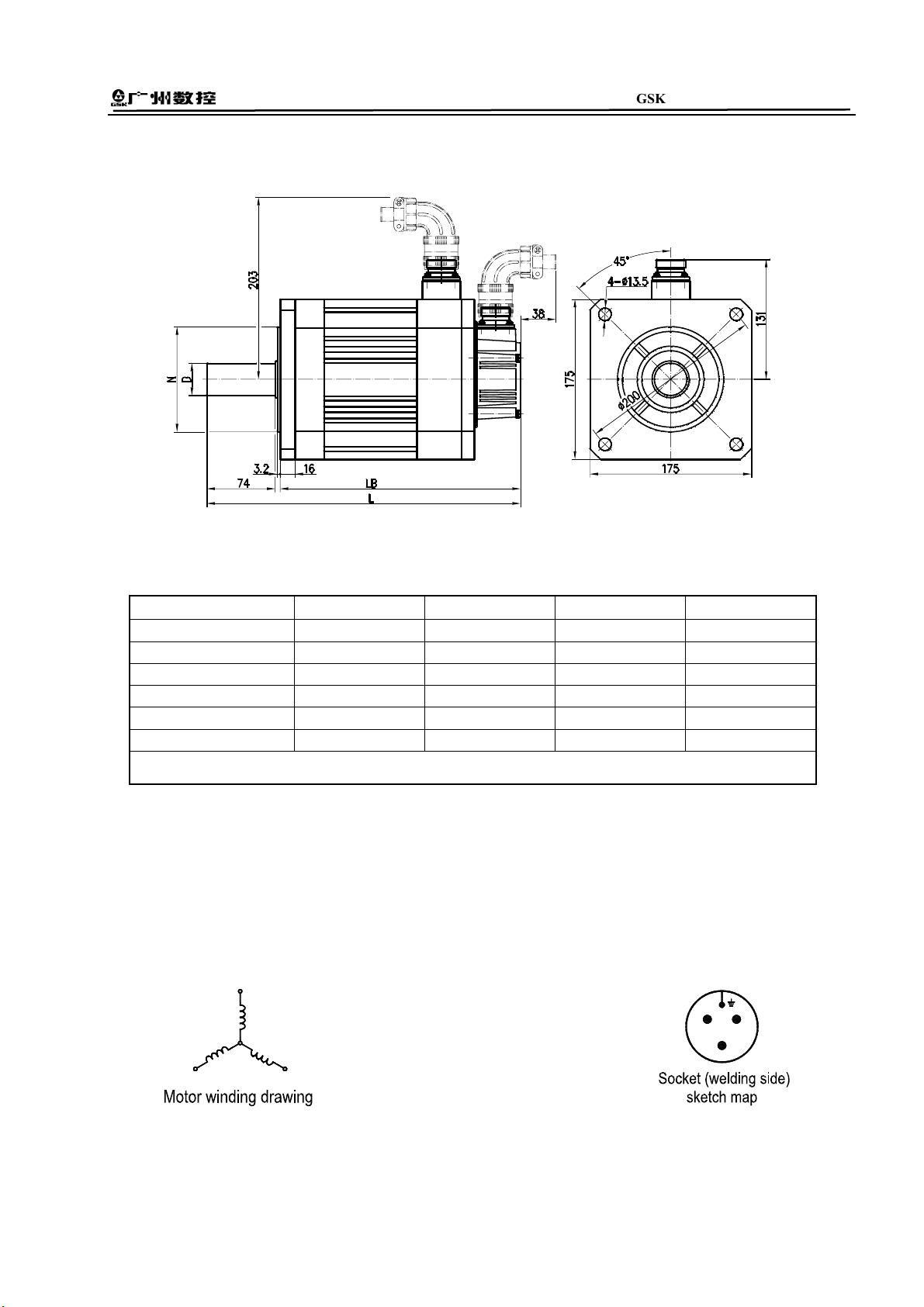

5.4 Refer to figure 4 and list 10 about 175SJT series motor overall installation dimension.
Fig.4
With
cooling
fan

GSK SJT series AC servo motor
16
List 10
TYPE D(mm)N(mm)LB(mm)L(mm)
175SJT—M120E φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 224 (291)303 (370)
175SJT—M150B φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 224 (291)303 (370)
175SJT—M150D φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 224 (291)303 (370)
175SJT—M180B φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 244 (311)323 (390)
175SJT—M180D φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 244 (311)323 (390)
175SJT—M220B φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 279 (346)358 (425)
175SJT—M220D φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 279 (346)358 (425)
175SJT—M300B φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 309 (382)388 (461)
175SJT—M300D φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 309 (382)388 (461)
175SJT—M380B φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 359 (432)438 (511)
175SJT—M380BH φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 359 (432)438 (511)
175SJT—M380DH φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 359 (432)438 (511)
175SJT—M500BH φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 454 (527)533 (606)
175SJT—M500DH φ35B0PB
+0.01
Pφ114.3P
0
PB-0.025B 454 (527)533 (606)
Remark: The values of the bracketed LB and L are the length values of
the motors of the corresponding specification, which are with the safe
brakes.
5.5 Refer to figure 5 and list 11 about 130SJTG series motor overall installation dimension.
Fig. 5
List 11
TYPE D(mm)N(mm)LB(mm)L(mm)
130SJTG — M040GH φ220-0.013 φ1100-0.035 172(231)229(288)
130SJTG — M050EH φ220-0.013 φ1100-0.035 172(231)229(288)
130SJTG — M050GH φ220-0.013 φ1100-0.035 183(242)240(299)
130SJTG — M060EH φ220-0.013 φ1100-0.035 183(242)240(299)
130SJTG — M060GH φ220-0.013 φ1100-0.035 194(253)251(310)
130SJTG — M075EH φ220-0.013 φ1100-0.035 194(253)251(310)
130SJTG — M075GH φ220-0.013 φ1100-0.035 212(271)269(328)
130SJTG — M100EH φ220-0.013 φ1100-0.035 212(271)269(328)
130SJTG — M100GH φ220-0.013 φ1100-0.035 238(297)295(354)
130SJTG — M120EH φ220-0.013 φ1100-0.035 238(297)295(354)
Remark: The values of the bracketed LB and L are the length values of the motors of the
corresponding specification, which are with the safe brakes.

GSK SJT series AC servo motor
17
5.6 Refer to figure 6 and list 12 about 175SJTG series motor overall installation dimension.
Fig. 6
List 12
TYPE D(mm)N(mm)LB(mm)L(mm)
175SJTG — M120EH φ 350
+0.01
φ 114.30
-0.025 224(291)303(370)
175SJTG — M150EH φ 350
+0.01
φ 114.30
-0.025 239(306)318(385)
175SJTG — M180EH φ 350
+0.01
φ 114.30
-0.025 259(326)338(405)
175SJTG — M220EH φ 350
+0.01
φ 114.30
-0.025 279(346)358(425)
175SJTG — M300EH φ 350
+0.01
φ 114.30
-0.025 319(392)398(471)
175SJTG — M380EH φ 350
+0.01
φ 114.30
-0.025 364(437)443(516)
Remark: The values of the bracketed LB and L are the length values of the motors of the
corresponding specification, which are with the safe brakes.
ⅥCONNECTION between the MOTOR and the DRIVE
6.1 The three-phase winding U,V and W of the motor and the case (GND) are led out by one
4-core connector pin; about the corresponding relation, refer to list 10. U, V, W and the case (GND)
are respectively connected with the main return circuit U, V, W and PE terminals of the drive.
W V
U
4
3
1
2
