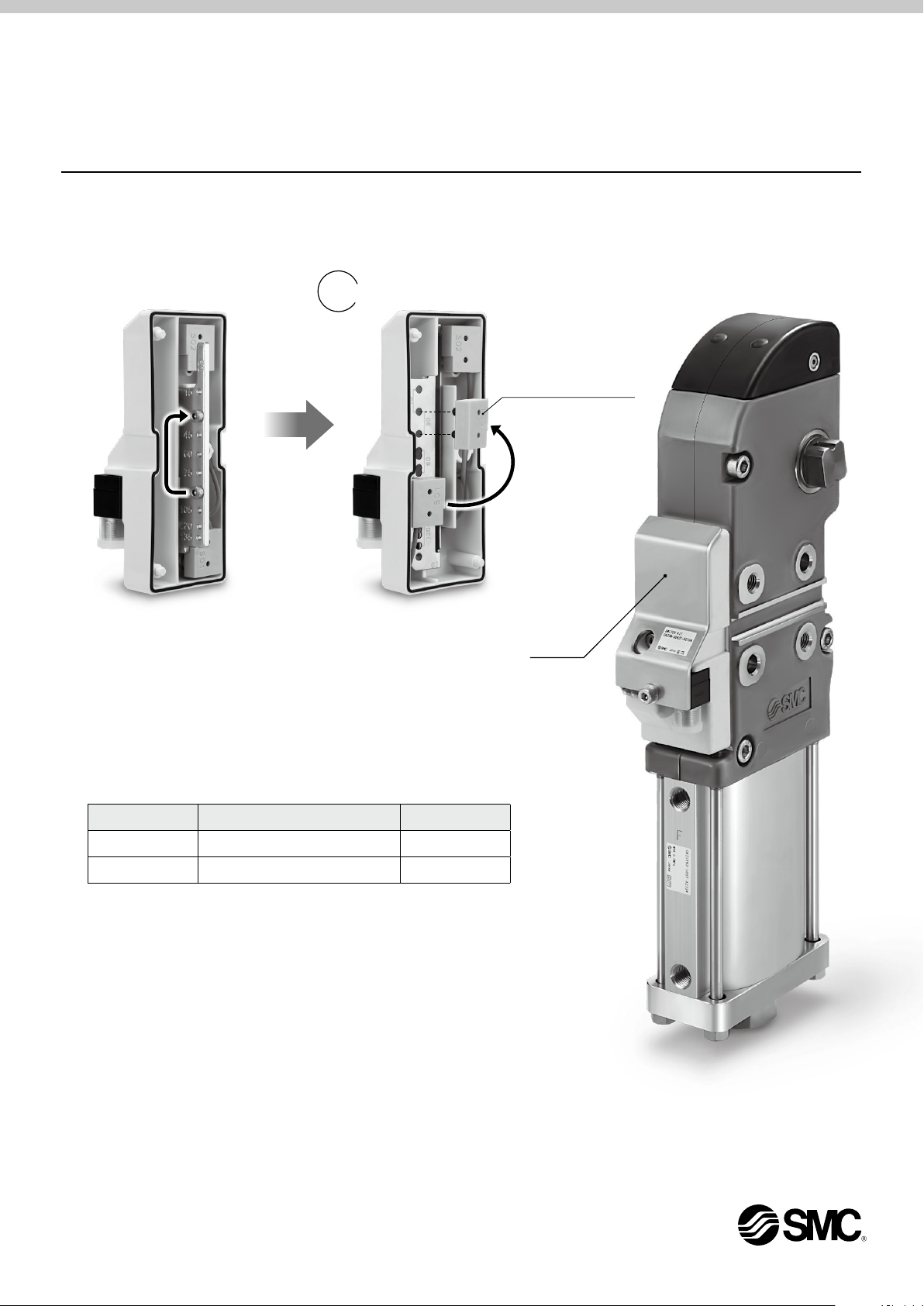

Remove bolts to change the position Change switch position with one touch
Power Clamp Cylinder
ø50, ø63
 Simple switch adjustment greatly reduces work-hours.
Switch can be adjusted easily when changing the arm opening angle.
With metal switch cassette cover
¡Protects switch cassette from unexpected impact
High clamping force 4000 N
(ø63, Arm length: 100 mm, 0.5 MPa)
Spatter proof construction
¡Fully closed structure prevents intrusion of spatter
Select from two types of top cover
¡Rubber cover: Rounded design reduces accumulation of welding spatter
Equivalent to UL94 standard V0: Flame resistant
¡Metal cover: Suitable for arc welding lines
: Protects the cylinder from unexpected external impact
Weight reduced by up to 39%
¡Aluminum body with greatly reduced weight
¡Ideal for robot material handling
Bore size CKZT aCKZ3T-X2734 Reduction rate
50 5.0 kg a3.1 kg 38% reduced
63 7.1 kg a4.3 kg 39% reduced
*Arm opening angle: 135°
Switch on the unclamping side
NewNew
CKZ3T CKZ3T-X2734
INFORMATION
CKZ3T-X2734
15-E654

Cylinder
(Without Arm) CKZ3T X273450
Bore size
90
Arm opening angle
T
C S
Proximity switch
Top cover
Arm CKZT 50
Bore size
Offset
A015
Arm mounting position
Mounting hole
How to Order
Power Clamp Cylinder
ø50, ø63
CKZ3T-X2734
Arm mounted
Cylinder port
15 15°
30 30°
45 45°
60 60°
75 75°
90 90°
105 105°
120 120°
135 135°
Nil G
TN NPT
TP Rc
50 ø50 equivalent
63 ø63 equivalent
TTURCK
PP&F
WNone
Nil Rubber cover
MMetal cover
50 ø50 equivalent
63 ø63 equivalent
A015 Offset 15 mm
A045 Offset 45 mm
Symbol D1D2
S6 9
B8 10.2
C
Center
øD1øD2
R
Right
øD1øD2
L
Left øD1øD2
1
A

Power Clamp Cylinder CKZ3T-X2734
Cylinder Specifications
Switch Specifications
*Switch specifications correspond to the manufacturers’ technical information.
*Applicable to both TURCK and P&F.
*Please contact SMC for NPN specifications.
Black
S1 Load (Unclamping side)
S2 Load (Clamping side)
(–)
(+)
Brown
White
Blue
2
3
1
4
Bore size 50 63
Action Double acting
Fluid Air
Proof pressure 1.2 MPa
Max. operating pressure 0.8 MPa
Min. operating pressure 0.3 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Cushion Clamping side: None
Unclamping side: Rubber bumper
Operating time Clamping: 1 sec. or more, Unclamping: 1 sec. or more
Maximum allowable clamping moment
*1800 N·m 1500 N·m
Weight (Cylinder Without Arm)
[kg]
Bore size Arm opening angle
15°30°45°60°75°90°105°120°135°
50 3.2 3.2 3.1 3.1 3.1 3.1 3.1 3.1 3.0
63 4.4 4.4 4.3 4.3 4.3 4.3 4.2 4.2 4.2
Manufacturer TURCK P&F
Supply voltage 10 to 30 VDC 10 to 30 VDC
Output N.O., PNP N.O., PNP
Continuous load current 150 mA 100 mA
Response frequency 30 Hz 25 Hz
Housing material PBT PA6, PBT
Output indication Clamping side: Red
Unclamping side: Yellow
Clamping side: Red
Unclamping side: Yellow
Voltage indication Green Green
Connector M12 Connector M12 Connector
*1
Refers to the maximum holding force (torque) while clamped with the operating air exhausted. This is not the possible holding force (torque) for normal use.
Cylinder Stroke
[mm]
Bore size Arm opening angle
15°30°45°60°75°90°105°120°135°
50 22.7 31.9 39.7 47.2 54.8 62.7 70.4 77.2 82.1
63 24.2 34.2 42.6 50.6 58.7 66.9 74.8 81.6 86.4
Wiring Diagram (PNP Connection Circuit)
2

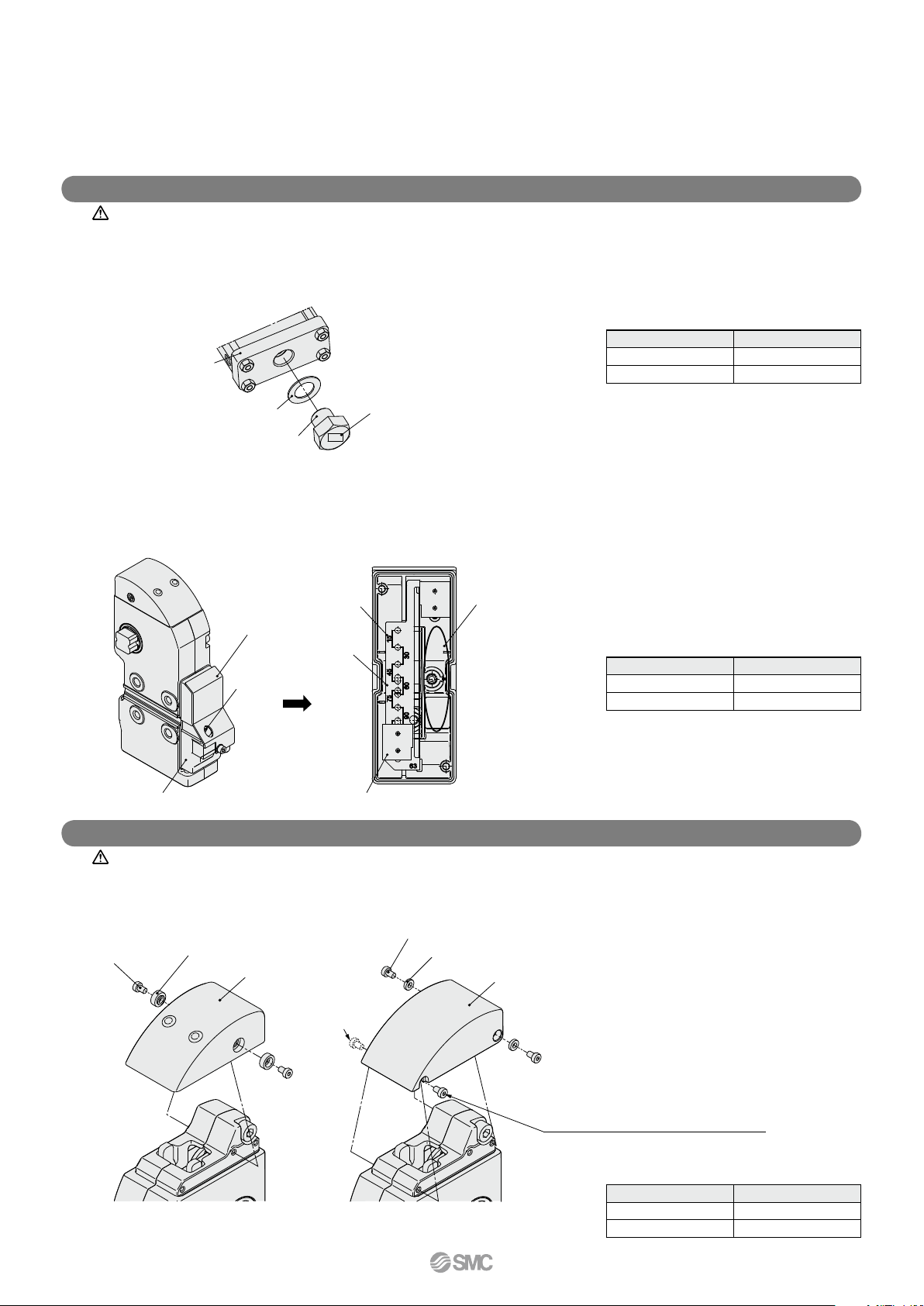

Top cover kits
Switch kits
Stopper bolt kits
CKZ3T-X2734
Replacement Parts
CKZ3N X2734 CKZ2N
CKZ3N
CKZ3N
T
D
050 050
050
050
ST
T M
B
Switch kit no. (With metal switch cassette cover) Top cover kit no.
Stopper bolt kit no.
Bore size
050 ø50 equivalent
063 ø63 equivalent
Bore size
050 ø50 equivalent
063 ø63 equivalent
Bore size
050 ø50 equivalent
063 ø63 equivalent
Bore size
050 ø50 equivalent
063 ø63 equivalent
Proximity switch
TTURCK
PP&F
WNone
Arm opening
angle
J15°
H30°
G45°
F60°
E75°
D90°
C105°
B120°
A135°
Rubber cover
Metal cover
*Refer to page 12 for top cover replacement instructions.
*The top cover kit includes a top cover and mounting brackets.
*The stopper bolt kit includes a stopper bolt
and mounting brackets.
*The switch kit includes a switch cassette assembly, metal switch
cassette cover, and mounting brackets.
3

R
RR
RA
GBGA
2 x 2 x G1/4
NPT
Rc
2 x 2 x øPH7
Depth D
NCNA±0.05
XC
XB
RW
PA±0.02 PC±0.05
2 x 2 x MM
Depth J
B
RB
E
L
LA±0.1
PD±0.05
PB±0.02
NB±0.05
+0.1
K0
LB
Hexagon socket head plug
4 x NN Depth S
2 x øVH7 Depth I
VE N9
VB±0.1
VC±0.1
VD±0.05
VA±0.02
C
Pivot point with square flats Nh9
VF
Lock release point
Rubber cover
Lock release point
Metal cover
Y
Metal cover open
Power Clamp Cylinder CKZ3T-X2734
[mm]
Bore size B C D E GA GB I J K L LA LB MM N NA NB NC NN
Rubber cover Metal cover
50 92 48 12 13.7 95 166 10 12 55 376.6 155.5 78.4 78.4 M10 x 1.5 19 13 36.5 9.5 M8 x 1.25
63 110 54 12 16.6 99 171.5 10 12 55 391.6 161 78 78.4 M10 x 1.5 22 13 36.5 15 M8 x 1.25

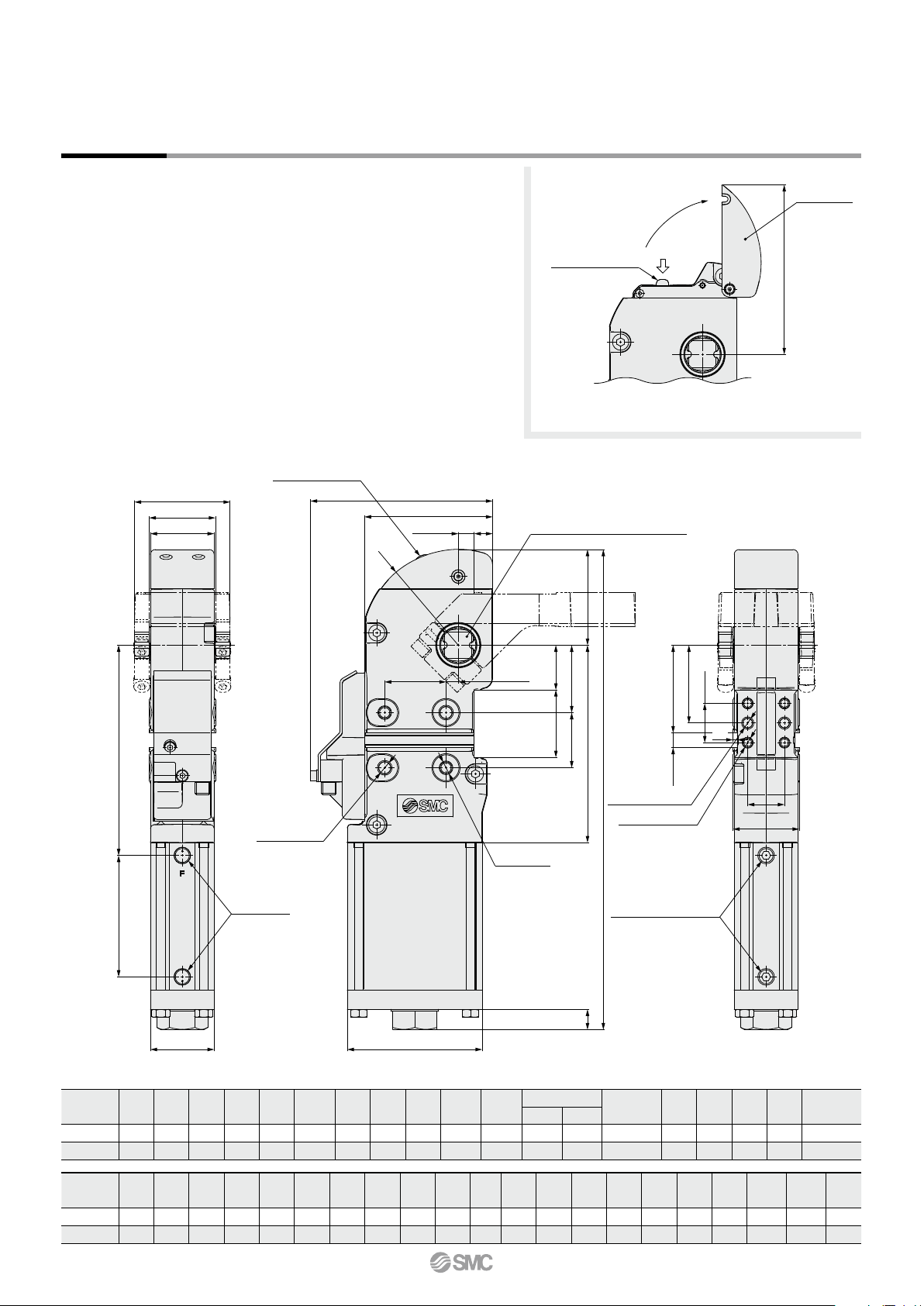

Dimensions
Bore size P PA PB PC PD R RA RB RR S V VA VB VC VD VE VF W XB XC Y
50 10 50 45 10 55 46 68 46 48 11 8 30 32 63.5 71.5 12 3.5 78.4 136 92 132
63 10 50 45 10 55 52 78 52 54 11 8 30 32 63.5 71.5 12 3.5 78 148.5 104.5 138
Rubber cover type
Metal cover type
4

48 68
(9)30±0.2
30±0.02
105±0.1
34
20
44
Left side
2 x øD1H7 through
2 x øD2through
Center
Right side
19
144
65
28±0.115±0.2
(Offset)
54 78
(9)
30±0.2
30±0.02
105±0.1
37
47
20
Left side
2 x øD1H7 through
2 x øD2through
Center
Right side
144
65
22
28±0.115±0.2
(Offset)
CKZ3T-X2734
Dimensions (Clamp Arm: Offset 15 mm)
Bore size: 50
Bore size: 63
Weight [kg]
CKZT50-A015CS 0.8
CKZT50-A015CB 0.8
CKZT50-A015RS 0.9
CKZT50-A015RB 0.9
CKZT50-A015LS 0.9
CKZT50-A015LB 0.9
Weight [kg]
CKZT63-A015CS 1.0
CKZT63-A015CB 1.0
CKZT63-A015RS 1.1
CKZT63-A015RB 1.1
CKZT63-A015LS 1.1
CKZT63-A015LB 1.1
5
A

34
20
44
48 68
28±0.145±0.2
(Offset)
19
144
65
30±0.2
30±0.02
105±0.1
Center
Right side
Left side
2 x øD1H7 through
2 x øD2through
(9)
37
47
20
54 78
28±0.145±0.2
(Offset)
144
22
64
30±0.2
30±0.02105±0.1
Center
Right side
Left side
2 x øD1H7 through
2 x øD2through
(9)
Power Clamp Cylinder CKZ3T-X2734
Dimensions (Clamp Arm: Offset 45 mm)
Bore size: 50
Bore size: 63
Weight [kg]
CKZT50-A045CS 0.9
CKZT50-A045CB 0.9
CKZT50-A045RS 1.0
CKZT50-A045RB 1.0
CKZT50-A045LS 1.0
CKZT50-A045LB 1.0
Weight [kg]
CKZT63-A045CS 1.2
CKZT63-A045CB 1.2
CKZT63-A045RS 1.3
CKZT63-A045RB 1.2
CKZT63-A045LS 1.3
CKZT63-A045LB 1.2
6
A

Arm length
Clamp arm
Fulcrum Extension arm
Shim
Clamping block
Load cell
Bore size: 50 Bore size: 63
0
2000
4000
6000
8000
10000
12000
50 100 150 200 250 300
0.8 MPa
0.5 MPa
0.3 MPa
Arm length [mm]
Maximum clamping force [N]
Arm length [mm]
Maximum clamping force [N]
10000
8000
6000
4000
2000
0
50 100 150 200 250 300
0.8 MPa
0.5 MPa
0.3 MPa

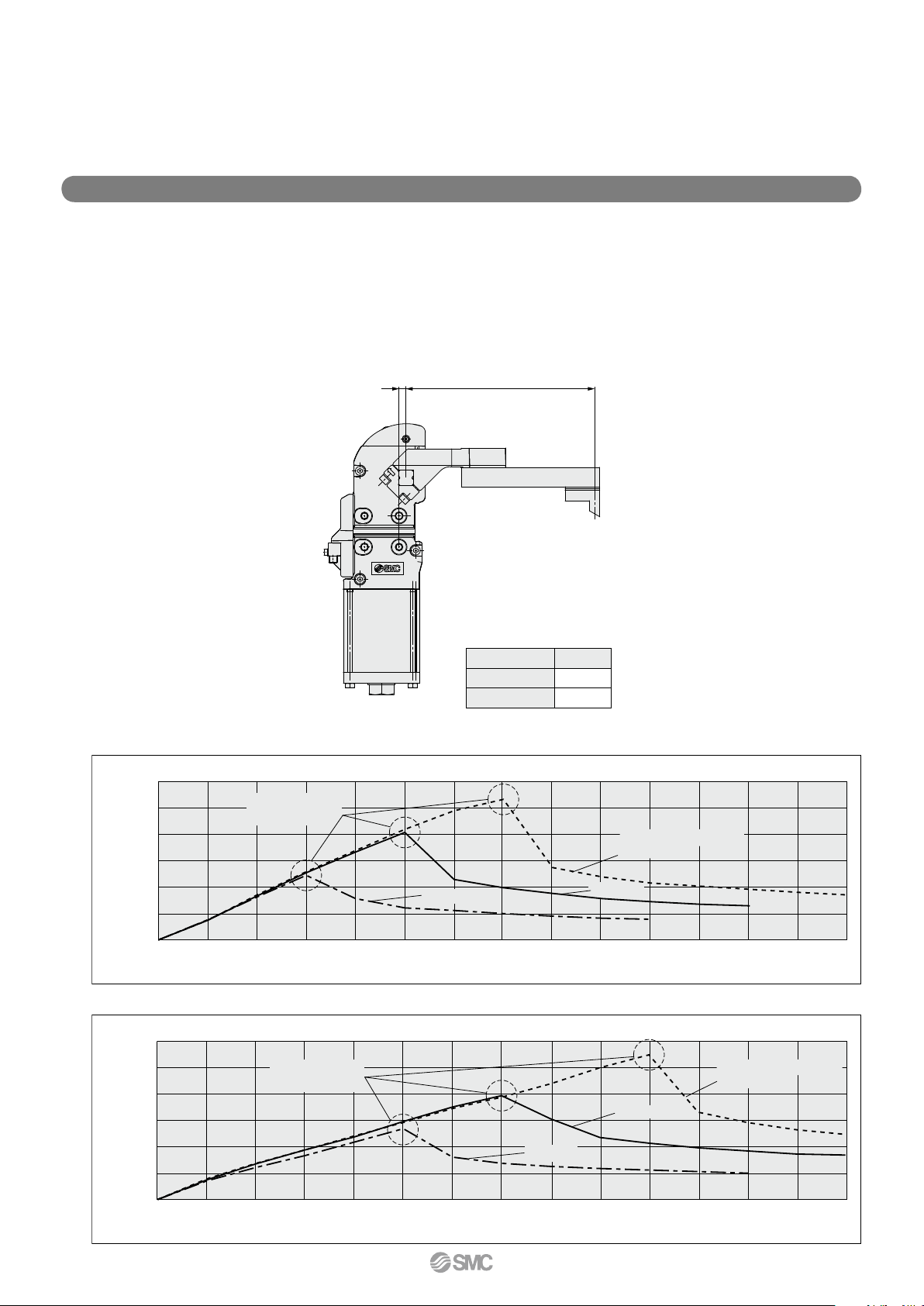

Relation between arm length and clamping force
CKZ3T-X2734

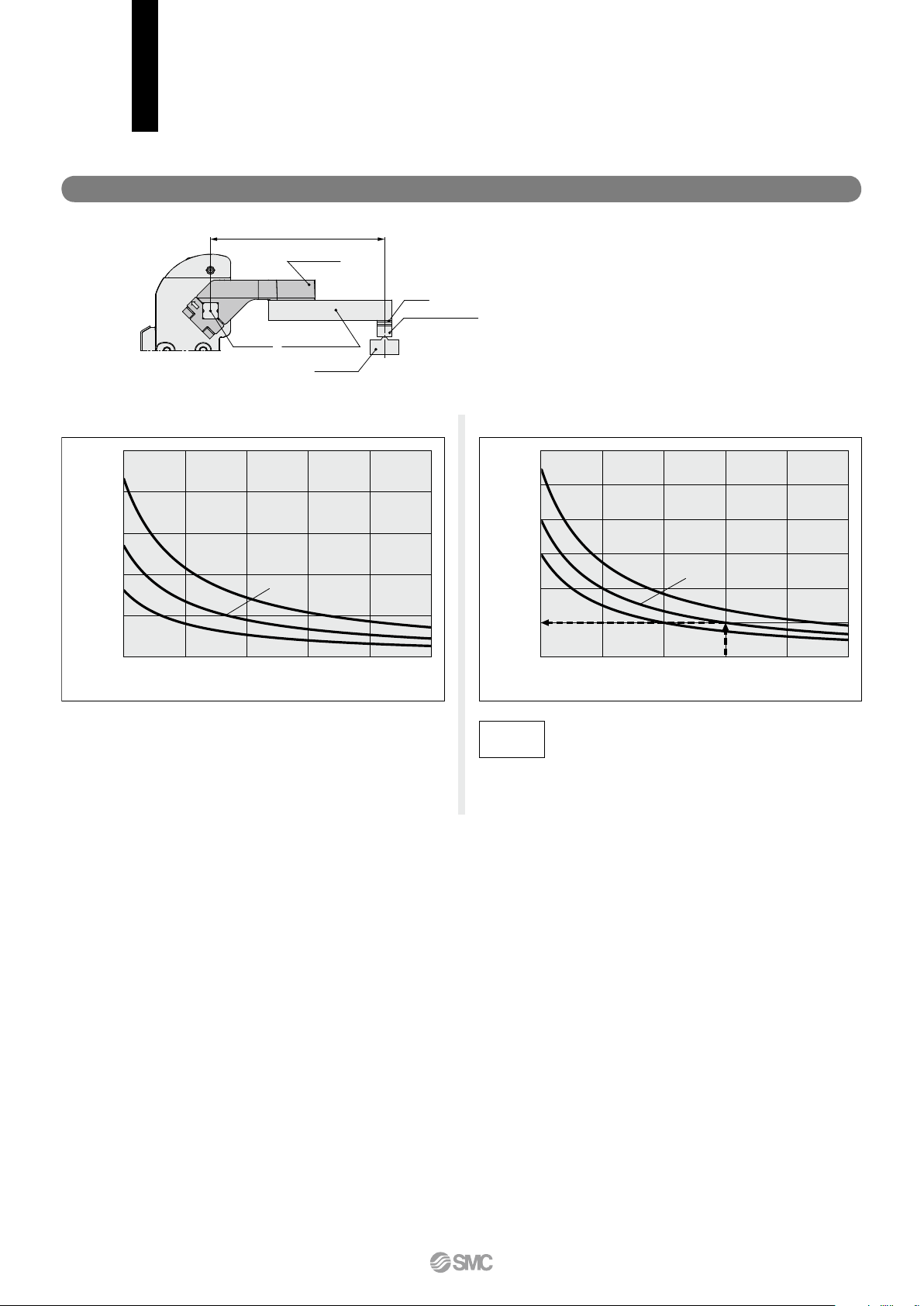

Model Selection
Calculation
example
Bore size: 63, Arm length: 200 mm,
Operating pressure: 0.5 MPa
With an arm length of 200 mm and an operating
pressure of 0.5 MPa, according to the graph, the
maximum clamping force becomes 2000 N.
7

10
9
8
7
6
5
4
3
2
1
050 100 150 200 250 300
14
13
12
11
10
9
8
7
6
5
4
3
2
1
050 100 150 200 250 300
Load capacity [kg] Load capacity [kg]
Distance to the center of gravity [mm]Distance to the center of gravity [mm]
30°, 45°, 60°
15°
120°
Arm opening angle: 135°
75°
90°
105°30°
45°, 60°
15°
120°
Arm opening angle: 135°
75°
90°
105°
Bore size: 50 Bore size: 63
Clamp arm Extension arm
Clamping position
Offset
Clamp arm
Fulcrum Extension arm
Shim
Clamping block
Clamping position
Arm length
L
θ
Arm opening angle
Load center of gravity
Clamp arm
Fulcrum
W
Extension arm
Shim
Clamping block
Model Selection CKZ3T-X2734
Allowable load mass
The allowable load mass changes by the arm opening angle.
Be sure to use the product within the allowable values in the graphs
shown below.
*The load indicates the total weight of the clamp arm, extension arm, and clamp-
ing block.
*When the operating time is 1 second.
Calculation procedure of allowable load mass
1. Calculate the distance Lfrom the fulcrum to the load center of gravity.
2. Check the arm opening angle of the product.
3. Read the allowable load mass from the graph.
Allowable arm length/Allowable offset
[mm]
Bore size Allowable arm length
50 300
63 300
[mm]
Bore size Allowable offset
50 50
63 50
Allowable arm length Allowable offset
*The clamping force does not
change within the allowable
offset.
Calculation
example
Bore size: 63, Arm opening angle: 90°,
Distance to the center of gravity: 250 mm
With an arm opening angle of 90° and a 250 mm dis-
tance to the center of gravity, according to the graph,
the maximum allowable load mass becomes 4.0 kg.
8

+0.5°
0
Figure 1
Workpiece setting Air supply Air exhaust Lock check
Operate to the
end of clamp
Shim adjustment
B
A
Install a block
at arm side
Shim adjustment
C
Block contact adjustment
(arm side)
D
Clamping port
Unclamping port
Cylinder Clamp arm
Shim
Workpiece receptacle
side block
Arm side block
Shim
Clamp arm
Side guide
Procedure
CKZ3T-X2734

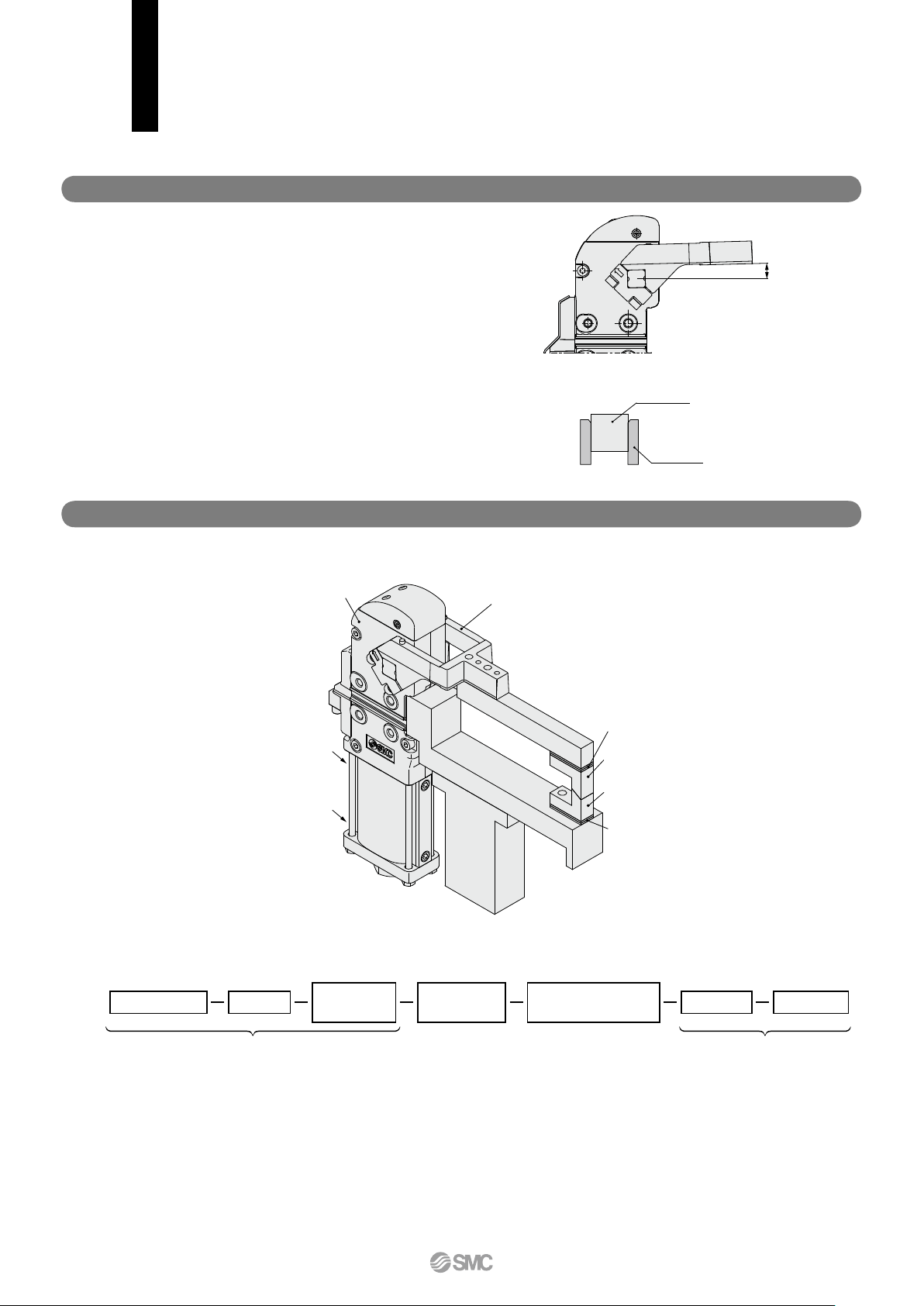

Setup Procedure
Precaution
1) The tightening torque of the clamp arm is ø50: 12 to 15 N·m, and ø63:
15 to 20 N·m. Refer to pages 5 and 6 for details on the clamp arm.
2) This product is designed to be used after being externally adjusted
using a shim, and there is a mechanical difference of 0 to +0.5°at the
clamping end as shown in Figure 1.
3) Be sure to use a speed controller, and make adjustments according to
the following conditions.
Unclamping to clamping: 1 second or more
Clamping to unclamping: 1 second or more
If excessive kinetic energy is applied, there is a possibility of damage.
4) When using a side guide:
Attach the side guide so that a lateral load, such as galling, etc., is not
applied to the clamp arm.
A) Place the workpiece, supply air to the clamp side port without attaching the block on the arm side, and move the clamp arm to
the end of the clamp.
B) In the state of A), attach the workpiece and the arm side block, and adjust the shim so that the space is about 0 mm.
During this step, theoretically, there is no clamping force pressing down on the workpiece.
C) In order to generate a clamping force from the state described in step B), insert an additional shim.
The thickness of the shim changes by the arm length and the operating pressure. Refer to the graphs on page 11.
Please note that the graph should only be used as a guide, as there is a tolerance of about 10% in the clamp cylinder body.
D) Exhaust the air in the clamped state, and confirm that the clamp arm does not open.
<Ex. 1 When using clamping force only: When equipped with a workpiece receptacle>
Power clamp cylinder mounting and setup procedure
9

Cylinder
Shim w
Clamping port
Unclamping port
Hard stop
Upper hard stop
Arm side block
Clamp arm
Shim q
Distance to hard stop
Setup Procedure CKZ3T-X2734
<Ex. 2 When using a hard stop: When not equipped with a workpiece receptacle>
A) Supply air at clamping port without installation of upper hard stop, and operate the clamp arm to the end of clamp.
B) In the state of A), attach the upper hard stop and adjust the shim qso that the space between the upper hard stop and the hard
stop is about 0 mm.
During this step, theoretically, there is no clamping force applied to the hard stop.
C) In order to generate clamping force from the state described in step B, insert an additional shim.
The thickness of the shim changes by the distance to the hard stop and the operating pressure. Refer to the graphs on page 11,
and consider the distance to the hard stop as the arm length.
Please note that the graph should only be used as a guide, as there is a tolerance of about 10% in the clamp cylinder body.
D) In the state of C), adjust shim wso that the arm side block contacts the workpiece.
E) Exhaust the air in the clamped state, and confirm that the clamp arm does not open.
Procedure
Power clamp cylinder mounting and setup procedure
Air
supply
Hard stop
set
A
Operate to the
end of clamp
Shim adjustment
B
Install the upper
hard stop
Shim adjustment
Shim adjustment
C
Upper hard stop
contact adjustment
Workpiece
setting
D
Block contact adjustment
(arm side)
Air
exhaust
Lock
check
E
10

Arm length
A
Shim thickness [mm]
Arm length: 200 mm
0
500
1000
1500
2000
2500
3000
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7
Clamping force [N]
Operating pressure
0.7 MPa
0.5 MPa
0.3 MPa
Peak clamping
force position
Arm length: 150 mm
0
500
1000
1500
2000
2500
3000
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7
Shim thickness [mm]
Clamping force [N]
Operating pressure
0.7 MPa
0.5 MPa
0.3 MPa
Peak clamping
force position
Bore size: 50
Bore size: 63
CKZ3T-X2734
Relation between shim thickness and clamping force
*Use this figure as a guide, as there is a tolerance of about 10% in the clamp cylinder body.
*When a shim exceeding the clamping force peak position on the graph is inserted, the lock will not be activated when clamped.
Insert a shim with appropriate thickness.
*Arm length “L” indicates the distance between the clamp arm shaft and the clamping position.
For distance “A” between knock positioning pinhole and clamp arm shaft, refer to Table 1.
Table 1 [mm]
Bore size A
50 10
63 10
Power clamp cylinder mounting and setup procedure
11

Unclamping angle display
Seal washer
Head cover
Stopper bolt 135
Lead wire
storage space
Switch on the unclamping side
Base plate
Unclamping angle display
Switch cassette
Protective cover
Switch cassette
mounting bolt
The opposite side
The bolt for opening/closing
This bolt can be mounted to the opposite side.
Metal cover typeRubber cover type
Metal cover
Washer
Bolt
Top cover
Spacer
Bolt
Setup Procedure CKZ3T-X2734
xSwitch position change procedure
1) Loosen the switch cassette mounting bolt, and remove the switch cassette.
2)
Remove the switch on the unclamping side, and attach in the position of the desired angle. Store the lead wire in the storage space.
3) Mount the switch cassette to the body, and tighten the switch cassette mounting bolt to the tightening torque shown below.
Refer to the replacement parts (page 3) for the part number of the switch cassette replacement part.
1) Mount the top cover to the clamp cylinder, then tighten to the specified tightening torque below.
2) It is possible to change from a rubber cover type to a metal cover type.
Refer to the replacement parts (page 3) for the part number of the top cover replacement part.
zStopper bolt position change procedure
1) Remove the stopper bolt of the head cover, and replace with a stopper bolt for the desired angle using the tightening torque below.
When tightening the stopper bolt, hold the head cover.
Refer to the replacement parts (page 3) for the part number of the applicable stopper bolt.
Switch Cassette Mounting Bolt Tightening Torque
Bore size Tightening torque [N·m]
50 2.6 to 3.5
63 2.6 to 3.5
Stopper Bolt Tightening Torque
Bore size Tightening torque [N·m]
50 45 to 65
63 85 to 115
Top Cover Mounting Bolt Tightening Torque
Bore size Tightening torque [N·m]
50 1.5 to 2.0
63 1.5 to 2.0
Arm opening angle change
Top cover replacement
Caution Be sure to confirm safety, and perform the work while the air is exhausted.
Caution Be sure to confirm safety, and perform the work while the air is exhausted.
12

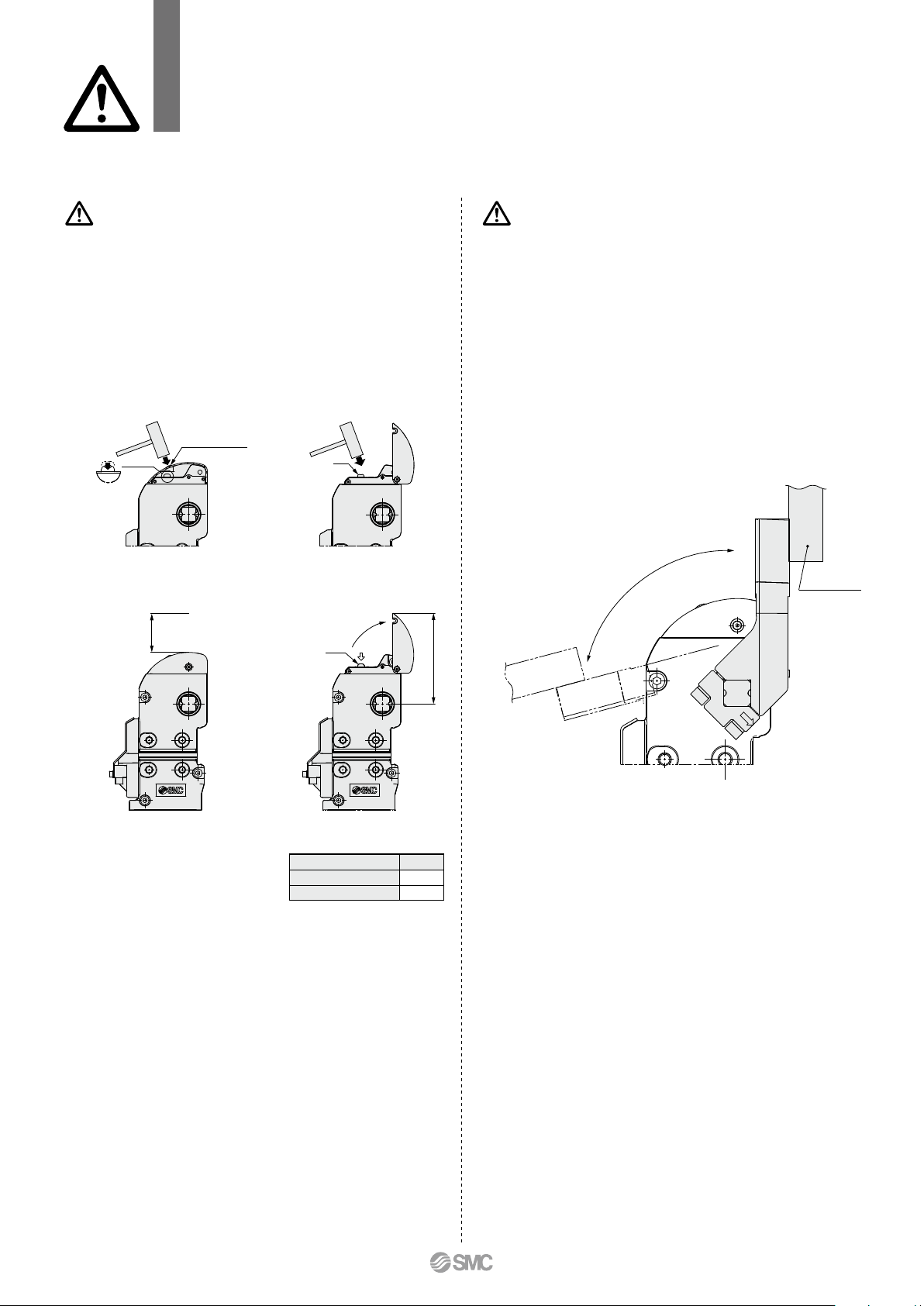

1. Manual lock release
Be sure to confirm safety before manually releasing the lock,
and perform the work while the air is exhausted. The clamp
arm may operate.
In the case of a rubber cover, the lock can be released easily
by hitting the round tab on the cover with a plastic hammer.
In the case of a metal cover, the lock can be released easily by
opening the cover and hitting the tab of the knuckle joint with a
plastic hammer.
Provide enough space to perform a manual lock release.
CKZ3T-X2734
Specific Product Precautions
Be sure to read this before handling the products. For safety instructions and actuator
precautions, refer to the “Handling Precautions for SMC Products” and the “Operation
Manual” on the SMC website: http://www.smcworld.com
Caution Caution
2. Do not disassemble the power clamp cylinder.
The power clamp cylinder consists of a completely sealed
structure in order to protect it from welding spatter. Do not
disassemble, except for the replaceable parts, as the
performance may deteriorate.
3. Precautions for vertical clamping
When mounting the clamp arm in a vertical clamping position,
mount as shown in the figure below. The maximum arm
opening angle is 105°. In the case of a metal cover type,
select a 45 mm offset for the clamp arm. When a 15 mm offset
is selected, the metal cover and clamp arm will interfere and
the lock cannot be released manually.
4. Proximity switch output
The switch output signal is output near the clamping end and
the unclamping end respectively.
The switch output signal on the clamping side does not output
the status where the power clamp cylinder is locked by the
toggle mechanism.
[mm]
Bore size Y
50 132
63 138
Space
Metal cover typeRubber cover type
Space (Y)
Tab of the
knuckle joint
105°
Unclamping
position
Clamping height
Extension arm
Round tab of
rubber cover
Tab of the
knuckle joint
Rubber cover type Metal cover type
13

Safety Instructions
Be sure to read the “Handling Precautions for SMC Products” (M-E03-3) and “Operation Manual” before use.
