Coby MPC440 - 128 MB Digital Player User manual

MP-C440

A
B
Table of Contents
Introduction
Package ............................................... 1
Locations of Controls ...............................2
HOLD Function ...................................... 3
Setting Up the Player
Install Software ......................................4
Connect to PC ....................................... 6
Download MP3 files to the unit................. 8
Using the Player
LCD and Menus........................................ 9
Play MP3 Music (Basic play) ..................... 10
Play Settings ..........................................11
Record Voice ..........................................12
Erase Music and Voice File(s).................. 13
Information Submenu ............................. 14
1
2
3
B
Appendixes
A
What is MP3? ........................................ 15
B
Cautions ...............................................16
C
Software Utility.......................................17
D
Technical Specifications &
Troubleshooting .................................... 18

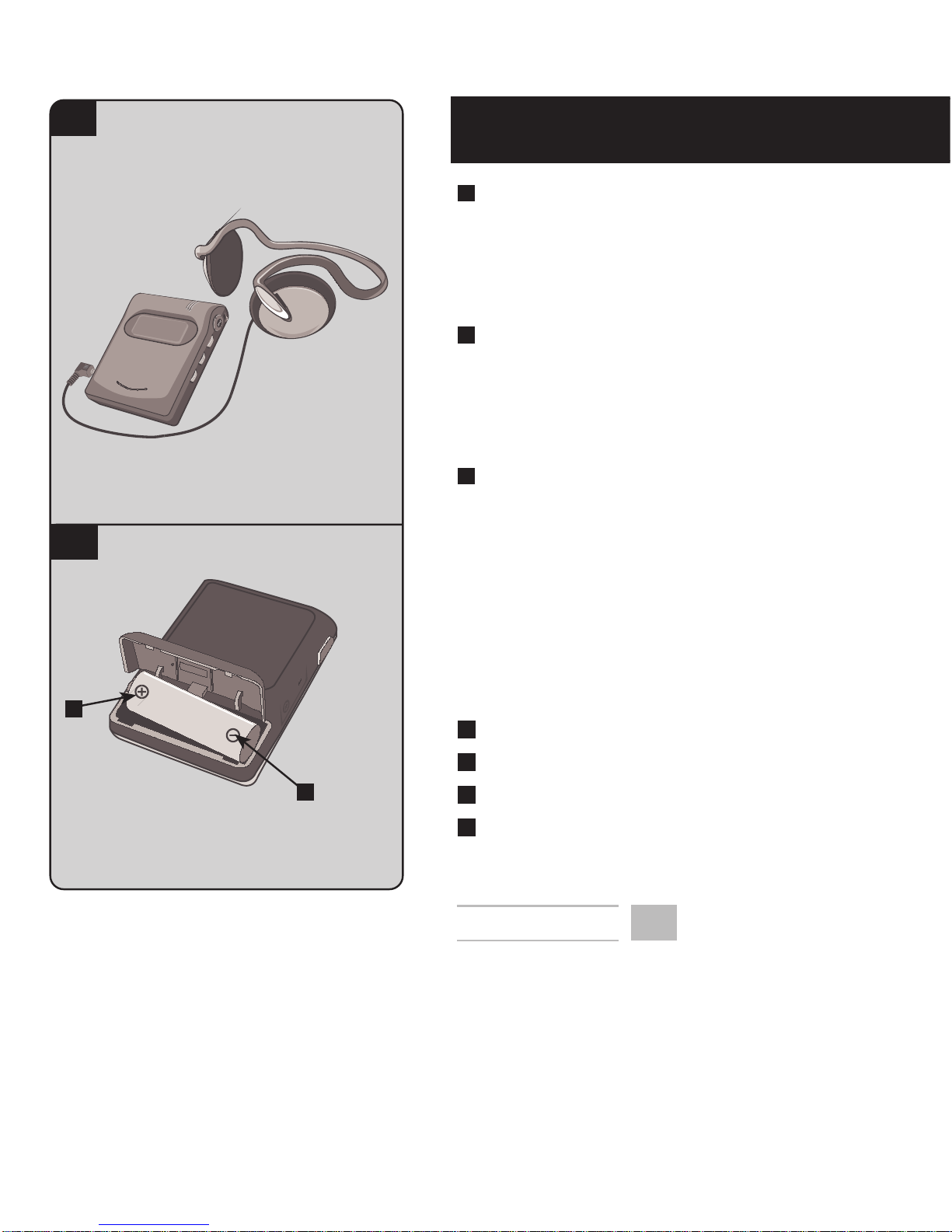

Install battery procedure
1. Press and Pull to open battery door.
2. Insert the AA alkaline type battery.
3. Cover and Push to close battery door.
Install battery
B
1
2

A
Package
1
MP3 player
2
1 installation CD
3
USB cable
4
High-quality headphone
Operating Instruction
Please check the box contents
before you start to use the unit.
Introduction
Box Contents
A
Item may be different, depending on the country
or period that you purchased your player in.
1
1
2
3
5
5
4
Portable MP3 Player
MP-C440
!After pressing of power on, it will take 5
seconds to display the initial screen.

Locations of Controls
Introduction
2
Portable MP3 Player
A
Plug
Headphone
B
A
[4 ]: Press this button to turn on the unit, play music
and/or voice file.
[] [ 9 ]: Press the two buttons to skip to
next/previous music or move to next menu.
[STOP/OFF]: press to stop a music or recording;Press
and hold for 4 seconds to turn the unit off.
[MODE]: Press the button to enter menu, or confirm
the selected options.
Microphone (MIC)
Display
Skip to Next ( )
Skip to Previous ( 9)
Mode button (MODE)
Play/pause/Power button (4 )
Belt hole
Headphone Volume control buttons
(VOLUME -/+)
USB port (USB)
Headphone jack (PHONE)
Stop/power off button (STOP/OFF)
Record button ( )
Hold button (HOLD)
Battery door (OPEN)
A
B
C
D
E
F
G
H
P
N
M
L
J
I
A
B
L
M
N
P
A
G
Portable MP3 Player
MP-C440
A
B
C
D
E
F
H
I
J

A
B
This function causes the unit to ignore short,
accidental button presses.
The HOLD function prevents the following :
The unit is powered on accidentally when not
in use, causing the batteries to run down.
A button is accidentally pressed during play,
interrupting the operation.
To use the HOLD function
Set HOLD to the HOLD position.
HOLD mode
Release
When the unit is in hold mode:
The "hold" indicator will be shown on the LCD
display. If a button is pressed no changes will
occur to the player.
If the unit it turned on in HOLD mode:
The player will display the locked screen on
the LCD display and then power off.
HOLD Function
Introduction
A
B
AB
3
Portable MP3 Player
MP-C440

Before using this item, make sure you have
the minimum system requirements needed to
download MP3 music files from the computer.
Data files such as pictures, documents or
applications can also be downloaded and stored
in the unit for a fast, safe and high-speed
mobile data storage use.
Minimum System Requirement
Windows : Microsoft Windows 98,
Windows 98SE, Windows Me,
Windows 2000 Professional
Windows XP or above
Hardware : Pentium MMX 200 or above
30MB free hard disk space
One available USB port
4x CD-ROM or higher
MacintoshOS : MacOS 9
Mac Hardware :30MB free hard disk space
One available USB port
4x CD-ROM or higher
Install Software
For Windows
1
Insert the Installation CD into the CD-ROM
driver. If the Setup program does not run
automatically, do steps 2 through 3.
Otherwise, skip to step 4.
2
Click Start -> Run
3
In the Run dialog, type D:\SETUP.EXE
(where D:\ is your CD-ROM drive) and click
OK.
Setting Up the Player
4
Portable MP3 Player
MP-C440

Setting Up the Player
4

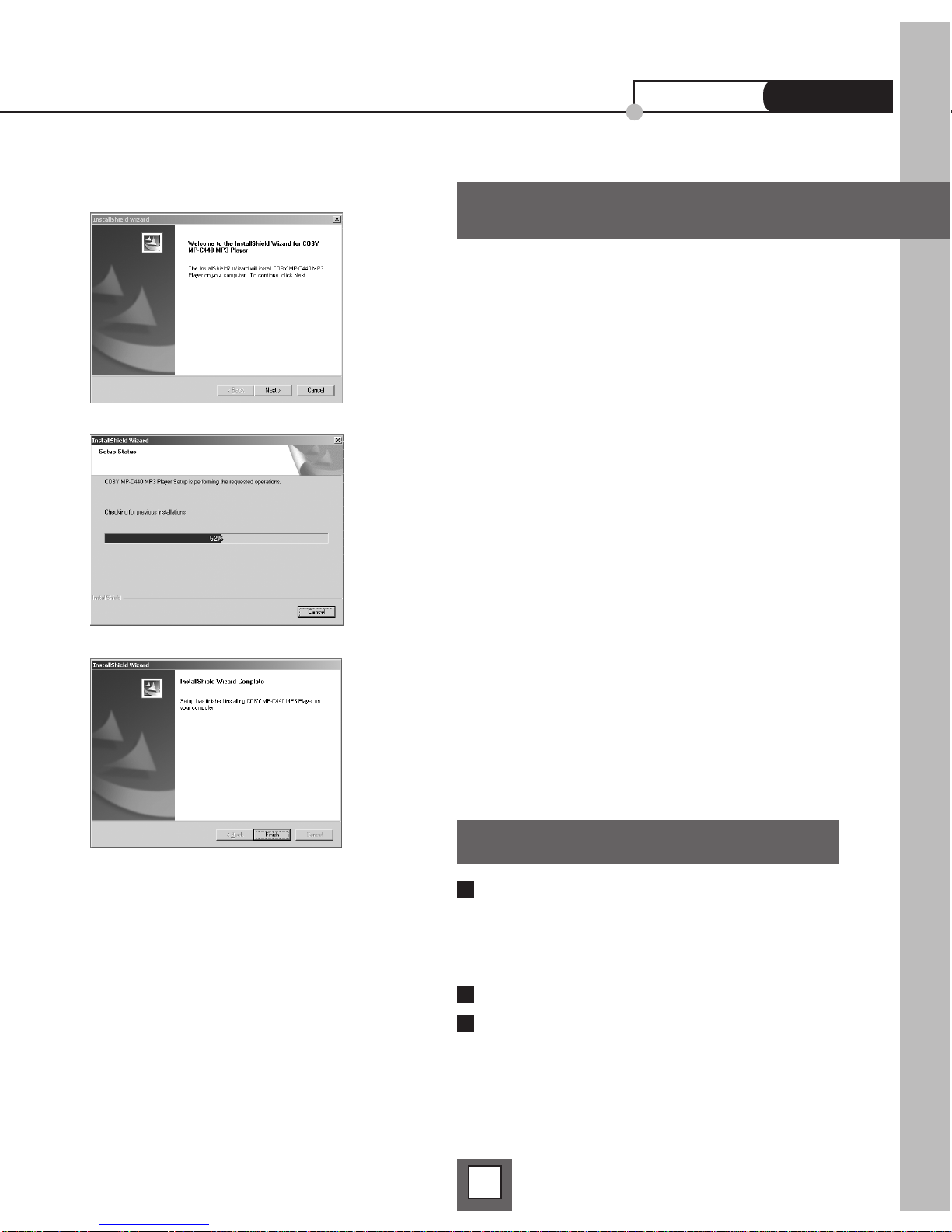

The Set Up main screen will be displayed.
To install the driver and application for
this unit, click NEXT
5
Follow the instructions on the screen. Click
on the Right Arrow button to start
installation. Continue to click the Right
Arrow or Yes button if you want to install
by default (recommended). Otherwise
please change your option to install
manually.(Simply Bypass Logo Testing
Message-Choose ”Continue” if prompted
this question under Windows XP/2K/ME)
6
If prompted to restart your system, remove
the Installation CD from the CD ROM and
keep it in a secure place. After removing
CD select YES, I want to restart my
computer, continue with the Finish button.
1
Insert the Installation CD into the CD-ROM
drive.
2
Double-click on the icon of the CD-ROM
drive on the desktop
3
Open the Mac_OS folder in CD-ROM drive
and open the packed file
4
In the dialogue window, create a new folder
on hard disc and continue.
5
Open the new folder and double-click on
"install and setup"
6
Follow the instructions on the screen.
7
When prompted to restart your system,
remove the Installation CD from the CD
ROM and keep it in a secure place. After
removing CD select click the RESTART
button.
Install Software
For Macintosh
5
Portable MP3 Player
MP-C440

Setting Up the Player
Connect to PC
Connection
1
The battery must be in the player.
2
Position the PC so that its USB Ports can
be easily accessed.
(Note : The USB port(s) may be found on
the front panel or elsewhere instead of the
back panel. Refer to your PC dealer for
support if necessary. )
3
Plug the flat USB connector of the bundled
USB cable to the PC.
4
Plug the square connector of the USB cable
to the unit.
5
Press Play button to turn the unit on.
6
USB IDLE will appear on LCD of the unit.
Install and Update
1
System will detect the new hardware exists
in your system and install each of them
automatically.
2
Upon the driver installation is completed,
run the Play Update utility that is now
available in the start menu of your Windows
system.
You need not switch off your computer when
you connect the unit to the PC since USB is Plug-and-Play.
For Windows Users
3
( LCD )
4
5
6
6
Portable MP3 Player
MP-C440

Setting Up the Player
1
Computer will detect new hardwares and
install them automatically. Untitled Disk
(F:) will appear on desktop.
2
Untitled Disk (F:) implies the built-in flash
memory (128 MB) of the MP3 Flash Player. .

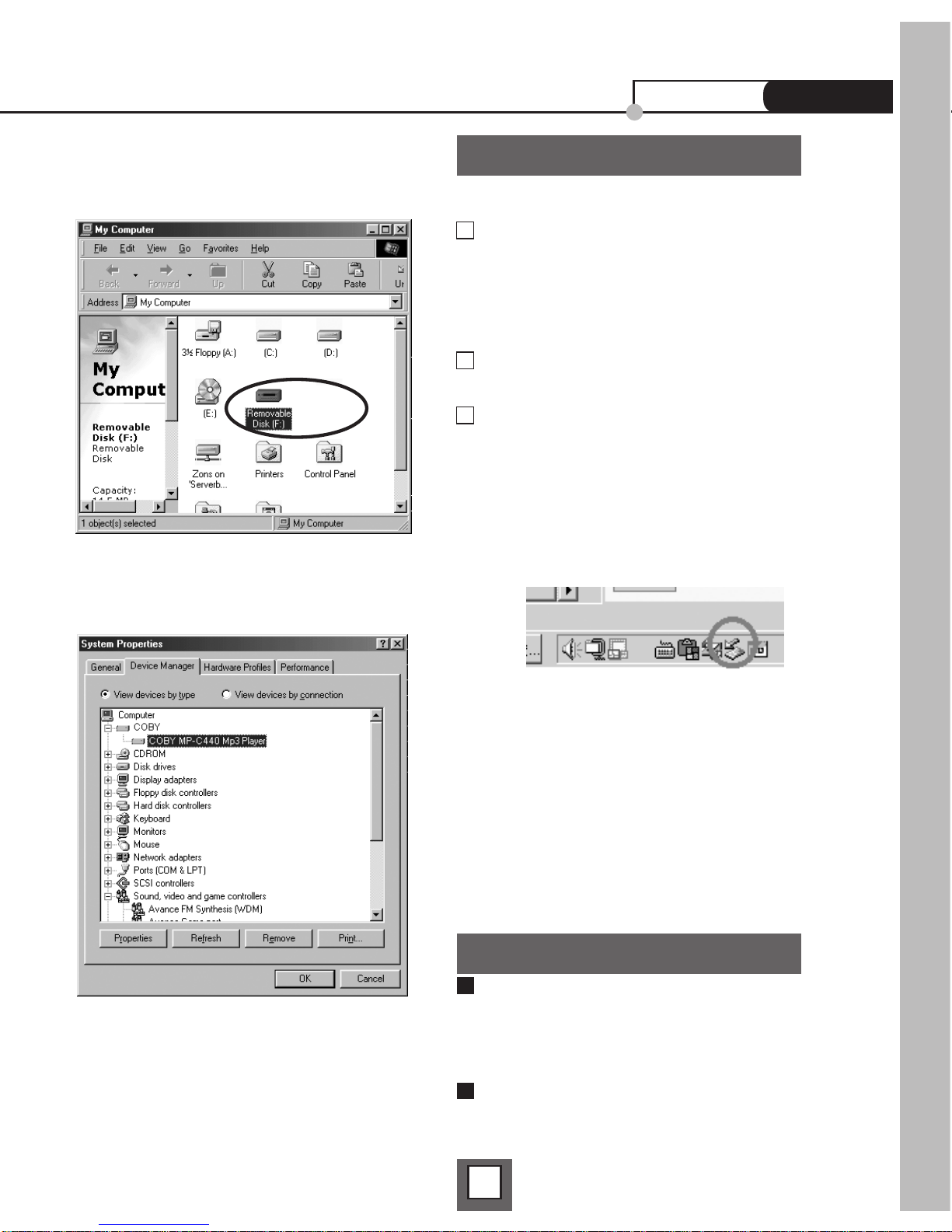

Verify Correct Installation of the unit
1
The player is ready to use when the Player
Update is complete. To check if the MP3 Flash
Player has been properly installed on your
system, double-click the MY COMPUTER
icon on the desktop of your computer.
2
You will observe your MP3 Flash Player shows
up as Removable Disk (F:) drives in Windows.
3
Removable Disk (F:) implies the built-in flash
memory (128 MB) of the MP3 Flash Player.
For Macintosh Users
7
Portable MP3 Player
MP-C440
If you are using Windows Me,Windows 2000 ,Windows
XP, please do follow the Windows Instructions to
disconnect the player. Once you connect the player
to PC, you may observe there is one icon appearing
in right of the Taskbar.
When you are going to disconnect the player, double-
click on this icon, and click on the Stop button in the
"Remove Hardware Device" dialog window. And click
on OK button when asked which device to be stopped.
The "Safely Remove Hardware" window appears to
tell you that now it is safe to remove the player. Now
you can disconnect the player from computer safely.
If you disconnect the player not following the
instructions in Windows Me,Windows 2000 and
Windows XP, it may cause damage to the data or file.
Connect to PC

The unit is a handy device for data storage. No
specific software is needed to upload, download
or erase MP3 or data files.
A
Select MP3 files and right click on the files.
(If you want to select more than one file,
press and hold Ctrl key and click on the other
files.)
B
Select Copy in right click menu.
C
Double-click on Removable Disk(F:) to open.
D
Right-click on blank and select Paste
E
Copying window appears.
Do not unplug the unit with your computer
while accessing until displays USB IDLE.
(a) Select MP3 music file(s);
(b) Drag and drop the file(s) to the Untitled
Disc(F:)icon
(c) start to copy MP3 files .
Do not unplug the unit from your computer
whiles accessing files, until the display shows
USB IDLE
Setting Up the Player
Download MP3 files to the unit
For Windows
For Macintosh
(i) Experienced users may drag and drop the
selected file(s) to the Removable disk.
(ii) The memory capacity of the removable
disk may seem to be different with the
actual capacity size of the unit due to
diferent calculate method issue.
8
It is forbidden to unplug the USB cable while the unit
is accessing with computer (the LCD displays [USB
READING ] or [UWB WRITING]),Because it may
cause serious damage to the unit or computer system.
It is strongly recommended to unplug the cable ONLY
while the LCD display [USB IDLE]
Notice
Portable MP3 Player
MP-C440

After downloading MP3 file(s) to the unit, you are
ready to play your MP3 music. Ensure that the
HOLD switch is not on and that there is a battery
installed before beginning.
Power ON / OFF
1
Press the [4 ]button to turn on the power.
The unit will display messages as figure B (A)
2
To turn off the power, press and hold the stop
[ ] button for more than 3 seconds.
Using the Player
Using the Player
9
Navigating & Accessing Menus
Indicators
Battery indicator--Battery level indicator
Hold indicator -- Hold mode indicator
Repeat one / all -- Repeat Mode indicator
ID3 Info field -- ID3 info/TEXT info field
Text Info field
Music Format
Equalizer -- Equalizer Type indicator
Record mode -- Recording mode
Repeat -- Repeat mode
Volume Level
A
1
2
3
4
5
6
7
8
9
10
B
Chart B Shows the navigating menus.
A
B
Battery indicator Equalizer
Hold indicator Record mode
Repeat one / all Repeat
ID3 Info field Volume Level
Text Info field
Music Format
1
2
3
4
5
6
8
9
10
7
1
2
3
4
5
6
7
8
9
10
Play Mode Menu
EQ Menu
Voice Mode
Erase Music
Power Saving
About
Exit
Repeat
None Repeat One Repeat All
NO EQ Rock Classic Pop Jazz
Voice
Play Voice Record Erase Voice file Exit
Disable 1 min 2 min 5 min 10 min
Int Mem Size
xx Mbyte Firmware Rev xxx.xxx
Portable MP3 Player
MP-C440
ERASE ? No/Yes
!After pressing of power on, it will take
5 seconds to display the initial screen.
LCD and Menus

Sequential Play
1
Download MP3 file(s) to the unit
2
Unplug the cable from the unit
3
Connect the headphone to the [ ] jack
4
Press [4 ] button to turn on the unit on
A
The unit now power on. MP3 music is
ready to play, open screen display on LCD.
B
Press [ ] or [ 9] to move to the music
you prefer
5
Press [4 ] button to start to play music
Playing MP3 screen display on LCD
6
Adjust the volume.
+ : To increase the volume level
- : To decrease the volume level
7
Skip to next music
If you want to skip to next or previous music,
press [ ] or [ 9] button to skip one music.
Skip in music
If want to skip in one playing music, press
and hold [ ] or [ 9] button to skip in the
music.
Using the Player
Basic play
10
Open Screen
Playing MP3
8
Portable MP3 Player
MP-C440

Equalizer
In EQ Menu there are some kinds of equalizer
built in the unit.
1
No EQ (Normal)
2
Rock
3
Classic
4
Pop
5
Jazz
A
No EQ is the Default setting of the
player.
B
Press [ ] or [ ] button to change the
equalizer type. The selected equalizer active
when you select. An Icon appears on LCD
display to indicate current equalizer.
Play Settings
Repeat modes
Users can change play methods in Play Mode
Menu.
1
Repeat None (take off all repeat)
2
Repeat One (repeat current music)
3
Repeat All (repeat all music)
Press [ ] or [ ] button to select and
press [MODE] to confirm the selection*.
Power Savings
The [Power Savings] menu is a special function
of the unit. The function can power off the unit
automatically after the unit is idle to save the
battery power.
The options define the power off time after the
unit is idle.
The are several options to choose:
1
Disable
2
1 min
3
2 min
4
5 min
5
10 min
Using the Player
11
Repeat Screen
Equalizer Menu
Power Savings Mode
Portable MP3 Player
MP-C440

Using the Player
Record Voice
Playback voice file
1
Select [Voice Play] in [Voice Mode] menu
and press [MODE]button.
2
latest voice file displays on screen.
to playback the latest voice file, press
[4]button. Press STOP [ ] to stop.
3
Press [ ][ ] button to select voice file
and press [4 ]button to play.
Recording voice
The unit can record voice via built-in microphone.
1
Select [Voice Record] in [Voice
Mode]menu and press [MODE] button. The
unit is ready to record voice.
2
Press [REC]Button to start one recording.
3
Press stop [ ] to stop this recording
12
VOICE Playing
VOICE RECORDER
Portable MP3 Player
MP-C440

It is recommended to STOP play when erasing music or voice
file(s)
1
Stop playing or recording.
2

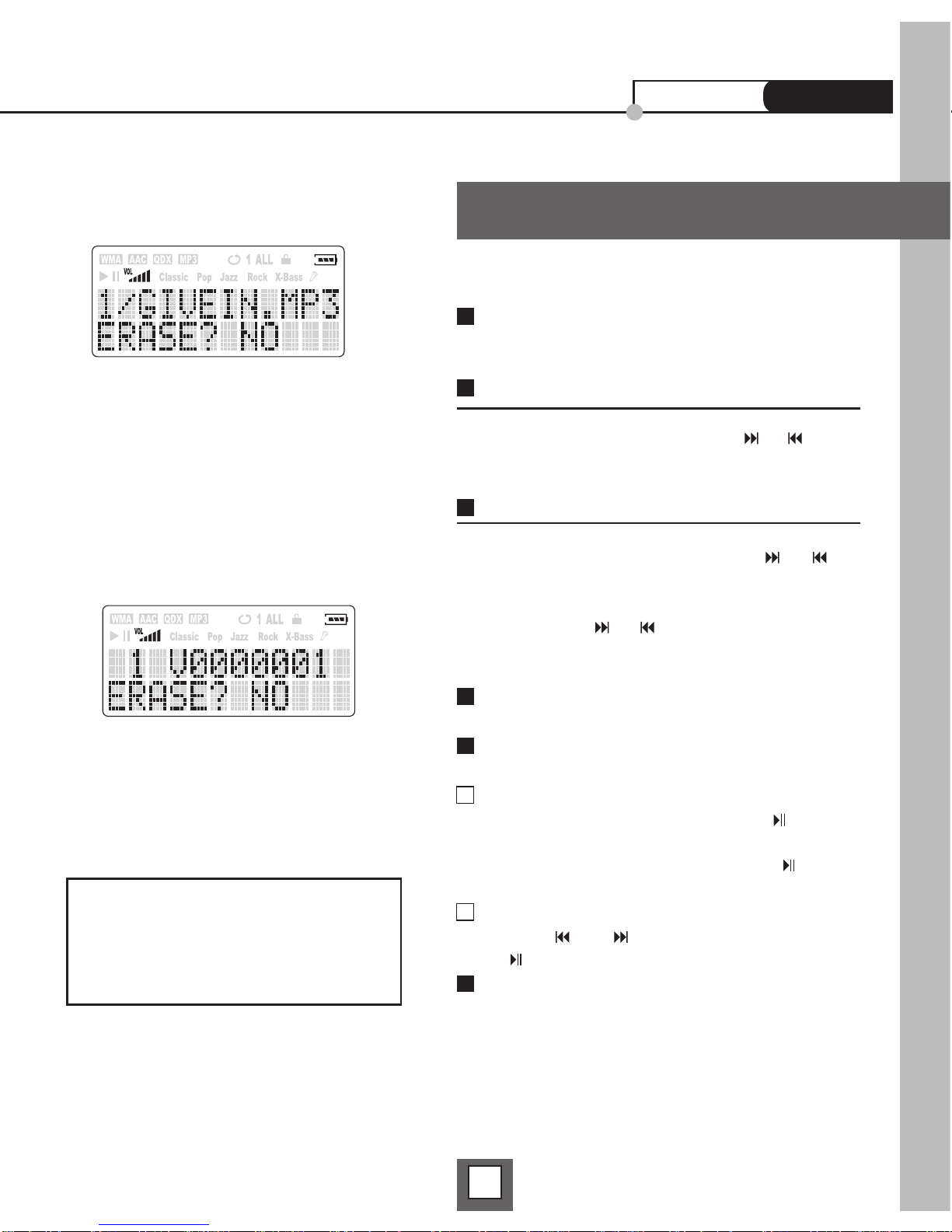

To Erase MP3 file(s)
Press the [Mode] button and [ ] [ ]Button
to go to the [Erase Music] submenu.
3
To Erase Voice File(s)
Press the [MODE] button and [ ] [ ]
button to go to [voice mode];
Press [MODE] button to enter the submenu
and press [ ] [ ] button to [Erase Voice
File] submenu.
4
Press [MODE] button to enter the [Erase
Music] or [Erase Voice File] submenu.
5
You will be asked if you want to ERASE the
listed file.
A
If it is not the file you want to erase
Keep the answer NO and press [ ] Button.
The unit will ask you the same question on
next file. You may keep pressing [ ] button
until you find the file you want to erase.
B
If it is the file you want to erase
Press [ ] / [ ] button to select YES, press
[ ] to confirm deletion.
6
Press [MODE] button to return.
Using the Player
Erase Music & Voice file(s)
13
The music and record files can
also be erased in computer via
USB connection.
Erase Voice
Erase MP3 Files
Portable MP3 Player
MP-C440

To go to [About] Information submenu, press
the [MODE] button to menu and press [ ] /
[ ] button to [About] submenu and press
[MODE] button to enter the submenu
Information Submenu
A
Internal memory capacity size
B
Firmware version
Press [ ] / [ ] button to view the
information on LCD screen.
Press [MODE] button to exit the submenu.
Using the Player
Information Submenu
14
Portable MP3 Player
MP-C440

Appendix
Appendix A
Please check if the MP3 file(s) is legal before
you start to use.
It is illegal to encode MP3 files for trade or sale
unless you have the expressed and explicit
permission of the copyright holder(s).
What is MP3?
MP3 is an acronym for MPEG Layer 3, a type of
audio data compression that can reduce digital
sound files by a variable 12:1 ratio with virtually
no loss in quantity. It allows you to store more
music into less memory. Less memory means
being able to have a more compact unit, thus the
MP3 player.
MP3 files can be very small and yet retain a high
sound quality. MP3 files usually have the extension
.mp3, and can be downloaded from the Internet,
or can be legally made for personal use from the
audio CDs that you purchased.
MP3 Websites
Through websites, you can download MP3 files
either with or without charge and get information
about the latest techniques and software related
with MP3.
Examples of websites with MP3 content are :
(for Reference use ONLY)
MP3.COM
(http://www.mp3.com)
Layer3.org
(http://www.layer3.org)
EMusic
(http://www.emusic.com)
Songs.com
(http://www.songs.com)
Search with ‘mp3’ topic in search engine for
more MP3 related websites and news.
15
Portable MP3 Player
MP-C440

Appendix
Appendix B
=Alkaline battery is recommended.
=Align the poles (+) and (-) correctly when
inserting the batteries.
=Battery play time may be shorter than usual
after frequent key operation.
=Remove the battery if you do not intend to use
the unit for a long time.
=Do not peel off the covering on battery and do
not use if the covering has been peeled off.
Cautions
Selection and care of battery
Precautions for Listening with the Headphones
=Do not play your headphone at a high volume.
Hearing experts advise against continuous
extended play.
=If you experience a ringing in your ears, reduce
volume or discontinue use.
=Do not use while operating a motorized vehicle.
It may create a traffic hazard and is illegal in
many areas.
=You should use extreme caution or temporarily
discontinue use in potentially hazardous
situations.
=Don’t turn up the volume so high that you can’t
hear what’s around you.
=Discontinue use if you experience discomfort
with the headphones or earphones. Continued
use may cause rashes or other allergic reactions.
Handing the Unit
=No altering or remodeling.
This can cause malfunctioning.
=No dropping or strong impacts
This may damage the unit.
=Locations to be avoided
Avoid using or storing the unit in
following locations since they can
cause malfunctioning.
1. Bathrooms and other moisture-prone places
2. Warehouses and other dusty place.
3. Very hot places near heating appliances, etc.
=Avoid keeping the unit in places
with high humidity, strong
magnetic field, or near high heat
source(s).
=Do not leave the unit exposed to direct
sunlight for long periods of time
16
Portable MP3 Player
MP-C440

Appendix
Appendix C(Software Utility)
When the driver installation is complete, two
software utilities will be installed in the PC.
Customer can use the utilities to format or upgrade
the unit. Connect to PC and open Start>Program>
COBY MP-C440 Mp3 Player menu (Windows OS
system.).
Storage Device Format Utility
User will be able to format the flash memory of the unit
through the MP3 Player Format utility shown below.the
utility can either be initialzed through the Start Menu or
by right clicking on the removable storage device drives
in Windows Explorer.
Quick format checkbox:
Not checked(default): Completely format
Checked : Quick format, not scan for bad sectors.
* Please avoid to use other format utility to format the unit
Firmware Upgrade Utility
The firmware in the player will be able to upgrade
through a utility running on your PC. To update
the firmware, user needs to run the MP3 Player
Update utility shown below. This utility can be
initialized through the Start Menu of Windows.
The [Quick download] check box :
Checked (default) : update the firmware and no
format the memory
Not checked(Empty) : update the firmware and
format the memory. All contents in the flash
memory will be lost.
17
It is forbidden to unplug the USB cable while the unit is accessing
with computer (while the LCD displays [USB READING] or [USB
WRITING] ), because it may cause serious damage to the unit or
computer system.
It is strongly recommended to unplug the cable ONLY while the
LCD displays [USB IDLE].
Notice
Portable MP3 Player
MP-C440

Appendix
Appendix D
COBY MP-C440 MP3 Player
Size(WxHxD)/Weight:
57 x 74 x 22 mm / 50g (without battery)
Memory:
Internal Memory
128 MB
Interface
USB ( using standard USB v1.1 cable )
LCD Display
2 lines x icon & 2 lines x 12 characters LCD
Power
1 x AA Alkaline
15 hours for MP3/voice playback
Signal to Noise Ratio: 88 dB
Frequency Response: 20 Hz ~ 20 KHz
Output: > 20mW (each output)
Harmonic Distortion Output: 0.05 ~ 0.1%
Equalizer: 5 presets equalizer
Processor 50 MHz DSP
Audio Codec support
MPEG Audio Layer 3 (MP3)
Firmware
Flash based. User upgradeable.
Voice Recording
IMA-ADPCM encoding
About 8 hours recoding in 128MB memory
player
The player can not power on.
Is Battery polarity (+) / (-) right?
Is Battery capacity enough?
(One 1.5 v AA size Alkaline battery is required.)
Take the battery out and reinstall the battery to
reset the unit.
LCD displays"Power on/Locked"and power off.
Unlock the [HOLD] button and try again
The button is not working.
Is [HOLD] button locked? If it is, Unlock the
[HOLD] button and try again
Take the battery out and reinstall the battery to
reset the unit.
There is no audio produced
Check the Headphone and / or the connection is
working normally.
Check that MP3 files are NOT stored in folder(s).
Take the battery out and reinstall the battery to
reset the unit.
Can not download MP3 file(s).
Is USB connection steady? Observe if the [USB
IDLE] displays on LCD of the unit.
Check and / or replace the battery.
Is there no free space to download the file?
(Continued on next page)
Technical Specification Troubleshooting
18
Specifications are subject go change without
notice.
Mass and dimensions are approximate.
Portable MP3 Player
MP-C440
