Cochlear Baha BP100 User manual

Cochlear™ Baha® BP100
User Manual
ZONE 5
English Česky Slovenščina Magyar Hrvatska Srpski

Direct Audio Input
Plastic snap
connector
Microphones
Visual status
indicators
Attachment point
for the safety line
Volume down
button
Program button,
on/off button
Volume up
button
Battery compartment
door

Welcome
Congratulations on your Cochlear™ Baha® BP100. You are now ready to use
Cochlear’s highly advanced bone conduction sound processor.
Your Cochlear™ Baha® BP100 User Manual is full
of tips and advice on how to best use and care
for your Baha BP100 sound processor. By reading
this manual and then keeping it handy for future
reference, you’ll ensure that you get the most out
of your Baha BP100.
English Česky Slovenščina Magyar Hrvatska Srpski
2 30 58 86 114 142

4
Introduction
The Cochlear Baha BP100 is a sound processor
that uses direct bone conduction to transmit
sounds to the cochlea (inner ear). It works by
combining a sound processor with an abutment
and a small titanium implant that is placed in the
skull behind the ear. The titanium implant
integrates with the skull bone through a process
called osseointegration. This allows sound to be
conducted via the skull bone directly to the
cochlea, which improves hearing performance.
You should have received your Baha BP100 sound
processor from your hearing care professional
along with the contents of this kit. To ensure
optimal performance, your hearing care
professional will fit the processor to suit your
needs. Be sure to discuss any questions or
concerns that you may have regarding your
hearing, or use of this system, with your hearing
care professional.
The Cochlear Baha BP100 can be used with a Baha
Softband which does not require an implant.
However, all applicable instructions in this
manual should still be followed.
Cochlear Baha BP100 kit
Your Cochlear Baha BP100 kit includes the following
items:
• Cochlear Baha BP100 sound processor
• Abutment cleaning brush
• Pack of batteries
• Abutment cover
• Safety line
• Extra battery doors
• Magnetic battery removal tool
• Share the Experience test rod
• Document pack (user manual, warranty card,
registration card, MRI card)

5
English
Contacting customer service
We strive to provide the best possible products and
services to our clients.Your views and experiences
with our products and services are important to us.
If you have any comments you would like to share,
please contact us.
Customer Service – Cochlear Americas
13059 E. Peakview Avenue,
Centennial, CO 80111, USA
Toll free (North America) 1800 523 5798
Tel: [phone], Fax: [phone]
Email: [e-mail]
Customer Service – Cochlear Europe
6 Dashwood Lang Road
Bourne Business Park, Addlestone,
Surrey KT15 2HJ, United Kingdom
Tel: [phone] Fax: [phone]
email: [e-mail]
Customer Service- Cochlear Asia Pacific
1 University Avenue, Macquarie University
NSW 2109, Australia
Toll free (Australia) 1800 620 929
Toll free (New Zealand) 0800 444 819
Tel: [phone], Fax: [phone]
or Toll free 1800 005 215
email: customer[email protected]
Warranty
The warranty does not cover defects or
damage arising from, associated with, or
related to the use of this Product with any
non-Cochlear processing unit and/or any
non-Cochlear implant. See “Cochlear Baha
Global Limited Warranty card” for more
details.

6
Using your sound processor
The Cochlear Baha BP100 sound processor is
equipped with buttons for selecting different
listening programs and adjusting the volume level.
Audio and visual indicators can be activated to
alert you to the different settings and processor
status.
Your sound processor is programmed to be used
specifically on either the right side or the left
side of your head.
“Consult instructions for use” or
“Consult operating instructions”
“Caution, consult accompanying
documents” or “Attention, see
instructions for use”
Audible signal
CE-mark
Temperature limitation
Interference risk
Manufacturer
Date of manufacture
Batch Code
S
N
Serial Number
Caution. Federal law (USA) restricts
this device to sale by or on the order
of a licensed medical practioner
Key to symbols
Throughout the manual you will see small symbols.
Please refer to the list below for explanations:

7
English
On/off and indicators
Turn on your sound processor by pressing and
holding down the middle button until the visual
indicator flashes 3 times. To turn off your sound
processor, press the middle button and hold it
down for 2 seconds.
If the sound processor is turned off and then turned
on again within 15 minutes, it returns to the last
used program and volume level.
If the sound processor is turned off for longer than
15 minutes, or if the battery is changed or removed,
it will return to the default program and volume
(as set by your hearing care professional) when it
is turned on again.

8
Audible & visual status indicators
Your sound processor is equipped with audible and
visual status indicators 1 (beeps and LEDs). These
provide a simple and effective means of monitoring
the status of the sound processor, and they are
especially useful for caregivers to ensure that their
child’s sound processor is working at all times.
When you turn on your processor, the visible
indicators flash. If they flash orange, 2 your sound
processor is configured for the right side of your
head. If they flash blue, 3 your sound processor is
for the left side. If you are a bilateral user, make sure
your processor is used on the correct side.
Note: Your hearing care professional has the
ability to disable the flashing indicators and
beeps, if desired. However, the orange and blue
indicators at startup cannot be disabled.
3
1 2
If your Cochlear Baha
BP100 flashes
Then it is configured
for use on the
Orange Right side
Blue Left side

9
English
Connecting the sound processor
Use the tilt technique to safely and comfortably
connect and disconnect your sound processor, thus
reducing any undue pressure on the snap connector
and abutment. By tilting the sound processor onto or
off of the abutment, you will avoid any discomfort.
To connect your Cochlear Baha BP100:
1 Move hair from the abutment.
2 Hold the sound processor with the buttons
positioned upwards, tilt it and gently snap
it into place.
3 To release, place one finger under the sound
processor and gently tilt until it releases.
Note: To avoid feedback (whistling), ensure that
the sound processor is not touching any other
items, such as glasses or a hat.
3
12

10

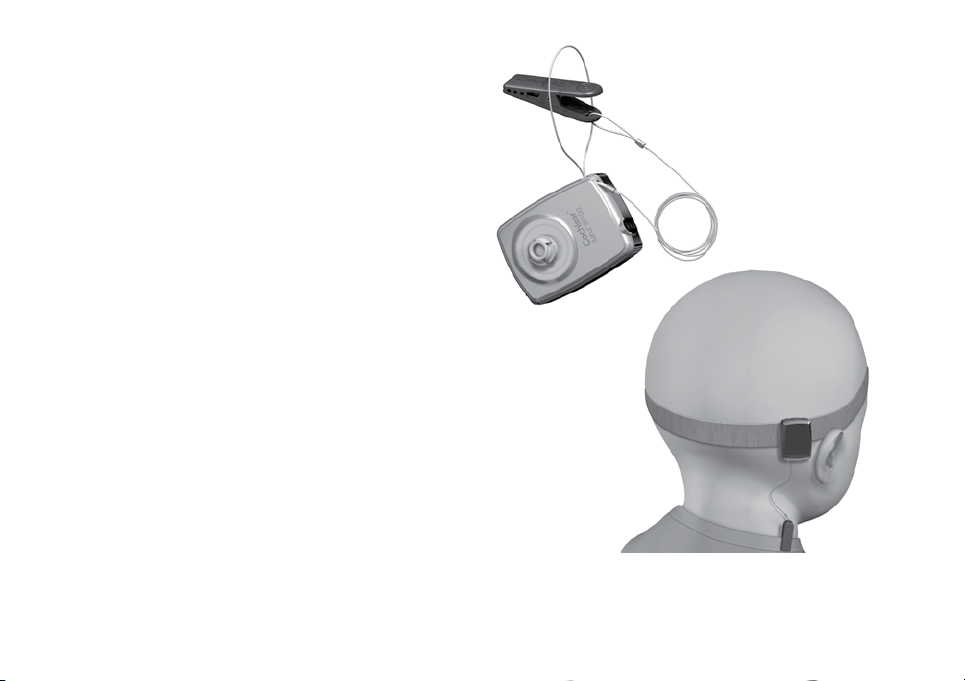

Attaching the safety line
Before connecting the sound processor, attach the
safety line to the sound processor and clip the other
end of the safety line to your shirt or jacket.
Cochlear recommends connecting the safety line
when engaging in physical activities. Children should
use the safety line at all times.

11
English
Changing the program
Your hearing care professional has, in discussion with
you, selected up to three programs for your Cochlear
Baha BP100 sound processor:
Program 1:
Program 2:
Program 3:
(These programs are suitable for different listening
environments. Ask your audiologist to fill in your
specific programs).
To switch programs, quickly press and release the
middle button. Audio and visual signals let you know
which program you have switched to:
Program 1: 1 beep / flash
Program 2: 2 beeps / flashes
Program 3: 3 beeps / flashes
1
32

12
Adjusting volume and setting
the Keylock
Adjusting volume
Your hearing care professional has set the volume
level for your sound processor. You are also able to
manually adjust the volume control.
To control your listening comfort in different
listening environments, you can adjust the volume:
1 For sound processor on right side, press the
front button to increase volume. Press the back
button to decrease volume.
2 For sound processor on left side, press the
front button to decrease volume. Press the back
button to increase volume.
A beep sounds each time a volume button is
pressed. When you reach your default volume, two
short flashes/beeps occur. When you reach the
minimum or maximum volume level, a long flash/
beep occurs.
12
+
+ +
–
– –

13
English

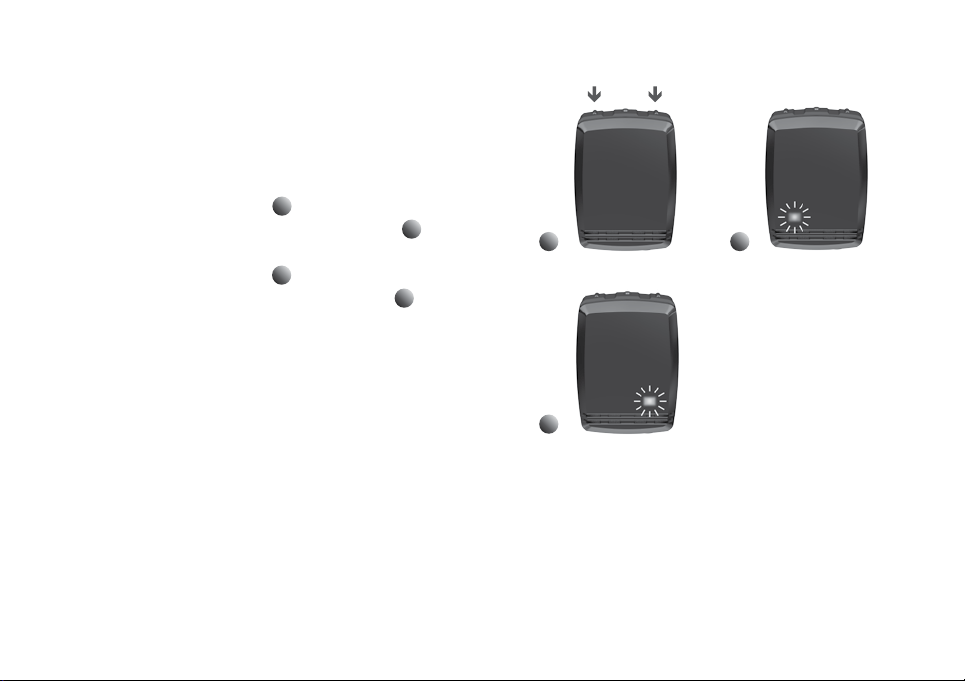

Keylock
Keylock protects program and volume level settings
and ensures they cannot be changed inadvertently.
• To activate Keylock, press and hold both volume
buttons for 5 seconds 1. The blue visual indicator
flashes to show that Keylock is activated 2.
• To disable Keylock, press and hold both volume
buttons for 5 seconds 1. The orange visual indicator
flashes to show that Keylock is disabled 3.
Note: Keylock remains in effect even when the
battery is removed. When Keylock is enabled,
the visual indicator will flash 6 times when the
processor is turned on.
Note: Do not press and hold all three buttons at
the same time. This will put the sound processor
in an inappropriate mode.
Note: If both indicators flash - stop. Take out and
reinsert the battery. Retry and make sure to press
only the two volume buttons.
1
3
2

14
Supporting the processor
Once you are familiar with your program, you can
change the program and the volume level while the
sound processor is attached to the abutment. Make
sure you support the processor from the bottom with
your thumb as you press the buttons with your
index finger.

15
English
Using the telephone
For best results when talking on the telephone, place
the receiver near the microphone inlet of the sound
processor instead of near your ear canal. Make sure
the receiver does not touch the sound processor as
feedback may result.
Using the abutment cover
The abutment cover protects the abutment when
the sound processor is not in place. This prevents dirt
from collecting in the abutment.
To attach the cover, gently press it onto the
abutment. Gently lift the cover to remove.

16
Direct Audio Input
The sound processor has a DAI (Direct Audio
Input) port that is used to connect external audio
sources, such as MP3 players (requires the use
of the optional Cochlear Baha Audio Adapter),
Bluetooth devices, and the optional Cochlear
Baha Telecoil directly to your sound processor.
1 Match the accessory connector with the sound
processor’s DAI connector.
2 Gently push the accessory connector into the
DAI port.
Dedicated DAI program and
microphone mixing
An optional DAI program that is set by your hearing
care professional allows you to listen exclusively to
sounds from the DAI.
In all other programs, input from the DAI is
combined with input from the microphone.
Using the telecoil
The telecoil unit improves sound when using some
landline (fixed) and mobile telephones. It also gives
you access to loop facilities in homes and public
buildings. Attach the telecoil to the DAI port.
1
2

17
English

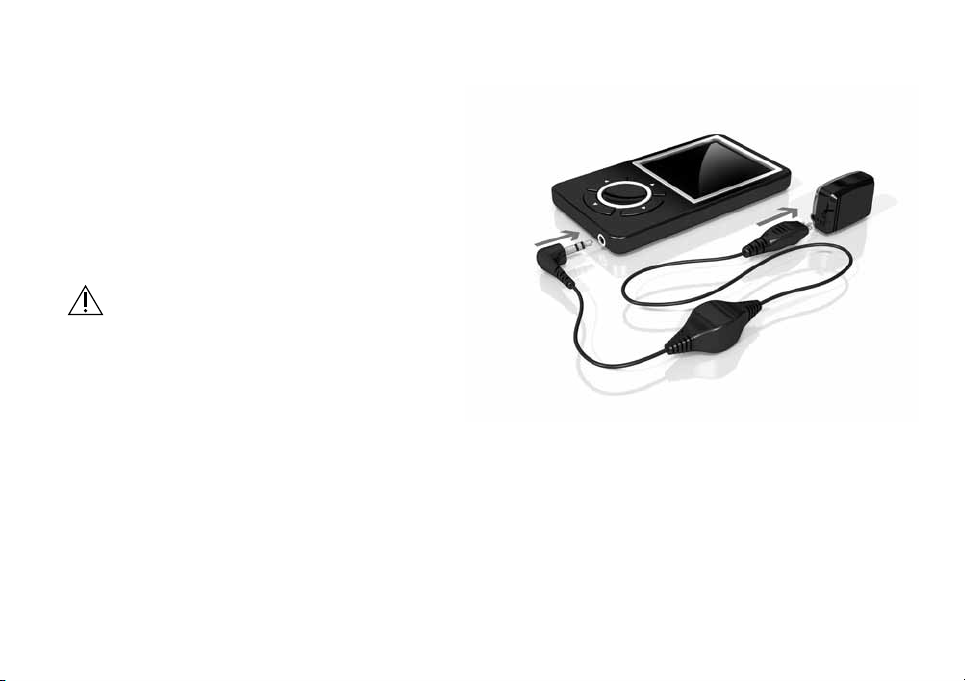

Using the Audio Adapter
The Audio Adapter allows direct input from
computers, personal stereos, TVs, MP3 players
and other external audio equipment. One end
of the Audio Adapter is connected to the sound
processor at the DAI. The other end is connected
to the audio device.
Warning: Connecting electrical equipment
directly to the sound processor is extremely
dangerous. Cochlear is not liable for any damage
arising as a result of connecting incorrect
equipment or incorrect use.
Using an FM receiver
An FM receiver enables the use of FM systems
that are commonly used in school classrooms.
Your hearing care professional can let you know
what FM receivers are available. Attach your FM
receiver to the DAI port.

18
Care of abutment and sound
processor
Daily and weekly tasks are required to care for
your abutment and sound processor properly.
Cleaning the abutment
Skin debris or other dirt in the abutment can affect
the sound quality and lead to damage of your sound
processor. Therefore it is very important to clean the
abutment area thoroughly. Use the soft abutment
cleaning brush provided in your Cochlear Baha BP100 kit
for cleaning.
Should you experience persistent irritation, soreness
or other signs of inflammation around the abutment,
contact your doctor or hearing care professional.
Daily care
Clean the area around the abutment daily to avoid
the build up of debris. Bathing or showering is a great
opportunity to do this. Use plenty of mild soap and
warm water.
Brush on the side of the abutment rather than directly
on your skin. Your focus should be to remove crust and
debris from around the base of the abutment rather than
brushing your skin. Clean your soft brush with mild soap
and water after caring for your abutment.

19
English
Note: During the first few weeks after dressing
removal, cleaning with the soft brush may feel
a little rough. Use an alcohol free baby wipe
(or similar) until your skin becomes less sensitive
and you can use the brush comfortably.
Once your abutment is clean, gently dry the area
with a clean towel or tissue. Remove any hair that
may have wrapped around the abutment. If you use
a hair dryer avoid overheating the abutment area.
Note: Ask a friend or relative to help you clean
the abutment. You can also use a hand mirror
or pictures from a digital camera to view the
abutment area from all angles to make sure it
gets cleaned properly.
Note: The abutment cleaning brushes should
be changed at regular intervals. Cochlear
recommends every 3 months.

20
Weekly care
Clean the inside of the abutment on a weekly basis,
using the cleaning brush as described previously.
If you use the abutment cover make sure it is
cleaned at least once a week. Use warm soap and
water and your soft brush to clean the cover.
Long-term care
You will have regular check-ups as determined by
your hearing health care professional. These check-
ups help ensure that the processor works and fits
properly and that your implant area is healthy.
