Code 3 LSS222 User manual

1
Read all instructions and warnings before installing and using.
INSTALLER: This manual must be delivered to the end user of this equipment.
IMPORTANT:
LSS222
Dual Stacked Beacon
Contents: Introduction................................................................................2
FeaturesandSpecifications.....................................................2-3
FlashPatterns............................................................................3
Dimensions................................................................................3
Current Draw.........................................................................4
Installation&Mounting..............................................................5
Wiring..............................................................................5
Operation.........................................................................6
Maintenance..............................................................................6
Troublleshooting.....................................................................6
Notes......................................................................................6-7
Warranty....................................................................................8
INSTALLATION &
OPERATION
MANUAL

2
Features and Specifications
Operating Voltage: DC10V-30V, Reverse Polarity Protected
Flash Modes:
1. Cycle-Flash: Cycles through Triple, Quad, Double, and Fast Single modes at
approximately 109 fpm.
2. Triple-Flash: Three consecutive pulses per flash.
3. Quad-Flash: Four consecutive pulses per flash.
4. Double-Flash: Two consecutive pulses per flash.
5. Fast Single: Single flash pattern.
6. Steady-burn: Continuous ON-state operation.
Please note that a PHASE 1 flash pattern alternates with other synchronized beacons and a PHASE 2 pattern
flashes simultaneously with other synchronized beacons.
Introduction
The LSS222 is a weatherproof LED based warning light beacon that contains 16 state-of-the-art high intensity
LED's in two stacked rows. The reflector's unique design captures the light of the LED's with individual parabo-
las that efficiently collect the light and broadcast it through the fresnelled lens.
This Product contains high intensity LED devices. To prevent eye damage, DO NOTstare
into light beam at close range.
WARNING!
Theuseofthisoranywarningdevicedoesnotinsurethatalldriverscanorwillobserveorreacttoanemergency
warning signal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed
safely before entering an intersection, driving against traffic, responding at a high rate of speed, or walking on
or around traffic lanes.
Theeffectivenessofthiswarningdevice ishighlydependentuponcorrectmountingandwiring. Read andfollow
themanufacturer’sinstructionsbeforeinstallingorusingthisdevice. Thevehicleoperatorshouldinsuredailythat
allfeaturesofthedeviceoperatecorrectly. Inuse,thevehicleoperatorshouldinsuretheprojectionofthewarning
signalis notblocked byvehicle components(i.e.: opentrunks orcompartment doors),people, vehicles,or other
obstructions. This equipment is intended for use by authorized personnel only. It is the user’s responsibility to
understand and obey all laws regarding emergency warning devices. The user should check all applicable city,
state and federal laws and regulations.
Code 3 , Inc., assumes no liability for any loss resulting from the use of this warning device.
Proper installation is vital to the performance of this warning device and the safe operation of the emergency
vehicle. Itis important to recognizethattheoperatoroftheemergencyvehicleisunderpsychological and physi-
ologicalstress caused by the emergencysituation. The warningdevice should beinstalled insuch a manner as
to: A) Not reduce the output performance of the system, B) Place the controls within convenient reach of the
operator so that he can operate the system without losing eye contact with the roadway.
Emergencywarningdevicesoftenrequirehighelectricalvoltagesand/orcurrents.Properlyprotectandusecau-
tion around live electrical connections. Grounding or shorting of electrical connections can cause high current
arcing, which can cause personal injury and/or severe vehicle damage, including fire.
PROPERINSTALLATIONCOMBINEDWITHOPERATORTRAININGINTHEPROPERUSEOFEMERGENCY
WARNING DEVICES IS ESSENTIAL TO INSURE THE SAFETY OF EMERGENCY PERSONNELAND THE
PUBLIC.
WARNING!

3
PATTERN NO. PATTERNS SYNCHRONIZE
1 75FPM TripleAlter Phase 1 YES
2 75FPM TripleAlter Phase 2 YES
3 75FPM Quad Flash Phase 1 YES
4 75FPM Quad Flash Phase 2 YES
5 Double Flash 75FPM Phase 1 CAT13 YES
6 Double Flash 75FPM Phase 2 CAT13 YES
7 Double Flash 150FPM Phase 1 YES
8 Double Flash 150FPM Phase 2 YES
9 Single Flash 75FPM Phase 1 CAT13 YES
10 Single Flash 75FPM Phase 2 CAT13 YES
11 Single Flash 150FPM Phase 1 YES
12 Single Flash 150FPM Phase 2 YES
13 Single Flash 375FPM Phase 1 YES
14 Single Flash 375FPM Phase 2 YES
15 TripleAlter D 75FPM YES
16 Dynamic Flash D 150FPM YES
17 Double Flash D 150FPM YES
18 Double Flash D 75FPM YES
19 Single Flash D 375FPM YES
20 Single Flash D 150FPM YES
21 Single Flash D 75FPM YES
22 Dynamic Flash Phase 1 YES
23 Dynamic Flash Phase 2 YES
24 ModulationAction Flash NO
25 ModulationAction Flash NO
26 Rotator 50FPM YES
27 Rotator 75FPM YES
28 Rotator 125FPM YES
29 Rotator 250FPM YES
30 NFPAQuad Flash NO
31 Single Flash 75FPM CAT13 NO
32 Double Flash 75 FPM CAT13 NO
33 ECE 65 Double Flash Phase 1 YES
34 ECE 65 Double Flash Phase 2 YES
35 ECE 65 120FPM Single Flash Phase 1 YES
36 ECE 65 120FPM Single Flash Phase 2 YES
37 ECE 65 125FPM Rotator Flash YES
38 Steady Burn NO
39 Autorun (random) NO
40 OFF
Flash Patterns:

4
LS222 Pipe Mount / Permanent Mount

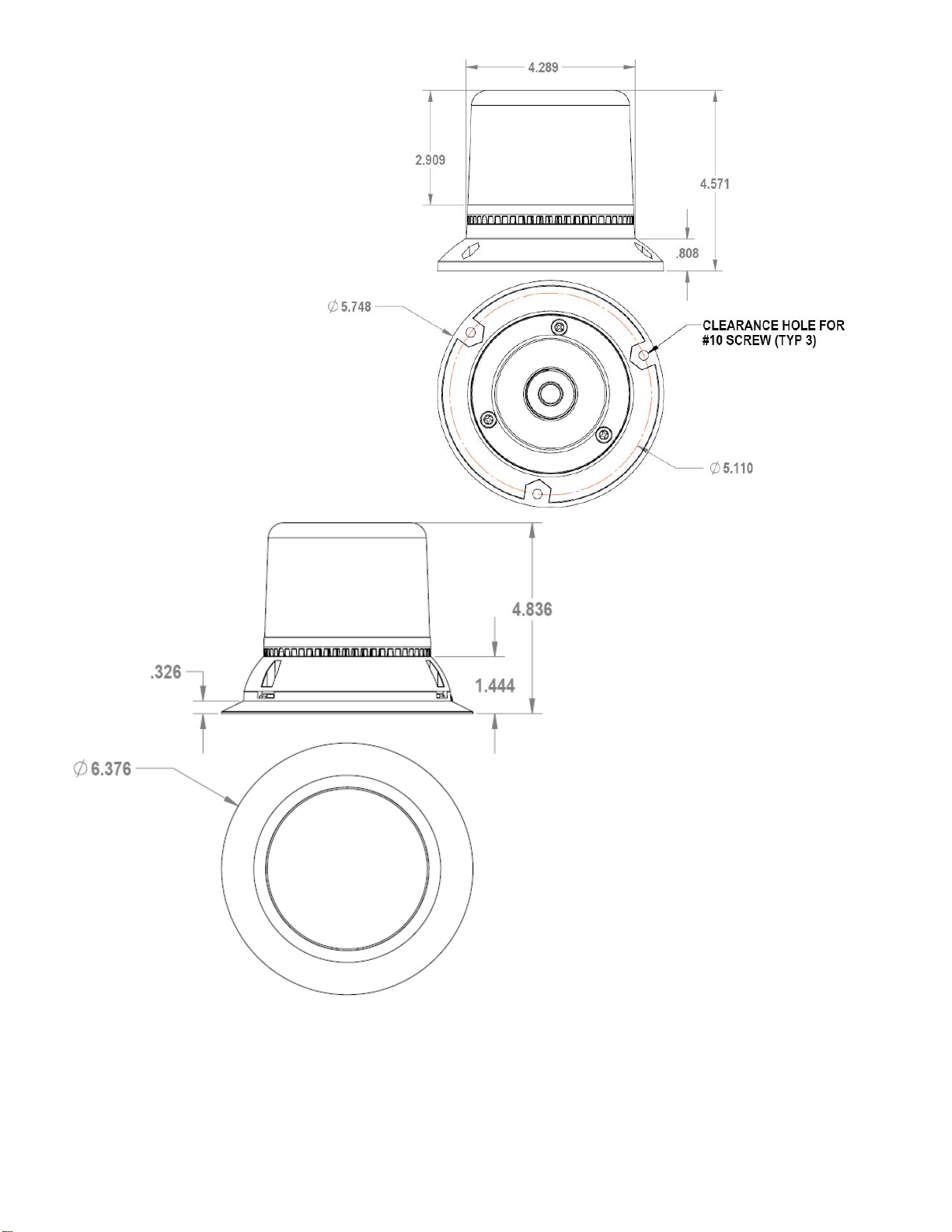

Dimensions
LS222 Magnetic Mount
Flashing Current Draw: Flashing Current Draw:
Amber/Red/Blue: .85A Avg. 1.0AMax.
Current Draw

5
WARNING!
Aswithanymagnetially-mountedwarning device,itsuse ontheexteriorof amovingvehicle isatthesole
descretion and responsibility of the user.
This magnetic mount product provides a secure, temporary installation in most circumstances and is
recommended for stationary use only.
Installation & Mounting
Magnetic Mounting:
The magnetic based beacon provides a secure, temporary installation. The beacon should be placed in the
center of the roof where the least amount of curvature occurs. Check the magnet for debris before installation.
Any foreign matter can reduce holding power and scratch the vehicle. The roof surface should be dry and have a
dull, not glossy finish. Aglossy, highly waxed surface will reduce the magnet's holding power. When placed, the
beacon should adhere firmly. The user should not attempt to drive with the beacon in place should the unit slide
or move easily.
Permanent Mounting:
The permanent mount beacon provides a secure, permanent installation. Use the supplied foam gasket and
screws to mount the beacon in the desired location. Wire routing should be taken into consideration when choos-
ing a mounting location.
Pipe Mounting (optional):
The beacon base will accept a standard 1" NPT pipe. Hand tighten the beacon base on the pipe thread until the
pipe bottoms out inside the unit. DO NOT OVERTIGHTEN - BASE IS PLASTIC.
Wiring Instructions
Magnetic Mounting:
The magnetic mount beacon is equipped with a light plug with rocker switch, that plugs into a 12 Volt DC cigarette
lighter outlet; rotate and push with reasonable moderate force to insure the best possible connection.
Permanent Mount:
The beacon is terminated with a 6" long 4-wire cable harness that may be connected as follows:
COLOR FUNCTION CONNECT TO
Red Power +VDC
Black Ground Chassis Ground
Blue Pattern Switching Chassis Ground toActivate
Yellow Synchonization See Synchronization Section

6
TROUBLESHOOTING
Problem Probable Cause Remedy
Lighthead does not activate a. No power to unit a. Check wire for loose connection
b. Power input wire reversed b. Reverse power wires
c. Damaged or shortaged cabling c. Check cables for damage
d. Defective lighthead d. Replace lighthead module
Lighthead is constantly ON a. Control wire permanently
grounded or shorted to GND a.Avoid permanent grounding of control wire
LED module housings may become hot with extended use. Allow modules to cool completely
before attempting to remove.
WARNING!
Maintenance:
The beacons are completely sealed units designed to be maintenance free. Refer to the guide below for help
with troubleshooting. Should the unit be diagnosed as malfunctioning, remove unit and replace with a new
module.
Operation:
Synchronization (Permanent Mount Only):
To sync two beacons, configure both lights to display the same Phase 1 pattern. With the power off, connect
the YELLOW wires from each lights together. When the lights are activated, their patterns will be synchronized.
To configure the two lightheads to alternate their patterns, advance the pattern of either beacon to the Phase 2
mode of the current pattern.Amaximum of 8 lights may be sychronized.
Setting the Flash Pattern (Magnetic base):
Depress the rocker switch on the lighter plug:
- Less than 1 second for the NEXT pattern
- 1 to 3 seconds for the PREVIOUS pattern
- 3 to 5 seconds for the DEFAULT pattern
- Greater than 5 seconds to TURN OFF the beacon
Setting the Flash Pattern (Permanent base):
Connect blue wire to black wire (chassis ground):
- Less than 1 second for the NEXT pattern
- 1 to 3 seconds for the PREVIOUS pattern
- 3 to 5 seconds for the DEFAULT pattern
- Greater than 5 seconds to TURN OFF the beacon

7
NOTES

Revision 0, 09/09 - Instruction Book Part No. T16417
©2009 Public Safety Equipment, Inc. Printed in USA
PRODUCT RETURNS
If a product must be returned for repair or replacement*, please contact our factory to obtain a Return
GoodsAuthorization Number (RGAnumber) before you ship the product to Code 3, Inc. Write the RGAnumber
clearly on the package near the mailing label. Be sure you use sufficient packing materials to avoid damage to
the product being returned while in transit.
*Code 3, Inc. reserves the right to repair or replace at its discretion. Code 3, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or
reinstallation of products requiring service and/or repair.; nor for the packaging, handling, and shipping: nor for the handling of products return to sender after the service has been
rendered.
Code 3, Inc.
10986 N. Warson Road
St. Louis, Missouri 63114-2029—USA
Ph. [phone] Fax [phone]
www.code3pse.com
WARRANTY
Code 3, Inc.'s L.E.D. emergency devices are tested and found to be operational at the time of manufacture.
Providedtheyareinstalledandoperatedinaccordancewithmanufacturer'srecommendations,Code3,Inc.guarantees
allpartsandcomponentsexceptthelampstoaperiodof1year,LEDLightheadmodulestoaperiodof5years(unless
otherwise expressed) from the date of purchase or delivery, whichever is later. Units demonstrated to be defective
within the warranty period will be repaired or replaced at the factory service center at no cost.
Use of lamp or other electrical load of a wattage higher than installed or recommended by the factory, or use
ofinappropriateorinadequatewiringorcircuitprotectioncausesthiswarrantytobecomevoid. Failureordestruction
of the product resulting from abuse or unusual use and/or accidents is not covered by this warranty. Code 3, Inc.
shall in no way be liable for other damages including consequential, indirect or special damages whether loss is due
to negligence or breach of warranty.
CODE 3, INC. MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY INCLUDING, WITHOUT LIMITA-
TION, WARRANTIES OF FITNESS OR MERCHANTABILITY, WITH RESPECT TO THIS PRODUCT.
8
PROBLEMS OR QUESTIONS? CALL OUR TECHNICALASSISTANCE HOTLINE [phone]
WWW.CODE3PSE.COM
Code 3®is a registered trademark of Code 3, Inc., a subsidiary of Public Safety Equipment, Inc.
