DataMan®475 Verifier
Reference Manual
2021 November 25
Revision: 6.1.11.1

Legal Notices
The software described in this document is furnished under license, and may be used or copied only in accordance with
the terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this
document, nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee.
Title to, and ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes
no responsibility for the use or reliability of its software on equipment that is not supplied by Cognex Corporation.
Cognex Corporation makes no warranties, either express or implied, regarding the described software, its
merchantability, non-infringement or its fitness for any particular purpose.
The information in this document is subject to change without notice and should not be construed as a commitment by
Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or
the associated software.
Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document
may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor
transferred to any other media or language without the written permission of Cognex Corporation.
Copyright © 2021. Cognex Corporation. All Rights Reserved.
Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as
well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.
The following are registered trademarks of Cognex Corporation:
Cognex, 2DMAX, Advantage, AlignPlus, Assemblyplus, CheckitwithChecker, Checker, CognexVisionforIndustry,
CognexVSOC, CVL, DataMan, DisplayInspect, DVT, EasyBuilder, Hotbars, IDMax, In-Sight, LaserKiller, MVS-8000,
OmniView, PatFind, PatFlex, PatInspect, PatMax, PatQuick, SensorView, SmartView, SmartAdvisor, SmartLearn,
UltraLight, VisionSolutions, VisionPro, VisionView
The following are trademarks of Cognex Corporation:
The Cognex logo, 1DMax, 3D-Locate, 3DMax, BGAII, CheckPoint, CognexVSoC, CVC-1000, FFD, iLearn, In-Sight
(design insignia with cross-hairs), In-Sight2000, InspectEdge, Inspection Designer, MVS, NotchMax, OCRMax,
PatMaxRedLine, ProofRead, SmartSync, ProfilePlus, SmartDisplay, SmartSystem, SMD4, VisiFlex, Xpand
Portions copyright © Microsoft Corporation. All rights reserved.
Portions copyright © MadCap Software, Inc. All rights reserved.
Other product and company trademarks identified herein are the trademarks of their respective owners.
2
Legal Notices

Table of Contents
Legal Notices 2
Table of Contents 3
Symbols 5
Getting Started 6
About the DataMan 475 Verifier Verifier 6
Supporting Documentation 6
DataMan 475 Verifier Verifier Accessories 7
Cables and Power Supply 7
Mounting Brackets 8
DataMan 475 Verifier Systems 8
Setting Up Your DataMan 475 Verifier Verifier 9
Reader Layout 9
Dimensions 11
DataMan 475 Verifier Verifier 11
DataMan 475 Verifier Verifier DPM 11
Removing Illumination Attachment 12
Additional Information 16
DataMan475 Verifier and DPM Specifications 16
LED Wavelengths 19
Calibration 20
User Interface 24
Toolbar 24
UsingYour DataMan 475 Verifier Verifier 25
Verifying a 2D Barcode 25
Selecting Regions 26
Standards Based Grading 27
Verifications of Multiple Symbols 27
Examining the Results 29
1D & 2D Verification 29
Main Tab 29
General Characteristics Tab 30
Data Detail Tab 31
Modulation table legend 33
Quality Detail Tab 33
Advanced Detail Tab 34
Histogram Tab 35
Report Tab 36
Settings 37
The Settings Menu 37
Application Settings 38
Dot Peen 39
Application Standards Settings 40
3
Table of Contents

Grading Standards 48
Calibration Settings 58
Trending Settings 58
User Information 59
Report Settings 60
Navigation 60
Results through Setup Tool (local machine) 61
Results through FTP 62
Symbologies/Multi Mode 63
Scripting 64
Setting Up FTP Transfer 65
Image FTP Transfer 65
Result FTP Transfer 66
Report FTP Transfer 66
Setting Up DataMan Setup Tool 67
Reading your first Code 67
External Triggers 69
Cleaning and Maintenance 70
Cleaning the Verifier Housing 70
Cleaning the Verifier Lens Cover 70
Compliance Information, Warnings and Notices 71
Precautions 71
Regulations/Conformity 72
For European Community Users 72
4
Table of Contents

Symbols
The following symbols indicate safety precautions and supplemental information:
WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical shock.
CAUTION:This symbol indicates a hazard that could result in property damage.
Note: This symbol indicates additional information about a subject.
Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
5
Symbols

Getting Started
This section provides general information about the DataMan 475 Verifier Verifier and the DataMan 475 Verifier Verifier
accessories and systems.

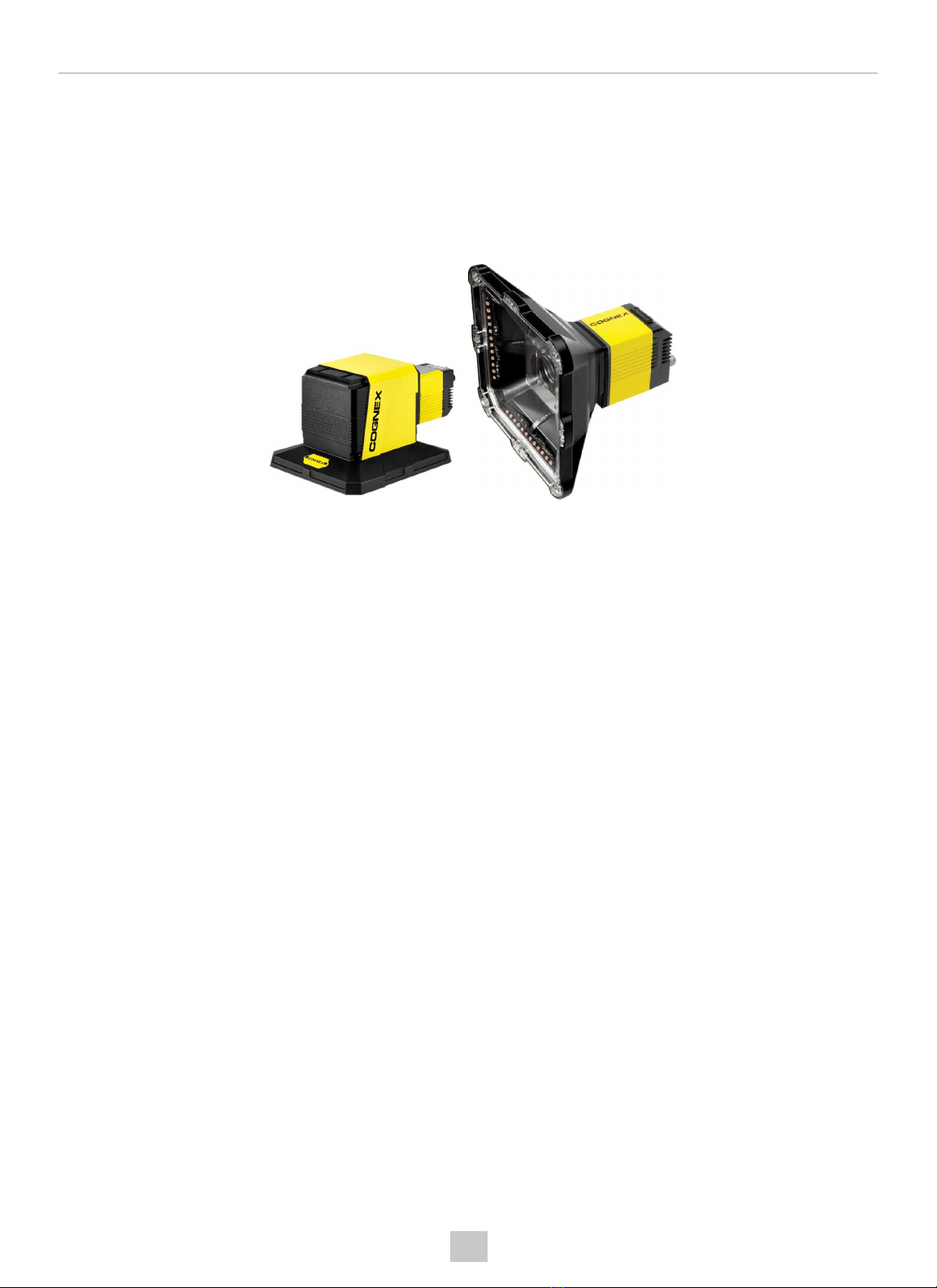

About the DataMan 475 Verifier Verifier
The DataMan 475 Verifier Verifier provides immediate quality assurance benefits:
lSets alerts for when code quality begins to degrade
lGrades up to 20 codes per second
lExports verification results to PLC, database, or FTP server as CSV, HTML, PDF, and custom formats
lImproves processes with detailed analysis and diagnostic information for every code
The DataMan 475 Verifier LabelLight utilizes a four-quadrant, 45-degree lighting attachment and the DataMan 475 DPM
utilizes either a four-quadrant 30-degree, 45-degree, or 90-degree lighting attachment. Both types of 475 verifiers are
compliant with the International Organization for Standardization (ISO) requirements for grading 1D and 2D label-based
barcodes. The included calibration card and robust grading algorithms ensure that the DataMan 475 Verifier verifiers
conform to ISO and application standards while providing accurate and repeatable results.
The DataMan 475 Verifier verifiers are packaged in a rugged, IP65-rated housing, and provide numerous ease-of-use
features, including one button to trigger and one button to start tuning.
Supporting Documentation
This document provides basic information about how to configure and use the DataMan 475 Verifier verifier. Additional
information is available through the Windows Start menu or the DataMan Setup Tool Help menu once installing the
DataMan software on your PC:
lThe DataMan Communications and Programming Guide shows you how to integrate your DataMan verifier into
your particular automation and factory environment.
Cognex->DataMan Software v x.x.x->Documentation->Communications->DataMan Communications and
Programming Guide
lThe DataMan Industrial Protocols Manual provides information on how to integrate DataMan verifier into your
particular environment using industrial protocols.
Cognex->DataMan Software v x.x.x->Documentation->Communications->DataMan Industrial Protocols Manual
6
Getting Started

lThe DataMan Reader Configuration Codes document provides printable 2-D codes that you can use to
configure the DataMan verifier.
Cognex->DataMan Software v x.x.x->Documentation->English->Reader Configuration Codes
lThe DataMan 475 Verifier Verifier Quick Reference Guide provides essential information about the DataMan
475 Verifier verifier.
Cognex->DataMan Software v x.x.x->Documentation->English->DM475V Series->DM475V Quick Reference
Guide
lThe DataMan Fixed-Mount Readers Reference is a complete online hardware reference for the DataMan fixed-
mount ID verifier.
Cognex->DataMan Software v x.x.x->Documentation->English->DM475V ->Fixed-Mount Reference Manual
lThe DataMan Control Commands lists DataMan Control Commands with all relevant information. You can view
this help inside the Setup Tool or as a stand-alone help file.
Cognex->DataMan Software v x.x.x->Documentation->English->DataMan Control Commands
lThe Setup Tool Reference Manual describes the user interface of the DataMan Setup Tool software.
Cognex->DataMan Software v x.x.x->Documentation->English->Setup Tool Reference Manual
lThe Release Notes list detailed system requirements and additional information about this DataMan software
release.
Cognex->DataMan Software v x.x.x->Documentation->DataMan v x.x.x Release Notes
DataMan 475 Verifier Verifier Accessories
Note: For ISO compliant verification, equip the DM475V with LabelLight 45° lighting accessory (DMV-475V-LBL-
0200). Use other light accessories for DM475V for Standards Based Grading only.
Note: The product images below serve illustration purposes only. You can purchase the following components
separately. For a list of options and accessories, contact your local Cognex sales representative.
Cables and Power Supply
Note: Cables are sold separately.
CAUTION:All cable connectors are keyed to fit the connectors on the verifier. Do not force the connections or
damage may occur.
Accessory Name Accessory Product Number Accessory
Illustration
Power and I/O Breakout Cable, M12-12 to
Flying Lead
CCB-PWRIO- xx (straight, xx specifies length: 5m,
10m, 15m)
CCB-PWRIO-xxR (right-angled, xx specifies length:
5m, 10m, 15m)
X-Coded to A-Coded Ethernet cable adapter,
0.5 m
CCB-M12X8MS-XCAC
Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2001-xx (straight, xx specifies length: 2m,
5m, 10m, 15m, 30m)
7
Getting Started

Accessory Name Accessory Product Number Accessory
Illustration
I/O extension cable, straight, 5 m CKR-200-CBL-EXT
Connection module (up to 4 cameras
including network switch)
xx can be US, EU, UK or JP
DMA-CCM-4X-xx
Connection module (1 camera)
xx can be US, EU, UK or JP
DMA-CCM-1-xx
Mounting Brackets
Accessory Name Accessory Product Number Accessory Illustration
Mounting Bracket Kit DMBK-470-MNT
Pivot Mounting Bracket DM100-PIVOTM-00
External Heat Sink DMHS-370-470
DataMan 475 Verifier Systems
Symbologies Light Configurations Verification Standards
DMV-475V-LBL-0200 1D, 2D, DPM 45° LabelLight ISO/IEC15415, 15416, 29158
DMV-475V-DPM-0100 1D, 2D, DPM 30°, 45°, 90° DPM ISO/IEC 15415, 15416, 29158
8
Getting Started

Setting Up Your DataMan 475 Verifier Verifier
This section provides information on the physical appearance of the DataMan 475 Verifier verifier. It also details the
steps of installing the lenses and filters of the verifier, and gives information on the imager.

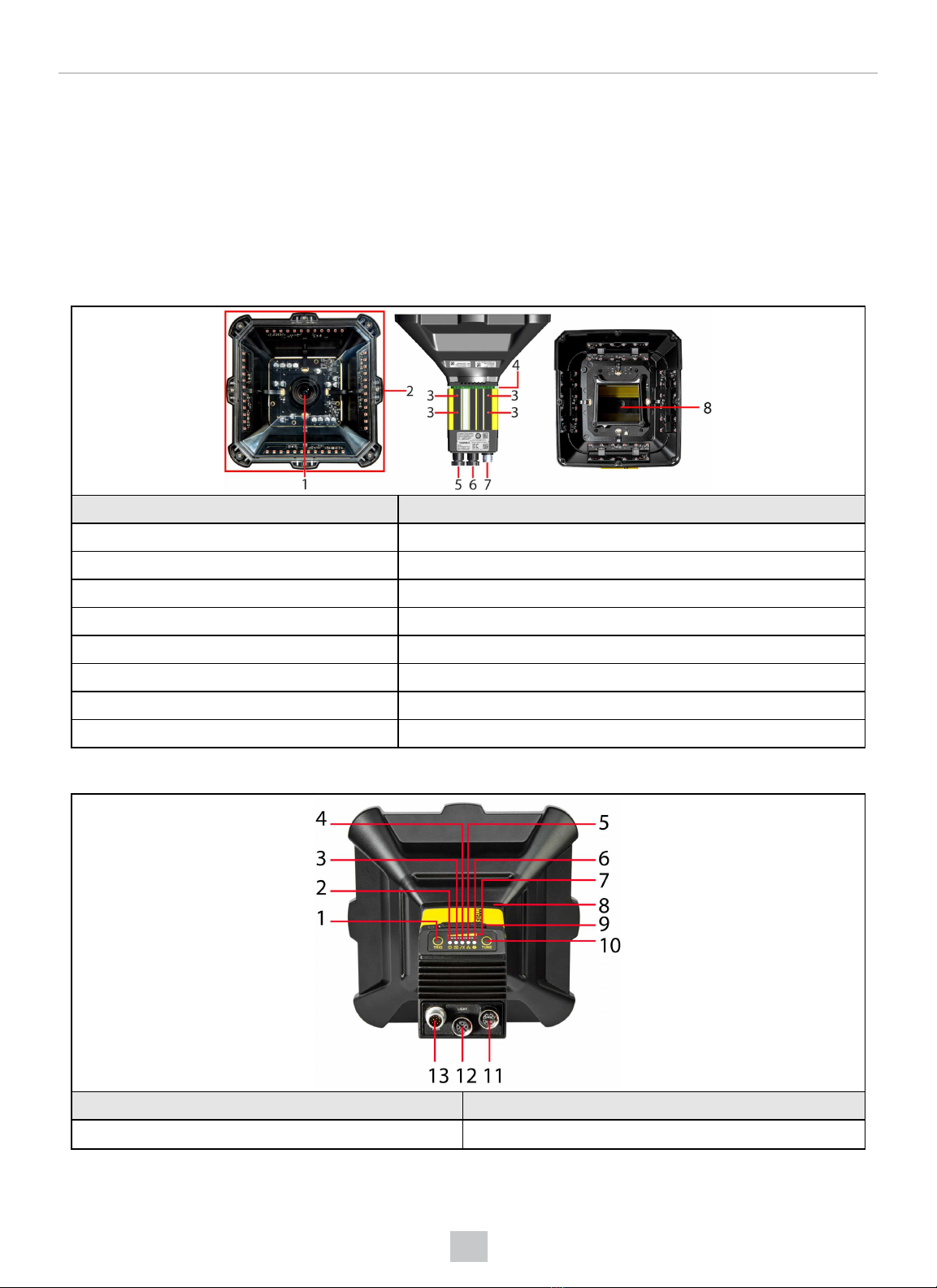

Reader Layout
The following image shows the lighting system of the DataMan 475 Verifier verifier and the mounting holes underneath
the plastic lighting cover.
Item Description
1 Lens
2 Label Light attachment
3 Mounting holes (M3 x 5 mm)
4 Indicator light ring
5 Ethernet connection
6 External lighting connection (disabled for verification)
7 Breakout cable connection
8 DPM Light attachment
The image shows the back cover of the DataMan 475 Verifier and the functions of the indicator lights.
Item Description
1 Trigger button
9
Setting Up Your DataMan 475 Verifier Verifier

Item Description
2 Power
3 Train status
4 Good/bad read
5 Network
6 Error
7 Peak meter
8 Indicator light ring
9 SD card slot
10 Tuning button
11 Ethernet
12 External light control
13 Power, I/O, and RS-232
The table explains the indicator light ring behavior.
Type Signal Color Meaning
Status
Power GREEN Power ON
Train status GREEN Trained
YELLOW Untrained
Error RED Error - check device log
Action
Good/bad read GREEN Good read
RED Bad read
Communication YELLOW Link up
blink Activity
Peak meter - Decode yield, train progress/quality
10
Setting Up Your DataMan 475 Verifier Verifier

Dimensions
Note:
lDimensions are in millimeters [inches] and are for reference purposes only.
lAll specifications are for reference purposes only and can change without notice.
Observe the following DataMan 475 Verifier verifier dimensions when installing your reader.
DataMan 475 Verifier Verifier
DataMan 475 Verifier Verifier DPM
11
Setting Up Your DataMan 475 Verifier Verifier

Removing Illumination Attachment
You can remove the illumination attachment from the reader.
Perform the following steps to safely remove the illumination attachment:

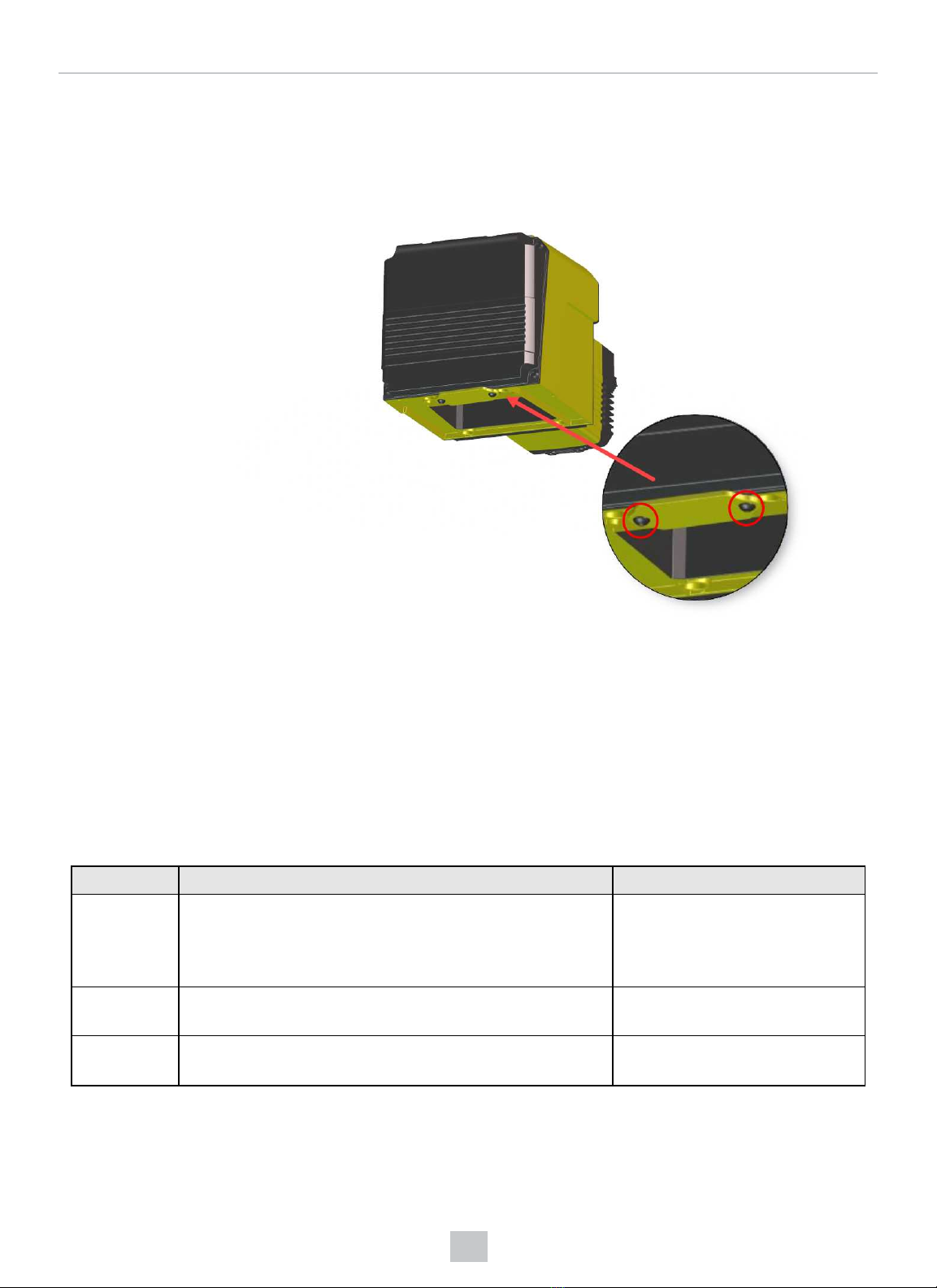

1. Remove the marked screws then pull the side illumination attachment away.
12
Setting Up Your DataMan 475 Verifier Verifier

2. Remove the screws of the cover plate located on the top of the illumination attachment.
13
Setting Up Your DataMan 475 Verifier Verifier

3. Pull the cover plate off from the top of the lighting attachment.
14
Setting Up Your DataMan 475 Verifier Verifier

4. Install the cover plate on the underside of the main housing.
15
Setting Up Your DataMan 475 Verifier Verifier

5. Fit the cover plate in place and tighten the screws with a torque value of 0.35 Nm for sealing.
To reattach illumination attachment, follow this procedure in reversed order, than tighten the screws with a torque value
of 0.35 Nm for sealing
Additional Information
DataMan475 Verifier and DPM Specifications
Specification DataMan 475 Verifier DataMan 475V DPM
Lighting Types 660 nm, 45o, 4-quadrant 660 nm, 45o, 4-quadrant
660 nm, 30o, 1-quadrant, 2-
quadrant, 4-quadrant
660 nm, 90o
Minimum X-
Dimension
6 mil (0.15 mm) 3.75 mil (0.095 mm)
Working
Distance
60 mm 41 mm
16
Setting Up Your DataMan 475 Verifier Verifier

Specification DataMan 475 Verifier DataMan 475V DPM
Depth of Field
(Working
Distance
tolerance)
+/- 3 mm 5 mil symbols: +/- 1.5 mm
15 mil symbols: +/- 2.5 mm
Weight 945 g 1002.7 g
Field of View 80 x 60 mm 35 x 29 mm
Dimensions 185 x 185 x 175 mm 286 x 144 x 190 mm
Lens Type 12 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor
format, C-mount lens (you cannot alter lens)
35 mm fixed focal length, f/4 fixed
aperture, 2/3 inch sensor format, C-
mount lens (users cannot alter lens)
Power
Consumption
24 VDC ±10%, 1.5 A maximum (Label Light, 36 W peak power consumption)
Supplied by LPS or NEC class 2 only.
Light
Connector
0.4 A
Note: The Light Connector is disabled while the LabelLight
or DPM accessory is in place.
Case
Temperature1
0°C – 57°C (32°F – 134.6°F)
Operating
Temperature2
0 °C – 40°C (32 °F – 104°F)
Storage
Temperature
-20°C – 80°C (-4°F – 176°F)
Humidity < 95% non-condensing
Environmental
characteristics
IP65 IP65 with cables and appropriate
lens cover attached.
Shock
(Shipping and
Storage)
IEC 60068-2-27: 18 shocks (3 shocks in each polarity in each
(X, Y, Z) axis) 80 Gs (800 m/s2 at 11 ms, half-sinusoidal) with
cables or cable plugs and appropriate lens cover attached.
-
Vibration
(Shipping and
Storage)
IEC 60068-2-6: vibration test in each of the three main axis for 2
hours @ 10 Gs (10 to 500 Hz at 100 m/s2 / 15 mm) with cables
or cable plugs and appropriate lens cover attached.
-
Supported
Symbologies
1D codes: Codabar, Code 39, Code 128, and Code 93, Interleaved 2 of 5, UPC/EAN/JAN
2D codes: Data Matrix (ECC 200), QR Code, microQR Code Stacked codes: PDF 417
Maximum
Codes per
Second
1D: 20 codes/second*
2D: 10 codes/second*
2D: 10 codes/second*
Maximum
Linear Line
Speed
3.6 ft/second (1.1 m/second) 4.6 ft/second (1.4 m/second)
Coplanarity
Tolerance
+/- 3o of coplanar +/- 2o of coplanar
Approvals CE, TUV, FCC, KC
17
Setting Up Your DataMan 475 Verifier Verifier

Specification DataMan 475 Verifier DataMan 475V DPM
Industry
Standards
Compliance
ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 20158, ISO/IEC 15426-1. ISO/IEC 15426-2
Application
Standards
GS1, MIL-STD 130, UID, UDI, HIBCC, ISO 15434, Russian Crypto-code, Custom Application Standards
Discrete I/O
operating
limits
HS Output 0,1,2,3 IMAX @ 12 VDC 50 mA
RMIN 200 Ω
Input 0 (Trigger) VIH ±15 — ± 28 V
Input 1,2,3 VIL 0 — ± 5 V
ITYP @ 12 VDC 2.0 mA
@ 24 VDC 4.2 mA
Ethernet
Speed
10/100/1000
Image Sensor 2/3 inch CMOS, global shutter
Image Sensor
Properties
8.8 mm x 6.6 mm (H x V); 3.45 µm square pixels
Resolution
(pixels)
2448 x 2048
1
Additional cooling measures may be required to keep the case temperature from exceeding 50°C. Examples of such
measures include: extra heat sinking and/or air movement.
2
In situations where the operating temperature exceeds 40 °C, an external heat sink is required.
DataMan 475 Series Verifier Imager Specifications
Specification DataMan 475 Imager
Image Sensor 2/3 inch CMOS, global shutter
Image Sensor
Properties
8.8 mm x 6.6 mm (H x V); 3.45 µm square pixels
Image Resolution
(pixels)
2448 x 2048
Electronic Shutter
Speed
Minimum exposure: 15 µs
Maximum exposure: 5000 µs
Typically set at 30 µs by calibration process for ISO 15415.
Note: If the user adjusts the shutter speed, there is no guarantee that the verifier retains
compliance.
Image Acquisition at
Full Resolution
37 Hz for imager without lighting.
Note: Max. acquisition speed with 45 lighting degree accessory enabled is significantly
less. Practical acquisition rate is application dependent.
18
Setting Up Your DataMan 475 Verifier Verifier

LED Wavelengths
The following table shows LED types and the related peak wavelengths:
LED λ [nm]
RED 660
19
Setting Up Your DataMan 475 Verifier Verifier

Calibration
Calibration informs the verifier about the grey scale levels and pixel dimensions of the verifier. This way, the verifier can
report Symbol Contrast and X-dimension in true physical units.
For ISO compliant barcode verification, make sure that the verifier is in a calibrated state.
For Standards Based Grading, the verifier does not report all quality parameters without calibration.
In an uncalibrated state the verifier does not report:
lAperture and Symbol Contrast (SC) for ISO/IEC 15415/15416 applications
lMinimum Reflectance (MR) for ISO/IEC TR29158 (AIM-DPM) applications
Note: In an uncalibrated state, the verifier does not report aperture value, but uses the default aperture selection:
Auto 50% for 1D applications or Auto 80% for 2D applications.

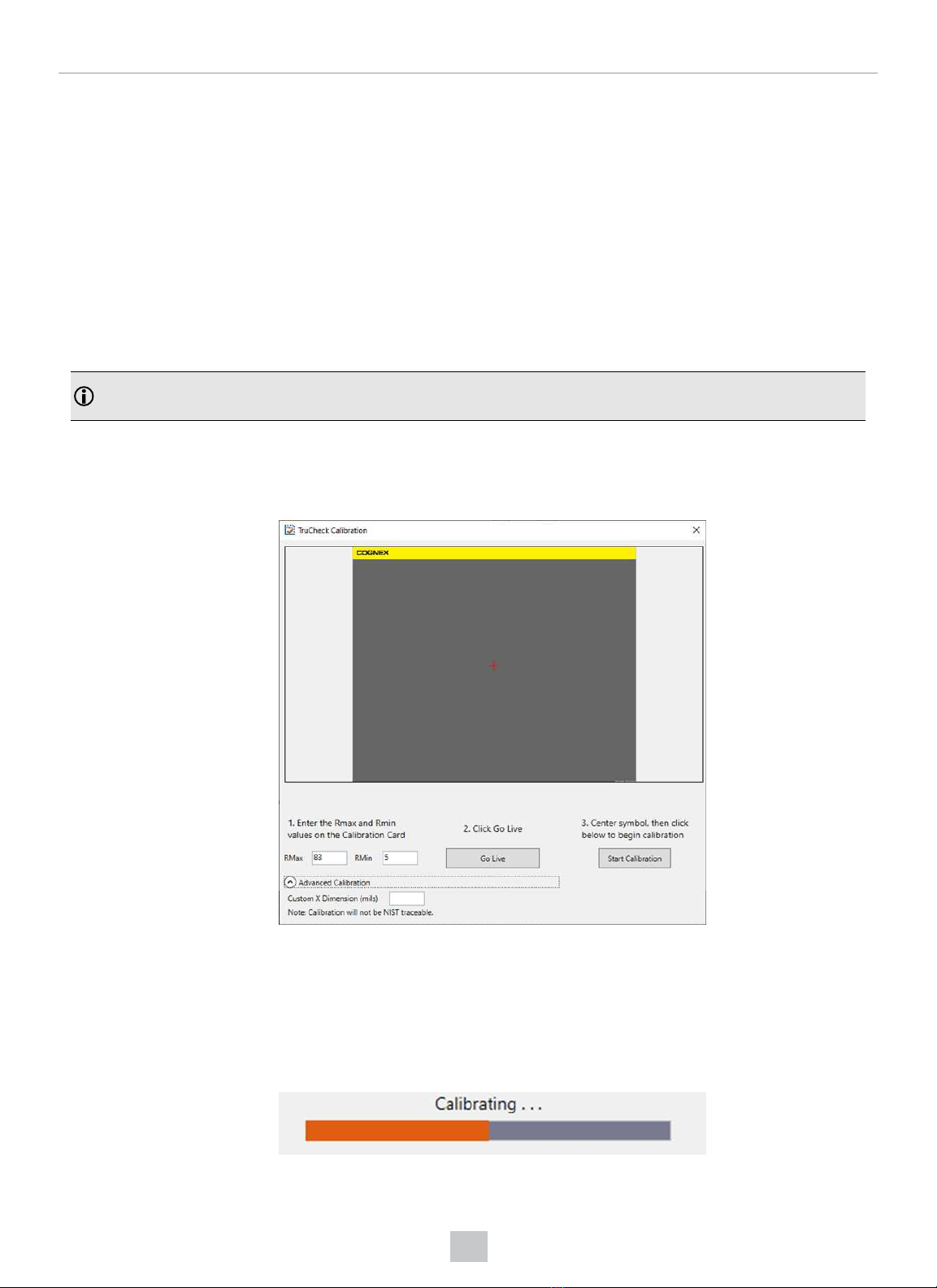

To calibrate the DataMan 475 Verifier:
1. Click the Calibration icon in the top left corner in the TruCheck Verification window.
2. Enter the Rmax and Rmin values from the calibration card.
Use the Advanced Calibration option only if you use a non-NIST traceable calibration symbol. This option allows
you to enter the Custom X-Dimension (mils) value of the barcode that you use to calibrate the unit. The calibration
process uses the Custom X-Dimension (mils) value to calibrate dimension measurements.
3. Click Center Target.
4. A live image appears in the Calibration screen. Center the verifier over the calibration symbol.
5. Clicking Start Calibration prompts a Calibrating progress bar appear in the window
20
