In-Sight®3800 Series
Reference Manual
2023 March 17
Revision: 23.1.0.117

Legal Notices
The software described in this document is furnished under license, and may be used or copied only in accordance with the
terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this document,
nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee. Title to, and
ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes no responsibility
for the use or reliability of its software on equipment that is not supplied by Cognex Corporation. Cognex Corporation makes
no warranties, either express or implied, regarding the described software, its merchantability, non-infringement or its fitness
for any particular purpose.
The information in this document is subject to change without notice and should not be construed as a commitment by
Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or the
associated software.
Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor transferred to any
other media or language without the written permission of Cognex Corporation.
Copyright © 2023. Cognex Corporation. All Rights Reserved.
Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well
as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.
The following are registered trademarks of Cognex Corporation:
Cognex, 2DMAX, Advantage, AlignPlus, Assemblyplus, CheckitwithChecker, Checker, CognexVisionforIndustry,
CognexVSOC, CVL, DataMan, DisplayInspect, DVT, EasyBuilder, Hotbars, IDMax, In-Sight, LaserKiller, MVS-8000,
OmniView, PatFind, PatFlex, PatInspect, PatMax, PatQuick, SensorView, SmartView, SmartAdvisor, SmartLearn,
UltraLight, VisionSolutions, VisionPro, VisionView
The following are trademarks of Cognex Corporation:
The Cognex logo, 1DMax, 3D-Locate, 3DMax, BGAII, CheckPoint, CognexVSoC, CVC-1000, FFD, iLearn, In-Sight (design
insignia with cross-hairs), In-Sight2000, InspectEdge, Inspection Designer, MVS, NotchMax, OCRMax, PatMaxRedLine,
ProofRead, SmartSync, ProfilePlus, SmartDisplay, SmartSystem, SMD4, VisiFlex, Xpand
Portions copyright © Microsoft Corporation. All rights reserved.
Portions copyright © MadCap Software, Inc. All rights reserved.
Other product and company trademarks identified herein are the trademarks of their respective owners.
2
Legal Notices

Precautions
To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product:
lThe safety of any system incorporating this product is the responsibility of the assembler of the system.
lDo not install Cognex products where they are exposed to environmental hazards such as excessive heat, dust,
moisture, humidity, impact, vibration, corrosive substances, flammable substances, or static electricity.
lRoute cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or
malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other
irregularities in the power supply.
lDo not expose the image sensor to laser light. Image sensors can be damaged by direct, or reflected, laser light. If
your application requires laser light that might strike the image sensor, use a lens filter at the corresponding laser
wavelength. For suggestions, contact your local integrator or application engineer.
lThis product does not contain user-serviceable parts. Do not make electrical or mechanical modifications to product
components. Unauthorized modifications can void your warranty.
lChanges or modifications not expressly approved by the party responsible for regulatory compliance could void the
user’s authority to operate the equipment.
lInclude service loops with cable connections.
lEnsure that the cable bend radius begins at least six inches from the connector. Cable shielding can be degraded or
cables can be damaged or wear out faster if a service loop or bend radius is tighter than 10X the cable diameter.
lThis device should be used in accordance with the instructions in this manual.
lAll specifications are for reference purposes only and can change without notice.
3
Precautions

Symbols
The following symbols indicate safety precautions and supplemental information:
WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical shock.
CAUTION:This symbol indicates a hazard that could result in property damage.
Note: This symbol indicates additional information about a subject.
Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
4
Symbols

Table of Contents
Legal Notices 2
Precautions 3
Symbols 4
Table of Contents 5
Getting Started 7
About the In-Sight 3800 Series 7
Accessories 8
Lenses 8
Lens Covers 9
Mounting Brackets 9
Cables 10
Integrated Lights 10
Setting Up Your In-Sight Vision System 11
Vision System Layout 11
Dimensions 13
In-Sight 3800 with 45 mm Lens Cover 13
In-Sight 3800 with 60 mm Lens Cover 13
In-Sight 3800 with 75 mm Lens Cover 14
In-Sight 3800 Multi-Torch with Standard Front Cover 14
In-Sight 3800 Multi-Torch with Dome Attachment 15
In-Sight 3800 - Smart Camera Only 15
Field of View and Distance 16
In-Sight 3800 Field of View with 1.6 MP Lens 16
In-Sight 3800 Field of View with 3 MP Lens 18
In-Sight 3800 Field of View with 5 MP Lens 20
Mounting the Vision System 22
Mounting Bracket (BKT-INS-01) 22
Converter Mounting Bracket (ISB-7000-7K) 23
Converter Mounting Bracket (ISB-7000-5K) 23
Connection Options 24
Connecting the Ethernet Cable 24
Connecting the Power and I/OBreakout Cable 24
Using Your In-Sight Vision System 25
Installing In-Sight Vision Suite 25
Trigger Types 25
External Triggers 25
Supported Protocols 25
Specifications 26
In-Sight 3800 Series Vision System 26
In-Sight 3800 Series Vision System Image Sensor 27
LED Wavelengths 27
Acquisition Trigger Input 28
High-Speed Outputs 29
5
Table of Contents

Ethernet Cable 30
External Light Connector 31
Breakout Cable 31
Cleaning and Maintenance 33
Clean the Housing 33
Clean the Vision System Image Sensor Window 33
Clean the Vision System Lens Cover 33
Regulations and Conformity 34
中国大陆RoHS (Information for China RoHS Compliance) 35
For European Community Users 35
6
Table of Contents

Getting Started
This section provides general information about the In-Sight 3800 series vision system and the accessories and systems.
About the In-Sight 3800 Series
The In-Sight 3800 series is an advanced vision system that provides high speed, high resolution, and high flexibility in a
powerful yet easy-to-use solution for inspection automation.
Embedded with a full set of robust rule-based tools and innovative edge learning technology, the In-Sight 3800 solves a wide
range of manufacturing applications, from defect detection and assembly verification to character reading and more. It also
enables you to:
lRun more inspections in less time.
lImprove the accuracy of the results.
lScale your solution.
7
Getting Started

Accessories
You can purchase the following components separately. For a list of options and accessories, contact your local Cognex
sales representative.

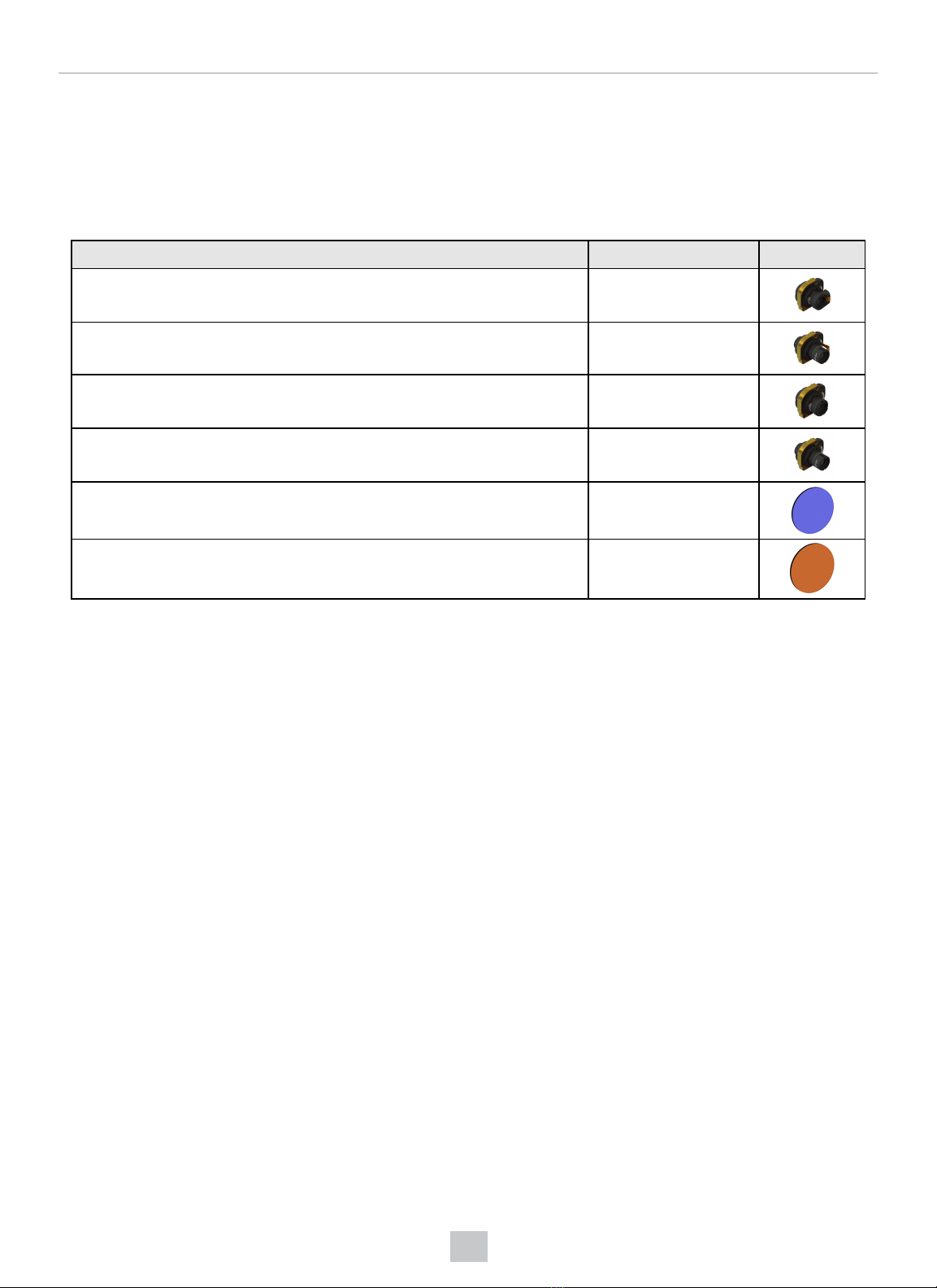

Lenses
Accessory Product Number Illustration
16 mm High Speed Liquid Lens - Visible and Near-IR Light CLN-C16F8FS-HSLL
24 mm High Speed Liquid Lens - Visible and Near-IR Light CLN-C24F6FS-HSLL
16 mm Manual Focus lens for Multi Torch - Visible and Near IR Light CLN-C16F8FS
24 mm Manual Focus lens for Multi Torch - Visible and Near-IR Light CLN-C24F6FS
Blue bandpass filter for Multi Torch 380-TORCH-BP470
Red bandpass filter for Multi Torch 380-TORCH-BP635
8
Getting Started

Lens Covers
Accessory Product Number Illustration
45mm Plastic Lens Cover COV-380-CMNT-45
60mm Plastic Lens Cover COV-380-CMNT-60
75mm Plastic Lens Cover COV-380-CMNT-75
30mm Lens Cover Extender COV-7000-CMNT-LGX
Multi Torch front cover - Diffused 380-TORCH-COVDIF
Multi Torch front cover - Cross-Polarized 380-TORCH-COVPOL
Multi Torch front cover - Clear 380-TORCH-COVCLR
Dome Attachment for 380 platform Multi Torch and DataMan HPIT 380-TORCH-DOME
Mounting Brackets
Accessory Product Number Illustration
Mounting bracket with M3, M4 and 1/4 - 20 mounting holes BKT-INS-01
Converter mounting bracket with M3 socket head screws/wrench ISB-7000-7K
Converter mounting bracket with Phillips flat head M3 screws and M4 screws ISB-7000-5K
9
Getting Started

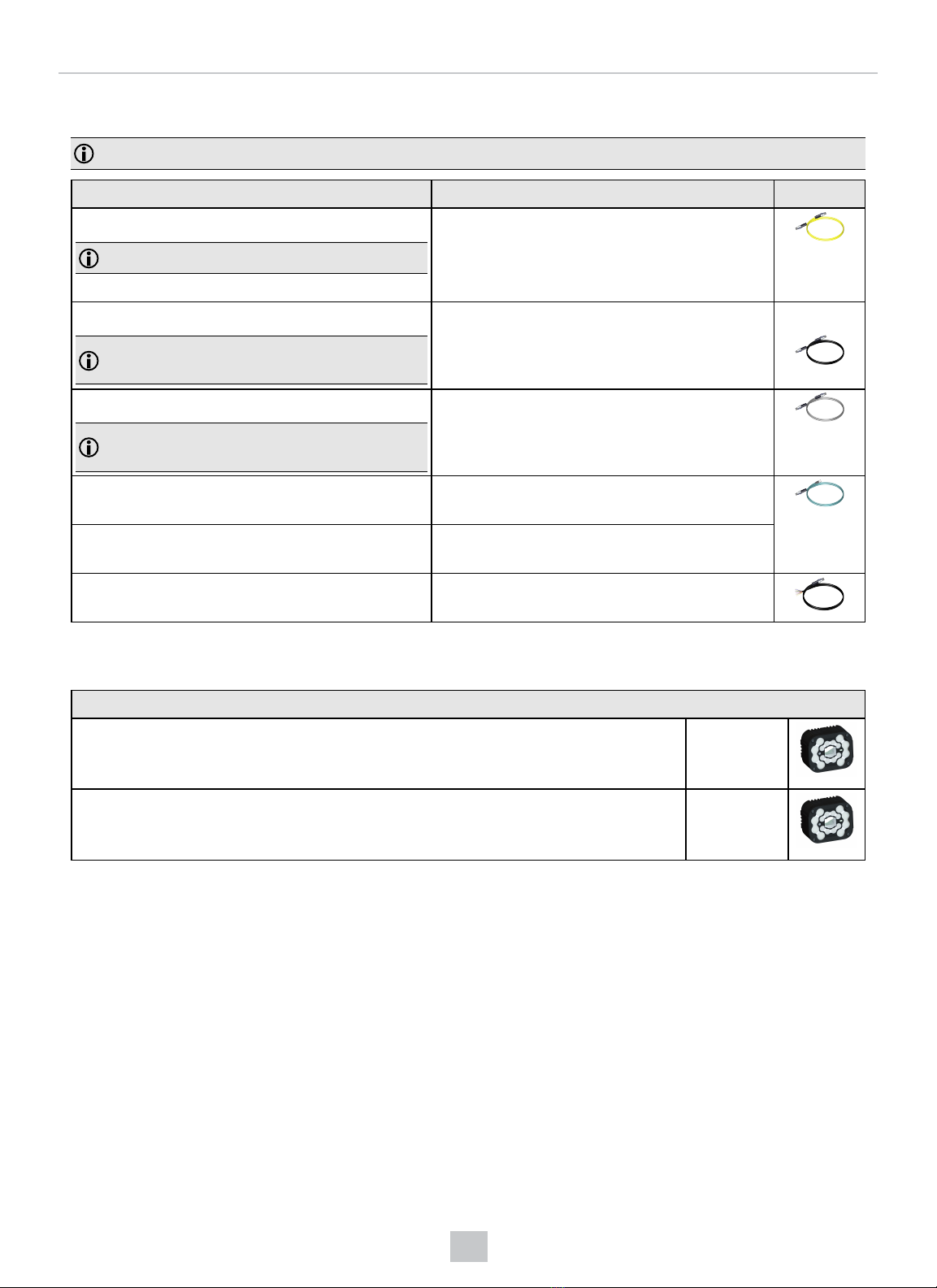

Cables
Note: Cables are sold separately.
Accessory Product Number Illustration
External Light Cable, Yellow
Note: This cable supports intensity control.
IVSL-5PM12-J300
IVSL-5PM12-J500
IVSL-5PM12-J1000
IVSL-5PM12-J2000
External Light Cable, Black
Note: This cable supports intensity control and is
used with standard SVL lights.
IVSL-M12-NSB-300
IVSL-M12-NSB-1000
IVSL-M12-NSB-2000
External Light Cable, Grey
Note: This cable does not support intensity
control.
CCB-M12LTF-xx (xx specifies length: 0.5m, 1m, 2m,
5m)
Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2001-xx (straight, xx specifies length:
2m, 5m, 10m, 15m, 30m)
Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2RBT-xx (straight, xx specifies length:
2m, 5m, 10m)
Breakout Cable, M12-12 to Flying Lead CCB-PWRIO- xx (straight, xx specifies length: 5m,
10m, 15m)
Integrated Lights
Accessory
Multi Torch Accessory Kit for autofocus lenses (RGBW-IR Light w/ ToF and Laser Aimer)
Includes: Multi Torch Illumination module, mount for illumination module (High Speed Liquid
Lenses only), Diffused cover, Illumination PCB, 2 mm hex tool
380-TORCH-
MULTI-AF
Multi Torch Accessory Kit for manual focus lenses (RGBW-IR w/ ToF and Laser Aimer)
Includes: Multi Torch Illumination module, mount for illumination module (manual focus lenses
only), Diffused cover, Illumination PCB, 2 mm hex tool
380-TORCH-
MULTI-MF
10
Getting Started

Setting Up Your In-Sight Vision System
Read this section to learn how the vision system connects to its standard components and accessories.
Note:
lCables are sold separately.
lIf a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider
(ASP) or Cognex Technical Support.
CAUTION:All cable connectors are keyed to fit the connectors on the vision system. Do not force the connections or
damage may occur.

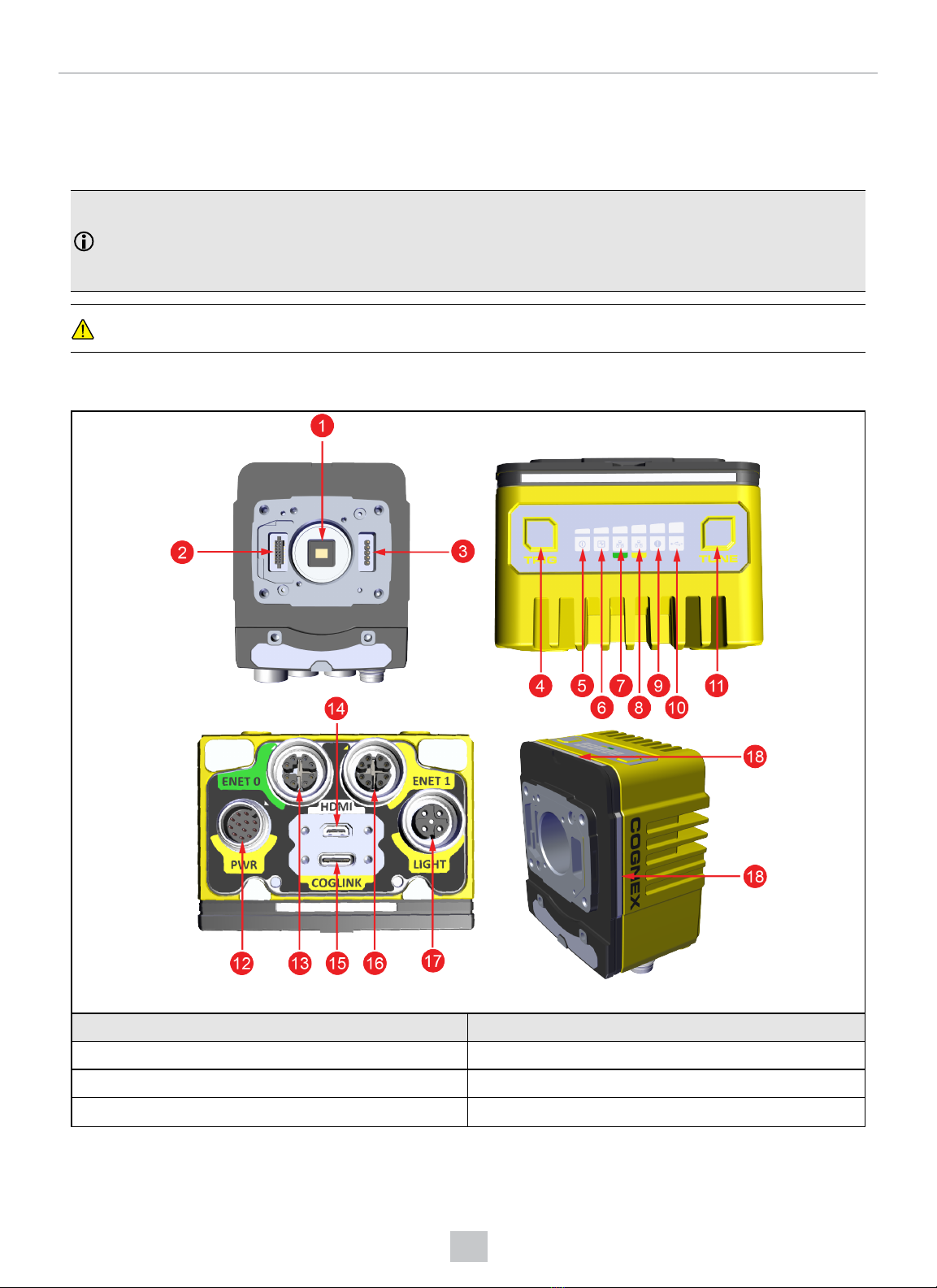

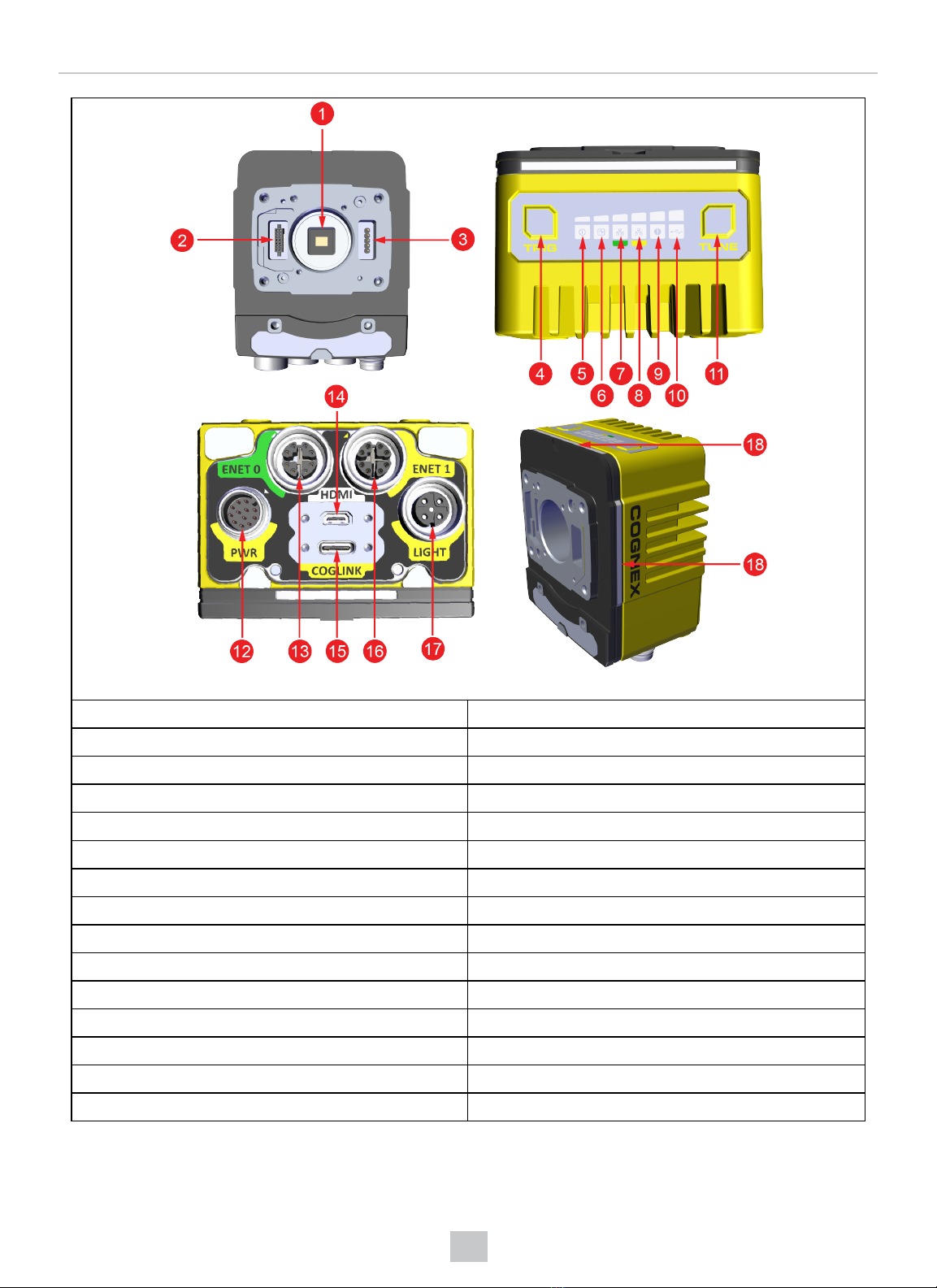

Vision System Layout
Number Description
1 Imager/C-mount flange
2 Integrated Illumination connector
3 Lens connector
11
Setting Up Your In-Sight Vision System

4 Trigger button
5 Power LED indicator
6 Train status LED indicator
7 Ethernet 0 status LED
8 Ethernet 1 status LED
9 Error LED indicator
10 Coglink/USB-C status LED
11 Tune button
12 Power I/O Breakout cable connector
13 Ethernet connector 0
14 Micro-HDMIconnector
15 Coglink/USB-C connector
16 Ethernet connector 1
17 Light connector
18 Indicator lights
12
Setting Up Your In-Sight Vision System

Dimensions
The following sections list dimensions of the vision system.
Note:
lDimensions are in millimeters and are for reference purposes only.
lAll specifications are for reference purposes only and can change without notice.

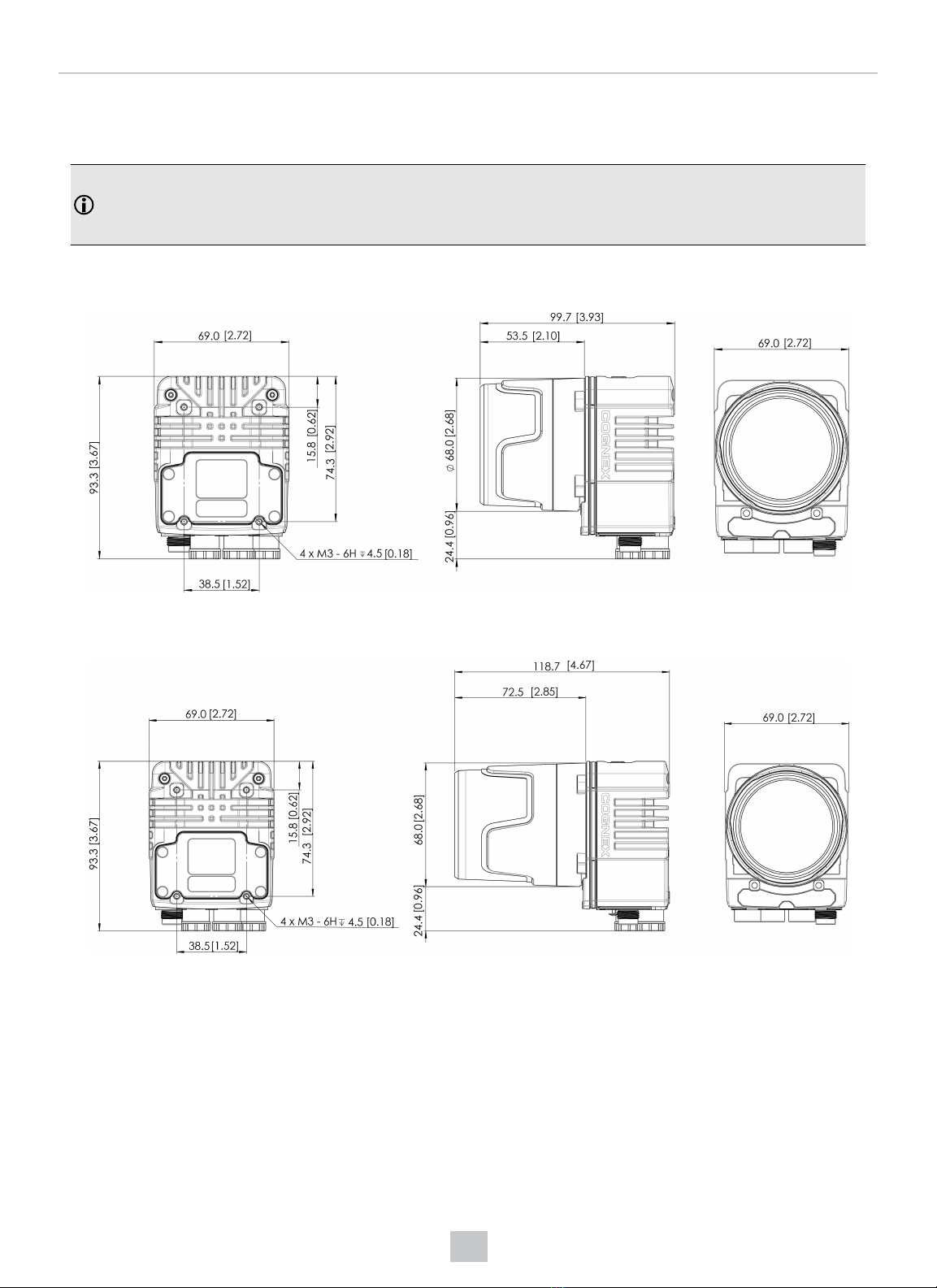

In-Sight 3800 with 45 mm Lens Cover
In-Sight 3800 with 60 mm Lens Cover
13
Setting Up Your In-Sight Vision System

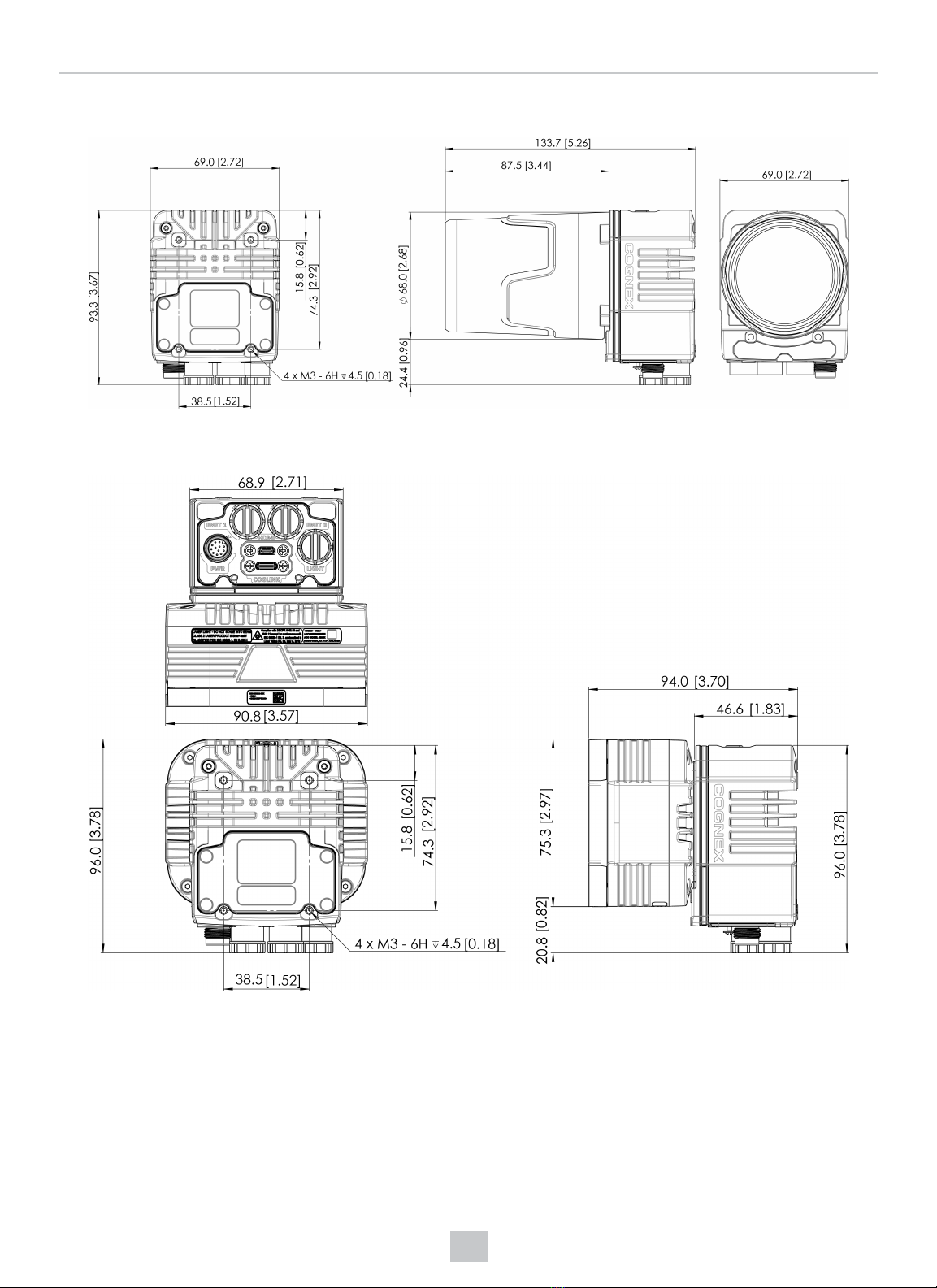

In-Sight 3800 with 75 mm Lens Cover
In-Sight 3800 Multi-Torch with Standard Front Cover
14
Setting Up Your In-Sight Vision System

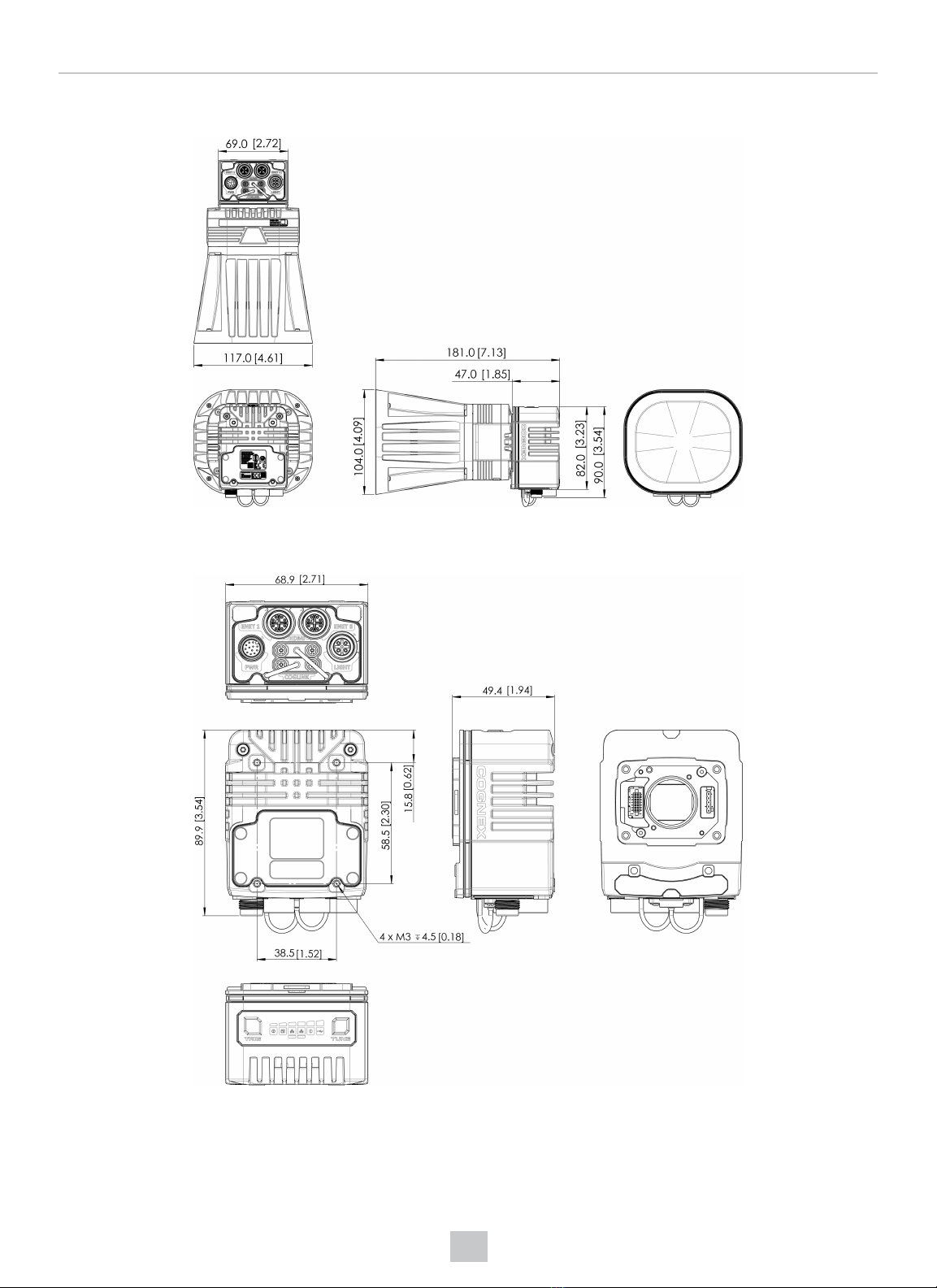

In-Sight 3800 Multi-Torch with Dome Attachment
In-Sight 3800 - Smart Camera Only
15
Setting Up Your In-Sight Vision System

Field of View and Distance
This section provides the Field of View (FoV) values for 1.6 MP, 3 MP, and 5 MP lenses.

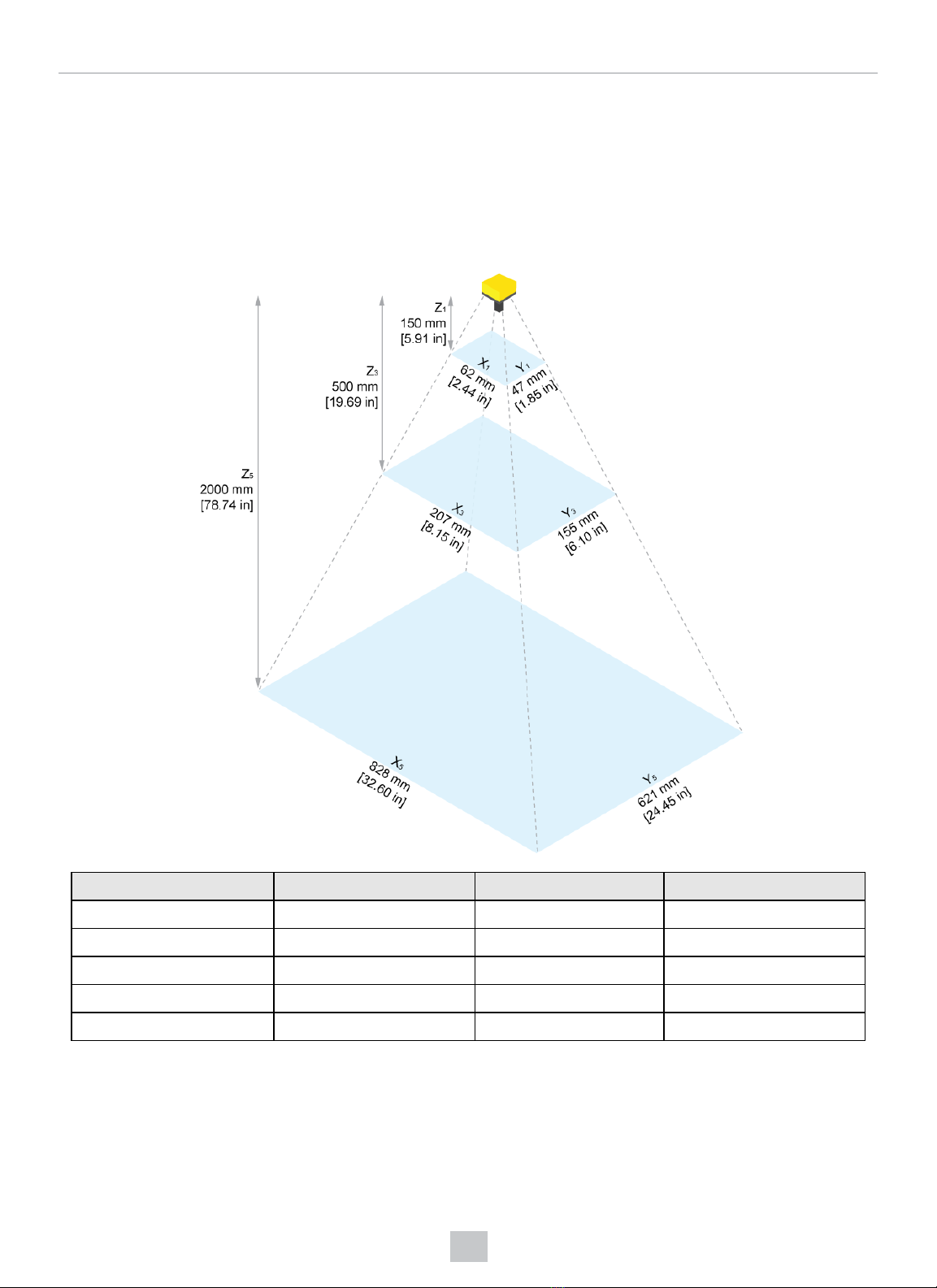

In-Sight 3800 Field of View with 1.6 MP Lens
16 mm Focal Length:
Working Distance Horizontal Values Vertical Values Diagonal Values
150 mm [5.90 in] 62 mm [2.44 in] 47 mm [1.85 in] 78 mm [3.07 in]
200 mm [7.87 in] 83 mm [3.27 in] 62 mm [2.44 in] 104 mm [4.09 in]
500 mm [19.69 in] 207 mm [8.15 in] 155 mm [6.10 in] 259 mm [10.20 in]
1000 mm [39.37 in] 414 mm [16.30 in] 311 mm [12.24 in] 518 mm [20.39 in]
2000 mm [78.74 in] 828 mm [32.60 in] 621 mm [24.45 in] 1035 mm [40.75 in]
16
Setting Up Your In-Sight Vision System

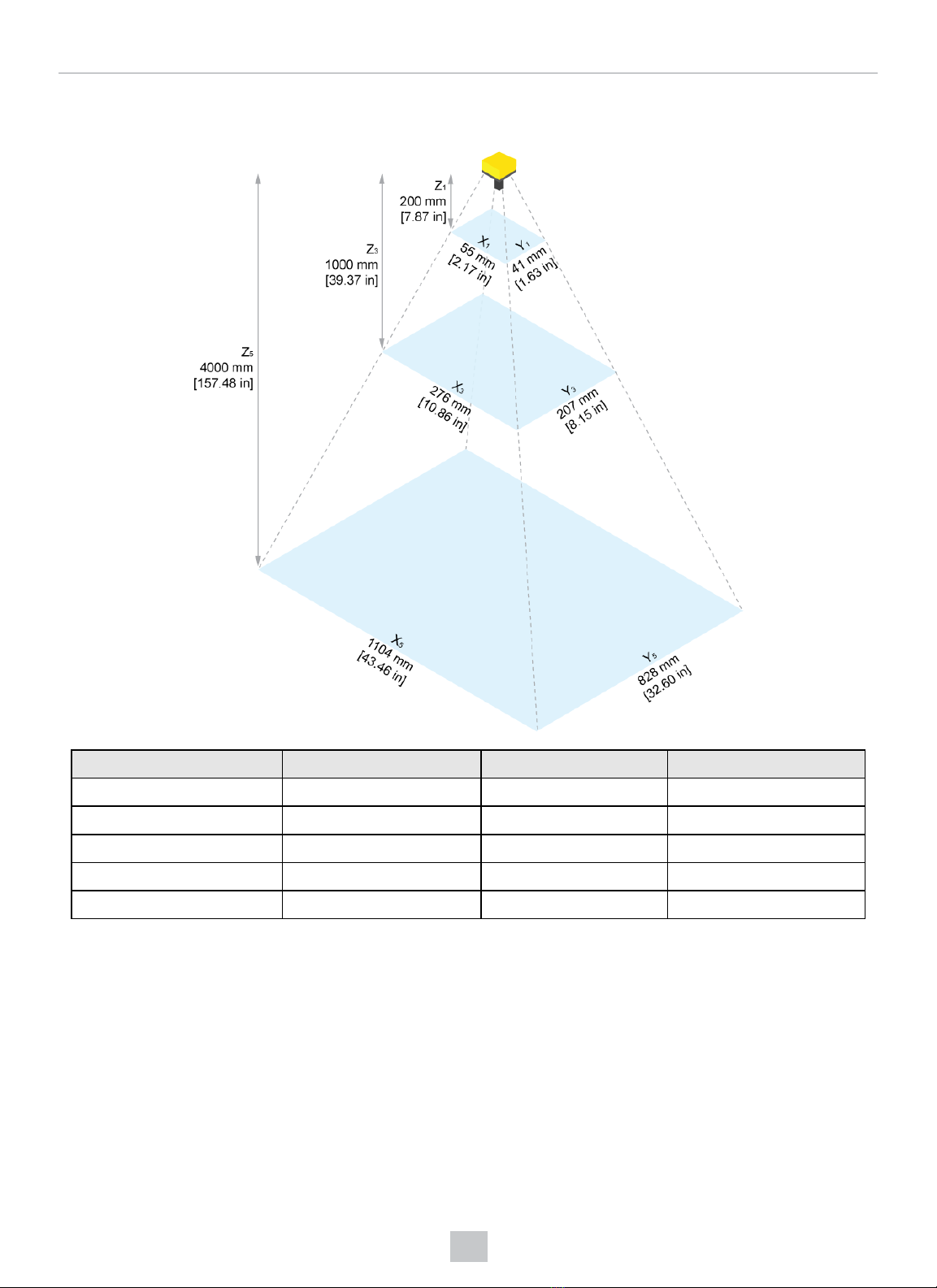

24 mm Focal Length:
Working Distance Horizontal Values Vertical Values Diagonal Values
200 mm [7.87 in] 55 mm [2.17 in] 41 mm [1.63 in] 69 mm [2.72 in]
500 mm [19.69 in] 138 mm [5.43 in] 104 mm [4.10 in] 173 mm [6.81 in]
1000 mm [39.37 in] 276 mm [10.86 in] 207 mm [8.15 in] 345 mm [13.59 in]
2000 mm [78.74 in] 552 mm [21.73 in] 414 mm [16.30 in] 690 mm [27.17 in]
4000 mm [157.48 in] 1104 mm [43.46 in] 828 mm [32.60 in] 1380 mm [54.33 in]
17
Setting Up Your In-Sight Vision System

In-Sight 3800 Field of View with 3 MP Lens
16 mm Focal Length:
Working Distance Horizontal Values Vertical Values Diagonal Values
150 mm [5.90 in] 67 mm [2.64 in] 50 mm [1.97 in] 83 mm [3.27 in]
200 mm [7.87 in] 89 mm [3.50 in] 67 mm [2.64 in] 111 mm [4.37 in]
500 mm [19.69 in] 223 mm [8.78 in] 167 mm [6.57 in] 278 mm [10.94 in]
1000 mm [39.37 in] 445 mm [17.52 in] 333 mm [13.11 in] 579 mm [22.80 in]
2000 mm [78.74 in] 890 mm [35.04 in] 666 mm [26.22 in] 1112 mm [43.78 in]
18
Setting Up Your In-Sight Vision System

24 mm Focal Length:
Working Distance Horizontal Values Vertical Values Diagonal Values
200 mm [7.87 in] 59 mm [2.32 in] 44 mm [1.73 in] 74 mm [2.91 in]
500 mm [19.69 in] 148 mm [5.83 in] 111 mm [4.37 in] 185 mm [7.28 in]
1000 mm [39.37 in] 297 mm [11.69 in] 222 mm [8.74 in] 371 mm [14.60 in]
2000 mm [78.74 in] 593 mm [23.35 in] 444 mm [17.48 in] 741 mm [29.17 in]
4000 mm [157.48 in] 1187 mm [46.73 in] 888 mm [34.96 in] 1482 mm [58.35 in]
19
Setting Up Your In-Sight Vision System

In-Sight 3800 Field of View with 5 MP Lens
16 mm Focal Length:
Working Distance Horizontal Values Vertical Values Diagonal Values
150 mm [5.90 in] 79 mm [3.11 in] 66 mm [2.60 in] 103 mm [4.06 in]
200 mm [7.87 in] 106 mm [4.17 in] 88 mm [3.46 in] 138 mm [5.43 in]
500 mm [19.69 in] 264 mm [10.39 in] 221 mm [8.70 in] 344 mm [13.54 in]
1000 mm [39.37 in] 528 mm [20.79 in] 442 mm [17.40 in] 688 mm [27.09 in]
2000 mm [78.74 in] 1056 mm [41.57 in] 883 mm [34.76 in] 1376 mm [54.17 in]
20
Setting Up Your In-Sight Vision System
