Getting Started
This section provides general information about the DataMan 475 Verifier and the DataMan 475 Verifier accessories and
systems.
About the DataMan 475 Verifier
The DataMan 475 Verifier provides immediate quality assurance benefits:
lSets alerts for when code quality begins to degrade
lGrades up to 20 codes per second
lExports verification results to PLC, database, or FTP server as CSV, HTML, PDF, or custom formats
lImproves processes with detailed analysis and diagnostic information for every code
The DataMan 475 four-quadrant, 45-degree lighting attachment is compliant with the International Organization for
Standardization (ISO) requirements for grading 1D and 2D label-based barcodes. The included calibration card and
robust grading algorithms ensure that the DataMan 475 conforms to ISO and application standards while providing
accurate and repeatable results.
The DataMan 475 verifiers are packaged in a rugged, IP65-rated housing, and provide numerous ease-of-use features,
including one button to trigger and one button to start tuning.
Supportive Documentation
Configuration
This document provides basic information about how to configure and use the DataMan 475 verifier. Additional
information is available through the Windows Start menu or the DataMan Setup Tool Help menu once installing the
DataMan software on your PC:
lThe DataMan Communications and Programming Guide shows you how to integrate your DataMan reader into
your particular automation and factory environment.
Cognex->DataMan Software v x.x.x->Documentation->Communications->DataMan Communications and
Programming Guide
6
Getting Started

lThe DataMan Industrial Protocols Manual provides information on how to integrate DataMan readers into your
particular environment using industrial protocols.
Cognex->DataMan Software v x.x.x->Documentation->Communications->DataMan Industrial Protocols Manual
lThe DataMan Reader Configuration Codes document provides printable 2-D codes that you can use to
configure the DataMan reader.
Cognex->DataMan Software v x.x.x->Documentation->English->Reader Configuration Codes
lThe DataMan 475 Verifier Quick Reference Guide provides essential information about the DataMan 475
Verifier.
Cognex->DataMan Software v x.x.x->Documentation->English->DM475V Series->DM475V Quick Reference
Guide
lThe DataMan Fixed-Mount Readers Reference is a complete online hardware reference for the DataMan fixed-
mount ID readers.
Cognex->DataMan Software v x.x.x->Documentation->English->DM475V ->Fixed-Mount Reference Manual
lThe Setup Tool Reference Manual describes the user interface of the DataMan Setup Tool software.
Cognex->DataMan Software v x.x.x->Documentation->English->Setup Tool Reference Manual
lThe Release Notes list detailed system requirements and additional information about this DataMan software
release.
Cognex->DataMan Software v x.x.x->Documentation->DataMan v x.x.x Release Notes
DataMan 475 Verifier Accessories
Note: For ISO compliant verification, equip the DM475V with LabelLight 45° lighting accessory (DMV-475V-LBL-
0200). Use other light accessories for DM475V for Standards Based Grading only.
Note: The product images below serve illustration purposes only. You can purchase the following components
separately. For a list of options and accessories, contact your local Cognex sales representative.
Cables and Power Supply
Accessory Name Accessory Product
Number
Accessory
Illustration
Power and I/O breakout cable, M12-12,
straight, xx specifies length: 5 m, 10 m, 15 m,
angled, xx specifies length: 5 m, 10 m, 15 m
CCB-PWRIO-xx
CCB-PWRIO-xxR
X-Coded to A-Coded Ethernet cable adapter, 0.5 m CCB-M12X8MS-XCAC
X-Coded to RJ45 Ethernet cable, xx specifies length: 2 m, 5 m, 15
m, 30 m
CCB-84901-2001-xx
I/O extension cable, straight, 5 m CKR-200-CBL-EXT
Connection module (up to 4 cameras including network switch)
xx can be US, EU, UK or JP
DMA-CCM-4X-xx
Connection module (1 camera)
xx can be US, EU, UK or JP
DMA-CCM-1-xx
7
Getting Started

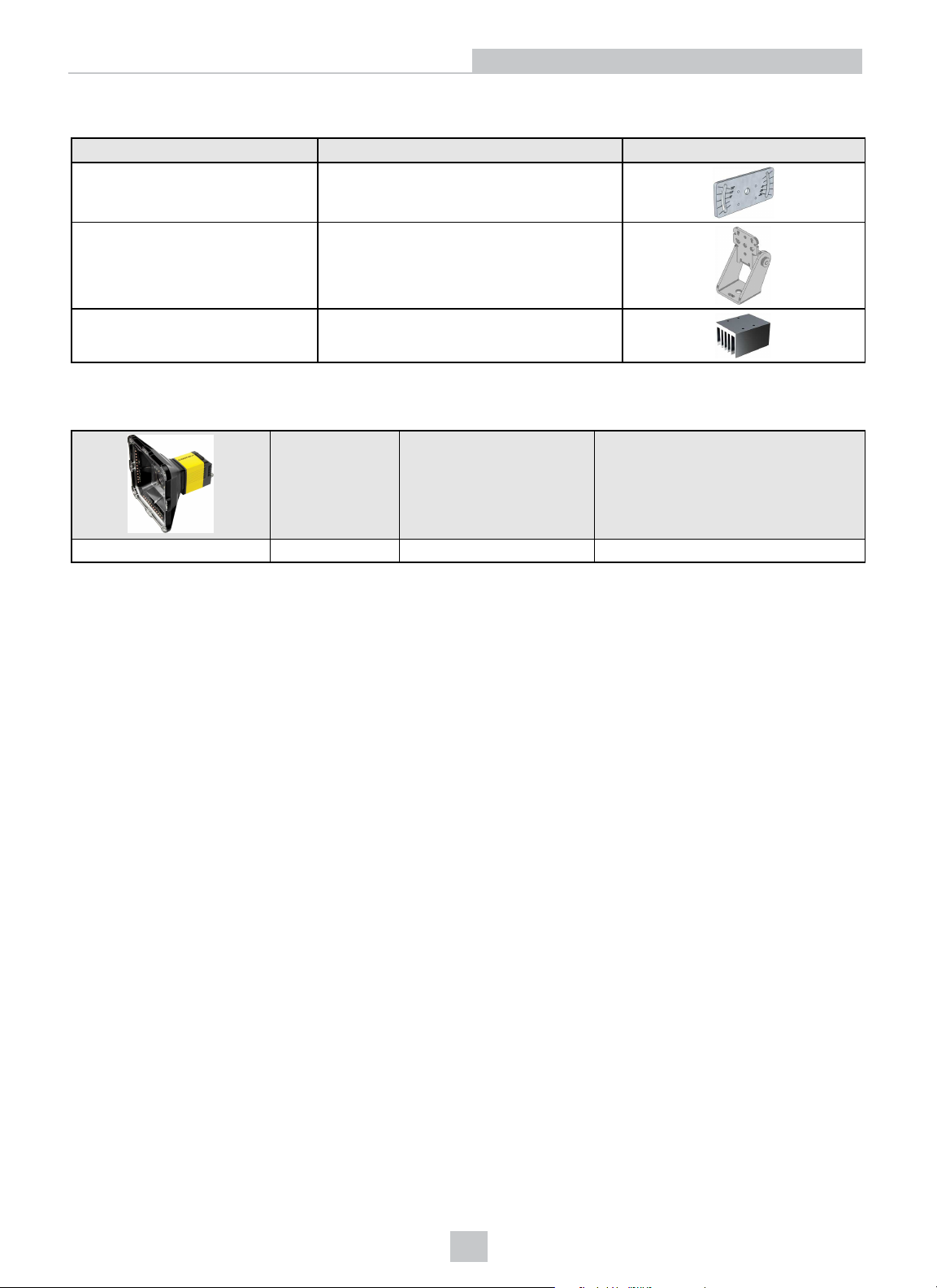

Mounting Brackets
Accessory Name Accessory Product Number Accessory Illustration
Mounting Bracket Kit DMBK-470-MNT
Pivot Mounting Bracket DM100-PIVOTM-00
External Heat Sink DMHS-370-470
DataMan 475 Verifier Systems
Symbologies Light Configurations Verification Standards
DMV-475V-LBL-0200 1D, 2D, DPM 45° LabelLight ISO/IEC15415, 15416, 29158
8
Getting Started

Setting Up Your DataMan 475 Verifier
This section provides information on the physical appearance of the DataMan 475 verifier. It also details the steps of
installing the lenses and filters of the verifier, and gives information on the imager.
Reader Layout
The following image shows the lighting system of the DataMan 475 verifier and the mounting holes underneath the
plastic lighting cover.
1 Lens
2 Label Light attachment
3 Mounting holes (M3 x 5 mm)
4 Indicator light ring
5 Ethernet connection
6 External lighting connection (disabled for verification)
7 Breakout cable connection
The image shows the back cover of the DM475V and the functions of the indicator lights.
1 Trigger button
2 Power
9
Setting Up Your DataMan 475 Verifier

3 Train status
4 Good/bad read
5 Network
6 Error
7 Peak meter
8 Indicator light ring
9 SD card slot
10 Tuning button
11 Ethernet
12 External light control
13 Power, I/O, and RS-232
The table explains the indicator light ring behavior.
Type Signal Color Meaning
Status
Power GREEN Power ON
Train status GREEN Trained
YELLOW Untrained
Error RED Error - check device log
Action
Good/bad read GREEN Good read
RED Bad read
Communication YELLOW Link up
blink Activity
Peak meter - Decode yield, train progress/quality
Dimensions
Note:
lDimensions are in millimeters [inches] and are for reference purposes only.
lAll specifications are for reference purposes only and can change without notice.
Observe the following DataMan 475 verifier dimensions when installing your reader.
10
Setting Up Your DataMan 475 Verifier

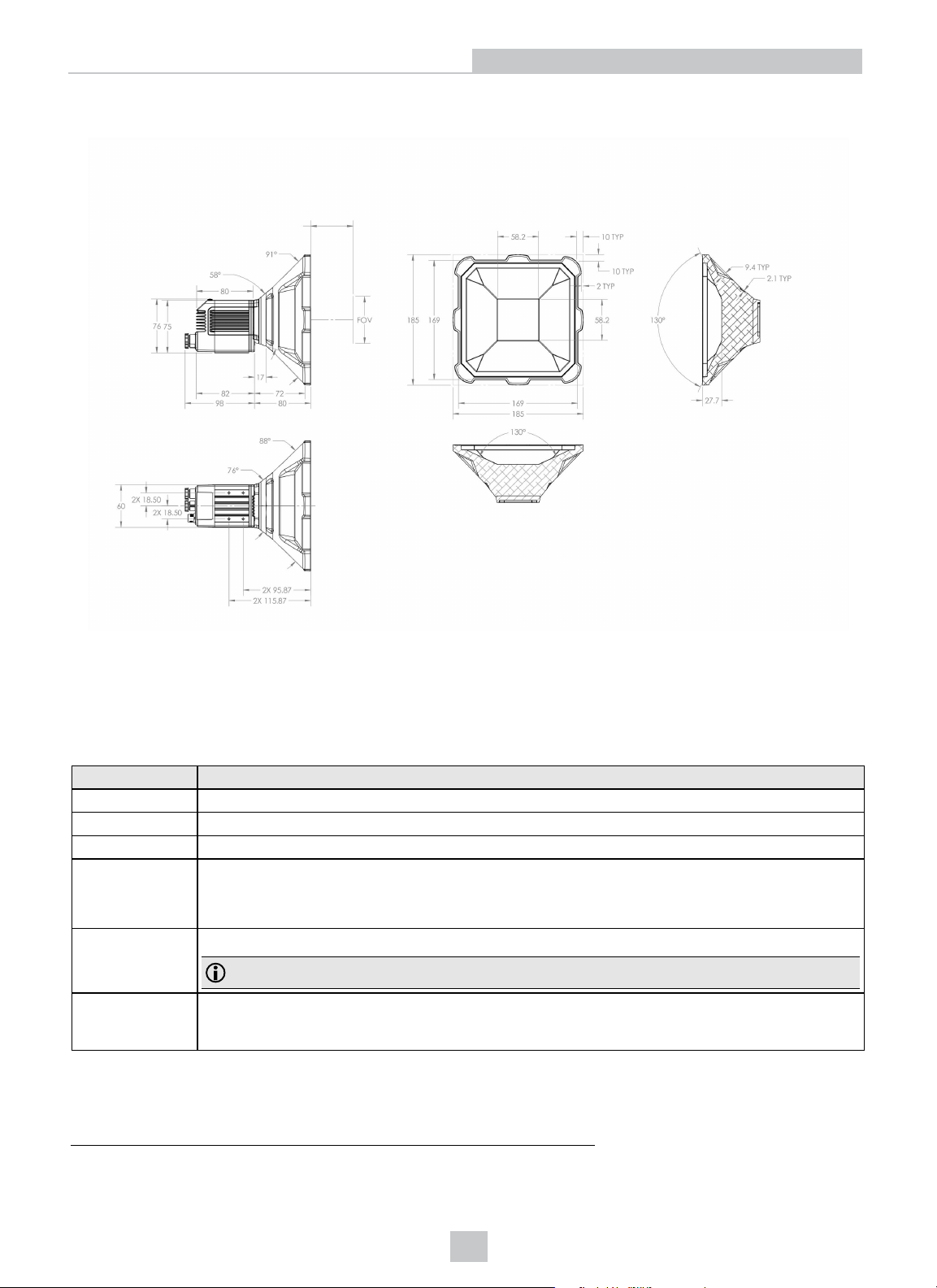

DataMan 475 Verifier
Additional Information
DataMan 475 Verifier Specifications
Specification DataMan 475 Verifier
Weight 945 g
Field of View 80 x 60 mm
Dimensions 185 x 185 x 175 mm
Power
Consumption
l24 VDC ±10%, 1.5 A maximum (Label Light, 36 Wpeak power consumption)
Supplied by LPS or NEC class 2 only.
Light Connector 0.4 A
Note: The Light Connector is disabled while the Label Light accessory is in place.
Case
Temperature1
0 °C - 57 °C (32 °F - 134.6 °F)
1Additional cooling measures may be required to keep the case temperature from exceeding 50 °C. Examples of such measures include: extra
heat sinking and/or air movement.
11
Setting Up Your DataMan 475 Verifier

Specification DataMan 475 Verifier
Operating
Temperature10 °C - 40 °C (32 °F - 104 °F)
Storage
Temperature
-20 °C - 80 °C (-4 °F - 176 °F)
Humidity < 95% non-condensing
Environmental IP65 with cables attached.
Shock (Shipping
and Storage)
IEC 60068-2-27: 18 shocks (3 shocks in each polarity in each (X, Y, Z) axis) 80 Gs (800 m/s2at 11
ms, half-sinusoidal) with cables or cable plugs and appropriate lens cover attached.
Vibration
(Shipping and
Storage)
IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Hz at
100 m/s2/ 15 mm) with cables or cable plugs and appropriate lens cover attached.
Supported
Symbologies
1D codes: Codabar, Code 39, Code 128, and Code 93, Interleaved 2 of 5, UPC/EAN/JAN
2D codes: Data Matrix (ECC 200), QR Code, microQR Code
Stacked codes: PDF 417
Discrete I/O
operating limits HS Output 0,1,2,3 IMAX 50 mA
RMIN @ 12 VDC 200 Ω
Input 0 (Trigger) VIH ±15 — ± 28 V
Input 1,2,3 VIL 0 — ± 5 V
ITYP @ 12 VDC 2.0 mA
@ 24 VDC 4.2 mA
Ethernet Speed 10/100/1000
DataMan 475 Series Verifier Imager Specifications
Specification DataMan 475 Imager
Image Sensor 2/3 inch CMOS, global shutter
Image Sensor
Properties
8.8 mm x 6.6 mm (H x V); 3.45 µm square pixels
Image Resolution
(pixels)
2448 x 2048
Electronic Shutter
Speed
Fixed at 30 µs for ISO 15415 compliance. Auto adjusted exposure for ISO 29158 (AIM-DPM)
compliance.
Note: If the user adjusts the shutter speed, there is no guarantee that the verifier retains
compliance.
Image Acquisition at
Full Resolution
37 Hz for imager without lighting.
Note: Max. acquisition speed with 45 lighting degree accessory enabled is significantly
less. Practical acquisition rate is application dependent.
LED Wavelengths
The following table shows LED types and the related peak wavelengths:
LED λ [nm]
RED 660
1In situations where the operating temperature exceeds 40 °C, an external heat sink is required.
12
Setting Up Your DataMan 475 Verifier

Calibration
Calibration informs the verifier about the grey scale levels and pixel dimensions of the reader. This way, the verifier can
report Symbol Contrast and X-dimension in true physical units.
For ISO compliant barcode verification, make sure that the verifier is in a calibrated state.
For Standards Based Grading, the verifier will not report all quality parameters without calibration.
In an uncalibrated state the verifier does not report:
lAperture and Symbol Contrast (SC) for ISO/IEC 15415/15416 applications
lMinimum Reflectance (MR) for ISO/IEC TR29158 (AIM-DPM) applications
When the verifier is used in an uncalibrated state, neither the aperture nor Symbol Contrast (SC) for ISO/IEC
15415/15416 applications and Minimum Reflectance (MR) for ISO/IEC TR29158 (AIM-DPM) applications is reported.
Note: In an uncalibrated state, the verifier does not report aperture value, but uses the default aperture selection:
Auto 80%.
To calibrate the DataMan 475:
1. Click the Calibration icon in the top left corner in the TruCheck Verification window.
2. Enter the Rmax and Rmin values from the calibration card.
3. Click Center Target.
13
Setting Up Your DataMan 475 Verifier

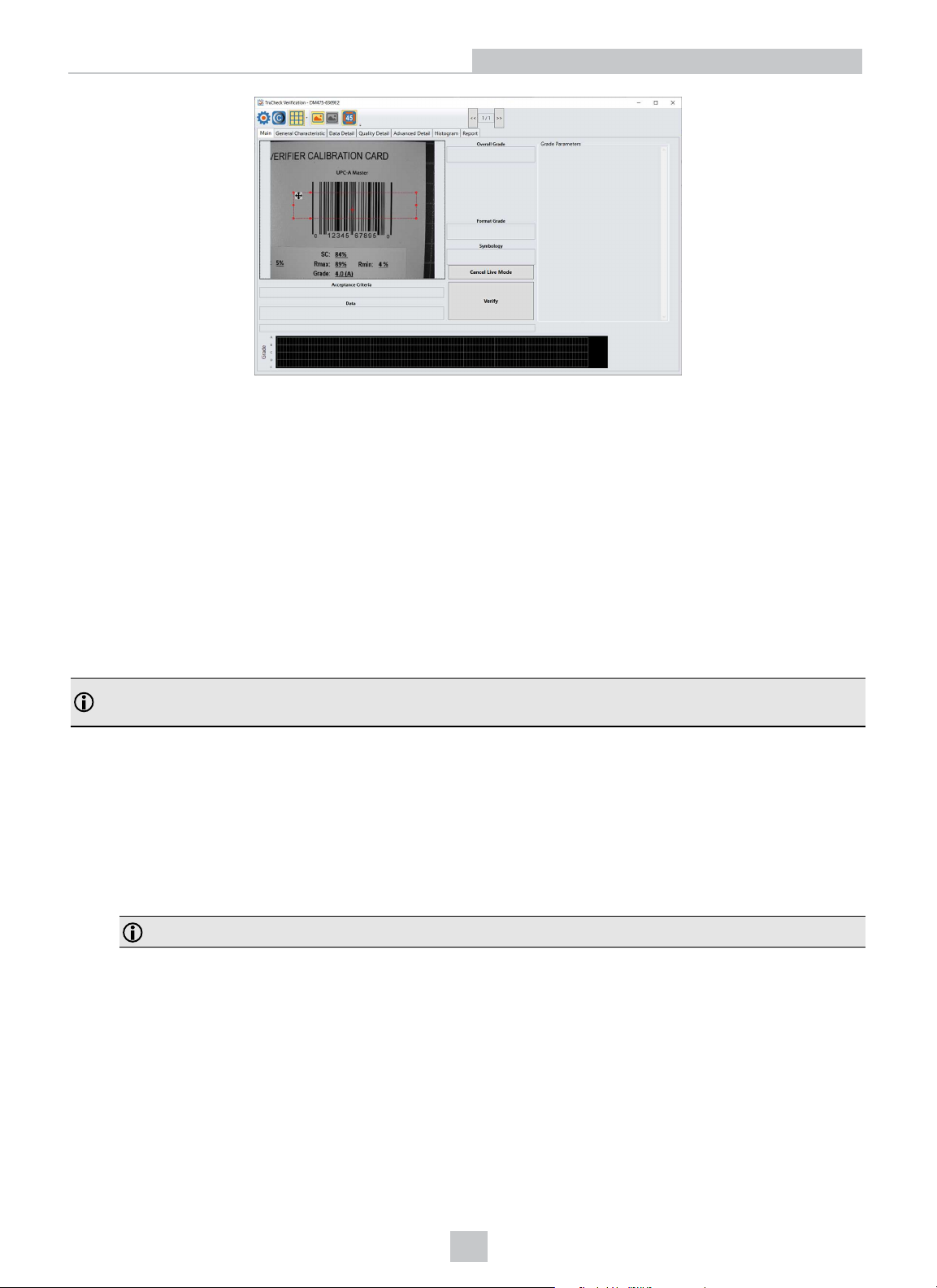

4. A live image appears in the Calibration screen. Center the verifier over the Master Symbol on the Data Matrix
symbol of your traceable calibration card.
5. Click Start Calibration.
14
Setting Up Your DataMan 475 Verifier

6. The verifier goes through a series of lighting calibrations. After a successful calibration, the Calibration Complete
window pops up:
Tip: Click Discard Calibration to remove all calibration values and return the verifier to an uncalibrated
state.
Calibrate your verifier as needed to ensure accurate verification results:
lMonthly calibration recommended:for laboratory or QA environment, which is free of dust, vibration, bright
sunlight or oil particulates
lWeekly calibration is recommended: for production environments, where contaminants exist
lCustom frequency calibration recommended: where internal quality guidelines demand more frequent
calibration
Note: Store the calibration card away from direct light where contaminants do not compromise the
calibration symbol.
Tip: Enable a calibration reminder to alert you about the next scheduled calibration. After enabling the
calibration reminder, set the number of days for prompting a calibration reminder.
15
Setting Up Your DataMan 475 Verifier

User Interface
This section describes the settings and options of the TruCheck Verification window.
Toolbar
Icon Function
Settings: Opens up the settings menu allowing changes in the Application Settings, the Reporting
Settings and the User Information menu. For more information, see Settings on page28.
Calibration: Opens up the calibration window to calibrate the unit. For more information, see
Calibration on page13.
Grid & Modulation Circles: When selected, this applies a grid and/or modulation circle to the image
after verification. Use the drop-down menu to apply a Real Grid, an Ideal Grid, or both. Select one of
the options to either show Mod Circles Filled or Mod Circles Outlined.
Original Image: Shows the image as acquired by imager before post processing.
45° illumination: Enables 45° illumination. 45° four-sided illumination is used primarily for labels.
This illumination is either not reported or reported as 45Q. (If illumination is not reported, it is
assumed to be 45Q).
16
User Interface

UsingYour DataMan 475 Verifier
Verifying a 2D Barcode
To verify a Data Matrix code or a QR code in the TruCheck Verification Window:
1. Navigate to the Main tab.
2. Click Go Live and center your symbol in the field of view, or press and release the trigger button to Go Live.
Note: After selecting Go Live, the button changes to Verify.
3. Draw a selection region around the code to be verified, if necessary.
Note: The region must be drawn around the outside perimeter of the code including quiet zones. More
information on properly defining regions is explained in Selecting Regions on page18.
17
UsingYour DataMan 475 Verifier

4. Click Verify, or press and release the trigger button on the verifier to begin verification.

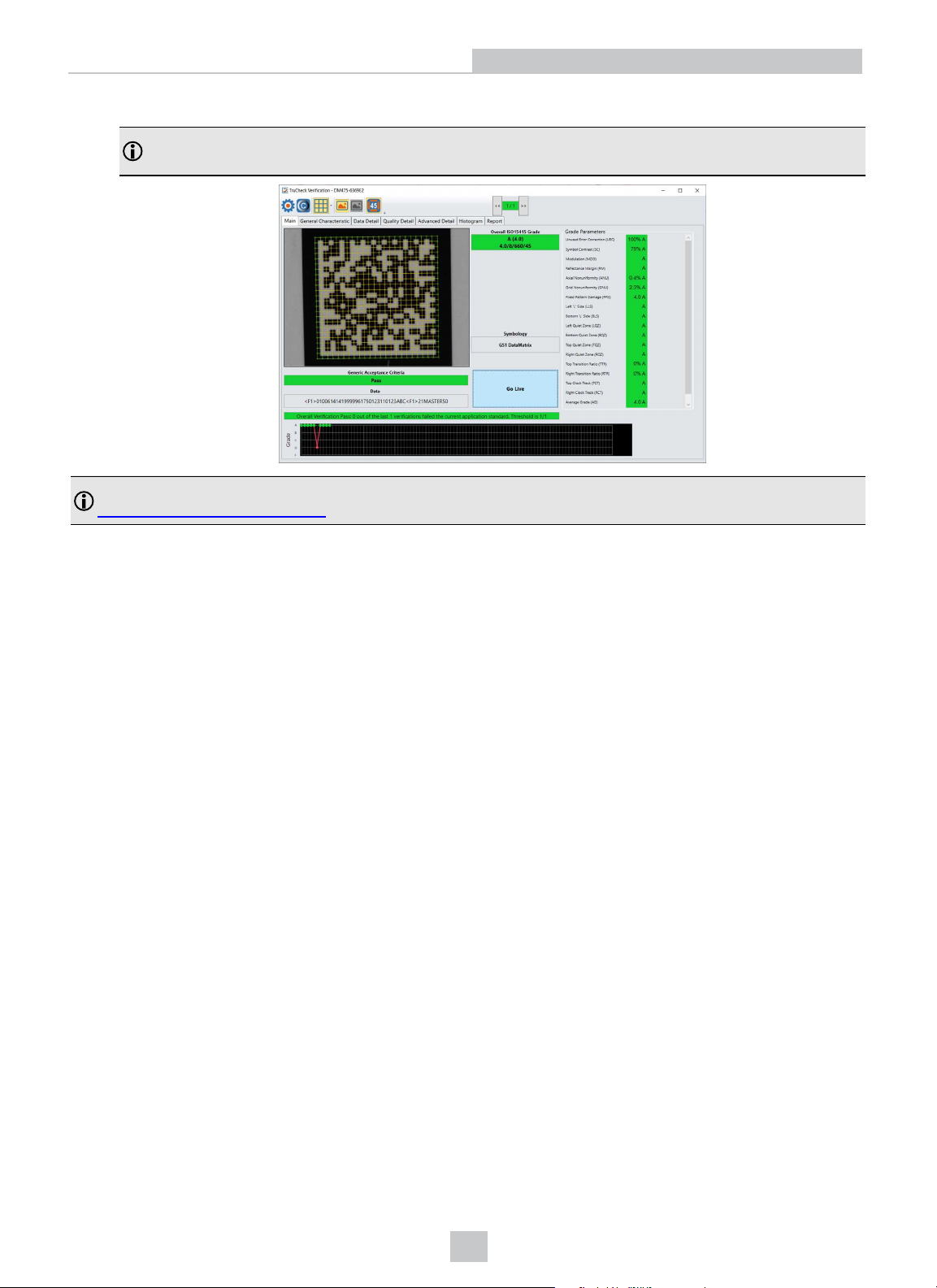

Note: The following screenshot shows a successful 2D barcode verification. Additional details in the
TruCheck window are displayed depending on grading and application standards.
Note: Use the tool bar buttons and tabs on the screen for in-depth analysis of codes. For more information, see
Examining the Results on page21.
Selecting Regions
Requirements for specifying regions on the image are the following:
lThe code is off-center.
lTo speed up the verification process on verifiers with large fields of view. Defining a small sampling area
increases the speed.
lTo restrict a region for image brightness adjustments when grading according to AIM-DPM (ISO/IEC 29158).
lTo specify a barcode for verification when more than one barcode is present in the field of view.
If you do not define a region, the whole image is used for verification.
To define a region:
1. Position your cursor where you want the region to start, click and drag.
2. Release the button when you are done.
For Data Matrix symbols and QR Codes, draw the region around the outside perimeter including quiet zones of the code
to capture the entire finder pattern within the selection to properly grade the code.
When verifying a 1D symbol, select a region that includes the full width of the barcode including both quiet zones:
18
UsingYour DataMan 475 Verifier

Standards Based Grading
Standards based grading is an option in the DM475V that uses true verification algorithms to produce well-defined,
consistent results from the image of a code captured by a barcode reader in a real-world setup. In practice, the setup
needs to be as close as possible to a fully ISO compliant verifier – lighting angle in particular. The measurements are
calculated the same way as with a verifier, so the closer the setup is to a true verifier, the closer the results are to true
verification. With the same lighting setup, the measurements between standards based grading and verification
converge. This method is called standards based grading because as the quality of a code changes during a production
run, grades change in about the same way as with a verifier. Standards based grading is the closest way to achieve
verification results without having to conform to specific lighting angles, distances, or every ISO standard parameter.
For Standards Based Grading, the verifier can be used without calibration but not all quality parameters are reported.
When the verifier is used in an uncalibrated state, neither the aperture nor Symbol Contrast (SC) for ISO/IEC
15415/15416 applications and Minimum Reflectance (MR) for ISO/IEC TR29158 (AIM-DPM) applications is reported.
Note: In an uncalibrated state, the verifier does not report aperture value, but uses the default aperture selection:
Auto 80%.
Verifications of Multiple Symbols
To enable multiple barcode verification feature, complete the steps below in DataMan Setup Tool before initiating
verification in the TruCheck window.
1. Open DataMan Setup Tool.
2. To connect to the DM475 Verifier double click on the icon in the automatically generated list on the Start up
page.
Note: Refer to DataMan Setup Tool Reference manuals if you have trouble connecting.
3. Select Code Details from the Application Steps in Setup Tool.
19
UsingYour DataMan 475 Verifier

4. Under the Basic tab, change the Number of Codes field to a value greater than 1 to see the expanded list of
options available.
5. Select the Number of Codes to be verified during a single trigger.
6. For Should partial result be reported as a good-read? select No.
7. Select the quantity of each symbology type to be verified in a single trigger under Maximum number of codes
per symbology you need to find.
8. Select the appropriate Sorting Priority.
9. Open the TruCheck window and initiate a verification.
For multiple verifications, select either a single region to identify all symbols for verification, or the entire field of
view.
See the individual results in the tabs with the help of the arrows at the top of the TruCheck verification window, following
the successful verification of multiple symbols. If all verifications pass, the box is green. If any verification fails, the box is
red.
Saved Code Quality reports include an appended report containing individual result for each verified barcode.
20
UsingYour DataMan 475 Verifier
