Cold Jet SDI Select 60 User manual

OM.SS60.20141016
OPERATOR MANUAL
SDI Select™60
OPERATOR MANUAL
Original Instructions
September 2018

OM.SS60.20141016
Copyright © 2018 Cold Jet, LLC
All rights reserved. Printed in the USA.
Due to continued product development this information may change without notice. The information and intellectual
property contained herein is confidential between Cold Jet and the client and remains the exclusive property of Cold Jet. If
you find any problems in the documentation, please report them to us in writing. Cold Jet does not warrant that this
document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording or otherwise without the prior written permission of Cold Jet.
This manual reflects the product configuration as was current at the time of initial prototypes. An item’s display in this
catalog does not guarantee the item’s availability at any time in the future. Images shown are for representation purposes
only. Products may vary from the images displayed. Cold Jet is not liable for typographical errors or changes to
specifications presented.

OM.SS60.20141016

OM.SS60.20141016

OM.SS60.20141016
CONTENTS
CONTENTS 1
SAFETY GUIDELINES 1
General Safety Requirements 1
Electrostatic Discharge 2
CO2Safety 2
COMPONENT GUIDE 3
Specifications 3
Unit Operation 9
Maintenance 15
Troubleshooting 16
SDI Select 60 Blasts Air But Not Dry Ice 18
CONTACTING COLD JET 19
APPENDIX A: BLAST AIR QUALITY 21
Plant Air (Central Compressed Air System) 21
Using Portable Air (85 - 500 hp / 64 - 373 kw) 22
APPENDIX B: TRANSFORMER CONFIGURATION 23
High Voltage Connection: 23
Normal / Medium Voltage Connection: 24
SYMBOL GLOSSARY 25
Yellow Warning Triangle/Black Graphical Symbols 26
Blue Mandatory Action Circle/White Graphical Symbols 27
Red Circle-With-Slash/Black Graphical Symbols 28
Other Symbols 28
WARRANTY 29
SCHEMATICS 31
INDEX 33

1
OM.SS60.20141016
SECTION 1
SAFETY GUIDELINES
The SDI Select™ 60 is safe and easy to operate; however, certain precautions must be followed
during its use. To understand all the necessary precautions, you must read the entire SDI Select 60
manual before operating the unit.
The SDI Select 60 should only be operated by authorized and trained personnel.
IN THIS SECTION
General Safety Requirements. . . . . . . 1
Electrostatic Discharge. . . . . . . . . . . 2
CO2Safety. . . . . . . . . . . . . . . . . . . . . 2
GENERAL SAFETY REQUIREMENTS
•Always wear personal protective equipment including safety glasses, gloves, and 32+NRR ear
plugs and ear muffs.
•Always operate the SDI Select 60 with protective clothing to cover all exposed skin.
•Always direct the blast stream in a safe direction. Never direct the blast stream at yourself or others.
•Never use a wire tie to hold the applicator trigger in the ON position. Doing so violates safety
regulations, can damage the applicator and voids warranty coverage of the applicator.
•Always turn source air OFF and bleed down the system before disconnecting the air supply hose.
•Always turn source air OFF and remove the applicator control line before removing the blast hose.
•Always follow all of the governing codes of your local/national body.
•Always ensure the finger guard over the feeder exhaust port is installed. The finger guard on the
feeder protects from a potential personal injury site located inside the SDI Select 60.
•Always ensure all panels are installed before operating.
•Only operate the SDI Select 60 at or below the recommended hose or blasting unit pressure levels.
•Always ensure the blast hose is free of kinks.
•Always ensure that both ends of all hoses are properly attached and tightened before
pressurizing any hoses.
•Always electrostatic ground the material being cleaned.
•Always ensure hoses and tubes are free of nicks and gouges.
•Always repair any damage to the SDI Select 60 before attempting to start or operate the unit.
•Always ensure the ventilation holes are free of obstruction.
•Always wear gloves to protect hands from exposure to cryogenic temperatures and sharp blade
surfaces.

SDI SELECT 60 USER MANUAL
2
OM.SS60.20141016
ELECTROSTATIC DISCHARGE
Static discharge may ignite flammables.
Electrostatic discharge can be hazardous to the operator and the equipment. The static charge of
CO2varies with the amount of dry ice and humidity present.
GROUND THE MATERIAL BEING CLEANED
Always ground the material being cleaned to assure safe operation while blasting.
1. Know your environment.
• Electrostatic buildup changes as humidity levels change and will vary by location.
Electrostatic discharge is higher at low humidity levels and occurs most often during
winter.
2. Attach static bond cable.
• To minimize electrostatic buildup between the part being cleaned and the
applicator, attach the static bond cable between the target surface and the blast hose
connection or to an electrically conductive supporting structure. Use a conductivity
tester for confirmation.
3. Plug into a grounded power outlet.
• This step is critical for electrostatic dissipation. If the ground is not connected, a
charge may build up on the unit or the applicator.
CO2SAFETY
• The SDI Select 60 uses solid state carbon dioxide (CO2). CO2is nontoxic, non-corrosive and
nonconductive. It is approved by the FDA and USDA.
• Solid CO2is extremely cold (-109 °F/-78 °C). Always protect skin from direct contact with
CO2pellets, nuggets or slices. Direct contact with skin or eyes quickly causes tissue damage.
• Vapor CO2can displace the oxygen from any breathing environment rapidly. Only operate
the SDI Select 60 with a proper ventilation system that maintains the concentration levels of
the governing codes of your local/national body.
• Always review and observe all safety guidelines when using materials that displace oxygen.
• All operators and supervisors should familiarize themselves with the literature on the
physiological characteristics of CO2before using the SDI Select 60. The information can be
obtained from the governing codes of your local/national body.
• Always use a CO2monitoring device when using the SDI Select 60 in a confined space.

3
OM.SS60.20141016
SECTION 2
COMPONENT GUIDE
The SDI Select 60 is designed with you in mind. Its unrivaled innovation and unmatched
performance, based on years of customer input, saves you real time and real money. The SDI Select
60 is simply the most powerful and efficient dry ice blast cleaning system ever made. It is blazingly
fast, remarkably economical, and environmentally friendly.
IN THIS SECTION
Specifications. . . . . . . . . . . . . . . 3
Unit Operation. . . . . . . . . . . 9
Maintenance. . . . . . . . . . . 15
Troubleshooting. . . . 16
SPECIFICATIONS
Weight (empty)
334 lbs (161 kg) / 365 lbs (166 kg) with optional pressure
regulator
Dimensions
28 x 24 x 43 in (72 x 61 x 110 cm)
Dry Ice Capacity
60 lbs (27.2 kg) – Dry Ice Block
50 lbs (22.6 kg) – Dry Ice Pellets
Trough/Hopper is 12 x 10 x 12 in (300 x 250 x 300 mm)
Variable Feed Rate
0 - 6 lbs/min (0 - 2.7 kg/min)
Power Requirements
100 - 140 VAC 1 . 50/60 Hz 8 A
200 - 240 VAC 1 . 50/60 Hz 4 A
Feeder Drive
1 HP, 3 Phase AC Variable Speed Motor
Blast Pressure Range
20 - 250 PSI ( 1.4 – 17.2 bar) with optional pressure regulator
Supply Pressure Range
65 - 250 PSI (4.5 - 17.2 bar)
REQUIRED COMPRESSED AIRFLOW VOLUME DEPENDS ON THE NOZZLE BEING
USED.
MOST COLD JET NOZZLES NEED 50 - 180 CFM (1.4 - 5.1 M3/MIN) AT 80 PSI (5.5
BAR) BLAST PRESSURE.

SDI SELECT 60 USER MANUAL
4
OM.SS60.20141016
FRONT VIEW
dry ice pellet / nugget loading lid
whip check cable
dry ice block loading door bleed valve
air supply brakes

COMPONENT GUIDE
5
OM.SS60.20141016

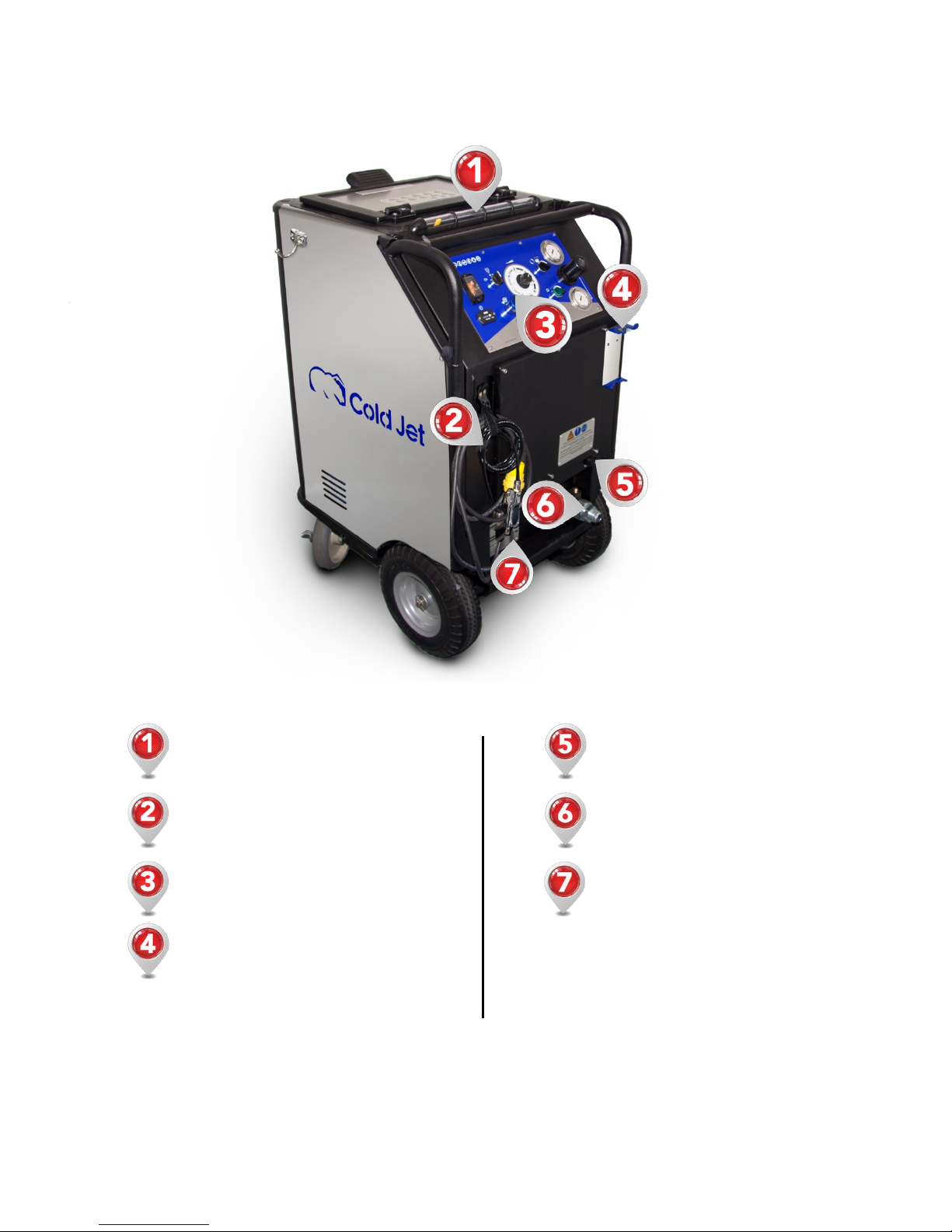

REAR VIEW
dry ice level indicator
blast cable connector
power cord blast hose connector
control panel (see p.6) compressed air nozzle
nozzle hanger

SDI SELECT 60 USER MANUAL
6
OM.SS60.20141016

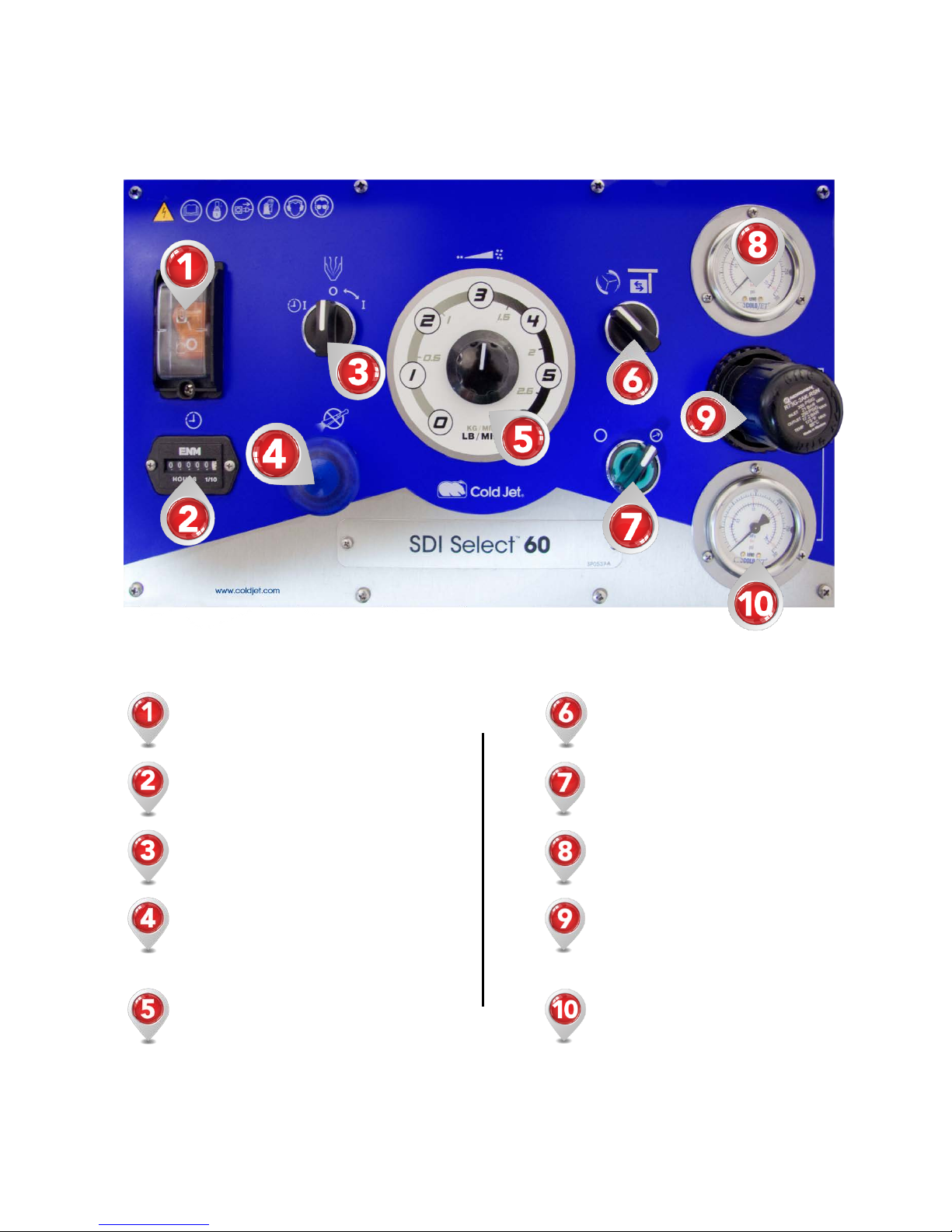

CONTROL PANEL
power switch
pusher plate retract switch
hour meter
regulator bypass switch
(optional)
agitation control switch incoming air pressure
disable blast button
blast pressure control
(optional)
dry ice feed rate control
regulated air pressure
(optional)

COMPONENT GUIDE
7
OM.SS60.20141016

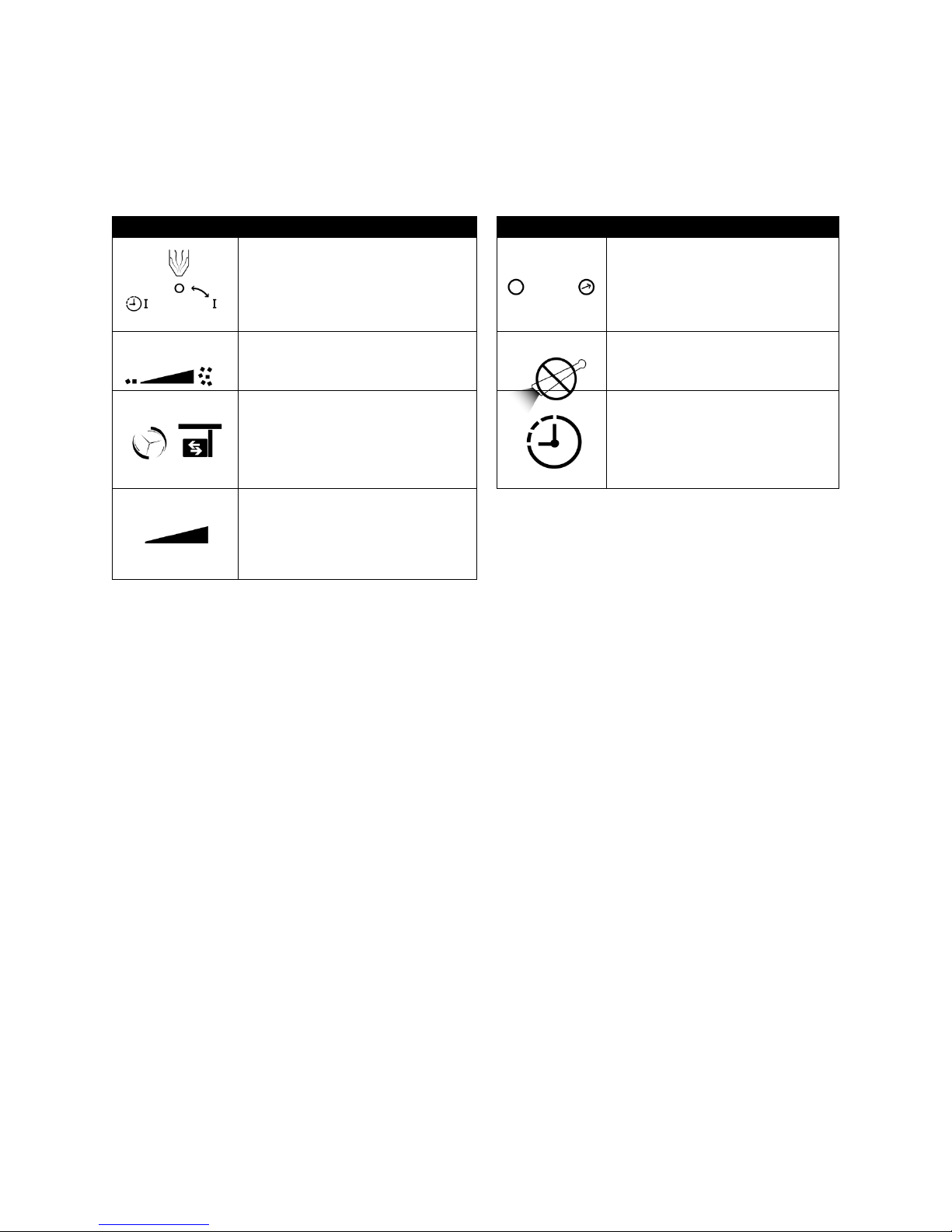

Symbol
Meaning
Symbol
Meaning
agitation control –
intermittent/off/on
regulator bypass –
bypass/regulated
variable dry ice feed rate disable blast
pusher plate retract
hour meter
regulated air pressure

SDI SELECT 60 USER MANUAL
8
OM.SS60.20141016
BLAST APPLICATOR
NOTE:THE BLAST APPLICATOR PICTURED INCLUDES AN OPTIONAL LIGHT.
air + ice air only on off
LED light switch (optional) nozzle retention collar
applicator safety switch blast hose connector
air / ice control
trigger
blast cable connection
LED light (optional)

COMPONENT GUIDE
9
OM.SS60.20141016
UNIT OPERATION
START UP
Read all safety instructions before operation and follow them closely (p. 1-2)
Always wear proper personal protective equipment including eye protection to guard against flying
objects, ear protection to prevent hearing loss and gloves to protect hands from exposure to
cryogenic temperatures and sharp blade surfaces.
If an air drop is seldom used or is being used with the SDI Select 60 for the first time, water and rust
may have collected in the line. Before connecting to the air supply, purge the line to prevent
contamination of the SDI Select 60.
Before loading dry ice, clean excess moisture from the trough area with compressed air nozzle.
Before starting the SDI Select 60, verify the following parameters:
• The air supply pipe is at least 1" (25 mm) in diameter.
• The air pressure does not exceed the blast hose and blast system pressure ratings.
• The incoming air temperature does not exceed 122 ºF (50 ºC).
• The power switch, bleed valve and applicator safety switch are in the OFF (O) position.
• The dry ice trough is dry, clean and free of debris (use compressed air nozzle if it is not).
To start the SDI Select 60:
1. Securely attach the blast hose and control cable to the SDI Select 60.
2. Securely attach the blast applicator to the blast hose and control cable.
3. Securely attach a nozzle to the blast applicator.
4. Securely attach the air supply hose to the SDI Select 60 and fully extend hose whip check.
5. Securely attach the static bonding cable to the target surface and to an electrically
conductive supporting structure or the blast hose.
6. Turn on the air compressor or open air supply valve and allow the air supply hose to
pressurize.
7. Plug the power cord into an electrical outlet.
• If an extension cord is necessary, it must comply with the power requirements of
the SDI Select 60 and all governing electrical codes. The SDI Select 60's data plate
indicates the operating voltage and amperage range.
8. Move the power switch to the ON (I) position.
9. Release disable blast button.
• The light will go off.
10. Move the bleed valve to the ON (I) position to purge water out of the lines.
11. Move the bleed valve to the OFF (O) position.
12. Move the feed rate control to maximum.
13. Move the applicator blast mode switch to the “Air Only” position.
14. Point the nozzle in a safe direction and squeeze the trigger to purge the system.

SDI SELECT 60 USER MANUAL
10
OM.SS60.20141016
• The SDI Select 60 must be purged to ensure it is free of moisture to avoid forming a
clog between the feeder and shaver.
16. Set the dry ice feed rate and blast pressure to the desired setting.
17. Move the applicator blast switch to the “Off” position.
18. Verify the pusher plate is pushed back to the end of the trough away from shaver wheel.
19. Place dry ice into the trough. The SDI Select 60 is designed to use any type of dry ice,
including feeding full 3mm pellets (see p. 13).
•If using ice blocks/slices, load through the dry ice
block loading door, placing dry ice against the
rotary knives.
•For best performance, position smaller blocks/slices as shown in the following image when
stacking them in the trough.
•If using pellets/nuggets, load through the dry ice pellet/nugget
loading lid. Fill to the top of the blade wheel.
•Do not overfill the SDI Select 60 (fill only to the top
of pusher plate).
When using pellets/nuggets in extreme humidity, set pusher plate to the middle of the trough. In
order to achieve this, first ensure you have an empty trough. Next, pull the trigger to move the
pusher plate to the shaver disc, open the lid and manually slide the pusher plate to the middle of the
trough.

COMPONENT GUIDE
11
OM.SS60.20141016
20. Close the dry ice loading block door or the dry ice pellet/nugget loading lid.
21. Move the applicator blast mode switch to the “Air and Ice” position.
22. Squeeze the blast applicator trigger to blast.
ADJUST THE AGITATION CONTROL
The SDI Select 60's design helps keep dry ice from forming a clog in the trough and between the
feeder and the shaver by isolating the trough, adding thumper agitation and using bursts of air in
the feeder chamber to break up any dry ice clumps that may begin to form during operation.
The bursts of air are controlled by the agitation control switch located on the Control Panel. The
switch can be set to automatic, manual or off.
The agitation control switch's center position is OFF (O). Cold Jet recommends using this setting
unless clogging is a frequent problem.
The agitation control switch's left position is AUTOMATIC. In the automatic setting, thumper
agitation will actuate and there will be a short blast of air in the feeder chamber every time the
blast applicator trigger is pulled and every 5-7 seconds afterwards. This setting is useful in high
humidity environments where the dry ice particles want to cling together.
The agitation control switch's right position is MANUAL (I). The SDI Select 60 will blast air into the
feeder chamber and the thumper agitation will actuate as long as the switch is held in this position.
The manual setting can be used as necessary to ensure the trough and feeder chamber remain free
and clear of any buildup that may form during use. Cold Jet recommends using the manual setting
occasionally during normal use.
ADJUST THE BLAST PRESSURE
The blast pressure regulation is an optional feature that allows you to adjust the blast pressure of
the SDI Select 60. By turning the blast pressure control knob, an operator can go from maximum
available operating pressure to a controlled blast pressure.
To adjust the blast pressure:
1. Turn the regulator bypass switch clockwise to activate blast pressure regulation.
2. To increase air pressure, rotate the blast pressure control knob clockwise until the desired
pressure is displayed on the regulated air pressure gauge. To decrease air pressure, rotate
the blast pressure control knob counter-clockwise until the desired pressure is displayed on
the regulated air pressure gauge.
• If the blast pressure control knob will not rotate, unlock the knob by pulling it
outward.
3. With the blast applicator on, pull the blast applicator trigger for a brief moment to verify
blast pressure setting.

SDI SELECT 60 USER MANUAL
12
OM.SS60.20141016
BLAST CLEANING TECHNIQUE
Read all safety instructions before operation and follow them closely.
1. Upon start-up, after breaks and before loading dry ice, always purge the system with air to melt
any water ice and/or remove any moisture built up in the system.
2. Position the blast hose for maximum maneuverability before blasting.
3. Do not kink the blast hose.
4. Hold nozzles perpendicular to the surface for fastest cleaning (recommended for most
applications).
5. Optimum standoff distance is 2 in (5 cm) for most nozzles.
6. Never allow foreign objects in the dry ice trough.
7. Do not abuse the blast hose, applicator or cable.
8. Reduce the feed rate to avoid clogging the nozzle at pressures below 50 psi (3.4 bar).
9. To find the optimum feed rate, set the feeder speed to 0 and increase the rate to achieve desired
results.
SHUT DOWN
Always wear gloves to protect hands from exposure to cryogenic temperatures and sharp blade
surfaces.
To shut down the SDI Select 60:
1. Release trigger to stop blasting.
2. Move the blast applicator mode switch to the “Off” position.
3. Press the disable blast button.
•The button will illuminate.
4. Rotate the pusher plate retract switch to move the pusher plate away from shaver wheel.
5. Turn the power switch to the OFF (O) position to shut off the power.
6. Open the dry ice block loading door and/or the dry ice pellet/nugget loading lid.
7. Remove remaining dry ice from the trough.
8. Close the dry ice block loading door and/or the dry ice pellet/nugget loading lid.
9. Shut off the compressed air supply.
10. Open the bleed valve to evacuate all remaining pressure.
11. When the air hose is fully depressurized, disconnect all electric cables and hoses.

COMPONENT GUIDE
13
OM.SS60.20141016
CHANGE FROM SHAVED TO FULL PELLET BLASTING
Use caution around the sharp blades on the shaver disc when opening or closing the sliding doors.
Always wear gloves to protect hands from exposure to cryogenic temperatures and sharp blade
surfaces.
1. Insert a flat-head screwdriver in the slot at the end of the lever and lift lever.
2. Push the slide into the open position for pellet blasting or into the closed position for shaved blasting.
•The dry ice used for pellet blasting must be 3 mm or smaller if the sliding pellet doors are in
the open position.
•The following image shows the sliding pellet door in the open position for pellet/nugget
blasting.

SDI SELECT 60 USER MANUAL
14
OM.SS60.20141016
•The following image shows the sliding pellet door in the closed position for
block/slice/nugget blasting.
•With a glove-protected finger, close the lever to secure the slide.
