Coleman 2800 User manual

Butane Stove
INSTRUCTIONS FOR USE
Model 2800
ANSI Z21.72b - CSA 11.2b (2002) Camp Stove
© 2004 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Read this manual carefully before
assembling, using or servicing this stove.
Keep this manual for future reference. If
you have questions about assembly,
operation, servicing or repair of this stove,
please call Coleman at 1-800-835-3278
or TDD: 316-832-8707.
In Canada call 1-800-387-6161.
®®
INTERNATIONAL DESIGN PATENT NO. DM/055455

2
Contents
General Safety Information 2
Technical Characteristics 4
To Set Up 4
To Light 5
To Tu r n O ff 5
To Store 6
Things You Should Know 6
Warranty 7
Keep this manual for future reference and to
educate new users of this product.This manual
should be read in conjunction with the labeling on
the product.
Safety precautions are essential when any
mechanical or butane-fueled equipment is involved.
These precautions are necessary when using,
storing, and servicing. Using this equipment with
the respect and caution demanded will reduce the
possibilities of personal injury or property
damage.
The following symbols are used extensively
throughout this manual. Always heed these
precautions, as they are essential when using any
mechanical or butane-fueled equipment.
General Safety Information
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
FOR YOUR SAFETY
Do not store or use gasoline or
other liquids with flammable vapors
in the vicinity of this or any other
appliance.
FOR YOUR SAFETY
This manual contains important information about
the assembly, operation and maintenance of this
stove. General safety information is presented in
these first few pages and is also located throughout
the manual. Particular attention should be paid to
information accompanied by the safety alert
symbols “ DANGER”, “ WARNING”,
“ CAUTION”.
CARBON MONOXIDE HAZARD
•This appliance can produce
carbon monoxide which has no
odor.
• Using it in an enclosed space
can kill you.
• Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
DANGER
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate personal injury, or property
damage.

3
General Safety Information cont.
• EXPLOSION - FIRE HAZARD
• Never store butane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
• Never install or remove butane cartridge while
outdoor stove is lighted, near flame, pilot lights,
other ignition sources or while outdoor stove is hot
to touch.
• During operation, this product can be a source of
ignition. Never use the stove in spaces that contain
or may contain volatile or airborne combustibles, or
products such as gasoline, solvents, paint thinner,
dust particles or unknown chemicals.Minimum
clearances from combustible materials: 12 inches
from the sides & 48 inches from the top.
• Provide adequate clearances around air openings
into the combustion chamber.
DANGER
Failure to comply with the precautions and
instructions provided with these stoves can result in
death, serious bodily injury and property loss or
damage from hazards of fire, explosion, burn,
asphyxiation, and/or carbon monoxide poisoning.
Only persons who can understand and follow the
instructions should use or service this stove.
If you need assistance or information such
as an instruction manual or labels, contact
The Coleman Company, Inc.
DANGER
WARNING
Not for home or recreational vehicle use.
We cannot foresee every use which may be
made of our products. Check with your local
fire safety authority if you have questions
about use.
Other standards govern the use of fuel gases
and heat producing products for specific uses.
Your local authorities can advise you about these.
• Never refill disposable cylinders.
• Use the preset regulator that came with the
stove. Do not attempt to adjust.
CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and byproducts of
combustion of this fuel, contain chemicals known
to the state of California to cause cancer, birth
defects, or other reproductive harm.
• BURN HAZARD
• Never leave stove unattended when hot or
in use.
• Keep out of reach of children.
WARNING
• SERVICE SAFETY
• Use only butane set up for vapor withdrawal.
• Keep all connections and fittings clean. Inspect
butane cartridge for damage before attaching.
• Use as a cooking appliance only. Never alter in
any way or use with any device or part not
expressly approved by Coleman.
• Never use as a heating appliance.
• Clean stove frequently to avoid grease
accumulation and possible grease fire.
CAUTION

4
Technical Characteristics
Input: 7,500 BTU/h
Category: Direct butane pressure
Fuel: 220g butane cartridge only
■Open the
cartridge
compartment.
DANGER
• CARBON MONOXIDE HAZARD
• This stove is a combustion appliance. All
combustion appliances produce carbon
monoxide (CO) during the combustion
process.This product is designed to produce
extremely minute, non-hazardous amounts of
CO if used and maintained in accordance
with all warnings and instructions. Do not
block air flow into or out of the stove.
• Carbon Monoxide (CO) poisoning produces
flu-like symtoms, watery eyes, headaches,
dizziness, fatigue and possibly death.You
can’t see it and you can’t smell it. It’s an
invisible killer. If these symptoms are present
during operation of this product get fresh air
immediately!
• For outdoor use only.
• Never use inside house, camper, tent,
vehicle or other unventilated or enclosed
areas.This stove consumes air (oxygen).
Do not use in unventilated or enclosed
areas to avoid endangering your life.

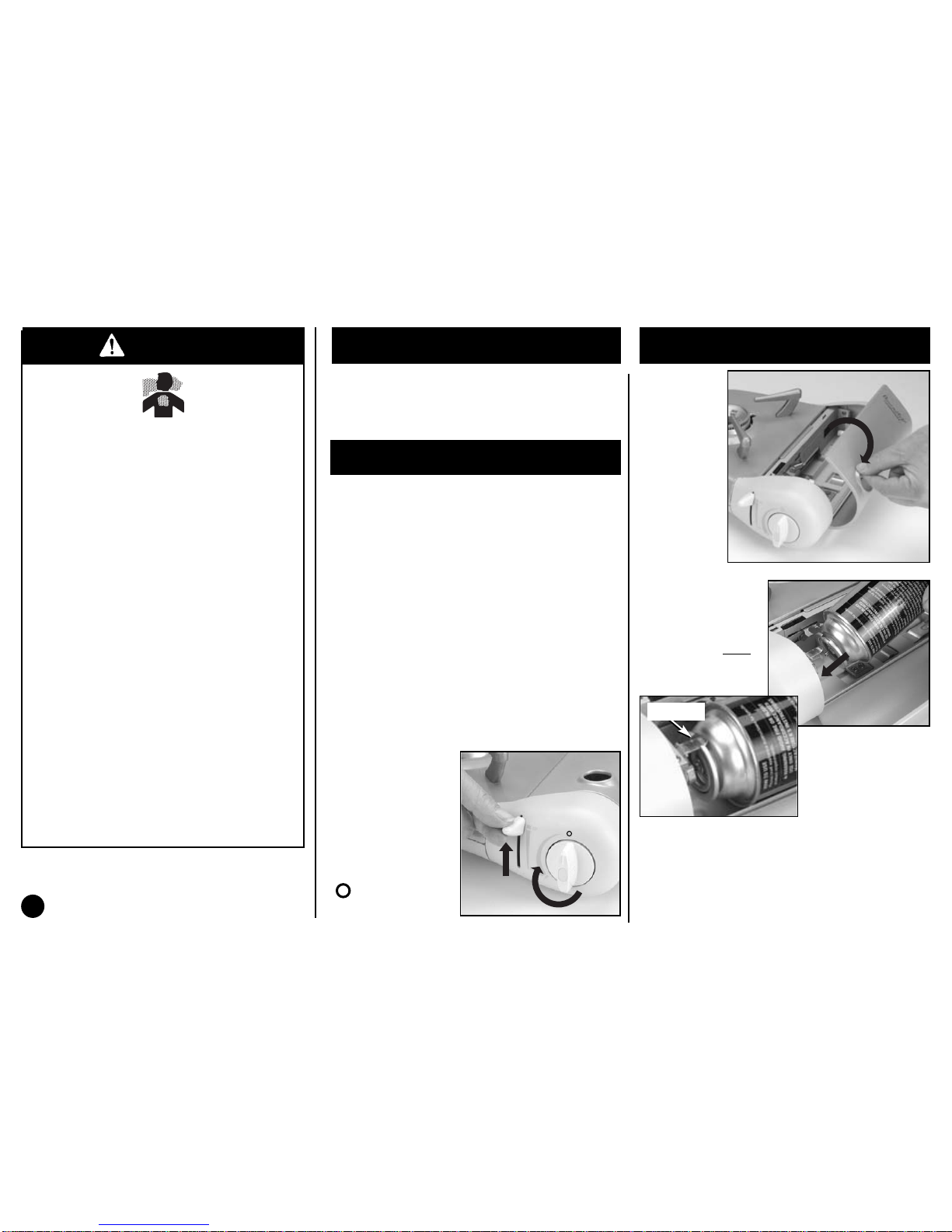

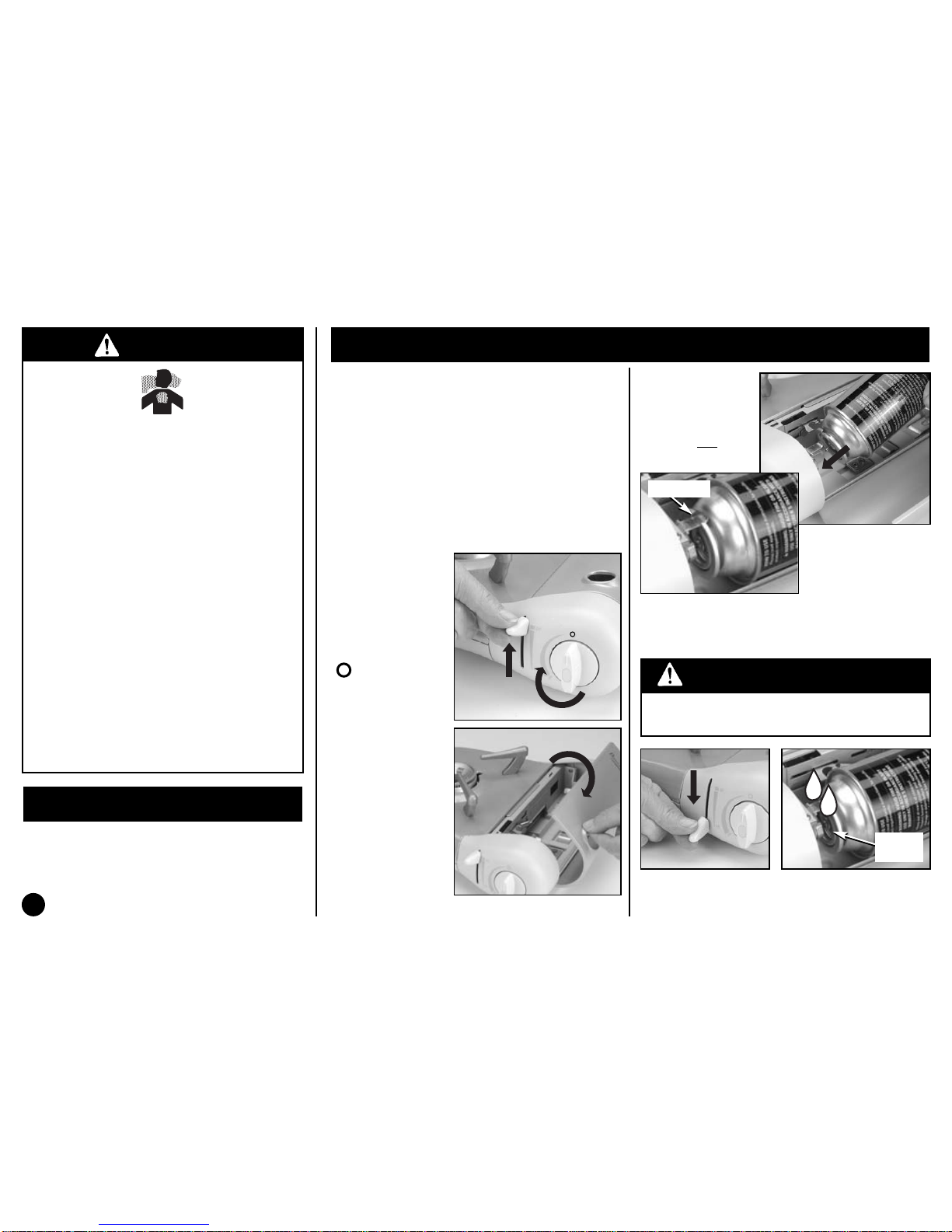

To Set Up
NOTE: Use 220g disposable butane cartridges only.
Do not connect to bulk systems.The butane
cartridge(s) used with this stove must be constructed
and marked in accordance with the specifications
for LP-gas cylinders of the U.S. Department of
Transportation or
Transport Canada, CAN/CSA B339 .
■ For outdoor use only.
■ Remove stove from carton.
■ Place stove on a stable, horizontal surface.
■ Do not use grill plates or pans that extend over the
edge of the cartridge compartment.
■Make sure Lever
is in the “OFF”
position (otherwise
cartridge cannot be
installed).
■Turn Control
Knob clockwise to
( ) position as
shown.
■Insert butane
cartridge as shown.
NOTE: Notch on
cartridge must be
in up position.
Notch
WARNING
Check for leaks using soapy water. Never use a
flame. Bubbles indicate a leak.
■Pull Lever down to “ON”.
■Perform leak check where shown.
Leak
Check

5
This stove is
equipped with a
piezo electric igniter.
■Pull the Lever
down to the “ON”
position.
To Light
■Turn Control Knob counterclockwise until you hear
a click indicating that a
spark has been
produced.
■If the stove does not
light, turn the Control
Knob back to ( )
position and repeat
previous step.
■After three (3) failed
attempts, turn the gas
supply off by turning the
Control Knob clockwise to
( ) position and return
Lever to the up position.
■Open door, remove cartridge and shake to verify
that it is not empty.
CAUTION: When cartridge needs to be replaced:
if stove in use, do not touch the hot stove or any
items that are on the stove until they have cooled.
■If empty, replace cartridge following the “To Set
Up” section on page 4.
■ Adjust flame with
Control Knob.
■ Flame should be
blue with hint of
yellow on tips.
■Turn Control Knob
clockwise to ( ) position
and return Lever to the up
position.
To Turn Off
WARNING
• BURN HAZARD
• Never leave stove unattended when hot or in use.
• Keep out of reach of children.
■Close cartridge
compartment.
NOTE:
If compartment will
not close, check to
be sure lever is in
“OFF” position. If
the problem
persists, take the
stove back to your
dealer.
Failure to follow these procedures to properly
install the cartridge and close the door can
result in a gas leak.
To Set Up cont. To Light cont.
WARNING
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
4. Call 1-800-835-3278.

6
5. If not completely satisfied with this product’s
performance, please call one of the numbers listed
below.
6. As with any new stove, a small amount of smoke
may be visible during the initial operation as a
result of residual manufacturing oils being heated.
This is normal. Coleman suggests the owner
operate the stove for 10 minutes when first
purchased.This will also familiarize the owner with
all features of the stove.
The Coleman Company, Inc.
3600 N. Hydraulic
Wichita, KS 67219 U.S.A.
1-800-835-3278
TDD: 316-832-8707
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
1 800 387-6161
www.coleman.com
■Allow stove to cool for 10-15 minutes.
■Take unit outdoors away from any ignition
sources. Remove butane cartridge.
■Store butane cartridge consistent with instructions
and warnings on the cartridge.
■Use a soft cloth and clean greasy parts of the
stove with soap and water or a nonabrasive
detergent.
■Check Lever on stove to be sure it is in the “OFF”
position.
■Store stove in a cool, dry and well-ventilated area,
out of the reach of children.
To Store Things You Should Know
1. This product is equipped with a sensor that
disconnects the cartridge if pressure becomes
excessive (for example, due to high temperatures). If
this rare event occurs, remove the cartridge and cool
(by running water over it, for example), or replace
with a new cartridge.
2. If the spark of the
piezo electric igniter
fails to occur, bring the
electrode closer to
burner (1/8") and verify
that there is no residue
between the electrode
and burner.
3. The usual storage areas for camping and picnic
equipment are the basement, attic, or garage.To
avoid the accumulation of dust, cobwebs, etc., that is
common in these areas, place your stove in a plastic
bag and seal it with a rubber band.
4. For repair service call one of the numbers listed
below for location of your nearest Coleman Service
Center. If heater must be mailed to Service Center,
attach to the product a tag which includes your
name, address, telephone number and a
description of problem then send to Service Center
via UPS or Parcel Post insured with shipping and
insurance prepaid.
Do not mail butane cartridges.
If necessary to write the Service Center or factory,
refer to your stove by model number.
Igniter Burner
1/8"
• EXPLOSION - FIRE HAZARD
• Never store butane cartridge near high heat,
open flames, pilot lights, direct sunlight, other
ignition sources or where temperatures exceed
120 degrees F (49°C).
DANGER

7
Warranty
Coleman Limited Five-Year Warranty
Coleman will repair or replace, at its option, this product or any component found to be defective in materials or workmanship within five years of the original retail purchase.This warranty is valid
for the original retail purchaser from the date of initial retail purchase and is not transferrable.Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman
dealers, service centers, or retail stores offering Coleman products do not have authority to alter, modify or in any way change the terms or conditions of this warranty.
WHAT IS NOT COVERED
■Cost of shipment to Coleman
■Normal wear and tear, including chips, scratches, abrasions, discoloration or fading from use or exposure to sunlight
■Damage caused by misuse, abuse, neglect, alterations, repairs by unauthorized persons, use of non-Coleman accessories or parts, or failure to follow recommended care or maintenance instructions
■Products used for commercial purposes or in profit or non-profit instructional or rental operations
■Mantles, generators, light bulbs, batteries or fuel
■CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, OR EXPENSES, INCLUDING DAMAGES TO PROPERTY. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
IMPLIED WARRANTIES
ANY IMPLIEDWARRANTIES, EITHER STATUTORY OR OTHERWISE, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL
BE LIMITEDTOTHE DURATION ANDTERMS OFTHE EXPRESSWARRANTIES SET FORTH INTHIS LIMITEDWARRANTY. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SOTHE ABOVE LIMITATION MAY NOT APPLY TOYOU.
THIS WARRANTY GIVESYOU SPECIFIC LEGAL RIGHTS, ANDYOU MAY ALSO HAVE OTHER RIGHTSTHAT VARY FROM FROM STATE TO STATE OR PROVINCE TO PROVINCE.
HOW TO OBTAIN WARRANTY PERFORMANCE
Take the product to an authorized Coleman Service Center. If one is not conveniently located, attach to the product a tag which includes your name, address, telephone number and description of
the problem.Include a copy of the original sales receipt. Carefully package the product and send either by UPS or Parcel Post insured with shipping and insurance prepaid to: USA:The Coleman
Company Inc., 3600 N. Hydraulic, Wichita, KS 67219, or CANADA: Sunbeam Corporation (Canada) Limited, 5975 Falbourne Street, Mississauga, Canada L5R 3V8. Please do not mail products
with fuel in tanks, or with disposable propane cylinders. Remove glass globes from lanterns.
If you are located outside the United States or Canada, return this product to the place you purchased it, or to any other retailer seller of similar Coleman products, and request warranty assistance.
If you are unable to obtain warranty assistance, then you may call any of the following Coleman offices for further assistance:
www.coleman.com
For products purchased in the United States:
The Coleman Company, Inc.
3600 N. Hydraulic
Wichita, KS 67219 U.S.A.
1-800-835-3278
TDD: 316-832-8707
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
1 800 387-6161

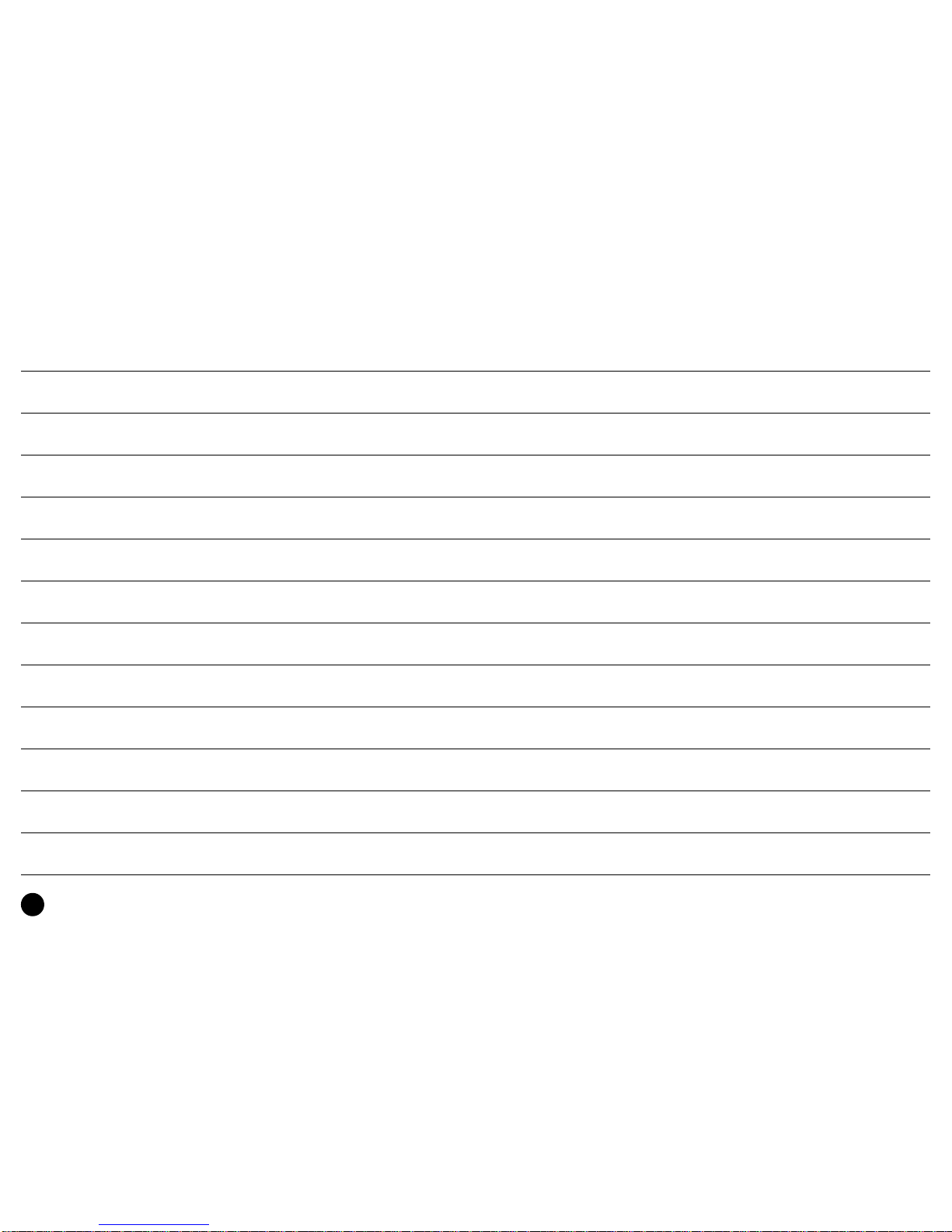

Notes
8

Réchaud à butane
NOTICE D’EMPLOI
Modèle 2800
ANSI Z21.72b - CSA 11.2b (2002) Poêle de camping
© 2004 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Lisez attentivement ce manuel avant
d’assembler, d’utiliser ou de réparer ce
réchaud et gardez-le pour référence ultérieure.
Pour toute question en ce qui concerne
l’assemblage, le fonctionnement, l’entretien ou
la réparation, veuillez appeler Coleman au
1 800 835-3278 ou ATS 316-832-8707 aux
États-Unis et au 1 800 387-6161 au Canada.
®®
NO. INTERNACIONAL DE PATENTE
DE DISEÑO. DM/055455

10
Table des matières
Généralités de sécurité 10
Caractéristiques techniques 12
Assemblage 12
Allumage 13
Extinction 13
Rangement 14
Renseignements essentiels 14
Garantie 15
compulsé de concert avec les étiquettes apposées
sur le produit.
Des précautions de sécurité sont indispensables
en présence de tout appareil mécanique ou
alimenté au gaz butane. Des précautions sont
nécessaires pour l’utilisation, le rangement et
l’entretien. Utiliser cet appareil avec tous les soins
qui lui sont dus réduira les risques de blessures
corporelles ou de dommages matériels.
Les symboles illustrés ci-dessous sont
régulièrement employés dans le manuel.Tenez
compte de ces précautions, elles sont impératives
lors de l’utilisation de tout appareil mécanique ou
alimenté au gaz butane.
Généralités de sécurité
Si vous sentez le gaz:
1. Ne tentez pas d’allumer l’appareil.
2. Éteignez toutes flammes nues.
3. Débranchez de l’alimentation en gaz.
POUR VOTRE SÉCURITÉ
Ne rangez pas et n’employez pas
d’essence ou d’autres vapeurs ou
liquides inflammables à proximité de
cet appareil ou de tout autre appareil.
POUR VOTRE SÉCURITÉ
Ce manuel contient des renseignements
importants sur l’assemblage, le fonctionnement et
l’entretien de ce réchaud. Maints renseignements
de sécurité sont fournis tout au début du manuel
puis un peu partout dans le reste du manuel.
Faites tout particulièrement attention lorsque vous
voyez les symboles suivants: « DANGER»,
« AVERTISSEMENT» et « ATTENTION».
Gardez ce manuel pour le consulter au besoin et
pour apprendre aux nouveaux utilisateurs à
employer l’appareil. Le manuel devrait être
RISQUE D’INTOXICATION
OXYCARBONÉE
• Cet appareil peut produire du
monoxyde de carbone, un gaz
inodore.
• L’emploi en lieu clos peut vous tuer.
• Ne vous servez jamais de cet
appareil dans un lieu renfermé:
caravane, tente, véhicule ou maison.
DANGER
DANGER
«DANGER» indique une situation dangereuse
qui, si elle n’est pas contournée, entraînera la
mort ou des blessures graves.
AVERTISSEMENT
«AVERTISSEMENT» signale une situation
potentiellement dangereuse qui, si elle n’est pas
évitée, peut entraîner la mort ou des blessures
graves.
ATTENTION
«ATTENTION» dénote un danger potentiel qui,
s’il n’est pas contourné, risque d’entraîner des
blessures corporelles allant de peu graves à
moyennes ou bien des dommages matériels.
