Coleman WEATHERMASTER 2000001595 User manual

STITCH LINE
Fig. 1
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the
door facing the desired direction. Unzip doors. (Fig. 1)
4. Assemble eight, steel, shock-corded,
Leg Poles. Push down on steel button
on tapered end and insert into end with
four holes.
NOTE: Make sure steel button locks into
third hole on pole as shown. (Fig.4)
5. Insert curved end of
long Leg Poles (with red
marking) into the ends
of the Ridge Poles (with
red marking). Insert
curved end of remaining
short Leg Poles into the
ends of the remaining
Ridge Poles. (Fig. 5 & 6)
6. Rotate all eight Leg Poles upright and insert
pin on each web loop at the side locations
as shown. (Fig. 7 & 7A)
(continued on other side)
Pole Descriptions
Pole Pole Pole
Description Qty. Dia. Repair Kit Replacement Kit
Long Leg Pole, steel
(w/ red marking) 4 19mm N/A 5010000621
Short Leg Pole, steel 4 19mm N/A 5010000618
Curved Ridge Pole, steel
(w/ red marking) 2 19mm N/A 5010000620
Curved Ridge Pole, steel 2 19mm N/A 5010000619
Awning Pole,
black, fiberglass 1 6.3mm 5010000543 5010000545
Door
Ridge Poles with
Red Marking
Button in
third hole Fig. 4
Fig. 5
Fig. 6
Fig. 2
Sleeves
with Red
Trim
Curved End of
Long Leg Pole
2. Pull four corners of tent taut, then secure
by driving stakes through web loops at an
angle for better anchoring. (Fig. 2)
Ridge Poles
with Red
Marking
Fig. 3
Sleeves
with Red
Trim
3. Assemble four, steel, shock-corded,
curved Ridge Poles. Insert Ridge Poles
(with red marking) into center sleeves
on top of tent with the red trim (Fig. 3).
Insert the remaining curved Ridge Poles
into the other two sleeves on top of tent.
Fig. 7
7A
Pin
7. Locate the plastic hooks at sides and
corners of tent, then snap onto Leg
Poles to attach. (Fig. 8)
9. Insert plastic stakes through web
straps located on both sides of tent,
then drive in to secure. (Fig. 10)
NOTE: It may be necessary to remove
metal stakes through web straps at
side of tent and screen room, pull tent
taut, and drive in stakes to secure.
Fig. 10
8. To stretch tent to finished size:
• Push in button on Leg Pole while
twisting lower Leg Pole section
counterclockwise (Fig.9);
• Pull up on top Leg Pole section
until tent is taut;
• Twist the lower Leg Pole clock-
wise until the button locks into
the center or lowest hole;
• Repeat on remaining Leg Poles.
Fig. 8
Fig. 9
Button
Center Hole
Lower Hole
Lower
Leg Pole
Section
Upper
Leg Pole
Section
WEATHERMASTER® 4 SCREENED TENT
MODEL 2000001595
Ridge Poles with
Red Marking in
center 2 sleeves
To Attach Rainfly
1. Drape Rainfly over tent. Make sure seams on Rainfly are
facing down and centered over poles of the tent. (Fig. 11)
NOTE: Hook and loop fasteners, located on seams of under -
side of Rainfly, should be centered over Ridge Poles.
2. Assemble thin, black, shock-corded Awning Pole; then insert
through sleeve in Rainfly above door. (Fig. 11)
Fig. 11
Rainfly
Awning
Pole
Door
Sleeve
Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp
objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes
or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property
damage or personal injury.
• For best results in windy conditions, position narrow end of tent into
the wind.
• Enlist the help of at least one other person to assist you when it is time
to assemble the tent.

6. Insert metal hook on elastic straps on Rainfly into the hole
on each Leg Pole. (Fig 14 & 15)
Cooler Access
The smaller zippered opening at the side
of tent is designed for added ventilation
and easy access to your beverage cooler.
1. To use as a vent, unzip flap to expose
screen. (Fig. 21)
2. To use as a cooler access, unzip
other flap to make an avenue to bring
beverages into tent. (Fig. 22)
STITCH LINE
Attaching Room Divider
1. Divider Panel can be installed
through center of the tent by
inserting toggles through the
top and bottom fabric loops as
shown. (Fig. 18 & 19)
To Store
1. All metal poles and stakes must be placed in the storage
bag to prevent damage to the fabric items placed in the
carry case.
2. Make sure tent is clean and dry before placing in carry case.
3. Remove rainfly, spread out on floor of tent, then unzip
door & vents before taking tent down for storage.
4. Neatly fold tent to width of pole storage bag, place on tent,
roll tightly, and place in carry case.
5. Store in a clean, dry area.
Electrical Cord Access
1. Unzip access panel in the lower
left corner of tent and bring in
electrical cord.
NOTE: Use only UL approved cords
rated for outdoor usage. (Fig. 20)
Fig. 18 Fig. 19
Fig. 22
Fig. 21
Door & Window Flaps/Vents
1. For better ventilation, unzip door flaps, roll, and insert
toggle into fabric loop to secure.
2. To open back and side window vents for more ventilation,
unzip, then roll up and insert toggles through fabric loops.
Fig. 20
Divider
Panel
Fig. 14 Fig. 15
Fig. 13
Fig. 17

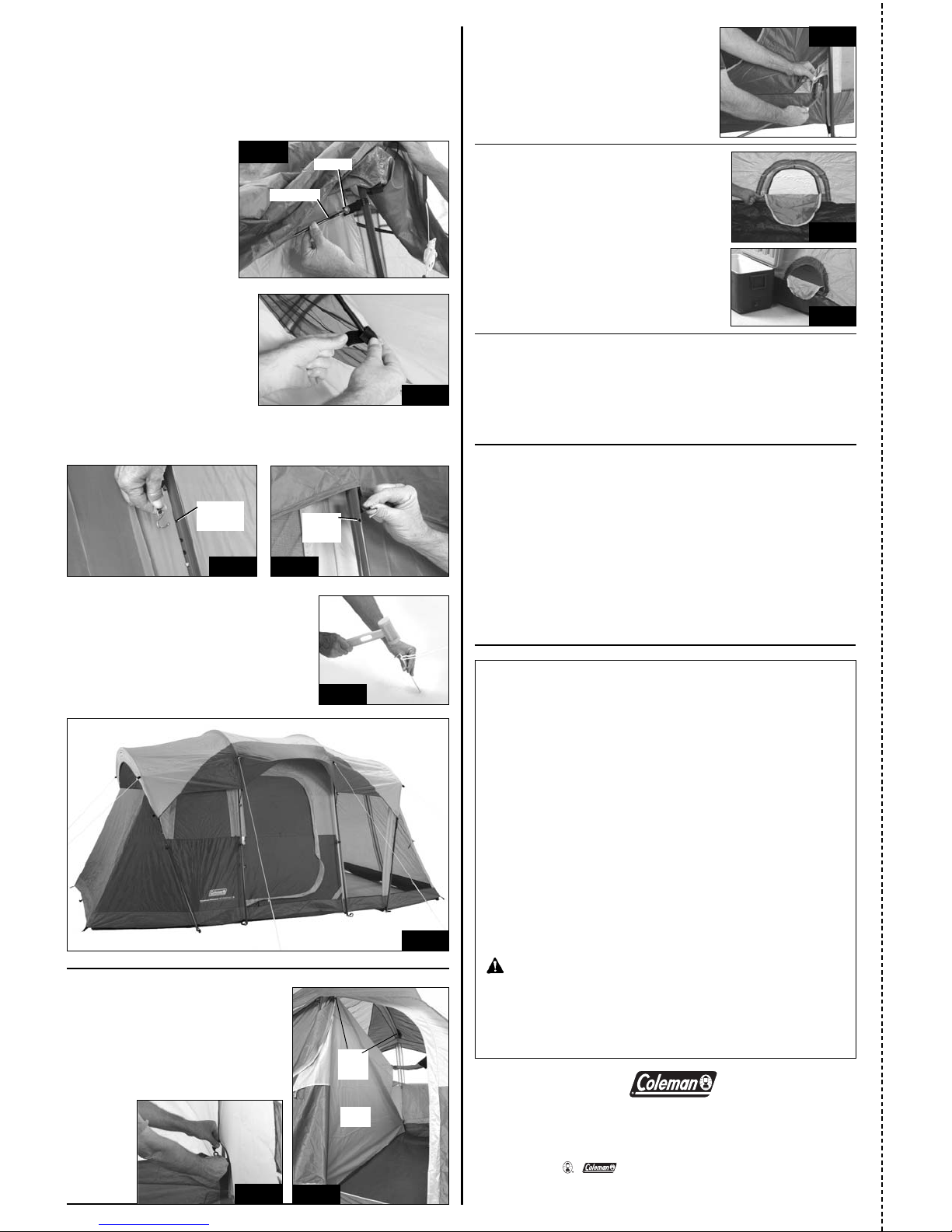

To Attach Rainfly (continued)
3. Insert tapered metal tip on Awning Pole into grommet locat-
ed on web strap clipped to center Leg Pole. (Fig. 12)
4. Go to opposite center Leg Pole on other side of door and
gradually apply pressure to the pole forming an arch. Insert
metal tip into the grommet.
Fig. 12
Grommet
5. Locate all hook & loop
fasteners on underside of
Rainfly and wrap around
Leg Poles and Awning Pole
locations. (Fig. 13)
Center Leg
Pole
Location End Leg
Pole
Location
7. Loop ends of guylines over stakes,
stretch tight, then hammer into
ground at an angle as shown.
(Fig. 16 & 17)
Fig. 16
Top
Fabric
Loops
Awning Pole
4010004003 (20081030)
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.) condensa-
tion will form on the inside of your tent. Condensation is caused by water
vapor from your breath, perspiration, or any wet clothing inside the tent.
It is NOT LEAKAGE through the tent fabric. It can be minimized by
removing wet clothing from your tent and by providing good ventila-
tion through the tent.
• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off
tree limbs can cause damage to the tent fabric and its coating resulting
in leaks or loss of flame-resistant properties.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles
inside your tent. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. NEVER PULL ON
THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
• Tent poles should not be left telescoped together during storage.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
WARNING: Keep all flame and heat sources away
from this tent fabric.
This tent meets the flammability requirements of CPAI-84. The
fabric may burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
MADE IN CHINA • PRINTED IN CHINA
© 2008 The Coleman Company, Inc.
