Color Sage CS-B110A User manual

CS-B110A BATTERY PAR CAN
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
MENU DOWN UP ENTER MIC
RGBWA+UV
Factory: 6 Floor, A Building, No.1742 Panyu North Ave,Panyu District, Guangzhou.
Office: No.34-208, Longqi Road, Qiaonan Street, Panyu District,Guangzhou.
[phone]
[email protected]
www.color-sage.com YOUTUBE FACEBOOK

*CAUTION!
Becareful with your operations.With a dangerous voltage you cansuffer a
dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
*IMPORTANT!
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
If the device has been exposed to temperature changes due to environmental changes, do not switch
it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for
smooth air flow, so there should be no shelter for fans and ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by
the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
1. SAFETY INSTRUCTIONS
01 02
Thank you for choosing our CS-B110A LED BATTERY PAR CAN.
For your own safety, please read this manual before installing the device. This manual covers the
important information on installation and applications. Please install and operate the fixture with
following instructions.
This is a special design LED BATTERY PAR CAN with 6pcs 18W LEDs, RGBWA+UV 6 in 1. It
offers high brightness and good lighting effect. The power consumption is 110W.
This product is used to enliven atmosphere for family gatherings, KTV box, disco ballroom, ballroom,
nightclub, disco, bar, mall, wedding, square, park, etc.
Function:
1. Slave/Master,
2. Sound actived,
3. Auto,
4. DMX 512,
5. IR remote control (Optional),
6. Color change,
2. UNPACKING
3. FEATURES & SPECIFICATIONS
CS-B110A LED BATTERY PAR CAN
MENU DOWN UP ENTER MIC
IR Remote (Optional)
R G B W
FLASH
STROBE
FADE
SMOOTH
OFF ON
User Manual
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
UK Standard
(Optional)
USAStandard
(Optional)
Euro Standard
(Optional)
Power cable

03 04
7. Color strobe,
8. Color dimmer,
9. Color gradual change/Color jump change.
Specifications:
LED quantities: 6pcs LEDs
Input Voltage: AC90V-250V, 50/60HZ
Power consumption: 110W
Channel: 6/10 CH
Beam Angle: 25°
Display Screen: LCD display
Battery Type: Lithium battery
Battery Charging Time: About 2-3 hours
Battery Using Hours: About 6-8 hours of full
color.
Color: RGBWA+UV 6 in 1
Material Science: Iron alloy
Packing & weight:
Size: 170mm*170mm*105mm
Net Weight: 2.5kg
Packing: 230mm*230mm*200mm
Gross Weight: 3kg
01. Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
02. This light should be keep away from strong shaking during any transportation or movement.
03. Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
04. Don’t expose the fixture in overheat, moisture or environment with too much dust when installing
it. And don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
05. Make sure the installation place is in good safety condition before installing the fixture.
4. OPERATION INSTRUCTIONS
06. Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
07. Make sure the lens are in good condition. It’s recommended to replace the units if there are any
damages or severe scratch.
08. Make sure the fixture is operated by qualified personnel who knows the fixture before using.
09. Keep the original packages if any second shipment is needed.
10. Don’t try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
11. It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
5. MENU OPERATIONS
① : Battery indicator
MENU: Access the menu.
DOWN: Reduction key or key under the selected; decrease the value function
down menu.
UP: Add key or selection on the key; increase the value function, shift on the menu.
ENTER: It is used to select and confirm/store the current selection.
MENU DOWN UP ENTER MIC
①
MENU DOWN UP ENTER MIC
170mm
170mm
105mm

05 06
Color change 0-255 from dark to brightFF00
Auto mode/0-9 0-9, Speed from slow to fast
At00
Sound control/1-4
Voice sensitivity, 0-4 from low to high Sou1
Color select/0-9
Colo
Custom color/1-5 6 kinds color selectable
CUS1
Red dimming/0-255 0-255 from dark to bright
r000
Green dimming/0-255 0-255 from dark to bright
G000
Blue dimming/0-255 0-255 from dark to bright
b000
InstructionsFunction/ValueMENU
10 Channel mode,
A001-A512.
A001 DMX512 address setting
6 Channel mode,
D001-D512
D001 DMX512 address setting
Color jump change
CC00
Wireless dmx control
Color gradual change EE00 IR remote control
10 kinds color selectable
White dimming/0-255 0-255 from dark to bright
w000
Amber dimming/0-255 0-255 from dark to bright
y000
Purple dimming/0-255 0-255 from dark to bright
p000
Instructions
6. DMX CHANNELS
Function/ValueChannel
6 Channel
1 Red dimming 0-255 from dark to bright
2 Green dimming 0-255 from dark to bright
3 Blue dimming 0-255 from dark to bright
4 White dimming 0-255 from dark to bright
5 0-255 from dark to bright
6 0-255 from dark to bright
Amber dimming
Purple dimming

R G B W
FLASH
STROBE
FADE
SMOOTH
OFF ON
A P col1
col2 col3 col4
cu1 cu2 cu3
sp1 sp2 sp3
07
7. Remote Controller Useing (Optional)
08
This product does not support this
feature for now.
ON
OFF
Turn OFF the current function or
turn OFF the lights.
Turn ON the lights.
FLASH
STROBE
FADE
SMOOTH
Flash function.
Strobe function.
Fade color function.
Color effect change smooth function.
Speed function.
sp1 is slow, sp2 is normal, sp 3 is fast.
sp1 sp2 sp3
cu1 cu2 cu3
Custom color.
Without setting the case is red green and blue
col1 col2 col3 col4
Other Color.
10 Channel
InstructionsFunction/ValueChannel
5 Red dimming 0-255 from dark to bright
6 Green dimming 0-255 from dark to bright
7 Blue dimming 0-255 from dark to bright
8 White dimming 0-255 from dark to bright
9 0-255 from dark to bright
10 0-255 from dark to bright
1 Dimmer Dimmer, 0-255 from slow to fast
4 Function speed
Function spee0d, 0-255 from slow to fast
(When color output, it is color selection )
Amber dimming
Purple dimming
2 Strobe
Start up light, 0-5 from slow to fast
Turn off the light 6-10 from slow to fast
Pulse mode, 11-100 from slow to fast
Gradually brighter, 101-150 from slow to fast
Gradually darken, 151-200 from slow to fast
Speed, 201-255 from slow to fast
3
Effect
Adjust the color manually, 0-5from slow to fast
Color gradient, 6-50 from slow to fast
Color gradient + gradually brighten, 51-100
from slow to fast
Color Change + gradually brighten, 51-100
from slow to fast
Auto mode, 151-200
Sound control, Voice sensitivity, 201-255 from
low to high
Function
* If you find that the product menu does not comply with this manual,
please contact us immediately and we will send a copy of the manual that
suits you. Thank you!

09
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected and must
not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations and installation spots
(ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not rotate with
unbalances.
4. The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled
installer and any safety problems have to be removed
*CAUTION!
Disconnect from mains before starting maintenance operation.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning
to the lights.
1. Clean the inside and outside lens each week to avoid the weakneness of the lights
due to accumulation of dust.
2. Clean the fan each week.
3. A detailed electric check by approved electrical engineer each three month, make sure that the
circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
4. Frequent cleaning. Please use a moist, lint- free cloth. Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions under “Installation
instructions”.
Should you need any spare parts, please order genuine parts from your local dealer
8. MAINTENANCE AND CLEANING
10

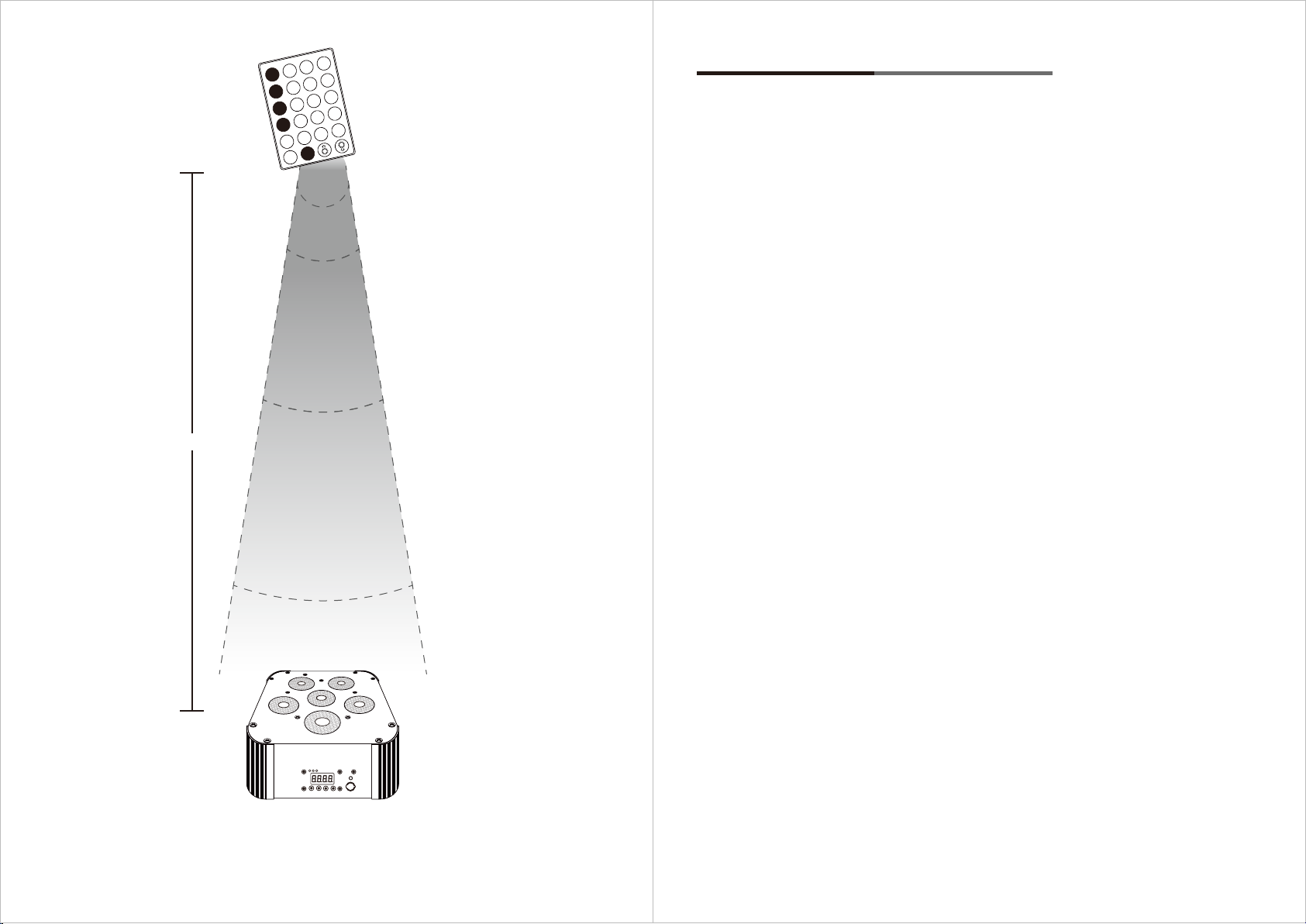

Please use this remote controller within remote control range.
MENU DOWN UP ENTER MIC
R G B W
FLASH
STROBE
FADE
SMOOTH
OFF
ON
A P col1
col2 col3
col4
cu1 cu2
cu3
sp1 sp2
sp3
5m
