SureTrans Versa
Reclining Shower/Commode/Bath
Transfer System
Model # 5100
Thank you for Choosing Columbia
Your Columbia SureTrans Versa Shower/Commode/Bath System has been built to
exacting standards of quality to ensure years of superior service. Please take the time
to read this informative booklet and pay particular attention to the safety instructions
provided. Thank you again for choosing Columbia!
Important Safety Instructions
When using your SureTrans Versa System, basic safety precautions should always be followed
to reduce the risk of injury to persons, including the following:
1. Read and understand all instructions.
2. Determine, with a physician or therapist, the suitability of this product for the intended user.
3. Do not leave user unattended unless you have determined that their abilities and
requirements are such that it poses no safety risk to leave them unsupervised.
4. Place your Versa on a level surface, not near steps or other hazards.
5. Keep your Versa clean and sanitary.
6. Check regularly that all bolts, buckles and other parts are tight and in good working order.
Save These Instructions
Assembly of Your SureTrans Versa Commode/Shower/Bath System
1. The SureTrans Versa System is
shipped partially unassembled.
Remove all parts from the
packaging before assembly. The
instructions will be referring to the
following parts for assembly:
5100 SureTrans Versa Instructions Revised: 7.05
C5100-00-00 2-4
Commode BucketFoot Rest Clamps
Commode Base
2. Screw the leveling feet into the shower base leg tubes, if not already done.
3. Slide the footrest clamps over the commode leg tubes and secure with bolts. The height is
adjustable and can be re-positioned when the chair is fully assembled for correct fit. The
notch end should face up.
4. Insert the shower base leg tubes into
the shower base by depressing the leg
tube locking button and sliding the leg
tube into the shower base frame.
5. Push the caster wheels into the commode leg tube sockets.
6. Insert the commode chair leg tubes into the commode chair
by depressing the leg tube locking button and sliding the leg
tube into the commode base.
5100 SureTrans Versa Instructions Revised: 7.05
C5100-00-00 3-4
7. Attach the seat back to the seat bottom
with two 9/16” bolts, which may be pre-
attached to the back frame.
8. Attach the seat arms to the seat back using the enclosed bolt and internal spacer.
9. Insert the guide rail clips into the guide rail slots and slide the
seat assembly onto the commode base. If you need to change
the way the chair faces, you may remove the rolling base,
rotate it 180° and insert the guide rail clips into the guide rail
slots, and slide the seat assembly onto the commode base
10. Slide the foot rests onto the foot
rest clamps.
Operating the SureTrans Versa Transfer System
1. Set the commode chair to the desired height by depressing the leg tube
locking buttons and sliding the leg tubes in or out. Adjust the shower
base with the leg adjusting buttons so it is the same height as the
commode chair.
2. Place the shower base in the tub or shower. Level the base with the
leveling feet. The shower base should be the same height as the
commode chair. Lock the leveling feet in place with the jam nuts.
5100 SureTrans Versa Instructions Revised: 7.05
C5100-00-00 4-4
3. Place the bridge in position. Be sure that the bridge seats in the indent slots so that it is flat
with the top of the rails.
If the bridge will not fit
flat, check the height
adjustment on the
commode and shower
base. The height must
be the same on both
sections for proper bridge
fit and smooth transfers.
Warning: Never operate The SureTrans Versa System if the bridge is not seated
securely in place and flat with the commode and transfer base rails.
4. To transfer the sliding seat, lift up on the
safety locking latch located behind the seat
and slide the seat to the desired position.
The seat is in position when it locks into the
safety lock latch on the other side of the
seat.
5. The bridge can be removed during
use so the shower door or curtain can
be closed. Warning: Do not
remove the bridge unless the
safety lock is latched.
Cleaning Your SureTrans Versa System
Soapy water or mild cleansers may be used on all parts of your SureTrans Versa System. Harsh
abrasive cleaners (Ajax, Comet, etc.) may dull the finish.
Save these instructions for future reference.
Columbia Medical
13577 Larwin Circle
Santa Fe Springs, CA 90670
(310) 454-6612
Fax: (310) 305-1718
Visit us at www.columbiamedical.com
© 2005 Columbia Medical Mfg LLC
COLUMBIA MEDICAL MFG. LLC warrants this
product to be free of defects in material and
workmanship. Our obligation under this warranty is
limited to repair or replacement of any part or entire
unit at our option for a period of one year from date of
delivery to the original purchaser.
The warranty does not include cost of
inconvenience, property damage, misuse, abuse,
accident or similar incidents. The warranty will not
apply if product has been tampered with or repaired
by unauthorized individuals. “This warranty gives
you specific rights which vary from state to state.”

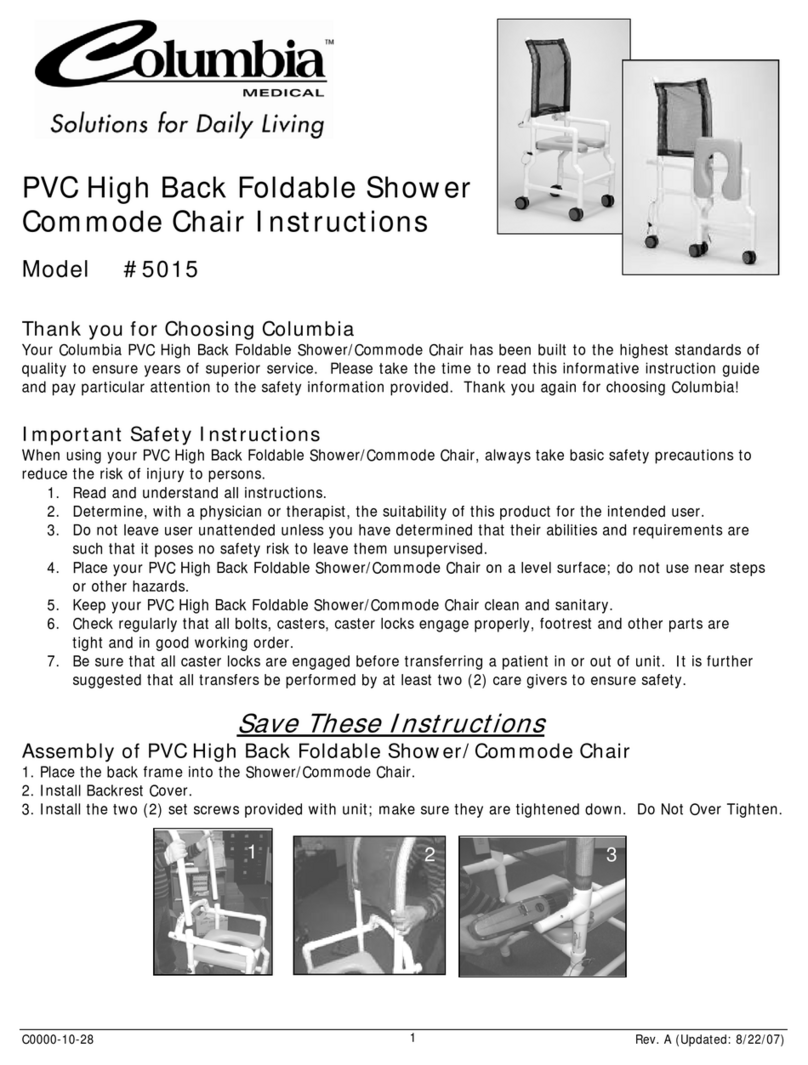

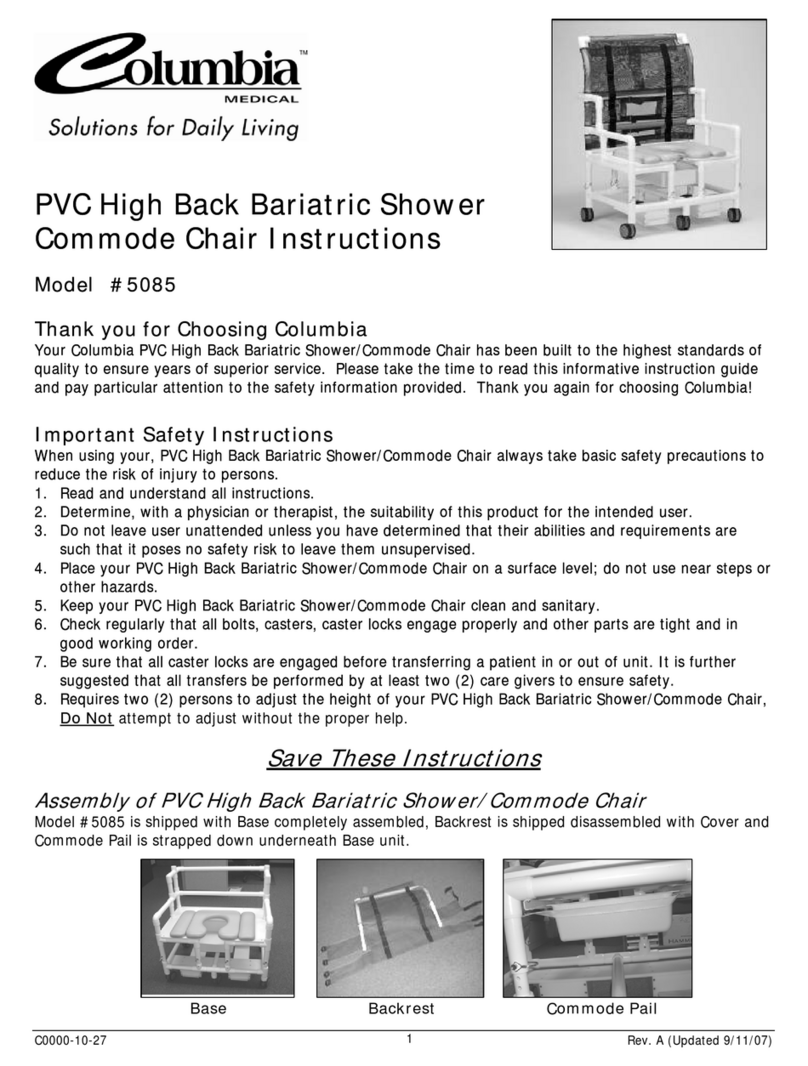

Other Columbia Medical Wheelchair manuals
