Safety Information
Read this manual completely before using our 3D printer. Please be sure to follow the
instructions and warning information below.
●Forbid to Use Non-ComeTrue® Original Liquid Cleaners for Electronics Safety.
●Use the power specification which only indicated on the 3D printer label.
●Do not use injured power cord.
● Be careful of the power cord connection. If the plug is injured, please change the power cord or contact with
professional staff. If there is any fuse in the plug, be sure to replace it with a fuse of the correct specification
and rated power.
●Do not repair the 3D printer by yourself.
●Keep away from combustible materials.
● Do not block the ventilation holes of 3D printer.
●Avoid putting the 3D printer in a place where temperature and humidity may change dramatically. Avoid sun
exposure, high temperature and chemicals.
●Do not put the machine in a vibrated place and do not drag the machine.
● Do not put your hand into the 3D printer or touch the binder cartridge when printing is in progress.
● Do not use your hand to move the print head, otherwise it may damage the printer.
● Do not put the 3D printer in a place where there may be interfered by electric waves, ex: megaphone or wireless
telephone.
● Do not put the 3D printer near television, radio, air conditioner or humidifier.
● Install the 3D printer close to the place where you are going to put because any movement after installation is
completed may cause damage to the printer.
● If the binder cartridge contact with your skin, wash it with water and soap. If the binder cartridge contact with
eyes, wash them with plenty of water instantly.
● Do not use expired binder cartridge.
● Do not touch the orifice of the print head or other parts around it, or it may affect the normal operation and
printing quality
● If the power cord is damaged, it must be replaced by a special wire or special components from the manufacturer
or its service agent. ”
● This machine is not applicable to be used by people (including children) with physical disability, mental disability,
or lack of experience and knowledge in using similar products.
● Keep this machine away from children.
●Please turn off the power after using it.
●Warning Symbols:

T10 3D Printer User Manual Ver.180809EN
3/ 49
Mind the symbols below when using ComeTrue T10 3D printer:
General Caution:
Be careful
to avoid damaging the equipment.
High Voltage:
Be careful of the high voltage.

T10 3D Printer User Manual Ver.180809EN
4/ 49
Contents
Safety Information .................................................................................................................................2
1ComeTrue 3D printer operating principle....................................................................................6
2ComeTrue 3D printer T10 structure..............................................................................................6
2.1 COMETRUE T10 APPEARANCE .................................................................................................................................................. 6
2.2 3D PRINTER INTERIOR................................................................................................................................................................. 6
2.3 ACCESSORIES ............................................................................................................................................................................... 7
3Before installation ..........................................................................................................................8
43D printer slicing software ComeTrue Print installation .............................................................8
53D printer before printing ...........................................................................................................11
5.1 INSTALLING BINDER CARTRIDGE,CLEANER AND PRINT HEAD...............................................................................................11
5.1.1 Binder cartridge and cleaner installation............................................................................ 11
5.1.2 Print head installation ................................................................................................................13
5.2 FILL FEED BOX UP WITH POWDER.............................................................................................................................................15
5.3 POWDER SPREADING AND PRINT TESTING .............................................................................................................................16
5.3.1 Powder spreading ....................................................................................................................16
5.3.2 Print testing ................................................................................................................................18
6Quick start.....................................................................................................................................21
7After printing ................................................................................................................................27
7.1 PICK UP THE PART......................................................................................................................................................................27
7.2 PLATFORM CLEANING ...............................................................................................................................................................28
7.2.1 Platform powder cleaning ....................................................................................................28
7.2.2 Print bar cleaning .....................................................................................................................30
7.2.3 Powder- spread roller cleaning...........................................................................................31

T10 3D Printer User Manual Ver.180809EN
5/ 49
7.2.4 Wiper maintenance .................................................................................................................32
7.2.4.1 Wiper cleaning ..............................................................................................................32
7.2.4.2 Sponge roller changing .............................................................................................34
7.2.5 Print head cleaning..................................................................................................................37
7.2.6 Waste ink and waste powder handling............................................................................38
7.2.7 Advanced maintenance .........................................................................................................38
8Post process..................................................................................................................................39
93D printer operating and maintenance ......................................................................................41
9.1 COMETRUE T10 MAINTENANCE TABLE ..................................................................................................................................41
9.2 PRINT HEAD MAINTENANCE.....................................................................................................................................................42
9.3 SERVICE STATION MAINTENANCE ...........................................................................................................................................42
9.4 CONFIRM POWDERS IN FEED BOX............................................................................................................................................42
9.5 BINDER CARTRIDGE CHANGING ...............................................................................................................................................42
9.6 INTERIOR CLEANING..................................................................................................................................................................42
9.7 3D PRINTER TROUBLESHOOTING.............................................................................................................................................43
9.8 STATUS MONITOR ....................................................................................................................................................................44
10 Firmware update ..........................................................................................................................47
11 Reference material .......................................................................................................................49

T10 3D Printer User Manual Ver.180809EN
6/ 49
1 ComeTrue 3D printer operating principle
ComeTrue 3D printer combines inkjet technology and rapid prototyping technology, it can produce a
three-dimensional product rapidly, and its operation is similar to produce a real product which uses printing
technology. The materials used are composite powders and binder, utilizing combination of binder and
powder to produce a real product. The method used is lamination method, which paves one layer of powder,
and then spray binder in the specific place. .Paving powder and spraying binder repeatedly until the product is
finished.
2 ComeTrue 3D printer T10 structure
2.1 ComeTrue T10 appearance
pic 1：ComeTrue T10 appearance
2.2 3D printer interior
pic 2：ComeTrue T10 platform
Binder
Top cover
Power switch
Front cover
Print head(set)
Cleaning device
Build box
Fan
Print Bar
Feed Box

T10 3D Printer User Manual Ver.180809EN
7/ 49
pic 3：ComeTrue T10 bottom structure (inside the front cover)
pic 4：ComeTrue T10 cartridge
2.3 Accessories
pic 5：ComeTrue T10 accessories
Cleaner
CMYK Binder (Color Binder)
Binder (Clear Binder)
Syringe
Power cord
Mini broom set
Toothbrush
Paint brush
Phillips screwdriver
Hex wrench
Flathead screwdriver
long soft straw
Z-Axis Cover
Waste powder tank
Waste ink bottle
Watercolor brush
USB cable
Glass
Adapter
Waste pipe holder

T10 3D Printer User Manual Ver.180809EN
8/ 49
3 Before installation
1. Prepare Liquid Cleaner for the cleaning usage.
2. In order to facilitate the operation, maintain and keep ventilation, , keep at least 60 cm of space around the
machine for operating.
3. Set the power setting of computer in Panel of Control Power Setting change the sleep time to never
and the screen to never close. (as pic 6)
pic 6：Change power setting of computer
4. It is recommended that the machine operating temperature should be 10~30℃,and humility should
be15~60﹪RH。
4 3D printer slicing software ComeTrue Print installation
1. Connect the USB cable and power cord (pic 7,8), then turn on the machine.
pic 7：USB Cable pic 8：Power Cord
2. Insert the ComeTrue Print CD to the computer.
3. Select Setup.exe file, and run the installation.
4. Select “Next”, to the next window.

T10 3D Printer User Manual Ver.180809EN
9/ 49
5. Select the installation folder, then press “Next”.
6. Select the name of folder, then press “Next”.
7. Select “Next”, to the next process.
.
pic 9：Select Next
pic 10：Select Next
pic 11：Select Next

T10 3D Printer User Manual Ver.180809EN
10 / 49
8. Select Install for installation.
9. Select “Finish”, the installation is finished.
. .
10. After installation, there will be an icon “ComeTrue Print”on the desktop.
pic 14：Shortcut
NOTE：This slicing software supports VRML 2.0(*.wrl) and STL file.
11. Before inserting 3D printing file into ComeTrue Print, use 3D repair software to ensure that the file has no
broken face and convert to VRML 2.0 format to avoid failure.
pic 13：Select Finish
pic 12：Select Install

T10 3D Printer User Manual Ver.180809EN
11 / 49
5 3D printer before printing
5.1 Installing binder cartridge,cleaner and print head
5.1.1 Binder cartridge and cleaner installation
Please install the binder cartridge and cleaner when using T10 3D Printer at the first time, and make sure
that the ink is enough for you to use each time.
.
pic 15：Binder cartridge pic 16：Binder tank and adapter
Follow the process when using or changing the binder cartridge (CMYK binder, clear binder and cleaner)
a. Open the binder cartridge cap first.
b. Invert the binder cartridge and insert it on the adapter, push down to break the rubber plug as follows.
pic 17：Install the binder cartridge on the adapter
c. Turn the adapter head to OFF to finish the installation. (as pic 18)
Cap
Bottle
Binder Adapter

T10 3D Printer User Manual Ver.180809EN
12 / 49
pic 18：Power switch direction of the adapter head

T10 3D Printer User Manual Ver.180809EN
13 / 49
5.1.2 Print head installation
Print head installation 3 steps. (as pic 19)
a. Inspect cartridge system b. Install print heads c. Change print heads
pic 19：Print head installation instructions
NOTE：
To avoid pipe clogging due to binder precipitation, please follow the recommendations to maintain the pipe below:
1. If you print less than four times a week, use a syringe to remove 10cc of the color binder from the pipe
every two weeks.
2. If you do not print for more than two weeks, remove all the binder from the cartridge and the pipe then
thoroughly clean the pipe with water and then reinstall the binder until next time when you use.
3. The extracted binder can be stored in a clean and sealable container or empty used cartridge (the cartridge
must be sealed) until next time when you use.
4. After cleaning the binder pipe, please put the print head back into the Carriage and
ensure that the print head has returned to the Cap to prevent it from
drying out.
5. For more detailed about pipe cleaning procedures, please refer to the video of ComeTrue® official website:
https://www.cometrue3d.com/en/s/support/user-videos-en
Select the video [Cleaning the ink pipe] in video list

T10 3D Printer User Manual Ver.180809EN
14 / 49

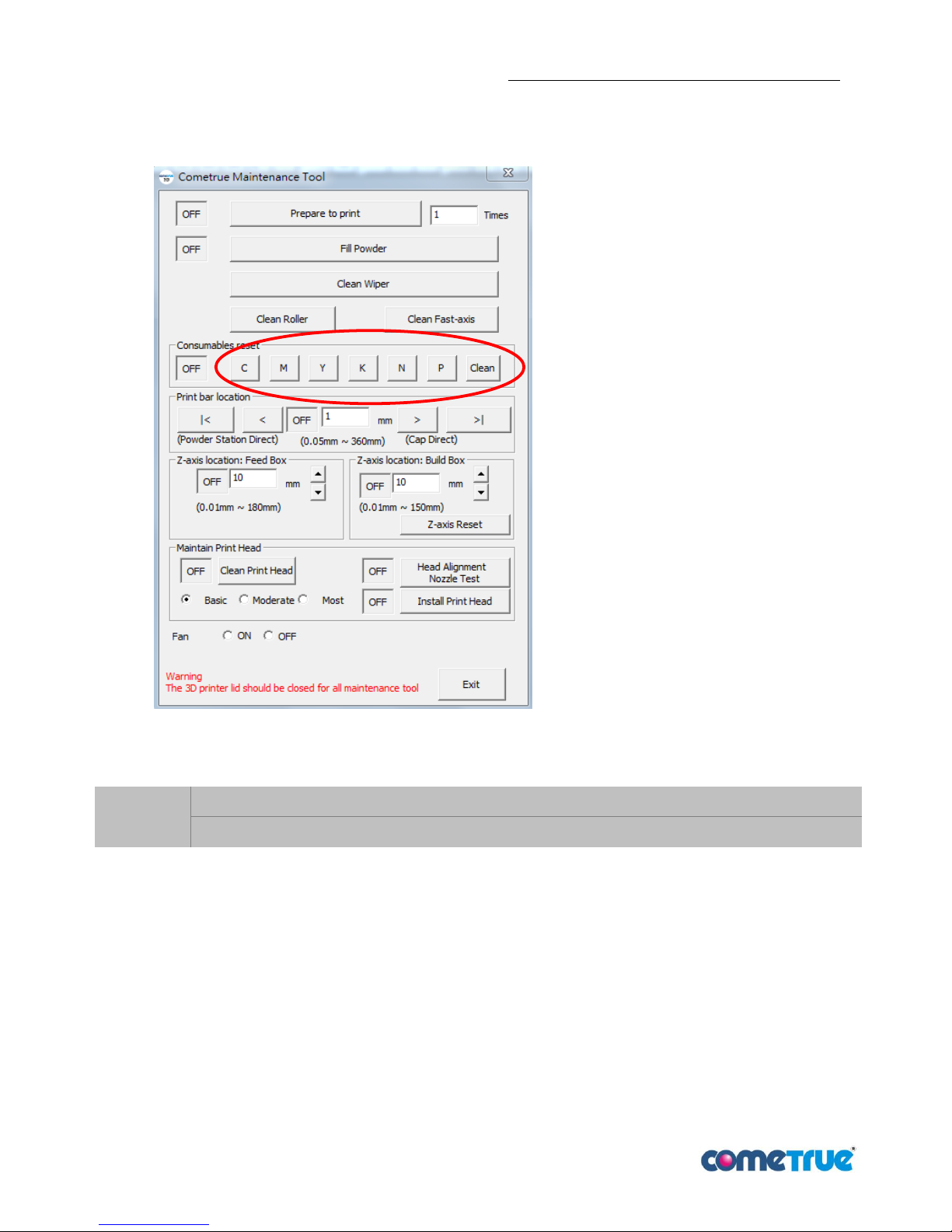

pic 20：Reset buttons
Symbol
C
M
Y
K
N
P
Clean
Meaning
Cyan
Magenta
Yellow
Black
Clear binder
Powder
Cleaner
NOTE：
After cleaning waste
powder or changing
binder cartridge, please
press CMYKNP Clean
these 7 buttons to reset
the counter.

T10 3D Printer User Manual Ver.180809EN
15 / 49
5.2 Fill feed box up with powder
a. Click Maintenance Tool. Key in 180mm in z-axis(feed box) (the maximum depth of Feed Box in this
machine) then press the down button, to decline the feed box into 180mm. ( pic 21)
pic 21：Adjust the depth of feed box
b. Pour powder into the feed box.
c. To flatten the powder, please take mini broom to stir powders.
d. Continue pouring and stirring powders until the feed box filled up with powder.
pic 22：Pouring powders pic 23：Stirring powders
Maintenance Tool
Adjust the depth of feed box

T10 3D Printer User Manual Ver.180809EN
16 / 49
5.3 Powder spreading and print testing
5.3.1 Powder spreading
a. Rise the Build Box to the highest level ( pic 24), the height of Build Box can be controlled
in Maintenance Tool Build Box (pic 25)
pic 24：Build box
pic 25：Slicing software Maintenance Tool to control Build Box
Build box up to
the highest level
Adjust the depth of
Build Box, key in value
from up to down.

T10 3D Printer User Manual Ver.180809EN
17 / 49
b. In Maintenance Tool Prepare to print, type in the times of powder spreading, then press Prepare to
Print to start powder spreading (pic 26). (pic 27) shows powder spreading.
pic 26：Powder spreading in Maintenance Tool
c. When powders of the two boxes are almost leveled then the spreading can be finished.
pic 27：Powder spreading. (arrow shows the direction of spreading)
Start spreading
The number of powder
spreading

T10 3D Printer User Manual Ver.180809EN
18 / 49
5.3.2 Print testing
After finish powder spreading, do the print testing first, including Head Alignment and Nozzle Test. Follow
the steps below:
a. In Maintenance Tool Head Alignment Nozzle Test.
pic 28：Press Head Alignment Nozzle Test
b. In HeadAlign Dialog 1 press “Next”.
pic 29：HeadAlign Dialog 1 window

T10 3D Printer User Manual Ver.180809EN
19 / 49
c. In HeadAlign Dialog 2 press Print, as pic 30. Start printing, as pic 31.
pic 30：HeadAlign Dialog 2 window
pic 31：Straight line alignment and nozzle testing
Alignment A shows left/right deviation of the two print heads (horizontal)
Alignment B shows up/down deviation of the two print heads (vertical)
Alignment C shows deviation of the two directions in the printing process.
d. Remember the minimum deviation of ABC.As pic 32, choosing A6, B6, C6.
pic 32：Confirm the alignment value(A6, B6, C6)

T10 3D Printer User Manual Ver.180809EN
20 / 49
pic 33：Select the alignment value(A5-A6, B5-B6, C5-C6)
e. Select the confirmed value (ABC) in HeadAlign Dailog 3, as pic 34.
pic 34：Select the confirmed alignment value (in the red circle)
f. Declining the build box 5mmand put the glass on it.
g. Finally, spread one layer of powder onto build box then ready to print.
pic 35：Put glass on build box
