Dear Customer,
Please carefully read this manual before using the dishwasher
This manual contains sections of Safety !nstructions
Operating !nstructions !nstallation !nstructions and
Troubleshooting Tips etc
The manufacturer following a policy of constant
development and updating of the product may
make modifications without giving prior notice
This will help you use and maintain the dishwasher properly
Keep it to refer to at a later date
Pass it on to any subsequent owner of the appliance
Read this Manual
!f you can not resolve the troubles by yourself
please ask for the help of professional technicians
1) Safety lnformation....................................................1
2) Operating lnstructions.............................................3
Control Panel 3
Dishwasher Features 3
3) Before First Use........................................................3
A Fill the Rinse Aid Dispenser 3
B Function of Detergent
4) Loa ing t!e "is!#as!er Bas$et.............................%
Attention before or after loading the Dishwasher Baskets
6
Loading the Basket 7
Cutlery Basket 8
&) Starting a 'as!ing (rogram...................................)
Wash Cycle Table 9
Turning on the Appliance 9
Change the Programme 10
At the End of the Wash Cycle 10
%) *aintenance an +,eaning ....................................11
Filtering System 11
Caring for the Dishwasher 12
-) lnsta,,ation lnstruction ..........................................13
Positioning the Appliance 1
About Power Connection 1
Water Connection 15
Start of dishwasher 15
.) /rou0,es!ooting /ips ............................................1-
Before calling for service 17
Error codes 18
Technical information 19
9) Warranty ...................................................................20

READANDFOLLOWTH!SSAFETY!NFORMAT!ONCAREFULLY
SAVE THESE!NSTRUCT!ONS
1 !MPORTANT SAFETY !NFORMAT!ON
READ ALL!NSTRUCT!ONS BEFORE US!NG
GROUND!NG!NSTRUCT!ONS
This appliance must be grounded !n the event of a
malfunctionor breakdown grounding will reduce
the risk of electric shock by providing apath of
least resistance of electric current This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances
WARN!NG!PROPER USE Keep children away from detergent and rinse aid keep
children away from the open door of the dishwasher
there could still be some detergent left inside
This appliance is not intended for use by persons
(including children )with reduced physical sensory or
mental capabilities or lack of experience and
knowledge unless they have been given supervision
or instruction concerninguse of the appliance by a
person responsible for their safety
Children should be supervised to ensure that they do
not play with the appliance
Dishwasher detergents are strongly alkaline they
can be extremely dangerous if swallowed Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open
The door should not be left in the open position
since this could present a tripping hazards
!f the supply cord is damaged it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding
it
Please dispose of packing materials properly
Use the dishwasher only for its intended function
During installation the power supply must not
be excessively or dangerously bent or flattened
Do not tamper with controls
The appliance is to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused
The maximum number of place settings to be
washed is 6
The maximum permissible inlet water pressure is
1Mpa
The minimum permissible inlet water pressure is
0 0 Mpa
WARN!NG! When using your dishwasher follow the precautions listed below:
WARN!NG!
!mproper connection of the equipment-grounding
conductor can result in a risk of electric shock
Check with a qualified electrician or service
representative if you are in doubt whether the
applianceis properly grounded Do not modify the
plug provided with the appliance; !f it is not fit for
the outlet Have a proper outlet installed by a
qualified electrician
Do not abuse sit on or stand on the door or dish
rack of the dishwasher
Do not touch the heating element during or
immediatelyafter use
(This instruction is only applicable to machines
with a visual heating element )
Do not operate your dishwasher unless all
enclosure panels are properly in place Open
the door very carefully if the dishwasher is
operating there is a risk of water squirting out
Do not place any heavy objects of stand on the
door when it is open The appliance could tip
forward
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2)Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position
When using your dishwasher you should
prevent plastic items from coming into contact
with heating element (This instruction is only
applicable to machines with a visual heating
element )
Check that the detergent receptible is empty
after completion of the wash cycle
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent For plastic items
not so marked check the manufacturer's
recommendations
Use only detergent and rinse additives
designed for an automatic dishwasher
Never use soap laundry detergent or hand
washing detergent in your dishwasher Keep
these products out of the reach of children
Attention:
The installation of the pipes
and electrical equipments
should be done by professionals
1

2 Operation !nstruction
Dishwasher Features
Control Panel
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
!MPORTANT
1
2
3
7
12 3
Power Button: To turn on/off the power supply
Child lock function: Press Child button to lock
the program;
Delay Button : To press the button to delay
Program Selector: Press the button to select
wash cycles
F unction Selector: To select Extra drying Extra
cleaning or Express
Start/Pause Button: Press this button to start
or pause the dishwasher
Display Screen:To show remaining time
and the state(running state delay time etc )
Extra Cleaning !ndicator;
Child Lock !ndicator;
Express !ndicator;
Water Faucet !ndicator;
Program !ndicator Light
8
9
10
11
12
13 Extra Drying !ndicators: To show Extra drying function
1Rinse Aid Warning Light : To be on when the
rinse aid dispenser needs to be refilled
15 Program Ending !ndicator
56
11
12 13 115
7 8 9 10
Back View
Front view
12
3
567
5Cutlery Basket
6Rinse Aid Dispenser
8 9
7Spray Arms
8!nlet Pipe Connector Connector
9Drain Pipe
1Cup Shelf
2Basket 3Detergent Dispenser
Filter Assembly
2

A Fill the Rinse Aid Dispenser
3Before First Use
As the rinse aid diminishes the size of the black dot
on the rinse aid level indicator changes as illustrated below
Full
3 / full
1 / 2 full
1 / full - Should refill to eliminate spotting
Empty
C(Rinse-Aid indicator)
the rinse aid get below 1 / full
Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes That can leave
spots and streaks !t also improves drying by allowing water to slide off the dishes Your dishwasher is designed to
use liquid rinse aids The rinse aid dispenser is located inside the door next to the detergent dispenser To fill the
dispenser open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black
The volume of the rinse aid container is about 110ml
Function of Rinse Aid
Rinse aid is automatically added during the last rinse ensuring thorough rinsing and spot and streak free drying
Attention!
Only use branded rinse aid for dishwasher Never fill the rinse aid dispenser with any other substances
(e g Dishwasher cleaning agent liquid detergent) This would damage the appliance
When to Refill the RinseAid Dispenser
!f there is no rinse-aid warning light in the control panel you can judge the amount of rinse-aid by the color
of the optical level indicator"C"located next to the cap When the rinse-aid container is full the whole
indicator will be dark As the rinse-aid diminishes the size of the dark dot decreases You should never let
Pour the rinse aid into the dispenser being careful not to overfill
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow
123
2
3

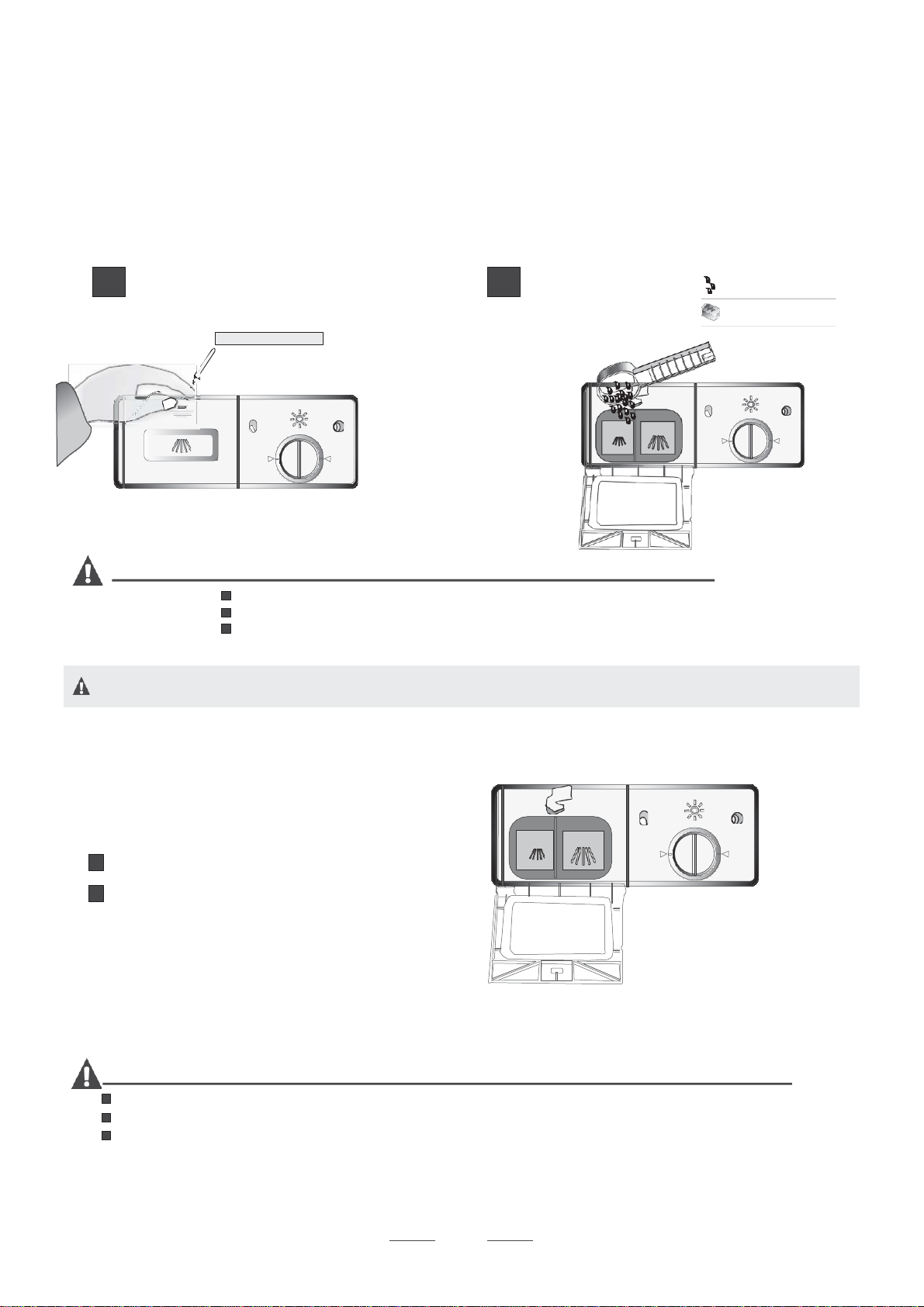

1To open the dispenser turn the cap to the "open" (left) arrow and lift it out
NOTE: Clean up any rinse aid spilled during filling with an absorbent cloth to avoid excessive foaming
during the next wash. Don't forget to replace the cap before you close dishwasher door
3

B Function of Detergent
Proper Use of Detergent
Detergents with its chemical ingredients are necessary to remove dirt crush dirt and transport it out of the dishwasher
Use only detergent specifically made for use in dishwashers Keep your detergent fresh and dry
Don't put powder detergent into the dispenser until you're ready to wash dishes
Detergents
There are 3 sorts of detergents
1 With phosphate and with chlorine
2 With phosphate and without chlorine
3 Without phosphate and without chloride
Normally new pulverised detergent is without phosphate The water softener function of
phosphate is not given !n this case we recommend to fill salt in the salt container even when
the hardness of water is only 6°dH !f detergents without phosphate were used in case of hard water
often white spots appear at dishes and glasses !n this case please add more detergent to reach
better results Detergents without chlorine do only bleach a little Strong and coloured spots will not
removed completely !n this case please choose a program with higher Temperature
Concentrated Detergent
Based on their chemical composition dishwashers can be split in two basic types:
conventional alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
The use of "normal"washing program in conjunction with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specially matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent For this reason
"normal"wash program in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using "heavy"program
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
program Therefore please use long program when using detergent tablets to
ensure the complete removal of detergent residuals
1 2usting 3inse 1i "ispenser
The rinse aid dispenser has four settings The recommended setting is on "3"
!f the dishes still are not drying properly or are spotted adjust the dial to the
next higher number on ""
Adjust lever
(Rinse)
NOTE
!ncrease the dose if there are drops of water or lime spots on the dishes after washing
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades

Amount of Detergent to Use
(us! ,atc! to open
1 2
Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table Your dishwasher uses less detergent and rinse aid then
conventional dishwasher Generally only one tablespoon of detergent is needed for
a normal wash load Also more heavily soiled items need more detergent Always add the
detergent just before starting the dishwasher otherwise it could get damp and will not
dissolve properly
NOTE !f the lid is closed: press release button The lid springs open
Always add the detergent just before starting each wash cycle
Only use branded detergent aid for dishwasher
Detergent powder
Detergent tablet
Fill in detergent
Fill the detergent dispenser with detergent
The marking indicates the dosing levels as
illustrated on right:
ACapacity-15g
BCapacity-25g
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging
Close the lid and press until it locks in place
!f the dishes are heavily soiled place an additional
detergent dose in the pre-wash detergent chamber This detergent will take effect during the pre-wash phase
NOTE
You find information about the amount of detergent for the single programme on the last page
Please aware that according to the level soiling and the specific hardness of water differences are possible
Please observe the manufacturer's recommendations on the detergent packaging
WARN!NG! Dishwasher detergent is corrosive! Take care to keep it out of reach of children
A
5
B

Loading the Dishwasher Baskets
!tems Not Recommended For The Dishwasher
Are not suitable
Cutlery with wooden horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
crystal glass
Steel items subject to rusting
Wooden platters
!tems made from synthetic fibres
Are of limited suitability
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Recommendation
Consider buying utensils which are identified as dishwasher-proof
Use a mild detergent that is described as specially for dishware !f necessary seek further
information from detergent manufacturers
For particular items like glassware select a program with as alow temperature
To prevent damage do not take glass and cutlery out of the dishwasher immediately
after the program has ended
(For best performance of the dishwasher follow these loading guidelines
Features and appearance of baskets and cutlery baskets may vary from your model )
Scrape off any large amounts of leftover food Soften remnants of burnt food in pans
!t is not necessary to rinse the dishes under running water
Place objects in the dishwasher in following way:
1 !tems such as cups glasses pots/pans etc are face down
2 Curved items or those with recesses should be loaded at a slant so that water can run off
3 All utensils are stacked securely and can not tip over
All utensils are placed in the way that the spray arms can rotated freely during washing
NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket
Load hollow items such as cups glasses pans etc With the opening downwards so that
water cannot collect in the container or adeep base
Dishes and cutlery must not lie inside one another or cover each other
To avoid damage to glasses they must not touch
Load large items which are most difficult to clean into the basket
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket
Please do not overload your dishwasher This is important for good results and for
reasonable energy consumption
6
Attention Before or After Loading The Dishwasher Baskets

Position the dishes and cookware so that they will not get moved by the spray of water
Loading the Basket
Cup Rack Basket
The basket is fitted with plate racks which
can be stowed horizontal if required
Saucers
Serving bowl
3
Glasses
1
Cups
6
Oval platter
7
Dinner plates Bread and
butter plates
8
Fruit bowl
5
Cutlery basket
9
2
7
2
8
1
1
3
9
6
5
2
!N
7

Cutlery should be placed in the cutlery basket with handles at the bottom !f the rack has side baskets the spoon
should be loaded individually into the appropriate slots especially long utensils should be placed in the horizontal
position at the front of the upper basket as shown
Cutlery Basket
WARN!NG!
Do not let any item extend through bottom
Always load sharp utensils with the sharp point down!
For personal safety and a top quality clean place the silverware in the basket:
So they do not nest together
With handles facing down
Sharp knives and other potentially dangerous utensils with handles facing up
Teaspoons
Serving forks
%
Serving spoons
&
4
1Dinner forks
2Salad forks
3Knives
!N
1
13
13
4
3
1
5
14
3
1
4
8
3
1
64
4 4
44
4
4
3
4
4 2

5 Starting a Washing Program
Wash Cycle Table
NOTE ( ) !eans need to fill rinse into the "inse#$id %ispenser.
& $ ' $ ! %(#)#*++, This program is the test cycle, the rinse#aid dispenser
setting is recommended to - osition ..
Turning On the Appliance
and lightly soiled pans
as glasses crystal and
fine china
such as pots pans casserole
A shorter wash for lightly
For lightly soiled loads
such as glasses crystal and
fine china
90
75
051
027
12 5
10
Rinse
Rinse
Rinse
Rinse(70¡)
Drying
Pre-Wash
Pre-Wash(50¡)
Wash(50¡)
Rinse
Rinse(60¡)
Drying
Main-wash
Pre-wash
Pre-wash(50¡)
Wash (55¡)
ECO 18g
BabyCare )/g
Cycle Selection
Program !nformation Description
Detergent
of Cycle
pre/main
Running
time(min) Energy
(Kwh) Water
(l) Rinse
Aid
For the heaviest soiled Pre-wash
loads
Pre-wash(50¡)
dishes and dishes that have Wash (50¡))/g
Heavy been sitting with dried food Rinse
on them for a while Rinse (68¡)
Drying
100 0 9 12 5
No
Pre-wash
For normally soiled loads Pre-wash
rmal such as pots plates glasses Wash (52¡))/g 110 036 10 8
(*AHAM
DW-1-2005 )standard daily cycle Rinse (65¡)
Drying
Pre-wash
Pre-wash (50¡)
For lightly soiled loads such Wash (55¡)
that will not be wash right
For lightly soiled crockery
and glass 70 028 8 5
Pre-Wash
Wash(50¡)
Rinse
Rinse(60¡)
Drying
),g
Glass
fine china Rinse(50¡)
soiled loads that do not Wash (50¡)15g
Speed need drying Rinse
Rinse(55¡)
5 0 31 10 5
Use for rinsing dishes¢
glasses and silverware Pre-wash /
Rinse away 2 003 3
For lightly soiled loads Main Wash( 5¡)
such as glasses crystal and Rinse ),g 20 018 6 5
Mini-party
Starting a wash cycle:
1 Draw out the basket(see the section entitled "Loading the Basket " );
2 Pour in the detergent (see the section entitled "Detergent and Rinse Aid " );
3 !nsert the plug into the socket The power supply is 120V/60 Hz;
Make sure that the water supply is turned on to full pressure;
5 Close the door and press the on/off button to turn on the power supply;
6 Press the program button to select wash program you need
4ea5y678orma,67Ba0y+are679+O67:,ass67Spee 673inse67*ini6party
7 Then press the Start/Pause button until dishwasher begins to start
NOTE When you press the Start/Pause button to pause during washing
the display time will stop blinking and the program will pause and
remain this cycle till you restart it again 9

WARN!NG! !t is dangerous to open the door when washing because the hot water may scald you
When the working cycle has finished the buzzer of dishwasher will sound for 8 seconds then stop Turn off
the appliance using the ON/OFF button shut off the water supply and open the door of the dishwasher
Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage They will also dry better
Since the appliance is standing by it will power off automatically after 30 minutes without any operation
Switch Off the Dishwasher
All the phase lights are off only in this case the program has ended
1 Switch off the dishwasher by pressing the ON/OFF button
2 Turn off the water tap!
Open the door carefully
Hot dishes are sensitive to cold shock The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance
Open the dishwasher's door leave it ajar and wait a few minutes before removing the dishes !n this way they
will be cooler and the drying will be improved
Unloading the dishwasher
!t is normal that the dishwasher is wet inside
Change the Programs
Forgot to Add a Dish?
At the End of the Wash Cycle
Aforgotten dish can be added any time before the detergent cup opens
completely
3After the spray arms stop working you can open the door
Add forgotten dishes
5Close the door
1Press the start/pause button
2Open the door a little to stop the washing
6Press the start/pause button the dishwasher will run
after 10 seconds
!f youopenthedoorwhenwashing themachinewillpause Whenyouclosethedoor
youneed pressstart/pausebuttonto continuethecycle
NOTE:
Premise: You can modify the washing program at the beginning of the cycle Otherwise the detergent may have
already been released and the appliance may have already drained the wash water !f this
is the case the detergent dispenser must be refilled (see the section entitled
"Loading the Detergent " )
To change the washing program press the Start/pause button to pause the machine then press
the program button more than three seconds to set the machine into standby then you can
change the program to the desired cycle setting
(See the section entitled " Starting a wash cycle " )
The lights show the state of the dishwasher:
a) All phase lights off----------------------------------Stand by
b) The display no blinking ---------------------------Paused
c) The display blinking -------------------------------Running
10

6 Maintenance and Cleaning
Food and soil particles trapped by this filter are pulverized by a
special jet on the spray arm and washed down to drain
A
Larger items such as pieces of bone or glass that could block
the drain are trapped in the coarse filter To remove the items
caught by the filter gently squeeze the tap on the top of this
filter and lift out
Coarse filter C
This filter holds soil and food residue in the sump area and
prevents it from being deposited on the dishes during wash cycle
Fine filter B
Filtration System
Filter Assembly
The filter efficiently removes food particles from the wash water allowing it to be recirculated during the cycle
For best performance and results the filter assembly must be regularly cleaned For this reason it is agood idea to
remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under
running water To remove the filter assembly pull on the cup handle in the upward direction
WARN!NG! Never run the dishwasher without the filters in place
The dishwasher must never be used without the filters
!mproper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils
NOTE: To re#install the filter system, complete 0tep., 0tep*, and finally, 0tep).
Step1YTwist the filter assembly(A B and C) counterclockwise
then lift it all up
Open
The filter prevent larger remnants of food or other objects from getting inside the pump
The filter system consists of a coarse filter a flat (main filter)
and a micro filter (fine filter)
CMain filter
B
A
Step2: Lift B and Cup fromA;
C
B
B
A
A
C
11
Complete

The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly
The exterior use a good appliance polish wax
Never use sharp objects scouring pads or harsh cleaners on any part of the dishwasher
Caring for the Dishwasher
Cleaning The Door
When cleaning the filters don't knock on them Otherwise the filters could be
contorted which could negatively impact dishwasher performance
WARN!NG!
Remarks:
- !nspect the filters for blocking every time the dishwasher has been used
-By unscrewing the coarse filter you can remove the filter system Remove any food remnants and
clean the filters under running water
NOTE The entire filter assembly should be cleaned once a week
Cleaning The Filter
To clean the coarse filter and the fine filter use a cleaning brush Reassemble the filter parts as shown in the figures
in the last page and reinsert the entire assembly in the dishwasher positioning in its seat and pressing downward
To clean the edge around the door you should use only a soft warm
damp cloth To avoid penetration of water into the door lock and
electrical components do not use a spray cleaner of any kind
WARN!NG!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components
Abrasive agent or some paper towel should not be used because of the risk of
scratching or leaving spots on the stainless steel surface
Protection Against Freezing
Please take frost protection measures on dishwasher in winter After each wash cycle please operate as follows:
1 Cut off electrical power to the dishwasher
2 Turn off the water supply and disconnect the water inlet pipe from the water valve
3 Drain water from the inlet pipe and water valve (Use a pan to catch the water)
Reconnect the water inlet pipe to the water valve
5 Remove the filter at the bottom of the tub and use a sponge to use up water in sump
NOTE 1f your dishwasher cannot wor2 because of the ice, please contact professional service persons.
12

How to Keep Your Dishwasher in Shape
When it is not in need for a long time
!t is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket turn off the water supply and leave the door of
the appliance slightly open This will help the door
seals to ast longer and prevent odours from forming
within the appliance
Moving the Appliance
!f the appliance must be moved try to keep it in the
vertical position !f absolutely necessary it can be
positioned on its back
Seals
One of the factors that cause odors to form in the
dishwasher is food that remains trapped in the seals
Periodic cleaning with a damp sponge will prevent this
from occurring
7 !nstallation !nstructions
After Every Wash
After every wash turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odors are not trapped inside
Remove the Plug
Before cleaning or performing maintenance always
remove the plug from the socket
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dishwasher
do not use solvents or abrasive cleaning products
Only use a cloth with warm soapy water
To remove spots or stains from the surface of the
interior use a cloth dampened with water with a little
vinegar or a cleaning product made specifically for
dishwashers
The installation position of dishwasher should be near the existing inlet and drain
hoses and power cord
One side of the cabinet sink should be chosen to facilitate the connection of drain
hoses of the dishwasher
!nstallation Preparation

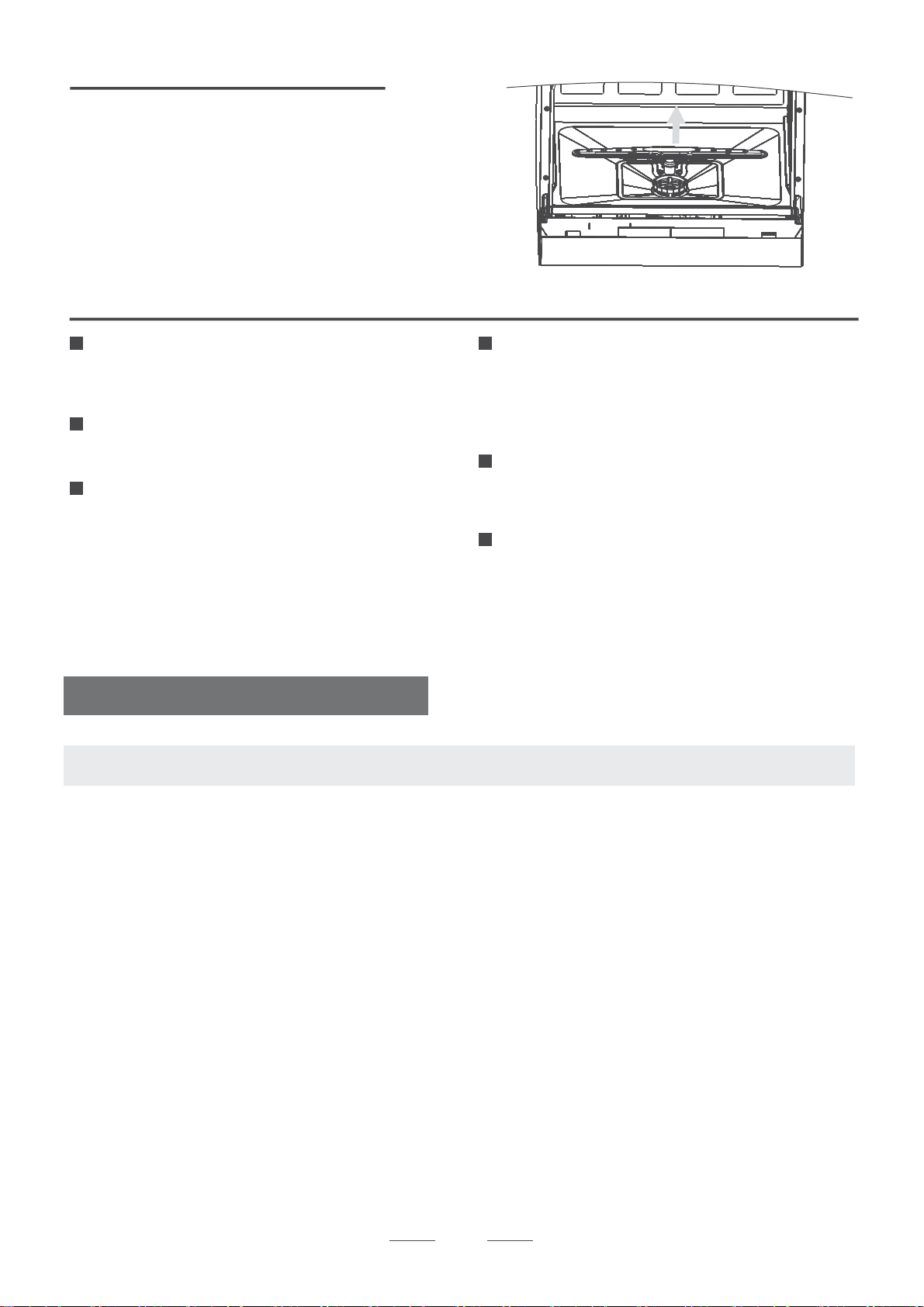

Cleaning the Spray Arms
The spray arms can be easily removed for periodic cleaning
of the nozzles to prevent possible clogging Wash them
under running water and carefully replace them in their seats
checking that their rotary movement is in no way impeded
Grasp the middle of the spray arm pull it upwards to remove
it Wash the arms under ajet of running water and return them
carefully to their seat After reassembly check that the spray
arms turn freely Otherwise check that they have been
installed correctly
13

those on the rating plate Only insert the plug into an electrical socket which is earthed
properly !f the electrical socket to which the appliance must be connected is not
appropriate for the plug replace the socket rather than using a adaptors or the like as
they could cause overheating and burns
Insureproperground
existsbefore use
Electrical Requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply
Use the required fuse 10 amp time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance Electrical Connection
Ensure the voltage and frequency of the power being corresponds to
GROUND!NG!NSTRUCT!ONS
This appliance must be earthed !n the event of a malfunction or breakdown earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current This appliance is equipped with
a cord having an equipment-earthing conductor and an earthing plug The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements
About Power Connection
Positioning the Appliance
WARN!NG! For personal safety:
DO NOT USE AN EXTENS!ON CORD OR AN ADAPTER PLUG W!TH TH!S APPL!ANCE
DO NOT UNDER ANY C!RCUMSTANCES CUT OR REMOVE THE EARTH!NG
CONNECT!ON FROM THE POWER CORD
for personal safety:
DO NOT USE AN EXTENS!ON CORD OR AN ADAPTER PLUG W!TH TH!S APPL!ANCE
DO NOT UNDER ANY C!RCUMSTANCES CUT OR REMOVE THE EARTH!NG
CONNECT!ON FROM THE POWER CORD
WARN!NG! !mproper connection of the equipment earthing conductor can result in the risk of an
electric shock
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed
Do not modify the plug provided with the appliance !f the plug does not fit properly to the
outlet please have a qualified electrician to install a proper outlet
1
Position the appliance in the desired location The back should rest against the wall behind it
and the sides along the adjacent cabinets or wall The dishwasher is equipped with water supply
and drain hoses that can be positioned to the right or the left to facilitate proper installation

Water Connection
Your dishwasher comes equipped with a 'quick connect' assembly (includes inlet and drain hose) The
faucet adapter must be installed on the faucet before you can connect the dishwasher This adapter is
included inside your dishwasher The faucet adapter is compatible with faucets inclusive of either male
(outside) or female (inside) threaded faucet connections
!n order to avoid that there is more water staying in the inlet hose please close the faucet after using
WARN!NG!
Back View
15

1Screw the faucet adapter onto (or into) the faucet tap Check for leaks (use Teflon tape to eliminate if
necessary)
2. Connect the six-sided connection of the drain hose to the drain port connection on the back of the
dishwasher cabinet Do not over-tighten (to avoid damage to threads)
3. Connect the star-shaped connection of the inlet hose to the inlet port on the back of the dishwasher
cabinet Do not over-tighten (to avoid damage to threads)
4. Connect the circular connection of the drain hose onto the longer (bottom) male connection on the quick
connect
&. Connect the circular connection of the inlet hose onto the shorter (top) male connection on the quick
connect
%. Attach the quick connect onto the faucet adapter by pulling down the outer locking collar on the quick
connect while pushing the quick connect upward onto the faucet adapter
-. When the quick connect snaps onto the faucet adapter release the locking collar Verify the connection
is secure
.. Slowly open the hot water line and check for any sign of water leaks at all hose connections !f leaks are
located immediately close the water supply and repair the hose connections
lmportant
1 Once you open the water supply line (even if it is closed immediately thereafter) the inlet hose will be
pressurized
2To relieve water pressure from inside the inlet hose (make sure the water line (faucet) is closed): press
and hold the red pressure relief button on the quick connect until the flow of water stops
'138l8:
F1lLU39 /O 39Ll9;9 ' 1 / 9 3 (39SSU39, B9FO39 "lS+ O 889+ / l8: /49 <Ul+=6+O889+/
F3O* /49 F1U+9/, ' l L L 39SUL/ l8 B1+=6(39SSU39 O;936S(31>. /49 / 9 * ( 9 3 1 / U 3 9 OF
l 8 + O * l 8 : ' 1 / 9 3 +18 B9 ; 9 3 > 4O/, 18" B1+=6(39SSU39 O;936S(31> +OUL" +1US9
S9 ;939 BU38S 18"?O3 S+1L"l8:.
" 1 8 : 9 3 +4lL"398 lS
"O 8 O / L 9/ + 4l L"3 98 " lS +O 88 9+ / /49 "lS4'1S493@ +LOS9 SU(93;lSlO8 OF
1L'1> S l * ( O 3 / 1 8 / 13OU8" 1((Ll18+9S.
8O/9A
4ar #ater con itions #i,, a 5erse,y affect t!e #as!ing performance of your is!#as!er. 4ar
#ater con itions #i,, a,so contri0ute to B,imeB C#!ite fi,m su0stance) eposits an ?or Bsca,ingB on t!e
stain,ess stee, surface of t!e is!#as!er tu0 an !eater e,ement, ,ocate in t!e sump un erneat! t!e
remo5a0,e fi,ter screen. /o assist in minimiDing t!ese con itions, it is recommen e to
perio ica,,y operate?rinse t!e insi e of t!e is!#as!er Cempty) using 1 cup of #!ite 5inegar at ,east
once a #ee$.
"isconnecting your "is!#as!er
1. Shut off the water supply at the faucet
2. Disconnect the power supply cord
Starting the Dishwasher
The following things should be checked before starting the dishwasher
1The dishwasher is level and fixed properly
2The inlet valve is open
3There is a leakage at the connections of the conducts
The wires are tightly connected
5The power is switched on
6The inlet and drain hoses are knotted
7All packing materials and printings should be taken out from the dishwasher
16
Attention: $fter installation, please ma2e sure to 2eep this manual.
The content of this manual is very helpful to the users.

8 Troubleshooting Tips
Review the charts on the following pages may save you from calling for service
Problem Possible Causes What To Do
Fuse blown or the
circuit breakertripped Replace fuse or reset circuit breaker Remove any other appliances sharing the same circuit with the dishwasher
Suds in the tub
Spilled rinse-aid Always wipe up rinse-aid spills immediately
White film on
inside surface
Knocking noise
in the wash cabinet
Rattling noise
in the wash cabinet
Knocking noise
in the water pipes
Hard water minerals
The spray arm is
knocking against
an item in a basket
!tem of crockery
are insecure
in the wash cabinet
This may be caused
by on-site installation
or the cross-section of
the piping
To clean the interior use a damp sponge with
dishwasher detergent and wear rubber gloves
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds
!nterrupt the programme and rearrange the items
which are obstructing the spray arm
!nterrupt the programme
and rearrange the items of crockery
This has no influence on dishwasher function
if in doubt contact a suitably qualified plumber
Stained tub interior Detergent with
colourant was used Make sure that the detergent is the one without colourant
!mproper detergent
Dishwasher doesn't
start Make sure the dishwasher is turned on and the door is
closed securely
Make sure the power cord is properly plugged into the
wall socket
Closed dishwasher making sure that door latches
Power supply is not
turned on
Door of dishwasher
not properly closed
Waternot pumped
from dishwasher Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose
Check the coarse filter
(see section titled " Cleaning The Filter ")
Check kitchen sink to make sure it is draining well
!fproblem is kitchen sink not draining you may need
a plumber rather than a serviceman for dishwasher
Use only the special dishwasher detergent to avoid
suds !f this occurs open the dishwasher and let suds
evaporate Add 1 gallon of cold water to the tub Close
and latch the dishwasher thenStart the "soak" wash
cycle to drain out the water Repeat if necessary
Before Calling for Service
Technical
problems
17
General
problems
Noise

Problem Possible Causes What To Do
The dishes were not
loadedcorrectly See notes in " Loadingthe Dishwasher Baskets "
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cups
The dishes
are not drying
Select a more intensive programme
See" Wash Cycle Table "
Use more detergent or change your detergent
Rearrange the items so that the spray can rotate freely
Clean and/or fit the filter combination correctly
Clean the spray arm jets See "Cleaning the Spray
Arms"
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean
Use a mild abrasive cleaner to eliminate those marks
Re-loading the dishes properly
Load the dishwasher as suggested in the directions
!ncrease the amount of rinse-aid/Refill the rinse-aid
dispenser
Do not empty your dishwasher immediately after
washing Open the door slightly so that the steam can
escape Begin unloading the dishwasher only once t
he dishes are barely warm to the touch Empty the low
basket first This prevents water form dropping off
dishes in the upper basket
!nshort program the washing temperature is lower
This also lowers cleaning performance Choose a
program with a long washing time
Water drainage is more difficult with these items
Cutlery or dishes of this type are not suitable for
washing in the dishwasher
The program was
not powerful enough
Not enough detergent
was dispensed
!tem are blocking
the path of spray arms
The filter combination
in the base of wash
cabinetis not clean or
is not correctly fitted
This may cause
the spray arm jets
to get blocked
Combination of soft
water and too much
detergent
Aluminum utensils
have rubbed against
dishes
Dishes block
detergent cups
!mproper loading
Too little rinse-aid
Dishes are removed
too soon
Wrongprogram
selection
Usingcutlerywith
alow-quality coating
Error Codes
WARN!NG! !f overflow occurs turn off the main water supply before calling a service
!f there is water in the base pan because of an overfill or small leak
the water should be removed before restarting the dishwasher
Poor
Washing
Result
18
Poor
Drying
Result
When some malfunctions come on the appliance will display error codes to warn you:
Codes Meanings Possible Causes
E1 Longerinlet time Faucets is not opened or water intake is restricted
or water pressure is too low
E3
Not
reaching required temperature Malfunction of heating element
E
Overflow
Some element of dishwasher leaks
Ed
Failure
of communication between main PCB with TFT PCB
Open
circuit or break of wiring for the
communication
