Comfort Glow CGCFTN Quick start guide

Save this manual for future reference.
OWNER’S OPERATION AND INSTALLATION MANUAL
VENT-FREE NATURAL GAS
COMPACT FIREPLACE
Shown with Optional
Cabinet Mantel/Hearth
Base Accessory
14,000 to 26,000 Btu/Hr
withThermostat
CGCFTN
WARNING: If the information in this manual is not
followedexactly, a fire or explosion mayresult caus-
ing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other
flammablevapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed by
aqualifiedinstaller,serviceagency,orthegas
supplier.
WARNING: Improper installa-
tion,adjustment,alteration,ser-
vice,ormaintenancecancause
injuryor propertydamage. Re-
fer to this manual for correct
installation and operational
procedures. For assistance or
additional information consult
a qualified installer, service
agency, or the gas supplier.
WARNING:Thisisanunvented
gas-fired heater. It uses air
(oxygen) from the room in
whichitisinstalled.Provisions
for adequate combustion and
ventilation air must be pro-
vided. Refer to Air for Com-
bustion and Ventilation sec-
tion on page 5 of this manual.
Thisappliancemaybeinstalledinanaftermarket*,permanentlylocated,manufac-
tured (mobile) home, where not prohibited by local codes.
Thisapplianceisonlyforusewiththetypeofgasindicatedontheratingplate.This
appliance is not convertible for use with other gases.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

2
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, oper-
ate, or service this fireplace. Im-
proper use of this fireplace can
causeseriousinjuryordeathfrom
burns, fire, explosion, electrical
shock, and carbon monoxide
poisoning.
SAFETY
INFORMATION
Carbon Monoxide Poisoning: Early signs
ofcarbonmonoxidepoisoningresemblethe
flu, with headaches, dizziness, or nausea. If
you have these signs, the fireplace may not
beworkingproperly.Getfreshairatonce!
Have fireplace serviced. Some people are
more affected by carbon monoxide than
others. These include pregnant women,
peoplewithheartorlungdisease oranemia,
those under the influence of alcohol, and
those at high altitudes.
Natural Gas: Natural gas is odorless. An
odor-making agent is added to natural gas.
Theodorhelpsyoudetectanaturalgasleak.
However, the odor added to natural gas can
fade.Naturalgasmaybepresenteventhough
no odor exists.
Make certain you read and understand all
warnings.Keepthismanualforreference.It
isyourguidetosafeandproperoperationof
this fireplace.
WARNING ICON G 001
WARNINGS
DANGER: Carbon monoxide
poisoning may lead to death!
WARNING:Anychangetothis
fireplace or its controls can be
dangerous.
1. This appliance is only for use with the
typeof gasindicated onthe ratingplate.
Thisappliance isnot convertibleforuse
with other gases.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do
not use any phone in your building
• immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions
• ifyou cannotreach yourgas supplier,
call the fire department
WARNING: Do not allow fans
toblowdirectlyintothefireplace.
Avoidanydraftsthatalterburner
flame patterns. Ceiling fans can
create drafts that alter burner
flame patterns. Altered burner
patterns can cause sooting.
WARNING:Donotuseablower
insert, heat exchanger insert, or
otheraccessorynotapprovedfor
use with this fireplace.
Due to high temperatures, the
appliance should be located out
oftrafficand away fromfurniture
and draperies.
Do not place clothing or other
flammable material on or near
the appliance. Never place any
objects on the heater.
Fireplace front and screen be-
comes very hot when running
fireplace. Keep children and
adults away from hot surfaces to
avoid burns or clothing ignition.
Fireplace will remain hot for a
time after shutdown. Allow sur-
faces to cool before touching.
Carefully supervise young chil-
drenwhentheyareinsameroom
with fireplace.
Keeptheapplianceareaclearand
free from combustible materials,
gasoline, and other flammable
vapors and liquids.
You must operate this fireplace
withthefireplacescreeninplace.
Make sure fireplace screen is in
place before running fireplace.
3. This fireplace shall not be installed in
a bedroom or bathroom.
4. Do not use this fireplace as a wood-
burning fireplace. Use only the logs
provided with the fireplace.
5. Do not add extra logs or ornaments
suchaspine cones,vermiculite, orrock
wool. Using these added items can
cause sooting. Do not add lava rock
aroundbase. Rockand debriscould fall
into the control area of fireplace.
6. This fireplace is designed to be smoke-
less. If logs ever appear to smoke, turn
offfireplace andcall aqualified service
person.
Note: During initial operation,
slight smoking could occur due to log
curing and fireplace burning manufac-
turing residues.
7. To prevent the creation of soot, follow
the instructions in Cleaning and main-
tenance, page 22.
8. Before usingfurniture polish,wax, car-
pet cleaner, or similar products, turn
heater off. If heated, the vapors from
theseproductsmaycreateawhitepow-
der residue within burner box or on
adjacent walls or furniture.
9. This fireplace needs fresh air ventila-
tion to run properly. This fireplace has
an Oxygen Depletion Sensing (ODS)
safety shutoff system. The ODS shuts
down the fireplace if not enough fresh
air is available. See Air for Combus-
tion and Ventilation, pages 5 through
7. If fireplace keeps shutting off, see
Troubleshooting, pages 19 through 21.
10. Do not run fireplace
• where flammable liquids or vapors
are used or stored.
• under dusty conditions.
11. Do not use this fireplace to cook food
or burn paper or other objects.
12. Never place any objects in the fireplace
or on logs.
13. Do not use fireplace ifany part has been
under water. Immediately call a quali-
fied service technician to inspect the
room fireplace and to replace any part
of the control system and any gas con-
trol which has been under water.
14. Turn off and unplug fireplace and let
cool before servicing. Only a qualified
service person should service and re-
pair fireplace.

3
107035
OWNER’S MANUAL
15. Operating fireplace above elevations of
4,500 feet could cause pilot outage.
16. Do not operate fireplace if any log is
broken. Do not operate fireplace if a
log is chipped (dime-sized or larger).
17. Provide adequate clearances around air
openings.
LOCAL CODES
Installandusefireplacewithcare. Followall
localcodes.Intheabsenceoflocalcodes,use
the latest edition of The National Fuel Gas
Code ANSI Z223.1NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT
FEATURES
SAFETY PILOT
This fireplace has a pilot with an Oxygen
DepletionSensing(ODS)safetyshutoffsys-
tem. The ODS/pilot is a required feature for
vent-free room fireplaces. The ODS/pilot
shuts off the fireplace if there is not enough
fresh air.
PIEZO IGNITION SYSTEM
This fireplace has a piezo ignitor. This sys-
tem requires no matches, batteries, or other
sources to light fireplace.
THERMOSTATIC HEAT
CONTROL
Thisfireplacehasa thermostatsensingbulb
and a control valve. The thermostat will
automatically modulate the heat output to
maintain a consistent room temperature.
This results in greater fireplace comfort.
This can also result in lower gas bills.
UNPACKING
1. Remove log box and fireplace from
carton. IMPORTANT: The fireplace
hood is inside the cardboard protective
end wrap on the left side of fireplace
(as viewed from front). A decal is on
the outside of the cardboard end wrap
stating hood is enclosed (see Figure 2).
2. Remove hood from cardboard protec-
tive end wrap as shown in Figure 2.
3. Remove all protective packaging ap-
plied to fireplace for shipment.
4. Make sure your fireplace includes one
hardware packet.
5. Check fireplace for any shipping dam-
age. If fireplace is damaged, promptly
informdealerwhereyouboughtfireplace.
PRODUCT IDENTIFICATION
Figure 1 - Vent-Free Gas Compact Fireplace
Ignitor Button
Fireplace
Cabinet
Log Set
Screen
Control Knob
Figure 2 - Removing Fireplace Hood
IMPORTANT:
THIS PACKAGE CONTAINS A
FIREPLACE HOOD. UNWRAP
CARTON AND REMOVE HOOD
BEFORE DISCARDING
PROTECTIVE PACKAGING.
1
2
Hood
Cardboard
Protective
Fireplace
End Wrap
Hood Enclosed
Decal
SAFETY
INFORMATION
Continued

4
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
ASSEMBLY
WARNING: Always have
branch support and screen in
place before operating fireplace.
Thispreventsexcessivetempera-
tures on fireplace surfaces.
Figure 3 - Assembling Fireplace
Log Set
Screen
Burner Support
with Log Locator
Tabs
Branch Support
Shoulder Screw
Figure 4 - Assembling Hood
ASSEMBLING FIREPLACE
Tools Required:
• Phillips screwdriver
• 5/16" hex wrench
• slotted screwdriver
• scissors
Installing Log
1. Lift screen up and pull out to remove.
2. Cut two plastic straps to remove the log
from the firebox cavity.
3. An optionalblower is available. SeeAc-
cessories, pages 26 and 27. Install op-
tional blower now. Follow installation
instructions provided with blower.
4. Remove log packaging material and
discard packaging. Gently place log set
on burner support (see Figure 3). The
log should fit flat against top of burner
support and log locator tabs fit into the
slots under the log. Do not allow log to
contact flame. If flame contacts log,
soot will be created.
5. Reattach screen by placing the notches
in the screen frame over the shoulder
screws and pushing down.
WARNING:Failuretoposition
thepartsinaccordancewiththese
diagrams or failure to use only
parts specifically approved with
this fireplace may result in prop-
erty damage or personal injury.
Hood Tab
Assembling Hood
1. Locate four black phillips sheet metal
screws from the hardware packet.
2. Rotate hood as shown in Figure 4.
Make sure hood tabs point toward
fireplace.
3. Insert hood tabs between baffle and
louvers (see Figure 4).
4. Gently rotate hood to upright position.
Make sure hood tabs are behind lou-
vers and hood is resting on firebox top
(see Figure 4).
5. Align screw holes on hood with screw
holes on firebox top.
6. Insert screws as shown in Figure 4.
Tighten screws firmly.
Sheet Metal
Screws
Louver
Baffle
Firebox Top
Hood
Hood Tabs

5
107035
OWNER’S MANUAL
AIR FOR
COMBUSTION AND
VENTILATION
Today’s homes are built more energy effi-
cient than ever. New materials, increased
insulation, and new construction methods
helpreduceheatlossinhomes.Homeowners
weatherstripand caulkaround windowsand
doorstokeepthecoldairoutandthewarmair
in. During heating months, home owners
want their homes as airtight as possible.
While it is good to make your home energy
efficient,yourhomeneedstobreathe.Fresh
air must enter your home. All fuel-burning
appliances need fresh air for proper com-
bustion and ventilation.
Exhaustfans,fireplaces,clothesdryers,and
fuel burning appliances draw air from the
house to operate. You must provide ad-
equate fresh air for these appliances. This
will insure proper venting of vented fuel-
burning appliances.
WARNING: This heater shall
notbeinstalledinaconfinedspace
or unusually tight construction
unlessprovisionsareprovidedfor
adequatecombustionandventila-
tionair.Readthefollowinginstruc-
tions to insure proper fresh air for
this and other fuel-burning appli-
ances in your home.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National
FuelGasCode,ANSIZ223.1/NFPA54,Sec-
tion5.3,AirforCombustionandVentilation.
Allspacesinhomesfallintooneofthethree
following ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 5 through 7 will
help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and win-
dows may provide enough fresh air for
combustion and ventilation. However, in
buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is de-
fined as construction where:
a. walls and ceilings exposed to the
outside atmosphere have a con-
tinuous water vapor retarder with
a rating of one perm (6 x 10-11 kg
per pa-sec-m2) or less with open-
ings gasketed or sealed and
b. weather stripping has been
added on openable windows and
doors and
c. caulking or sealants are applied
to areas such as joints around
window and door frames, be-
tween sole plates and floors,be-
tween wall-ceiling joints, be-
tween wall panels, at penetra-
tionsforplumbing,electrical,and
gas lines, and at other openings.
If your home meets all of the three
criteria above, you must provide ad-
ditional fresh air. See Ventilation Air
From Outdoors , page 7 .
If your home does not meet all of the
threecriteriaabove,proceedto Deter-
mining Fresh-Air Flow For Fireplace
Location , page 6.
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/
NFPA54definesaconfinedspaceasaspace
whose volume is less than 50 cubic feet per
1,000 Btu per hour (4.8 m3per kw) of the
aggregate input rating of all appliances in-
stalledinthatspaceandanunconfinedspace
as a space whose volume is not less than 50
cubicfeetper1,000Btuperhour(4.8m3per
kw) of the aggregate input rating of all
appliances installed in that space. Rooms
communicating directly with the space in
whichtheappliancesareinstalled*,through
openings not furnished with doors, are con-
sidered a part of the unconfined space.
*Adjoiningroomsarecommunicatingonly
iftherearedoorlesspassagewaysorventila-
tion grills between them.
Continued

6
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
AIR FOR
COMBUSTION AND
VENTILATION
Continued
DETERMINING FRESH-AIR FLOW FOR FIREPLACE LOCATION
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined space.
Space:Includes the room in which you will install fireplace plus any adjoining rooms with doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = _________________cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of
the space.
2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.
_________________ (volume of space) x 20 = (Maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 = 51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free fireplace _______________ Btu/Hr
Gas water heater _______________ Btu/Hr
Gas furnace _______________ Btu/Hr
Vented gas heater _______________ Btu/Hr
Gas fireplace logs _______________ Btu/Hr
Other gas appliances* +_______________ Btu/Hr
Total =_______________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
_________________ Btu/Hr (maximum the space can support)
_________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
56,000 Btu/Hr (actual amount of Btu/Hr used)
Thespace intheaboveexampleisaconfinedspacebecausetheactualBtu/HrusedismorethanthemaximumBtu/Hrthespacecansupport.
You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-
ing room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 7.
C. Install a lower Btu/Hr fireplace, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no
additional fresh air ventilation.
WARNING:Iftheareainwhichtheheatermaybeoperatedissmallerthanthatdefinedasanunconfinedspace
or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of
themethodsdescribedinthe NationalFuelGasCode,ANSIZ223.1/NFPA54,Section5.3 orapplicablelocalcodes.
Example:
Gas water heater 30,000 Btu/Hr
Vent-free fireplace +26,000 Btu/Hr
Total =56,000 Btu/Hr

7
107035
OWNER’S MANUAL
Figure 6 - Ventilation Air from Outdoors Shown with Optional Mantel
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two per-
manent openings: one within 12" of the
ceiling and one within 12" of the floor.
Connecttheseitemsdirectlytotheoutdoors
orspacesopentotheoutdoors.Thesespaces
include attics and crawl spaces. Follow the
NationalFuelGasCode,ANSIZ223.1/NFPA
54, Section 5.3, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
IMPORTANT: Donot provideopenings for
inlet or outlet air into attic if attic has a
thermostat-controlledpowervent.Heatedair
enteringtheatticwillactivatethepowervent.
AIR FOR
COMBUSTION AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air From Inside
Building
Thisfreshairwouldcomefromanadjoining
unconfined space. When ventilating to an
adjoining unconfined space, you must pro-
vide two permanent openings: one within
12" of the ceiling and one within 12" of the
floor on the wall connecting the two spaces
(seeoptions1and2,Figure5).Youcanalso
remove door into adjoining room (see op-
tion 3, Figure 5). Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section
5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
Figure 5 - Ventilation Air from Inside Building Shown with Optional Mantel
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into Adjoining
Room,
Option 1

8
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
INSTALLATION
WARNING: A qualified ser-
vicepersonmustinstallfireplace.
Follow all local codes.
You can recess firebox into the wall. You
can also position fireplace in the optional
cabinet or corner mantels. IMPORTANT:
Onlyuse optional cabinetor corner mantels
specified in this manual. Purchase the op-
tional mantel from your dealer (see Acces-
sories, pages 26 and 27).
CAUTION: This fireplace cre-
ates warm air currents. These
currents move heat to wall sur-
faces next to fireplace. Installing
fireplace next to vinyl or cloth
wall coverings or operating fire-
place where impurities (such as,
butnotlimitedto,tobaccosmoke,
aromatic candles, cleaning flu-
ids,oilorkerosenelamps,etc.)in
the air exist, may discolor walls
or cause odors.
IMPORTANT: Vent-freefireplacesaddmois-
ture to the air. Although this is beneficial,
installing fireplace in rooms without enough
ventilationairmaycausemildewtoformfrom
too much moisture. See Air for Combustion
and Ventilation, pages 5 through 7.
LOCATING FIREPLACE
WARNING:Maintainthemini-
mum clearances shown in Fig-
ures 7 and 8. If you can, provide
greater clearances from floor,
ceiling, and joining wall.
Note: Your Comfort Glow fireplace is de-
signedtobeusedinzeroclearanceinstallations.
Wallorframingmaterialcanbeplaceddirectly
against any exterior surface on the fireplace,
except where standoff spacers are integrally
attached. If standoff spacers are attached to
your fireplace, these spacers can be placed
directly against wall or framing materials.
Use the dimensions shown for rough open-
ings to create the easiest installation (see
Built-In Fireplace Installation, page 9).
CHECK GAS TYPE
Use only natural gas. If your gas supply is
notnatural gas, do not install fireplace. Call
dealerwhereyouboughtfireplaceforproper
type fireplace.
INSTALLATION ITEMS
Before installing fireplace, make sure you
have the items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• ground joint union
• sediment trap
• tee joint
• pipe wrench
* ACSAdesign-certifiedequipmentshutoff
valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Pur-

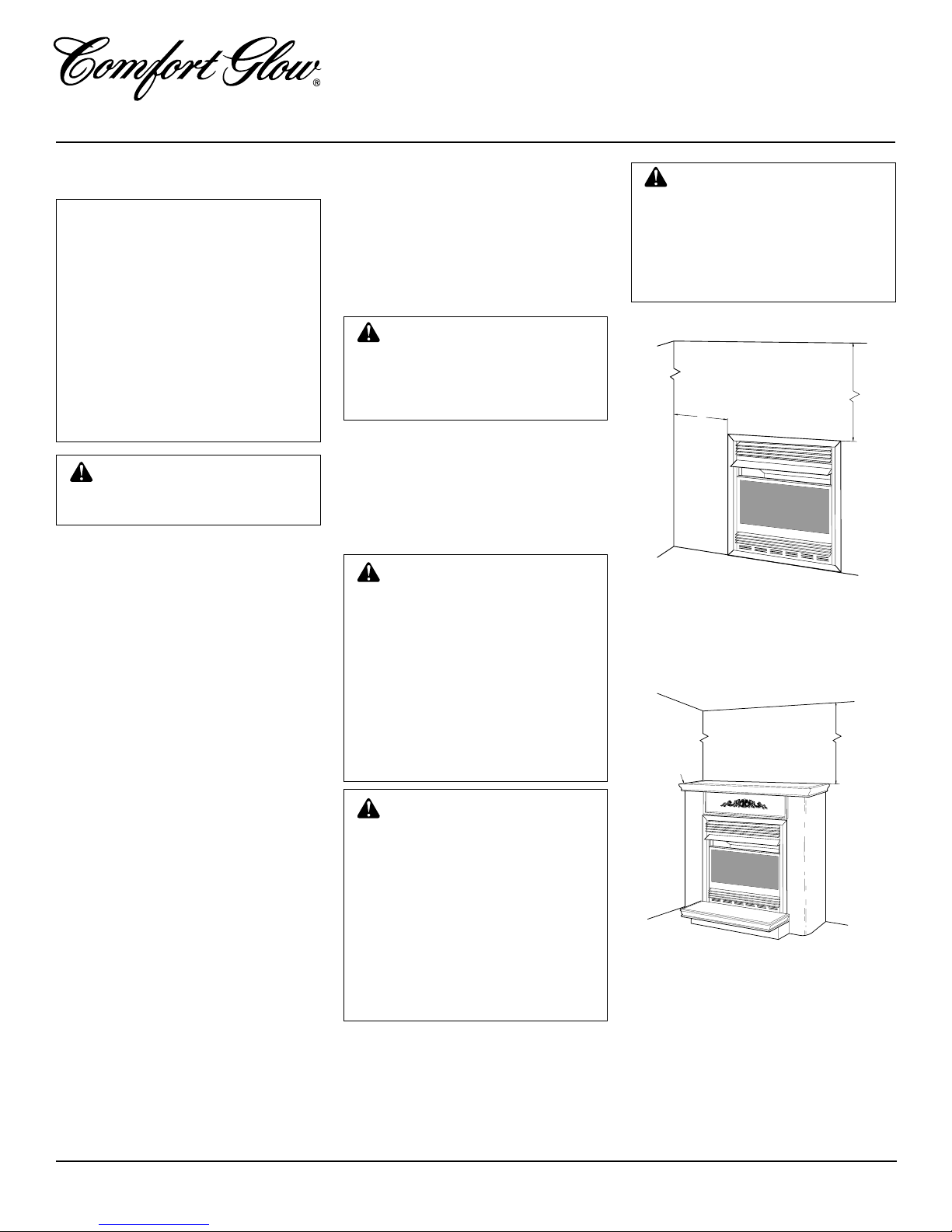

Figure8-MountingClearancesAsViewed
From Front of Fireplace Shown with
Optional Mantel
CAUTION: If you install the
fireplace in a home garage
•fireplacepilotandburnermust
be at least 18 inches above
floor.
•locate fireplace where moving
vehicle will not hit it.
6"
Minimum
From
Sides Of
Fireplace
Left
Side
CEILING
36" Minimum
FLOOR
Right
Side
Top Of
Mantel Can
Be Flush
With Wall
Left
Side
CEILING
Right
Side
36"
Minimum
Figure7-MountingClearancesAsViewed
From Front of Fireplace Shown Built In
The Wall
WARNING: Never install the
fireplace
•in a bedroom or a bathroom
•in a recreational vehicle
•where curtains, furniture,
clothing, or other flammable
objectsarelessthan36inches
from the front, top, or sides of
the fireplace
•as a fireplace insert
•in high traffic areas
•in windy or drafty areas
NOTICE: This heater is intended
foruseassupplementalheat.Use
this heater along with your pri-
mary heating system. Do not in-
stall this heater as your primary
heatsource.If you haveacentral
heating system, you may run
system’scirculatingblowerwhile
usingheater.Thiswillhelpcircu-
late the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
chase the optional CSA design-certified
equipment shutoff valve from your dealer.
See Accessories, pages 26 and 27.
Note: Ifdesired,purchaseafour-sidedbrass
trimkit forbuilt-in installations.SeeAcces-
sories, pages 26 and 27.
0" Minimum To Top Surface Of Carpeting,
Tile Or Other Combustible Material
0" Minimum To Top Surface Of Carpeting,
Tile Or Other Combustible Material
Note: When installing fireplace directly on
carpeting,tile or other combustible material,
other than wood flooring, the fireplace shall
beinstalledonametalorwoodpanelextend-
ing the full width and depth of the fireplace.

9
107035
OWNER’S MANUAL
Continued

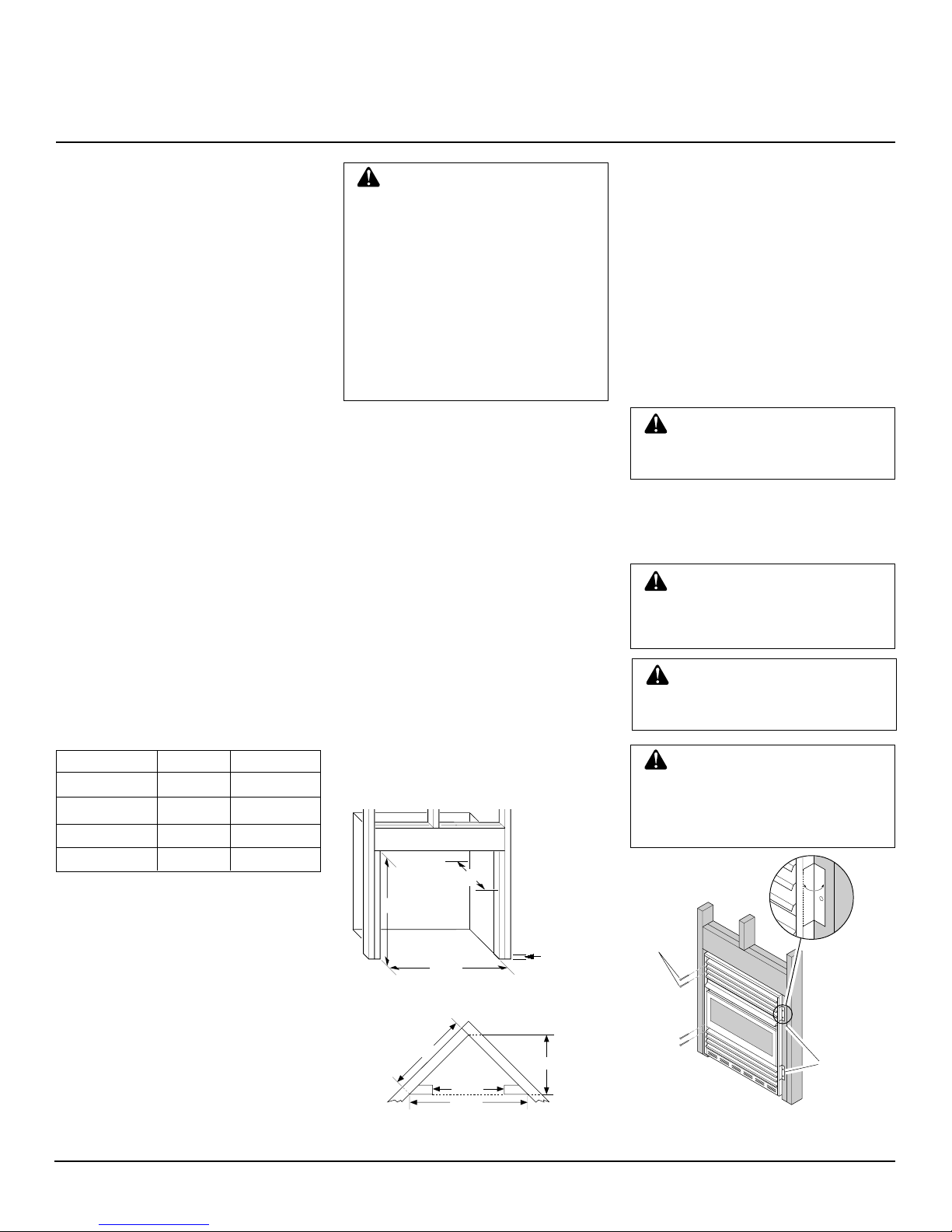

Figure 11 - Attaching Fireplace to Wall
Studs
36
5
/ 8 "25
7
/ 8 "
51
3
/ 4 "
26
7
/ 8 "
Figure 10 - Rough Opening for Installing
in Corner
1. Frameinrough opening.Usedimensions
shownin Figure9 forthe roughopening.
If installing in a corner, use dimensions
shown in Figure 10 for the rough open-
ing. The height is 26 7/8" which is the
same as the wall opening above.
2. If installing GA3450T blower acces-
sory, do so at this time. Follow instruc-
tions included with blower accessory.
Note: If not installing blower acces-
sory, you may wish to run electrical
wiring to your fireplace for future
blower installation (see Accessories,
pages 26 and 27). Use only approved
three-wire electrical wiring.
26
7
/ 8 "
26
7
/ 8 "
3/4" Off
The Floor
Minimum
10
1
/ 2 "
Figure 9 - Rough Opening for Installing
in Wall
BUILT-IN FIREPLACE
INSTALLATION
Built-ininstallationofthisfireplaceinvolves
installing fireplace into a framed-in enclo-
sure. This makes the front of fireplace flush
with wall. An optional brass trim kit acces-
sory is available (see Accessories, pages 26
and 27). Brass trim will extend past sides of
fireplace approximately 1/2 inch. This will
coverthe rough edges of the wall opening. If
installing a built-in mantel above the fire-
place,youmustfollow theclearancesshown
inFigure12,page10.Followtheinstructions
below to install the fireplace in this manner.
Note: Your Comfort Glow fireplace is de-
signed to be used in zero clearance installa-
tions.Wallorframingmaterialcanbeplaced
directly against any exterior surface on the
rear, sides, or top of your fireplace.
Actual Framing
Height 26" 26 7/8"
Front Width 26 3/4" 26 7/8"
Depth 9 1/2" 10 1/2"
Bottom 3/4" 3/4"
INSTALLATION
Continued
Nails or
Wood
Screws
Nailing
Flanges
WARNING: If pre-wiring, do
not connect wiring to any electri-
cal source at this time.
Install fireplace electrical outlet
and connect wiring to outlet be-
fore connecting to electrical
source. The fireplace electrical
outlet is included with the
GA3450T blower accessory.
Only use the fireplace electrical
outletsuppliedwiththeGA3450T
blower accessory.
For convenience and efficiency, install
fireplace
• where there is easy access for operation,
inspection, and service.
• in coldest part of room.
An optional blower kit is available from
your dealer. See Accessories, pages 26 and
27. If planning to use blower, locate fire-
place near an electrical outlet.
Note: Aqualifiedinstaller should make
all electrical connections.
3. Install gas piping to fireplace location.
This installation includes an approved
flexible gas line (if allowed by local
codes) after the manual shutoff valve.
The flexible gas line must be the last
item installed on the gas piping.
4. If you have not assembled firebox, fol-
low instructions on page 4.
5. Carefully set fireplace in front of rough
opening with back of fireplace inside
wall opening.
6. Attach flexible gas line to fireplace gas
regulator. See Connecting Fireplace to
Gas Supply, page 15.
7. Bend four nailing flanges on outer cas-
ing with pliers (see Figure 11).
8. Attach fireplace to wall studs using
nails or wood screws through holes in
nailing flange.
9. Check all gasconnections for leaks. See
Checking Gas Connections, page 16.
10. If using optional brass trim kit, install
the trim after final finishing and/or
painting of wall. See instructions in-
cluded with brass trim accessory for at-
taching brass trim.
IMPORTANT: When finishing your fire-
box,combustiblematerialssuchaswallboard,
gypsumboard,sheetrock,drywall,plywood,
etc.maybebuttedupnexttothesidesandtop
edge of the firebox. Combustible materials
shouldneveroverlapthefireboxfrontfacing.
WARNING: Do not allow any
combustiblematerialstooverlap
the firebox front facing.
IMPORTANT: Noncombustible materials
suchasbrick,tile,etc.mayoverlapthefront
facing, but should never cover any neces-
sary openings like louvered slots.
WARNING: Do not allow non-
combustible materials to cover
anynecessaryopeningslikelou-
vered slots.
WARNING:Useonlynoncom-
bustible mortar or adhesives
when overlapping the front fac-
ing with noncombustible facing
material.
WARNING: Never modify or
cover the louvered slots on the
front of the firebox.

10
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
13" 16"
19"
21"
2
1
/2"
6"
8"
10"
Note:
All vertical
measurements
are from top of
fireplace
opening to
bottom of
mantel shelf. All
measurements
are in inches.
INSTALLATION
Continued
MANTEL CLEARANCES FOR
BUILT-IN INSTALLATION
If placing mantel above built-in fireplace,
youmustmeetminimumclearancebetween
mantel shelf and top of fireplace opening.
Figure 12 - Minimum Mantel Clearances
for Built-In Installation
Mantel Shelf
Side of
Firebox
Figure 13 - Attaching Brass Trim to Fireplace
OPTIONAL MANTEL
INSTALLATION
Note: Refer to instructions provided with
the mantel for assembly instructions. Refer
to instructions below for system installa-
tion. Refer to instructions on page 4 for
fireboxassembly. Bloweraccessory should
beinstalled ifit is beingused (seeInstalling
Blower Accessory GA3450T, pages 11
through 13).
1. Unscrew four brass screws that attach
top louver to fireplace. Remove louver
from fireplace and set aside.
2. Place fireplace on wood base.
3. Place mantel around fireplace/base
assembly.
4. Assemble brass trim kit. See Assem-
bling Brass Trim, page 11.
5. Firmly snap brass trim kit on shoulder
screws. Shoulder screws are located on
fireplace cabinet (see Figure 13).
6. Align brass trim kit for flush fit around
opening.
7. Use two 3" wood screws provided and
attach fireplace base to wooden base
(see Figure 13).
Shoulder
Screws
Assembled
Brass Trim
Hole for 3"
Wood Screw
for Attaching
Fireplace to
Wooden Base
Hole for 3"
Wood
Screw for
Attaching
Fireplace to
Mantel
8. Remove brass trim kit and mantel. Be
careful not to damage wall or mantel.
9. Place wood base next to wall at instal-
lation location.
10. Attach wood base to floor with two
1 3/4" black screws provided (see Fig-
ure 14). If the floor is concrete use an-
chor method (see AttachingWood Base
to Solid Floor, page 14).
11. Install gas line. See Connecting To Gas
Supply, page 14.
12. Check for leaks. See Checking Gas
Connections, page 16.
13. Place mantel around fireplace. Be care-
ful not to damage wall or mantel.
14. Place brass trim kit on the shoulder
screws located on the side and top of
thefireplace. Firmly snap the brass trim
over the shoulder screws on fireplace
(see Figure 13).
15. Adjust assembly to remove any gaps.
Attach remaining two 3" wood screws
from hardware pack through openings
inside of fireplace sides into the mantel.
The openings are located at top behind
the area for the louvers (see Figure 13).
16. Reinstall top louvers.
Figure 14 - Attaching Wood Base to Floor
1 3/4" Screw
Wood Base
NOTICE:Surfacetemperaturesof
adjacent walls and mantels be-
comehotduringoperation.Walls
and mantels above the firebox
may become hot to the touch. If
installedproperly,thesetempera-
turesmeettherequirementofthe
national product standard. Fol-
low all minimum clearances
shown in this manual.
NOTICE:Ifyourinstallationdoes
notmeettheminimumclearances
shown, you must do one of the
following:
•raise the mantel to an accept-
able height
•remove the mantel

11
107035
OWNER’S MANUAL
1
2
ASSEMBLING BRASS TRIM
(Brass trim shipped with
mantel)
1. Remove packaging from three remain-
ing pieces of brass trim.
2. Locate two adjusting plates with set
screws, and two shims in the hardware
packet.
3. Align shim under adjusting plate as
shown in Figure 15.
4. Slide one end of adjusting plate/shim
inslot on mitered edge of top brass trim
(see Figure 15).
5. Slide other end of adjusting plate/shim
in slot on mitered edge of side brass
trim (see Figure 15).
6. While firmly holding edges of brass
trim together, tighten both set screws
on the adjusting plate with slotted
screwdriver.
7. Repeat steps 1 through 6 for other corner.
8. Set brass assembly aside for later in-
stallation.
Figure 15 - Assembling Brass Trim
INSTALLATION
Continued
Top Brass Trim
Side
Brass
Trim
Mitered
Edge
Shim
Set
Screws
Adjusting
Plate
Slot
Slot
Continued
INSTALLING BLOWER
ACCESSORY GA3450T
Removing Upper Louver
Assembly
To install the blower accessory, you must
first remove the upper louver assembly.
1. Lift screen off heater.
2. Remove 4 screws from louver assem-
bly (see Figure 16). Save these screws.
3. Pull louver assembly straight out from
the cabinet. Be careful not to scratch
the paint. Set louver assembly and
screws aside.
Figure 16 - Removing Upper Louver
Assembly
Upper Louver
Assembly
Brass Screws
Blower Bracket
Mounting Holes
Remove
Screw
Valve
Cover
Shield
Shoulder
Screw
Removing Valve Cover Shield
1. Open bottom louver assembly by
swinging the assembly down (see Fig-
ure 17).
2. Using short Phillips screwdriver, re-
move the screw under the center of the
branch support. Rotate valve cover
shield clockwise and slide out.
IMPORTANT: Do not remove shoul-
derscrew on the left side of valve cover
shield. Slide the valve cover shield off
of the shoulder screw (see Figure 17).
Note: If you do not have a short
Phillipsscrewdriver,thescreen, log set,
and branch support must be removed
so a longer screwdriver may be used.
See Connecting Fireplace To Gas Sup-
ply, page 15 and follow step 2.
Figure17 - Removing Valve CoverShield
Branch
Support
Snap
Bushings
Bottom Louver
Assembly
Note: If you are using a mantel with your
heater, use the following instructions. If
your heater is built-in, see For Built-In In-
stallation on page 13.
1. Install snap bushingsfound in hardware
kitinto both holes in rear of valve cover
shield.
2. Make sure the wire harness is firmly
connectedto theterminals onthe blower
bracket assembly.
3. Note the wire locations on back of
AUTO/OFF/ON switch.The terminals
on back of switch are numbered 1, 2,
and 3. Carefully remove red wire from
terminal 1 and blue wire from terminal
3. Black wire can remain on middle
terminal 2 (see Figure 18, page 12).
Installing Blower Assembly
CAUTION: Label all wires
priortodisconnectionwhenser-
vicing controls. Wiring errors
can cause improper and dan-
gerous operation.
CAUTION: Verify proper op-
eration after servicing.

12
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
3
2
1
4. Carefully disconnect green and white
wires at their insulated connectors.
5. In top of the heater cabinet, locate the
four mounting holes on the outer cas-
ing. Align these four holes with those
on the blower bracket assembly.Attach
blower bracket assembly to the outer
casing with 4 #10 screws provided (see
Figure 18).
Figure 18 - Installing Blower Bracket Assembly
Wire
Harness
Blower Bracket
Assembly
Screw
Power
Cord
Valve Cover
Shield Box Cover
Wire
Harness
Switch
Plate
Switch
Baffle
Wiring Routing
Hole in Baffle
Blue Red
6. Route the wire harness through the
hole in left side of baffle. Pull wire
harness through lower opening above
where the valve shield was removed.
(see Figure 18).
7. Insert the 4 wire harness into one of the
roundholes inthe rearof thevalve cover
shield and through the rectangular hole
in the front of shield (see Figure 18).
8. Reconnect red wire to switch position
3. Reconnect blue wire to switch posi-
tion1.Reconnect greenand whitewires.
Figure19-InstallingSwitchPlatetoValve
Cover Shield
Switch
Plate Screw
Valve Cover
Shield
INSTALLATION
Continued
9. Install the switch plate on the valve
covershield with2 #10 screwsprovided
(see Figure 19). Reinstall the valve
cover shield. Route power cord out of
the cabinet by inserting it through the
bushing on the outer casing (see Fig-
ure 18). Plug fan kit into 120-Volt
grounded power supply and test opera-
tion. Note: When switch is in the
AUTO position, the fan will start after
the heater has run for a few moments.
The fan will continue to run for several
moments after the heater has been
turned off. When switch is in the ON
position, the fan will run until turned
to OFF. Reinstall upper louver assem-
bly and hood if previously removed,
(see Figure 16, page 11). Close lower
louver door.

13
107035
OWNER’S MANUAL
3
2
1
Figure 21 - Installing Blower Bracket Assembly
Blower Bracket
Assembly
Screw
Wire
Harness
Power
Cord
Valve
Cover
Shield Box Cover Wire
Harness
Switch Plate
Switch
Clamp Connector
(not included)
Outlet
Receptacle
Blue Red
INSTALLATION
Continued
Figure 20 - Wiring Diagram For Blower Accessory Built-In Installation
Follow instructions Removing Valve Cover
Shield, page 11, then
1. Install a snap bushing found in hard-
ware kit into one of the holes found on
rear of valve cover shield. The other
hole is for a strain relief clamp (not
supplied) to secure incoming electrical
supply.
2. Follow steps 2 through 6 in Installing
Blower Assembly, pages 11 and 12.
Also remove black wire from middle
switch terminal 2.
3. Remove black plastic strain relief and
power cord from switch plate. The
power cord supplied will not be used in
built-in installations. Pop in the plastic
snapbushing found in hardware kit into
thehole left by supplycord/strain relief.
4. A licensed electrician must follow the
wiring diagram to connect incoming
electrical supply to fan kit wiring har-
ness (see Figure 20).
5. Plug power cord tothe outlet receptacle
(not provided) as shown in Figure 21.
Wind the extra cable in power cord and
and tie it up with the plastic wire strap
(see Figure 21). Set the cable bundle
between the burner bracket and outer
casing, away from the burner.
6. Reinstall valve cover shield.
7. Test to make sure the blower is work-
ing properly.
8. Reinstall upper louver assembly and
hoodif previously removed,(see Figure
16, page 11). Close lower louver door.
Plastic Wire
Strap
Red
Red
Fan Switch
(Auto/Off/On)
Blue
Blue
Thermostat
Switch
(N.O.)
Green
White Green
White
On
110/115
V.A.C.
Blower
Motor
Black
Off
1
23
Auto
WARNING: A licensed elec-
trician must connect the wiring
harness to electrical supply fol-
lowing all local codes. Electri-
cian must provide a clamp on
the box cover to secure the wir-
ing. Wiring should be routed
through the bushing in the hole
on the outer casing of heater.
For Built-In Installation
Continued

14
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
ATTACHING WOOD BASE TO
SOLID FLOOR
For attaching base to solid floors (concrete
or masonry)
Note: Floor anchors and mounting screws
areinhardwarepackage.Thehardwarepack-
age is provided with fireplace.
1. Drill holes at marked locations using
5/16"drill bit. For solid floors(concrete
or masonry), drill at least 1" deep.
2. Fold flooranchor asshown inFigure 22.
3. Insert floor anchor (wings first) into
hole. Tap anchor flush to floor.
4. Insert mounting screws through base
and into floor anchors.
5. Tighten screws until base is firmly fas-
tened to floor.
CONNECTING TO GAS
SUPPLY
WARNING: A qualified ser-
vice person must connect fire-
place to gas supply. Follow all
local codes.
IMPORTANT: Check gas line pressure
before connecting fireplace to gas line. Gas
line pressure must be no greater than 14
inchesofwater.Ifgaslinepressureishigher,
fireplace regulator damage could occur.
Installation must include an equipment
shutoffvalve, union,and plugged1/8" NPT
tap. Locate NPT tap within reach for test
gauge hook up. NPT tap must be upstream
from fireplace (see Figure 23).
IMPORTANT: Installanequipmentshutoff
valve in an accessible location. The equip-
ment shutoff valve is for turning on and
shutting off the gas to the appliance.
Check your building codes for any special
requirementsforlocatingequipmentshutoff
valve to fireplaces.
ApplypipejointsealantlightlytomaleNPT
threads. This will prevent excess sealant
fromgoing into pipe. Excess sealantin pipe
could result in clogged fireplace valves.
We recommend that you install a sediment
trap in supply line as shown in Figure 23.
Locate sediment trap where it is within
reach for cleaning. Install in piping system
between fuel supply and fireplace. Locate
sediment trap where trapped matter is not
likelytofreeze. Asediment traptraps mois-
ture and contaminants. This keeps them
from going into fireplace controls. If sedi-
ment trap is not installed or is installed
wrong, fireplace may not run properly.
WARNING: Never connect
fireplace to private (non-utility)
gas wells. This gas is commonly
known as wellhead gas.
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
yourlocalcodes.Usepipeof1/2"
or greater diameter to allow
propergas volume to fireplace. If
pipe is too small, undue loss of
volume will occur.
CAUTION:Usepipejointseal-
ant that is resistant to liquid pe-
troleum (LP) gas.
* Purchase the optional CSA design-certi-
fied equipment shutoff valve from your
dealer. See Accessories, pages 26 and 27.
Figure 23 - Gas Connection
Figure 22 - Folding Anchor
CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*
3" Minimum
From Gas
Meter
(5" W.C. to
10.5" W.C.
Pressure)
Approved
Flexible
Gas Line
Pipe Nipple Cap Tee Joint
Sediment Trap
INSTALLATION
Continued
WARNING: This appliance re-
quiresa45°maleflare fitting 5/8"-
18 UNF (Unified National Fine
Thread) inlet connection and the
flexible gas line provided.
Extension Cord
Useextension cord if needed. The cord must
have a three-prong, grounding plug and a
three-hole receptacle. Make sure cord is in
goodshape.Itmustbeheavyenoughtocarry
the current needed. An undersized cord will
cause a drop in line voltage. This will result
in loss of power and overheating. Use a No.
16 AWG cord for lengths less than 50 feet.

15
107035
OWNER’S MANUAL
INSTALLATION
Continued
Continued
Figure 24 - Removing Log Base Assembly From Fireplace
Branch
Support
Screen
Screen
Shipping
Screw
Shoulder Screw
Flexible Gas
Line
CONNECTING EQUIPMENT
SHUTOFF VALVE TO
HEATER CONTROL
Installation Items Needed
• Phillips screwdriver
• sealant (resistant to propane/LP gas, not
provided)
1. Remove fireplace screen. Remove two
screws that hold fireplace screen in
place for shipping. These screws are
located near top of screen. Discard
screws.Lift fireplace screen up andpull
out to remove.
2. Remove screws that attach branch sup-
port to fireplace (see Figure 24). Care-
fully lift up branch support and remove
from fireplace (see Figure 24).
3. Route flexible gas line, included, from
fireplace control to equipment shutoff
valve through side or rear access holes
in outer casing.
NOTICE: Most building codes do
not permit concealed gas con-
nections. A flexible gas line is
provided to allow accessibility
fromthefireplace(seeFigure24).
The flexible gas supply line con-
nection to the equipment shutoff
valve should be accessible.
Flexible Gas Line from
Fireplace Gas Regulator
Provided With Fireplace
Figure 25 - Attaching Flexible Gas Line to Equipment
Shutoff Valve
Equipment
Shutoff Valve
To Gas
Supply
4. Apply pipe joint sealant lightly to male
threads of gas connector attached to
flexible gas line/equipment shutoff
valve (see Figure 25).
5. Check allgas connections for leaks.See
Checking Gas Connections, page 16.
6. Replace branch support back into fire-
place. Feed flexible gas line into fire-
place base area while replacing branch
support. Make sure the entire flexible
gas line is in fireplace base area. Reat-
tach branch support to fireplace with
screws removed in step 2.
➞
➞
To Fireplace
Gas Regulator
CAUTION: Avoid damage to
regulator.Holdgasregulatorwith
wrenchwhenconnectingittogas
piping and/or fittings.

16
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
Pressure Testing Gas Supply
Piping System
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect appliance with its appliance
maingasvalve(controlvalve)and equip-
mentshutoff valve from gas supply pip-
ing system. Pressures in excess of 1/2
psig will damage heater regulator.
2. Cap off open end of gas pipe where
equipmentshutoffvalve wasconnected.
3. Pressurize supply piping system by
either using compressed air or open-
ing main gas valve located on or near
gas meter.
4. Check all joints of gas supply piping
system.Applynoncorrosive leak detec-
tion fluid to gas joints. Bubbles form-
ing show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment
shutoff valve to gas supply. Check re-
connected fittings for leaks.
Equipment
Shutoff
Valve
CHECKING GAS
CONNECTIONS
Figure 26 - Equipment Shutoff Valve
Gas Meter
Figure 27 - Checking Gas Joints
Equipment
Shutoff
Valve
WARNING: Test all gas pip-
ing and connections for leaks
after installing or servicing. Cor-
rect all leaks at once.
WARNING:Neveruseanopen
flame to check for a leak. Apply a
noncorrosive leak detection fluid
toalljoints.Bubblesformingshow
a leak. Correct all leaks at once.
Pressure Testing Fireplace Gas
Connections
1. Open equipment shutoff valve (see
Figure 26).
2. Open main gas valve located on or near
gas meter.
3. Make sure control knob of fireplace is
in the OFF position.
4. Check alljoints from equipment shutoff
valve to thermostat gas valve (see Fig-
ure 27). Apply noncorrosive leak de-
tection fluid to gas joints. Bubbles
forming show a leak.
5. Correct all leaks at once.
6. Light fireplace (see Operating Fire-
place,pages 17 and 18).Check all other
internal joints for leaks.
7. Turn off fireplace (see To Turn Off Gas
to Appliance, page 18).
8. Replace front panel.
INSTALLATION
Continued
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see
Figure 26).
2. Pressurize supply piping system by
either using compressed air or open-
ing main gas valve located on or near
gas meter.
3. Check all joints from gas meter to
equipment shutoff valve (see Figure
27).Apply noncorrosive leak detection
fluid to gas joints. Bubbles forming
show a leak.
4. Correct all leaks at once.
ON
POSITI
O
POS
Open
Closed

17
107035
OWNER’S MANUAL
OPERATING
FIREPLACE
FOR YOUR SAFETY
READ BEFORE
LIGHTING
WARNING: If you do not fol-
low these instructions exactly, a
fireorexplosionmayresultcaus-
ing property damage, personal
injury or loss of life.
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information
column 1.
2. Make sure equipment shutoff valve
is fully open.
3. Turncontrolknob clockwise
to the OFF position.
4. Wait five (5) minutes to clear out any
gas.Thensmellforgas,includingnear
thefloor. If yousmell gas, STOP!Fol-
low“B”inthesafetyinformation,col-
umn 1. If you don’t smell gas, go to
the next step.
5. Turn control knob counterclockwise
to the PILOT position.
Press in control knob for five (5) sec-
onds (see Figure 28).
Note: You may be running this fire-
place for the first time after hooking
up to gas supply. If so, the control
knob may need to be pressed in for
30 seconds or more. This will allow
air to bleed from the gas system.
Figure 28 - Control Knob In The OFF
Position
A. Thisappliancehas apilotwhichmust
belighted byhand.When lighting the
pilot,followtheseinstructionsexactly.
B. BEFORE LIGHTING smell all
aroundtheapplianceareaforgas.Be
suretosmellnexttothefloorbecause
some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any appliance.
• Donottouchanyelectricswitch; do
notuseanyphoneinyourbuilding.
• Immediatelycall yourgas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. Useonlyyourhand topushinorturn
thegascontrolknob. Never use tools.
If the knob will not push in or turn
by hand, don’t try to repair it, call a
qualified service technician or gas
supplier. Force or attempted repair
may result in a fire or explosion.
D. Do not use this appliance if any part
has been under water. Immediately
call a qualified service technician to
inspect the appliance and to replace
any part of the control system and
any gas control which has been un-
der water.
WARNING:Youmustoperate
this fireplace with the fireplace
screen in place. Make sure fire-
place screen is installed before
running fireplace.
NOTICE: During initial operation
of new fireplace, burning logs
will give off a paper-burning
smell. Orange flame will also be
present. Open window to vent
smell. Operate fireplace on HI
position to burn off odor. This
will only last a few hours.
Ignitor Button
Control Knob
Figure 29 - Pilot
CAUTION:Donottrytoadjust
heatinglevelsbyusingtheequip-
ment shutoff valve.
• If control knob does not pop up
when released, contact a qualified
service person or gas supplier for
repairs.
6. With control knob pressed in, push
down and release ignitor button.
This will light pilot. The pilot is at-
tached to the front of burner. If
needed, keep pressing ignitor but-
ton until pilot lights.
Note: If pilot does not stay lit, refer
to Troubleshooting, pages 19 through
21. Also contact a qualified service
person or gas supplier for repairs.
Untilrepairsaremade,lightpilot with
match. To light pilot with match, see
Manual Lighting Procedure, page 18.
7. Keep control knob pressed in for 30
seconds after lighting pilot.After 30
seconds, release control knob.
Note: If pilot goes out, repeat steps
3 through 7. This fireplace has a
safety interlock system.Wait one (1)
minute before lighting pilot again.
8. Turn control knob counterclockwise
to desiredheatinglevel.The
mainburnershould light. Set control
knob to any heat level between HI
and LO.
Thermocouple Pilot Burner
Ignitor Electrode
Continued

18
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Fireplace
1. Turncontrolknob clockwise
to the OFF position.
2. Turn off all electric power to the ap-
pliance if service is to be performed.
Shutting Off Burner Only (pilot
stays lit)
Turn control knob clockwise to
the PILOT position.
Thethermostaticcontrolusedonthisfire-
place differs from standard thermostats.
Standardthermostatssimply turn on and
off the burner. The thermostat used on
this fireplace senses the room tempera-
ture. The thermostat adjusts the amount
ofgasflowtotheburner.Thisincreasesor
decreasestheburnerflameheight.Attimes
theroommayexceedthesettemperature.
If so, the burner will shut off. The burner
willcyclebackonwhenroomtemperature
drops below the set temperature.
The control knob can be set to any heat
level between HI and LO.
Note: The thermostat sensing bulb mea-
sures the temperature of air near the fire-
place cabinet. This may not always agree
with room temperature (depending on
housingconstruction,installationlocation,
room size, open air temperatures, etc.).
Frequentuse of your fireplace will let you
determine your own comfort levels.
THERMOSTAT
CONTROL OPERATION
1. Follow steps 1 through 5 under
Lighting Instructions, page 17.
2. With control knob pressed in, strike
match. Hold match to pilot until pi-
lot lights.
3. Keep control knob pressed in for 30
seconds after lighting pilot.After 30
seconds, release control knob. Now
follow step 8 underLightingInstruc-
tions, page 17.
MANUAL LIGHTING
PROCEDURE
OPERATING
FIREPLACE
Continued
INSPECTING
BURNER
Thermocouple Pilot Burner
Figure 30 - Correct Pilot Flame Pattern
Figure 31 - Incorrect Pilot Flame Pattern
Check pilot flame pattern and burner flame
pattern often.
PILOT FLAME PATTERN
Figure30showsacorrectpilotflamepattern.
Figure 31 shows an incorrect pilot flame
pattern.Theincorrectpilotflameisnotprop-
erlyheatingthethermocouple.Thiswillcause
the thermocouple to cool. When the thermo-
couple cools, the fireplace will shut down.
If pilot flame pattern is incorrect, as shown
in Figure 31
• turn fireplace off (see To Turn Off Gas to
Appliance)
• seeTroubleshooting,pages 19 through 21
Thermocouple Pilot Burner
Figure 32 - Correct Burner Flame Pattern
Figure33 - IncorrectBurner FlamePattern
Top of Flame About
One Inch Above Log
BURNER FLAME PATTERN
Figure 32 shows a correct burner flame
pattern.Figure33showsanincorrectburner
flame pattern. The incorrect burner flame
pattern shows sporadic, irregular flame tip-
ping. It also shows the flame consistently
higher than one inch above the log.
Note: When using the fireplace the first
time, the flame will be orange for approxi-
mately one hour until the log cures.
Ifburnerflamepatternisincorrect,asshown
in Figure 33
• turn fireplace off (seeTo Turn Off Gas to
Appliance)
• seeTroubleshooting, pages 19 through 21

19
107035
OWNER’S MANUAL
TROUBLESHOOTING
POSSIBLE CAUSE
1. Ignitor cable pinched or wet
2. Ignitor electrode not connected to igni-
tor cable
3. Broken ignitor cable
4. Bad piezo ignitor
5. Ignitor electrode broken
6. Ignitor electrode positioned wrong
1. Gas supply turned off or equipment
shutoff valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. ODS/pilot is clogged
6. Gas regulator setting is not correct
1. Control knob not fully pressed in
2. Control knob not pressed in longenough
3. Safety interlocksystemhas beentriggered
4. Equipment shutoff valve not fully open
5. Thermocouple connection loose at con-
trol valve
6. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged ODS/pilot
7. Thermocouple damaged
8. Control valve damaged
REMEDY
1. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
2. Reconnect ignitor cable
3. Replace ignitor cable
4. Replace piezo ignitor
5. Replace piezo ignitor
6. Replace piezo ignitor
1. Turn on gas supply or open equipment
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is
removed
5. Clean ODS/pilot (see Cleaning and
Maintenance, page 22) or replace ODS/
pilot assembly
6. Replace gas regulator
1. Press in control knob fully
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds
3. Wait one minute for safety interlock sys-
tem to reset. Repeat ignition operation
4. Fully open equipment shutoff valve
5. Hand tighten until snug, then tighten 1/4
turn more
6. A) Contact local natural gas company
B) Clean ODS/pilot (see Cleaning and
Maintenance, page 22) or replace ODS/
pilot assembly
7. Replace thermocouple
8. Replace control valve
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at ODS/pilot
When ignitor button is pressed, there is
spark at ODS/pilot but no ignition
ODS/pilot lights but flame goes out when
control knob is released
WARNING: Turn off and un-
plugfireplace and let cool before
servicing. Only a qualified ser-
vice person should service and
repair fireplace.
CAUTION: Never use a wire,
needle, or similar object to clean
ODS/pilot.ThiscandamageODS/
pilot unit.
Note: For additional help, visit DESA
International’stechnicalservicewebsite
at www.desatech.com.
Note: Alltroubleshootingitemsarelistedin
order of operation.
www.desatech.com Continued

20
107035
VENT-FREE NATURAL GAS COMPACT FIREPLACE
CGCFTN
OBSERVED PROBLEM
Burner does not light after ODS/pilot is lit
Delayed ignition of burner
Burner backfiring during combustion
Yellow flame during burner combustion
Slightsmoke orodor during initialoperation
Fireplace produces a whistling noise when
burner is lit
Whitepowderresidueformingwithinburner
box or on adjacent walls or furniture
REMEDY
1. Clean burner (see Cleaning and Mainte-
nance, page 22) or replace burner orifice
2. Replace burner orifice
3. Contact local natural gas company
1. Contact local natural gas company
2. Clean burner (see Cleaning and Mainte-
nance, page 22) or replace burner orifice
1. Clean burner (see Cleaning and Mainte-
nance, page 22) or replace burner orifice
2. Replace burner pressure
3. Contact local natural gas company
4. Replace gas regulator
1. Check burner for dirt and debris. If
found, clean burner (see Cleaning and
Maintenance, page 22)
2. Replace gas regulator
1. Problem will stop after a few hours of
operation
1. Turn control knob to LO position and
let warm up for a minute
2. Operate burner until air is removed from
line. Have gas line checked by local
natural gas company
3. Observe minimum installation clear-
ances (see Figure 7 and 8, page 8)
4. Clean burner (see Cleaning and Mainte-
nance, page 22) or replace burner orifice
1. Turn heater off when using furniture
polish, wax, carpet cleaners, or similar
products
POSSIBLE CAUSE
1. Burner orifice is clogged
2. Burner orifice diameter is too small
3. Inlet gas pressure is too low
1. Manifold pressure is too low
2. Burner orifice is clogged
1. Burner orifice is clogged or damaged
2. Burner damaged
3. Low inlet gas pressure
4. Gas regulator defective
1. Not enough air
2. Gas regulator defective
1. Residues from manufacturing processes
1. Turning control knob to HI position
when burner is cold
2. Air in gas line
3. Air passageways on fireplace blocked
4. Dirty or partially clogged burner orifice
1. When heated, vapors from furniture pol-
ish, wax, carpet cleaners, etc. may turn
into white powder residue
TROUBLESHOOTING
Continued
www.desatech.com
