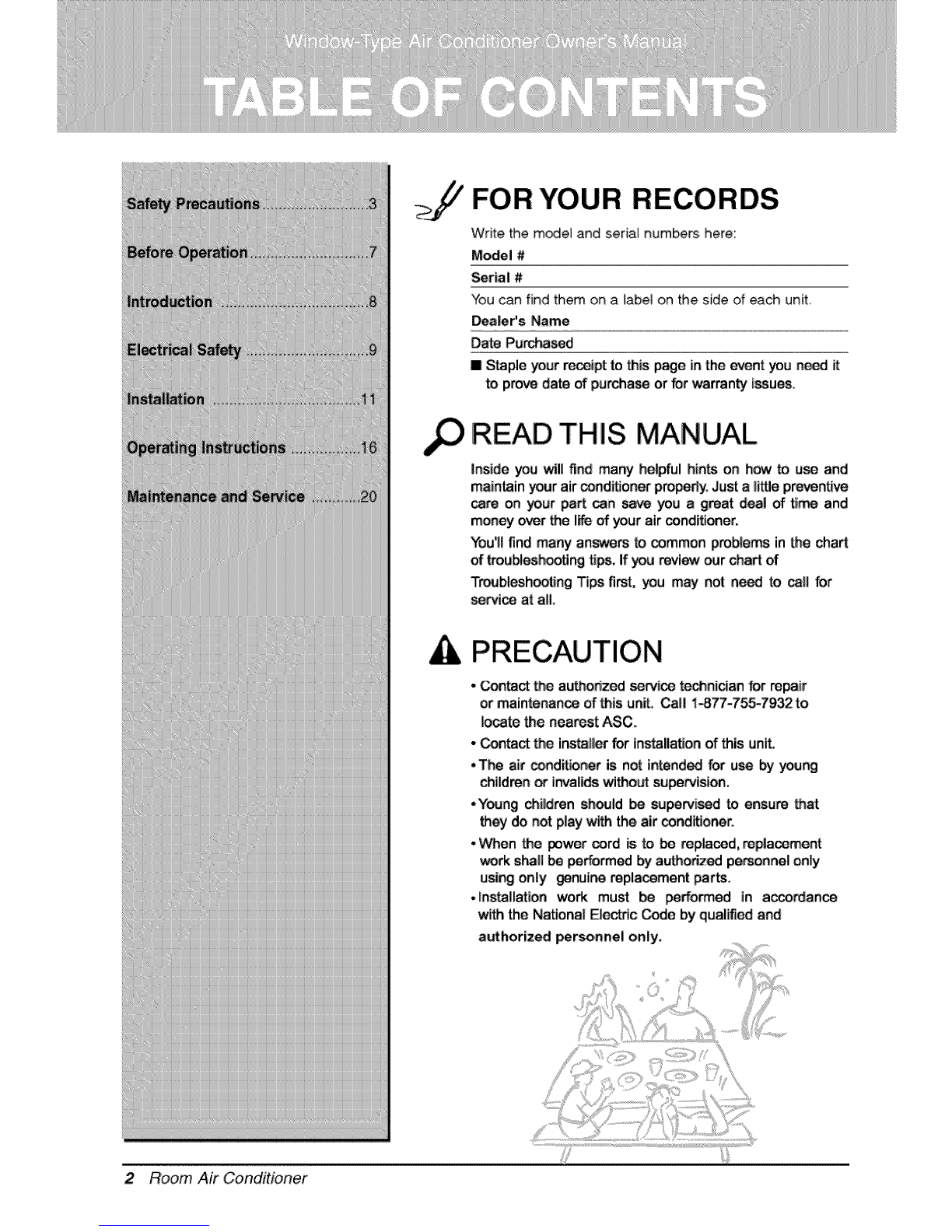

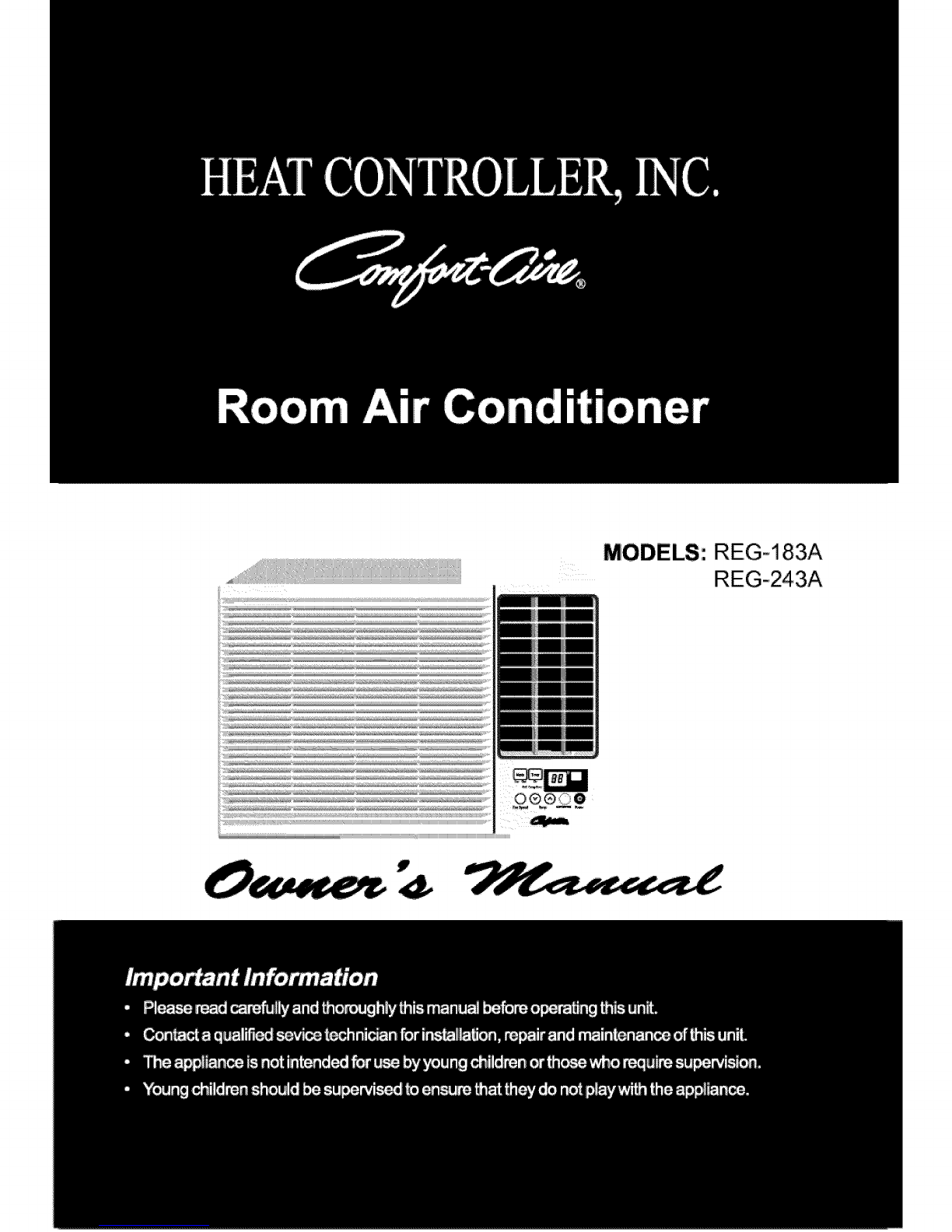

Comfortaire REG-183A User manual

MODELS: REG-183A

FOR "fOUR RECORDS
Write the mode_ and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit,
Dealer's Name
Date Pu_sed
m Staple your receipt to this page in the event you need
to p_ date of purcha_ or for warranty issues.
READ THiS MANUAL
inside you _11 find maw helpful hlnLs on how to u_ and
main_in your air conditioner prop,edy.Just a liWe prevenU_
_re on your part _n s_ you a groat deal of time and
money Mr _e I_ of your air conditioner.
You'll find many answersi to common problems in _e chart
of troubleshooting tj_. If you _i_ our _art of
Troubleshooting Tips first, you may not n_ to _ll for
servi_ at all.
• Contact the authorized _r¢|ce technic_Jan_r repair
or maintenan_ of this unit, Call 1-877-755-7932to
locate _e nearest ASC.
• Contact the installer for installation of th_ unit.
• The air conditioner is not intended for u_ by young
children or irrcal_s without supervision,
• Young children should _ su_rvised to ensure that
they do not prelacywith the air conditioner.
• When the power cerd is. to be replaced, replacement
_rk shall be _rfermed by authorized personnel only
using only _nuine repla_ment parts.
• installation work mu_ be performed in acco_ance
with the National Ele_c _de by quailed and
authorized personnel only.
2Room Air Conditioner

Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
II incorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is classified by the fol!owing indications,
WAiRNIr-,IG This symbol indicates the possibility' of death or serious i_ury. "]
............... --I
[.& CAUTION Thissym_indicates the possibility of injury or damage to properties only...,J
[] Meanings of symbols used in this manual are as shown below.
[] Installation
• Othe_isie, it may cause a fire
or electricaJ shock.
• Stmay cause failure and
electric sh_ck.
WARNINQ
*Othentvise, it may cause a fire
or electrical shock. * It will cause electric sh_k or fire
due to heat generation.
*Sharp edges may cause
injur_y.
• It may cause explosion or fire,
Owner's Manual 3

Safety Precautions

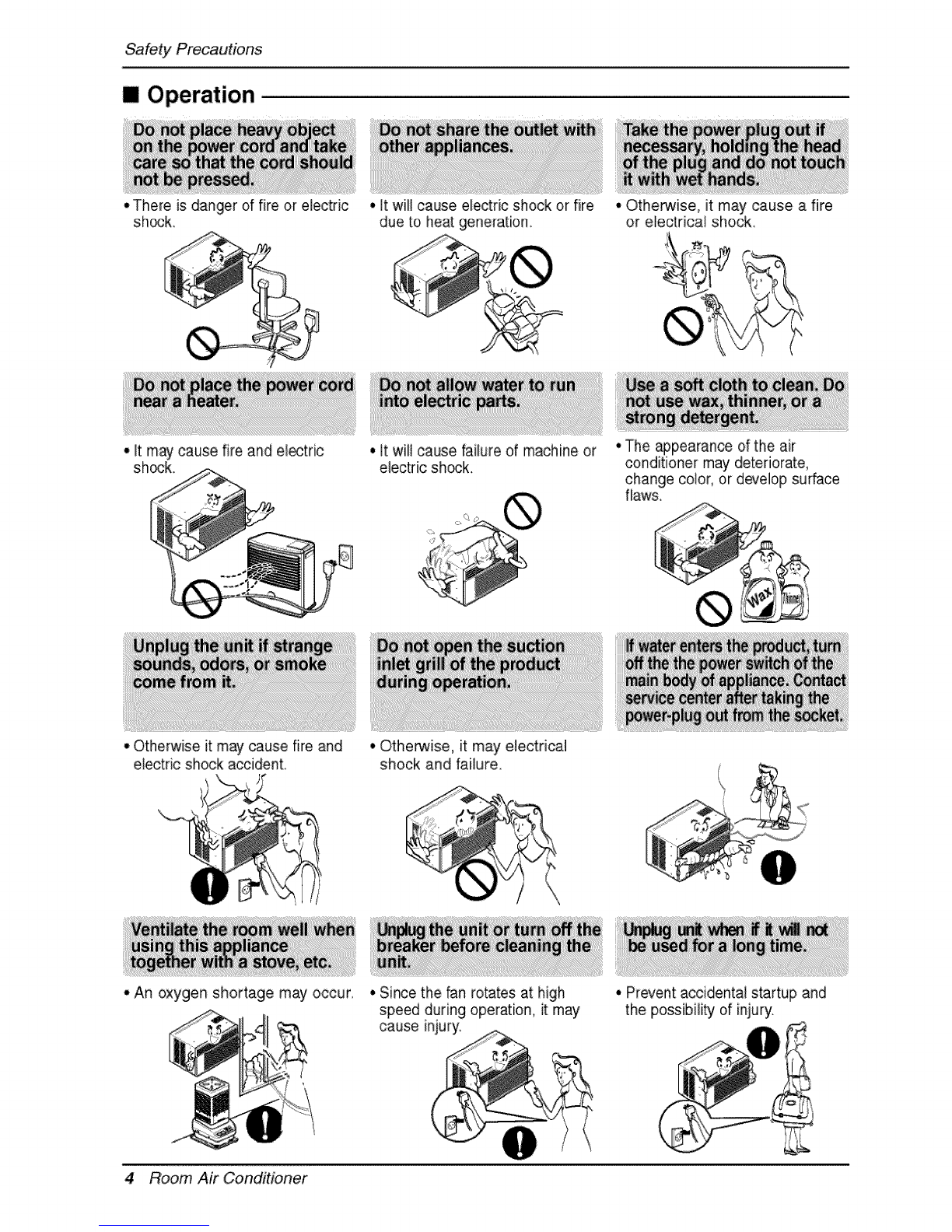

[] Operation
•There is danger of fire or electric
sh_k,
*It may cause fire and el_tric
sh_k.
• Jtwill cause electric shock or fire
due to heat generation,
° it will cause failure of machine or
electric sh_k.
• Otherwise, it may _use a fire
or electrical shock,
• The _pearance of the air
° Otherwise it may cause fire and
electric shock accident.
*An oxygen shortage may occur,
° Otherwise, it may"electrical
shock and failure.
conditioner may deteriorate,
change color, or develop surface
flaws.
• Since the fan rotates at high
speed during operation, it may
cause Injury
4 Room Air Conditioner
•Prevent accidental startup and
the possibility of injury:

Safety Precautions
, it will cause electric shock or fire • It will cause electric shock or fire. ,. It will cause electric sh_k
due to heat generation
I/ --,v
• It may cause electric shock and
damage. - Othe_ise, it may cause explosion, and a fire.
CAUTION
[] Installation
• Otherwi_, it may cau_ dispute _th the
oThey are sharp and may cause
injury.
• _erwise, it may cause vibration or water
Owner's Manual 5

Safety Precautions
[] Operation
• It may cause injury: • it may Ruse product failure • The appearance dthe air
conditioner may deteriorate,
change color, or decelop surface
flaws,
° It may cause an injury through
dropping of the unit or falling
down
•It may cause injury.
• Operation without filters will
cause failure, , It contains containments and will
make you sicL
•Otherwi_, it may do harm
your health,
@
6 Room Air Conditioner
• _erwise, it may _use
personal injury.

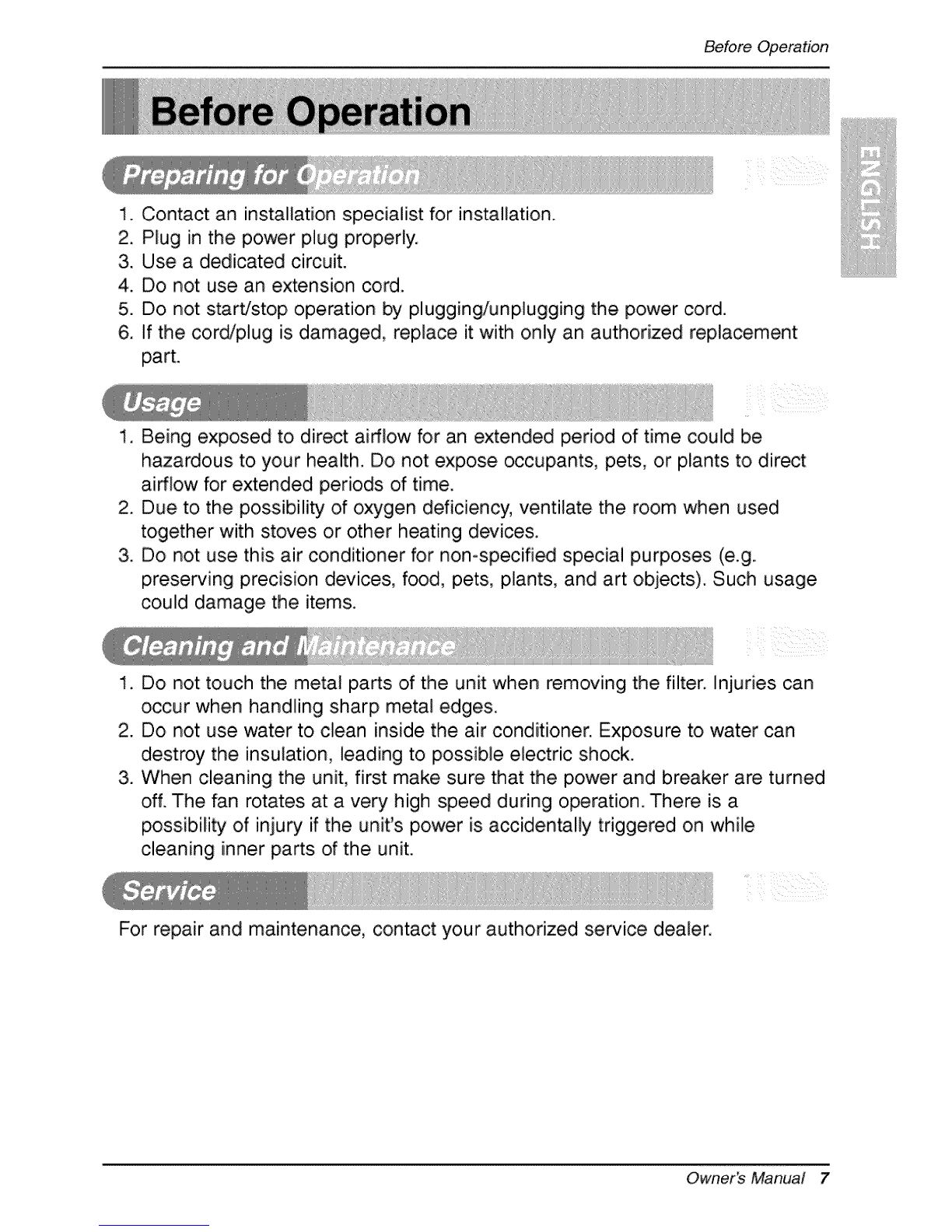

Before Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/st:op operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement
part.
i. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
ai_low for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preseP¢ing precision devices, food, pets, plants, and art o_ects). Such usage
could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of inju_ if the unit's power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Owner's Manual 7

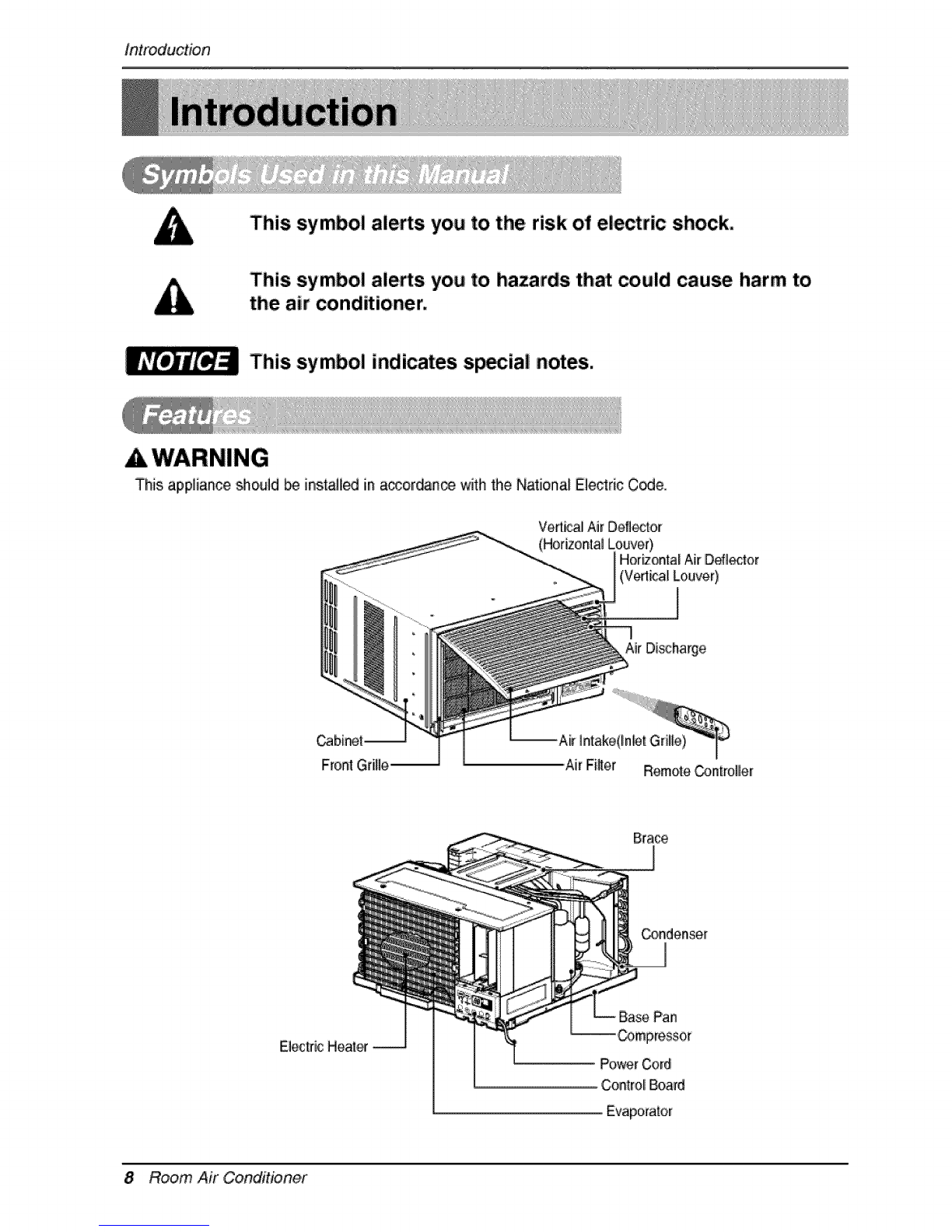

Introduction
This symbol alerts you to the, risk of electric shock,
This symbol alerts you to hazards that _uld cause harm to,
the air cond_ioner.
This,symbol indicates sp_ial notes.
This, appliance _o, uid _ insta_liedin a_o, rdan_ _th the National Elect:rioC_e,
Ve_ical!Air D,efl_tor
(HorizontalLouver)
HorizontalAir IDefl_tor
(Vert_a! Louver)
1
Air Di_harge
Remote,_,n_roiller
Elec[dcHea_,_
BasePan
PowerCord
ControliBeard
Evaporator
8 Room A# Conditioner

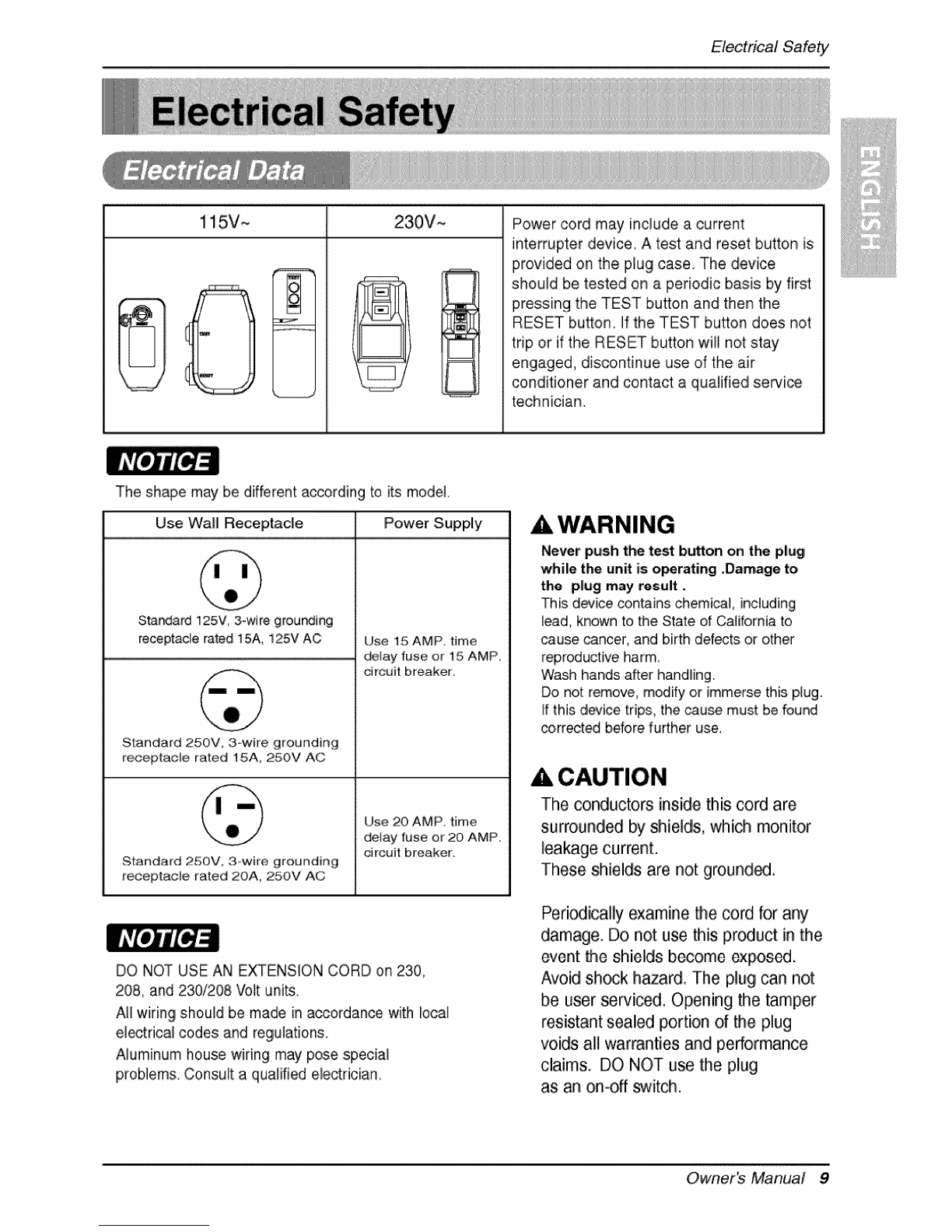

ElectricalSafety
115V_- 230V~
m
Power cord may include a current
interrupter device, A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST bu_on and then the
RESET button if the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
The shape may be different according to its model
Use Wall Receptacle Power Supply
S_a_ 12:5V,3_wiregrounding
receptacle rated 15A, 125V AC
Standard 250V_ 3-wire grounding
receptacle rated 15A 250V AC
Standard 250V 3wire grounding
receptacle rated 20A, 250V A©
Use 15 AMP, time
delay fuse or 15 AMP.
circuit breaker,
Use 20 AMP, time
delay fuse or" 20 AMP
c_rcuit breaker,
DO NOT USE AN EXTENSION CORD on 230,
20& and 230/208 Volt units
NI wiring should be made in accordance with local
electrical codes and regulations.
Aluminum house wiring may pose special
problem& Consult a qualified electrician,
Never push the test button on the plug
while the unit is operating .Damage to
the plug may result.
This d_ice contains chemical including
lead, known to the State of California to
_use cancer, and birth defects or other
reproductive harm,
Wash hands after handling.
Do not remove, modify or immerse this plug.
If this device trips, the cause must be found
corrected before further use,
The conductors insidethis cord are
surrounded by shields, whichmonitor
leakage current.
These shields are not grounded.
Periodically examine the cord for any
damage. Do not use this product in the
event _e shields become _posed,
Avoid sh_k hazard. The p,lugcan not
be user serviced, Opening the tamper
resistant sealed portion of _e plug
voids all warranties and performance
claims. DO NOT use the plug
as an on-off switch.
Owner's Manual 9

Electrical Safety
IMPORTANT
(PL_SF_ READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equip_d with a
three-prong (grounding) plug. Use this with a standard
three-s_ot (grounding) wa_l power outlet to minimize the
hazard delectric shock. The customer should have
the wall receptacle and circuit checked by a qualified
electrician to make sure the receptacle is properly
grounded.
DO NOT CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER PLUG.
USE OF EXTENSION CORDS
Because of potentiaJ safety hazards, we strongly
discourage the use dan extension cord.
10 Room Air Conditioner

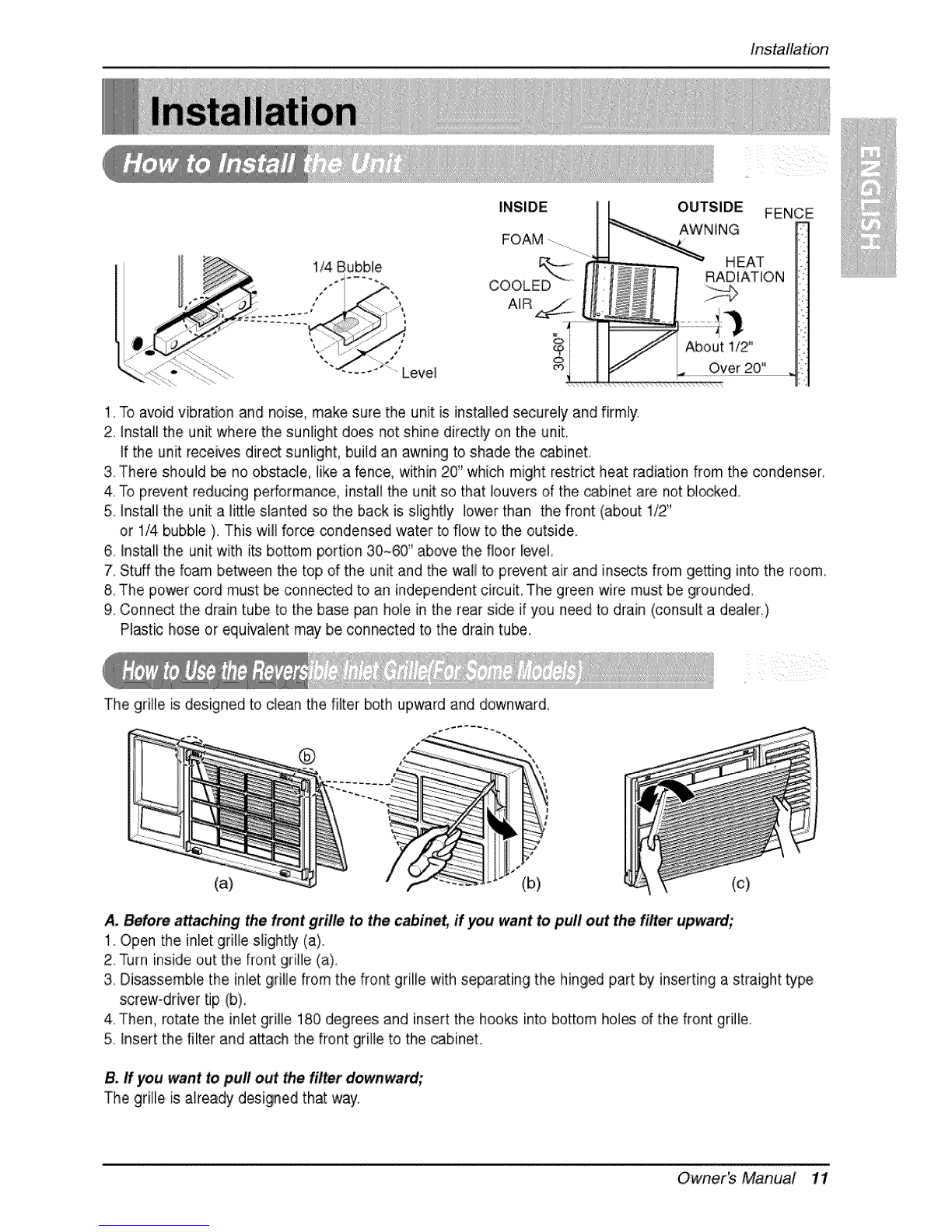

Installation
I14Bubble
INSIDE
FOAM ...........
COOLED
AIR_
OUTSIDE FENCE
AWNING
HEAT
1,To avoid vibration and noise, make sure the unit is installed securely and firmly,
2. install the unit where the sunlight does not shine directly on the unit.
If the unit receives direct sunlight, build an awning to shade the cabinet,
3, There should be no obstacle, like a fence, within 20" which might restrict heat radiation from the condenser
4. To prevent reducing performance, install the unit so that louvers of the cabinet are not blocked.
5, Install the unit a little slanted so the back is slightly lower than the front (about 1/2"
or 1/4 bubble ), TNs will force condensed water to flow to the outside.
6, Install the unit with i_ bottom portion 30~60" above the floor level,
7. Stuff the foam between the top of the unit and the,wall to prevent air and insects from getting into the room,
8. The power cord must be connected to an independent circuit. The green wire must be grounded.
9. Connect the drain tube to the base pan hole in the rear side if you need to drain (consult a dealer.)
Plastic hose or equivalent may be connected to the drain tube,
The grille is designed to clean the filter both upward and down_rd.
(a) (b) (c)
A. Before attaching the front grille to the cabinet, ff you want to pull out the filter upward;
1. Open the inlet grille slightly (a).
2_Turn inside out the front grille (a),
3, Disassemble the inlet grille from the front grille with separating the hinged part by inserting a straight type
screw-driver tip (b),
4. Then, rotate the inlet grille 180 degree,s and insert the hooks into bottom holes of the front grille.
5. Insert the filter and attach the front grille to the _binet.
B. ff you want to puff out the filter downward;
The grille is already designed that way.
Owner's Manual 11

Installation
All supporting parts should be secured to firm wood, masonry,
or metal.
1.This unit is designed for installation in standard double hung
windows with actual opening widths from 29" to 41'L
The top and bosom window sashes must open sufficiently to
allow a clear verti_l opening of 18" from the bottom of the
upper sash to the window sill.
2. The sill offset (height between the interior and e_edor sills)
must be less than 1 1/4".
29" to 41'_
18" rain Sill _:_.._'= Offset
Less
_"\i' than1 '/4"
..* Exterior
Ty_ A (14) Type B (7) Type C(5) Type D (2)
g_rfiage Bolt (2) L_k Nut (4)
i2 Room Air Conditioner

installation
SCREWDRIVER(+,-), RULER, KNIFE, HAMMER, PENCIL, LEVEL
PREPARATION OF CHASSIS
1_Remove the screws which fasten the cabinet at
both sides and at the back.
2. Slide the unit out from the cabinet by gripping
the base pan handle and pulling forward while
bracing the cabinet.
3 Cut the window sash seal to the proper length
Peel off the backing and attach the Foam-PE to
the underside of the window sash.
Shippingscrews
Fig. 1
4. Remove the backing from Foam-P'E with 3 holes
and attach it to the bottom of the Top retainer
bar.
5 Attach the Top retainer bar on the top of the
cabinet with 3 screws (_jpe A). Fig, 2
6. Insert the Frame guides into the bottom of the
cabinet.
7. Insert the Frame Curtain intothe Top retainer bar
and Frame guides.
8. Fasten the curtains to the unit with 10 screws
(Type A) at both sides.
FoamoPE
Top re_ir,er bar
Top retainerbar
"Frameguide
Sicrew_ype A}
Fig. 4
Owner_ Manual 13

Installation

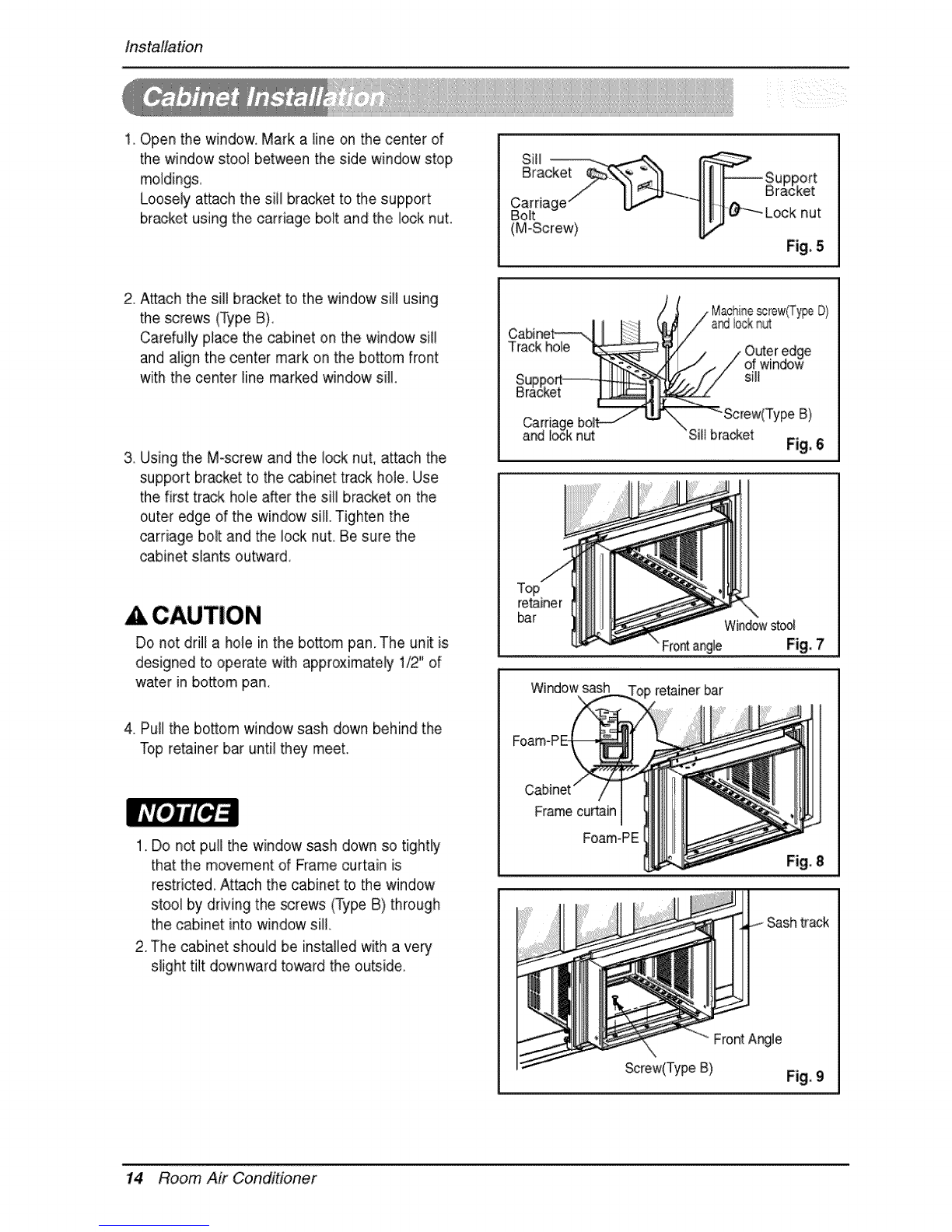

I. Open the window. Mark a line on the center of
the window stool between the side window stop
molding&
Loosely attach the siil bracket to the support
bracket using the carriage bolt and the look nut.
SJ]l
Bracket
Carriag
Bolt
(M-Screw) nut
Fig, 5
2. Attach the sill bracket to the window sill using
the screws (Type B),
Carefully place the cabinet on the window sill
and aiign the center mark on the bottom front
with the center line marked window sill.
3, Using the M-screw and the lock nut, attach the
support bracket to the cabinet track hole, Use
the first track hole after the sill bracket on the
outer edge of the window sill. Tighten the
carriage bolt and the lock nut. Be sure the
cabinet slan_ outward,
,ik CAUTION
Do not drill a hole inthe bosom pan. The unit is
designed to operate with approximately 1/2" of
water in bottom pan.
4. Pull the boEom window sash down behind the
Top retainer bar until they meet.
1. Do not pull the window sash down so tightly
that the movement of Frame curtain is
restricted Attach the cabinet to the window
stool by driving the _rews (Type B) through
the cabinet into window sill.
2.The cabinet should be installed with a very
slight tilt downward toward the outside.
Outer edge
dwindow
sill
B)
Sill bracket Fig, 6
retainer
bar Windowst_l
Frontangle Fig. 7
Windowsash retainerbar
Framecurtain
Foam-PE
Fig. 8
FrontA_ie
Screw(TypeB) Fig, 9
14 Room Air Conditioner

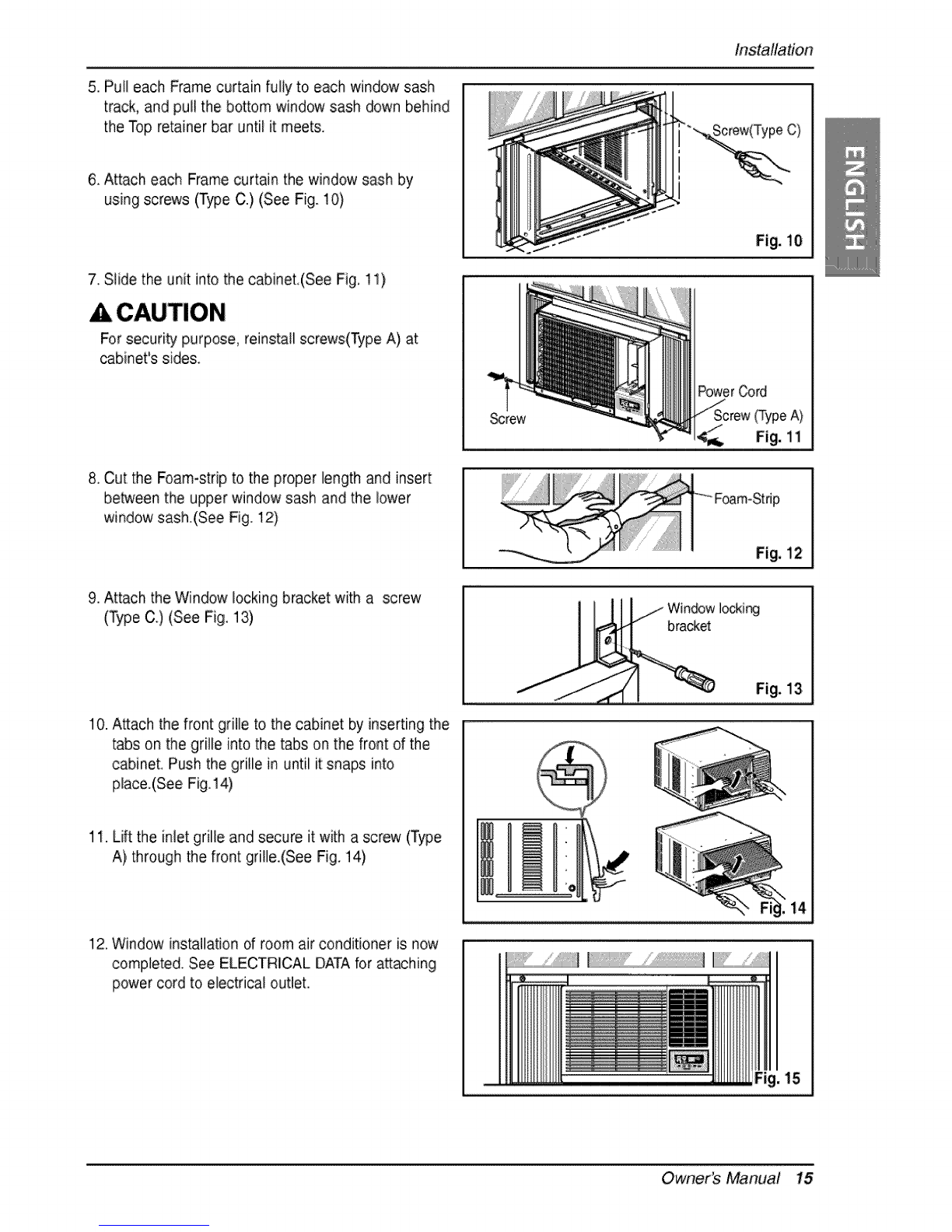

& Pull each Frame curtain fully to each window sash
track, and pull the bottom window sash down behind
the Top retainer bar until it meets.
6. Attach each Frame curtain the window sash by
using screws (Type C.) (See Fig. 1O)
7, Slide the unit into the cabinet(See Fig, 11)
CAUTION
For security purpose, reinstall screws(Type A) at
cabinet's sides
8. Cut the Foam-strip to the proper length and insert
between the upper window sash and the lower
window sash.(See Fig. 12)
Installation
c)
rew
Fig, !0
PowerCord
Screw(TypeA)
Fig. 11
Fig, i2
9. Attach the Window locking bracket with a screw
(Type C) (See Fig, 13)
10. Attach the front grille to the cabinet by insertingthe
tabs on the grille into the tabs on the front of the
cabinet, Push the grille in until it:snaps into
place.(See Fig.14)
11. Lift the inlet grille and secure it with a screw (Type
A),through the front grille.(See Fig. 14)
12. Window installation droom air conditioner is now
completed. See ELECTRICAL DATA for attaching
power cord to electrical outlet.
I I III.J w o ow
Fig, 13
14
_iii!iiii!lilliilliilliiii!¸_''¸¸J,'%iii!ii!ii!ii!ii!ii!ii!ii!ii!ilii_
15
Owner_ Manual 15

Opemting Instructions

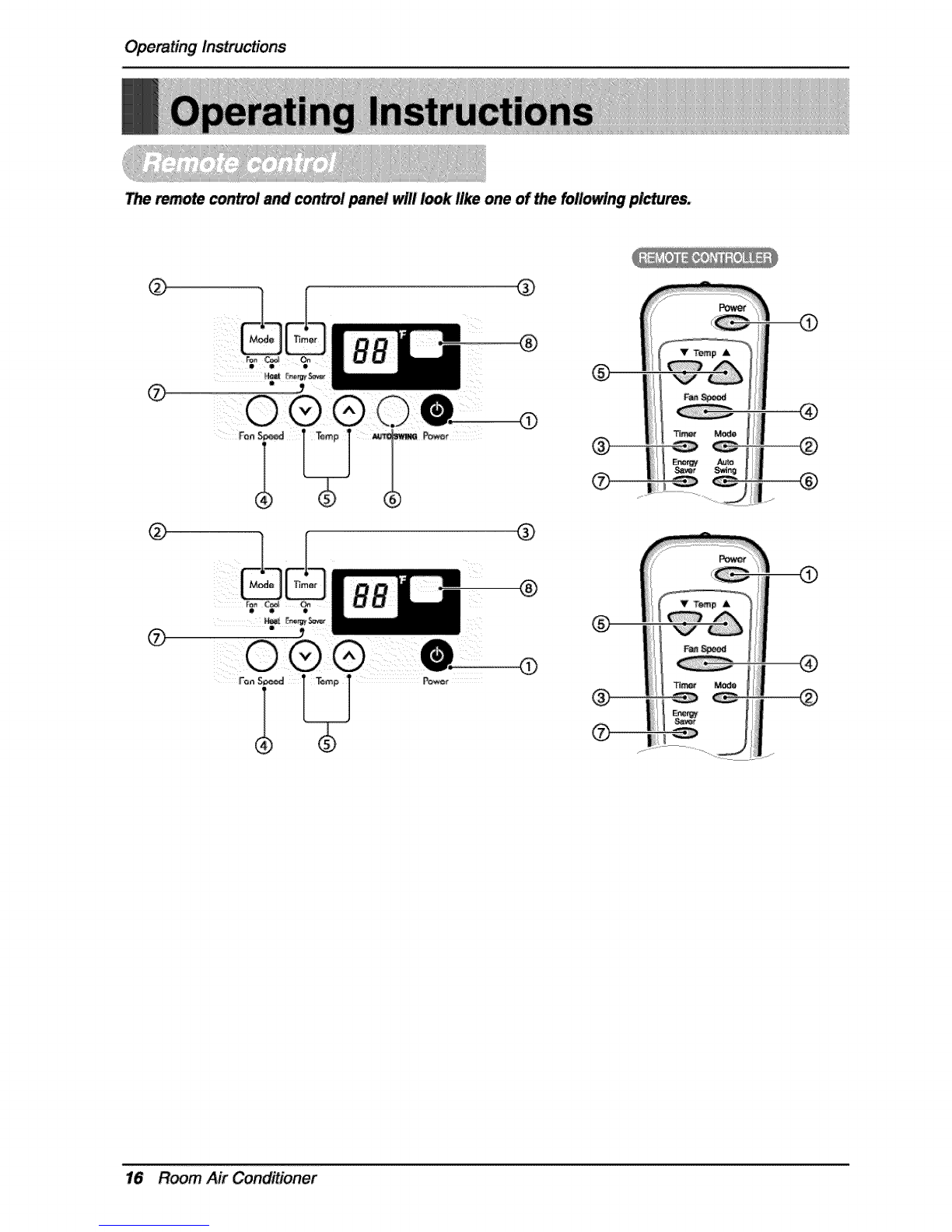

The mote control and control panel will look like one of _following picPdres.
® ®
®
Q
®
®
®
®
®
®
®
®
®
®
16 Room Air Conditioner

Operating Instructions

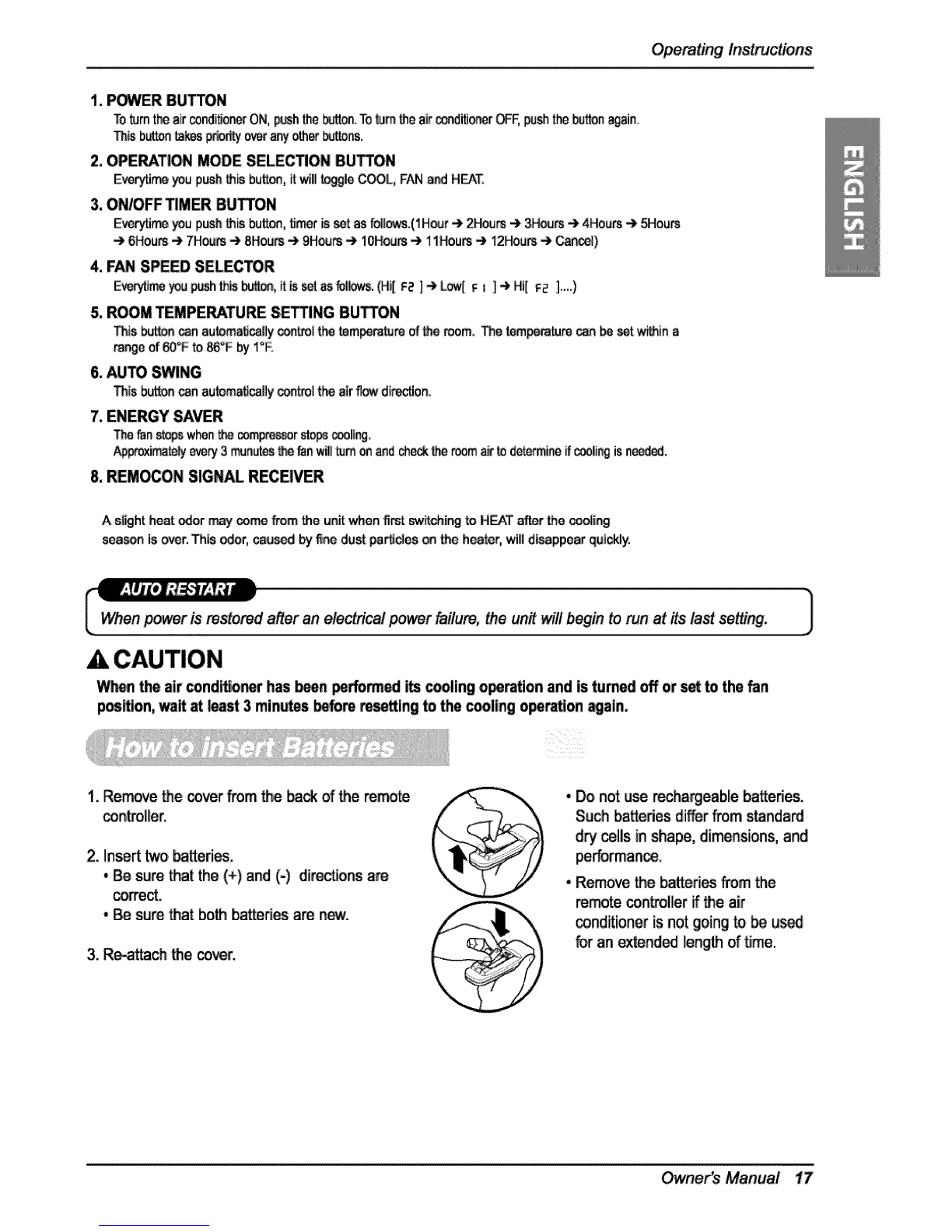

To_rn t_ aircondi_ne_ON,p_ash_ _ton. Toturntheairc_oner OFF,p,Jsht_ _tton again.
_ buttontakes_rity oH anyotherbuttons.
2. OPERATION MODE SELECTION BU_ON
Eve_ime_u pushthisbutton,it_11_gle COOL,FANa_ HEhZ
3. ON/OFF TIMER BUTTON
Eve_ime _u pushthis button,_merissetasfollows,(1H_r_ 2Hou__3_u_ _ 4Hours_ 5Hou_
-) 6Hou_-) 7Hours_ 8Hou_-) 9Hours_ 10Hou_-) 11Hou__ 12Hou_-) Car_J)
4. FAN SPEED SELEC_R
Ever_me_u p_h thisbu_, itis_as_1_. (Hi[F2]-) L_ F=] -) Hi[ F2 ]....)
5. ROOM TEMPERATURE SE_NG BUTTON
Thisbuttoncanautoma_lly _'ol the_m_rature _t;'_ room_Thetemperatu_canbesetwi_ina
_nge of60°Fto86°FbyI°E
6. AU_ SWING
Thisb_on canautom_ca_lycc_o_theairfle,vdi_en.
7. ENERGY SAVER
_e fa_st_ when_ comer stops_l_ng_
_ma_ every3_nu_es_ _n will_rn onandch_ the,_m _ todetermine_coolingisneeded.
8. REMOCON SIGNAL RECEIVER
A slightheat odormay come _m the unit when first switching to HEAT after the _ling
sea_n isover._ _or, _u_ by_ne dust _es _ the heater, will disappear qul_ly.
CAUTION
When the air condl_o_r has _n perfo_ed _cooling ope_ion and is turned off or set to the fan
pos_ion, wait at least 3min_.es _fom resetting to the cooling operation again,
i. Remove _e _ver from _e _ of the mrr_te
_n_l_er.
2. Insert two batteries.
•Be sure that the (+) and (-) directions are
correct.
• Be sure _at both batten_ are new.
3. Re-a_ach the cover.
, Do not use rechargeable battens.
Such batteries differ _om s_ndard
d_ _lls in shape, dimensions, and
•Remove the _tteries from the
remote _ntroller if the air
conditioner is not going to _ u_
_r an extended length of time.
Owners Manual 17

Operating Instructions
The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air is drawn out.
Before using the ventilation feature,
position the lever; as shown. First, pull down
part _._to horizontal line with part (f_).
The direction of air can be controlled wherever you
want to cool by adjusting the horizontal louver and the
vertical louver,
HORIZONTAL AIR-DIRECTION _ONTROL
To control horizontal direction of air flow, set to the
ON position the air-swing switch and the air flow will
be swept horizontally by the automatic air-swing
system.
If you want to stop the air flow from moving, switch off
the air swing switch at the desired position of the
vane_
•VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louver.
The direction of air can be controlled wherever
you want to cool by adjusting the horizontal
louver and the vertical louver.
• HORIZONTAL AIR-DIRECTION CONTROL
The horizontal air direction is adjusted by
rotating the vertical louver right or left.
•VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating
the horizontal louver forward or backward.
i8 Room Air Conditioner

Operatinginstructions

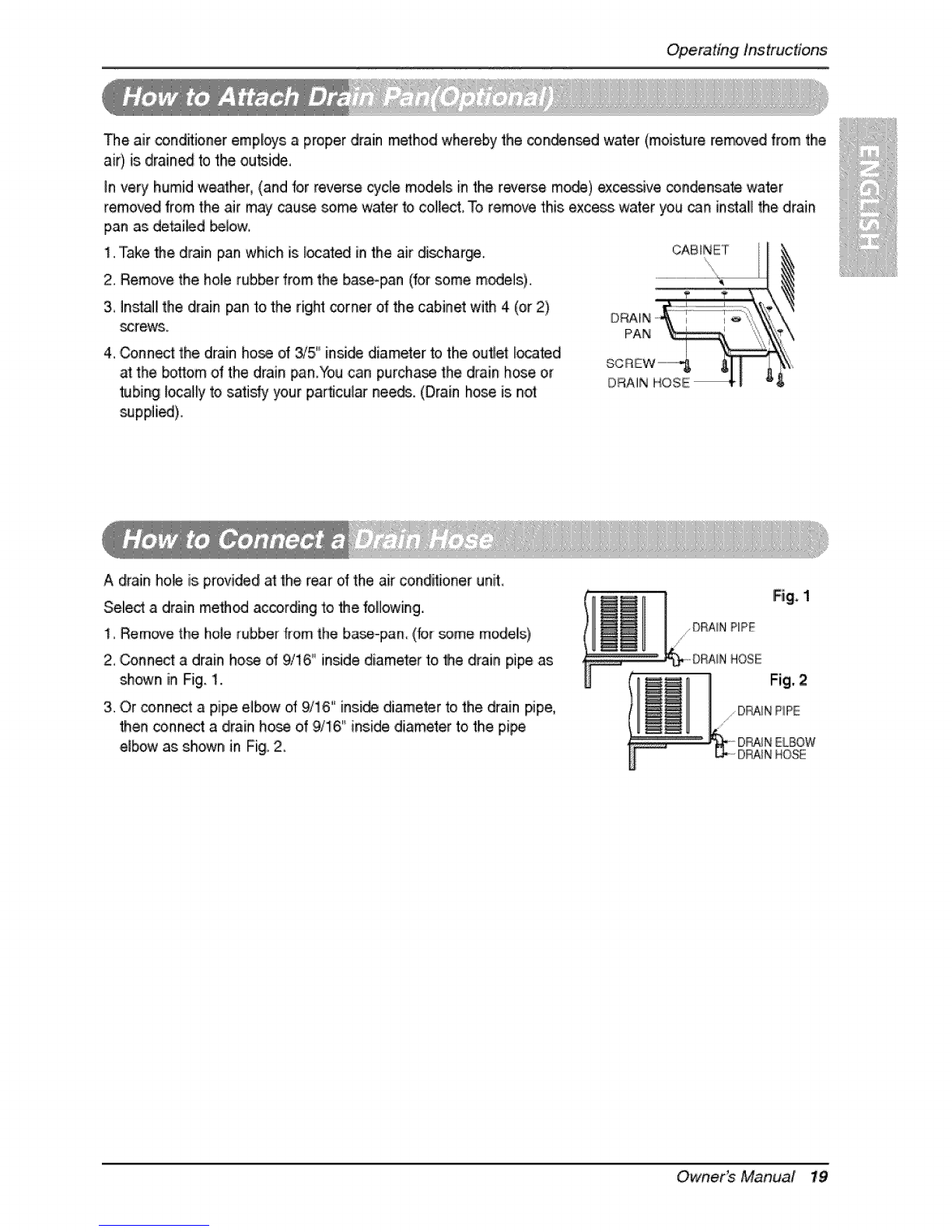

_e air conditioner employs a proper drain melhod whereby the condensed water (moisture re_ved from the
air) is,drained to the ou_ide,
In very humid weather, (and for reverse cycle models in the reverse mo_) excessive, condensate water
removed from the, air may cause _me water to collect, To remove this excess,water you can install the drain
pan as detai_d _low.
1,Take Me drain pan which is bcated in the air di_harge
2. Remove the hole rubber from the base-pan (for some m_els),.
CABINET
3, Install the drain pan to the right corner of the cabinet with 4 (or 2)
_rews.
4. Conned the drain ho,_ of 315' insi_ diameter to the outlet l_ated
at the bottom of the drain pan You can purcha_ the drain hose or
tubing locally to satiny your particular needs. (Drain hose is not
supplied),.
DRAIN
PAN
DRAIN HOSE
A drain ho_ is.provided at the rear dthe air conditio,ner unit
Select a drain me_hodaccording to Me folilowing.
1, Remove the hole rubber kom the b,a_-pan (for _me models)
2, Conned a drain ho,_ of 9/t6 °'indde diameter to Me @ain pipe,as
_own in Fig. 1..
3. Or conned a pipe elbow d9/16" insid_ diameter to the drain pipe,
then conned .adrain ho_ of 9/16" inside diameter to the pi_
elbow as shown in Fig.,2, DRAIN HOSE
Owner_ Manual 19

Maintenance and Service
TURN THE AiR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET,
The air filter should be checked at least twice a month to see if cleaning is necessary. Trapped particles in the
filter will build up and block the airflow.This reduces the cooling capacity and also causes an accumulation of
frost on the cooling coil&
1.Open the inlet grille upward by pulling out the bottom of the inlet grille.(a)
In another case, you can open the inlet grille downward by pulling out the top of the inlet grille,(b)
2, Remove the air filter from the front grille assembiy by pulling the air filter up or down slightly,
3.Wash the filter using lukewarm water below 40°0 (104°F).(c)
4, Gently shake the excess water from the filter completely. Replace the filter.
(a) (b) (c)
Mark A of inlet grille means opening dir_tion,_
1. Pull down front grille from the cabinet top.
2. Push front gri]le's tips toward the _binet in order
to insert front gdlie's tabs into
the cabinet.
3. Open the inlet grille.
4. Tighten the screw through the front grille into the
plate of the evaporator or base pan,
5. Close inlet grille.
20 Room Air Conditioner
