Comnet CNGEMC4+2/M User manual

INSTALLATION AND OPERATION MANUAL
CNGEMC4+2[POE][HO]/M
10/100/1000 MBPS INTELLIGENT
MEDIA CONVERTER WITH OPTIONAL POE+
The ComNet CNGEMC4+2[POE][HO]/M is a four port intelligent Media Converter.
It provides four 10/100/1000Base-T(X) copper ports and two 100/1000Base-FX SFP
ports. The CNGEMC4+2[POE][HO]/M provides exclusive functionality for easy field
deployment including DIP media converter based operation of RSFP (redundant
SFP) for creating redundant fiber connections and MUX feature for port isolation
preventing network video flooding of multicast traffic. Copper ports 1 through 4 can
optionally supply up to thirty (30) watts of power per port based on the IEEE 802.3at
standard. An optional High Output (HO) version is also available that can supply up to
sixty (60) watts of PoE from copper ports 1 through 4. This product is fully compatible
with the ComNet exclusive CopperLine® SFP modules for operation over extended
distance UTP or Coax cable. The ComNet exclusive Port Guardian feature provides
additional cybersecurity protection by enabling physical port lockout in the event that
an existing cable is disconnected and prevents a potential network incursion using
common spoofing techniques.
This manual serves the following
ComNet Model Numbers:
CNGEMC4+2/M
CNGEMC4+2POE/M
CNGEMC4+2POEHO/M

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 2
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Contents
Regulatory Compliance Statement 4
Warranty 4
Disclaimer 4
Safety Indications 4
Overview 5
Introduction 5
Software Features 5
Hardware Features 5
Hardware Overview 6
Side Panels 6
Indicating LEDs 9
Cables 10
Ethernet Cables 10
10/100/1000BASE-T(X) Pin Assignments 10
SFP Transceivers 12
Console Cable 12
DIP Switches 13
Graphical User Interface 15
Web Based Configuration 15
System Information 17
Port Configuration 18
Port Statistics 18
Authentication 19
Upgrade Firmware 20
Factory Defaults Reset 21
System Reset 22
Network Interface Configuration 23
PoE-PSE Status 24
Contact Configuration 25

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 3
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Static MAC Lock 26
Port Guardian 27
Port Guardian – CLI Reset 28
Jumbo Frame Port Configuration 29
Command Line Interface Management 30
How to access the Command Line Interface (CLI) 30
Technical Specifications 33

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 4
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Regulatory Compliance Statement
Product(s) associated with this publication complies/comply with all applicable regulations. Please
refer to the Technical Specifications section for more details.
Warranty
ComNet warrants that all ComNet products are free from defects in material and workmanship
for a specified warranty period from the invoice date for the life of the installation. ComNet will
repair or replace products found by ComNet to be defective within this warranty period, with
shipment expenses apportioned by ComNet and the distributor. This warranty does not cover
product modifications or repairs done by persons other than ComNet-approved personnel, and
this warranty does not apply to ComNet products that are misused, abused, improperly installed,
or damaged by accidents.
Please refer to the Technical Specifications section for the actual warranty period(s) of the
product(s) associated with this publication.
Disclaimer
Information in this publication is intended to be accurate. ComNet shall not be responsible for its
use or infringements on third-parties as a result of its use. There may occasionally be unintentional
errors on this publication. ComNet reserves the right to revise the contents of this publication
without notice.
Safety Indications
»The equipment can only be accessed by trained ComNet service personnel.
»This equipment should be installed in secured location.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 5
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Overview
Introduction
The CNGEMC4+2 is an intelligent Media Converter that contains many features. The media
converter will work under a wide variety of temperature, dirty and humid conditions. Some
advanced features are configurable using DIP media converters on the device.
Software Features
»Web-based GUI and USB Console CLI configuration
»Enable/disable ports
»PoE status monitoring and health check
»Jumbo Frame support (10240 MTU)
»Static MAC lock (per port)
»Field firmware upgrade capable
»Port Guardian physical port lockout feature
Hardware Features
»2 × DIP media converters for quick feature selection
»2 × Redundant DC power inputs
»Operating Temperature: -40 – 75ºC
»Storage Temperature: -40 – 85ºC
»Operating Humidity: 5% – 95%, non-condensing
»4 × 10/100/1000Base-TX Gigabit Ethernet port
»2 × 100/1000Base-X SFP
»2 × Dry Contact Inputs
»2 × Form A Relays
»USB Console Port
»Dimensions: 4.1 × 3.7 × 2.2 in (10.4 × 9.4 × 5.6 cm)

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 6
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Hardware Overview
Side Panels
The following table describes the ports that are on the sides of the CNGEMC4+2[POE][HO]/M.
Port Description
10/100/1000Base-T(X)
RJ-45 Ethernet ports
4 × 10/100/1000Base-TX RJ-45 fast Ethernet ports support
auto-negotiation.
Default Settings:
Speed: auto
Duplex: auto
Flow control: disable
SFP Ports 2 ×100/1000Base-X SFP
USB Console Use the included mini USB cable to manage the switch.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 7
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427

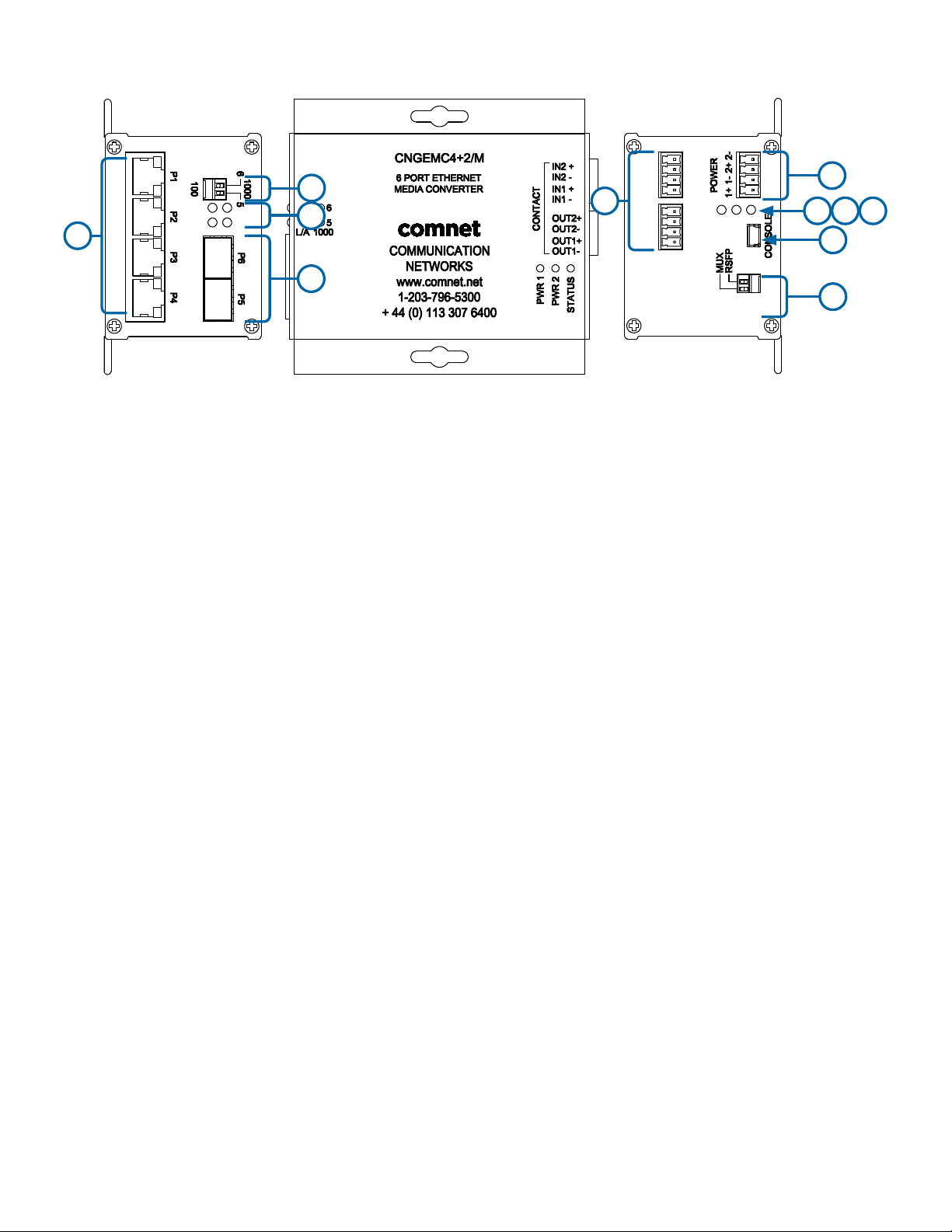

3 42
8
7
11
6
1
5
10
9
CNGEMC4+2/M
1. Power Connections
2. LED for PWR1
3. LED for PWR2
4. LED for STATUS
5. Console Mini USB
6. Configuration DIP switches
7. Contact Closure terminal block
8. RJ-45 Ethernet Ports 1-4
9. Data Speed DIP switches
10. Link/Activity LEDs for SFP Ports 5 and 6
11. SFP Ports 5 and 6

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 8
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
2 31
8
6
7
12
5
4
11
10
9
CNGEMC4+2POE/M
2 31
8
6
7
12
5
4
11
10
9
CNGEMC4+2POEHO/M
1. Power Connections
2. LED for PWR1
3. LED for PWR2
4. LED for STATUS
5. Console Mini USB
6. Configuration DIP Switches
7. Contact Closure Terminal Block
8. RJ-45 Ethernet Ports 1 – 4
9. PoE Status LEDs for Ports 1 - 4
10. Data Speed DIP Switches
11. Link/Activity LEDs for SFP Ports 5 and 6
12. SFP Ports 5 and 6

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 9
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Indicating LEDs
LED Color Status Description
PWR1 Green On DC Power Input 1 Good
Off No power detected
PWR2 Green On DC Power Input 2 Good
Off No power detected
STATUS Green On Initialization passed
Red On Failed
10/100/1000Base-T(X) Ethernet ports
LNK /ACT Green On Port link up
Blinking Data transmitting
Gigabit LED Amber On Port speed is 1000 Mbps (Gigabit)
30W Amber On 30W PoE power being supplied (POE units only)
60W Green On 60W PoE power being supplied (POEHO units only)
SFP
LNK /ACT Green On Port link up.
Blinking Data transmitted.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 10
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Cables
Ethernet Cables
The CNGEMC4+2 media converters have standard Ethernet ports. According to the link type, the
media converters use CAT 3, 4, 5, & 5e UTP cables to connect to any other network device (PCs,
servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications
Cable Type Max. Length Connector
10BASE-T Cat. 3, 5, 5e, 6 100Ω UTP 100 m (328 ft) RJ-45
100BASE-TX Cat. 5, 5e, 6 100Ω UTP UTP 100 m (328 ft) RJ-45
1000BASE-TX Cat. 5, 5e, 6 100Ω UTP UTP 100 m (328 ft) RJ-45
10/100/1000BASE-T(X) Pin Assignments
With 100BASE-T(X)/10BASE-T cable, pins 1 and 2 are used for transmitting data, and pins 3 and 6
are used for receiving data.
10/100 Base-T RJ-45 Pin Assignments
Pin Number Assignment
1TD+
2TD-
3RD+
4Not used
5Not used
6RD-
7Not used
8Not used
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 11
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
1000 Base-T RJ-45 Pin Assignments
Pin Number Assignment
1BI_DA+
2BI_DA-
3BI_DB+
4BI_DC+
5 BI_DC-
6 BI_DB-
7BI_DD+
8 BI_DD-
The CNGEMC4+2[POE][HO]/M media converters support auto MDI/MDI-X operation. You can use
a straight-through cable to connect PC to switch. The following table below shows the
10/100BASE-T(X) MDI and MDI-X port pin-outs:
10/100 Base-T MDI/MDI-X pin assignments
Pin Number MDI port MDI-X port
1TD+ (transmit) RD+ (receive)
2TD- (transmit) RD- (receive)
3RD+ (receive) TD+ (transmit)
4Not used Not used
5Not used Not used
6RD- (receive) TD- (transmit)
7Not used Not used
8Not used Not used
1000 Base-T MDI/MDI-X pin assignments
Pin Number MDI port MDI-X port
1BI_DA+ BI_DB+
2BI_DA- BI_DB-
3BI_DB+ BI_DA+
4BI_DC+ BI_DD+
5 BI_DC- BI_DD-
6 BI_DB- BI_DA-
7BI_DD+ BI_DC+
8 BI_DD- BI_DC-

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 12
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
SFP Transceivers
The media converter has fiber optic ports that utilize SFP connectors. ComNet offers a wide
selection of SFP modules that offer different fiber type, connector type and distances. Please
remember that the TX port of unit A should be connected to the RX port of unit B.
Media Converter A Fiber Cord Media Converter B
Console Cable
Each CNGEMC4+2 media converter can have the initial network settings configured by the
management console port. You can connect them to a PC with USB Ports using the supplied USB
to USB Mini B male plug cable.
USB to USB Mini B Cable

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 13
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
DIP Switches
The CNGEMC4+2’s dip media converters configure media converter features. The DIP media
converters are numbered from left to right when viewing the side of the media converter with the
backplate on the bottom and the power connections on the left. If “Web Management Enable” is
selected in the management software under System Settings, the DIP media converter settings
will be overridden by any settings made in the browser interface.
DIP Switch
Position Description
1 RSTP enable (down = disabled, up enabled)
2 Port SMS Mux
3 Root Bridge Select
4 Redundant SFP mode
5IGMP enable
6SFP Port 3 speed. Up: 1000M/Down: 100M
7SFP Port 4 speed. Up: 1000M/Down: 100M
Dip Switch Feature Summary
MUX
(switch 1) Resulting Mode Comment
Off No Port Isolation All Ports Communicating
On MUX Enabled Ports 1-4 are isolated and only transmit out the fiber ports
RSFP
(switch 2) Resulting Mode Comment
Off Fiber Ports are
independent
All Ports Communicating
On Fiber Ports 5 and 6
are Trunked
Port 6 is primary, Port 5 is failover

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 14
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427

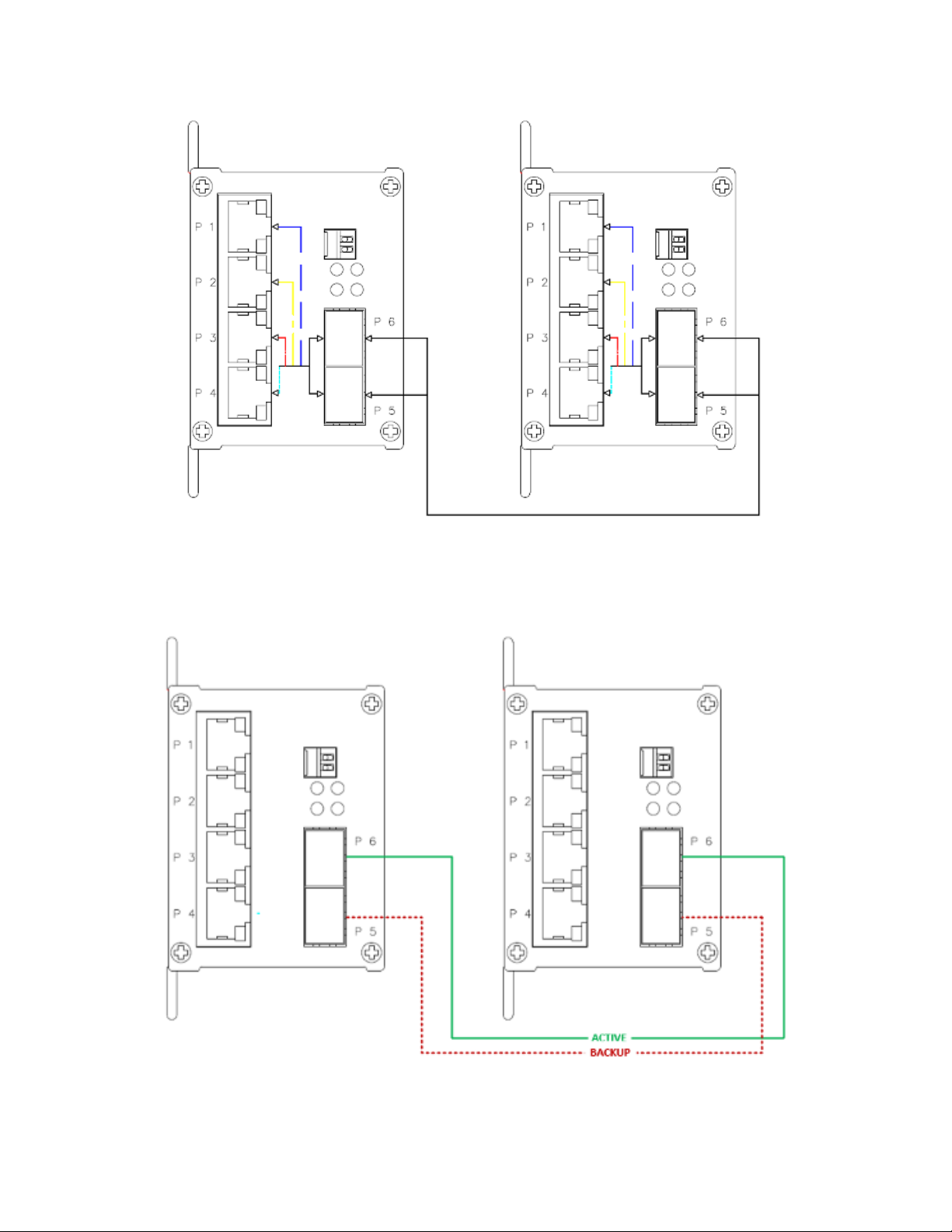

MUX Enabled (DIP switch 1 in ON Position)
RSFP Enabled (DIP switch 2 in On Position)
With RSFP (Switch 2) Enabled, the fiber ports will trunk and port 6 will be primary. Port 5 will be
failover.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 15
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Graphical User Interface
This section provides instruction on accessing the HTML Web Site on the Media Converter.
Web Based Configuration
An embedded HTML Web Site resides in the flash memory on the CPU Board.
It contains HTML code that allows you to view and toggle settings on the Media Converter through
a standard web browser.
Preparing for GUI Access
The default values are below:
IP Address: 192.168.10.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.10.254
Username: admin
Password: admin
GUI Login
With a PC on the same subnet as the Media Converter, do the following to access the GUI.
1. Launch your Web Browser.
2. Type HTTP:// and the IP address of the Media Converter, press enter.
3. The login screen appears.
4. Enter username and password, Default is “admin” for both.
5. Select Sign in or Enter, then the main interface of the web-based GUI appears.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 16
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Main Interface
Main interface

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 17
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
System Information
The media converter system information is provided here.
System Information interface
Label Description
Settings Summery MUX and Redundant SFP Mode States
Web Management Enable Override of the DIP Switch Settings
Override Settings With Web MGMT Enabled, these options will override MUX and RSFP
Temperature Status Device internal board temperature reading
Port Link Status Link status and port disable

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 18
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Port Configuration
The Port Configuration page shows you current link state and settings.
By default, the Media Converter ports are set to auto negotiation, the user may force negotiation
so they can select port speed, duplex, and flow control.
Port Statistics
Port Statistics displays packet counts per port. Refresh the screen to update statistics.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 19
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Authentication
The Authentication page allows you to change the username and password. All updates apply to
both the GUI Webpage and Command Line Access.

INS_CNGEMC4+2[POE][HO]/M 09/08/20 PAGE 20
INSTALLATION AND OPERATION MANUAL CNGEMC4+2[POE][HO]/M
TECH SUPPORT: 1.888.678.9427
Upgrade Firmware
Enable Image Upgrade allows you to update the firmware of the Media Converter. The firmware is
upgraded using a bootloader provided by ComNet. The Enable Image Upgrade button must be
enabled before the bootloader will connect to the Media Converter. RSFP is not available during
the firmware update process so please observe the network topology before upgrading.
Details on how to use the upgrade bootloader is available in the Firmware Upgrade section.
After applying a new firmware version, it’s recommended that a factory default reset is performed
to ensure that all the new or adjusted settings take effect. Please note that performing a factory
reset will erase all the device settings except for the IP address.
Warning Do not enable the firmware update process unless you have a firmware file available
and are ready to upgrade the unit. Once this process is started it cannot be cancelled
and if a new firmware is not uploaded to the unit it will be necessary to return the unit
to the factory for re-programming.
