Comparc S 604 MT User manual

MIG (GMAW) & FCAW.
PROCESSES
OWNER´S
MANUAL
S604MT
24 V CONSTANT SPEED
PM1326REV. 3
E. 21-01-2021
R: 29-09-2021
309-140
T M
OWNER´S MANUAL
GIVETHISMANUALTOTHEOPERATOR
VISIT OUR WEBSITE AT: www.siisa-infra.com.mx

TABLE OF CONTENTS
SECTION 1 -- ARC WELDING SAFETY PRECAUTIONS ....................................................i
SECTION 2 -- SAFETY INFORMATION...............................................................................1
SECTION 3 - SPECIFICATION.............................................................................................1
3-1. RatingLabel Location............................................................................................................... 1
3-2. Specifications........................................................................................................................... 1
3-3. EnvironmentalSpecification ..................................................................................................... 1
SECTION 4 - INSTALLATION ..............................................................................................2
4-1. Site Selecction ......................................................................................................................... 2
4-2. Typical Connections Diagram................................................................................................... 2
4-3. Connecting Welding Gun, Voltaje ClampAnd Weld cable ......................................................... 3
4-4. 14 PinPlug Information............................................................................................................. 3
4-5. InstallingWelding Gun.............................................................................................................. 4

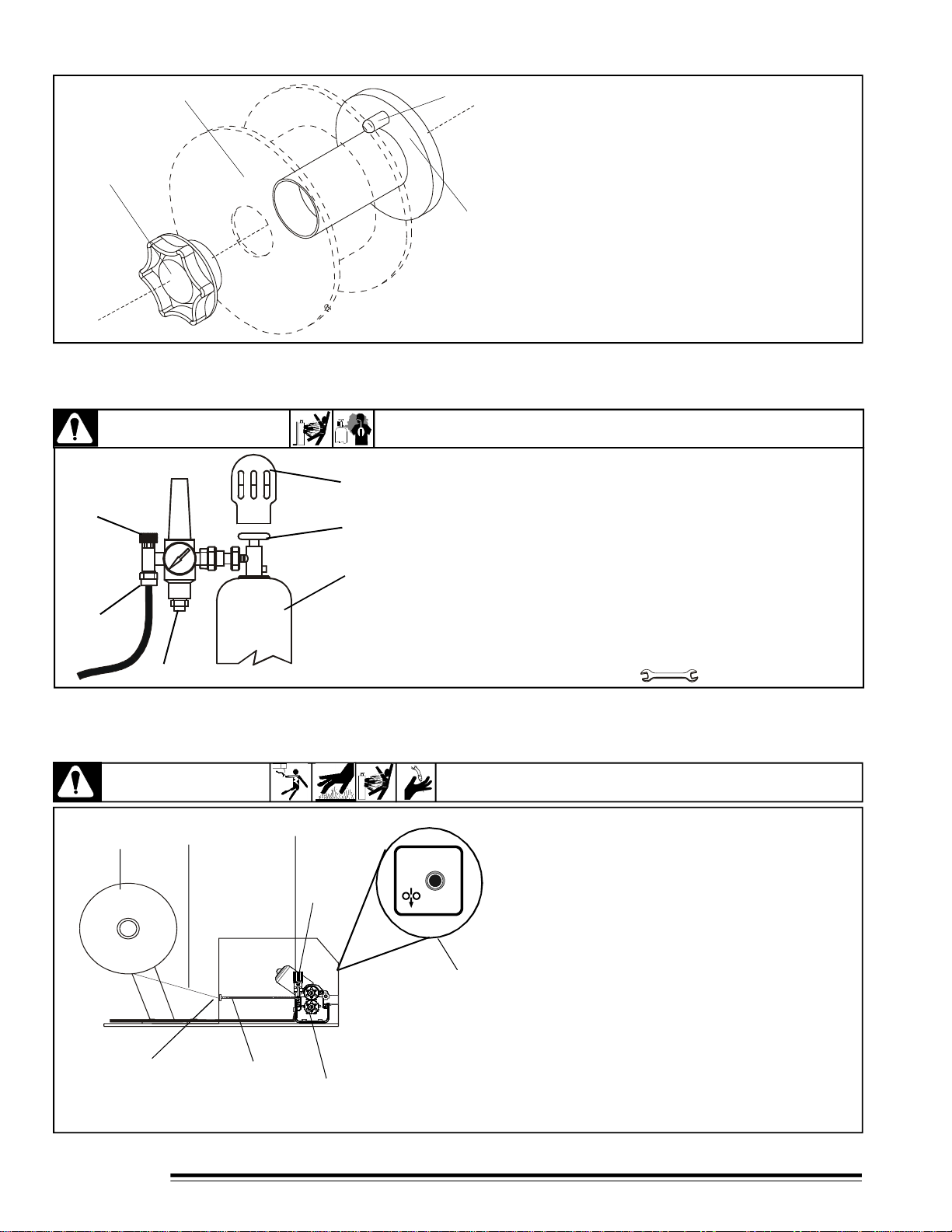

4-6. Spool Wire Installation .............................................................................................................. 5
4-7. Shielded Gas Connection......................................................................................................... 5
4-8. Welding Wire Installation .......................................................................................................... 5
SECTION 5 - OPERATION ...................................................................................................7
5-1. Controls ................................................................................................................................... 7
SECTION 6 - MAINTENANCE & TROUBLESHOOTING ....................................................9
6-1. Routine Maintenance............................................................................................................... 9
6-3. Overload Protection................................................................................................................. 9
6-3. Troubleshooting..................................................................................................................... 10
SECTION 7 - ELECTRICAL DIAGRAMS ...........................................................................11
SECTION 8 - PARTS LIST .................................................................................................12
8-1. MainAsembly ........................................................................................................................ 12
8-2. List Control Box..................................................................................................................... 13
8-3. Part List Of Feeder Mechanism Of Wire ............................................................................... 14
WARRANTY

SECTION 1 - SAFETYPRECAUTIONS - READ BEFORE USING
WARNING
- DANGER! - Indicates a hazardous situation which, if not avoided, will result in death or serious injury. The possible hazards are shown
in the adjoining symbols or explained in the text
- Indicates a hazardous situation which, if not avoided, could result in death or serious injury. The possible hazards are shown
in the adjoining symbols or explained in the text.
- The symbols shown below are used throughout this manual to call attention to and identify possible hazards. When you
see the symbol, watch out, and follow the related instructions to avoid the hazard. The safety information given below is
only a summary of the more complete safety information found in the Safety Standards.
- Only qualified persons should install, operate, maintain, and
repair this unit.
- During operation, keep everybody, especially children, away.
ARC WELDING can be hazardous.
ELECTRIC SHOCK can kill.
Touching live electrical parts can cause fatal shocks
or severe burns. The electrode and work circuit is
electrically live whenever the output is on. The input
power circuit and machine internal circuits are also
live when power is on. In semiautomatic or automatic
wire welding, the wire, wire reel, drive roll housing,
and all metal parts touching the welding wire are electrically live.
Incorrectly installed or improperly grounded equiment is a hazard.
1.- Do not touch live electrical parts.
2.- Wear dry, hole-free insulating gloves and body protection.
3.- Insulate yourself from work and ground using dry insulating
mats or covers.
4.- Disconnect input power or stop engine before installing or
servicing this equipment.
5.- Properly install and ground this equipment according to this
Owner's Manual and national, state, and local codes.
6.- Turn off all equipment when not in use.
7.- Do not use worn, damaged, undersized, or poorly spliced cables.
8.- Do not wrap cables around your body.
9.- Ground the workpiece to a good electrical (earth) ground.
10.- Do not touch electrode while in contact with the work (ground)
circuit.
11.- Use only well-maintained equipment. Repair or replace damaged
parts at once.
12.- Wear a safety harness to prevent falling if working above floor
level.
13.- Keep all panels and cover securely in place.
ARC RAYS can burn eyes and skin;
NOISE can damage hearing.
Arc rays from the welding process produce intense
heat and strong ultraviolet rays that can burn eyes and
skin. Noise from some processes can damage hearing.
1.- Wear a welding helmet fitted with a proper shade
of filter (see ANSIZ49.1 listed in Safety Standards) to protect
FUMES AND GASES can be hazardous
to your health.
Welding produces fumes and gases. Breathing these
fumes and gases can be hazardous to your health.
1.- Keep your head out of the fumes. Do not breath the fumes.
2.- If inside, ventilate the area and / or use forced ventilation at the arc
to remove welding fumes and gases.
3.- If ventilation is poor, use an approved air-supplied respirator.
4.- Read the Material Safety Data Sheets (MSDSs) and the
manufacturer´s instruction for metal, consumables, coatings, and
cleaners.
5.- Work in a confined space only if it is well ventilated, or while wearing
an air-supplied respirator. Shielding gases used for welding can
displace air causing injury or death. Be sure the breathing air is safe.
6.- Do not weld in locations near degreasing, cleaning, or spraying
operations. The heat and rays of the arc can react with vapors to
form highly toxic and irritating gases.
7.- Do not weld on coated metals, such as galvanized, lead, or cadmium
plated steel, unless the coating is removed from the weld area, the
area is well ventilated, and if necessary, while wearing an air-
supplied respirator. The coatings and any metals containing these
elements can give off toxic fumes if welded.
FLYING SPARK AND HOT METAL can
cause injury
Chipping and grinding cause flying metal . As welds
cool, they can throw off slag.
1.- Wear approved face shield or safety goggles. Side shields
recommended.
2.- Wear proper body protection to protect skin.
your face and eyes when welding or watching.
2.- Wear approved safety glasses. Side shields recommended.
3.- Use protective screens or barriers to protect others from flash and
glade; warn others not to watch the arc.
4.- Wear protective clothing made from durable, flame- resistant mate
rial (wool and leather) and foot protection.
5.- Use approved ear plugs or ear muffs if noise level is high.
i

CYLINDERS can explode if damaged.
Shieldinggas cylinders contain gas under high pressure.
If damaged, a cylinder can explode. Since gas cylinders
are normally part of the welding process, be sure to
treat them carefully.
1.- Protect compressed gas cylinders from excessive heat, mechanical
shocks, and arcs.
2.- Install and secure cylinders in an upright position by chaining them
to a stationary support or equipment cylinder rack to prevent falling
or tipping.
3.- Keep cylinders away from any welding or other electrical circuits.
4.- Never allow a welding electrode to touch any cylinder.
5.- Use only correct shielding gas cylinders, regulators, hoses, and
fittings designed for the specific application; maintain them and
associated parts in good condition.
6.- Turn face away from valve outlet when opening cylinder valve.
7.- Keep protective cap in place over valve except when cylinder is in
use or connected for use.
8.- Read and followinstructions on compressed gas cylinders, associated
equipment, and CGA publication P-1 listed in Safety Standards.
ENGINES can be hazardous.
WARNING
ENGINE EXHAUST GASES can kill.
Engines produce harmful exhaust gases.
1.- Use equipment outside in open, well-ventilated
areas.
2.- If used in a closed area, vent engine exhaust outside and away from
any building air intakes.
ENGINE FUEL can cause fire or
explosion.
Engine fuel is highly flammable.
1.- Stop engine before checking or adding fuel.
2.- Do not add fuel while smoking or if unit is near any sparks or open
flames.
3.- Allow engine to cool before fueling. If possible, check and add fuel
to cold engine before beginning job.
4.- Do not overfill tank - allow room for fuel to expand.
5.- Do not spill fuel. If fuel is spilled, clean up before starting engine.
MOVING PARTS can cause injury.
Moving parts, such as fans, rotors, and belts can cut
fingers and hands and catch loose clothing.
1.- Keep all doors, panels, covers, and guards closed
and securely in place.
2.- Stop engine before installing or connecting unit.
3.- Have only qualified people remove guards or covers for maintenance
and troubleshooting as necessary.
4.- To prevent accidental stating during servicing, disconnect negative
(-) battery cable from battery.
5.- Keep hands, hair, loose clothing, and tools away from moving parts.
6.- Reinstall panels or guards and close doors when servicing is finished
and before starting engine.
SPARKS can cause BATTERY GA-
SES TO EXPLODE; BATTERY ACID
can burn eyes and skin.
Batteries contain acid and generate explosive gases.
1.- Always wear a face shield when working on a
battery.
2.- Stop engine before disconnecting or connecting battery cables.
3.- Do not allow tools to cause sparks when working on a battery.
4.- Do not use welder to charge batteries or jump start vehicles.
5.- Observe correct polarity (+ and -) on batteries.
WELDING can cause fire or explosion.
Sparks and spatter fly off from the welding arc. The
flying sparks and hot metal, weld spatter, hot workpiece,
and hot equipment can cause fires and burns. Acciden-
tal contact of electrode or welding wire to metal objects
can cause sparks, overheating, or fire.
1.- Protect yourself and others from flying sparks and hot metal.
2.- Do not weld where flying sparks can strike flammable material.
3.- Remove all flammables within 35ft (10.7 m) of the welding arc. If
this is not possible, tightly cover them with approved covers.
4.- Be alert that welding sparks and hot materials from welding can
easily go through small cracks and openings to adjacent areas.
5.- Watch for fire, and keep a fire extinguisher nearby.
6.- Be aware that welding on a ceiling, floor, bulkhead, or partition can
cause fire on the hidden side.
7.- Do not weld on closed containers surch as tanks or drums.
8.- Connect work cable to the work as close to the welding areas as
practical to prevent welding current from traveling long, possibly
unknown paths and causing electric shock and fire hazards.
9.- Do not use welder to thaw frozen pipes.
10.- Remove stick electrode from holder or cut off welding wire at
contact tip when not in use.
11.- Wear oil-free protective garments such as leather gloves, heavy
shirt, cuffless trousers, high shoes, and a cap.
ii

STEAM AND PRESSURIZED HOT
COOLANT can burn face, eyes, and
skin.
The coolant in the radiator can be very hot and under
pressure.
1.- Do not remove radiator cap when engine is hot. Allow engine to cool.
2.- Wear gloves and put a rag over cap area when removing cap.
3.- Allow pressure to escape before completely removing cap.
- Additional Symbols For Installation, Operation, And Maintenance
NOISE can damage hearing.
Noise from some processes or equipment can damage hearing.
- Wear approved ear protection if noise level is high.
FALLING EQUIPMENT can injure
-Use lifting eye to lift unit and properly installed
accessories only, NOT gas cylinders. Do not
exceed maximum lift eye weight rating (see
Specifications).
-Use equipment of adequate capacity to lift and support unit.
-If using lift forks to move unit, be sure forks arelong enough to extend
beyond opposite side of unit.
-Keep equipment (cables and cords) away from moving vehicles
when working from an aerial location.
OVERUSE can cause OVERHEATING
-Allow cooling period; follow rated duty cycle.
-Reduce current or reduce duty cycle before starting to
weldagain.
-Do not block or filter airflow to unit.
STATIC (ESD) can damage PC boards.
-Put on grounded wrist strap BEFORE handling boards or parts.
-Use proper static-proof bags and boxes to store, move, or ship PC boards.
ARC WELDING can cause interference.
-Electromagnetic energy can interfere with sensitive
electronic equipment such as microprocessors, computers,
and computer-driven equipment such as robots.
-Be sure all equipment in the welding area is
electromagnetically compatible.
- To reduce possible interference, keep weldcables as short as possible, close
together, and down low, such as on the floor.
-Locate welding operation 100 meters from anysensitiveelectronic equipment.
-Besurethisweldingmachineisinstalledandgroundedaccordingtothismanual.
-If interference still occurs, the user must take extra measures such as moving
thewelding machine, using shieldedcables, using line filters, or shielding thework
area.
-Read and follow all labels and the Owner’s Manual carefully before installing, operating, or servicing unit.
Read the safety information at the beginning of the manual and in each section.
- Definitions
iii

PM1326
CAUTION
SECTION 2 - SAFETY INFORMATION
IMPORTANT: Statements identify special instructionsnecessaryforthemostefficientoperation
ofthisequipment.
WARNING WARNING statements identify procedures or practices which must be followed
to avoid seriuos personal injury or loss of life.
CAUTION statements identify procedures or practices which must be followed to
avoid minor personal injury or damage to this equipment.
Thefollowingsafetyalertsymbolandsignalwordsareusedthroughoutthismanualtocallattentiontoand
identifydifferentlevelsofhazardandspecialinstructions.
SECTION 3 - SPECIFICATION
3-2. Specifications
3-1. Rating Label Location
Theserial numberandratinginformationforthisproductislocatedonthefront.Useratinglabeltodetermine
inputpowerrequirementsand/orratedoutput.
This equipment will deliver rated output at anambient air temperature upto 104F( 40 °C).
3-3. Environmental Specifications
A. Temperature Specifications
Operating Temperature Range Storage/Transportation Temperature Range
14 to 104°F (-10 to 40°C)
*Output is derated at temperatures above 104°F (40°C) -4 to 131°F (-20 to 55°C)
1
Welding Power
Source Type Wire Diameter Range
75 to 900 ipm
(1.9To25.4
mpm)
0.23 To 1/8 in
(0.6 To 3.1mm)
MaxPool
Weigth:
33 lb (15 kg)
100Volts,
500Amperes
100% Duty
Cycle
Length: 25 1/2in
650(mm)
Width:11 in
(280mm)
Heidth: 14in
(356mm)
38.5lb
(17.5kg)
WeldingCircuit
Rating Overall Dimensions Weigth
IP21S
IP
Rating
Type of
Input
Power
24 Volts AC
SinglePhase
4Amperes
50/60Hz
Wire Feed
Speed Range
ConstantVoltage
(CV) DC With
14-Pin And
Contactor
Control

PM1326
FIGURE 4-1.SITESELECTION
1.- WIRE FEEDER.
2.- LIFTING EYE.
3.- RUBBER SUPPORTS(UNDERWIREFEEDER).
4.- INSTALLATION SLOT.
When installing wire feeder over a lifting eye on a
welding power source, be sure all four rubber feet
on base of feeder sit securely on top of welding
power source.
5.- WIRE SPOOL/REEL.
6.- GAS CILYNDER (NOT INCLUDE).
7.- WELDING POWER SOURCE.
Position wire feeder on welding power source so
that welding wire or wire spool/reel does not touch
gas cilynder.
CAUTION SEE SAFETY RULES AT THE BEGGINING OF MANUAL
BEFORE PROCEED
FIGURE 4-2EQUIPMEDCONECCTIONDIAGRAMS
SECTION 4 INSTALLATION
7
1
5
6
2
34
Do not put feeder were
welding wire hits cilynder.
4-1. SITE SELECTION
4-2. TYPICAL CONNECTIONS DIAGRAM
WORK
Wire feeder
WORK
CV Welding
Power Source
Supplying 24Vac
to feeder
Reversepolarity(PositiveElectrode)
Input cable
Wire feeder
Gas Hose to Cylinder
Gas Hose to Cylinder
Input cable
Positive (+) Weld cable
Negative (-) Weld cable
Positive (+) Weld cable
Negative (-) Weld cable
StraightPolarity( NegativeElectrode)
CV Welding
Power Source
Supplying 24Vac
to feeder
2

PM1326
11
2
3
4
5
6
6

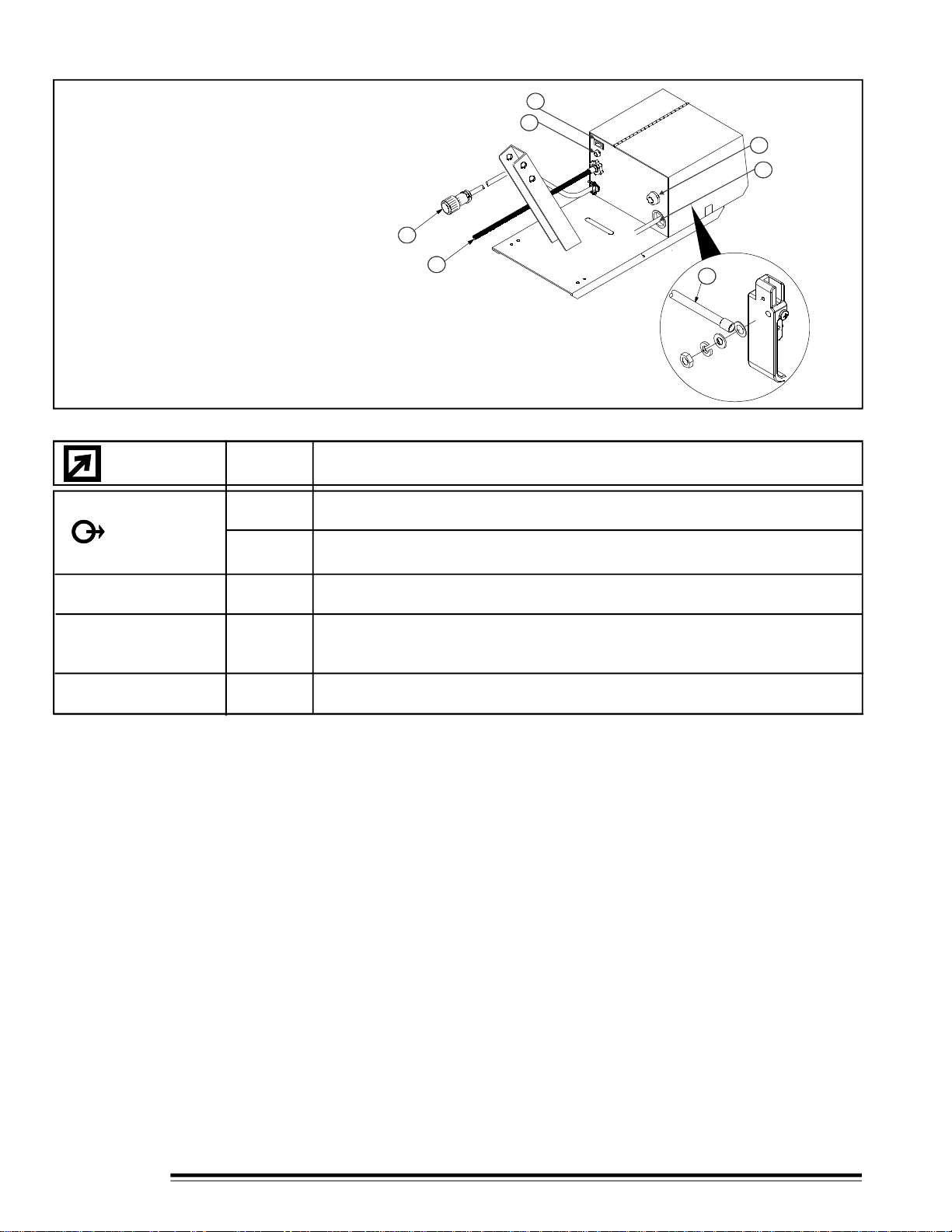

4-3. CONNECTING WELDING GUN, VOLTAGE CLAMP AND WELD CABLE
1.- REMOTE 14 CABLE
2.- SHIELDING GAS VALVE INLET
3.- FUSE F1
4.- SWITCH S1
5.- WIRE FEED INLET
6.- CABLE TO WELDING
POWER SOURCE
4-4. CONNECTING 14-PIN PLUG
3
OUTPUT
(CONTACTOR)
INFORMATION
Socket
REMOTE-14
A
B
I
J
G
K
C
E
D
F
H
24 V a.c. Protected by CB2 (10 Amperes).
Contact closure to "A" completes 24 V a.c. contactor control circuit.
120 V a.c. Protected by CB1(10 Amperes).
Contact closure to "I" completes 120 V a.c. contactor control circuit.
Circuit common for 24 and 120 V a.c. circuits.
Chassis common.
Command reference 10 V d.c.
0 to +10 V d.c. input command signal from remote control.
Remote control circuit common.
Current feedback 0-10 V d.c. 1 Volt per100 weld output Amperes.
Voltage feedback 0-10 V d.c. 1 Volt per 10 weld output Volts
NOTE: Remaining sockets are not used
G N D
REMOTEOUTPUT
CONTROL
A / V

PM1326
4-5. INSTALLING WELDING GUN
Gun Locking Tab In Place
Gun Locking Tab Out Of Place
11
22
3
4
6
TurnOff wire feeder and welding power
source.
Turnoffwirefeederorweldingpowersource
beforehandlingormovingclamp.
1 Fix Knob
2GunLocking Tab
3Power Pingroove
4GunConnection End
Installing gun with gun locking tab in
place system
Loosen power clamp knob to allowpower pin
of gun to clear the gun locking tab.
Pushpower pin into powerclamp as far as
possible to align thegroove in the power pin
of the gunwith the gun locking tab.
Secure gunbytighteningpower clampknob.
Installing gun with gun locking tab out of
place system
Whenusing a gun without thegroove in the
powerpin, loosenfix knob.
Thispreventsthelockingtabfromextending
into thepin gun connection.
Push pin into power clamp as far as
possible.
Secure gunby tightening fix knob.
5 GunControlCable
Insertpluginto GunControlreceptacle, and
tightenthreadedcollar.
6 Pressure locking Clip
4

PM1326
4-6. SPOOL WIRE INSTALLATION.
FIGURE 4-3 SPOOLWIREINSTALLATION.
For 8" and 12" (standard) wire spools
turn unit off anddisconnect it.
1.-Hubspool.
2.- Pin of Hub spool.
3.- Wire spool / Reel.
4.- Hud spool cap.
Turn the hub spool cap clockwise
andremoveit. Install thewirespool,be
sure the hub spool´s pin enters one of the
holesof the wire spool. Reinstall the hub
spool cap.
1
23
4
Figure4-4 Shieldedgasconnection.
WARNING SEE SAFETY SIGNALS AT THE BEGINING THIS MANUAL
4-7. SHIELDED GAS CONNECTIONS.
1
2
3
4
5
6
Be sure gas cylinder is held to running gear, wall, or other stationary support
so cylinder can not fall and break off valve.
1.-CAP.
2.-CYLINDERVALVE.
Remove cap, stand to side of valve, and open valve slightly. Gas flow blows
dust and dirt from valve. Close valve.
3.-CYLINDER.
4.-REGULATOR/FLOWMETER.
5.-GASHOSECONNECTION.
6.-FLOWADJUST.
Typical flow rate is 20 cfh ( Cubic Feet per Hour).
28.5, 15.8mm (1-1/8",5/8")
Toolsneeded:
1.- WIRE SPOOL / REEL
2.- WELDING WIRE.
3.- WELDING WIRE ACCESS.
4.- INLET WIRE GUIDE.
5.-PRESSUREADJUST KNOB.
6.-DRIVE ROLL.
7.-PRESSURELEVER.
8.- WIRE JOG BUTTON (SEE FIG. 5-7).
3
WARNING SEE SAFETY PRECAUTIONS AT BEGGINING OF MANUAL
FOR BASIC WELDING INFORMATION.
4-8. WELDING WIRE INSTALLATION.
1
4
25
6
7
8
WIRE
JOG
5

PM1326
4-8. WELDING WIRE INSTALLATION - CONTINUATION
6
Open Pressure Assembly Pull and Hold Wire, Cut
Off End. Push Wire Thru Guides Into
Gun; Continue to Hold Wire
Hold Wire Tightly to Keep It From Unraveling
Close and Latch Pressure
Assembly, Let Wire Go Of Wire
Turn On Wire Feeder.
Turn On Welding Power Source
The Output Contactor Switch Must
Be in Next Position:
ON
OFF
POWER
WIRE
JOG
WOOD
Feed Wire, Check Drive Roll Pressure.
Tighten Knob Enough
to Prevent Slipping
Cut Off Wire.
Close And Latch Door.
Press Button Until Wire
Comes Out Gun.

PM1326
FIGURE 5-1 CONTROLS
SECTION 5 OPERATION
CAUTION SEE SAFETY SIGNAL AT THE BEGINING
THIS MANUAL
5-1. CONTROLS
Place the switch in ON position to turn on the unit.
Place the switch in OFF position to turn off the unit.
1- Work Clamp.
Use wire brush or sandpaper to clean metal at weld joint area. Use chipping hammer
to remove slag after welding.
Connect work clamp to a clean, paint-free location on workpiece, as close to weld
area as possible.
FIGURE 5-2 SAFETYEQUIPMENT
3
21
FIGURE 5-3 WORK CLAMP
1- Insulating Gloves.
2- Safety Glasses With Side Shields.
3- Welding Helmet.
Wear dry insulating gloves, safety glasses with side shields, and a welding
helmet with a correct shade of filter (see ANSI Z49.1).
1Toolsneeded:
FIGURE 5-4INPUTPOWERSWITCH
ON
OFF
POWER
7
BURNBACK
TIME
REMOTE VOLTAGE
ADJUSTMENT CONTROL
WIRE SPEED
CONTROL
PURGE BUTTON
JOG BUTTON
TRIGGER MODE
SELECTOR
GUN TRIGGER
RECEPTACLE

PM1326
0
10
20
30
40
60
50
70
80
90
100
FIGURE5-7JOGBUTTON
1.-JOGBUTTON
Pushandholdbuttontomomentarillyenergizefeedwelding
wire at speed set on wire speed control without energizing
weldingcircuit ofshieldinggasvalve.
GASPURGEBUTTON.
Pushandholdbuttontomomentarillyenergizegassolenoid
and purge air from gun shielding gas regulator without
energizing the welding circuit.
FIGURE5-8PURGEBUTTON
Install & Connect
Wire Feeder Install & Prepare Gun And Power
Source
Put On Personal
Safety Equipment Set All
Controls. Turn On
Shielding Gas
(If Applicable)
Beging
Welding
FIGURE 5-10 GAS METALARC WELDING (GMAW) & FLUX CORED ARC WELDING (FCAW).
Turn On
Wire Feeder &
Power Source
FIGURE 5-5 WIRE SPEED CONTROL
1.-WIRESPEEDCONTROL.
Usethiscontroltoselectwirefeedspeedinspeedranges.
Turn in clock wise to increase speed. The numbers is a
percentagerespectamaximunratedspeed(900ipm)
Readjust
Controls If Is
Necessary
1
FIGURE5-9 TRIGGERMODESELECTOR.
BURNBACK
Use control to adjust the time that the welding wireisenergizedafter wire
feedingstops.
Byadjustingcontrolproperly, theweldingwirewillnotfreezeinweldpuddle
or incontact tip of gun. If welding wire freezes towork, increase burnback
time. If welding wire burns back into contact tip, decreaseburnback time.
FIGURE 5-6 BURNBACKCONTROL
BURNBACK
TRIGGERMODESELECTOR.Usethiscontroltoselectthedesired
triggermode.
Select always one trigger mode:
1. 2T Trigger mode: When trigger is depressed, weld starts. When
trigger is released, weld stops.
2. 4T Trigger mode: When trigger is depressed, weld starts. When
triggerisreleased,weldremains.Afterdepressingandreleasing
the trigger for the second time, weld stops.
JOG BUTTON
0
1
2
3
4
6
5
7
8
9
10
PURGE
BUTTON
TRIGGER
8

PM1326
9
Remove carefully slags arround tip torch
using wood. NEVER use METALIC TOOLS
to remove slags.
Too many slags in electrode
Electrode wire does not feed.
Replace torch.
Wire does not feed until trigger is pulled, but
continues feeds after trigger is released Have a shortcircuit on torch between trigger al weld
cables.
Gas valve in wire feeder is ratting
loudly along, with possibly erratic
wire feed or low speed.
Have a shortcircuit on torch between trigger al weld
cables. Replace torch.
Fuse F1.
Incorrect gun trigger connection
Gun trigger.
Motor M1.
Motor Control Board PC1.
6-1 ROUTINE MAINTENANCE.
TIME
More than normal use: Check all labels ( see 6 month entry ), repair any damaged insulation or replace
holder or work cable, 14 pin remote cable,gas hose, torch cable, clean and tighten connections at
holder cable and work clamp.
EACH3 MONTHS
EACH6 MONTHS
MAINTENANCE
Blow Out Or Vacuum inside,During Heavy Service Clean Monthly,clean all rotatory parts.
Check and replace F1 if necessary.
Check torch trigger connection.
See torch owner´s manual.
Replace motor M1.
Replace PC1.
6-2 TROUBLESHOOTING.
TROUBLE POSSIBLECAUSE RECOMMENDEDACTION
No wire feed
Turn adjustment pressure nut in clock wise
sense; until find the addecuate pressure.
Change addecuate size of drive rolls.
Replace drive rolls.
Clean drive rolls
Replace PC1.
Erratic wire feed
Drive rolls pressure
Drive rolls size.
Worn drive rolls.
Dirty drive rolls.
Motor Control Board PC1.
SECTION 6 MAINTENANCE AND TROUBLESHOOTINS
REMOTEVOLTAGEADJUSTMENT
Use this control to set the arc voltage.
1- DIGITAL VOLTMETER.
It shows the output terminals voltage (in Volts) of the machine, but not
necessarily the arc voltage, due to the resistance of the weld cables, loose
connections, etc.
2- DIGITAL AMMETER.
It shows the weld current value in Amperes. 2
1

PM1326
6-3. OVERLOAD PROTECTION.
FIGURE 6-3 OVERLOADPROTECTION
DISCONNECTandturnoffwirefeederandpowersource
BEFOREproceed.
INAPPROPIATE FUSEScandamageunit. Besureto
select correct fuse size and capacity according
amperageused.
1.-FUSECOVER.Removefusecover.
2.- FUSE F1 (10 Amp.). F1 fuse protects agains
overloads to wire feeder. If F1 opens, unit shutdown.
ReplaceF1.
WARNING SEE SAFETY SIGNAL AT THE BEGINING THIS MANUAL
1
2
POWER
10

PM1326
SECTION 7 ELECTRICAL DIAGRAM.
11

PM1326
SECTION 8 PARTS LIST
1
1
1
4
1
ControlBox.
HubReel
Support,arm
Rubber,support1-1/8"
Chasis
List 7-1 Main Assembly
ITEM
1
2
3
4
FIG.7-2
PP3658
PT3623
MR01520
PB2389
PARTNo D E S C R I P T I O N QUANTITY
Figure 7-1 Main assembly
2
3
4
FIG 7-2
1
12

PM1326
13 FIGURE 7-2 CONTROL BOXASSEMBLY.
List 7-2 Control Box.
a
a
1 PC3133 Base box 1
2 MV00768 GS1 Solenoid Valve 1
2a PT1071 Retaining nut,Gas solenoid valve (not illustrated) 1
OverloadProtection. Consistingof:
MF02310 F1 Fuse,10A 1
MP00014 Fuse Holder, 15A 1
4 PT3636 PC1 PCB Control 1
5 MI01178 S1 Power Switch 1
6 MI00665 S2,S3 Switch, Pushbutton, SPST, Jog/Purge 1
7 MP02512 R1 Potentiometer 2W, 10 KW. 1
8 MR00503 RC2 Trigger Receptacle, 4 Socket 1
9 PM1262 M1 Wire feeder Assembly. (Seepage 14) 1
10 PC3266 Cover 1
11 PP4568 Nameplate 1
12 PT3602 PC2 PCB Burnback,2T-4T 1
13 MP03020 R2 Potentiometer 2W, 500KW 1
14 MP08416 Knob 1
16 MS04011 Insulator,Wire feedAssembly 1
17 PC3267 Door access 1
17a MS02534 Door Latch 1
18 PT2609 PC3 PCB, Digital meters 1
19 MI01227 S4 Switch SPST 1
20 MG02181 Insulator,inlet WireGuide 1
21 MB04284 InsulatingGromment,weldcable 1
22 MC11514 Burnback name plate 1
3
Item No. I.D. Description QuantiyPart No.

PM1326 14
LIST 7-3Part Listof FeederMechanismof Wire
IT.No PARTNo. DESCRIPTION QUANTITY
1 PB2324 Feed plate For Gun Locking Tab 1
2 ----- Roll (Ask to yourdistributor) 4
3 MB06013R Fixingarmcompl. CWF400-600 1
4 MG02270 Intermediate guide 1
5 MF02408R Shaft D6X35 2
6 MA04084R Retainingring 4
7 ME02416R Gas hose 1
8 MR10176R Support washer 1
9 MG02226R Inlet guid spiral 1
10 MT08686R Screw M5x10 4
11 MT08685R Screw M8x50 1
12 PS2098 Gun lokingtab 1
FIGURE7-3WireFeederAssembly
1
2
2
3
4
9
5
10
8
12
11
7
6
