Please read this manual completely before operating the SYSTEM
5-INCH “S”Please read this manual completely before
operating the SYSTEM
5-INCH “S”SERIES SYSTEM
Part # SM05S
7-INCH “S”SERIES SYSTEM
Part # SM07S
5-INCH “S”SERIES SYSTEM
Part # SM05S
5-INCH “S”SERIES SYSTEM
Part # SM05S
5-INCH “S”SERIES SYSTEM
Part # SM05S
© 2020 Verity Rear Vision Systems®
Vision Systems
Est. 2002 with over 18+ years of the
Latest Engineering, Highest Quality, Best Support
COST EFFICIENT
Est. 2002 with over 18+ years of the
Latest Engineering, Highest Quality, Best Support
COST EFFICIENT
Est. 2002 with over 18+ years of the
Latest Engineering, Highest Quality, Best Support
COST EFFICIENT
Est. 2002 with over 18+ years of the
Latest Engineering, Highest Quality, Best Support

2
TABLE OF CONTENTS & PHONE NUMBERS
ABOUT US
PAGE 3
THINK SAFETY
PAGE 4-5
SYSTEM FEATURES
PAGE 6
SYSTEM COMPONENTS
PAGE 7-8
SYSTEM CONNECTIONS
PAGE 9
MONITOR OPERATIONS
PAGE 10-12
SYSTEM DIMENSIONS
PAGE 12-13
KEY OPTIONS
PAGE 13
WARRANTY
PAGE 14
TECH SUPPORT
PAGE 15
SALES
574-807-6005
TECH SUPPORT
574-807-6004
WWW.VERITYRVS.COM
VERITYRVS®
Our tech support is manned by
real people in front of all of our
powered-up systems prepared to
knowledgeably talk you through
an issue solution –not a person
with no knowledge in front of a
spreadsheet of prepared
phrases. Verity=24/7 support for
OEMs and Fleets.

3
ABOUT US
Component Solution Services, LLC offers the Verity Rear Vision
Systems ®(Verity) to meet any requirements and price point within
the trucking, specialty vehicles, and RV industry. Verity is also home
to the Supreme View®line of specialty format systems. Our standard
cabled systems offer unparalleled features into the trucking and RV
industries. Designed for professional drivers, Verity develops and
markets products and applications to transmit video, audio, and data
either individually or in all combinations. The company has also
developed, manufactured, and marketed different kinds of personal
and vehicle video cameras, DVRs, and accessories for the
commercial transportation, fire/rescue, and marine OEM markets.
The photograph above shows our new 5,000 ft addition.
Use this barcode or
link to visit our
website
www.verityrvs.com

4
THINK SAFETY
Read our manual before operating
or installing this system.
Most likely, your system came pre-installed so the installation
section would be for reference.
Thank you for your purchase of our Verity Rear Vison System
SM05S. When installed and used properly, your SM07S is
designed to deliver you years of trouble-free operation. This
manual contains important information required to properly
install and operate the unit. Verity units are designed for
quick installation by trained professionals in proper
installation environments. Our designs are based on
decades of working with vehicle manufacturers.
Verity products are intended to be installed as a supplement
and our observation systems and/or products are not
intended for use as substitutes for rear-view mirror devices,
or for any other standard motor vehicle equipment which may
be required to be installed on vehicles by law. Verity
products promote improving the vehicle operator’s field of
view. Our products are no substitute for proper defensive
driving techniques, observance of traffic laws, and motor
vehicle safety regulations.
Installation Location
It is unlawful in most locals for any person to drive a motor
vehicle equipped with a television viewer/screen located at
any point forward of the back of the driver’s seat (or in any
location that is visible, directly or indirectly) to the driver while
operating the vehicle. Our systems are designed to be used
primarily as a rear observation device.
DO NOT OPEN ANY COMPONENT. There are no
serviceable parts inside any of the components of the
SM07S. Opening the product will break the tamper indicators
and void the warranty. Contact our tech support if a problem
should arise: 574-807-6002. For faster response, fill out a
service ticket found on our website. www.verityrvs.com

5
WARNING
Do not place heavy objects on cables or cover
them with carpet or mats.
Do not place cables where they can be
crushed in any manner.
Our systems are designed as a driving aid.
Watching videos, broadcasts, DVDs and/or any
images other than intended driving assistance
cameras is prohibited.
CAUTION
To avoid damage to the electronic circuit, stop
using this product while doing welding work to
the vehicle and/or trailers.
Never immerse any component in water, and
do not employ spray cleaners. When cleaning,
use a damp lint-free cloth only.
Connect this unit only to other compatible
devices.
Although our products have built-in surge and
cross polarity protection, make sure all cables
are connected properly; improper cable
connections may damage the camera and the
monitor.
Cables should not be allowed to touch hot or
rotating parts, such as the engine, ventilator,
etc.
Do not locate the monitor near heat generating
vents or devices.
Turn off power to the monitor when connecting
the camera.
Monitors are not designed to be waterproof. (Our
SM07F waterproof monitor is the exception).
Exposure to water, such as rain, may damage the
unit.

6
SYSTEM FEATURES
MONITOR SPECIFICATIONS
(Monitor part #MK07S)
Screen size: 7-inch digital screen (16:9)
High Resolution: 1024 × 600 Pixel (RGB)
System: PAL/NTSC selectable
Contrast: 400:1
Brightness: 300 cd/m2
Power supply: DC 12V~24V with reverse polarity protection
Operation temperature: -30°~80°C
Storage temperature: -20°~70°C
Monitor view angle: Horz. L(70) R(70) Vert. UP(50) DOWN(70)
3 AV with shrink tube labeled trigger wires,
Auto blue screen if no signal on the activated channel.
Size: 7”(W) x 4 ¾”(H) x 2 ¾”(D) Weight: 14.7 oz
Features: Removable HD sunshade, LCD screen, LED blue light
buttons, high-quality processor, in-line waterproof fuse, easy to use
OSD menu function via buttons: reversing image delay time 0~10s,
Mirror/Normal image, plus horizontal flip, multi-language, high
output speaker.
CAMERA SPECIFICATIONS
(Camera Part #C001S)
Horizontal Resolution: 600 TV Lines
TV System: NTSC
Image Type: 1/3 Inch Color CCD SONY (or equivalent)
(no cheap off brands used)
Effective Pixel: 976 (H) x 499 (V)
Illumination: 0 Lux (built-in 17 high output IR LEDs for night vision)
Aluminum Housing
Waterproof: IP69K
Power Supply: DC 12V (power from the monitor)
Shockproof: 10G
Operating Temperature: -40°~70°C
Built-in Microphone
Viewing Angle: 170°

7
SYSTEM COMPONENTS
Weatherproof Camera
with night vision
20-Meter Camera
Cable
“Fan” Style Mount
13-pin to 4-pin Monitor
Harness
7-Inch digital
LCD monitor
Manual

8
SYSTEM COMPONENTS
This monitor can be mounted on the dash and also on horizontal
and vertical surfaces. Make sure the view is suitable for the driver
to observe the images. Take care not to block any necessary
viewing area when mounting. Before mounting the system,
permanently hook up all connections to ensure proper operation.
Mounting Monitor
•After determining the monitor location, position the monitor
support bracket, mark the bolt hole location and then drill the
holes. Be careful not to drill into any other surface that wires
and components may be hidden.
•Attach monitor Fan bracket
•Connect one end of the power cable (wire) to the proper
connections. Connect the other end of the power cable (plug)
to the monitor; connect the monitor and the camera with the
13-pin system connecting the cable. (see page 9)
Camera Connection
Thru-wall Gasket to Seal
Thru Vehicle Exterior
Waterproof Aviation
Connectors
Be sure to use the
vibration gasket when
installing the camera. It
is package with the
camera hex wrench.
Do NOT make the cable tight from the
back of camera going into the truck

9
CABLE CONNECTIONS
DC
Chassis Ground
Fuse
Camera two trigger wire
Camera three trigger wire
Camera one trigger wire
CAM 1
CAM 3
CAM 2
Wire Connection Key:
RED wire to ignition hot (+) 10-26 volts
BLACK wire to ground (-) (please use a chassis ground post)
BROWN trigger wire is for camera 1. Connects brown trigger
wire to backup light wire or backup beeper wire. This connection
is needed to activate the monitor when putting the vehicle into
reverse.
BLUE (CAM 2) trigger wire for accessory cameras (side cameras
etc.) DO NOT power this wire unless you intend to trigger a
second camera. It will be connected to your trigger power
source, such as a turn signal light wire.
YELLOW (CAM3) trigger wire for accessory cameras (side
cameras etc.) DO NOT power this wire unless you intend to
trigger a third camera

10
MONITOR OPERATIONS
Buttons from left to right
1. (VOL+) Volume Increase Up Arrow
2. Menu Control Button
3. (VOL-) Volume Decrease Down Arrow
4. Power Off/On button - Red color is stand-by- Blue is powered
5. Channel / Camera 1
6. Channel / Camera 2
7. MODE
Monitor will turn on atomically if trigger wire is activated.

11
MENU OPERATIONS
MENU OPTIONS
The menu button operates the menu options:
The following shows how the menu options work.
The down and up arrow buttons control decreases
and increases the options.
Menu Press 1 time
PICTURE: Brightness, displays on-screen.
BRIGHTNESS 20
Menu Press 2 times
CONTRAST: Contrast, displays on screen.
CONTRAST 20
Menu Press 3 times
COLOUR (Color): displays on the screen.
COLOUR 20
Menu Press 4 times
VOLUME: displays on the screen.
VOLUME 20
Menu Press 5 times
ZOOM Toggles between 16:9 / 4:3 image sizes

12
Menu Press 6 times
“ICON”Image Orientation:
This selection flips each camera image individually both horizontally
and vertically. This allows for a correct image of interior/forward-
facing cameras.
Menu Press 7 times
LANG (LANGUAGE): “Show English as the primary language.”
Displays on the screen.
LANG ENGLISH
Menu Press 8 times
ACC Time time monitor stays on after the trigger wire is deactivated.
It can be set to 0, 2, 5, and 10-second delays.
SIDE CAMERA HOOK UP –when adding a side camera,
set that camera delay to 2 seconds.
Menu Press 9 times
Auto-dimming function
Menu 10 times
Parking line functions
Menu 11 times
Resets the monitor back to factory defaults

13

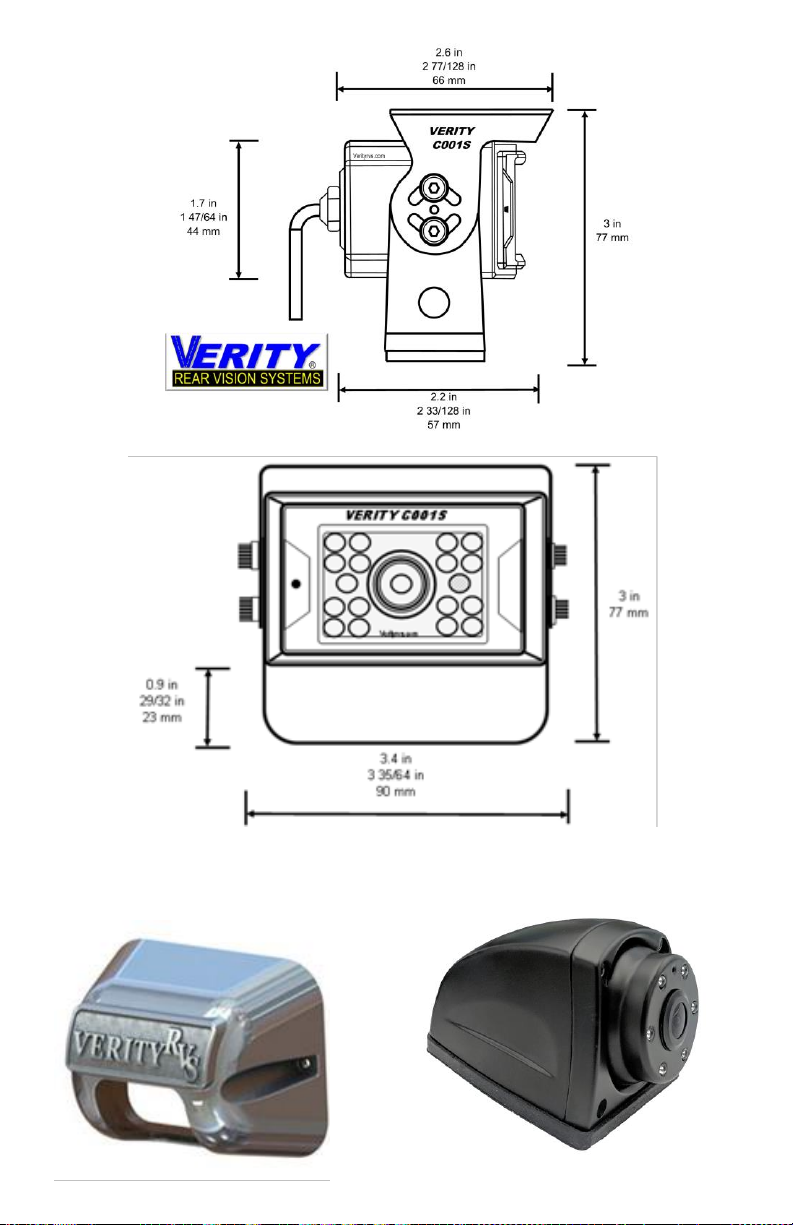

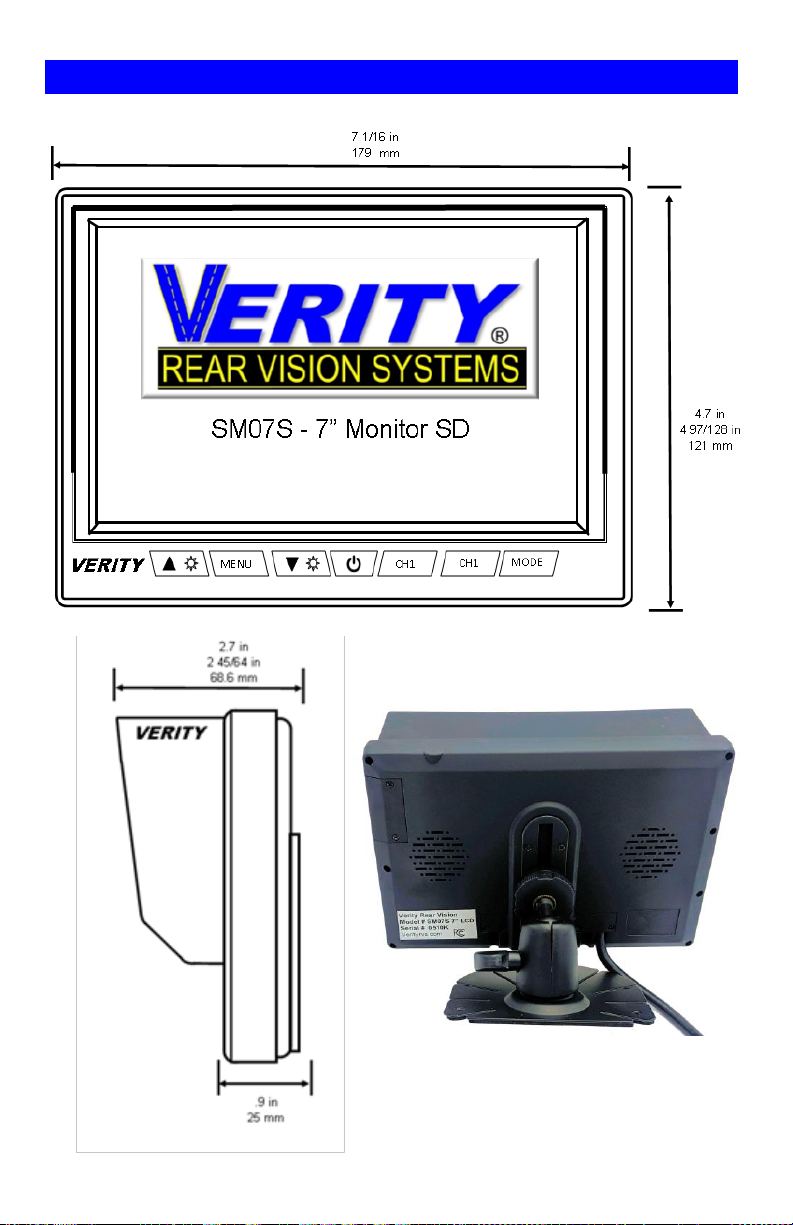

SYSTEM DIMENSIONS

14
KEY OPTIONS
C100Z Camera Cover
C115 Side Camera

15
Verity Rear Vision Systems
A division of
COMPONENT SOLUTION SERVICES (CSS)
LIMITED ONE (1) YEAR WARRANTY
1. VerityRVS®products’ warranties are not transferable. The warranties apply to
the retail consumer for one (1) year and covers against defects in material and
quality. Cables are not warrantied.
2. Defective components will be replaced or repaired, based on a VerityRVS
evaluation of the component. In-bound shipping charges, based on the
VerityRVS rate allocated in the RMA (returned merchandise agreement), will be
covered once the component has been deemed defective at the CSS warranty
facility. The pre-assigned in-bound freight will be supplied upon the return of the
product. All repaired/replaced warranty parts shall be for the remaining duration
of the original warranty time period.
3. VerityRVS takes pride in our products and will aid in the processing of your
components:
a) All warranty claimants must have consulted our technical support department
for troubleshooting and the acquiring of an RMA. Contact can be made via
email at [e-mail] or call 574-807-6002.
b) When the warranty claim is made, the consumer must establish the warranty
start dates by presenting documentation regarding the date of retail purchase
(e.g., bill of sale).
c) Service performed by non-authorized service personnel may void all warranty
claims.
d) VerityRVS will make no payments for system removal or system re-installing,
mileage allowance, or transportation expenses.
The limited warranty does not cover damage resulting from misuse, accident,
modification, or alteration to hardware or software, tampering, unsuitable
physical or operating environment beyond product specifications, improper
maintenance, or failure caused by a product for which VerityRVS is not
responsible. There is no warranty for any product with removed or altered
identification labels. VerityRVS DOES NOT PROVIDE ANY OTHER
WARRANTIES OF ANY KIND, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. SOME JURISDICTIONS DO NOT
ALLOW THE LIMITATION OF IMPLIED WARRANTIES, SO THIS LIMITATION
MAY NOT APPLY TO YOU.
4. This warranty gives you specific legal rights, and you may also have other
rights that vary from state to state.

16
Technical Support
A service ticket can be found online and completed to supply the
quickest service. The service ticket can be easily found on our
web site www.VerityRVS.com or use the 3-D code below. Please
have the serial number of the system, which is found on the back
of the monitor when contacting the service
department. We take great pride in delivering
the most dependable product in the industry.
Each item was 100% QC tested, and then we
randomly recheck another up to 10% before it
leaves our hands to you. We have a .024%
issue rate for all Verity cameras and monitors
over the past eight years.
Email Tech Support: [email protected]
Phone Tech Support: 574-807-6004
Note: After office hours calls will be answered or called back as
quickly as possible by one of our Tech Team. Please note:
Technicians cannot provide pricing or availability.
a division of
Component Solution Services
56600 Twin Branch Dr.,
Mishawaka, IN 46545
574-807-6002
Toll-Free 844-875-4799
We at Verity Rear Vision Systems would like to
personally thank you for purchasing our product.
We at Verity strive to supply the best products at a
competitive price. We care that you enjoy a
safe driving experience.
We at Verity Rear Vision Systems would like to
personally thank you for purchasing our product.
We at Verity strive to supply the best products at a
compedative price. We care that you enjoy a safe
Subject to change without notice © 2020 Verity Rear Vision Systems®
