Component Solution Services VERITY SMQ7J User manual

A division of
Component Solution Services, LLC.
56600 Twin Branch Dr.,
Mishawaka, IN 46545
www.verityrvs.com
Please read this manual completely before operating the SYSTEM
Verity Rear Vision Systems
All rights reserved 2019
Just View It!®
7 INCH DIGITAL
MONITOR SYSTEM
Part # SMQ7J

www.VerityRVS.com
Verity Rear Vision Systems
Just View It!®
Now includes our ADD25F

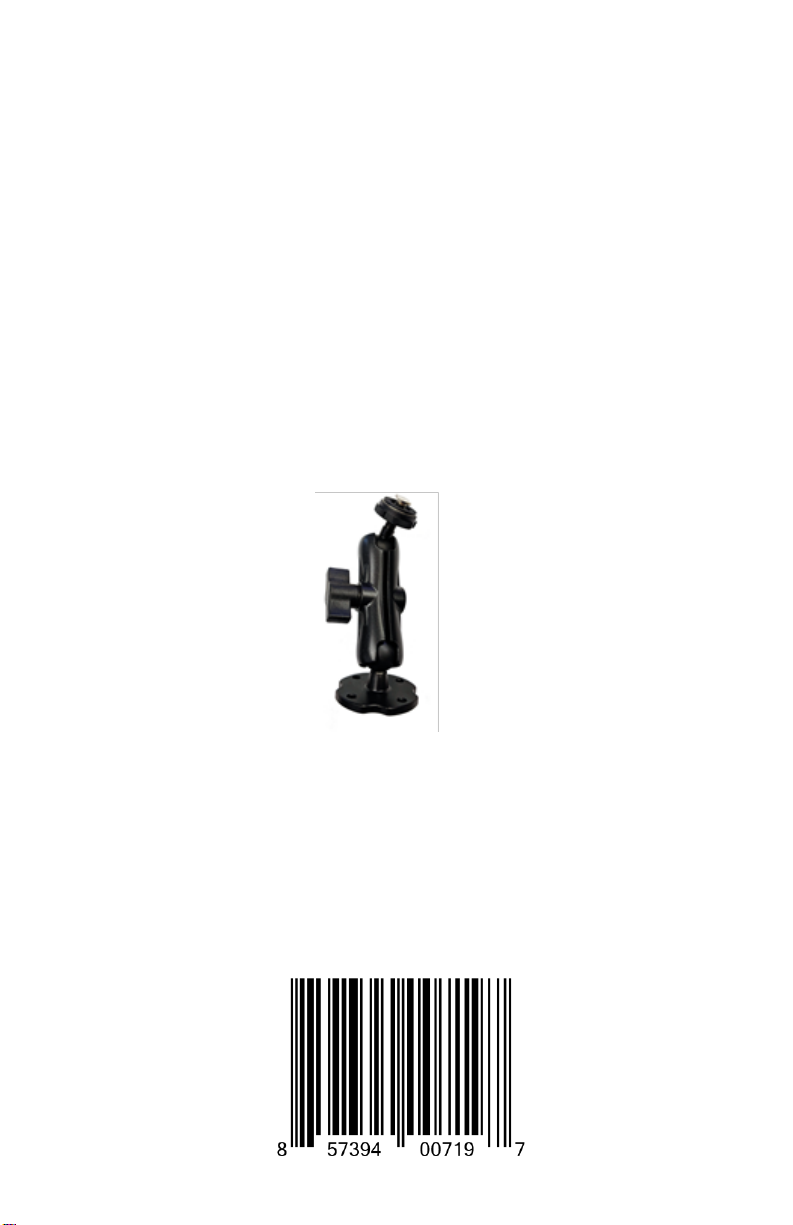

Heavy Duty Mount

Component Solution Services LLC., offers the Verity
Rear Vision Systems® to meet any requirements
and price point within the trucking, specialty vehicles,
and RV industry. Verity Rear Vision Systems® is also
home to the Supreme View® line of specialty format
systems. Our standard cabled systems offer
unparalleled features into the trucking and RV
industries. Designed for professional drivers, Verity
Rear Vision Systems develops and markets products
and applications to transmit video, audio, and data
either individually or in any and all combinations. The
company has also developed, manufactured, and
marketed different kinds of personal and vehicle video
cameras, DVRs, and accessories for the commercial
transportation, fire/rescue, and marine OEM markets.

Think safety
First
Read our manual before operating
or installing.
Most likely, your system came preinstalled so the installation
section would be for reference.
Thank you for your purchase of our Verity Rear Vision
Systems®. When installed and used properly, your SM07J is
designed to deliver you years of trouble-free operation. This
manual contains important information required to properly
install and operate the unit. Verity Rear Vision Systems are
designed for quick installation by trained professionals in
proper installation environments. Our designs are based on
decades of working with vehicle manufacturers.
Verity Rear Vision Systems products are intended to be
installed as a supplement and our observation systems and/or
products are not intended for use as substitutes for rear-view
mirror devices, or for any other standard motor vehicle
equipment which may be required to be installed on vehicles
by law. Verity Rear Vision Systems products promote
improving the vehicle operator’s field of view. Our products
are no substitute for proper defensive driving techniques,
observance of traffic laws and motor vehicle safety
regulations.
Installation Location
It is unlawful in most locals for any person to drive a motor
vehicle equipped with a television viewer/screen located at
any point forward of the back of the driver’s seat (or in any
location that is visible, directly or indirectly), to the driver while
operating the vehicle. Our systems are designed to be used
primarily as a rear observation device.
DO NOT OPEN ANY COMPONENT. There are no
serviceable parts inside any of the components of the Verity
Rear Vision products. Opening the product will break the
tamper indicators and void the warranty. Contact our tech
support if a problem should arise 574-807-6002. For faster
response, fill out a service ticket found on our website tech
support section. www.verityrvs.com

WARNING
Do not place heavy objects on cables or cover
them with carpet or mats.
Do not place cables where they can be
crushed in any manner.
Our systems are designed as a driving aid.
Watching videos, broadcasts, DVDs and/or any
images other than intended driving assistance
cameras is prohibited.
CAUTION
To avoid damage to the electronic circuit, stop
using this product while doing welding work to
the vehicle and/or trailers.
Never immerse any component in water, and
do not employ spray cleaners. When cleaning,
use a damp lint-free cloth only.
Connect this unit only to other compatible
devices.
Although our products have built-in surge and
cross polarity protection, make sure all cables
are connected properly; improper cable
connections may damage the camera and the
monitor.
Cables should not be allowed to touch hot or
rotating parts, such as the engine, ventilator,
etc.
Do not locate the monitor near heat generating
vents or devices.
Turn off power to the monitor when connecting
the camera.
Monitors are not designed to be waterproof. (Our
SM07F waterproof monitor is the exception.)
Exposure to water, such as rain, may damage the
unit.

3 ¼”
2 7/8”
1 3/4”
SYSTEM FEATURES
MONITOR SPECIFICATIONS
MONITOR SPECIFICATIONS (part# MK07K)
Screen size: 7-inch digital screen (16:9)
Long Life High Resolution: 800 × 480 Pixel (RGB)
System: PAL/NTSC selectable
Contrast: 400:1
Brightness: 450cd/m2
Power supply: DC 12V~24V with reverse polarity protection
Operation temperatures: -30~70C
Storage temperature: -40~80C
2 AV color coded inputs with color coded trigger wires,
auto blue screen if no signal on activated channel
Features: HD sunshade, auto light sensor dimming for buttons and LCD
screen, LED blue light buttons, high quality processor, in-line waterproof fuse
Easy to use OSD menu function via buttons & remote: image delay on time
0~15s, (for side cameras) Mirror/Normal image, multi-language, NEW!
Adjustable guidelines.

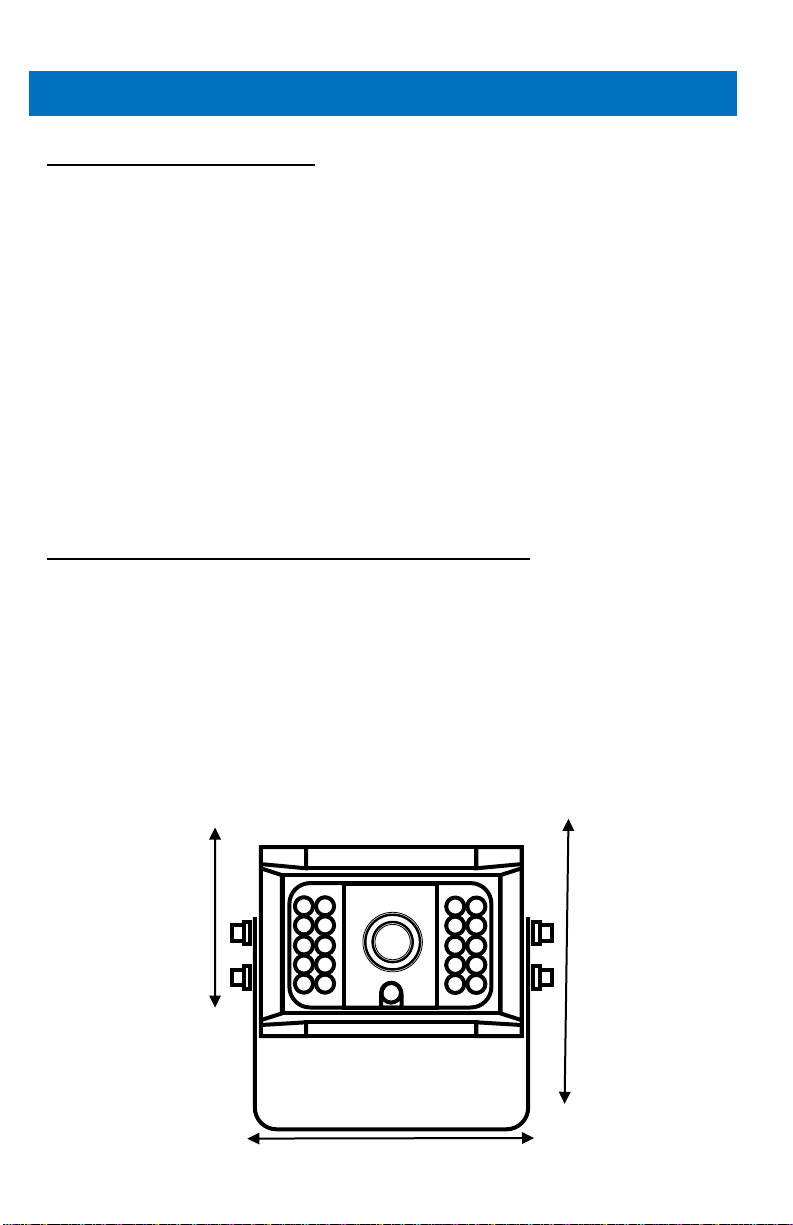

1 / 3” COLOR CCD SENSOR SPECIFICATIONS
With Audio and IR TV System: NTSC
Aluminum shelled waterproof camera with hex bolts for insured positioning
Image Type: 1/3 Inch Color CCD Sharp® or equivalent (no cheap off brands)
Horizontal Resolution: 700 TV Lines
Effective pixel: NTSC: 510 (H) × 492(V)
Illumination: 0 Lux (built-in 20 high output IR LED's for night vision)
Viewing angle: 120°
Waterproof: IP69K Shockproof: 10G
Operating temperature: -40°C to +70°C
Power supply: 12V DC (powered by monitor)

SYSTEM COMPONENTS
I/F Remote
Infrared Weatherproof Camera
65 foot
Camera Cable
H Mount
13-pin Monitor Cable
7-Inch HD QUAD LCD
Manual

SYSTEM COMPONENTS
This monitor can be mounted on the dash and can be mounted
on both horizontal and vertical surfaces. Make sure the view is
suitable to the driver to observe the images. Take care not to
block any necessary viewing area when mounting. Before
mounting the system, permanently hook up all connections to
ensure proper operation.
Mounting Monitor
1. After determining the monitor location, position the
monitor support bracket, mark the bolt hole location, and then
drill the holes. Be careful not to drill into any other surface that
may be hidden.
2. Attach monitor bracket. Mount the monitor to the support
bracket with supplied 4 angle adjustment screws.
3. Connect one end of the power cable (wire) to the proper
connections. Connect the other end of the power cable (plug)
to the monitor; connect the monitor and the camera with the 13-
pin system connecting cable.
Camera Connection
Thru-wall Gasket To Seal
Thru Vehicle Exterior
Secondary Waterproof Sleeve
Slides Over Aviation Connection
Waterproof Aviation
Connectors

MONITOR / REMOTE OPERATIONS
DIM Auto Dimming Photo Cell
CAM Switches between cameras
M/N Mirrored / Normal View
D/N Day / Night screen brightness (Works only when not in
auto dim mode)
POWER Power on/off button RED power off / BLUE powered
MENU Activates operational menu
Down Volume DOWN / switches down when in menu
UP Volume UP / switches up when in menu
IR Remote sensor
VOLUME
INCREASE
MENU
VOLUME
DECREASE
POWER
SWITCH
CAMERA

CONNECTION OPERATIONS
13-Pin female
Female on Both
Ends
13-Pin male

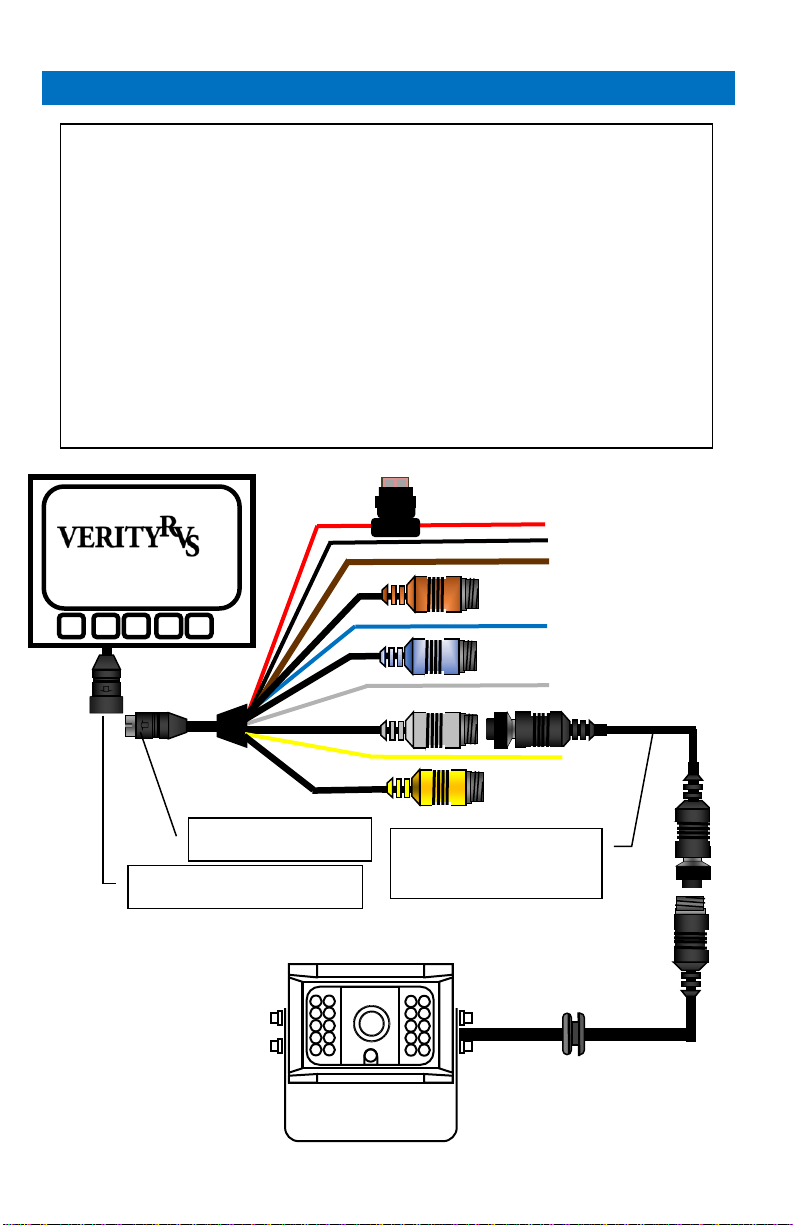

Verity Rear Vision Systems Wire Connection Key
4-pin camera connectors & trigger wires
Brown -Camera 1 rear (Brown 4-pin/trigger)
Blue -Camera 2 optional (Blue 4-pin/trigger)
White-Camera 3 rear (White 4-pin/trigger)
Yellow -Camera 4 rear (Yellow 4-pin/trigger)
Red wire to key-on hot (+) 10-32v. DC (fused)
Black wire to GND. (-)
Brown wire to positive backup light for reverse trigger camera 1
BE SURE TO ALIGN 13 PIN CONNECTION
If force is applied to this connection when not aligned, it may
damage plug pins and void the warranty.

MENU OPERATIONS
Press Menu:
1 time:
Use DOWN / UP arrows to turn the auto dim on/off
2 times:
Use DOWN / UP arrows to adjust contrast
3 times:
Use DOWN / UP arrows to adjust brightness
4 times:
Use DOWN / UP arrows to adjust color
DIMMER AUTO
CONTRAST 50
llllllllllllllllllll-------------
BRIGHTNESS 50
llllllllllllllllllll-------------
COLOR 50
llllllllllllllllllll-------------

5 times:
Use DOWN / UP arrows to adjust Camera 1 mirrored/normal view
6 times:
Use DOWN / UP arrows to adjust Camera 3 mirrored/normal view
6 times:
Use DOWN / UP arrows to adjust Camera 3 mirrored/normal view
8 times:
Use DOWN / UP arrows to adjust Camera 4 mirrored/normal view
9 times:
Use DOWN / UP arrows to adjust between 10 languages
10 times:
Use DOWN / UP arrows to adjust camera scan time delay
MENU OPERATIONS
CAM 1 NORMAL
CAM 2 NORMAL
ENGLISH
CAM SCAN OFF
CAM 3 NORMAL
CAM 4 NORMAL

11 times:

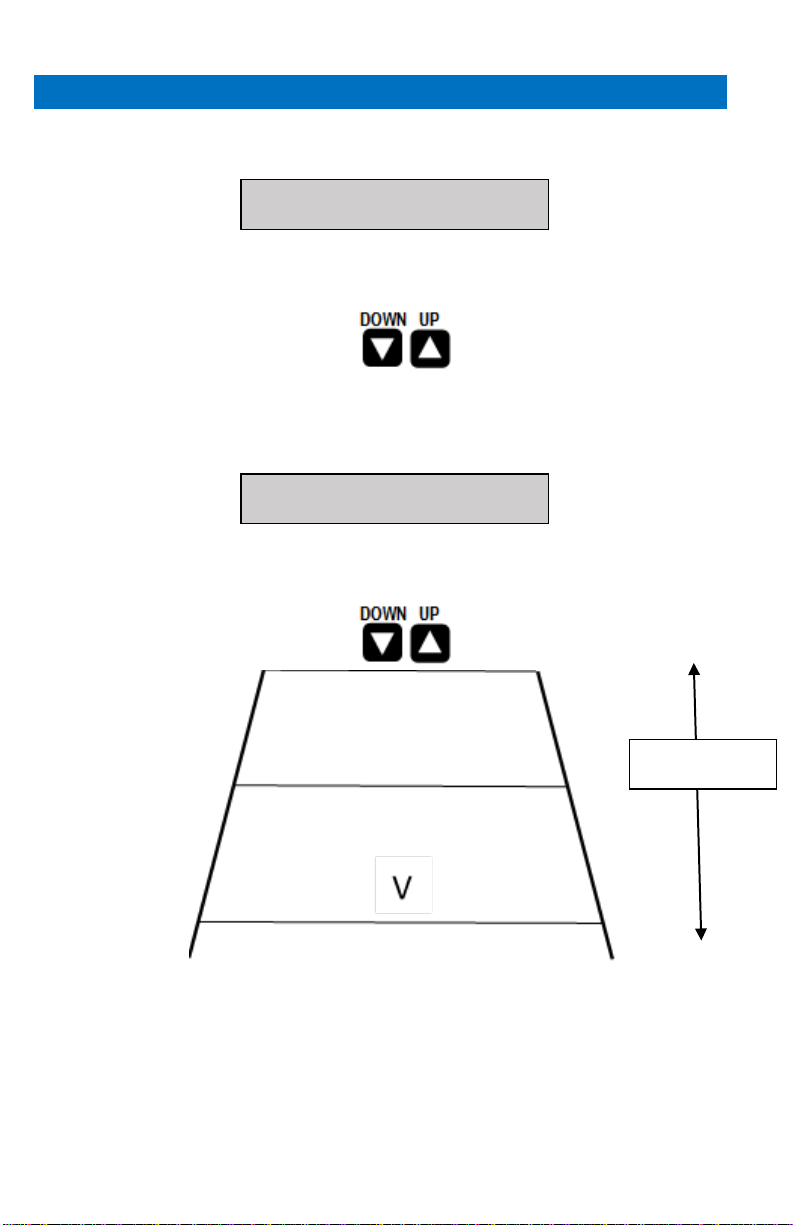

Use DOWN / UP arrows to turn on park lines
12 times (if parking lines on):
Use DOWN / UP arrows to turn / adjust parking lines Vertically
MENU OPERATIONS
PARK ON
PARK OFF
Movement

MENU OPERATIONS

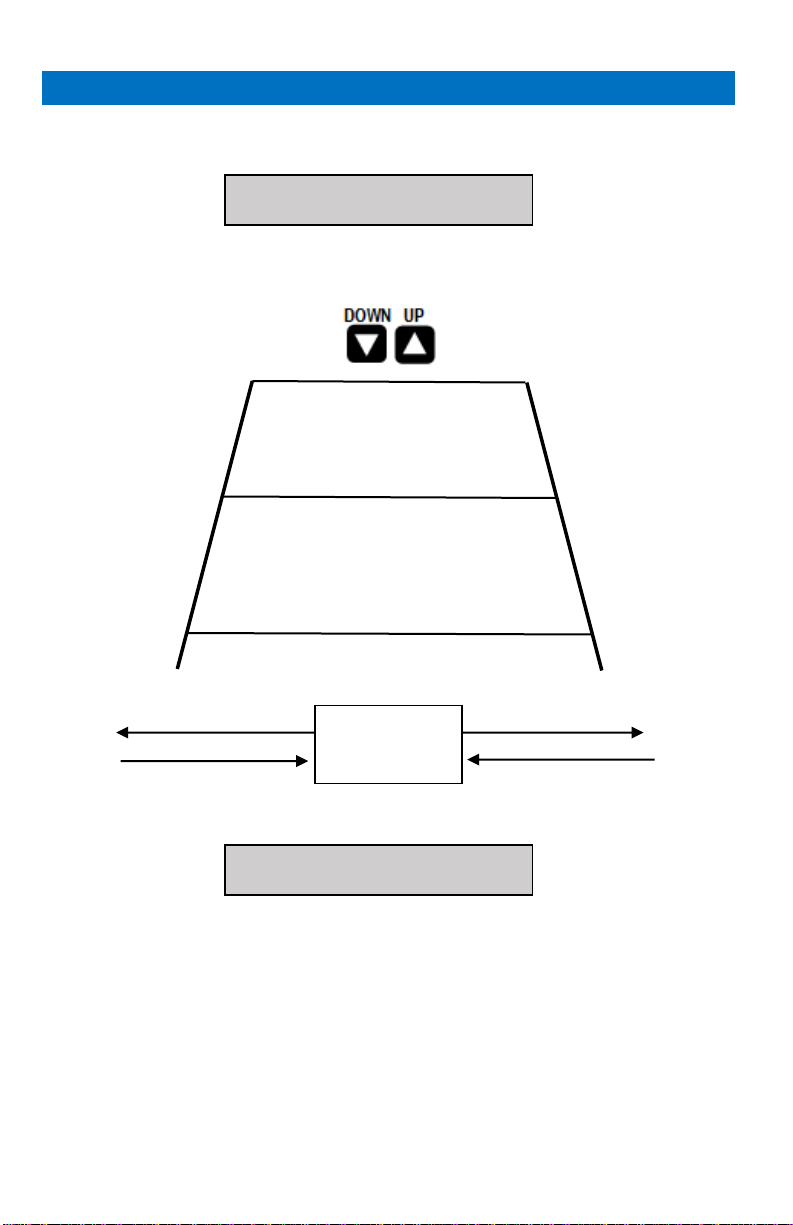

13 times (if parking lines on):
Use DOWN / UP arrows to turn / adjust parking lines width
14 times
This will reset factory defaults
PARK OFF
Movement
in & out
w
RESET

Verity Rear Vision Systems
A division of
COMPONENT SOLUTION SERVICES (CSS)
LIMITED ONE (1) YEAR WARRANTY
1. CSS products’ warranties are not transferable. The warranties apply to the
retail consumer for one (1) year and covers against defects in material and
workmanship.
2. Defective components will be replaced or repaired, based on a CSS
evaluation of the component. In-bound shipping charges, based on the CSS rate
allocated in the RMA (returned merchandise agreement), will be covered once
the component has been deemed defective at the CSS warranty facility. The
pre-assigned in-bound freight will be supplied upon return of product. All
repaired/replaced warranty parts shall be for the remaining duration of the
original warranty time period.
3. CSS takes pride in our products and will aid in the processing of your
components:
a) All warranty claimants must have consulted our technical support department
for trouble shooting and the acquiring of an RMA. Contact can be made via
email at [e-mail] or call 574-807-6002.
b) When the warranty claim is made, the consumer must establish the warranty
start dates by presenting documentation regarding the date of retail purchase
(e.g., bill of sale). c) Service performed by non-authorized service personnel
may void all warranty claims.
d) CSS will make no payments for system removal / system re-installing, mileage
allowance, or transportation expenses.
The limited warranty does not cover damage resulting from misuse, accident,
modification or alteration to hardware or software, tampering, unsuitable physical
or operating environment beyond product specifications, improper maintenance,
or failure caused by a product for which CSS is not responsible. There is no
warranty for any product with removed or altered identification labels. CSS
DOES NOT PROVIDE ANY OTHER WARRANTIES OF ANY KIND,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF
IMPLIED WARRANTIES, SO THIS LIMITATION MAY NOT APPLY TO YOU.
4. This warranty gives you specific legal rights, and you may also have other
rights that vary from state to state.

Technical Support
A service ticket can be filled out online to supply the quickest
service. The service ticket can be easly found on our web site
www.verityrvs.com or use the code to the right. Please have the
serial number of the system which is found on the back of the
monitor when contacting the service department. We take great
pride in delivering the most dependable product in the industry.
Each item was 100% QC tested and then we randomly recheck
another up to 10% before it leaves our hands to
you. We have a .034% issue rate with this
product.
Email Tech Support: [email protected]
Phone Tech Support: 574-807-6002
Note: if you are a fire/rescue customer in need of
tech support after hours or on weekends, leave a message and a
technician will return your call as soon as one becomes available.
a division of
Component Solution Services
56600 Twin Branch Drive
Mishawaka, IN 46545
574-807-6002
Toll Free 844-875-4799
We at Verity Rear Vision Systems would like to
personally thank you for purchasing our
product. Our company strives to supply the
best products at a fair price. We care that you
enjoy a safe driving experience.
2019 Verity Rear Vision Systems
All content is copy right protected
